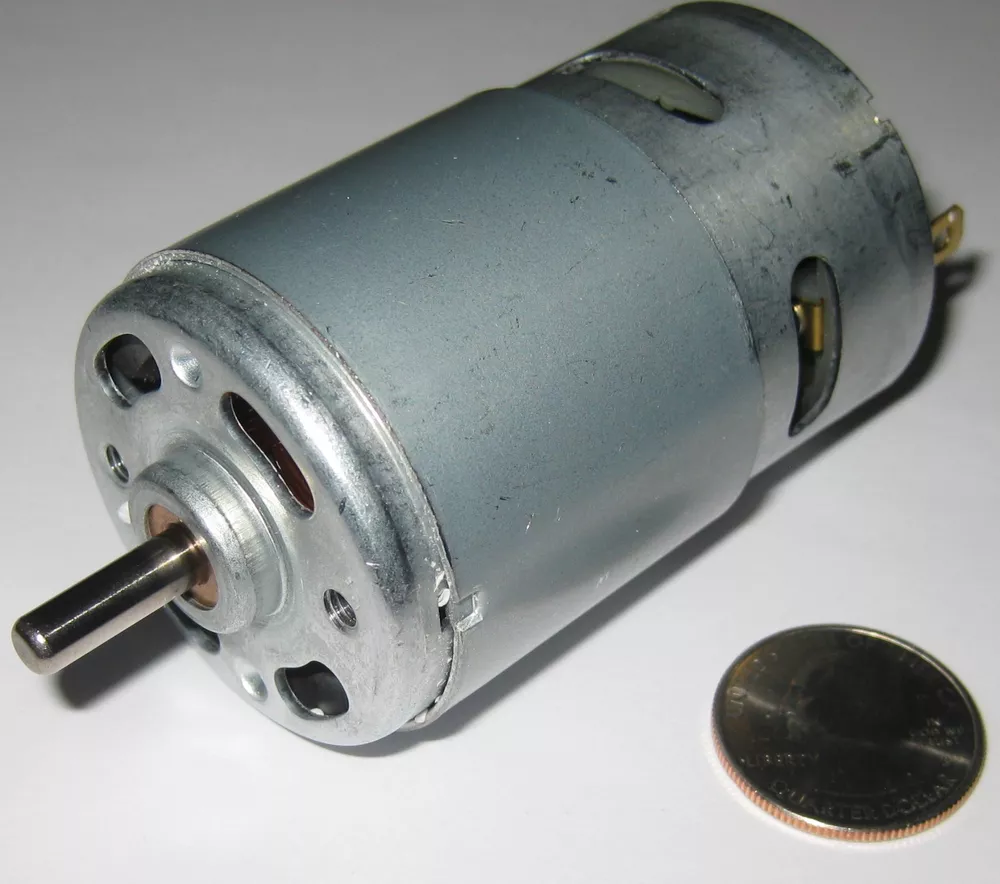

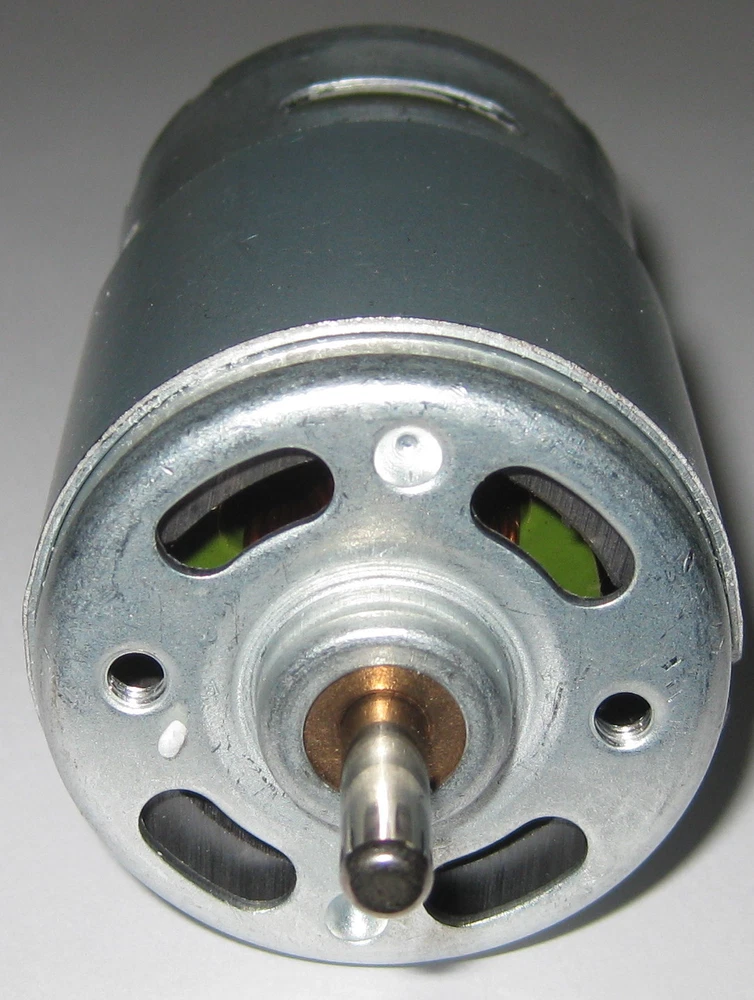

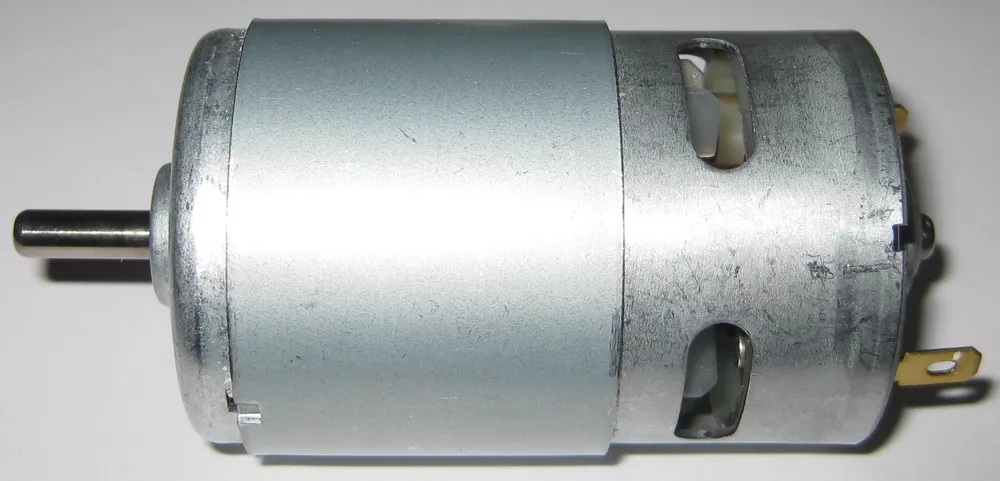

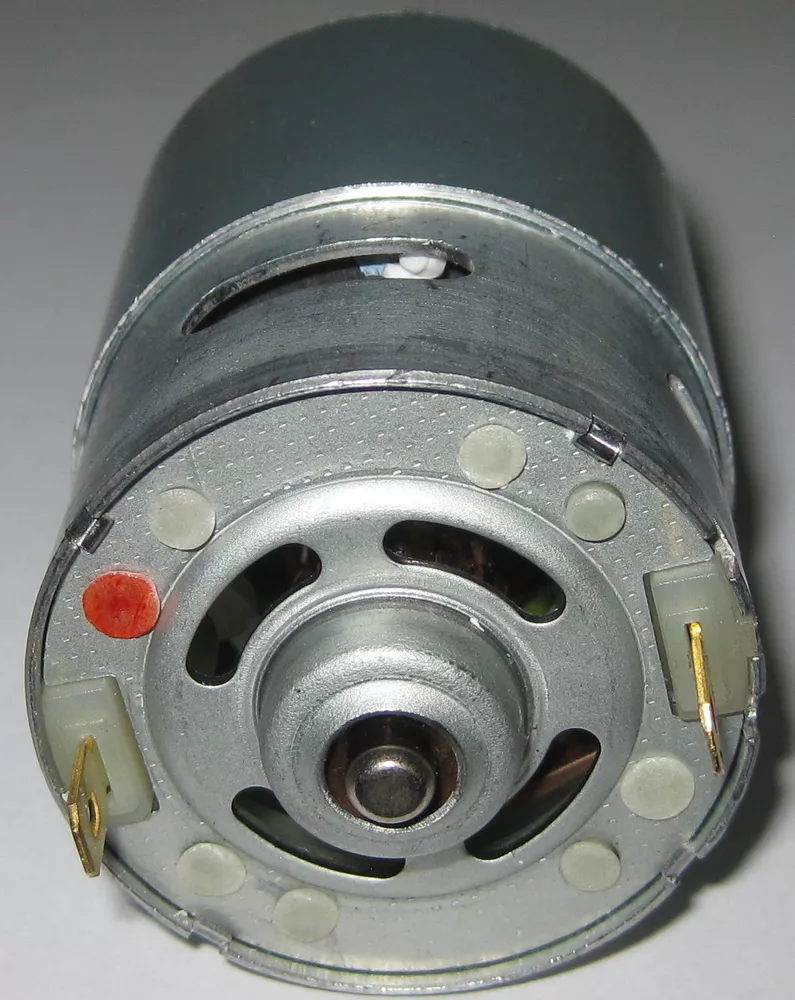

100 Watt Electric 12 VDC Motor w/ Fan - 15,000 RPM - 775 Frame Size Robot Hi RPM

$ 12.12

UPC: Does not apply Reversible/Non-Reversible: Reversible Shaft Type: Straight Full Load Amps: 11.3 A Shaft Diameter: 5.0 mm Type: Brushed Motors Brand: Unbranded/Generic Model: RS-775SH Starting/Locked Rotor Torque: 5639 g-cm Base RPM: 15000 RPM Power Source: DC Current Type: DC DC Stator/Winding Type: Permanent Magnet Rated/Full-Load Torque: 716 g-cm MPN: RS-775SH Nominal Rated Input Voltage: 12 V gtin13: Does not apply

Description

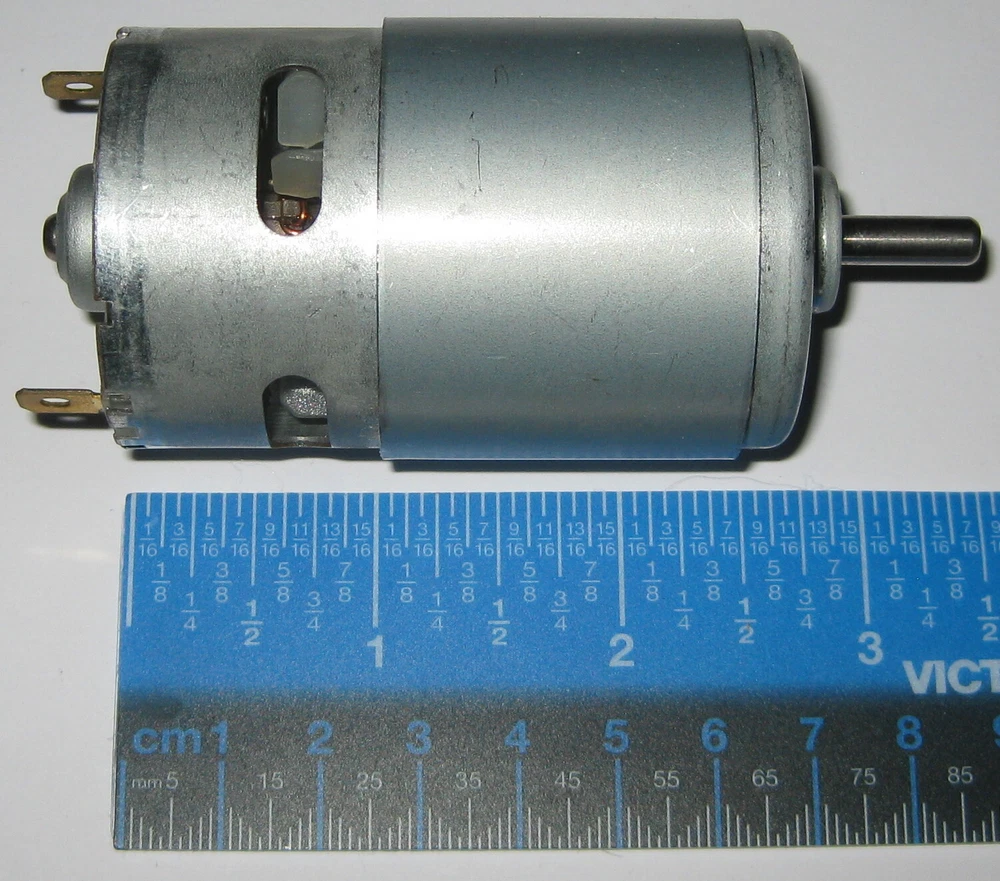

100 Watt Electric 12 VDC Motor w/ Fan - 15,000 RPM - 775 Frame Size Robot High Speed DC Motor RS-775SH DC electric motor Operates on 12 VDC nominal No load speed: 15,000 RPM No load current:2.1 A Rated load speed: 13,000 RPM Rated load current: 11.3 A Rated load torque: 716 g-cm (70 mNm) Output power: 100 Watts Stall current @ 12 VDC: 78 A Stall torque: 5,639 g-cm (553 mNm) Leaf brushes Round shaft dimensions: 14 mm L x 5 mm Diameter Dimensions (not including shaft): 67 mm long x 44 mm diameter Ideal for robotics, propulsion, and any other project requiring high speed motors Can be operated in either direction, simply reverse power supply polarity Weight: 11.8 oz (334 g) Comes with solder eyelets for power connection Built-in fan for cooler operation Intermittent duty Two threaded (M4 x 0.7) mounting holes on 29 mm diameter in drive end face 3 pole armature
