12V 24V Automotive Circuit Tester Probe for Fuel Injection Diagnostics

Description

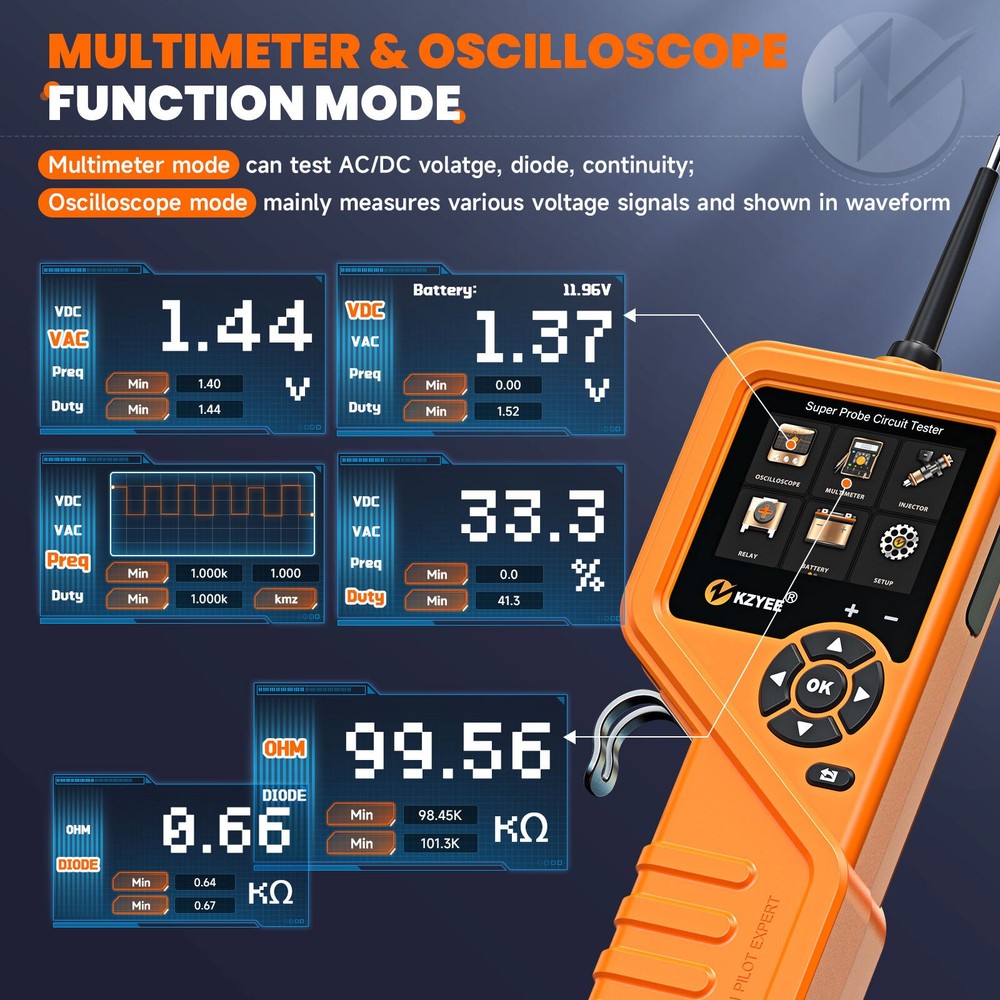

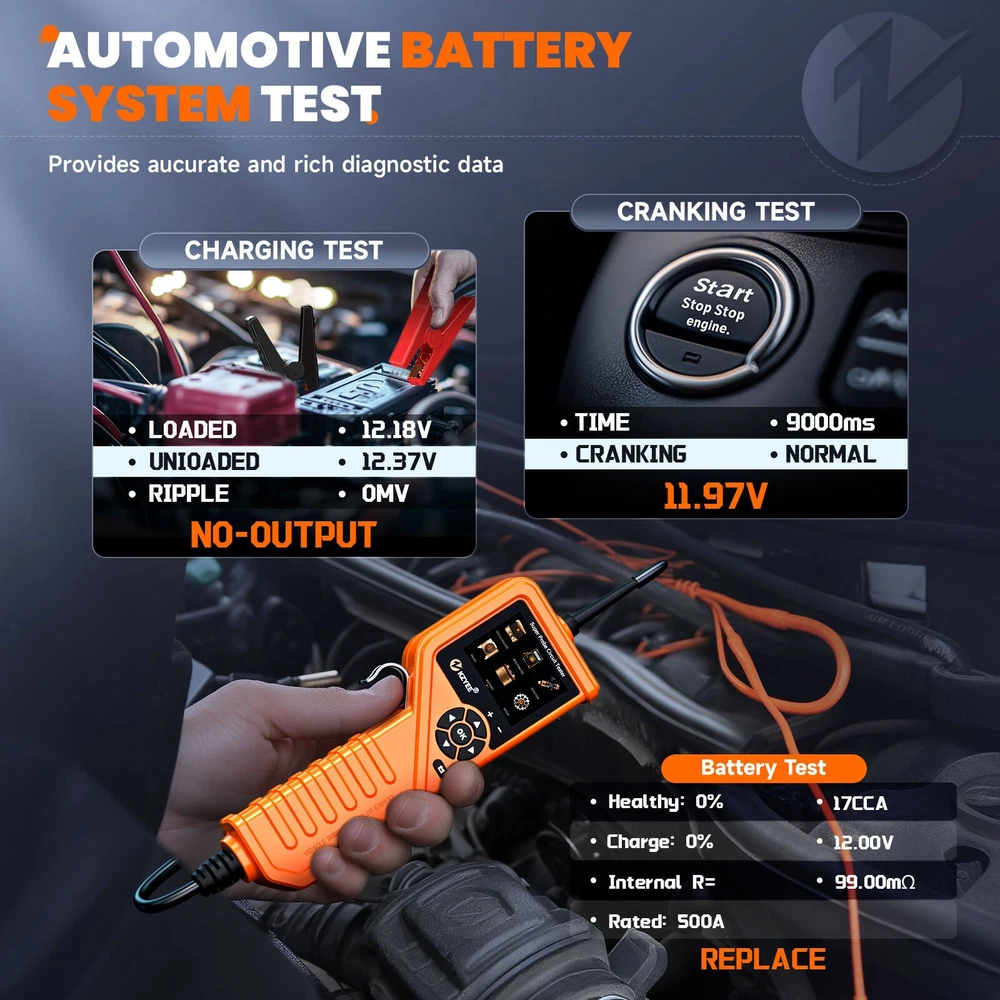

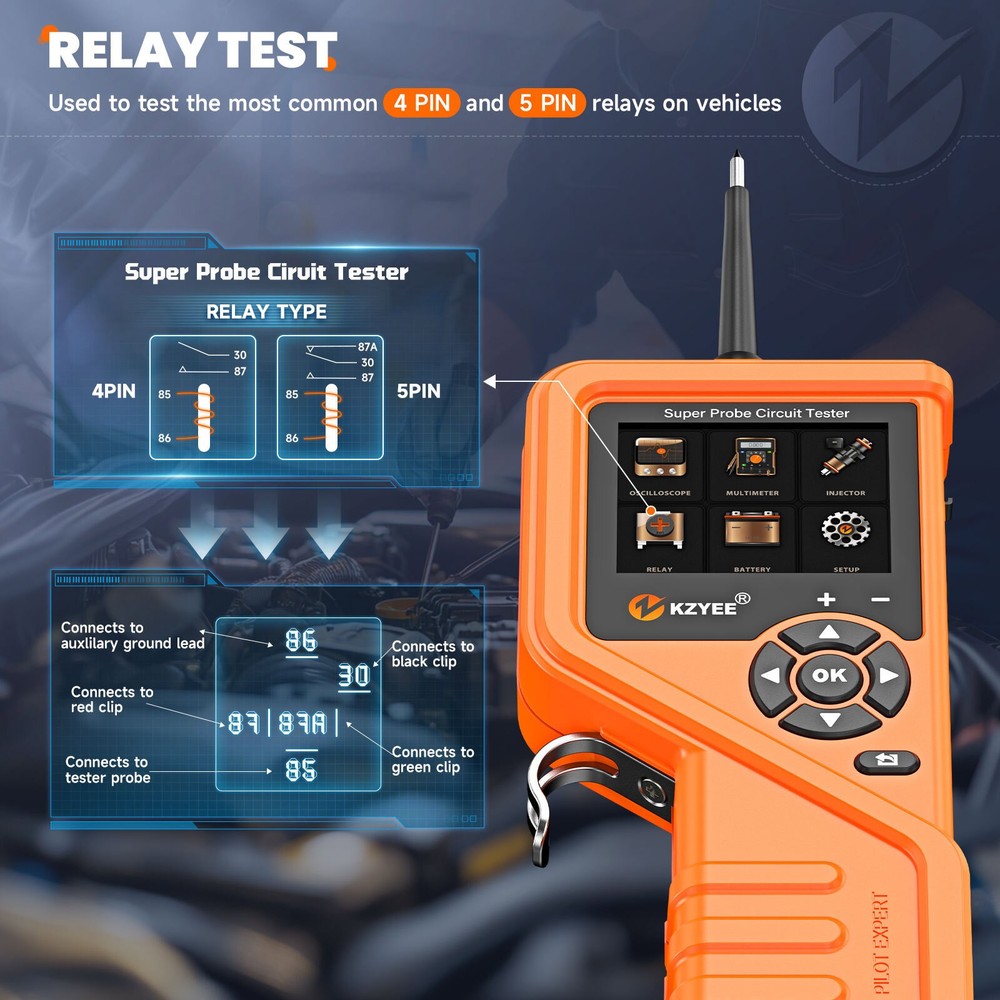

KZYEE 12V 24V Automotive Power Circuit Probe Tester Fuel Injection Circuit Test KM601 has multiple testing functions, including DC voltage, AC voltage, and AC Frequency, duty cycle, injection circuit detection, resistance, diode, manual activation Component and relay testing, battery testing, car start testing, car battery Charging test, etc., among which AC voltage, AC frequency, duty cycle, and fuel injection detection can be passed Press the button to switch between waveform display and digital display. TIPS: 1.KM601 is ONLY for 12-24V vehicle battery electrical systems, and should NOT be used to test 110/220V household electric appliances; or, it will be damaged. 2. The LED and LCD pull no more than 100 milliamps of current, therefore when using this device as a test light or multimeter, it is safe for computers and airbags. 3.When powering-up components, you can increase the life of rocker switch in the tool if you first press the switch, and then contact the tip to the component. The arcing will take place at the tip instead of the metal contacts of the rocker switch. 8 Functional Modules 1. Oscilloscope (Oscilloscope) Test Module Oscilloscope test function is mainly to test a variety of voltage signals, contains four kinds of functions, respectively, DC voltage test, AC voltage test, frequency test, duty cycle test, except DC voltage, the other three are Except DC voltage, the other three have waveform display mode, which is part of the oscilloscope function. 2. Multimeter Test Module The multimeter test function module mainly tests resistor resistance and diode forward voltage. Among them, the resistance measurement function also contains a continuity test function, i.e., when the resistance of the tested wire is less than 30 ohms, the host When the resistance of the tested wire is less than 30 ohms, the buzzer of the main unit will alarm, which is used to measure whether the wire is disconnected or not. 3. Fuel Spray Nolle Test Module Injector test function module is mainly to test the parameters of the injector signal, and can be switched by pressing the key Waveform display and digital display mode. 4. Relay Test Module The Relay Test Function Module tests and helps to identify whether a vehicle relay is functioning correctly, primarily through relay test cables, auxiliary earth wires and probes. 5. Battery Test Module Battery test function module is mainly to test the car battery system, contains 3 functions, respectively, battery health test, battery start test, battery charging test, etc., so as to test the good or bad of the car battery 6. Active Test Module The component activation detection function is mainly used to activate automotive components by pressing a specific button to make the host probe connect to the positive pole of the car battery or ground, thus supplying power to the automotive components. 7. Pn-active Test Module, The PN-TEST test function module functions in the same way as the diode test in the multimeter test module. 8. Setup Module The setup module is used to set the host status, such as language selection, buzzer switch, instrument self-test, host upgrade and host version number. Product Technical Features and Advantages 1) This instrument is powered by car battery, no need to bring your own battery, save money and convenient. 2) This instrument comes with a light-emitting diode, so that it can be used in the engine compartment and other dark places without being affected. 3) This instrument comes with a sharp probe and a crochet hook, so you can measure without removing the wiring. 4) This instrument can import positive or negative batteries to the probe, making it easy to power various appliances for testing without having to re-pull wires to power the appliances. 5）Can simultaneously test the battery voltage and front-end probe voltage, battery voltage using the Kelvin test method, so that the measurement is more accurate, the front-end probe can measure the negative voltage. 6) AC voltage mode can be convenient to measure the true RMS value of the AC voltage. 7) Waveform display makes the instrument conveniently display the signal waveform, voltage, frequency, duty cycle, etc. on the data line of the car. 8) Fuel injection mode makes it easy to capture fuel injection time, injector voltage and other data. (9) Resistance and on-off detection technology can easily detect the on-off of the car line, the size of the resistance value, etc.. (10) Diode detection technology can detect the diode in the car electrical good or bad. (11) This instrument has a short circuit protection function. If the device is overloaded, its internal circuit breaker will trip to effectively protect the instrument, prevent overload damage to the instrument. Product Specifications DC/AC Voltage ：-110V ~ +110 V Frequency test range: 0~1MHz Duty Cycle: 0~100% Injector Detection : Voltage 0~260V, Time 0~25ms Resistance: 0Ω ~ 1MΩ Diode: 0~3V Relay test: automotive 4-leg or 5-leg common relays Battery test: CCA test range: 100-2000CCA, 12V car battery Rated current: 1A-8A Pakage List Payment Delivery details Terms of sales About us Contact us Payment We accept all common forms of payment such as Credit cards、Debit card、Google Pay ect. Please contact us if you need to use another method to pay. Payment should be made within 7 days after bidding ends. Otherwise a Unpaid Item case will be opened to you. We are not responsible for buyers’ local taxes. Please include your special requests in eBay note if there is any. Delivery details Seller Processing Time：Order will be shipped within 1 business day after payment confirmed. Carrier and Logistics：We have warehouse in USA , From our US warehouse via UPS or USPS shipping. Terms of sales Return Policy Please return the item within 60 days after receiving if you are not happy with your purchasing.All returns are expected to be in original conditions, please email us first for return address and instructions. We are authorize distributor, our all items are 100% original and Our devices have warranty, 5 Year free repair for the devices. Please contact us firstly when you need warranty service. In case an item arrives faulty, please contact us as soon as possible and keep it unused. We will instruct you on how to return and get refund or replacement. If the item has been used, we have the right to decline your claim. Items should be returned on buyers' cost for repair or replacement. About us We are selling OBD Product, including OBDII Code Reader, Car Diagnostic Tool, Truck Diagnostic Tool, EVAP Smoke Machine, Car Power Probe,Battery Tester ect. The price is reasonable and we have top rated after-sales service. Our main brand is ANCEL , and we also sell other brands product, such as FOXWELL, LAUNCH, THINKCAR, AUTOPHIX , etc We have office and warehouse in UK, Australia and US to ensure fast shipment and after-sale service. We have more than 100 employees devoting to customer satisfaction. Contact us Our customer-oriented service strives for positive feedback with all 5 star selling ratings. We automatically submit positive feedback to our buyers once the payment is cleared. If anything about your transaction did not meet your expectations, PLEASE LET US KNOW AND GIVE US THE OPPORTUNITY TO MAKE THINGS RIGHT before you leave feedback or open any case. We are 100% sure that we can solve any issues regarding your purchase. We will reply within one business day. Business time: GMT8 (9:00-18:00) from Monday to Friday.
