12V High Voltage Ignition Coil 20KV Boost Arc Module High Frequency AC

Description

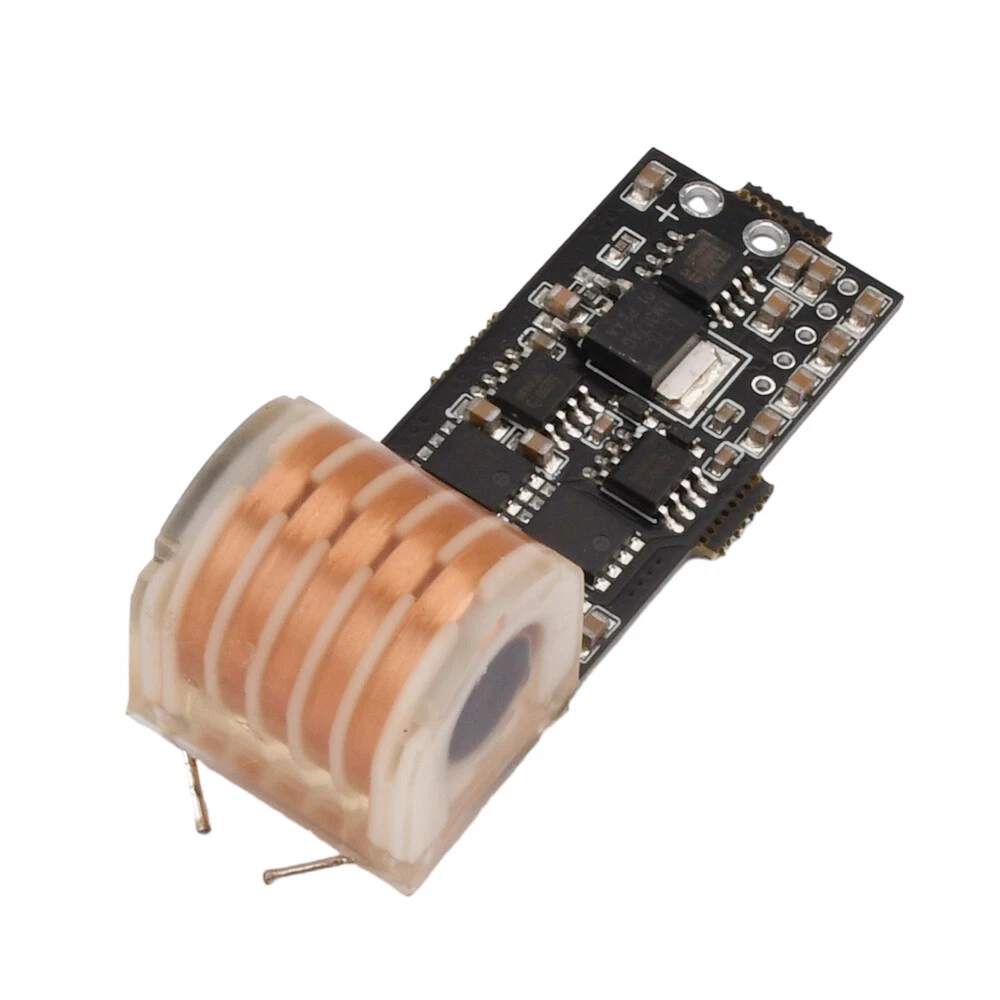

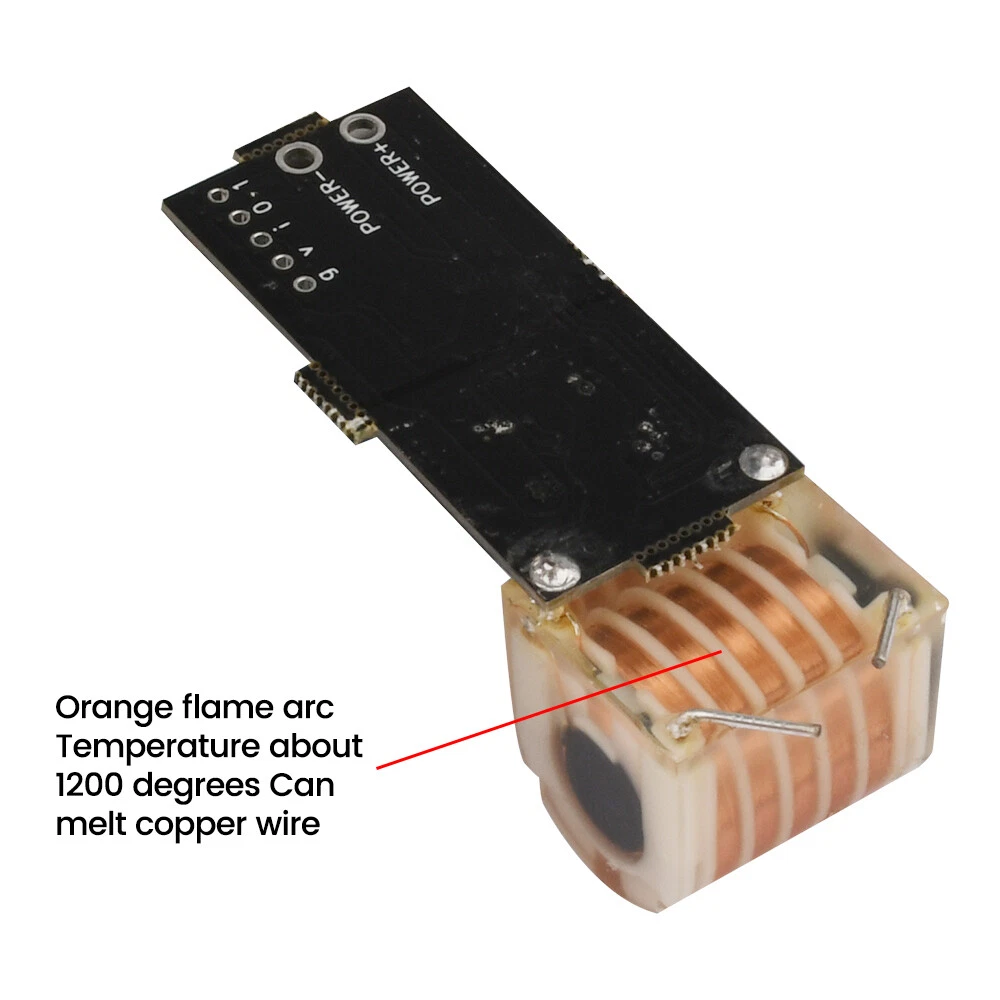

Store Categories Store Categories Health & Beauty eBay Motors Consumer Electronics Other 12V Ignition High Voltage Module Boost Arc Ignition Coil 20KV High Frequency AC Details Features: 1.This driver board adopts H-bridge 4-transistor MOS variable frequency resonant topology technology, with high driving efficiency and high power; 2.Low heat generation without the need for a radiator; 3.The arc striking distance is 1cm~2cm, which allows for direct arc striking without the need for arc pulling; 4.The orange yellow flame arc can melt copper wire at a temperature of around 1200 degrees, with a wide range of applications; 5.The arc temperature is high, which can directly melt fine copper wires, iron wires, sparks, and ignite various gases, alcohol, gasoline, diesel, plastic, paper, etc. Parameters: Power supply voltage range: 7-15V Suggested power supply voltage: 12V Full load power: 50W Input current:<2A Output voltage: 15KV~20KV Output current: 5mA~15mA Circuit board size: 2 * 4.3cm Overall size: 2 * 6cm Overall height: 2.5cm Instructions for use: Arc striking distance of 1cm~2cm (direct arc striking, no need to pull the arc. If the arc has already started but is not obvious and cannot be ignited, the electrode distance can be brought closer) When the continuous working time exceeds 5 minutes at 9V or above, a fan needs to be installed next to the transformer, This product has no casing (the transformer part has been sealed), please pay attention to safety during operation. Attention: 1. This model outputs high-frequency AC, so the lead cannot be too long. The transformer can be removed and connected to the primary end for extension, or directly extended at the power supply end 2. The power supply must be provided within the rated voltage range to function properly! If the voltage is too low, the module will be under voltage and stop working. Do not reverse or overpressure, as it may damage the module and even cause the capacitor to explode! 3. This product poses a certain risk to non professional personnel and must be operated strictly in accordance with electrical specifications! Package include: 1X high-voltage module Shipping Policy Payment Method Returns Policy Shipping Policy Payment Method This is the description of Payment Method. Do not dismiss your dream. To be without dream is to be without hope. To be without hope is to be without purpose. Do not run through your life so fast that you forget not only where you have been, but also where you are going. Life is not race, but a journey to be savored each step of the way. Returns Policy This is the description of Returns Policy. Do not dismiss your dream. To be without dream is to be without hope. To be without hope is to be without purpose. Do not run through your life so fast that you forget not only where you have been, but also where you are going. Life is not race, but a journey to be savored each step of the way. Copyright©2017 DataCaciques 12V Ignition High Voltage Module Boost Arc Ignition Coil 20KV High Frequency AC Item Description Features: 1.This driver board adopts H-bridge 4-transistor MOS variable frequency resonant topology technology, with high driving efficiency and high power; 2.Low heat generation without the need for a radiator; 3.The arc striking distance is 1cm~2cm, which allows for direct arc striking without the need for arc pulling; 4.The orange yellow flame arc can melt copper wire at a temperature of around 1200 degrees, with a wide range of applications; 5.The arc temperature is high, which can directly melt fine copper wires, iron wires, sparks, and ignite various gases, alcohol, gasoline, diesel, plastic, paper, etc. Parameters: Power supply voltage range: 7-15V Suggested power supply voltage: 12V Full load power: 50W Input current:<2A Output voltage: 15KV~20KV Output current: 5mA~15mA Circuit board size: 2 * 4.3cm Overall size: 2 * 6cm Overall height: 2.5cm Instructions for use: Arc striking distance of 1cm~2cm (direct arc striking, no need to pull the arc. If the arc has already started but is not obvious and cannot be ignited, the electrode distance can be brought closer) When the continuous working time exceeds 5 minutes at 9V or above, a fan needs to be installed next to the transformer, This product has no casing (the transformer part has been sealed), please pay attention to safety during operation. Attention: 1. This model outputs high-frequency AC, so the lead cannot be too long. The transformer can be removed and connected to the primary end for extension, or directly extended at the power supply end 2. The power supply must be provided within the rated voltage range to function properly! If the voltage is too low, the module will be under voltage and stop working. Do not reverse or overpressure, as it may damage the module and even cause the capacitor to explode! 3. This product poses a certain risk to non professional personnel and must be operated strictly in accordance with electrical specifications! Package include: 1X high-voltage module Payment We accept PayPal only. We only ship item to your PayPal verified address. Please pay attention that import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding/buying. Shipping (1)Shipping will be handled in 24 business hours after payment got. Ship to PayPal Address only, please confirm it before paying. (2) We ship this item to USA. It usually takes 3-6 working days to deliver. Return 1)We offer 60 day money back or replacement guarantee. In addition, it allows customers to return new and unused products in their original factory condition for any reason within 60 days from the date of purchase. 2)Although we test each item and they are packed professionally, few item(less than 0.1%) might be damaged during the shipping. Please feel free to contact us within 4 days after you receive your package about replacement. 3)If you don't receive items over 35days ,please make sure to contact us before leaving any neutral or negative feedback.We'll try our best to help you solve the problem. If we authorized the return, customers will get an email with instructions for returning the item. Email will be replied within 24 hours on Chinese business hours. Feeback 1. Customer satisfaction is our top goal. We believe our items are so outstanding. All products are quality checked. They are new and in good condition when shipped to our customers. We are convinced you will be happy with your Purchase. 2. If product is defective or damage upon arrival, or wrong product shipped, please contact us immediately. Returns accepted within 14 days of delivery date and item must be in original new condition, not worn or altered in any way with attached tags & wrap. Otherwise deal is final. Return shipping must be paid by buyer. 3. We appreciate your Postive Feedback, and will do the same in return. DO NOT leave negative feedback without first communication with us. Please allow max 2 business days for us to response. On May 20, 2025 at 18:43:26 PDT, seller added the following information:
