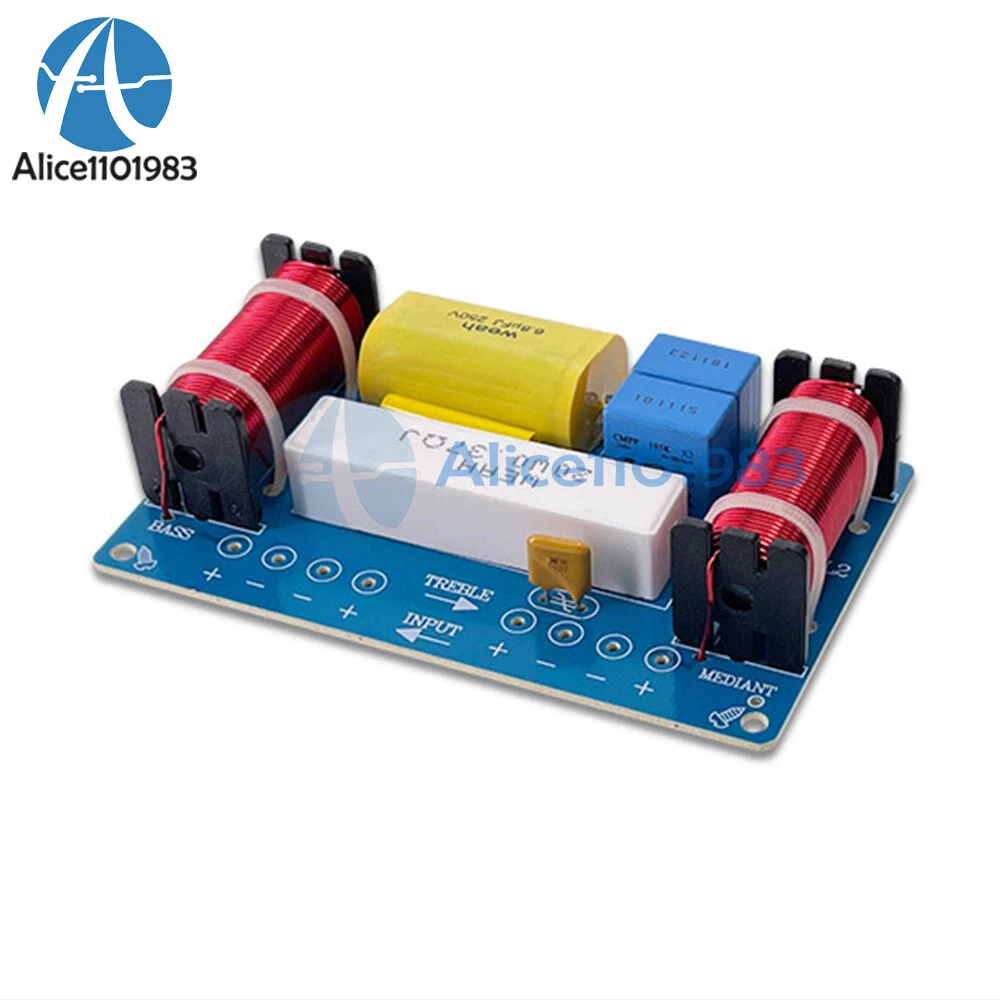

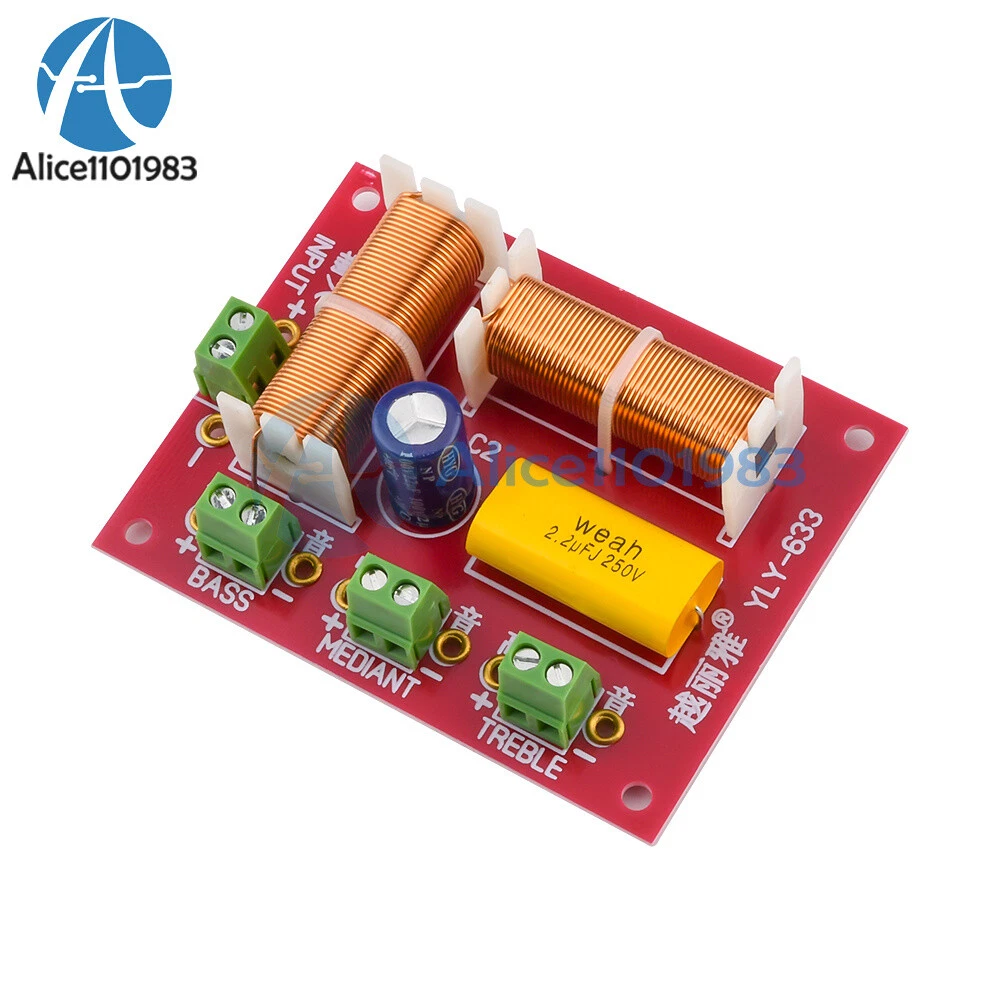

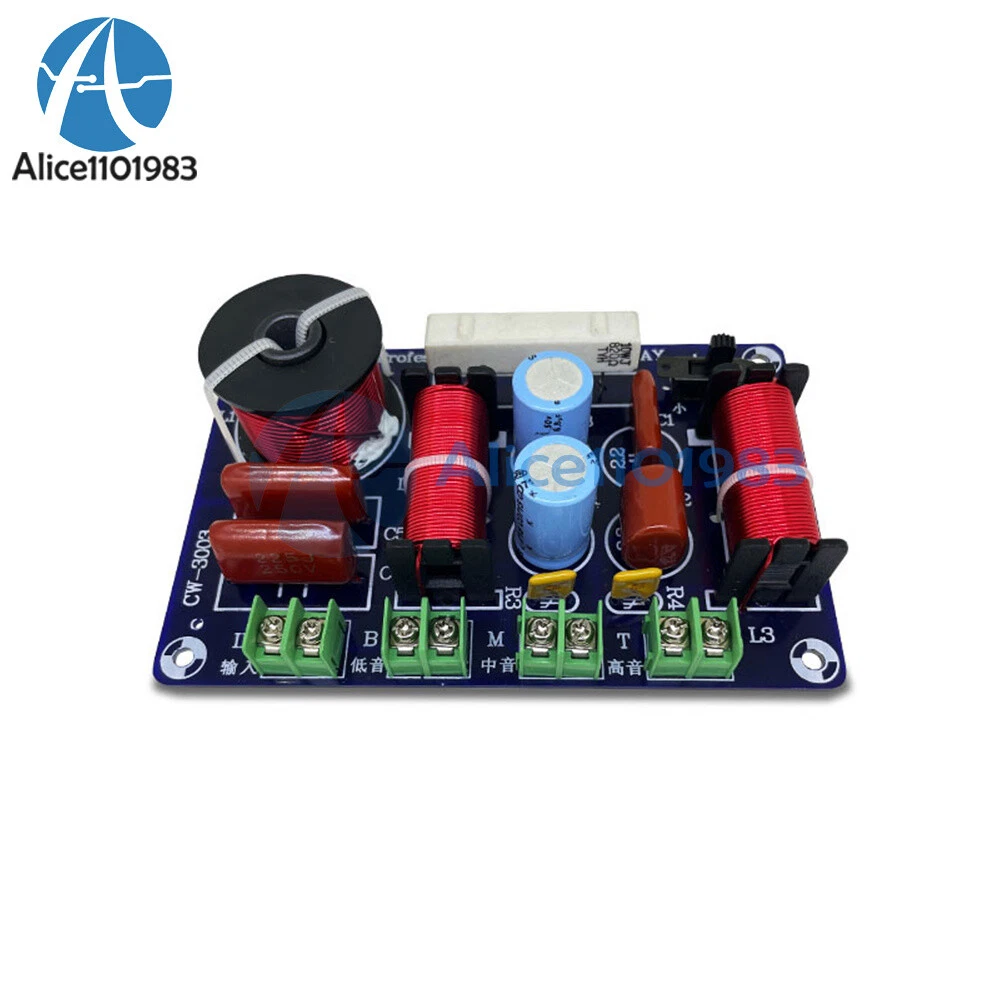

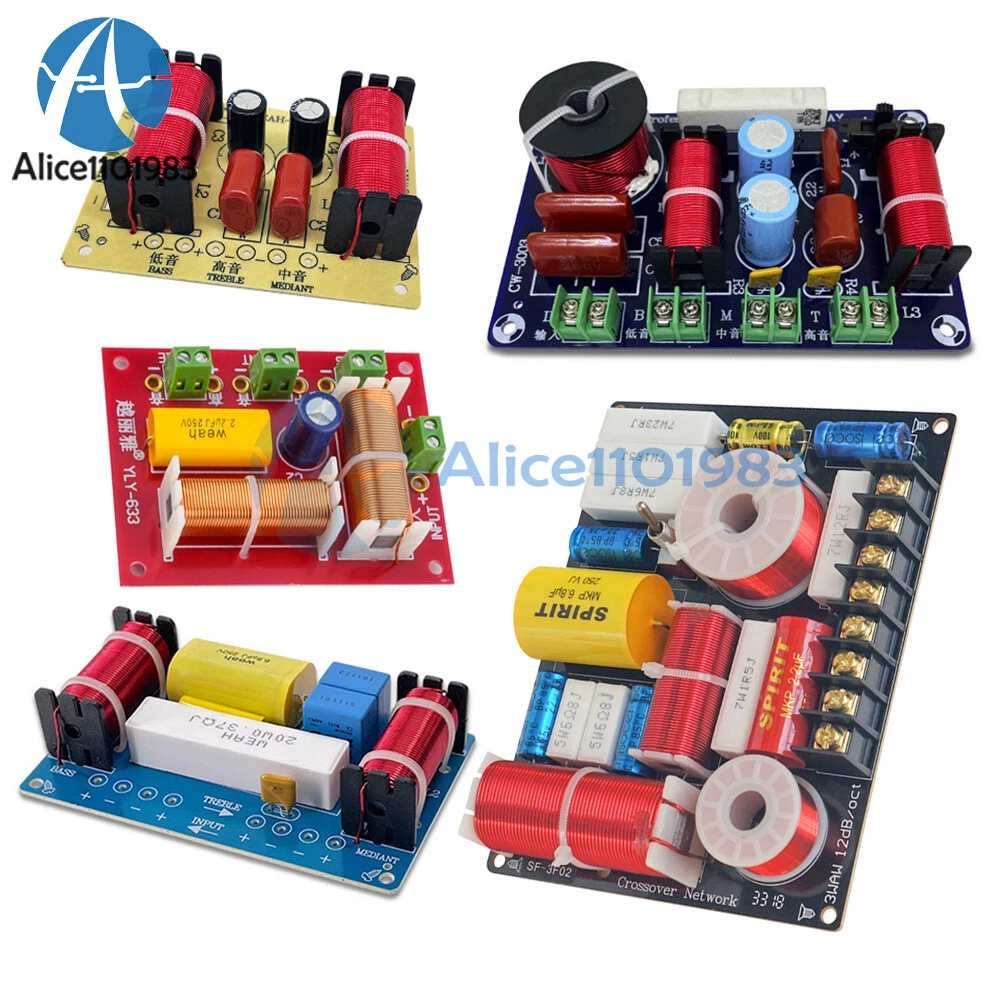

150W 200W 250W 3-Way Audio Crossover Board Professional Speaker Divider Splitter

Description

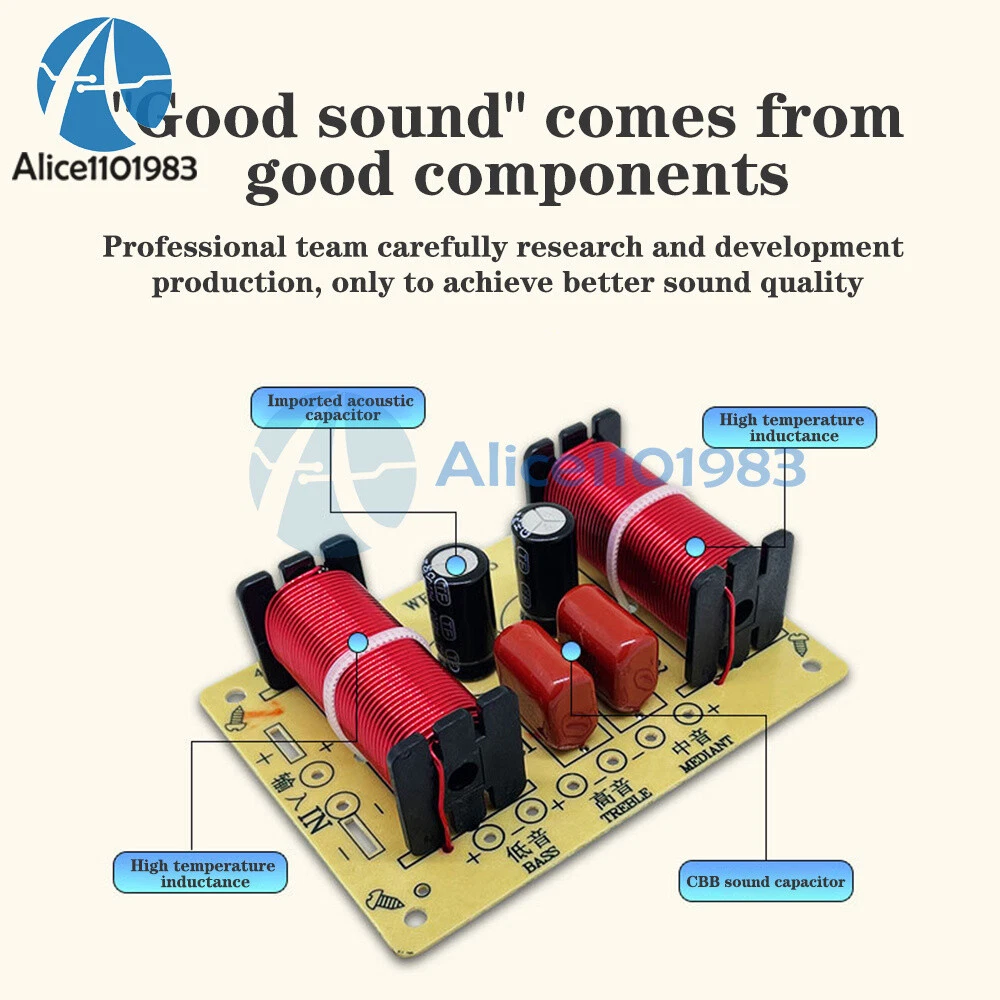

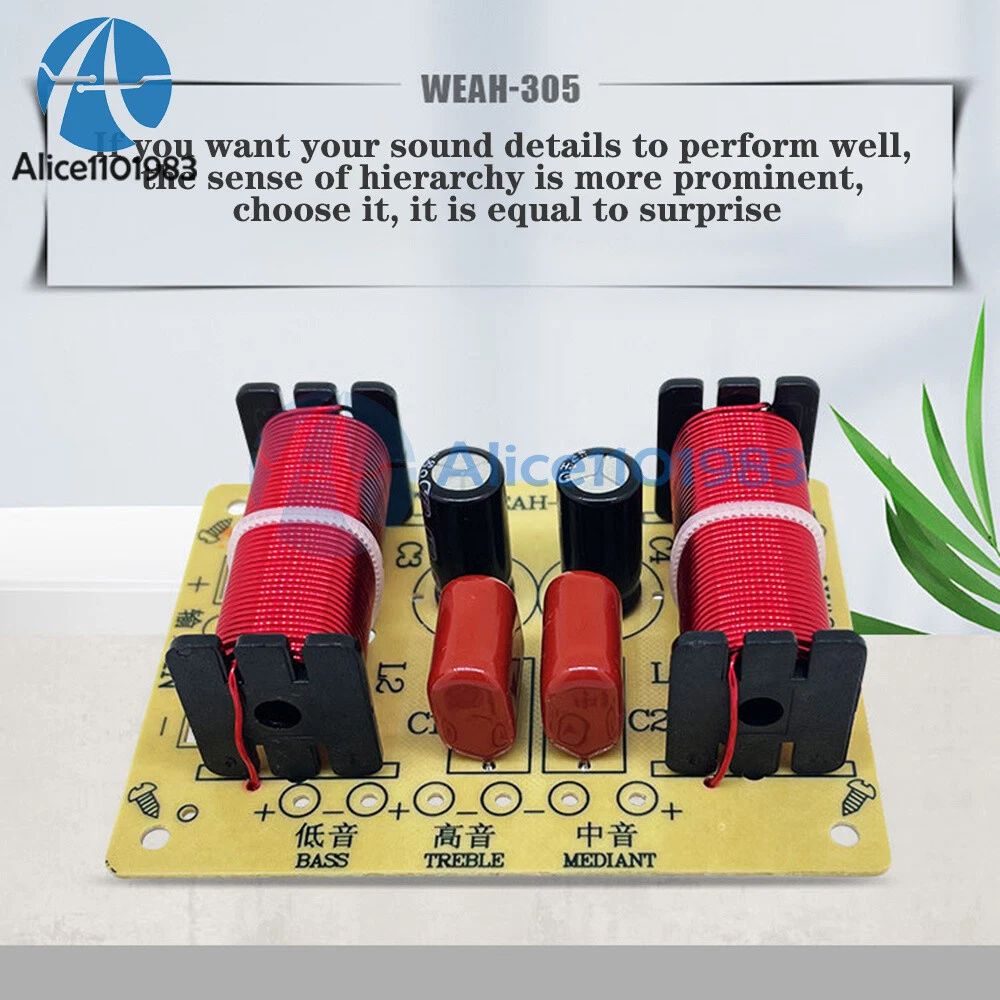

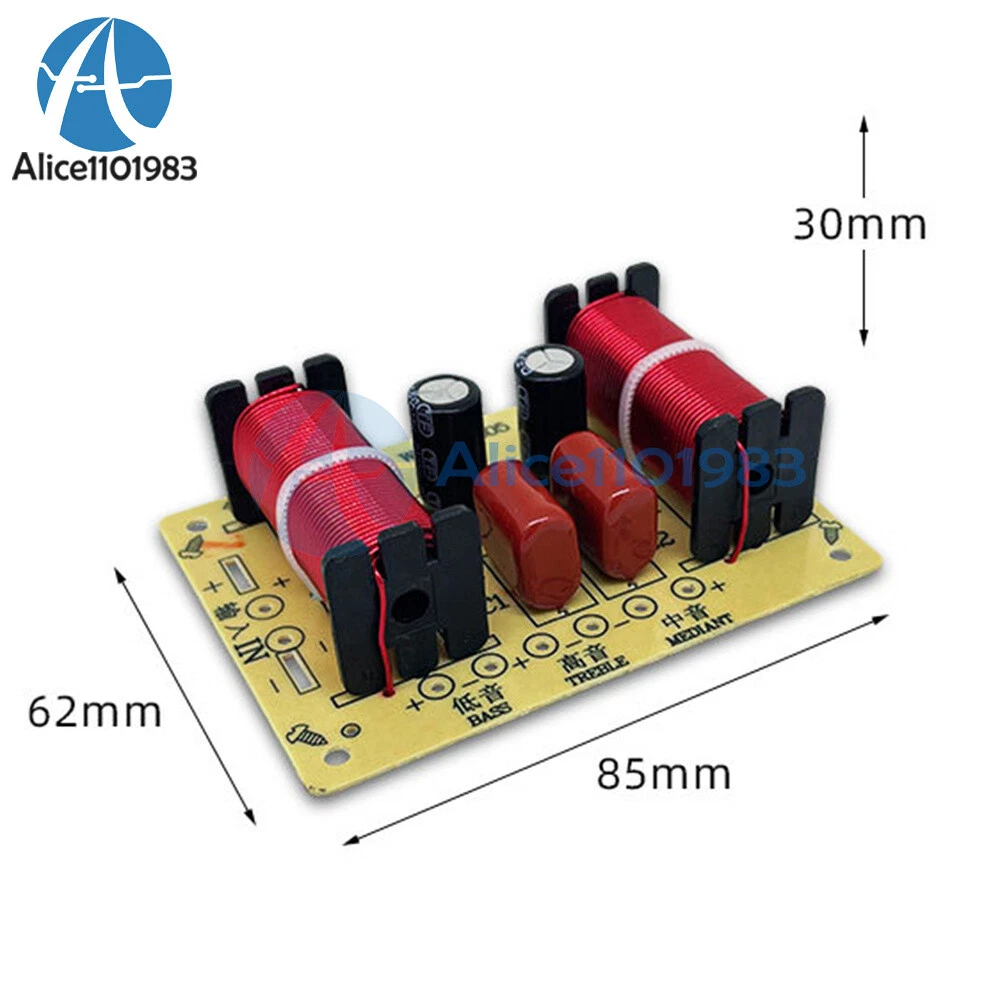

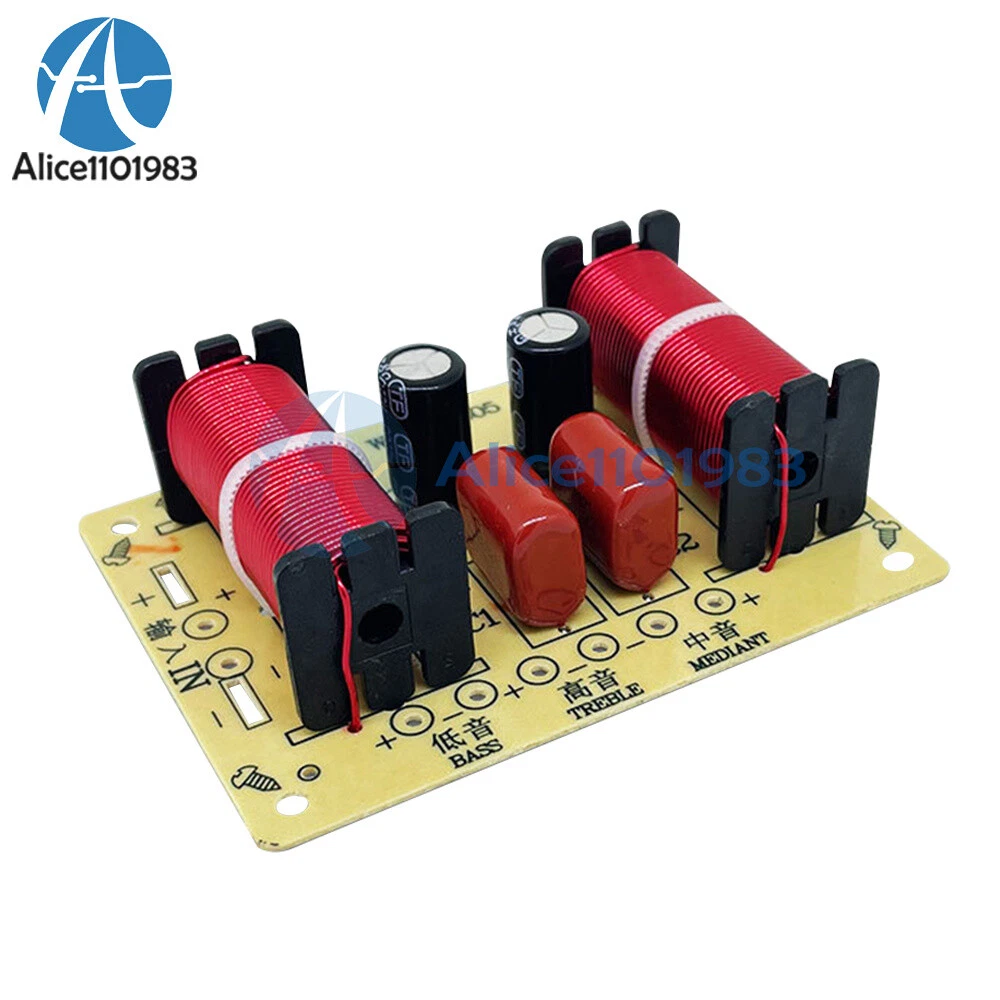

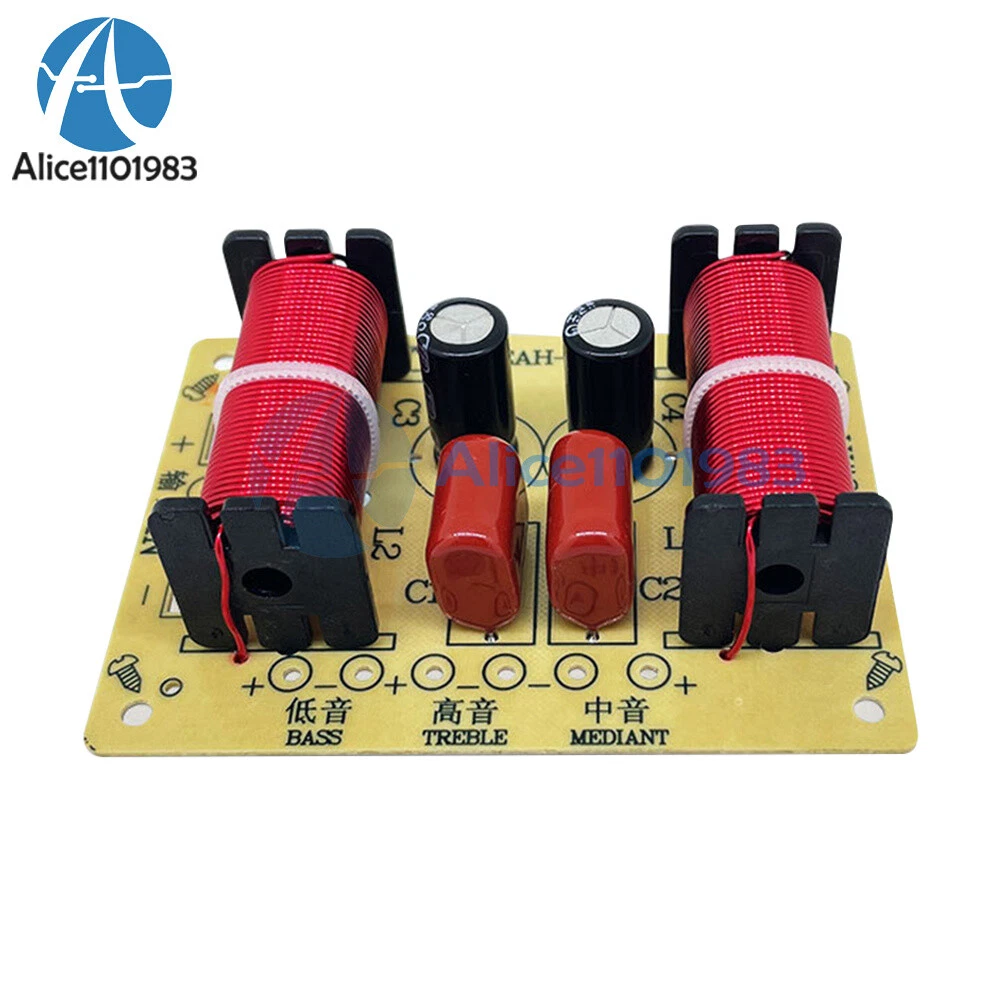

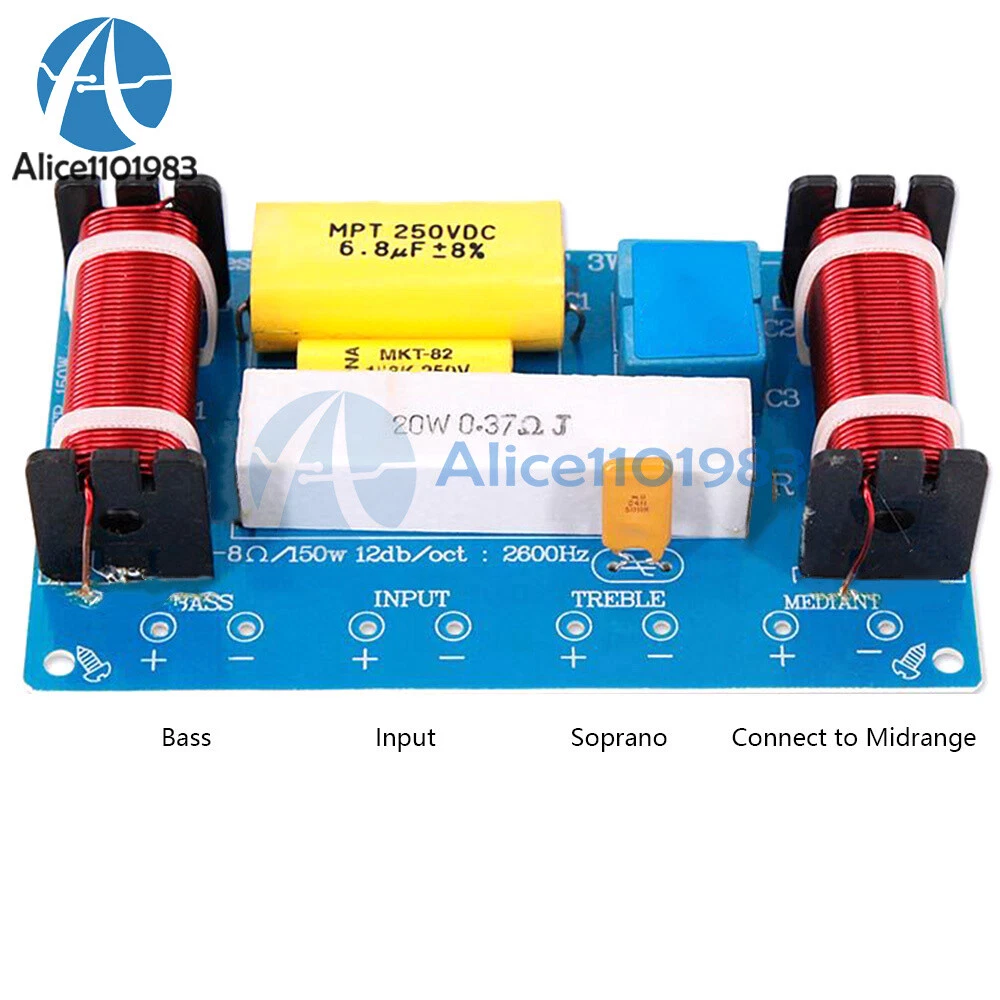

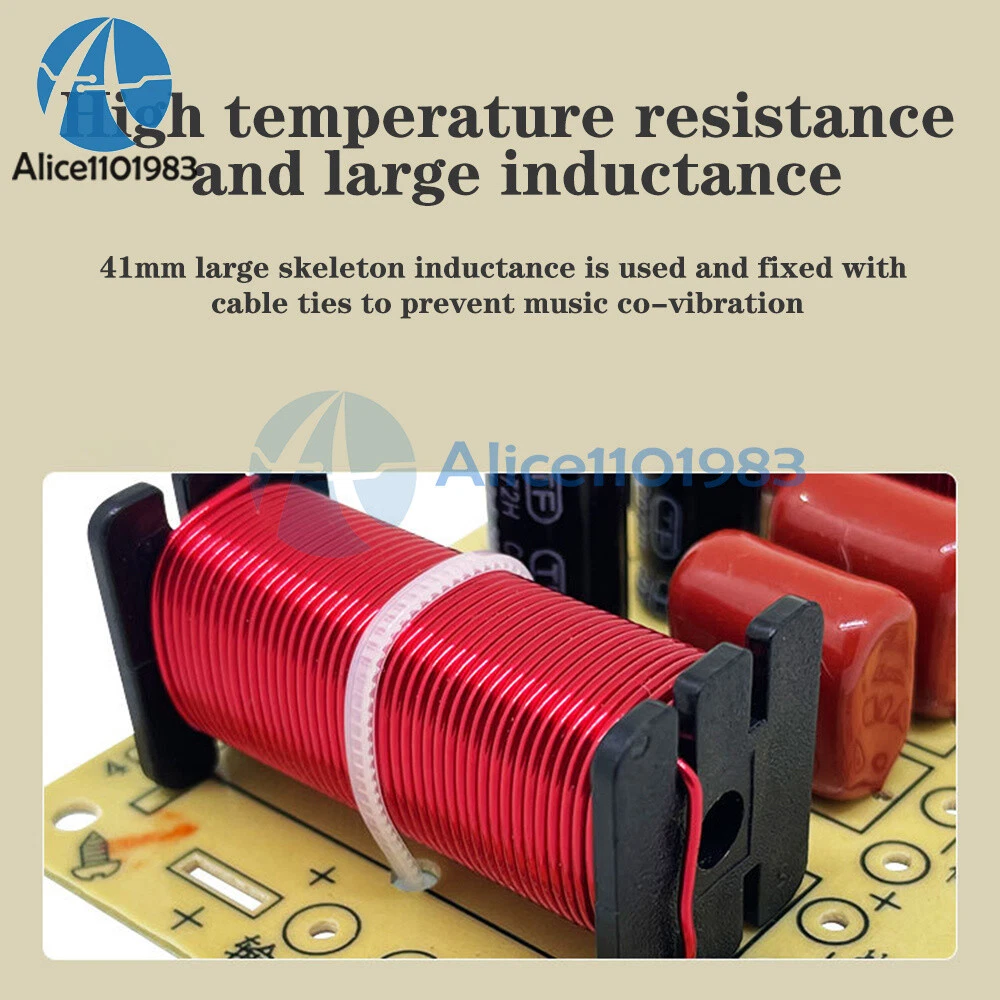

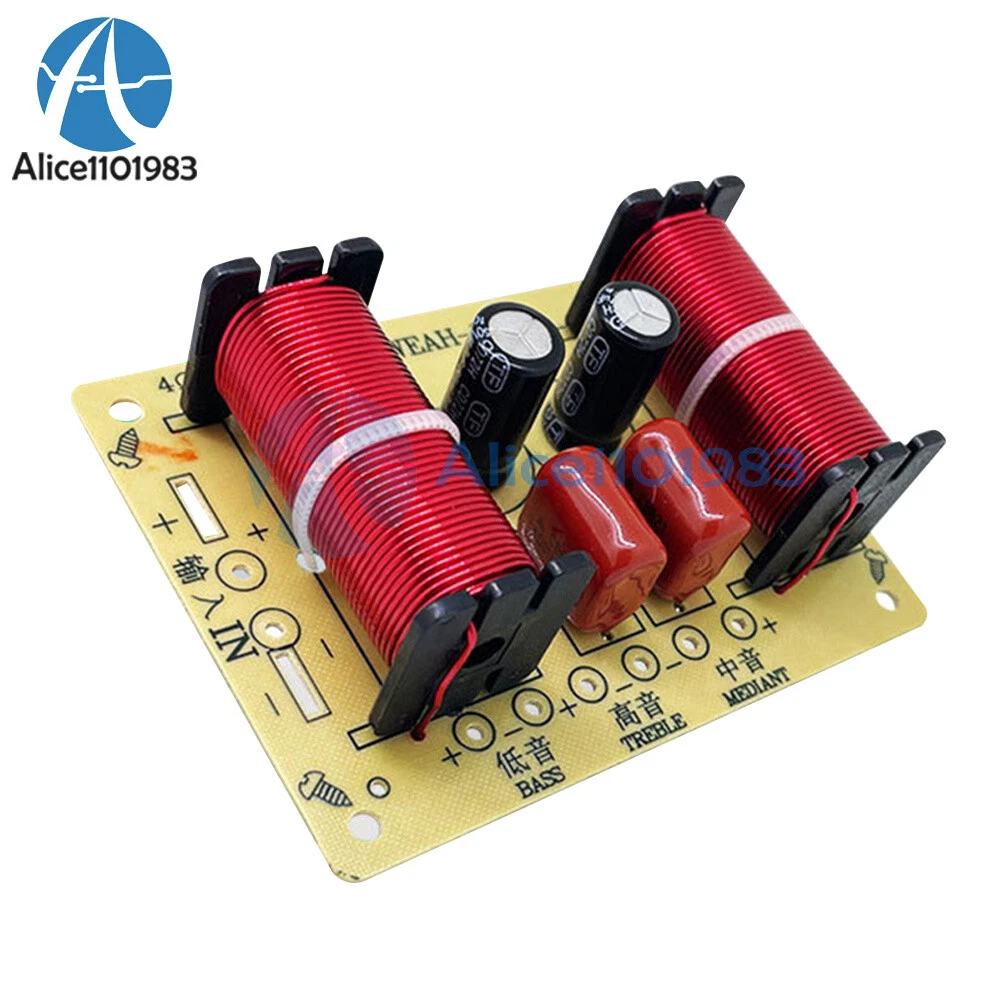

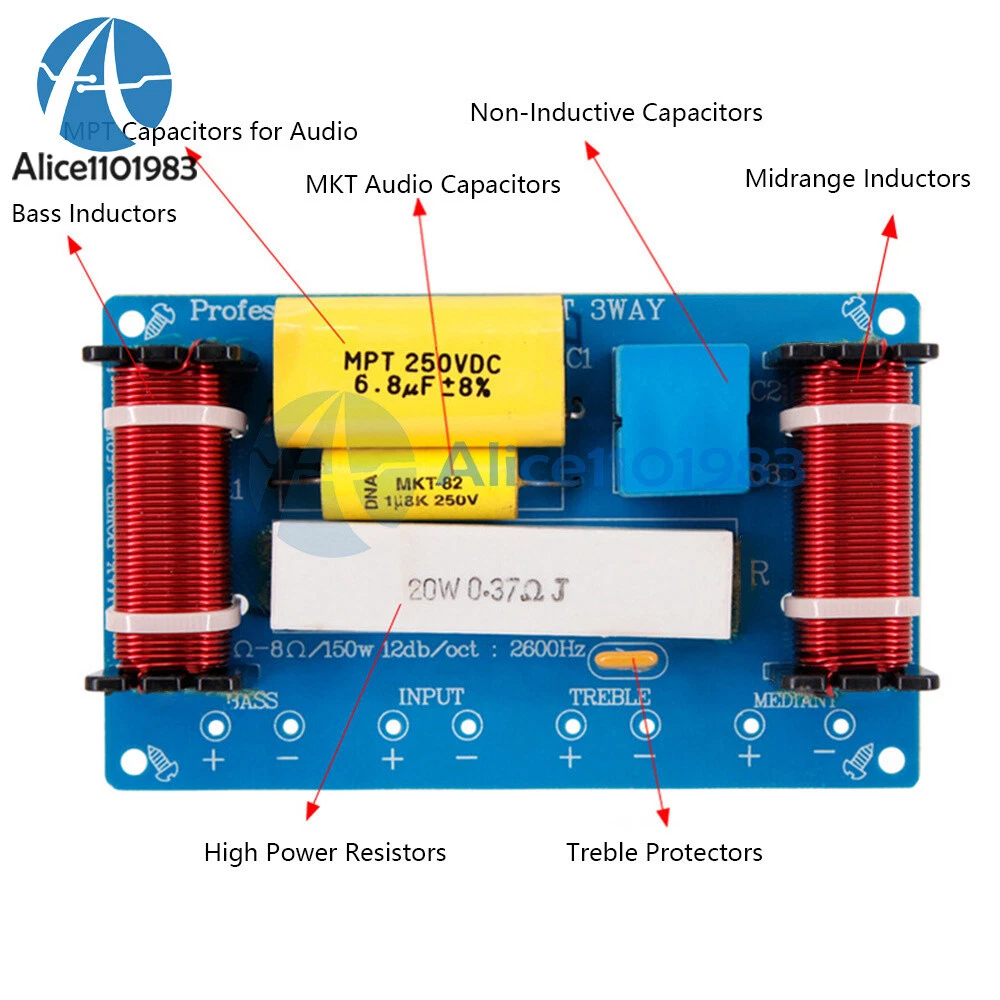

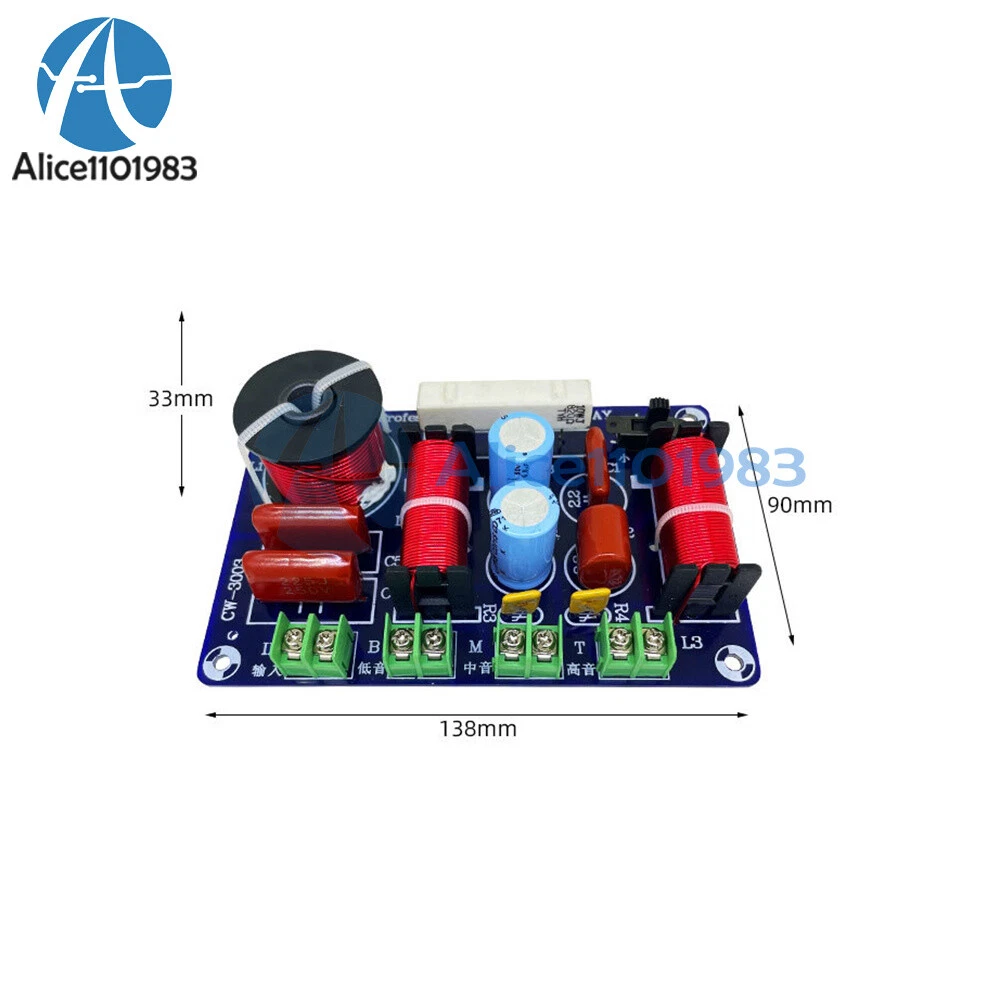

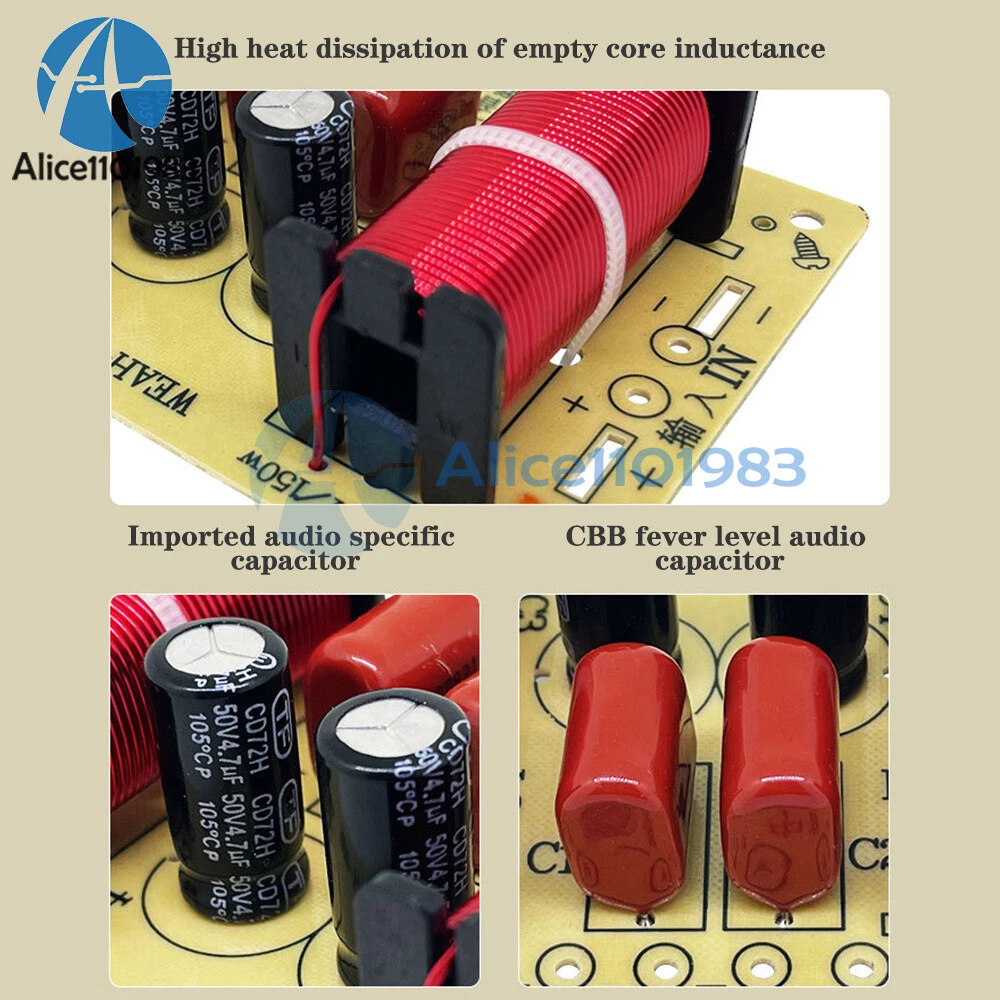

Visit store Items for sale About us Product Details 120W Features 1. Made of high quality materials, durable and practical 2. Using polypropylene film crossover capacitors and high-temperature resistant wire inductors 3. Ensure that the product's large carrying power and long durability and very good sound quality 4. It can make the audio detail performance outstanding, and the sense of hierarchy is more distinct and outstanding. 5. Wide range of applications Specification Maximum power 120W Frequency response: Low: 45Hz High: 20KHz Applicable impedance: 4-8 ohms Applicable speakers: below 8 inches (including 8 inches) Center hole distance: 102mm*59mm List 1 x Module 150W Product features: 1. Using high quality materials, product quality is guaranteed 2. Choose it can make your audio detail performance outstanding, more distinct and prominent sense of hierarchy 4. Use empty core inductor, high heat dissipation 5. Wide range of applications, suitable for 4-11 inch speakers up to 150W Product parameters: Filter characteristics: 1 high, 1 medium and 1 low Power: 150W Impedance: 4-8 ohms Applicable speakers: 4-11 inch Crossover point: Mid-high 4000Hz / Mid-low 9000Hz Centre hole distance: 75*52mm Packing list: Three-way crossover*1 200W Description 1.The crossover is suitable for a treble +mid +bass speakers. The speaker is suitable for 4-8 ohms. The finished products are also mostly used for better coordination. Sound quality, give debugging accessories at the same time of purchase. 2.The crossover is a popular finished product, which is connected to a variety of speakers. It is suitable for high and medium bass, and the sound quality is best; but not all speakers and all crossovers are the best fit. After use, there may be too much or too little treble, low frequency and low frequency of the bass, low frequency, or too thick bass, and too much or too little high frequency component in the midrange. It is. 3.No matter how good the parameters are, it is always the reference data. The sound quality is ultimately determined by the listener. Some people like to listen to treble. Some people like to listen to the bass, and some people like the midrange. Even if the parameters are very consistent, they match the different speakers. After that, the sound quality does not match the taste of the listener. People don't like this kind of sound, and there is no way to change it. When the frequency divider is connected, the next step of debugging is to solve the feeling of different requirements of each person, debugging and debugging, and the effect sound listener likes to use that sound. Refer to the instruction paper for the debugging procedure, and you can safely debug it, all within the scope of the speaker. Treble debugging: 1: Just after the connection, there is no need to debug. 2: Change the mid-high frequency component of the treble. 3: Change the middle and high frequency components of the high pitch. Midrange debugging: 1: Just after the connection, there is no need to debug. 2: Change the mid-high frequency component of the midrange to increase and decrease. 3: Change the mid-low frequency component of the midrange to increase or decrease. Bass debugging: 1: Just after the connection, there is no need to debug. 2: Change the mid-low frequency component of the bass. 3: Change the low and medium frequency components of the bass to decrease. Product parameters: Frequency point: 950HZ/6000HZ (that is, the bass works at frequencies below 950HZ, the midrange works between 950HZ and 6000HZ, and the treble works above 6000HZ). Power: 200W. Impedance: 4-8 Ohm. Circuit: Determined by debugging as 6db/oct to 12db/oct. Material: Inductor adopts oxygen-free copper winding, pure copper wire diameter is thick, has been verified, 100% pure copper wire, will not use enameled aluminum wire production; capacitor uses audio dedicated electrodeless capacitor, fine materials but not Need more, reasonable design, beautiful appearance, excellent sound quality. 250W Features 1. The use of high-quality materials, product quality is guaranteed 2. treble line by the capacitor in series and inductance to the ground treble circuit, and the switch can be adjusted large and small voice, with sufficient material, clear and bright treble 3. 10 microfarad filter out the bass and inductance series filter out the treble, so that it can not pass the treble and bass, compatible with 3 inches to 6.5 inches between the mid-range speakers 4. Bass line is a large inductor through the bass to limit the treble through, in order to prevent treble-midrange interference with crosstalk, there are capacitors to the ground of the second-order bass circuit, so that the bass is more powerful, to enhance the shock of the bass! 5. Wide range of applications, no welding line terminals correspond to the input tweeter, midrange, bass speaker, no soldering iron can also be connected to the crossover, the material is very sufficient, easy to use, speaker DIY upgrade tool! Specification Filter characteristics: 1 high, 1 medium and 1 low three-way frequency Power: 250W Impedance: 4-8 ohms Crossover point: bass/midrange 850Hz, treble/midrange 2 ways: 5200Hz-5500Hz switch adjustable List 1 x Frequency Divider Payment Method Shipping Policy Returns & Refund Policy Feedback Payment Method EBAY Managed Payment. But we only Accept your Ebay Address , please Make sure it's 100% right. Payment must be received in 5 business days of auction closing. Please leave note for your special request (e.g. Colors or Size) in PayPal when you pay the order. Any special request cannot be accepted after 24 hours of payment, because most of orders will be processed instantly and same day dispatched. Shipping Policy 1. We only ship to the confirmed address provided by eBay. please make sure your ebay address is 100% matches the address you would like us to ship to. If not, please let us know before we sent you the package, or we will not be responsible for any loss. hope you could understand. 2. Orders will be processed instantly and dispatched within 1-3 business days except hoilday, so we do NOT accept any email/message note after you place orders. 3. All package need to wait 30 days,Please take care it.Less than 30 days,we can't take a refund. Returns & Refund Policy All package need to wait 30 days (US only n eed 7-10 days) , Please take care it.Less than 30 days,we can't take a refund . If the item is defect when you receive it or you are not satisfied with it, please return it within 14 days for a replacement or money back. But the items must be back in factory condition. Please keep in touch with us and double check the return address before you return it. If is item is defective in 12 months, you can return it to us. We will send you a new replacement after receiving the defective item. Feedback We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important to us. We request that you keep in touch with us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns.
