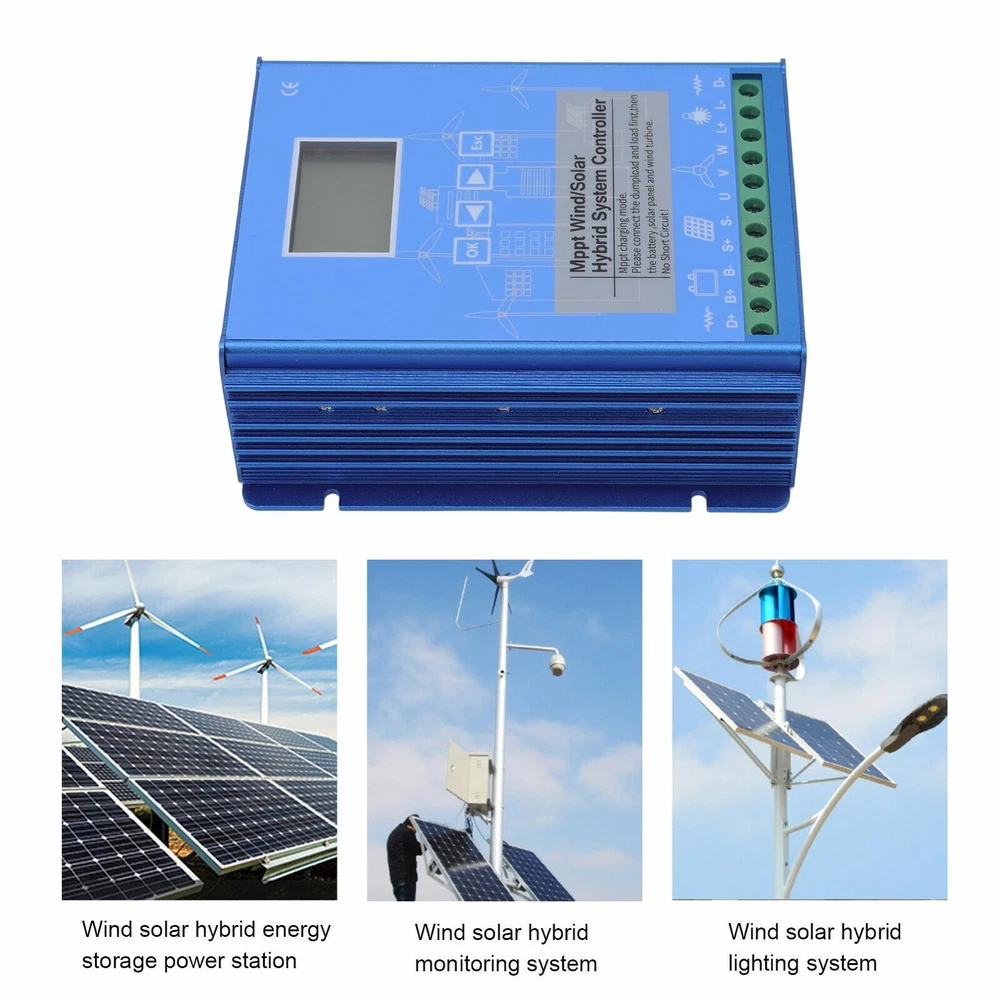

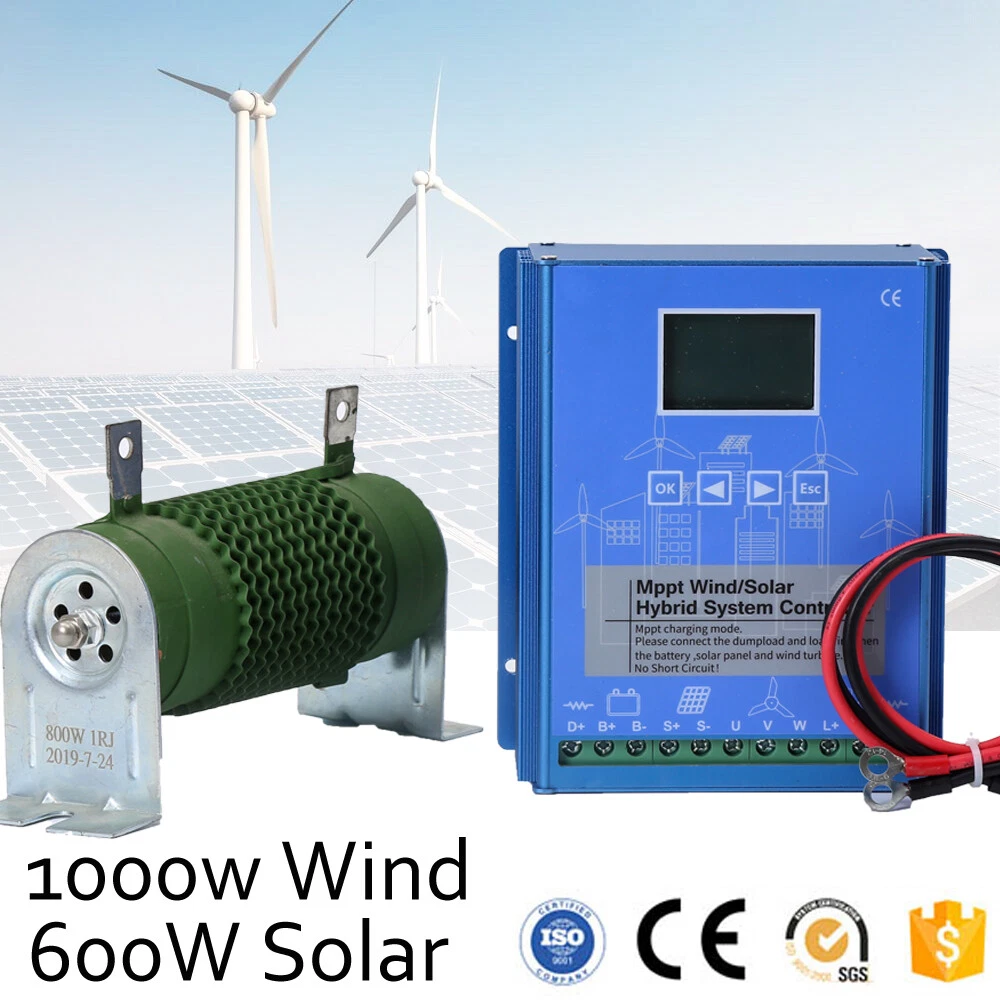

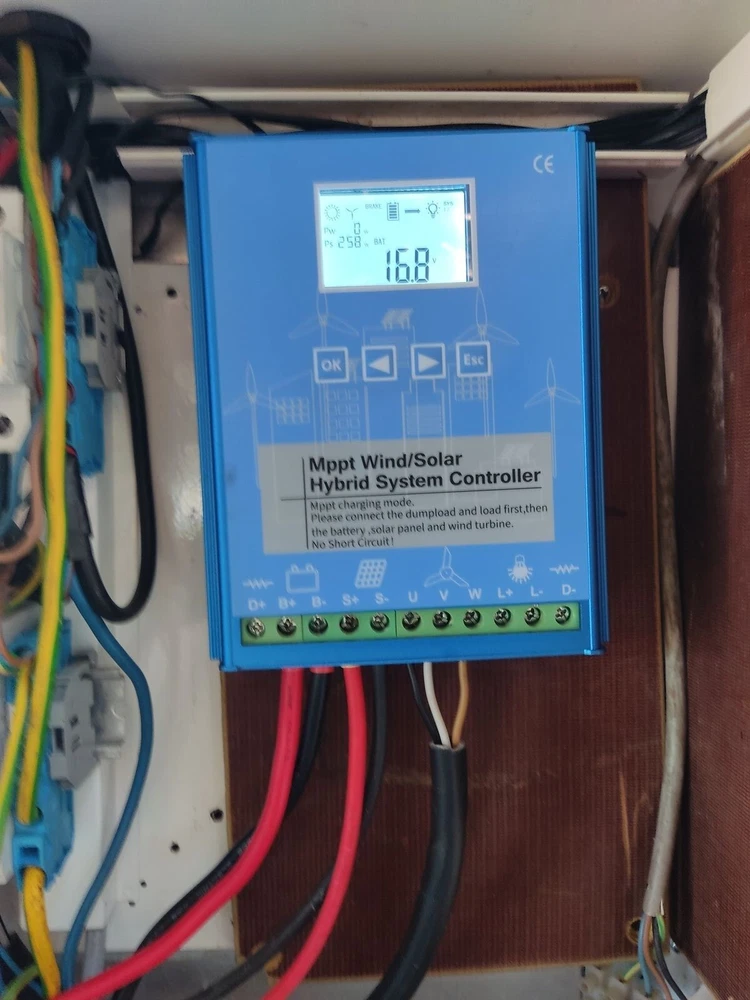

1600W 12V 24V MPPT Wind Solar Hybrid Charge Controller Regulator with Dump-load

Description

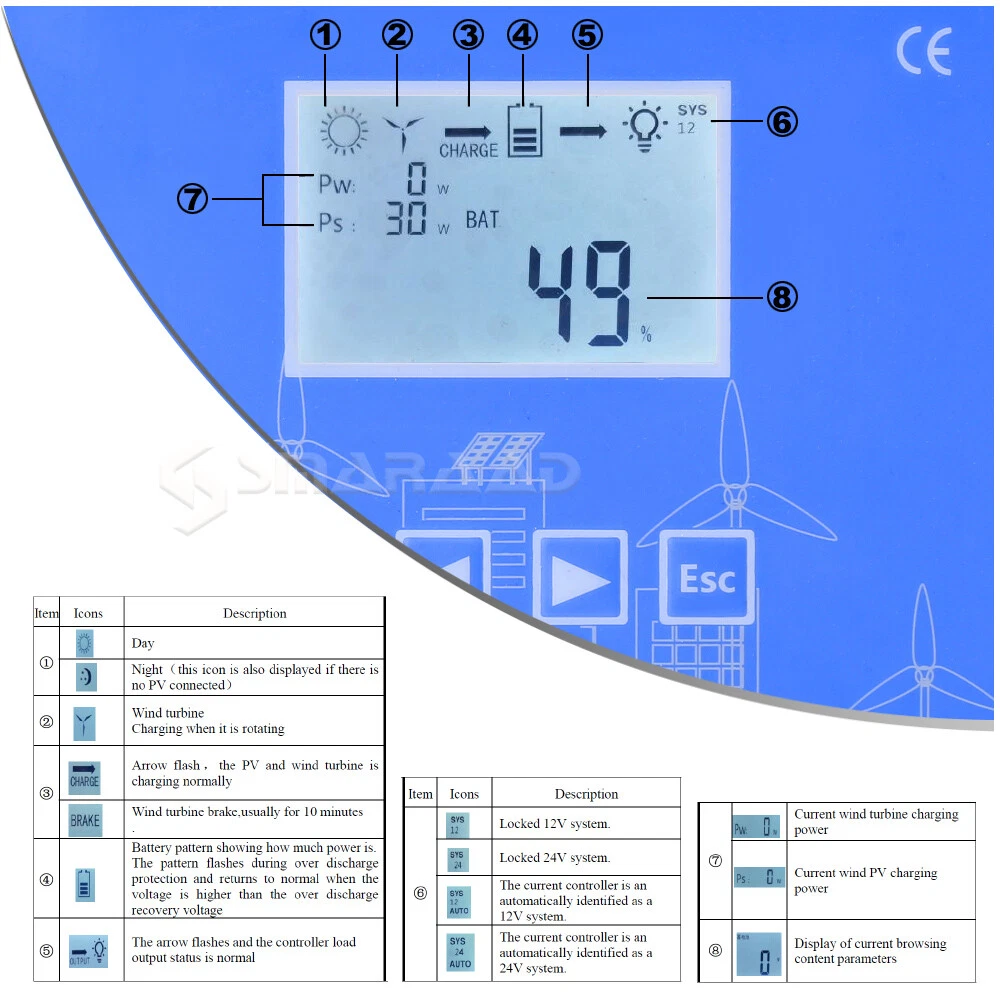

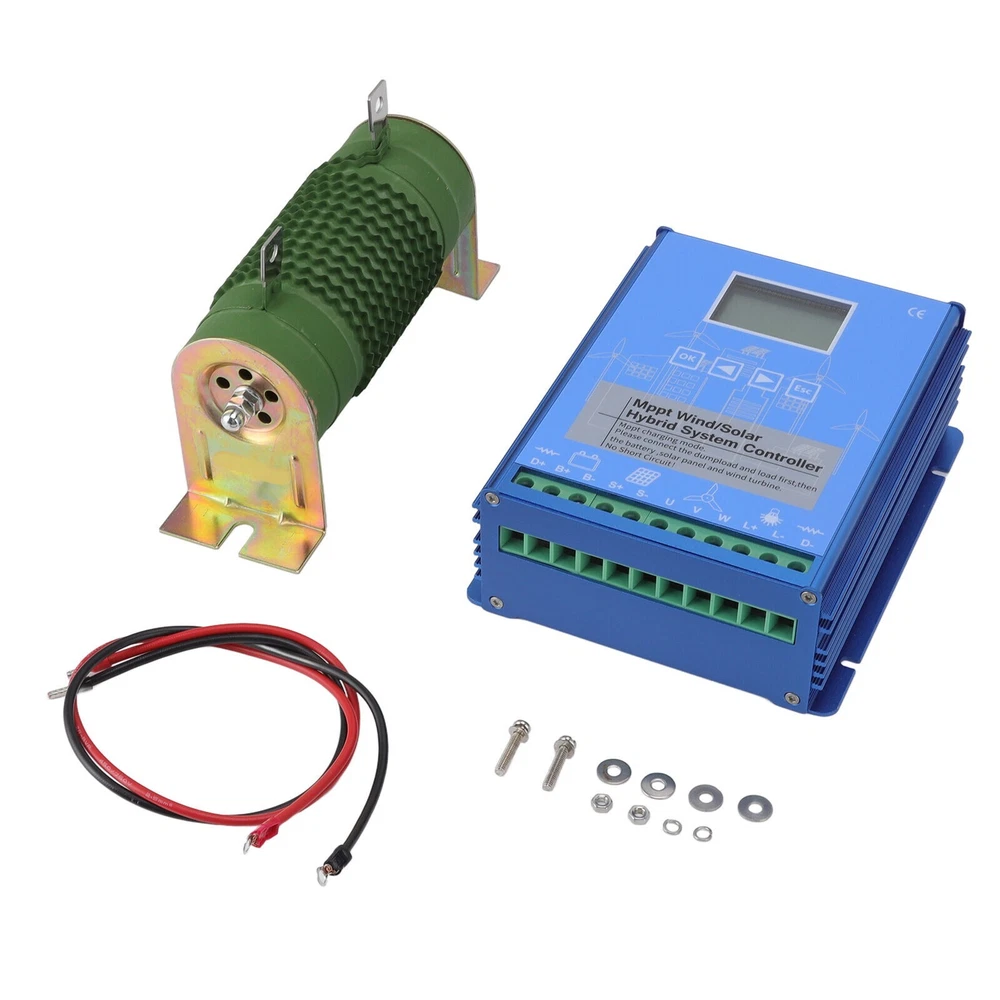

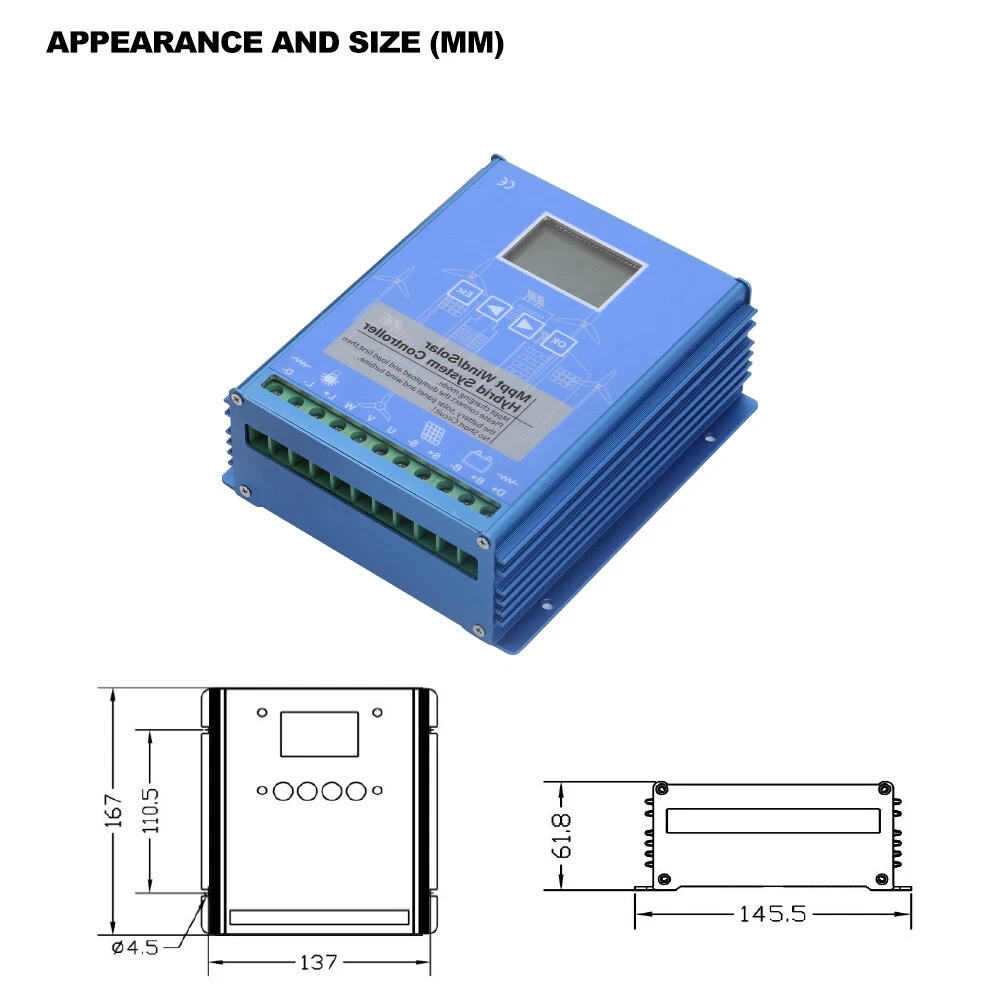

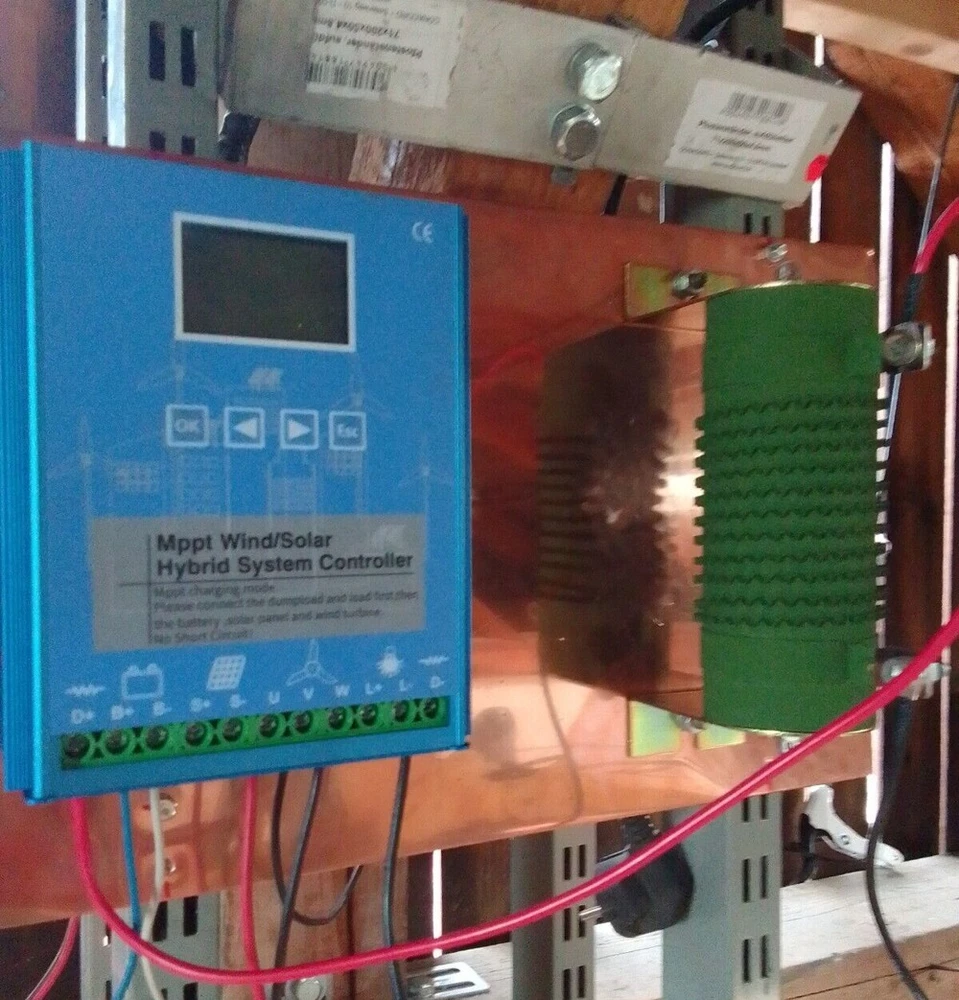

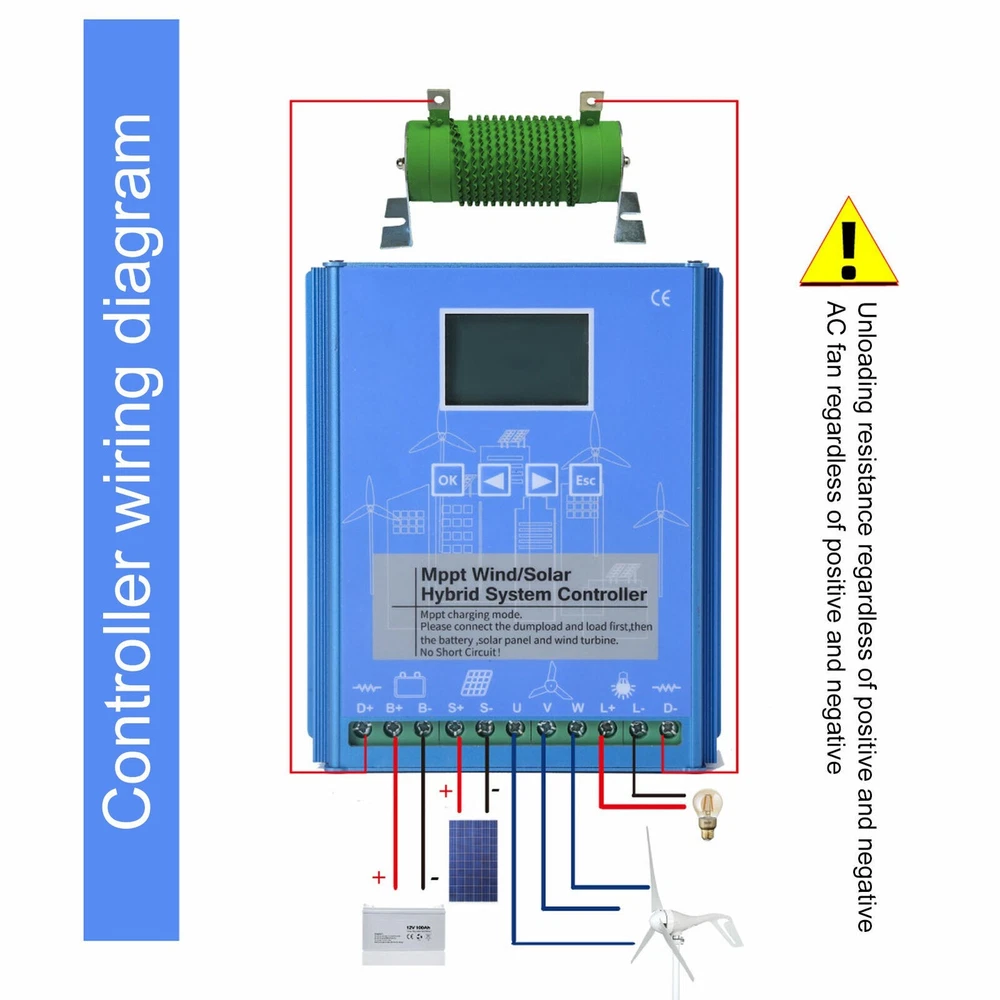

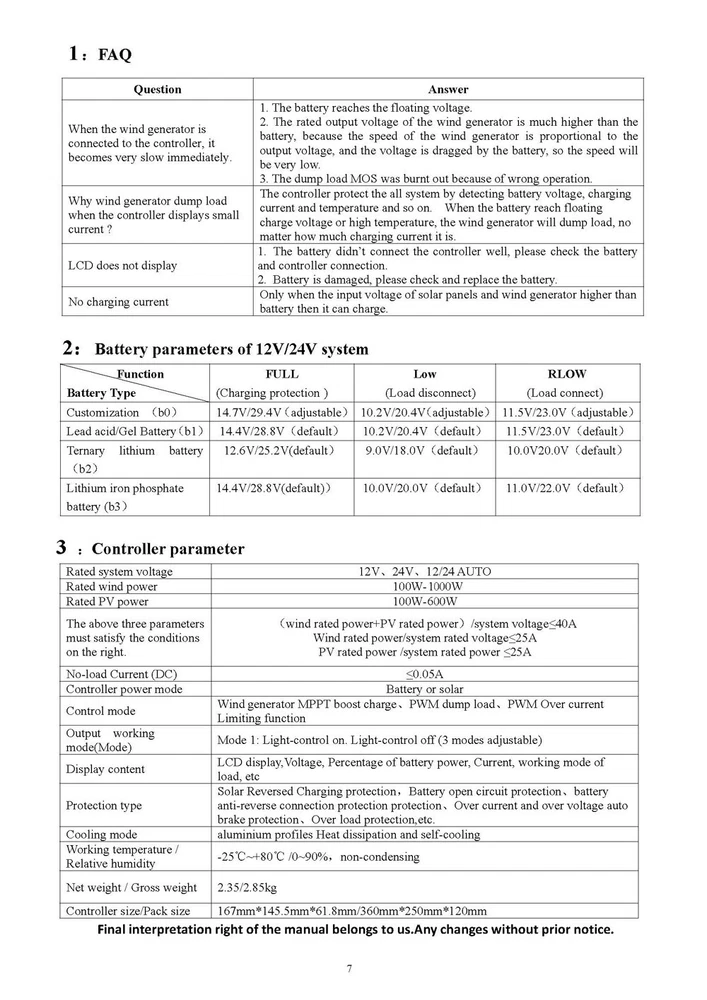

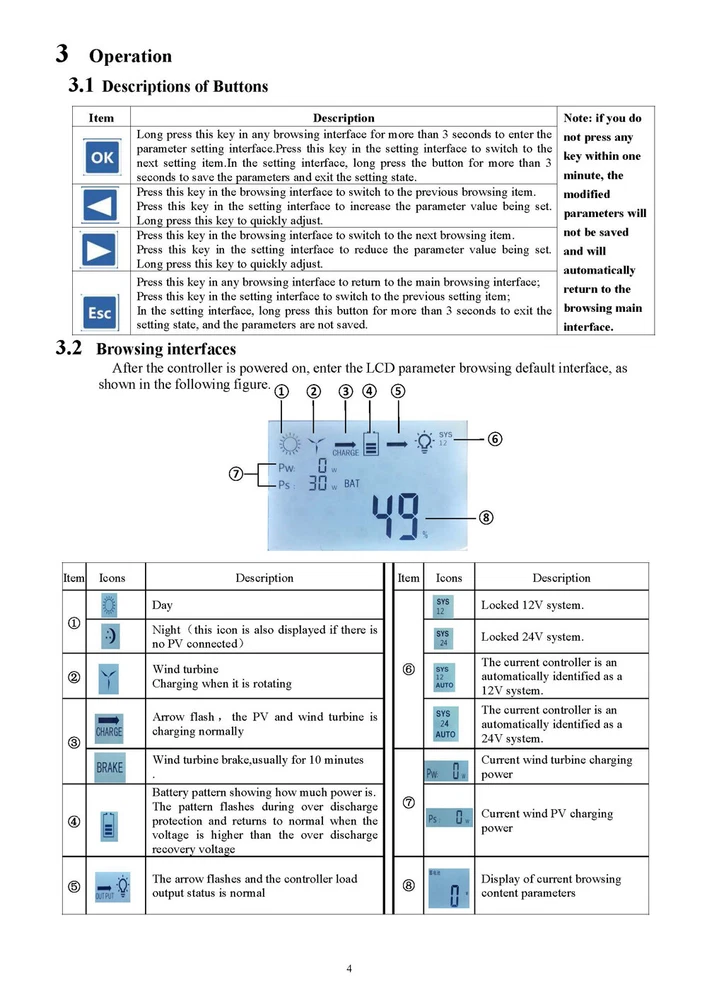

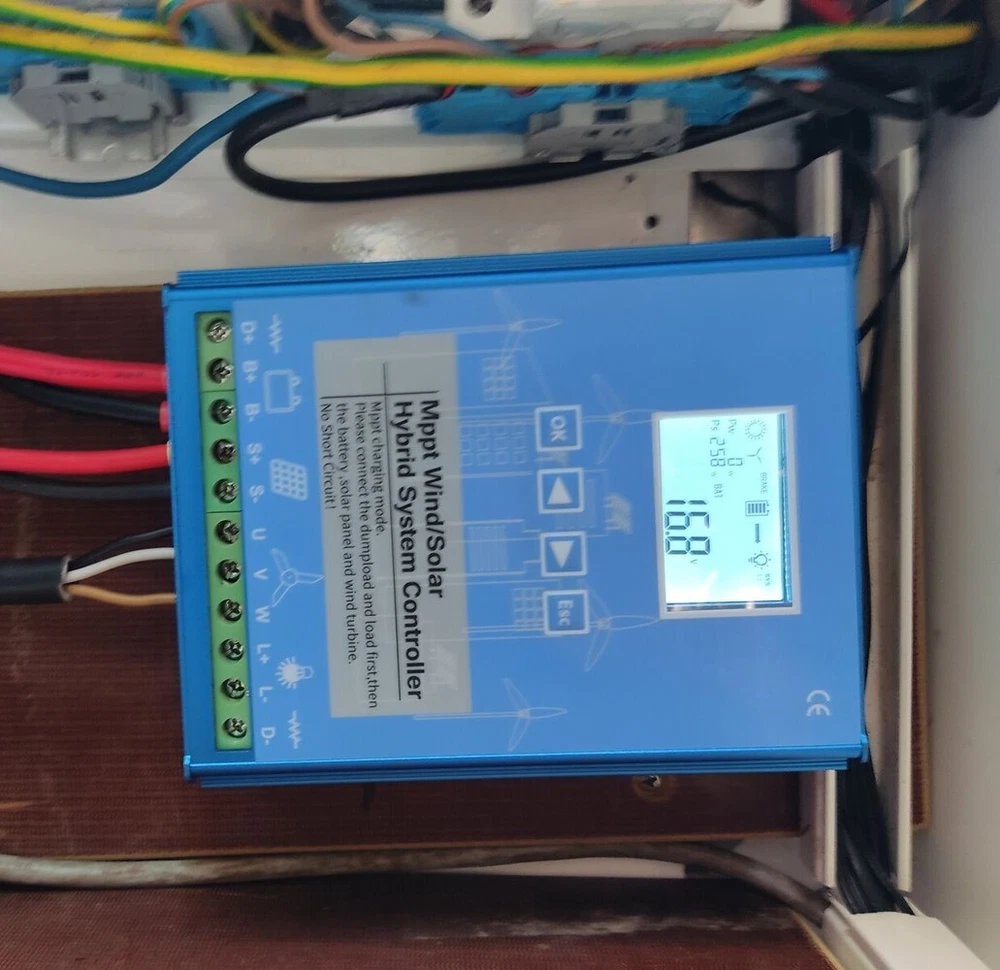

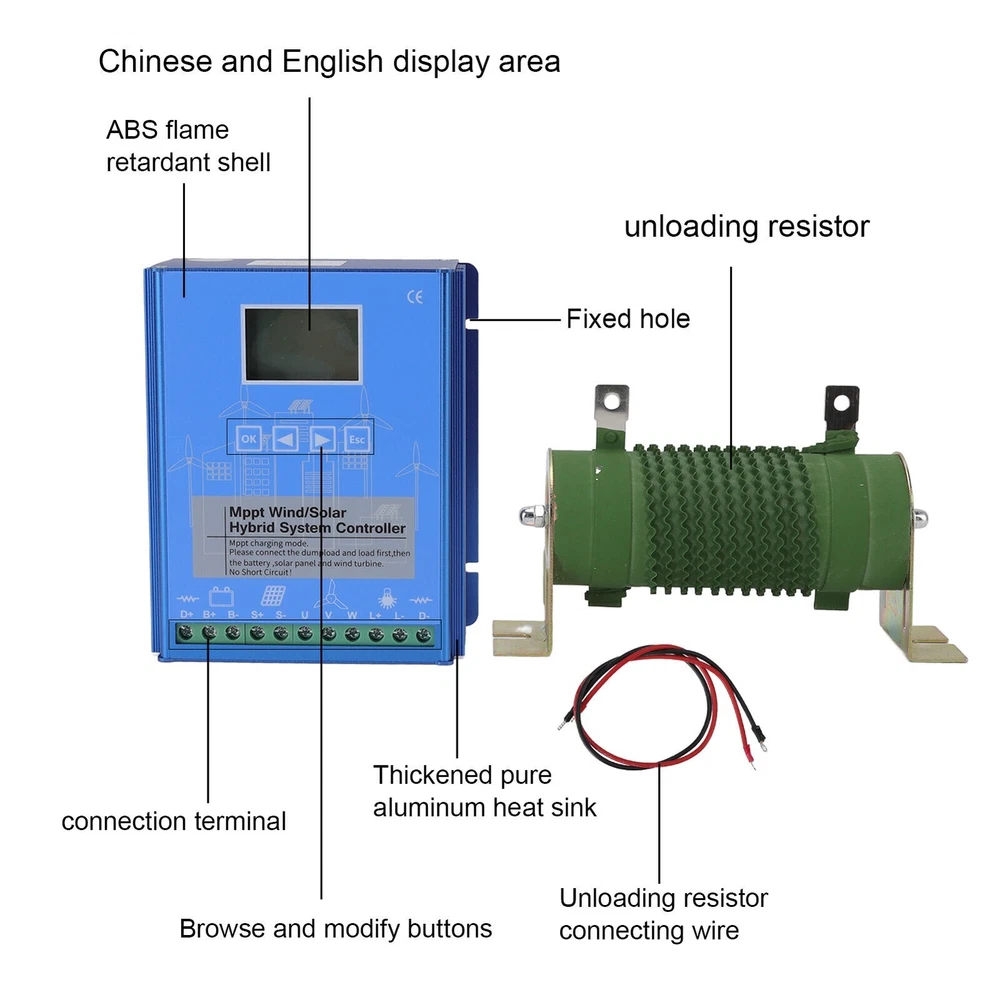

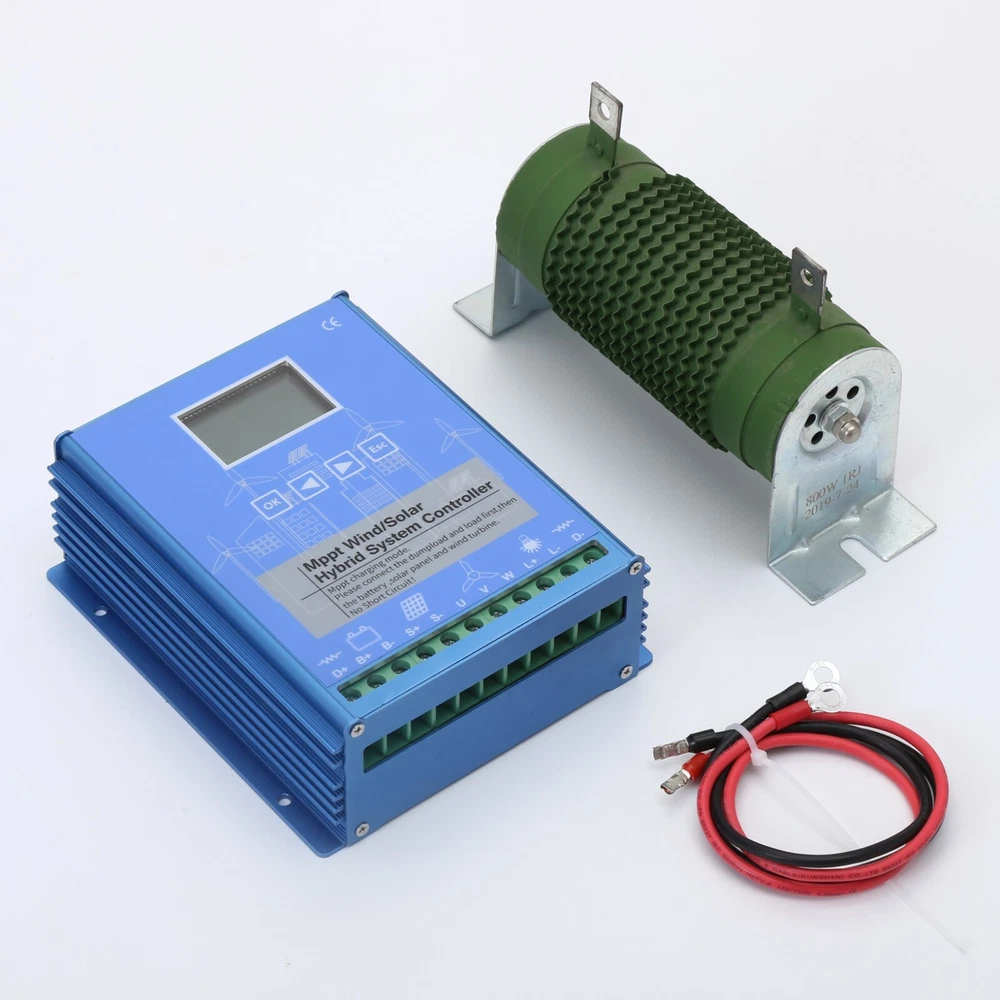

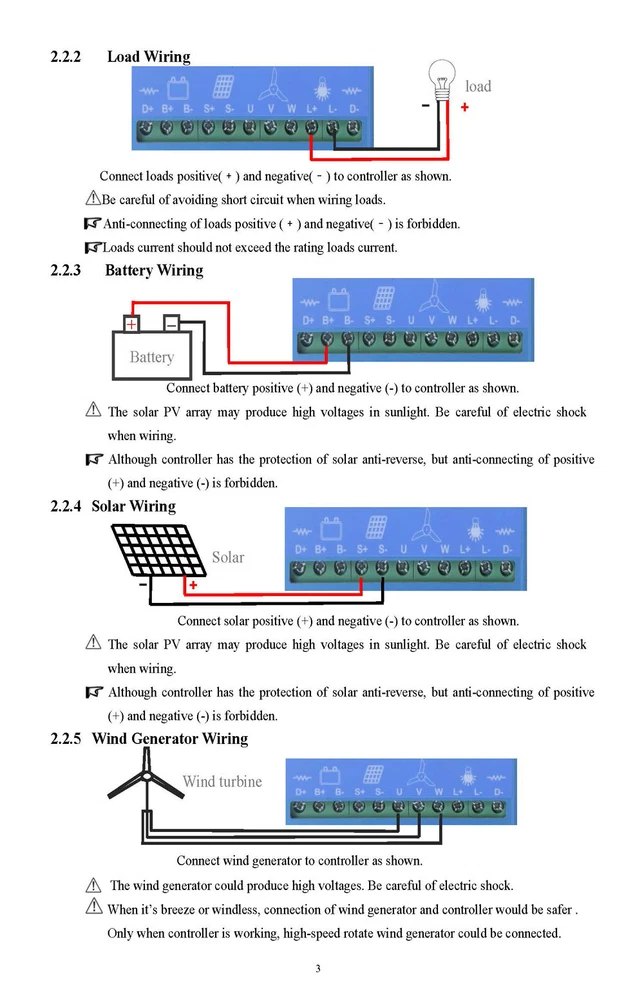

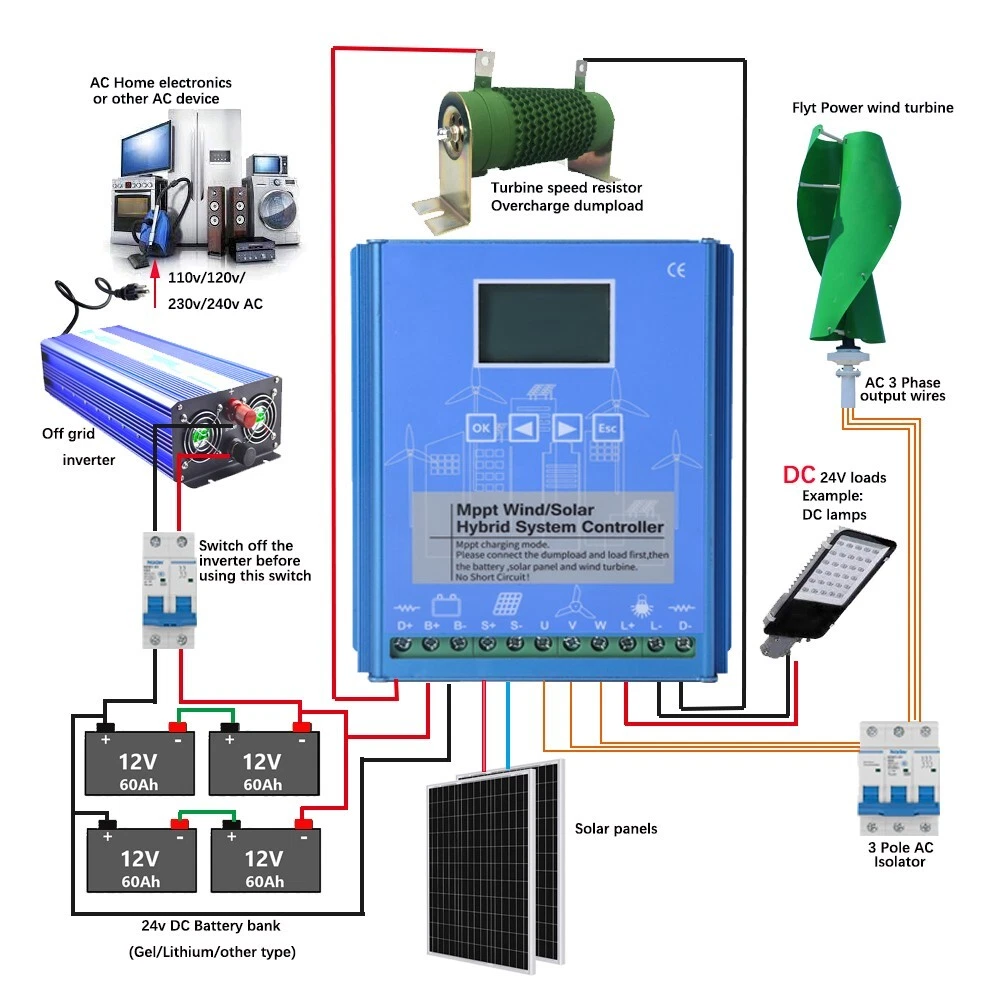

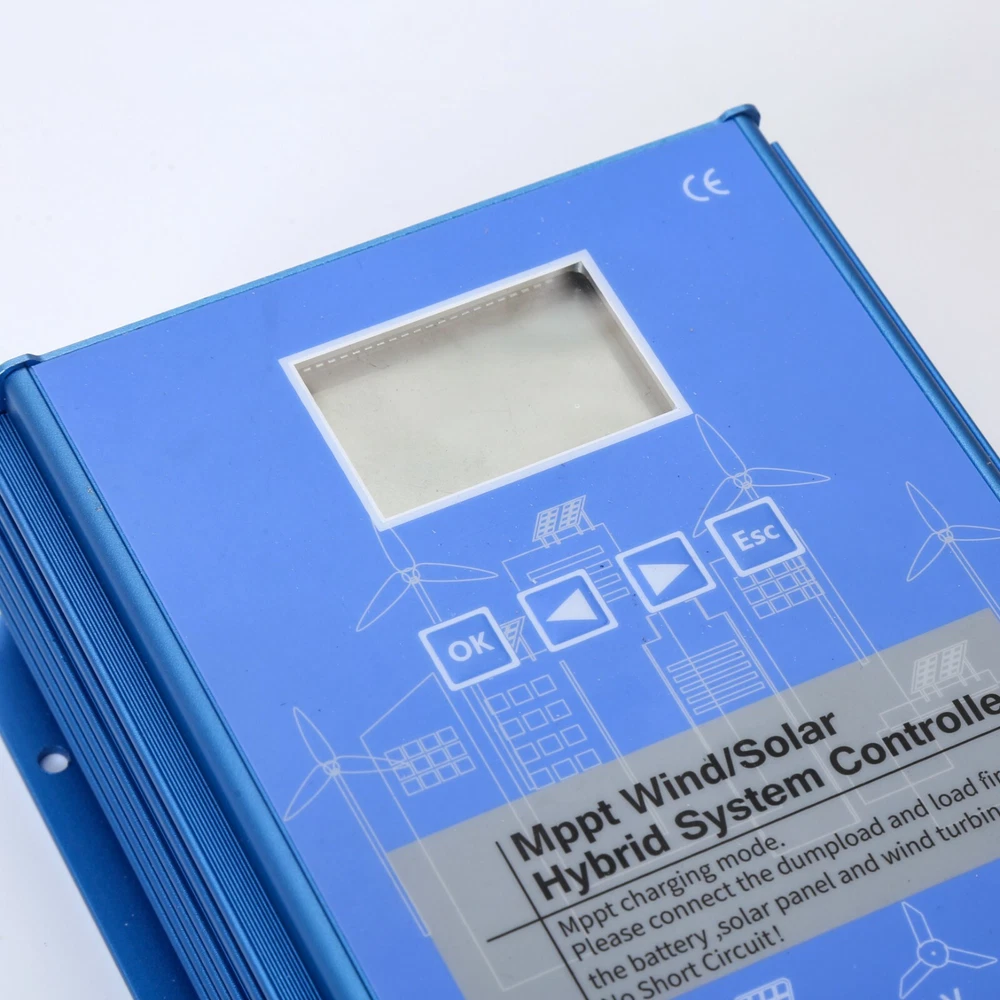

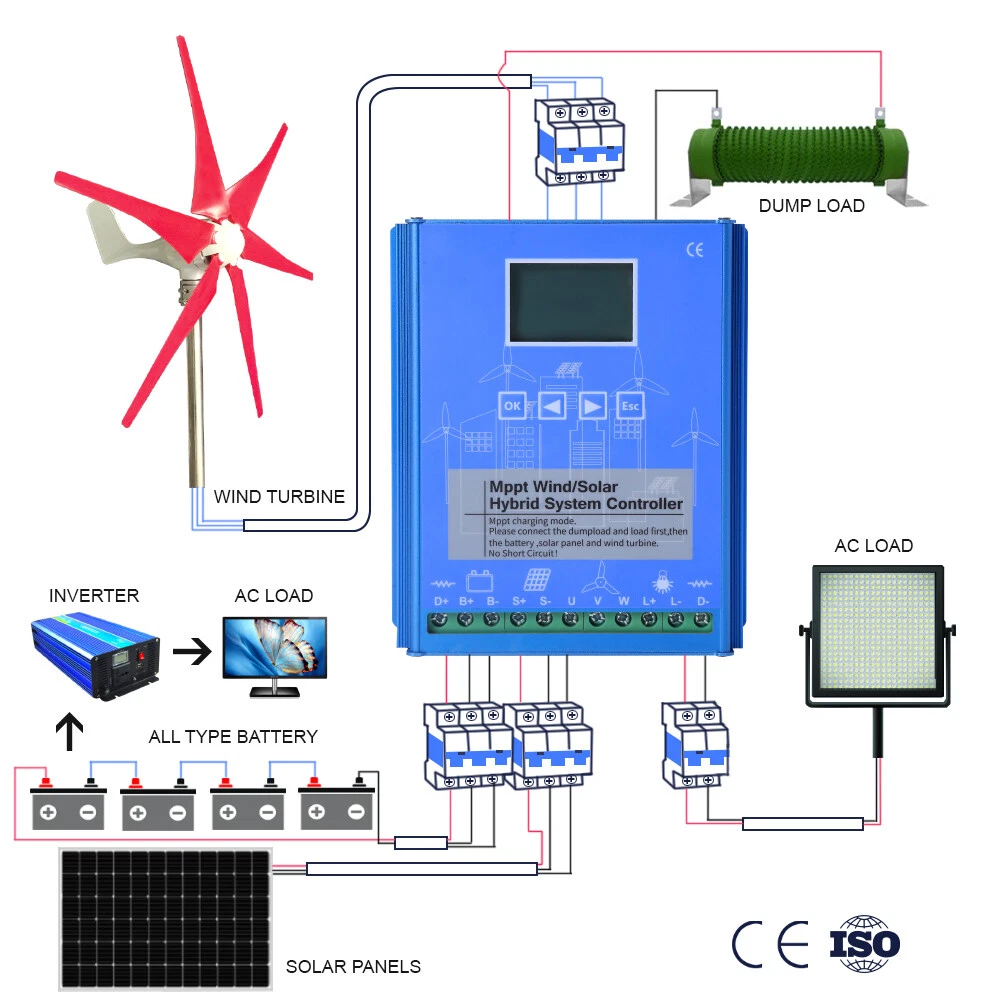

12V 24V MPPT Wind Solar Hybrid Charge Controller 1600W Regulator with Dump-load Features: Product Introduction This kind of wind solar hybrid streetlight controller is special design for small off-grid he course of which wind generator and solar panels charge to batteries safely and efficiently. Functions and Feature Wind generator MPPT boost charging function. PWM dump load of wind, external dump-load resistance, intelligent disconnection of Solar charging. Dual power supply function: Battery + solar power supply. LCD displays parameters such as voltage and current of wind, solar and load .Some parameters can be set by users. DC output with 3 output modes. The inner circuit board of the controller is sprayed with conformal coating to prevent dust, moisture and static electricity. Package list: 1 * Wind Solar Hybrid Controller Rated system voltage 12V 、 24V 、 12/24 AUTO Rated wind power 10 00W Rated PV power 600W The above three parameters must satisfy the conditions on the right . （ wind rated power+PV rated power ） /system voltage≤40A Wind rated power/system rated voltage≤25A PV rated power /system rated power ≤25A No-load Current (DC) ≤0.05A Controller power mode Battery or solar Control mode Wind generator MPPT boost charge 、 PWM dump load 、 PWM Over current Limiting function O utput working mode(Mode) Mode 1: Light-control on. Light-control off ( 3 modes adjustable) Display content LCD display , Voltage, Percentage of battery power, Current, working mode of load, etc Protection type Solar Reversed Charging protection ， Battery o pen c ircuit p rotection 、 battery anti-reverse connection protection protection 、 Over current and over voltage auto brake protection 、 Over load protection,etc. C ooling mode aluminium profiles Heat dissipation and self-cooling Working temperature / Relative humidity -25℃~+80℃ / 0~90% ， non-condensing Net weight / Gross weight 2.35/2.85kg Controller size/Pack size 16 7mm *1 45.5mm *6 1.8mm / 360mm * 250mm *1 2 0 mm Function Battery Type FULL (Charging protection ) Low (Load disconnect) RLOW (Load connect) Customization （ b0 ） 14.7V /29.4V （ adjustable ） 10.2V /20.4V （ adjustable ） 11.5V /23.0V （ adjustable ） Lead acid/Gel Battery （ b1 ） 14.4V /28.8V （ default ） 10.2V /20.4V （ default ） 11.5V /23.0V （ default ） Ternary lithium battery （ b2 ） 12.6V /25.2V(default ） 9.0V /18.0V （ default ） 10.0V 20.0V （ default ） Lithium iron phosphate battery (b3 ） 14.4V /28.8V(default ) ） 10.0V /20.0V （ default ） 11.0V /22.0V （ default ） Question Answer When the wind generator is connected to the controller, it becomes very slow immediately. 1. The battery reaches the floating voltage. 2. The rated output voltage of the wind generator is much higher than the battery, because the speed of the wind generator is proportional to the output voltage, and the voltage is dragged by the battery, so the speed will be very low. 3. The dump load MOS was burnt out because of wrong operation. Why wind generator dump load when the controller display s small current ? The controller protect the all system by detecting battery voltage, charging current and temperature and so on . When the battery reach floating charg e voltage or high temperature, the wind generator will dump load , no matter how much charging current it is . LCD does not display The battery didn’t connect the controller well, p lease check the battery and controller connection . Battery is damaged, please check and replace the battery. No charging current Only when the input voltage of solar panels and wind generator higher than batter y then it can charge . Item Display Description Options can be set 1 BAT SYS 12/24 AUTO Rated voltage of battery 12: lock 12V system ； 24 ： Lock 24V syste m ； AUTO ： automatic recognition 2 TYPE ： b0 Type of battery b0 ： customization ； b1 ： Gel battery ； b2 ： Ternary lithium battery ； b3 ： Lithium iron phosphate battery. When set to bo each voltage can be set by the users ， w hen set to b1/b2/b3 , the controller automatically matches the default value.Details see the technical specifications. 3 LOW ： ***V Over discharge protection voltage 4 RLOW ： ***V Over discharge recovery voltage 5 FULL ： ***V Over charge protection voltage 6 PV UL ： **V Light control voltage Voltage to judge the day and night . Pay attention there are one minute of delay . 7 ON/OFF Solar charge switch 8 Wind ON/OFF Wind turbine charge switch 9 Load ON/OFF Load output switch 10 MODE ： * Load mode MODE 1 ： light control mode , load off at day and on at night with 100% power MODE 2 ： Load always work with 100% power MODE 3 ： Light control+time control mode .load on at dark and work according to the set time and power by the users .Four sections+morning light mode adjustable . 11 T1 ： ***min First time phase Time phase and power of load can be adjusted.Each time phase is adjustable from 0 to 900 minutes and power is 0-100% In mode 3, if the first working time is set to 2 minutes and the first power is 0%, the system will delay 2 minutes before turning on the light after dark.In street lamp mode, this function can eliminate the difference between front and rear lights caused by solar panels of different street lamps, so as to achieve the effect of simultaneous lighting. 12 P1 ： ***% Power in first time phase 13 T2 ： ***min Second time phase 14 P2 ： ***% Power in second time phase 15 T3 ： ***min Third time phase 16 P3 ： ***% Power in third time phase 17 T4 ： ***min Forth time phase 18 P4 ： ***% Power in forth time phase 19 TC ： ***min Morning time phase 20 PC ： ***% Power in time phase Before receive the product, check it carefully. Make sure whether the product is damaged during transport. If it is damaged, contact the shipping company or our company immediately. All installation and electrical work must only be performed by professional personnel. Without any professional guidance, do not disassemble or attempt to repair the controller. Do not use the controller without batteries. Do not cut off the connection of controller and batteries when controller is working normally. Keep children away from controller. Do not allow water to enter the controller. Confirm that power connections are tightened to avoid excessive heating from a loose connection. Make sure cables are suitable for system. The product is warranted for one year from the date of shipment to the original end user. During warranty period, if failure occurs when the product normal using, our company will repair or replace the failure product. Out of warranty period, we supply repair service, but for charges. This warranty is only provided to buyers who have bought the product and signed the CI with us, and the warranty is nontransferable. Our company reserves the right to change products and without notice when products update. This warranty does not apply under the following conditions: Damage by not operating in accordance with user manual. Damage by accident, negligence, abuse or improper use. Unauthorized product modification or attempted repair. Damage occurring during shipment Payment Shipping service Return policy About us Contact us Payment 1.You can place an order and pay directly through eBay. After we receive your payment, we will prioritize your order. 2.Payment is required to get within 7 days after deal. If not, we will close the transaction. 3.If you have any problems after purchase, please contact us directly through eBay, and we will do our best to help you solve the problem. Shipping service All orders will be processed and shipped within 12 hours, Monday to Friday in most cases. Most packages will be shipped via USPS First Mail, it usually takes 3-5 days for delivery. A tracking number will be emailed to you upon shipment. Please note that USPS does not update tracking information location by location. We only ship to address that you input during eBay checkout. Buyers are responsible for wrong or undeliverable address. Return policy 100% guarantees of quality and service If you are not completely satisfied with your product, please let us know within 30 days of receiving the product and you can also send us an email message. We will take care of the problem of return and exchange for you the first time. I'm sorry. I'm sorry. 1.Note: For your best shopping experience in our store and save time. Please do not click on "Return this item", except that you simply do not need it anymore. Since "Return Request" cannot help you solve the problem efficiently, it may take a little longer for you to get a response as we check every two days with our "Return Request". This is the fastest way to solve any problem for you (we may reply a day later if you contact us on Saturday). You will receive helpful and practical solutions through the communication between us. 2.If you need a return shipment, please double check if the item does not work, and contact our customer service representative, tell us the detailed problem and send us some pictures for confirmation. Then you will receive a unique address for the return. Note: Do not hesitate to contact us anytime before and after the purchases, we are committed to your 100% customer satisfaction. I am here and ready to assist you with any question or concerns you might have before or after the purchase. If you have the problem with the item, please contact us first with eBay message BEOFRE you open return request or file a dispute or leave the netural or negative feedback. My goal is to make sure you are happy and having the pleasant shopping with us. About us Welcome to our eBay shop.As a leading and emerging company in manufacturing and export business, Bayoung has specialized in business and industrial products, home and garden products for more than ten years.We believe that our vision and mission is to provide innovative products with best service and competitive price, Our goal is to make sure you find exactly what you are looking for and to make it easier for you to place your orders. Contact us Welcome to our shop! Your satisfaction is our top priority. Please do not hesitate to contact us if you have any questions about our products or services. Thank you very much! Our working hours (Monday to Friday): -09:00-12:00 (GMT+8) -14:00-18:00 (GMT+8) Saturday: -09:00-12:00 (GMT+8) -14:00-17:00 (GMT+8) All emails are answered very quickly during our working hours, emails are usually answered during the holiday within 24-hours. Welcome to contact us if you have any problem.
