200W 24V 3-Phase Brushless DC Motor 2509 RPM 0.8Nm Disc Magnet

Description

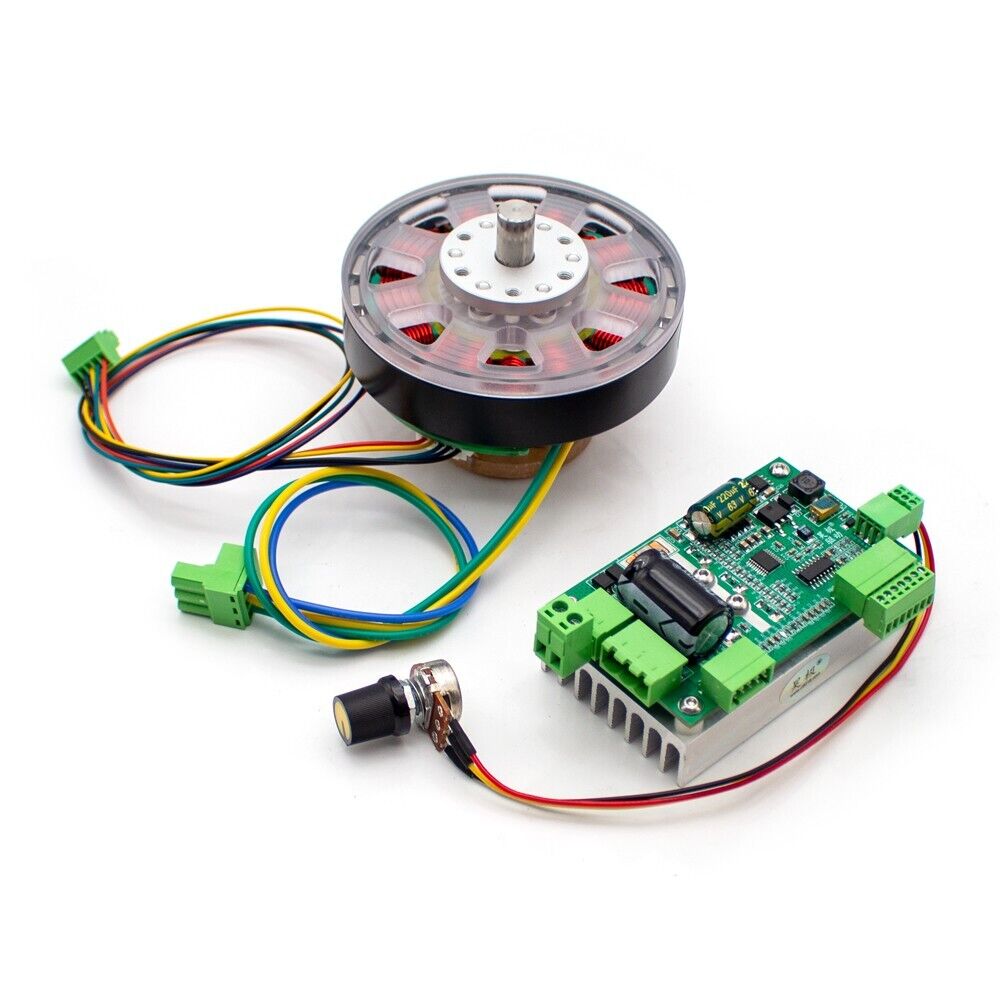

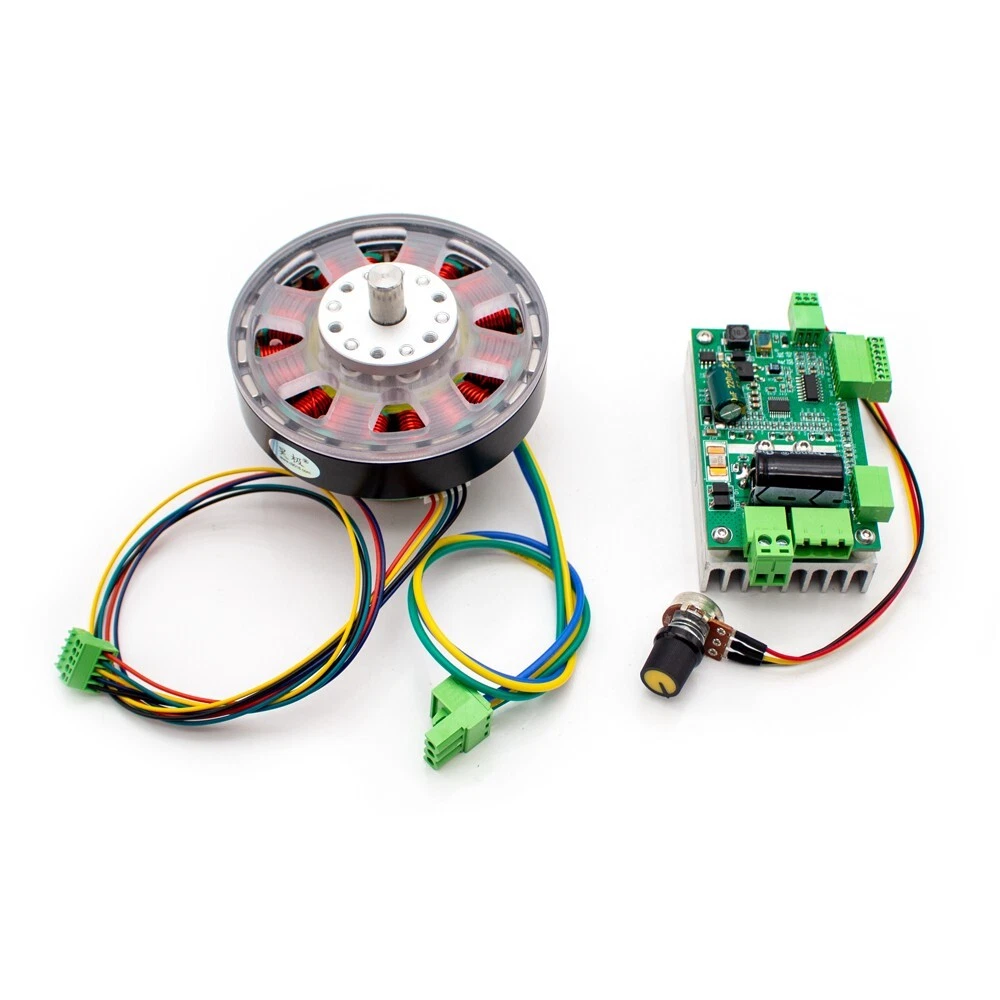

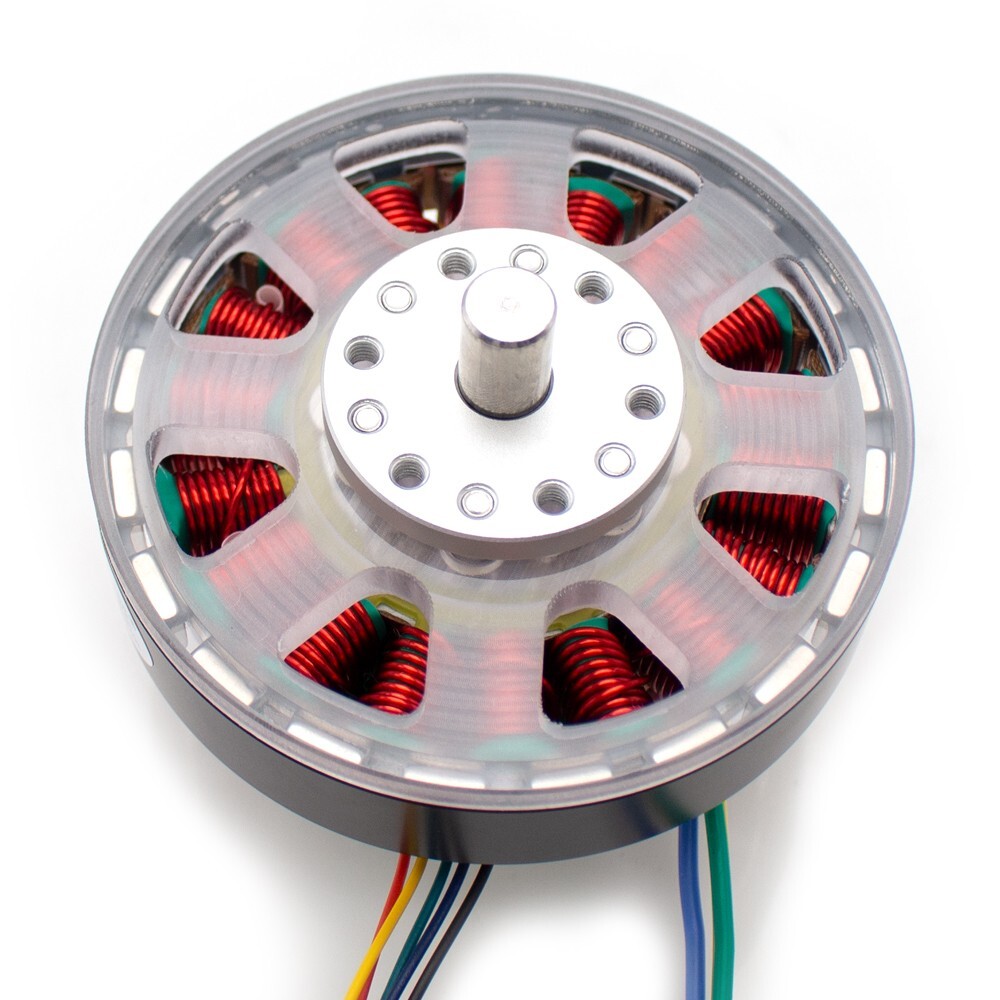

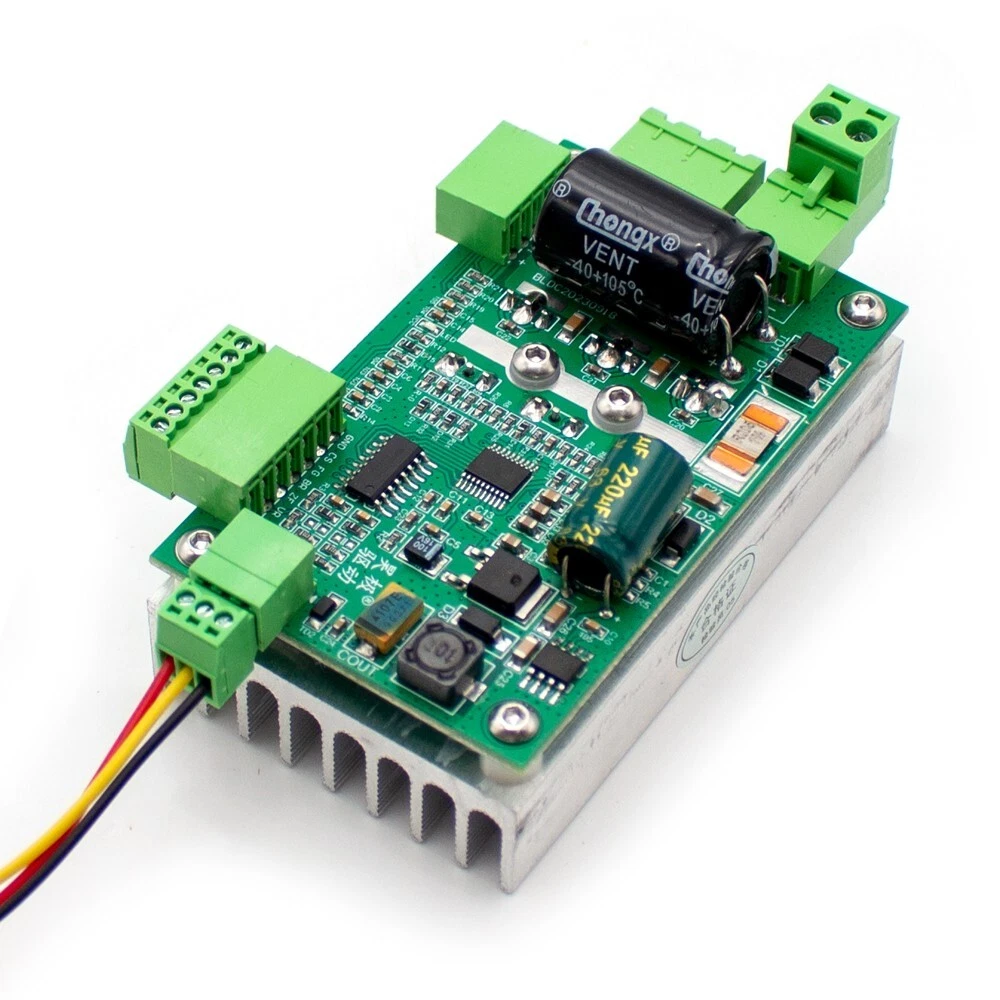

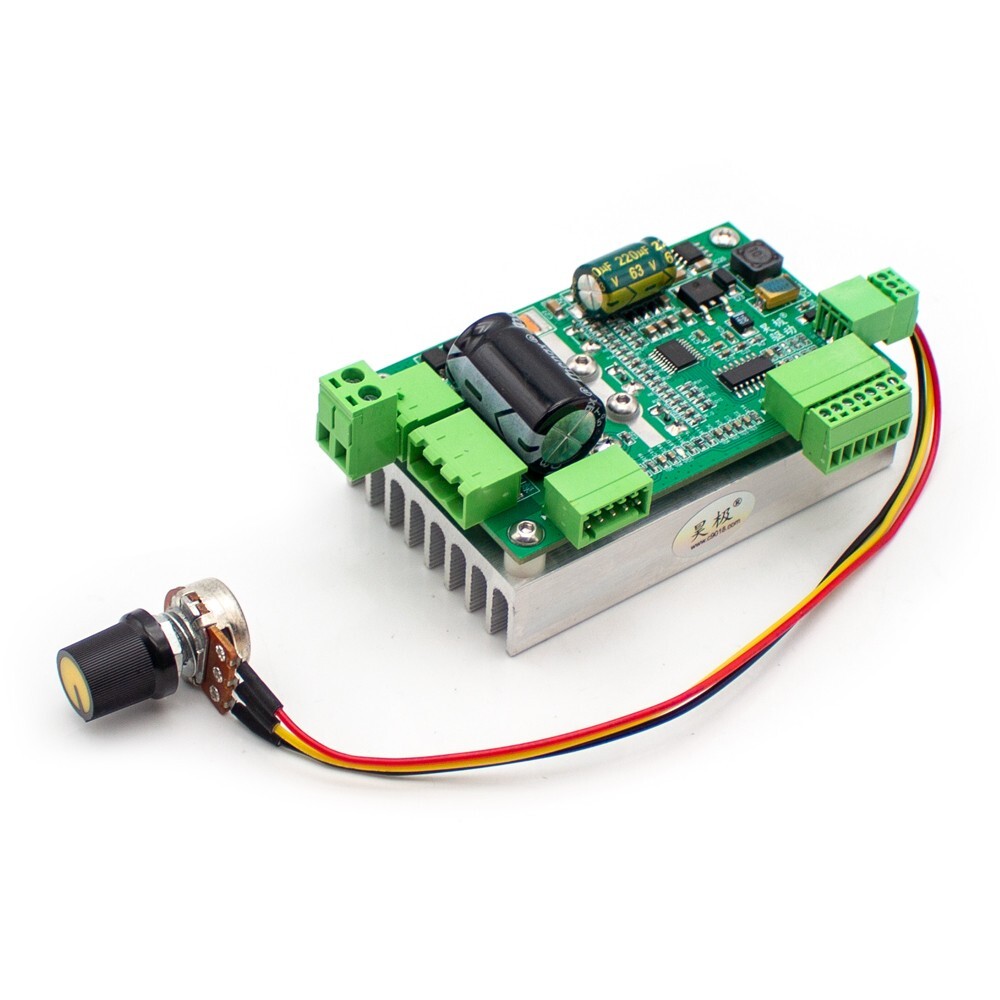

200W Disc Type Permanent Magnet 3-Phase DC Brushless Motor DC24V 2509RPM 0.8Nm 200W Disc Type Permanent Magnet 3-Phase DC Brushless Motor, Flat Direct Drive Solid Shaft Torque Motor DC24V 2509RPM 0.8Nm 10.9A Description: 1. This motor is an experimental prototype product, shape diameter of about 91.8MM, large torque, smooth speed regulation, can be used as a general power direct drive free of reduction gear thus improving efficiency, the core components are supported by metal, rotor bracket using engineering plastic (non-acrylic) CNC machining, can meet the requirements of not high, a small amount of demand for power, or as a teaching model demonstration with, can also be customized according to the application strength of full metal Skeleton and improve the power, please contact our customer service for this demand 2. This motor is a permanent magnet three-phase DC brushless motor, you need to purchase the appropriate brushless motor driver to use 3. At the same time this is also a generator, accepting external power transmission (such as hydraulic, wind, hand crank, treadmill, Stirling engine, etc.) can output three-phase alternating current, add a three-phase rectifier bridge can be converted to DC use, to charge the battery 4. Because of the simple structure of this motor, disassembly and assembly is convenient, installation and fixing method is flexible and variable, multiple coaxial parallel connection to obtain multiple power output, the shaft can be replaced by any length, is a good choice for pre-product development, DIY production of various types of model toys, small generators Specification: Overall diameter: 91.8MM Rotor thickness: 24MM Overall thickness: 36MM Rotating shaft: Diameter 10MM, Available shaft length 15MM Stator: diameter 80MM*thickness 10MM Hall phase angle: 120° Slot configuration: 18N20P, star connection Lead length: 20-30CM Lead phase sequence: green=A(U), yellow=B(V), blue=C(W) Weight: about 530G Electrical Parameter: Working voltage: DC12-24V No-load speed: 2970@DC24V Rated voltage: 24V Rated power: 210W Rated speed: 2509RPM Rated torque: 0.8N*m Conversion efficiency: 82% Speed constant (KV): 124RPM*V Torque constant (KA): 0.08Nm*A Package includes: 1 x DC Brushless Motor Payment Shipping Returns Terms About Us Contact Us Payment We only accept PayPal. 1: Please write any special request (e.g. Colors or Size) in PayPal Note when you make payment, because most of orders will be processed instantly and dispatched in same day. 2: Please confirm your detailed shipping address is up-to-date and same in your eBay and PayPal account before you make payment. Please include daytime phone number in your eBay address; your local postman or customs will use this phone number to contact you! 3: Serious bidders only, please. Orders will be cancelled and an unpaid item dispute opened if payment is not received within 4 days. Shipping (1) We will ship your item(s) within 1-3 working day. (2) We send to USA ,15-25 working days. (3) UK / Auatralia / Canada ,15-35 working days. (4) Europe , 15-35 working days. (5) Other Countries, 20-45 working days. (6) We can also provide express post by EMS(4-15 days) or DHL(4-8 days). The cost is higher than standard postage, about $ 90 or higher. If you want post by EMS or DHL, please contact us.Very reasonalbe shipping fee will be charged (7) Import duties, taxes and charges are not included in the item price or shipping charges. if you still need to pay for the Import duties or taxes; we are unable to take any responsibility for this. Returns Refund or replacement request is available only the requests within 7 days after parcel received & returning the item as the same condition as received. Please contact us to request a return authorization. Your name, auction number, and reason for return should be included in the email. All items returned must contain all original packaging materials. If the item is found non-defective, the item will be sent back to the buyer at buyer's expense. Items returned without RMA number will be refused and returned to the sender. The Buyer is responsible for All Return Postage and Shipping Charges. The buyer is responsible for additional shipping costs for items that are returned, refused and/or undeliverable. We do not accept any returns without an authorization number on the box or label it is being returned in. Terms We stand behind every product we sell. If you're not pleased with your purchase, we'll be happy to make an exchange or refund the product price less S&H within 30 days of your purchase. For any exchange or refund, we need the original receipt or a record of the purchase in our system, and the product must be in its original condition, including the box, UPC bar code, packaging, and all accessories. Please allow up to 10 business days for returns to be processed. Shipping and handling charges are not refundable. About Us Welcome to our store! We are professional worldwide wholesale company, with our own factory located in China. We supply many products including Pet Supplies, ,Women/men Clothes, Phone Accessories, Audio & Video, Car Accessories, Computer & Network, Consumer Electronics, Electronic Components, Flashlights & Lasers, Hobbies & Toys, Home & Garden, Photography, Sports & Outdoors, Video Games. High product quality, reasonable prices, excellent customer service and a reliable credit standing is our tenet. Contact Us Your feedback is very important to us. Please leave us positive feedback with all 5-star for the Detailed Selling Rating when you receive the item. If there is some problem with the product, please communicate with us before leaving neutral/negative feedback or opening ebay/paypal case, we will do our best to resolve your problem. We try our best to reply to your emails as soon as possible, however, due to the high volume of daily incoming emails and time zone difference; we may not be able to reply to your emails immediately. Please allow 48 business hours for us to respond.
