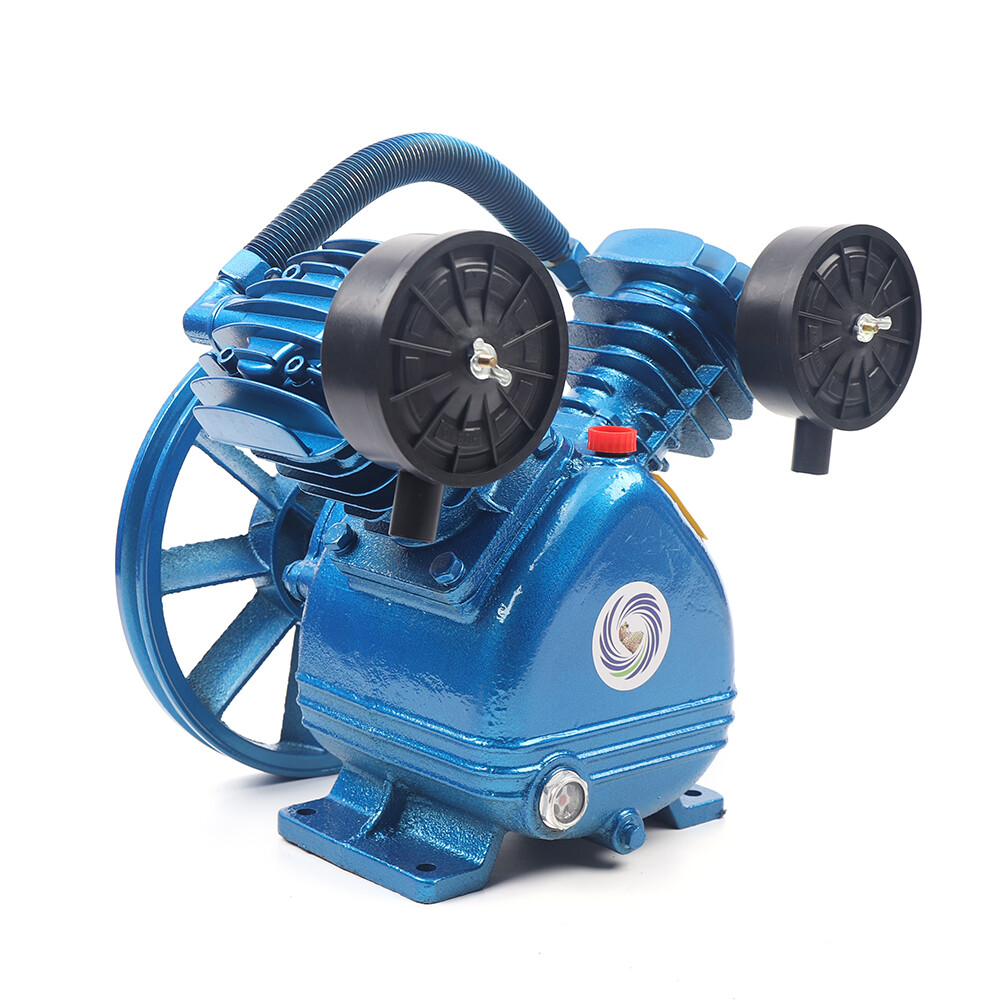

2HP V-Twin Piston Air Compressor Pump 115PSI Single Stage

Description

Air Compressor Pump Twin Cylinder 2 Piston V Style 2HP Head Single Stage Blue Specifications: l Model: V-0.17/8 l Exhaust volume: 170L / min l Exhaust pressure: 8bar/ 115PSI l Pipe joint: 19mm l Pulley size 250mm l Matching power: 1.1-1.5kw l Cylinder diameter: 51mm * 2 l Speed: 1050rpm/min Features: l High efficiency, high precision, universal, low energy consumption. l High quality material, not easy to damage. l Strict balance support and correction to ensure the smooth operation of the main engine. l Special valve steel is used for hair piece, which has good strength and toughness at high temperature. l Faster inflation and low noise. l Strong cooling blade, good cooling performance. 2 Piston Air Compressor Head Pump V Style Twin Cylinder Single Stage 2HP 115PSI 1500W 115PSI 2 HP V Style Twin Cylinder Air Compressor Pump Specifications: Model: V-0.17/8 Exhaust volume: 170L / min Exhaust pressure: 8bar/ 115PSI Pipe joint: 19mm Pulley size 250mm Matching power: 1.1-1.5kw Cylinder diameter: 51mm * 2 Speed: 1050rpm/min Model：V-0.17/8 Horsepower：2HP Maximum pressure： 115PSI Pulley diameter： 250MM Nozzle thread ： American 3 / 4-16 (external diameter of thread: 19mm) Revolutions: 1000-1100revolutions Compression pump：Single Stage Highlights: High efficiency, high precision, universal, low energy consumption. High quality material, not easy to damage. Strict balance support and correction to ensure the smooth operation of the main engine. Special valve steel is used for hair piece, which has good strength and toughness at high temperature. Faster inflation and low noise. Strong cooling blade, good cooling performance. Installation notes: 1、 When placing the pump head, the motor pulley and the belt pulley must be in the same straight line. The more aligned, the less vibration. 2、 Tighten the screws (including the base and pulley screws). 3、 After the screws are installed, the belt shall be tightened. If the belt is loose, please move the motor. After the screws are tightened, re-install the belt. 4、 The new machine must be filled with engine oil before starting, and the engine oil shall be added to the center of the red point of the oil mirror. 5、 The rotation direction of the pump head is clockwise. If it reverses, please adjust it in time. 6、 Change the oil for the first half month, the second one and a half months, and the next two to three months. 7、 Replace the air filter regularly. Under normal conditions, it must be replaced in two to three months, and in case of poor environment, it must be replaced in one month. 8、 The operation of the machine will produce high temperature, be careful not to burn! Item included: 1*V Type Twin Cylinder Air Compressor Pump Head Payment Delivery details Terms of sales About us Contact us Payment We accept ebay payment 。 Fees such as import duties, taxes are not included in the item price or shipping costs. These charges are the buyer's responsibility. Delivery details Shipping: 2-9 working days to: USA Terms of sales We maintain high standards of excellence and strive for hundred percent customer satisfaction. Feedback is very important to us. We hope that you contact us immediately before you give neutral or negative feedback, so that we can address your concerns. It is impossible to address issues if we do not know about them! About us Your satis faction is our ultimate goal. We work hard to earn your trust and future business. Our certified technicians have tested each item before shipping. The unit comes with 1 year limited warranty on all manufacturing defects. a) If you receive a defective item, you may return it or ask for a discount. Please contact us within 14 days after you receive the package. b) What you returned must be intact and in its original packaging as re? u. Customer is responsible for shipping costs of the returned item. c) We will cover the cost of shipping back t with the shipping rate indicated in the registration page. We will send you a new unit or refund the full payment you paid. Thank you. Contact us Business Hour Business Hour: Monday To Friday: 8:30 AM to 5:00 PM (Beijing China time) Due to time zones, our reply to your questions may not be immediately. But within above working time, we will reply your email within 24 hours. If it's non-workdays, please kindly be patient and wait till Monday. Please contact us with ebay message. Please feel free to contact us if you have any questions. Monday To Friday: 8:30 AM to 5:00 PM (Beijing China time) Due to time zones, our reply to your questions may not be immediately. But within above working time, we will reply your email within 24 hours. If it's non-workdays, please kindly be patient and wait till Monday. Please contact us with ebay message. Please feel free to contact us if you have any questions. *Festure 1 Beautiful Appearance Brand Unbranded Country/Region of Manufacture Unknown 1Features* Wide Application,Novel Appearance,High Quality Warranty 3-year Shipping notice Can not ship to Puerto Rico,Alaska/Hawaii Features： Creative Design，Durable Material，Beautiful Appearance Item location CA /NJ /Austell Bundle Description no Transportation does not include canarias Features 1 Nice and Practical, High Quality Packaging Note: Do not send to Brazil Bundle Description: No Item location: CA /NJ /Austell Transportation does not include: canarias shipping notice： Can not ship to Puerto Rico,Alaska/Hawaii Lubrication Type Does Not Apply Flow Rate NO Tank Capacity NO Horse Power 2 hp Maximum Working Pressure 115PSI Power Source Corded Electric Portability Portable Tank Material NO Type Air Compressor Pump Voltage Does Not Apply Set Includes Manual MPN Does Not Apply Color Blue Model V-0.17/8 Manufacturer Color Blue size 2hp Material Cast Iron Frame Material Cast Iron eBay Durapower Store Category Air Tools Pulley size 250mm Pipe joint 19mm Exhaust pressure 8bar/ 115PSI Exhaust volume 170L / min Matching power 1.1-1.5kw Cylinder diameter 51mm * 2 Speed 1050rpm/min California Prop 65 Warning No EAN Does not apply UPC Does not apply
