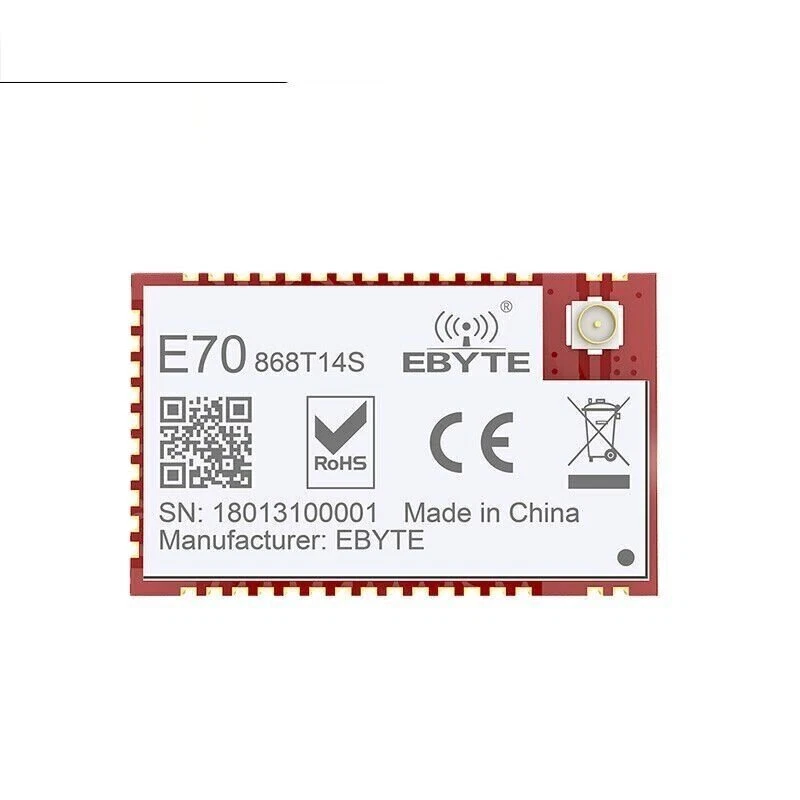

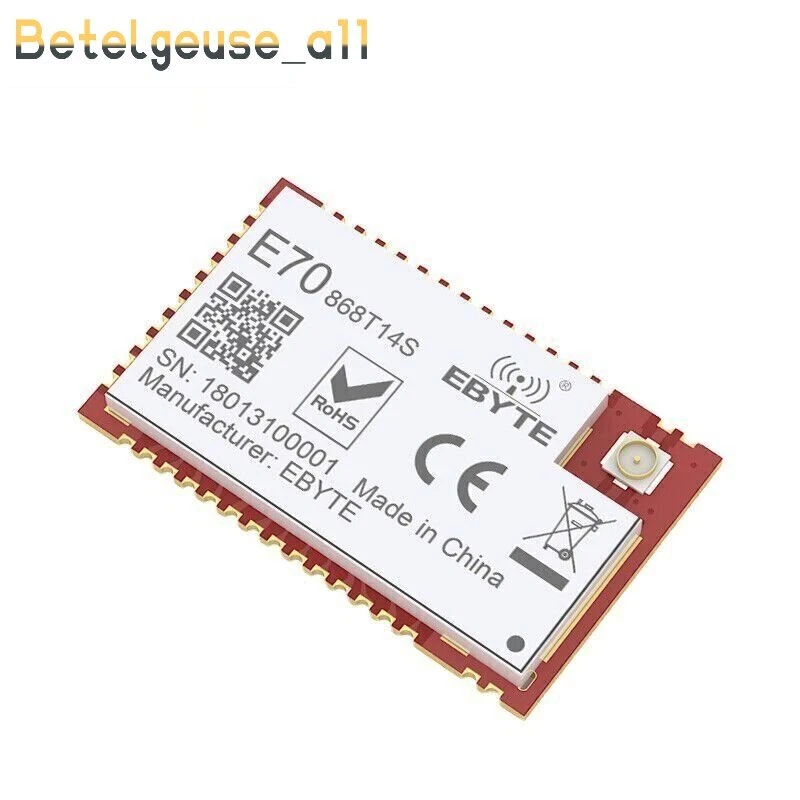

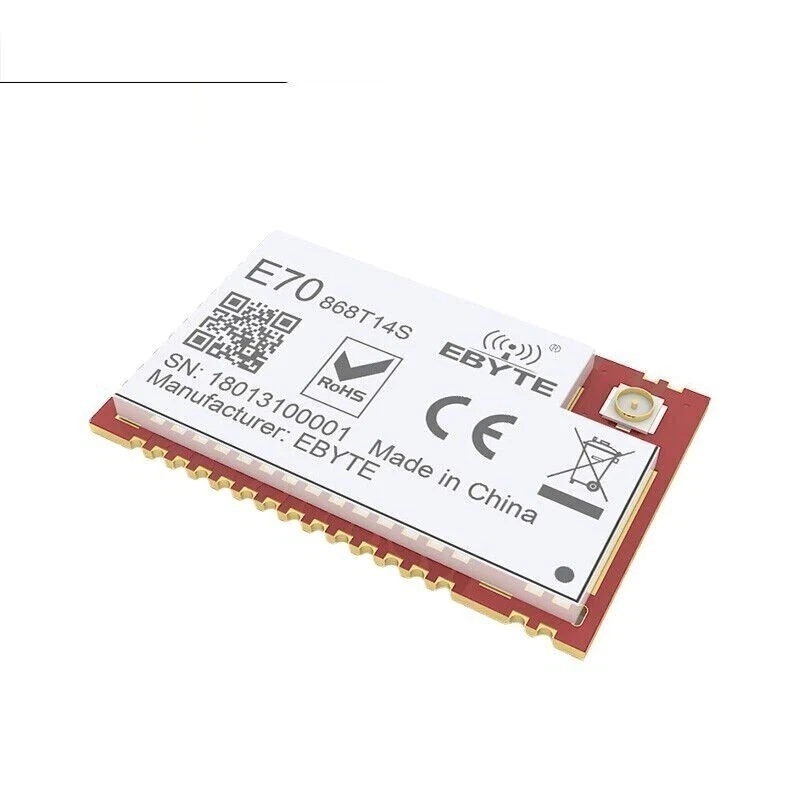

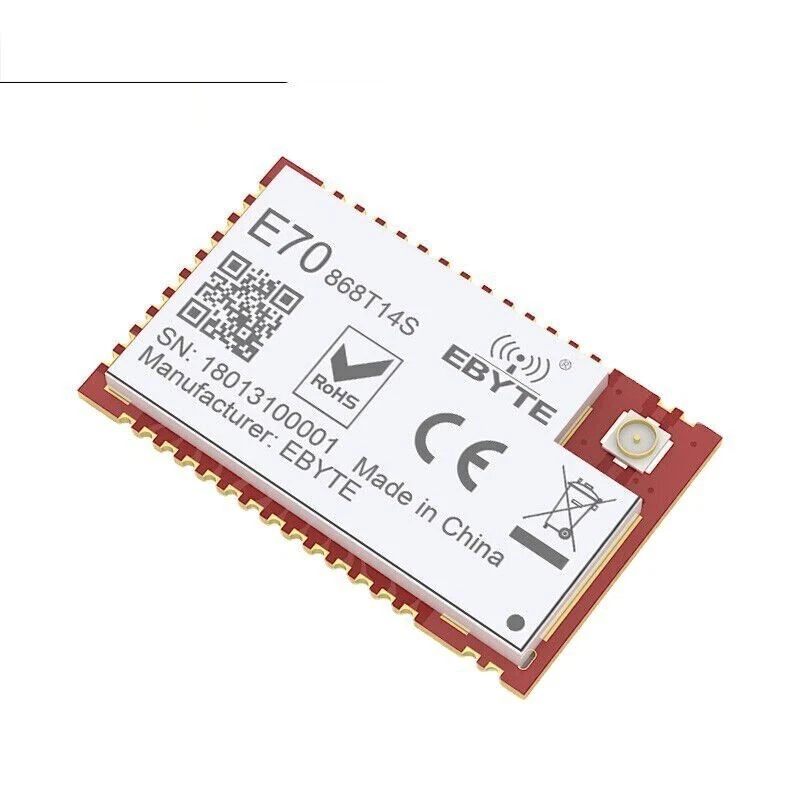

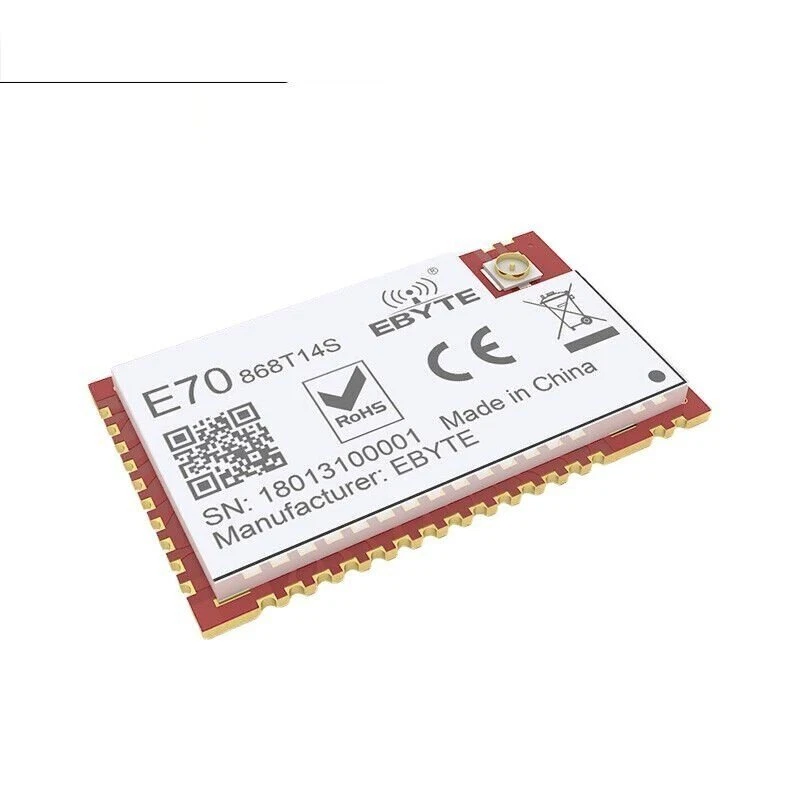

2X CC1310 868MHz 14dBm SMD UART Module E70-868T14S iot 25mW Wireless Transceiver

$ 7.39

IC: CC1310 Non-Domestic Product: No UPC: Does not apply Modified Item: No Country/Region of Manufacture: China Custom Bundle: No Bundle Listing: No Range: 1500m Weight: 2.0g gtin13: Does not apply Frequency: 868MHz (861~876.5MHz) Brand: Peakelect Model: E70-868T14S Power Supply: 2.2 ~ 3.8V DC Type: UART Power: 14dBm/25mW Size: 16 * 26 mm MPN: Does Not Apply

Description

CC1310 868MHz 14dBm SMD UART Module E70-868T14S iot 25mW Wireless Transceiver RF Parameter Value Remark Working frequency 861~876.5 MHz Default: 868MHz (24MHz oscillator) Transmitting power 4~14 dBm Default: 14dBm(About 25mW) Receiving sensitivity -110 dBm Air data rate: 50kbps Air data rate 2.5k~168kbps Default: 2.5kbps Test distance 1500m In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 2.5kbps Hardware Parameter Value Remark IC CC1310F128RGZ FLASH 128 KB RAM 20 KB Core Cortex-M3(MCU)+Cortex-M0(RF) Size 16 * 26 mm Without SMA Antenna type IPEX / Stamp hole Communication interface UART Baud rate: 1200~115200, default: 9600 Package SMD Buffer 2048 bytes buffer Defined by user Electronic parameter Min. Typ. Max. Unit Condition Power supply 2.1 3.3 3.8 V Communication level 2.1 3.3 3.8 V Transmitting current 25 27 30 mA 14dBm(25mW) Receiving current 7 8 9 mA Sleep current 0.5 1.0 2.5 μA Operating temperature -40 20 +85 ℃ Operating humidity 10 60 90 % Storage temperature -40 20 +125 ℃
