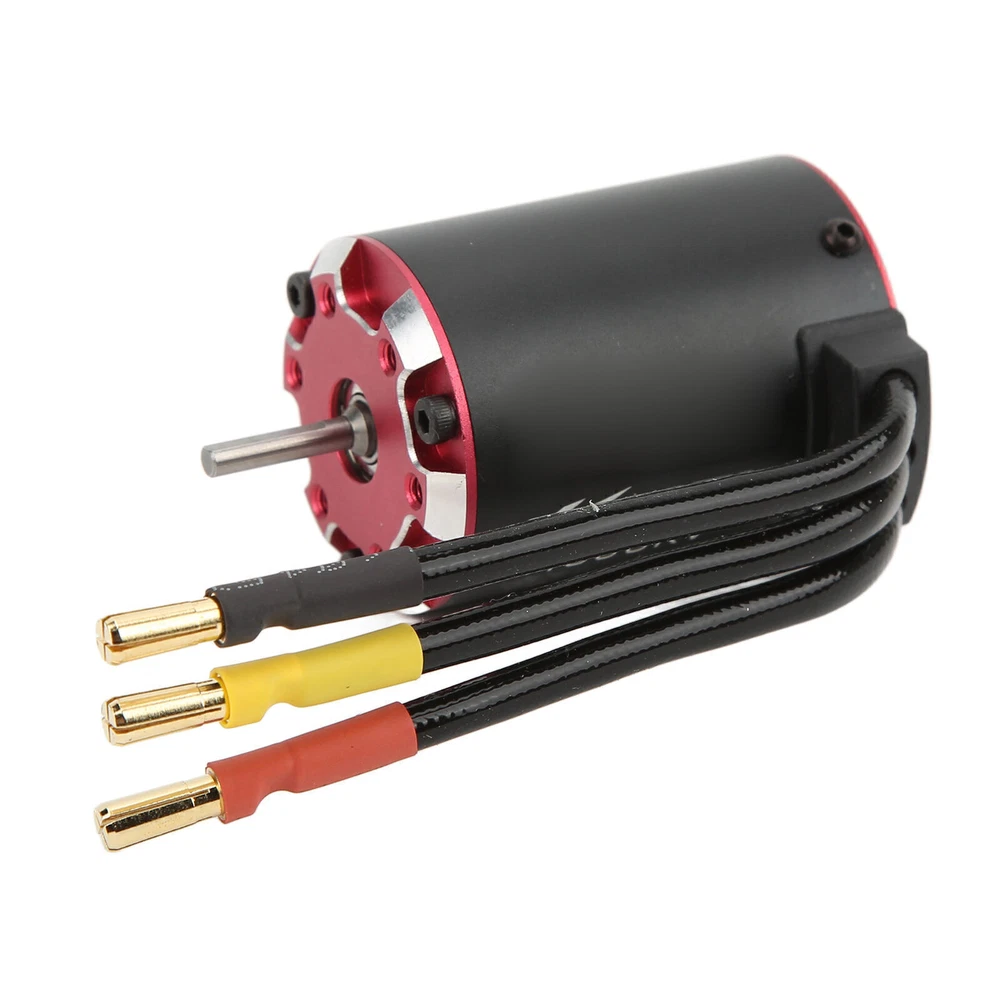

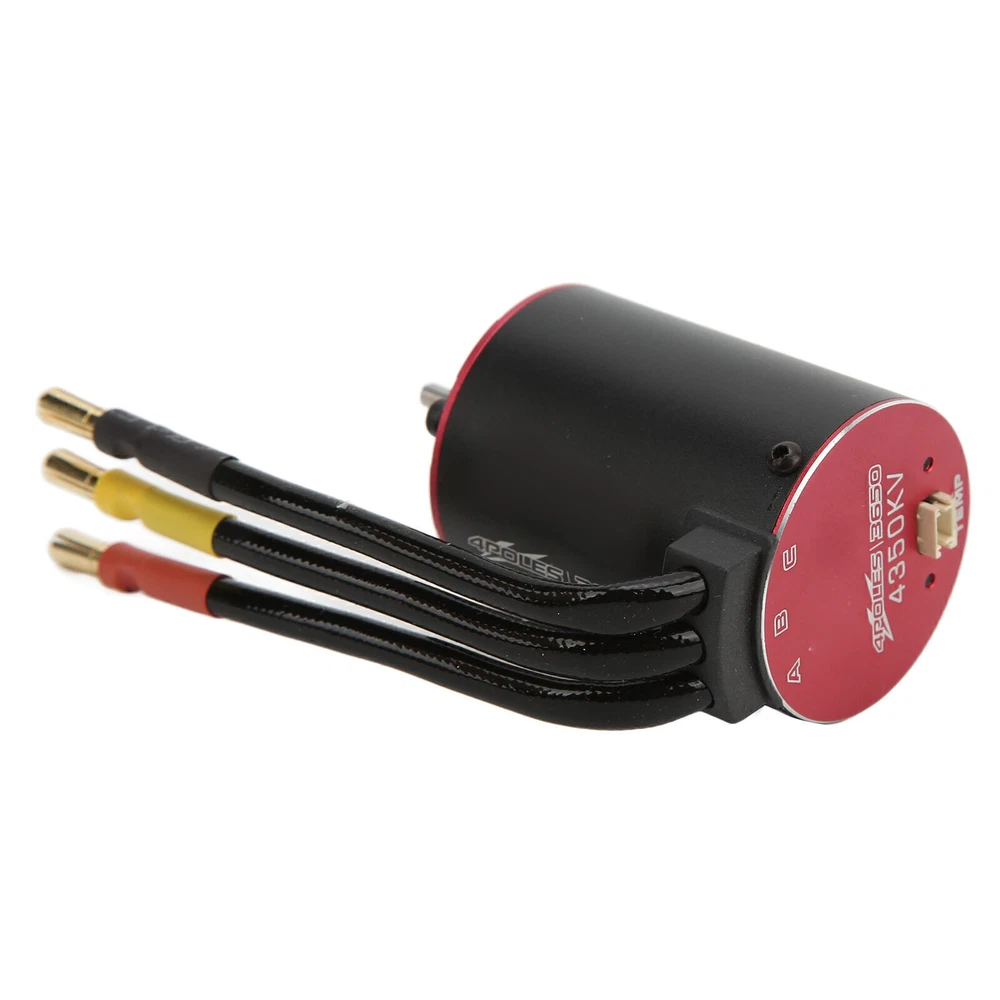

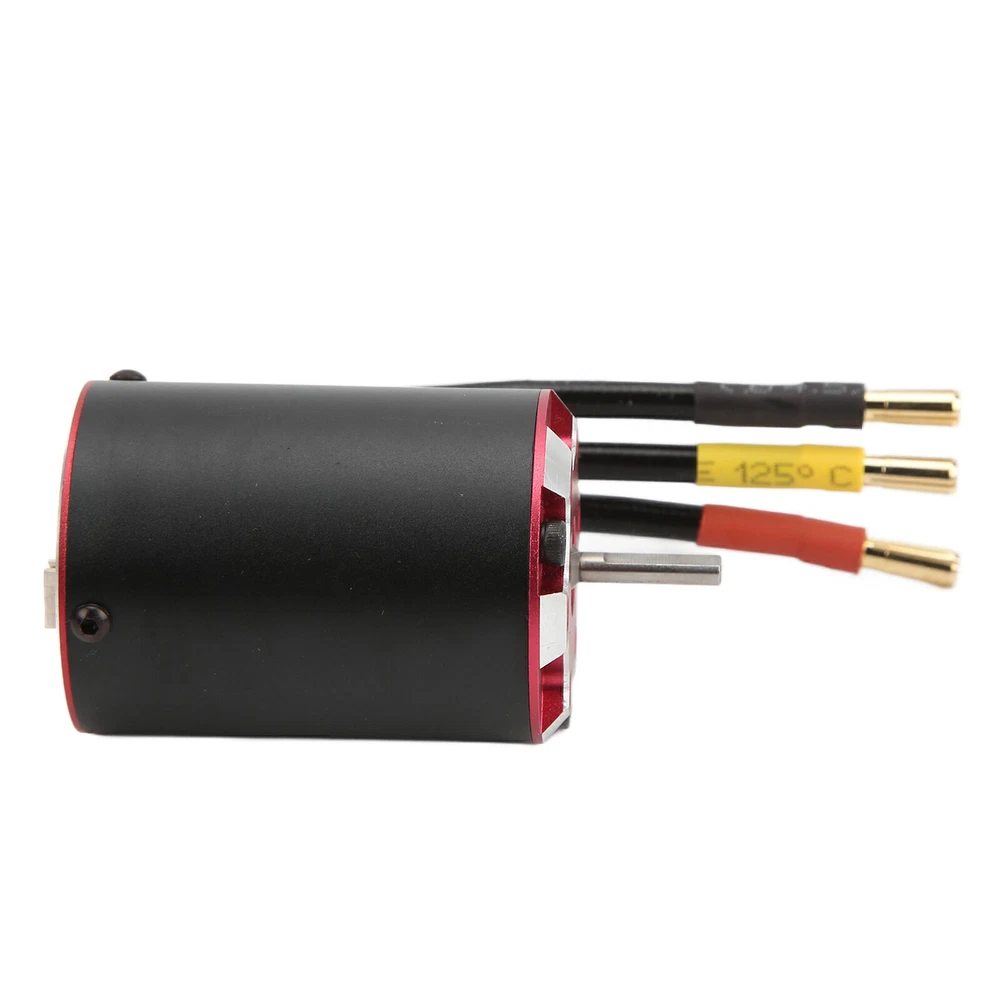

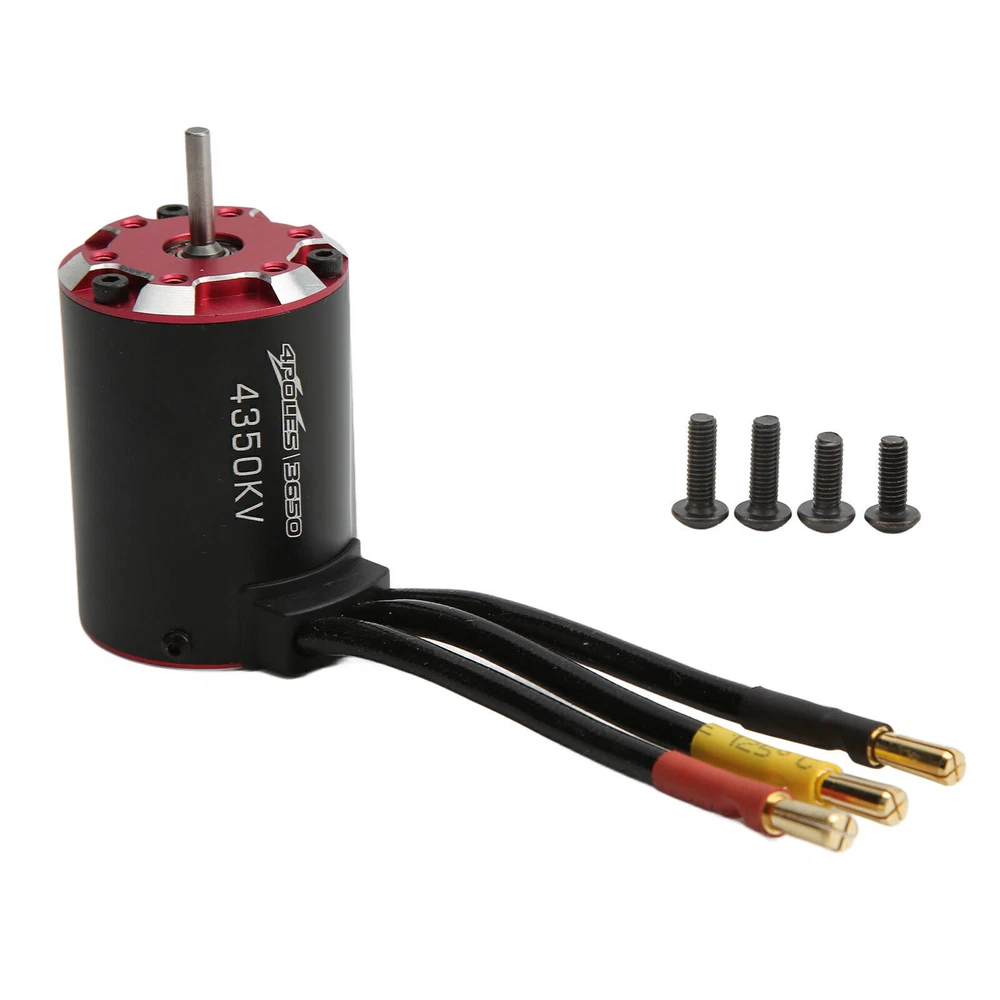

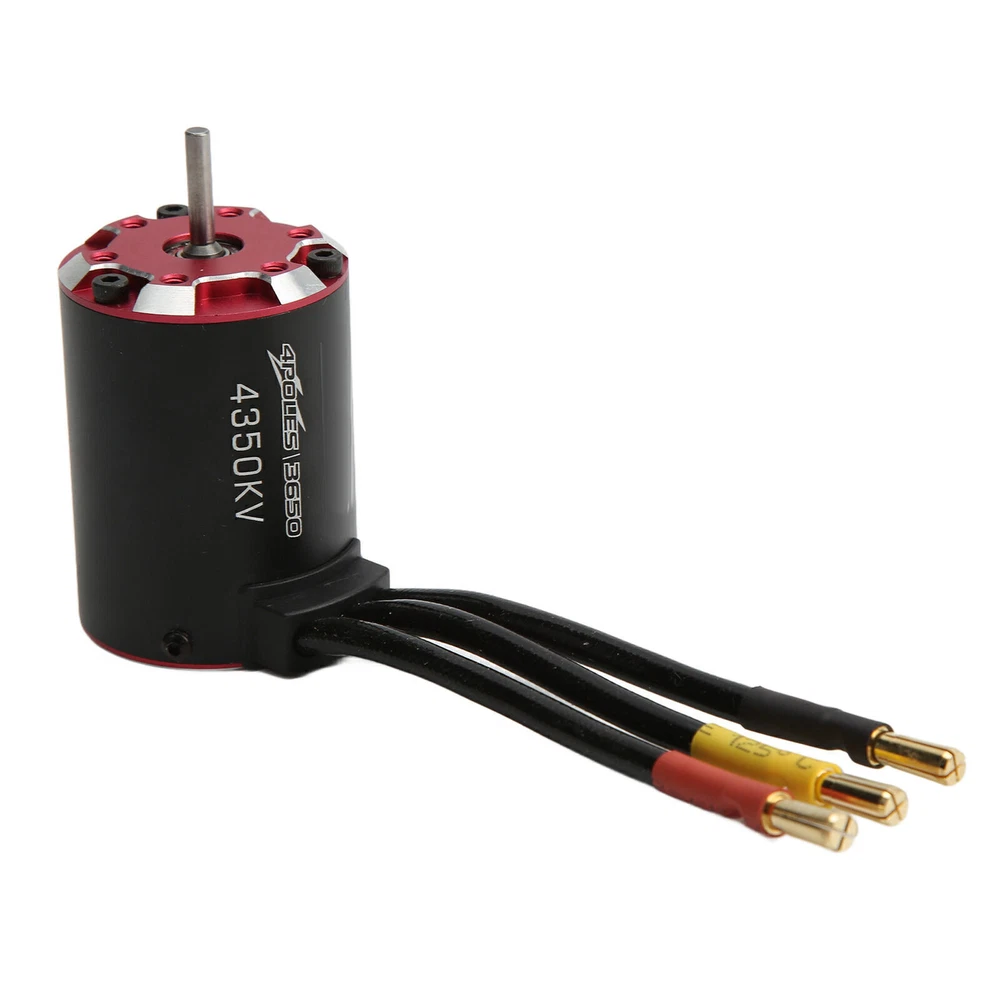

3650 4350KV Brushless Motor 4 Pole Supersonic Brushless Motor with Temperature
$ 18.17
Description

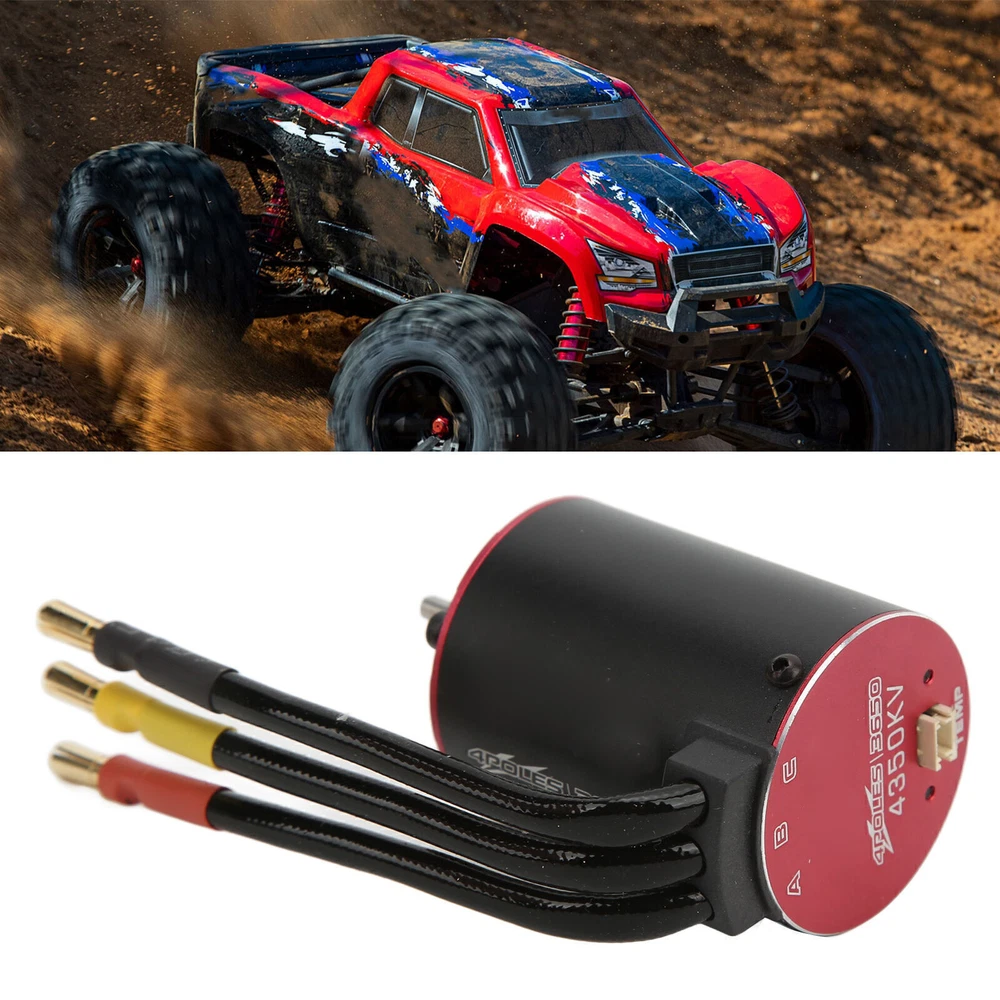

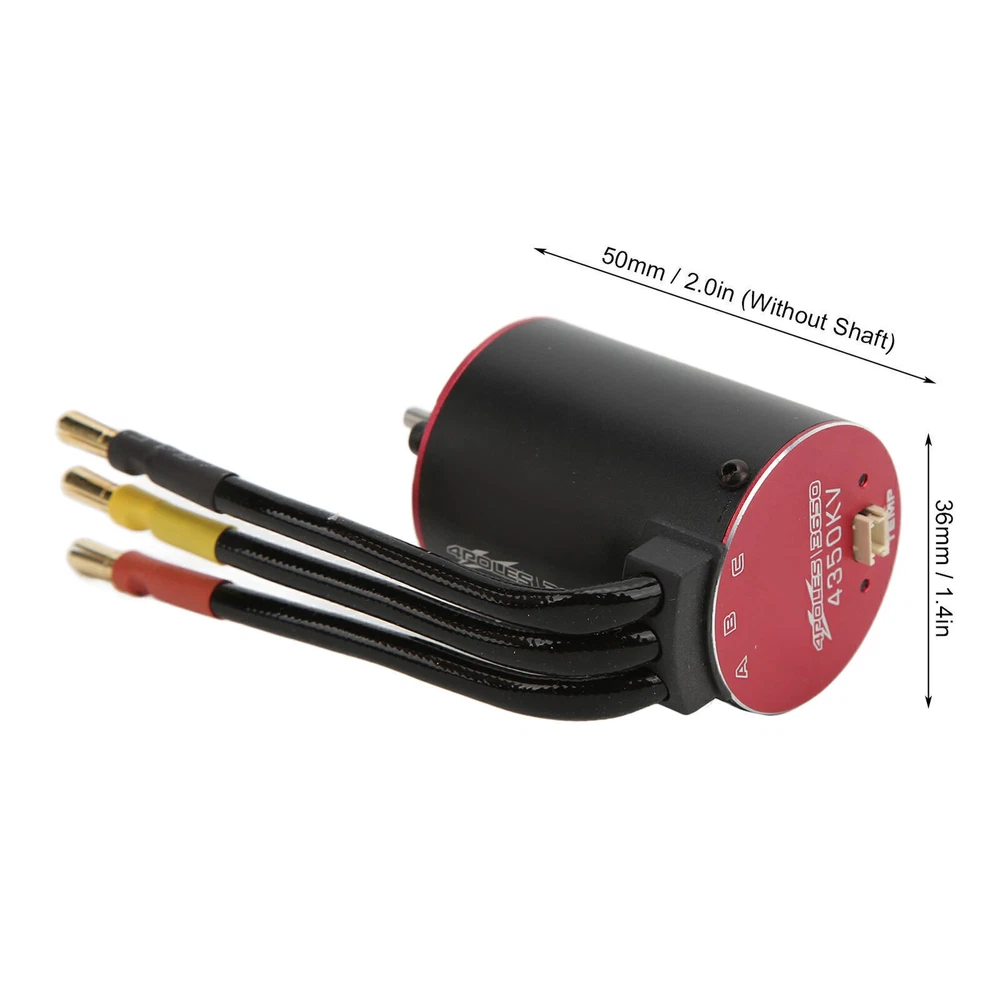

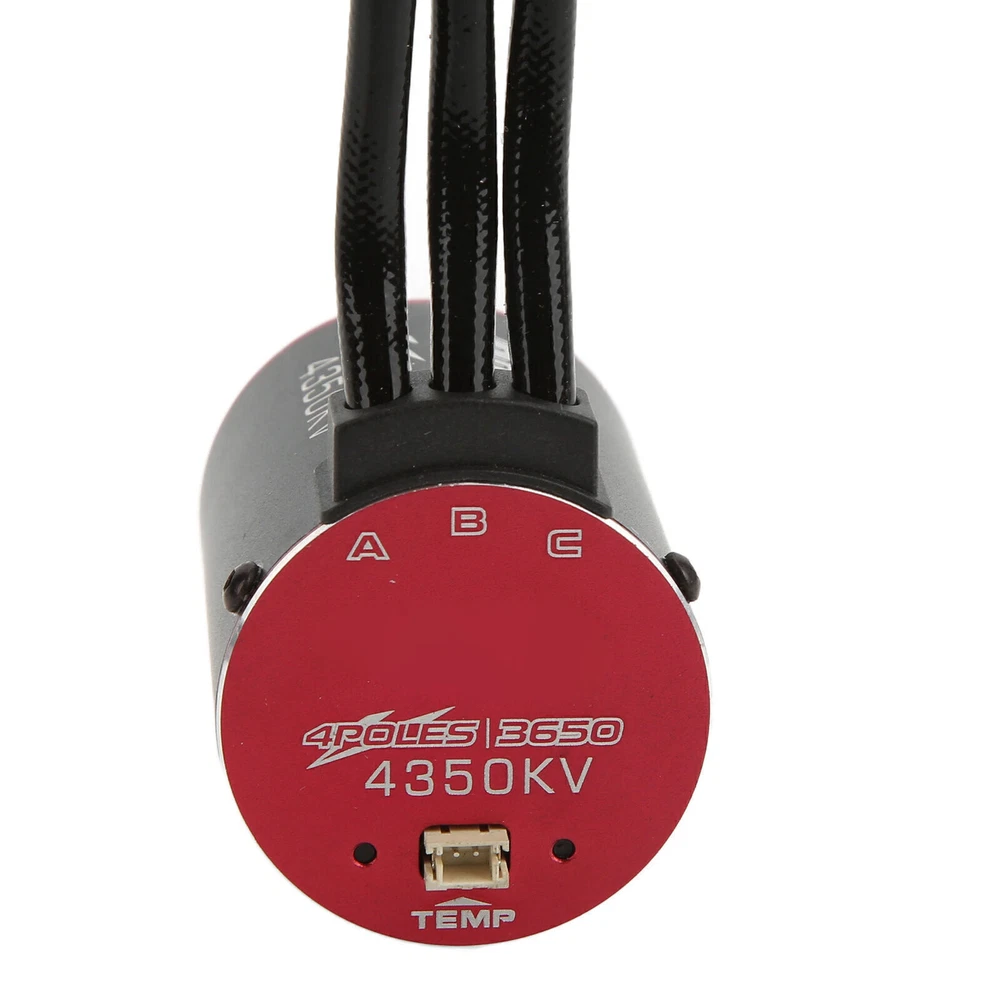

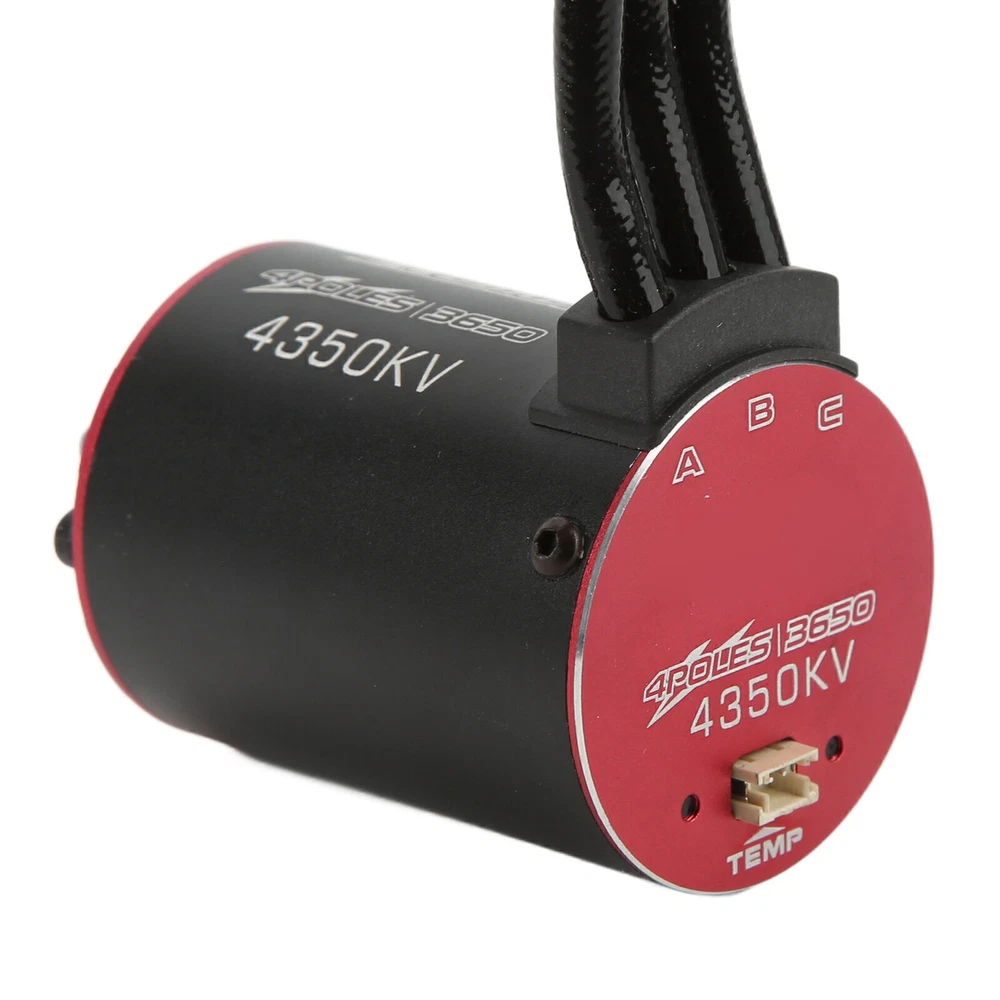

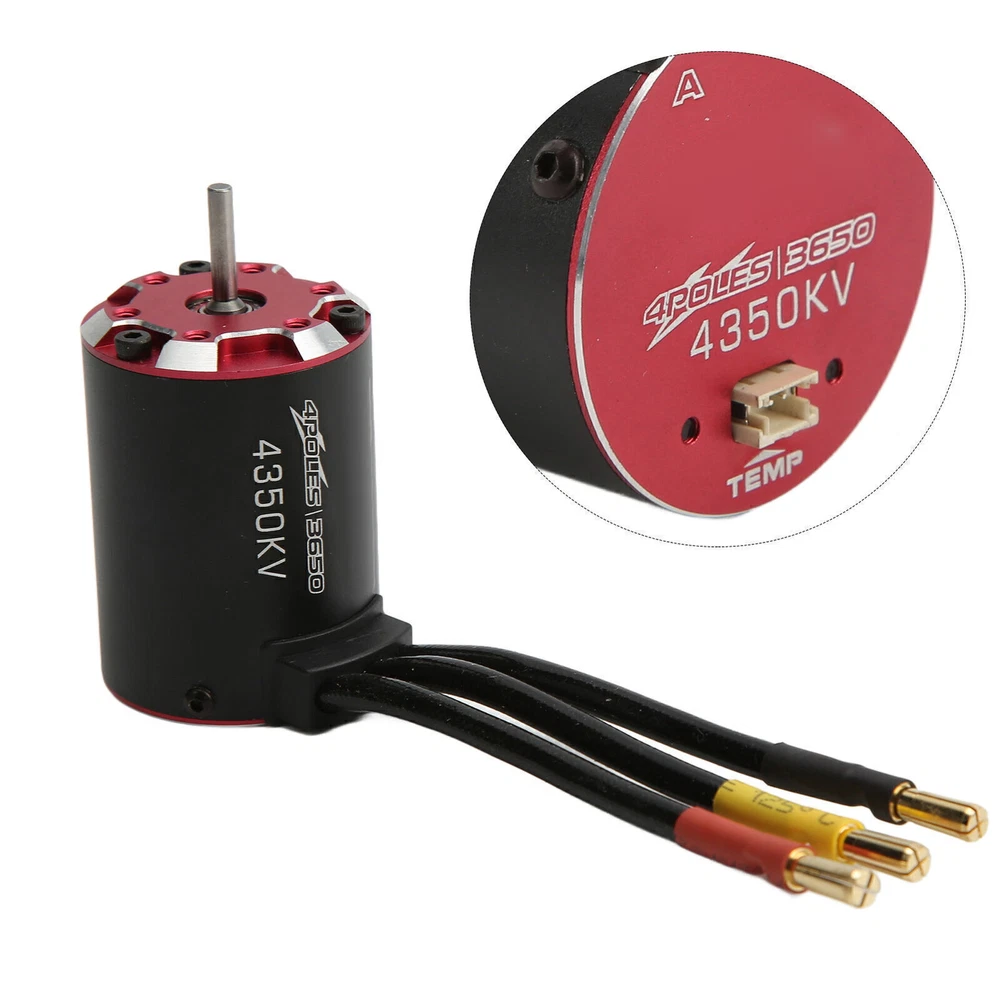

Feature: 1. Premium Material: Made of high hardness aluminum CNC shell, high temperature resistant copper wires, 0.2mm/0.008in thickness silicon steel stator. 2. 4 Pole Rotor: The 4 pole rotor design has strong torque and stable output power. 3650 4350KV brushless motor is suitable for 1/8 1/10 remote control cars. 3. Good Features: Explosion proof rotor, high toughness stainless steel transmission shaft, high accuracy and high quality bearings make the motor super durable. 4. Replaceable Rotor: Removable rotor design is convenient for cleaning and maintenance, effectively extend the service life of the motor and improving work efficiency. 5. Overheating Protection: The motor has a built in temperature sensor interface, which can be used with the ESC to realize the motor overheating protection function. Specification: Item Type: 3650 Brushless Motor Material: Aluminum Alloy + Copper Product Color: Black Weight: Approx. 214g/7.5oz Product Model: 3650 KV (RPM/Volt): 4350KV Wattage: 9000W Maximum Voltage: 12V Maximum Current: 75A Maximum Speed: 50000 No Load Current: 3.8A Number of Motor Poles: 4 Internal Resistance (Ω): 0.0068 Motor Length: Approx. 50mm / 2.0in (Without Shaft) Motor Diameter: Approx. 36mm / 1.4in Shaft Diameter: Approx. 3.175mm / 0.125in Shaft Length: Approx. 15mm / 0.59in Gold Plated Plug: Approx. 4.0mm / 0.16in Application: for 1/8 1/10 Remote Control Cars, Such as for Tamiya, for Traxxas Package List: 1 x 3650 Brushless Motor 4 x Screw 1 x Manual Note: 1. Please allow 1‑3mm error due to manual measurement. Thanks for your understanding. 2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard. How To Use 1. Install the motor: The motor mounting screw holes are 6 M3 screws, and the panel screw holes can be locked into a depth of 8mm. Therefore, it is recommended to use M3 screws no longer than 8mm for installation. The specific installation situation can be determined according to the frame. 2. Connect the motor: There is no strict line sequence requirement for the connection between the motor and the ESC. The #A/#B/#C of the motor can be connected to the three wires of the ESC at will. If the direction of rotation is reversed, the two motor wires can be exchanged at will. If it is matched with an ESC with temperature control protection function, insert the zH1.27 male cable into the TEMP interface at the end of the motor to realize the motor overheating protection function. 3. Check: Before turning on the power of the remote control car, be sure to double check the correctness of the power system connection and the reliability of the installation. All the items will be dispatched within one business day by Airmail after the payment is clear. Most times you will receive your order within 10-30 business days after we transfer your package to the delivery company. We cannot guarantee the delivery timeframe if the post office has any unexpected delays due to holiday,weather,customs, or other conditions. Some countries like Russia, Brazil, or some European countries may take up to 50 days or longer for delivery. We appreciate your patience if you haven't received items in 30 days(Russian customers may need more patience by reason of the local delivery system and/or customs). If you are concerned in any way, please feel free to contact us via ebay message instead of leaving negative/neutral feedback or opening a dispute . We will do our best to solve any problem(resend or refund any missingitem). Customs duty is obligation and liability of citizens in yourresponsible for any tax and custom duty incurred. Generally, thedelay or failure delivery is sometimes caused by the policy of different customs. Our listing price includes the value of goods,packaging cost,and export taxes,not including international duties. duties,taxes,and charges are not included in the item price or shipping fee. The duties are buyers' responsibility. Please check with your country's customs office determine what these additional costs will be prior to your purchase. All disputes arising from the duties will be submitted to ebay for solution. Any questions, pls. contact us via ebay message or email us. We will reply your message within 48 hours. If you do not receive our reply within 48 hours, pls. post a message again because sometimes our message system may block some emails. If you are satisfied with our service, pls. kindly leave us a positive feedback and give us the Detailed Seller Rating with all " 5 " in very area. Our aim is to provide Level Customer Service, your recognition will encourage us greatly and serve you better. We strive to keep all our customers satisfy. We will do our up most to exceed your expectations in customer service, communication and dispatching of your orders.
