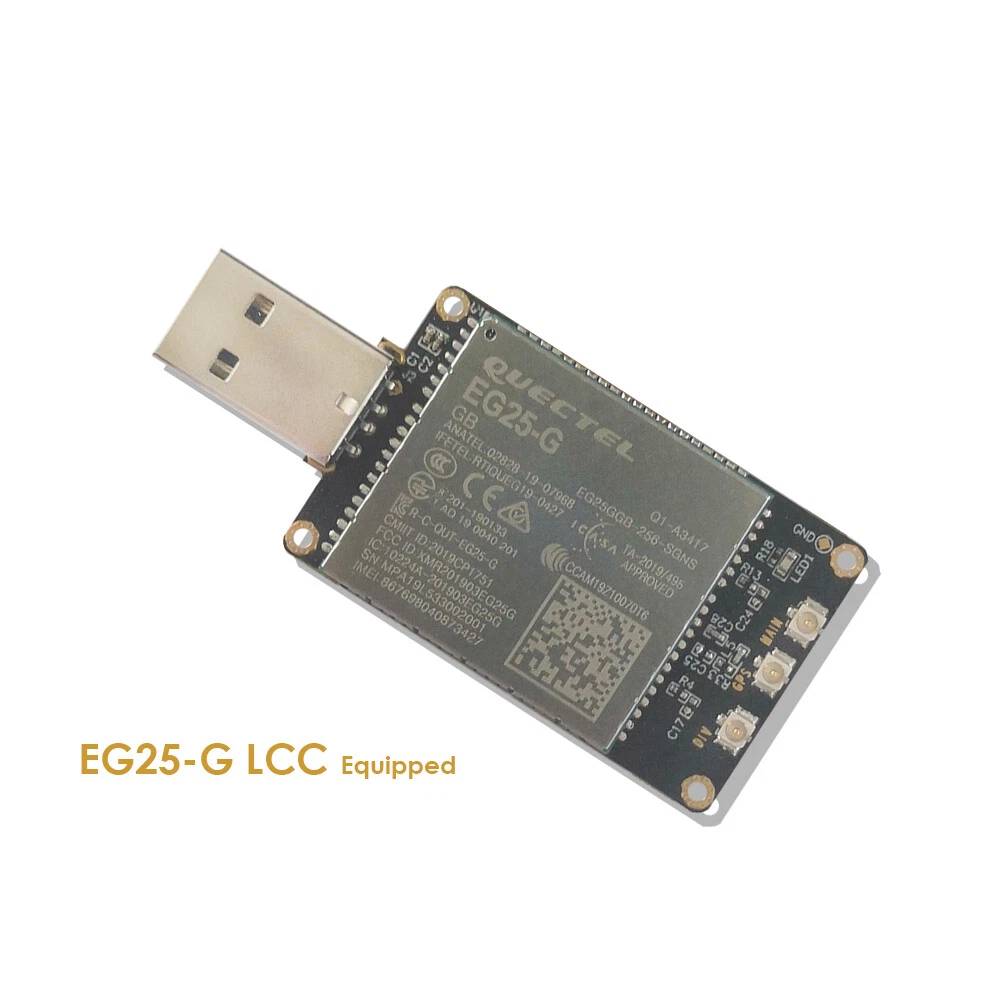

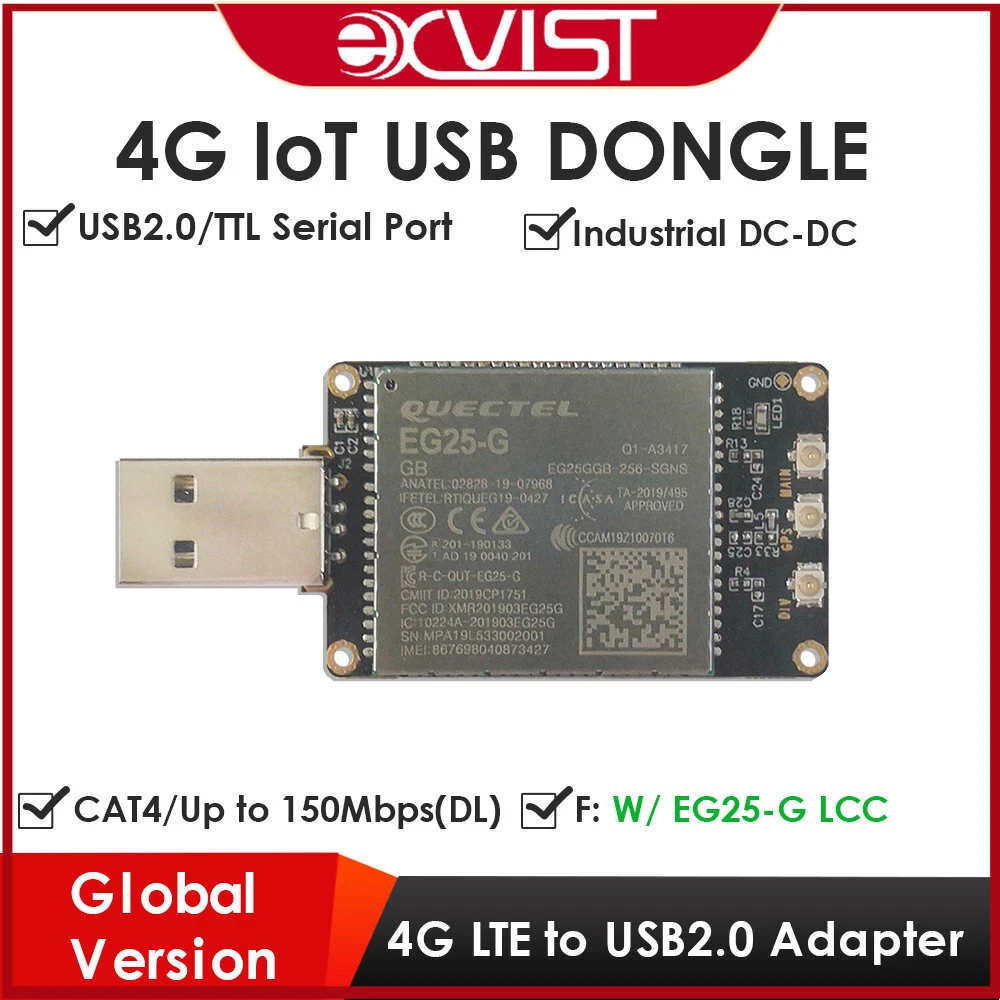

4G USB Dongle Built-in LTE FDD Wireless Modem EG25 EG25-G W/SIM Card Slot Global
$ 35.15
Description

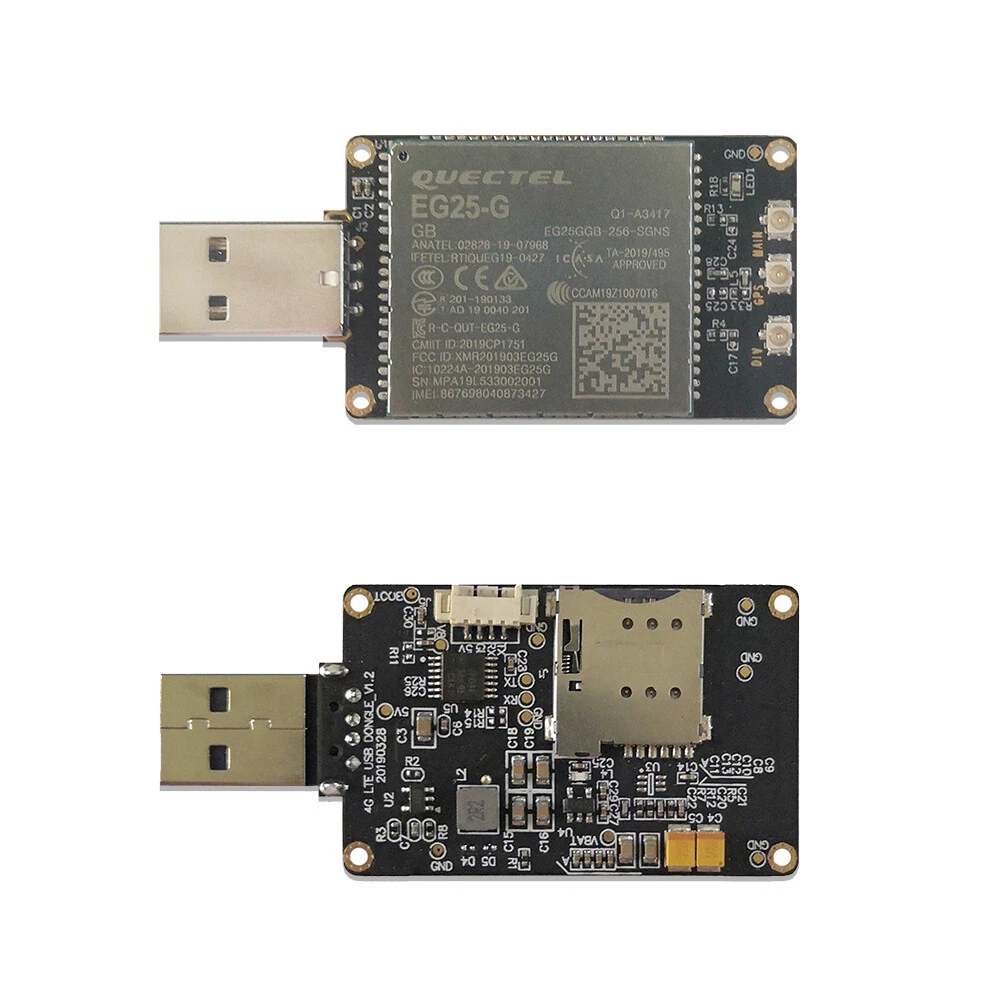

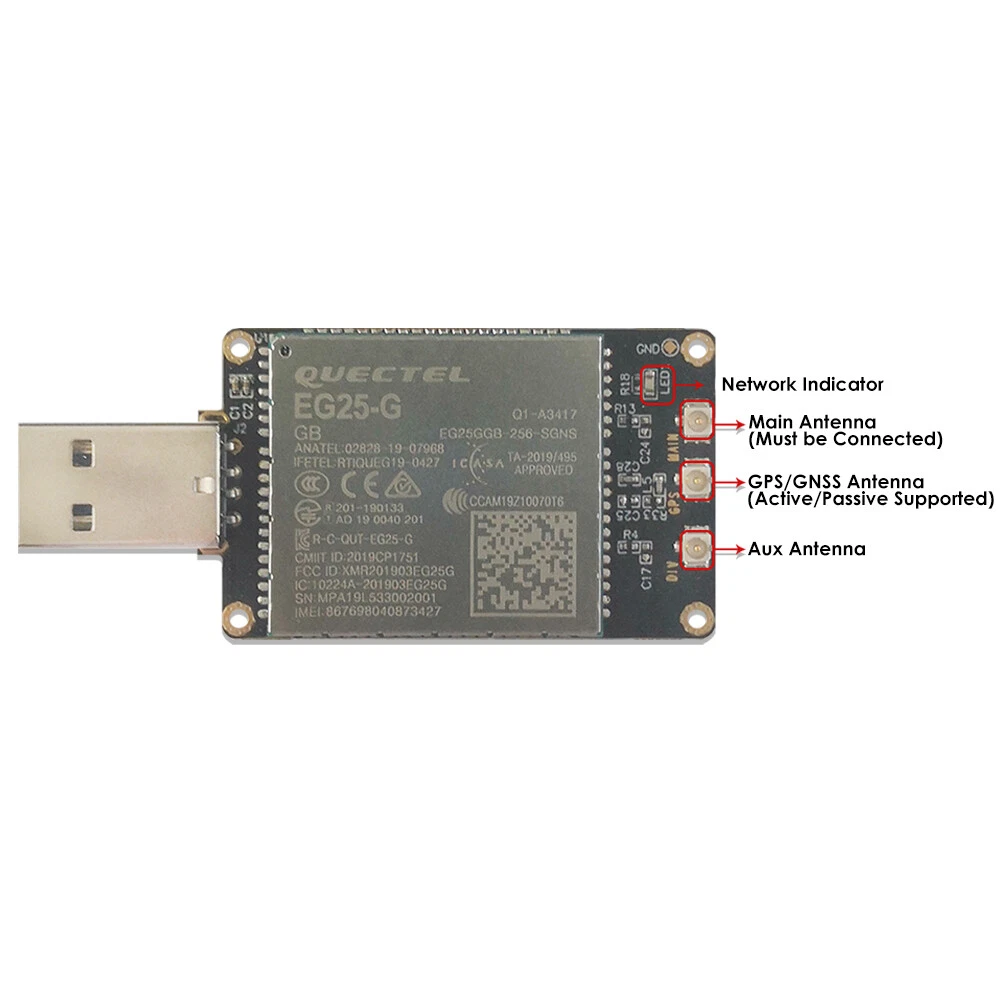

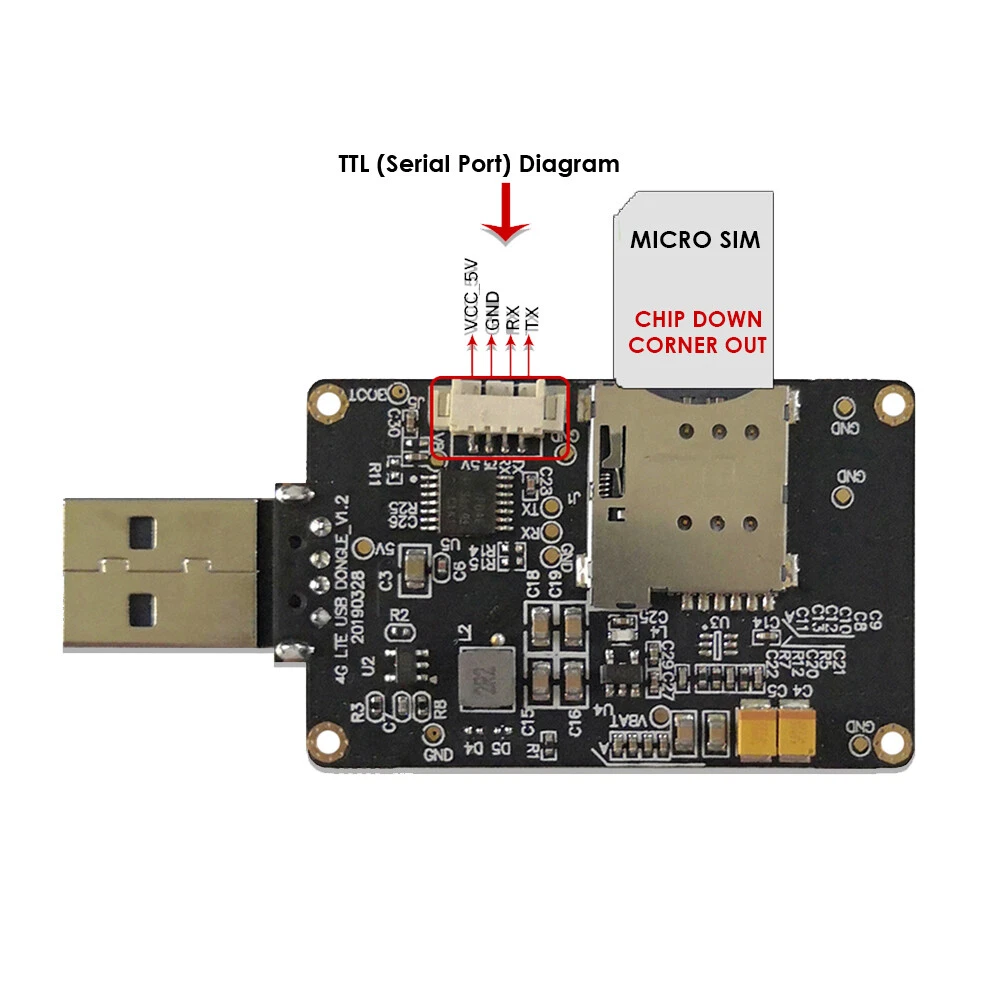

Store Categories Store Categories ENCODER Basic Encoder WiFi Encoder PoE Encoder EXTENDER 1080P Extender 4K Extender IP CAMERA 2MP IPC 3MP IPC 5MP IPC 8MP IPC DONGLE M.2 to USB Adapter PCIe to USB Adapter 4G LTE USB Dongle 4G IoT USB Dongle 5G LTE USB Dongle 5G IoT USB Dongle MODULE 5G IoT Modules 4G IoT Modules ROUTER 5G IoT Routers 4G IoT Routers Other 4G IoT USB Dongle w/LTE Cat 4 Module EG25-G LCC SIM Card Slot Global Version Product Description Overview This 4G LTE dongle is equipped with 4G USB Dongle W/Quectel EG25-G Series IoT/M2M-optimized LTE Cat 4 LCC Module, which enables it be able to delivers maximum data rates up to 150Mbps downlink and 50Mbps uplink. It also can be used for Windows, Linux, Android after installing the corresponding drivers. This dongle adopts the industrial level electric circuit design and DC-DC power chip. The maximum current for this dongle is 3A, which can ensure it can working all fine even under severe environment. It has Micro SIM card slot(Corner facing outside when plugging in the SIM card). TTL(3.3V for RX, TX) Antenna Connector Diagram: 4G Main Antenna(FPC Antenna x1 Attached), Aux Antenna, GPS/GNSS Antenna(Active/Passive Antenna Supported). LED Indicator depends on 4G Module(Power On-Slowly Flash, Search Signal-Quickly Flash, 4G Connected-Quickly & Stable Flash). Specification Dimension: 49.9mm(L)x30mm(W). USB is compliant with international criteria for USB2.0 For bands available for this dongle, please refer to the specification of EC25. LED indicator will be always on when it it working. Drivers needed, please contact us for corresponding drivers after placing the order. Package Contents 1x 4G USB Dongle W/Quectel EG25-G Series IoT/M2M-optimized LTE Cat 4 LCC Module Only 1x FPC Antenna Attached Operation Band LTE Cat 4 EG25-G Mini PCIe Region/Operator Global Dimensions(mm) 30.0 x 51.0 x 4.9 Temperature Ranges Operating Temperature -35¡ãC to +75¡ãC Extended Temperature -40¡ãC to +85¡ãC Frequency Bands LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/ B18/B19/B20/B25/B26/B28 LTE-TDD B38/B39/B40/B41 WCDMA B1/B2/B4/B5/B6/B8/B19 GSM/EDGE B2/B3/B5/B8 GNSS GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional) Certifications Carrier Europe : Deutsche Telekom America : Verizon/AT&T/U.S. Cellular Canada : Telus/Rogers* Regulatory Global : GCF Europe : CE UK : UKCA North America : PTCRB America : FCC Canada : IC Brazil : Anatel Mexico : IFETEL South Korea : KC Taiwan(China) : NCC Japan : JATE/TELEC Australia & New Zealand : RCM South Africa : ICASA Others RoHS/WHQL Data Transmission LTE-FDD Data Rates (Mbps) 150 (DL)/ 50 (UL) LTE-TDD Data Rates (Mbps) 130 (DL)/ 30 (UL) DC-HSPA+ Data Rates (Mbps) 42 (DL)/ 5.76 (UL) WCDMA Data Rates (kbps) 384 (DL)/ 384 (UL) EDGE Data Rates (kbps) 296 (DL)/ 236.8 (UL) GPRS Data Rates (kbps) 107 (DL)/ 85.6 (UL) Interfaces (U)SIM x 1 UART x 1 USB2.0 x 1 Audio Digital(PCM) x 1 LED_WWAN# x 1 W_DISABLE# x 1 UART x 1 PERST# x 1 Voice Speech Codec Modes HR/FR/EFR/AMR/AMR-WB Echo Arithmetic Echo Cancellation/Noise Suppression VoLTE Digital Audio and VoLTE (Voice over LTE) (Optional) Enhanced Features DTMF ¡ñ DFOTA ¡ñ QMI/RmNet ¡ñ Audio Playback*/Audio Recording* Optional QuecLocator? ¡ñ QuecFile? ¡ñ (U)SIM Card Detection ¡ñ Drivers USB Serial Driver Windows 7/8/8.1/10, Linux 2.6¨C5.4, Android 4.x¨C9.x GNSS Driver Android 4.x¨C9.x RIL Driver Android 4.x¨C10.x NDIS Windows 7/8/8.1/10 MBIM Windows 8/8.1/10, Linux 3.18¨C5.4 GobiNet Driver Linux 2.6¨C5.4 QMI_WWAN Driver Linux 3.4¨C5.4 Electrical Features Supply Voltage Range 3.0¨C3.6V, 3.3 V Typ. Power Consumption 1.9 mA @ Sleep, Typ. 23.4 mA @ Idle Payment Policy Shipping Policy Returns Policy Payment Policy PayPal accepted only, all forms like Mastercard, Visa, Discover, American Express and eCheck included. Please ensure you have a valid PayPal account before bidding. Shipping Policy All items will be shipped out within 1~3 business days. Estimated Time of Arrival: Via Standard International Shipping: 8 to 20 business days. We'll only ship the parcel to the confirmed address generated by eBay. Therefore, please ensure your shipping address is correct in eBay before checking out and processing payment, because we won't change your address by email. If you have not received your parcel(s) within 30 days from payment, please contact us timely. We will track it accordingly and get back to you ASAP. Buyers should be responsible for all taxes or VAT. Any problem caused by Custom Clearance in your local country, we won't be responsible for that. Returns Policy Warranty: 1 year only. 30 days return/refund accepted (but misused or damaged items excluded). However, the shipping cost might be borne by buyers if you don't like the product and expect to return/refund. If the item were faulty, damaged or incorrect when arrival, you could return it for replacement or refund, please contact us on eBay within 14 days of receipt. For DOA (dead on arrival), please contact us immediately and send us an email with related photos, we will offer you the best solution. Copyright © 2021 Dianxiaomi
