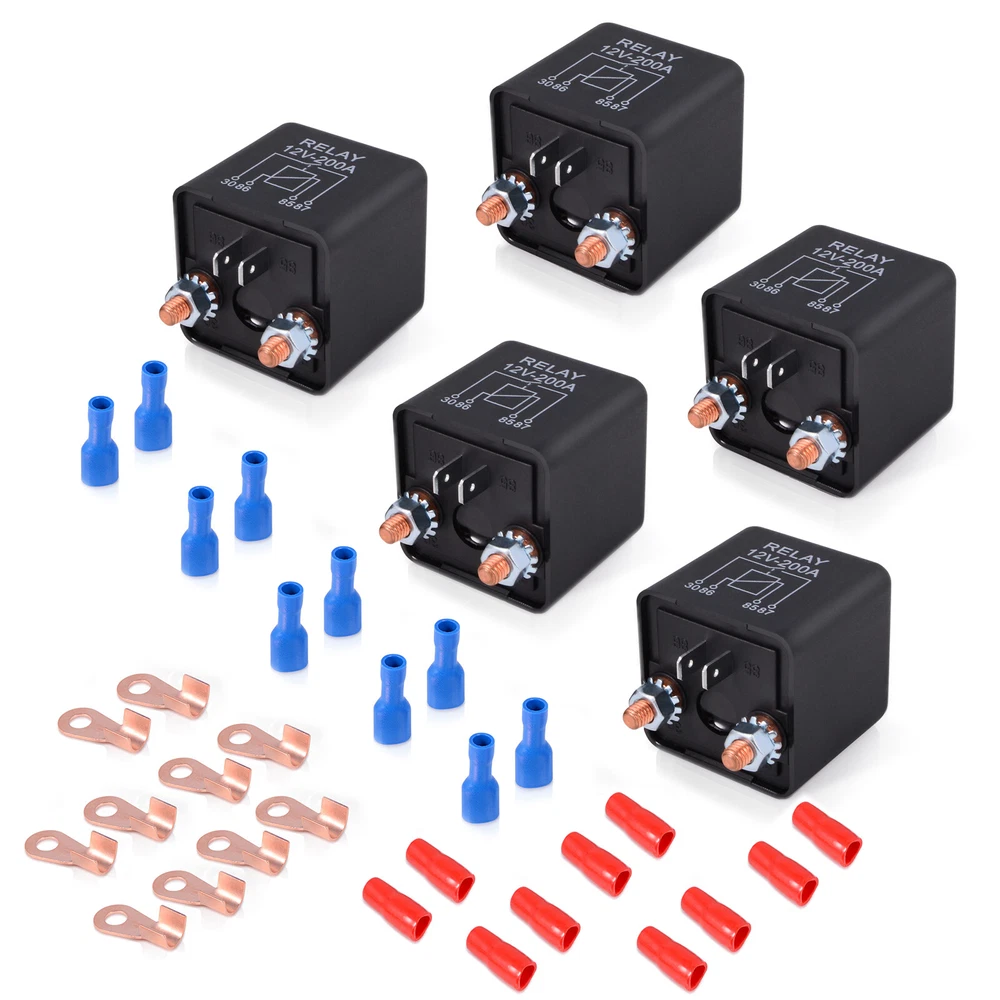

5 Set 12V 200A Heavy Duty Car Relays Automotive Car Starter Split Switch Control
$ 28.59
Description
5 Set 12V 200A Heavy Duty Car Relays Automotive Car Starter Split Switch Control US SHIPPING Product Specification: Contact Data: Contact Material: AgSnO12 Contact Form: Normal Open Contact Ratings: No: 200A 14/28VDC Contact Resistance: 100mMax at 6VDC 1A Max switching Current: 500A (5ms) Max Switching Voltage: 75VDC Max Switching Power: 2000W Life Expectancy Electrical: 100,000 Operations (at 30 Operations/min) Life Expectancy Mechanical: 10,000,000 Operations Coil Specification: Nominal Voltage(VDC): 12V/24V Coil Resistance (4.8W/2.4W): 30/60 Max Operate Voltage (VDC): 6.0~8.0 Mix Release (VDC): 1.2~3.6 Max Applicable Voltage (VDC): 15.6 Characteristics: Temperature Range: -30°C ~+80°C Vibration Resistance: 10~55Hz, 1.5mm Shock Resistance: Operations Extremes: 10g Damage Limits: 100g Humidity: 40%~85% Insulation Resistance: 100m ohm Min at 500VDC Safety Standard: CCEE Dielectric Strength Between Open Contacts 500VAC (for one minute/sec) Between Contact and coil: 750VAC (for one minute/sec) Operate Time: 15ms Release Time: 10ms Product Features: -High 200A coil capacity- able to handle those high current applications with ease, Heavy duty make or break (on/off) relay. - With 2pin footprint + 2 terminal accessories, Hundreds of uses include- starter kills, domelight supervision, trunk release, polarity change, power door lock/actuator control. -100% brand new and high quality Durable & Firm & Stable Contact Load: High Power Ideal for universal 12V applications -Vinyl install tools, building tools, industry tools, advertisement film install, mobile screen protective film install -Color: black Net weight: 100g Size: 45mm(L) x 45mm(W) x 45mm(H), about 1.77''(L) x 1.77''(W) x 1.77''(H)
