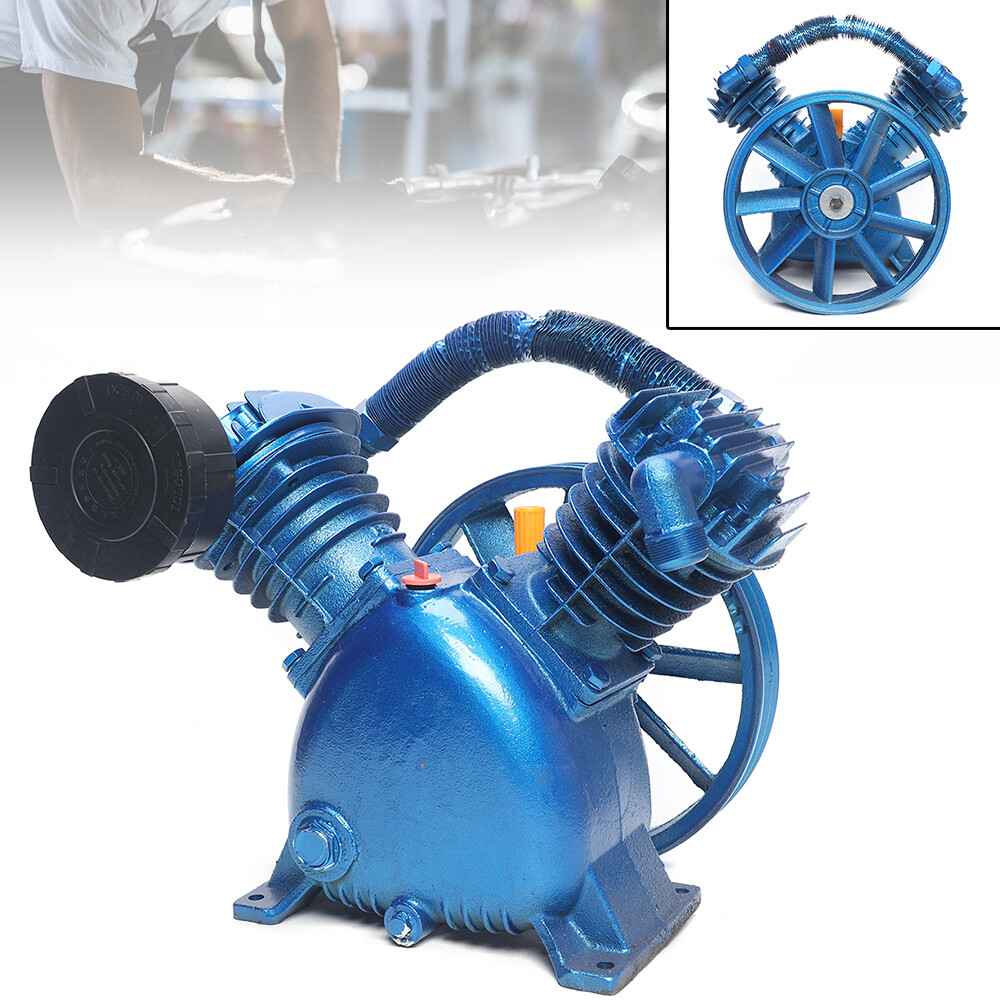

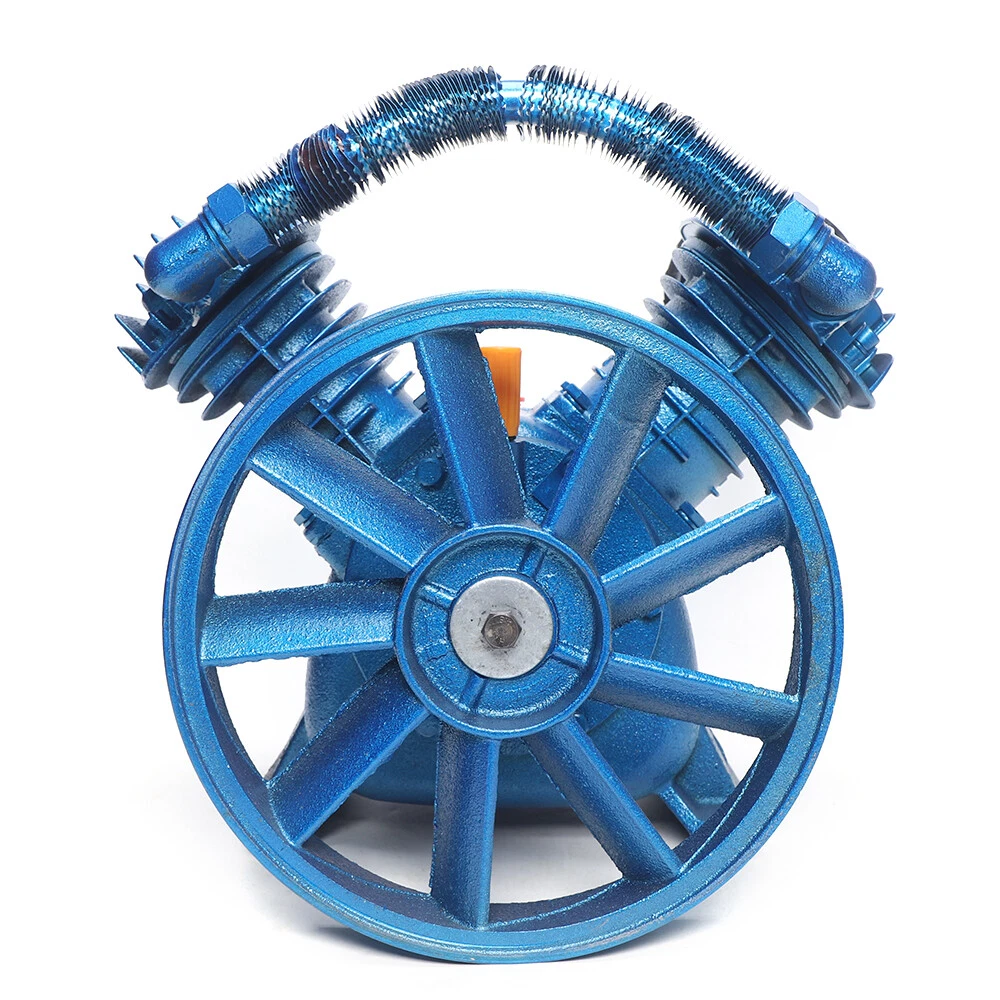

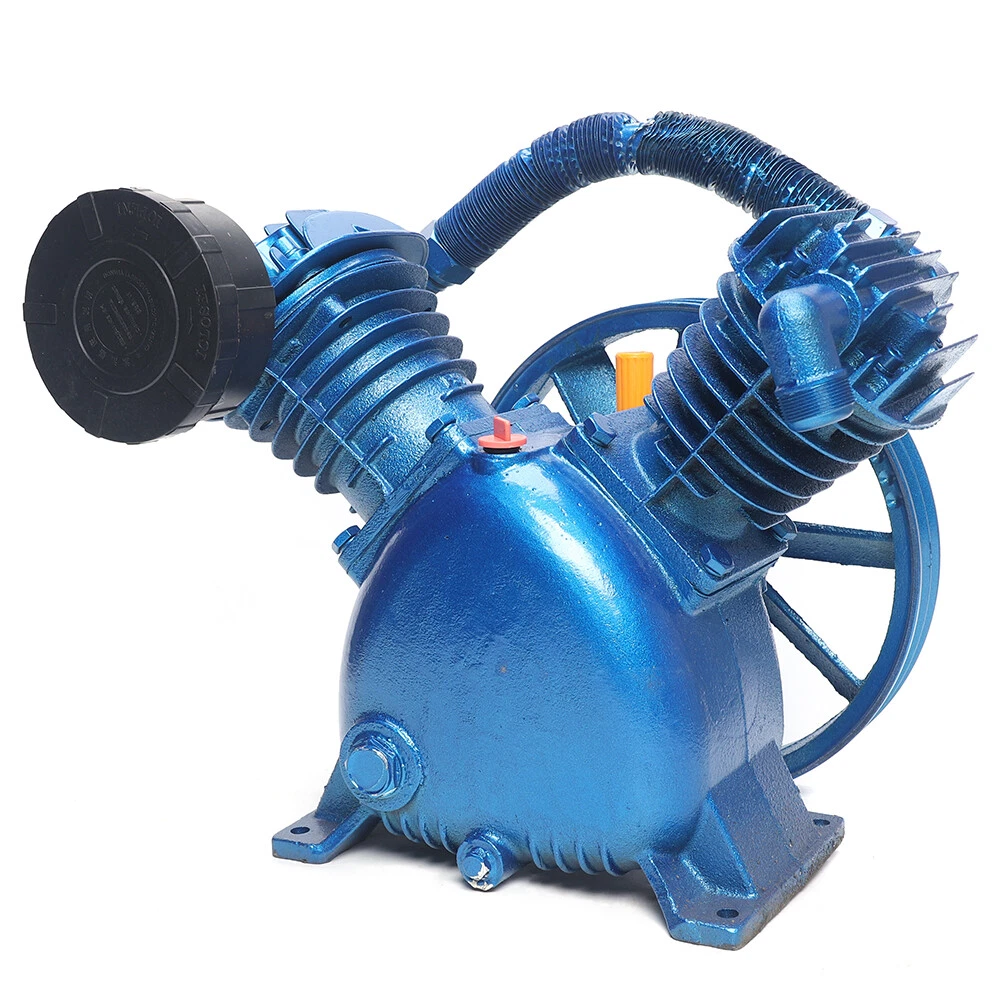

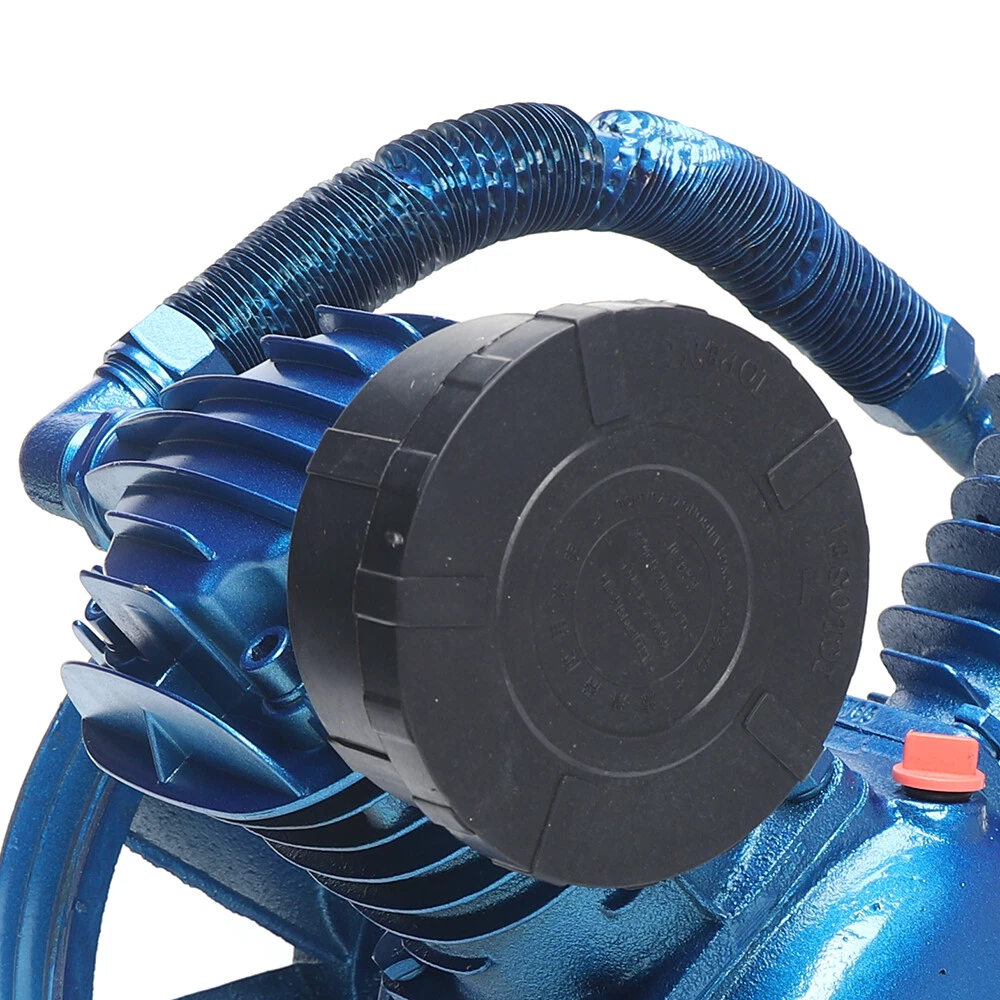

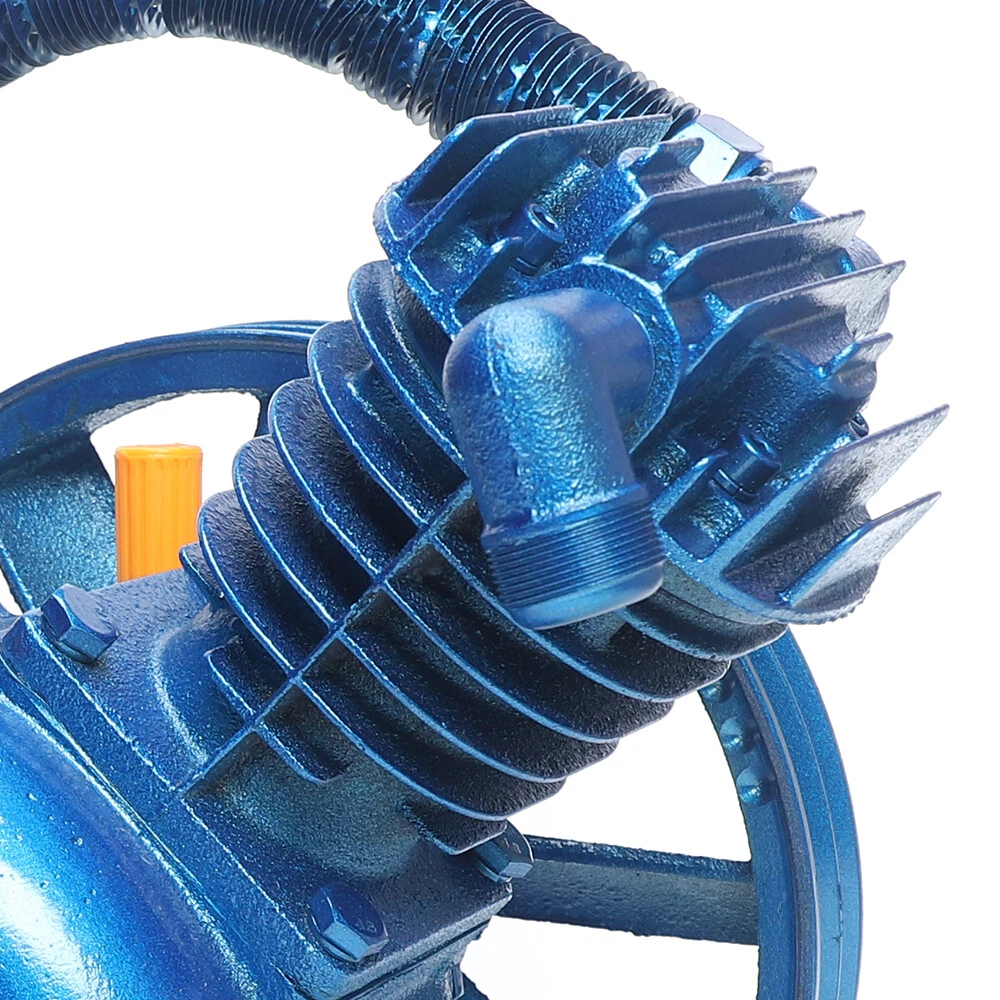

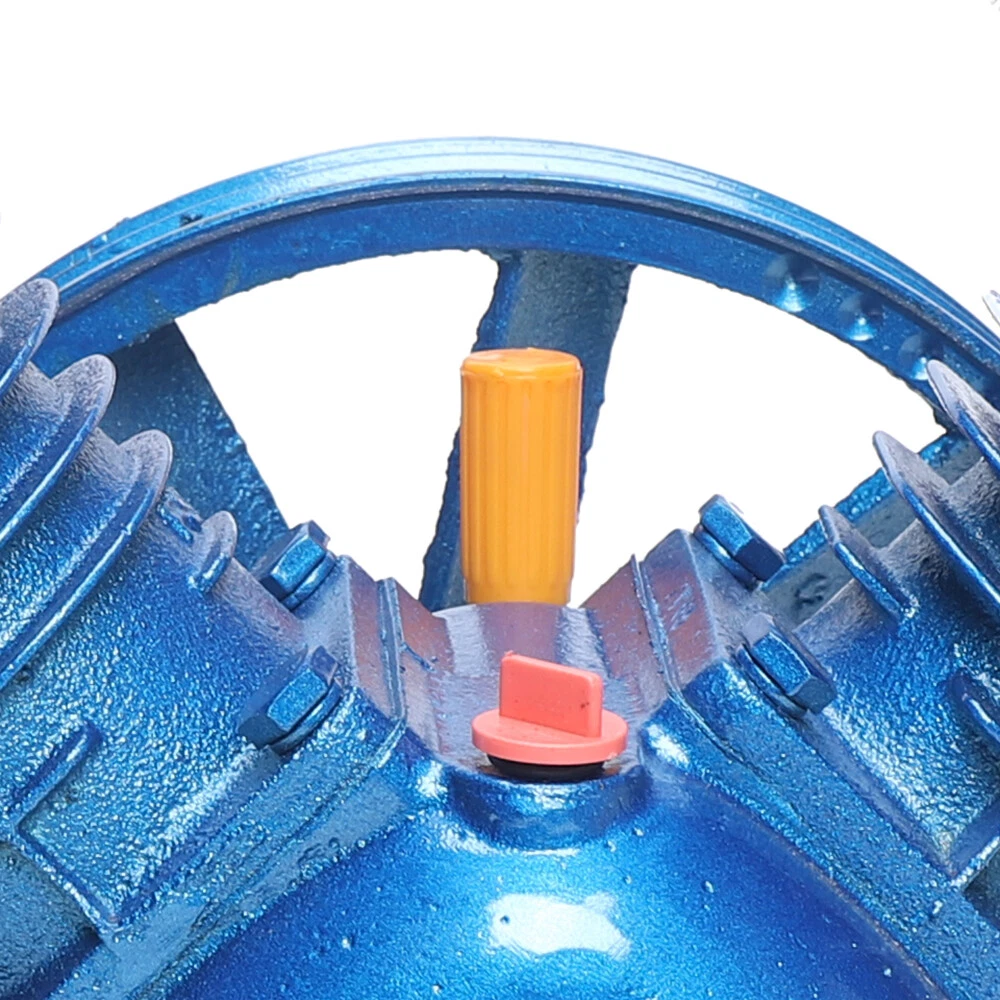

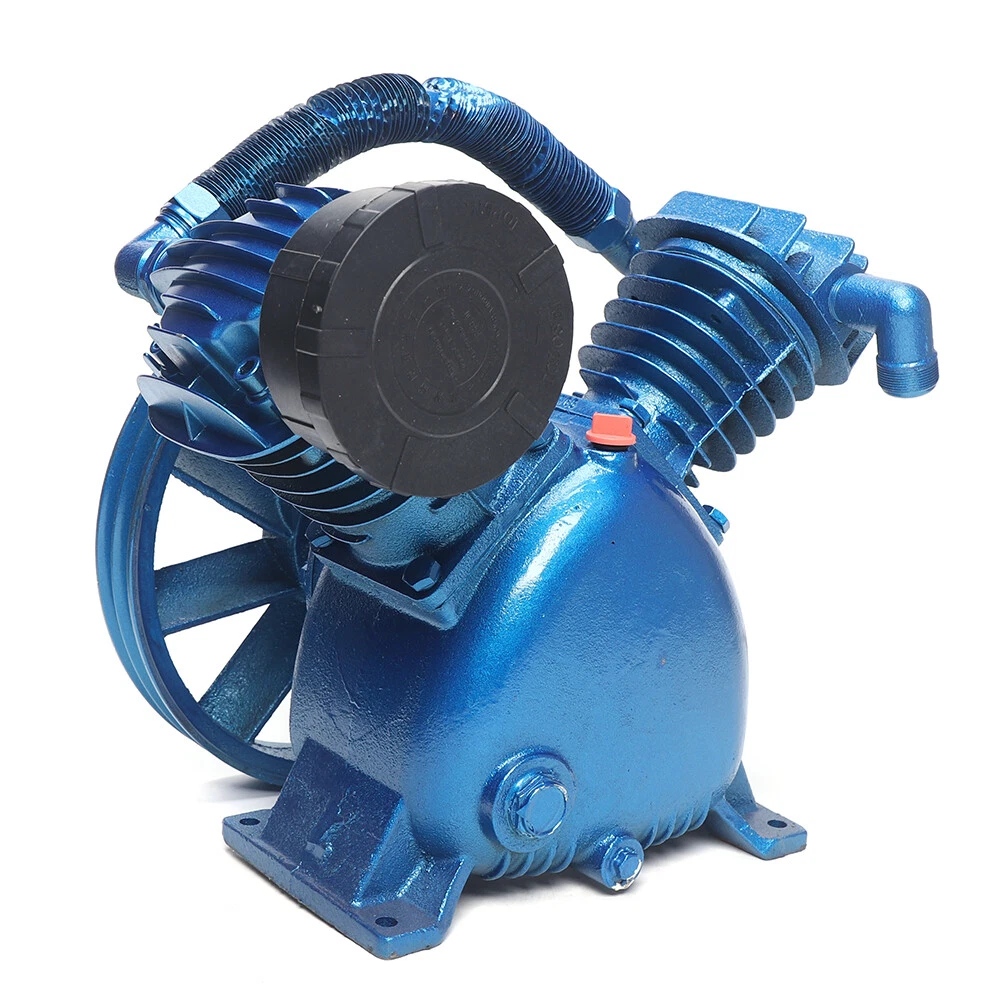

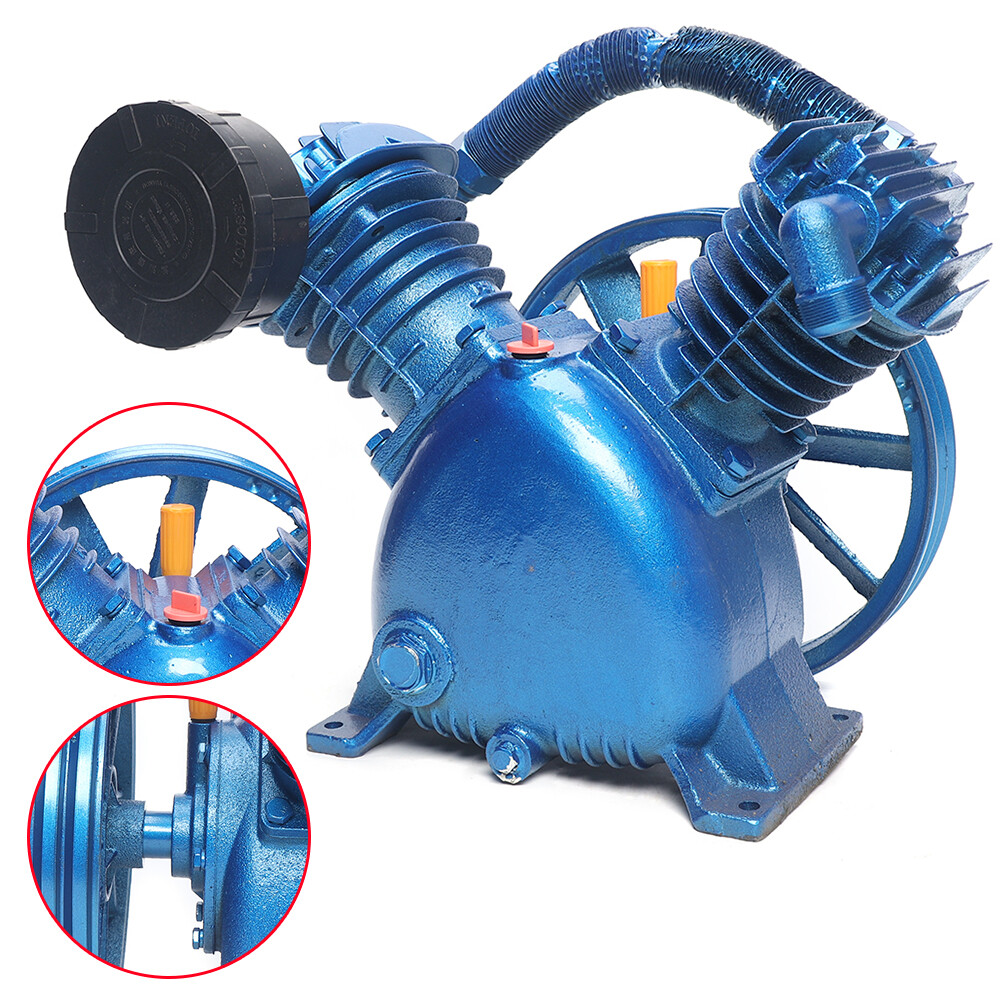

5.5HP 175PSI Dual Stage V Style Air Compressor Replacement Head Pump Motor
$ 143.62
Description
High efficiency, high precision, universal, low energy consumption. High quality material, not easy to damage. Strict balance support and correction to ensure the smooth operation of the main engine. Special valve steel is used for hair piece, which has good strength and toughness at high temperature. Faster inflation and low noise. Strong cooling blade, good cooling performance. Installation notes: 1、 When placing the pump head, the motor pulley and the belt pulley must be in the same straight line. The more aligned, the less vibration. 2、 Tighten the screws (including the base and pulley screws). 5.5HP 175PSI Replacement Air Compressor Head Pump Motor Double Stage V Style US 181PSI 5.5HP V-Type 2-Stage Air Compressor Pump Motor Head Double Stage US Specifications: Rated Pressure: 175 Psi (1.16Mpa) Driving Power: 4Kw (5.5Hp) Pump Speed: 800Rpm Cylinder Diameter: 3.54" (90mm) Distance Of Screw Hole: 26cm*14cm (10.2"*5.5") Rated Exhaust Volume: 0.6L/Min Note: If The Motor Speed Is 2880rpm, The Diameter Of The Motor Wheel Is 10 Cm. If The Motor Speed Is 1440rpm, The Motor Wheel Is 20 Cm Features: High Efficiency, High Precision, Universal, Low Energy Consumption. High Quality Material, Not Easy To Damage. Strict Balance Support And Correction To Ensure The Smooth Operation Of The Main Engine. Special Valve Steel Is Used For Hair Piece, Which Has Good Strength And Toughness At High Temperature. Faster Inflation And Low Noise. Strong Cooling Blade, Good Cooling Performance. Installation Notes: 1. When Placing The Pump Head, The Motor Pulley And The Belt Pulley Must Be In The Same Straight Line. The More Aligned, The Less Vibration. 2. Tighten The Screws (Including The Base And Pulley Screws). 3. After The Screws Are Installed, The Belt Shall Be Tightened. If The Belt Is Loose, Please Move The Motor. After The Screws Are Tightened, Reinstall The Belt. 4. The New Machine Must Be Filled With Engine Oil Before Starting, And The Engine Oil Shall Be Added To The Center Of The Red Point Of The Oil Mirror. 5. The Rotation Direction Of The Pump Head Is Clockwise. If It Reverses, Please Adjust It In Time. 6. Change The Oil For The First Half Month, The Second One And a Half Months, And The Next Two To Three Months. 7. Replace The Air Filter Regularly. Under Normal Conditions, It Must Be Replaced In Two To Three Months, And In Case Of Poor Environment, It Must Be Replaced In One Month. 8. The Operation Of The Machine Will Produce High Temperature, Be Careful Not To Burn! Item Included: 1* Air Compressor Pump Head Payment Delivery details Terms of sales About us Contact us Payment We accept ebay payment 。 Fees such as import duties, taxes are not included in the item price or shipping costs. These charges are the buyer's responsibility. Delivery details Shipping: 2-9 working days to: USA Terms of sales We maintain high standards of excellence and strive for hundred percent customer satisfaction. Feedback is very important to us. We hope that you contact us immediately before you give neutral or negative feedback, so that we can address your concerns. It is impossible to address issues if we do not know about them! About us Your satis faction is our ultimate goal. We work hard to earn your trust and future business. Our certified technicians have tested each item before shipping. The unit comes with 1 year limited warranty on all manufacturing defects. a) If you receive a defective item, you may return it or ask for a discount. Please contact us within 14 days after you receive the package. b) What you returned must be intact and in its original packaging as re? u. Customer is responsible for shipping costs of the returned item. c) We will cover the cost of shipping back t with the shipping rate indicated in the registration page. We will send you a new unit or refund the full payment you paid. Thank you. Contact us Business Hour Business Hour: Monday To Friday: 8:30 AM to 5:00 PM (Beijing China time) Due to time zones, our reply to your questions may not be immediately. But within above working time, we will reply your email within 24 hours. If it's non-workdays, please kindly be patient and wait till Monday. Please contact us with ebay message. Please feel free to contact us if you have any questions. Monday To Friday: 8:30 AM to 5:00 PM (Beijing China time) Due to time zones, our reply to your questions may not be immediately. But within above working time, we will reply your email within 24 hours. If it's non-workdays, please kindly be patient and wait till Monday. Please contact us with ebay message. Please feel free to contact us if you have any questions. 1Feature： Exquisite appearance，Durable material Features Wide Application,Novel Appearance,100%Brand New,High Quality MPN Does Not Apply Style Modern Item location CA /NJ /Austell Manufacturer ( 制造商 ) Does not apply Manufacturer Warranty 3 Years Year Manufactured 2023 Application Multi-purpose Warranty 3 Years Type Air Compressor Pump Head Maximum Working Pressure 175 Psi Horse Power 5.5HP Power Source Corded Electric Voltage 110 V Portability Portable Tank Material Aluminum Rated pressure 175 PSI (1.16MPa) Driving power 4KW (5.5HP) Pump speed 800RPM Cylinder diameter 3.54" (90mm) Distance of screw hole 26cm*14cm (10.2"*5.5") Rated exhaust volume 0.6L/Min Flow Rate 21CFM Color Blue Item Length 260mm Item Width 140mm Model Double Stage Item Weight 31kg Manufacturer Color blue Lubrication Type Oil-Free Tank Capacity 10 gal Brand Unbranded
This air compressor pump is a beast! Super efficient with quick inflation and surprisingly quiet. The build is solid—high-quality materials and precision engineering mean it runs smoothly and lasts. Love the strong cooling system to prevent overheating. Just make sure to align the pulleys properly during setup for optimal performance. Perfect upgrade for any serious DIYer or professional needing reliable power.
