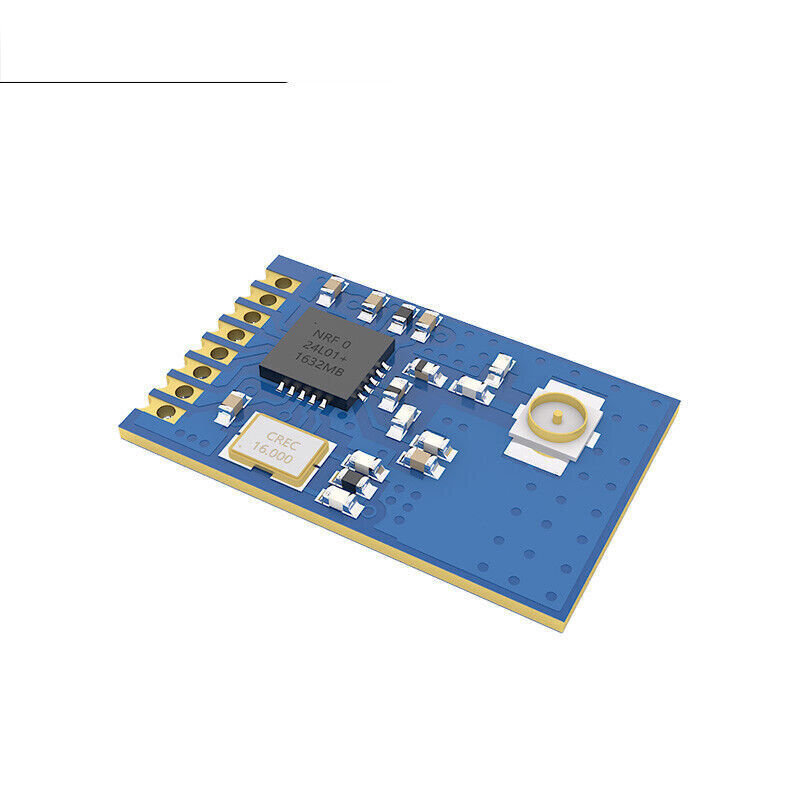

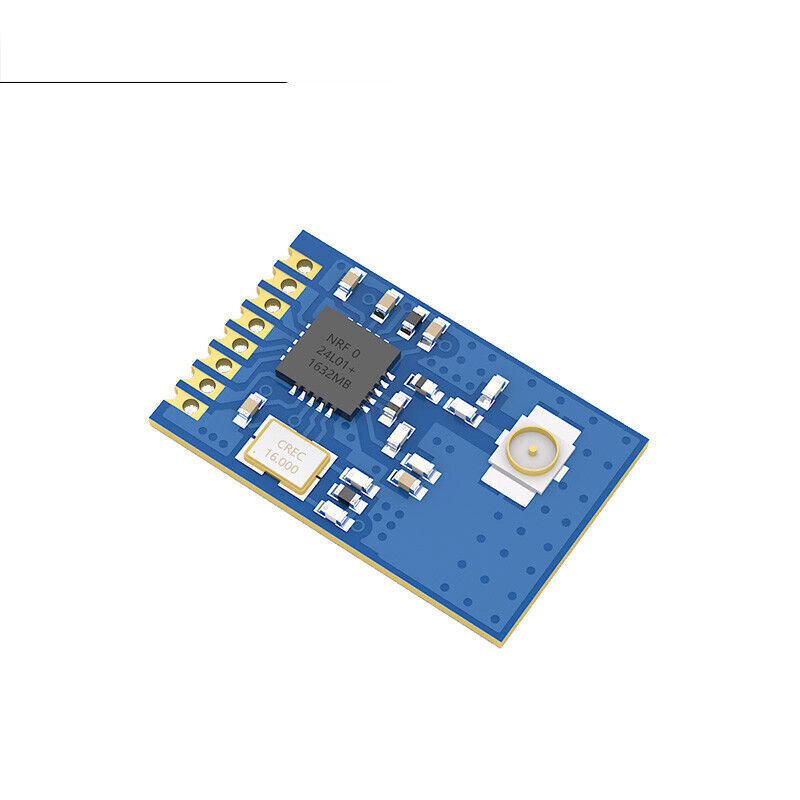

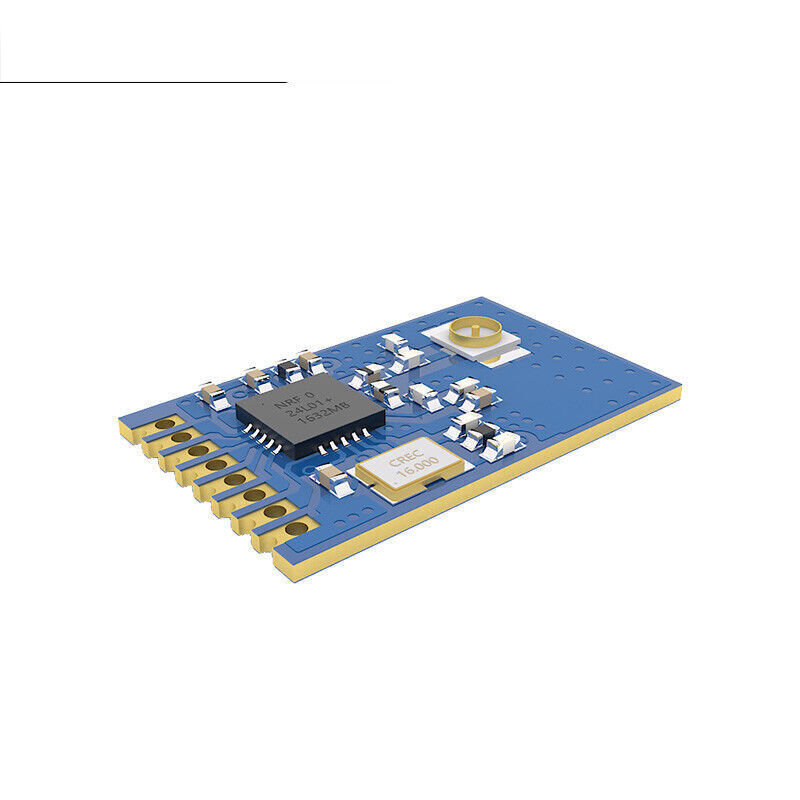

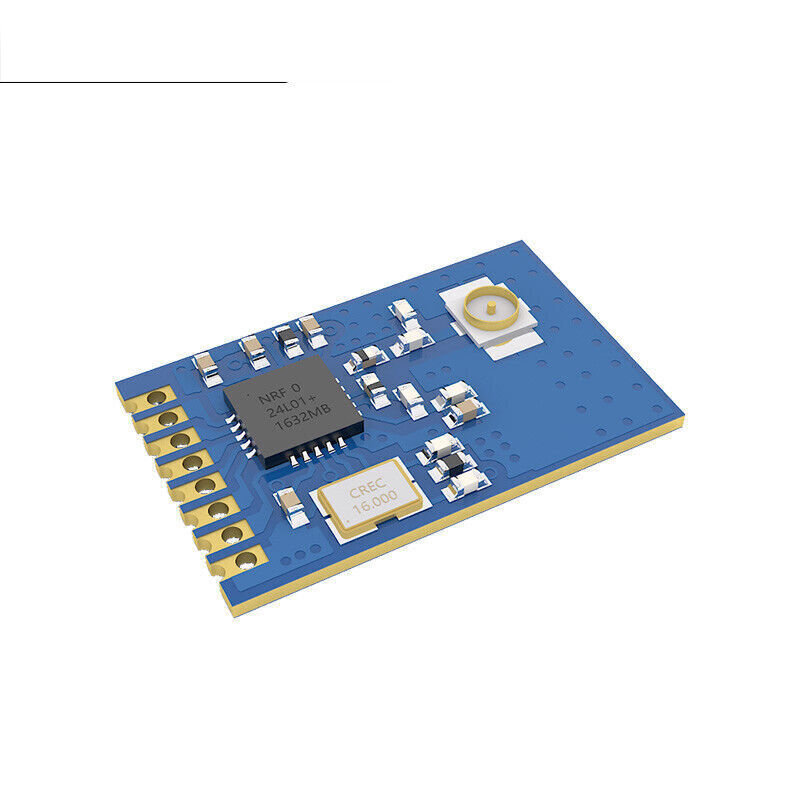

5pcs/lot 2.4GHz 150m NRF24L01 PA SPI Wireless Sender Receiver Small Size Module

$ 8.83

Communication interfac: SPI MPN: Does Not Apply Brand: Peakelect Power supply: 2.0V--3.6V Antenna type: IPEX Transmitting power: 0 dBm Quantity: 5pcs/Lot Country/Region of Manufacture: China Package: SMD Working frequency: 2400~2525 MHz Test distance: 200m UPC: Does not apply Modified Item: No gtin13: Does not apply Air data rate: 250k~2Mbps Model: E01-ML01IPX Custom Bundle: No Type: Wireless Sender Receiver

Description

E01-ML01IPX 2.4GHz SPI 150m nRF24L01 PA SPI Wireless Transmitter Receiver Module RF Parameter Value Remark Working frequency 2400~2525 MHz Default: 2.4GHz (16MHz oscillator) Transmitting power 0 dBm Max. Power (1mW) Receiving sensitivity -93 dBm Air data rate: 250kbps Air data rate 250k~2Mbps Default: 250kbps Test distance 200m In open and clear air, with maximum power, 5dBi antenna gain, height of 2m, air data rate: 250kbps Hardware Parameter Value Remark Size 12 * 19 mm Without SMA Antenna type IPEX Communication interface SPI Package SMD Electronic parameter Min. Typ. Max. Unit Condition Power supply 2.0 3.3 3.6 V Communication level 2.0 3.3 3.6 V Transmitting current 12 13 14 mA 0dBm（1mW） Receiving current 11 12 13 mA Sleep current 0.5 1.0 2.0 μA Operating temperature -40 20 +85 ℃ Operating humidity 10 60 90 % Storage temperature -40 20 +125 ℃
