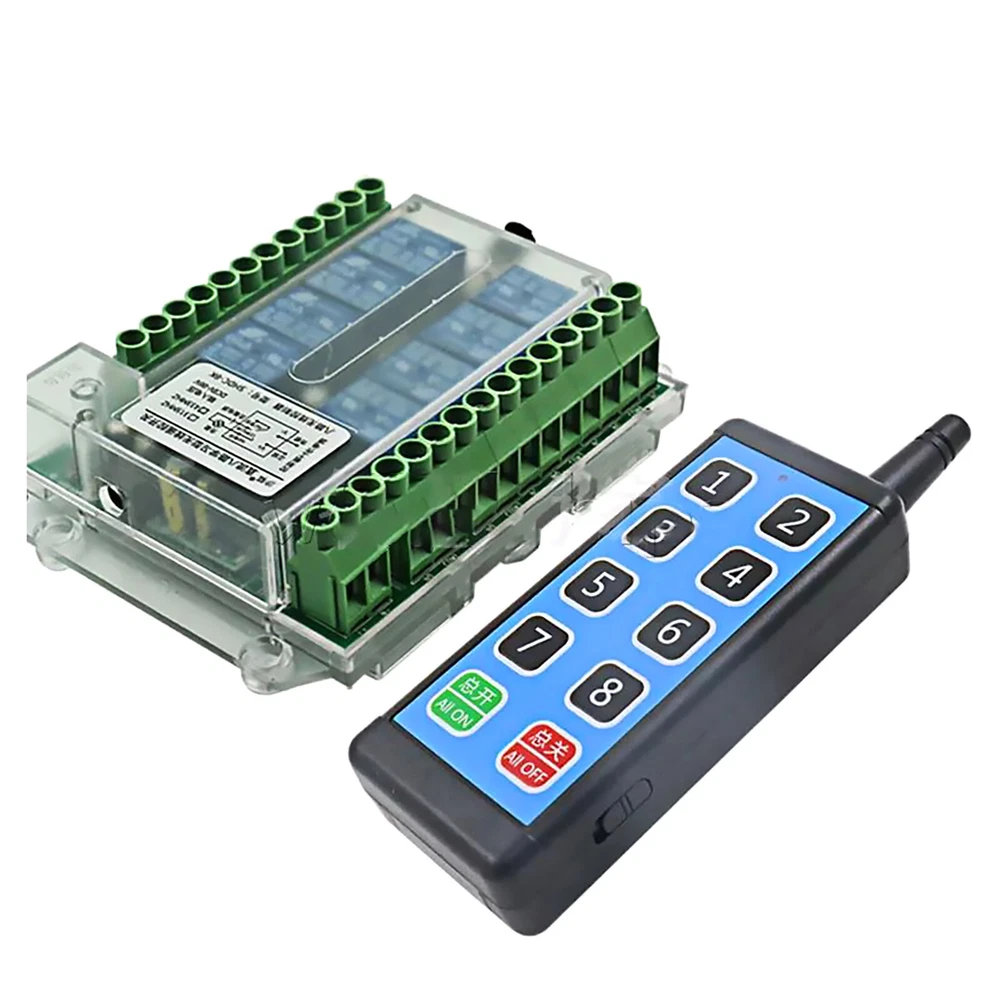

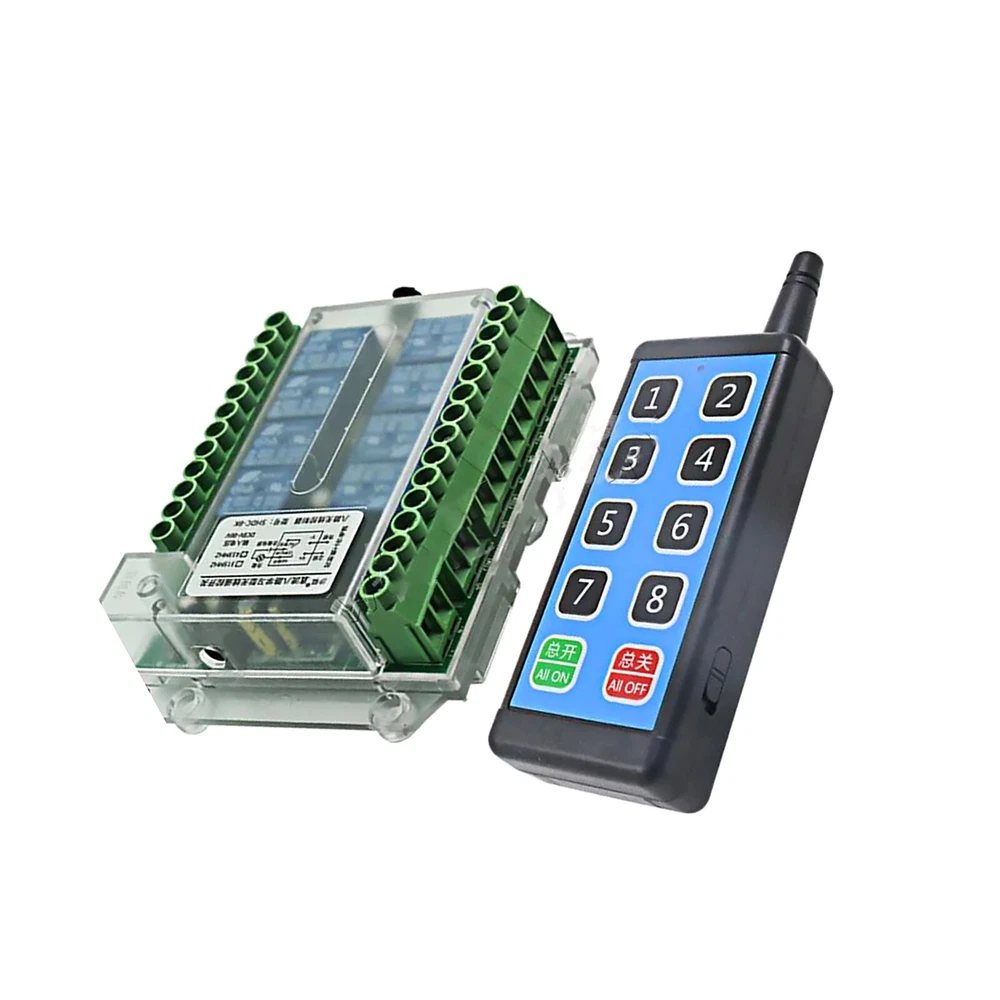

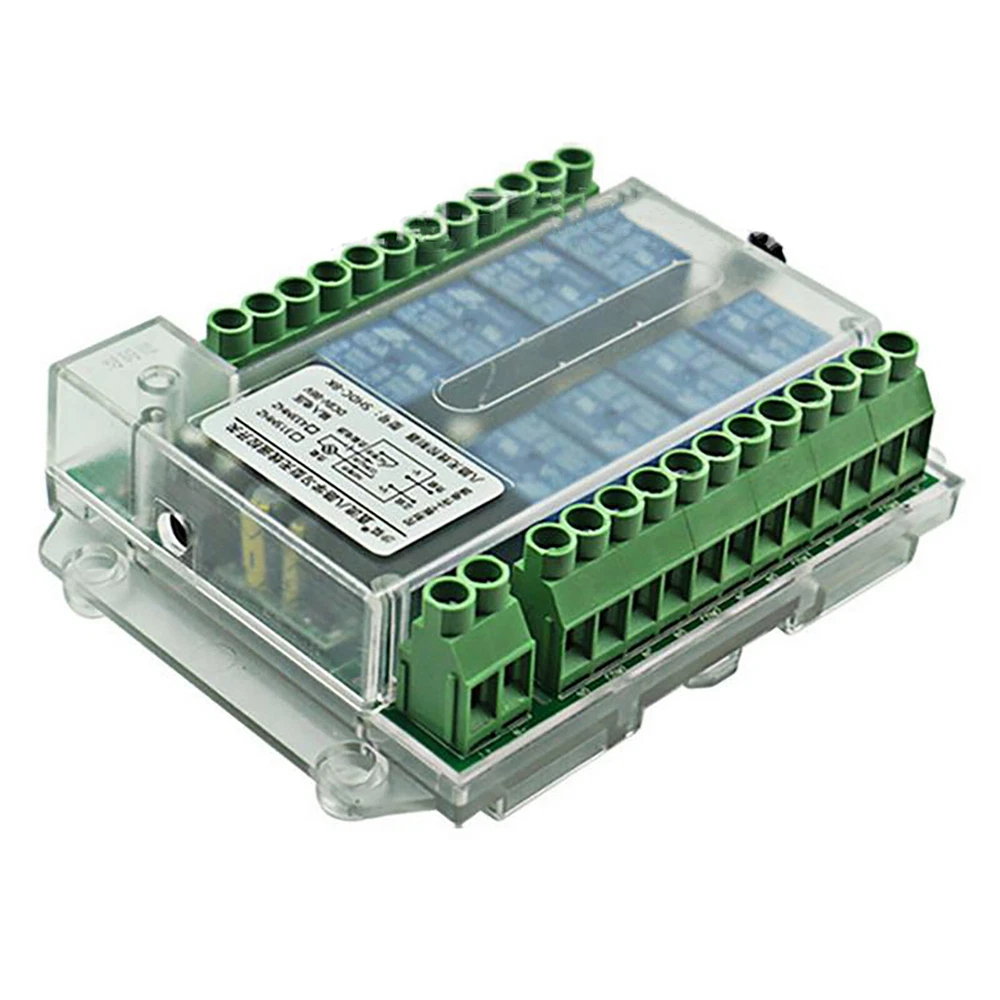

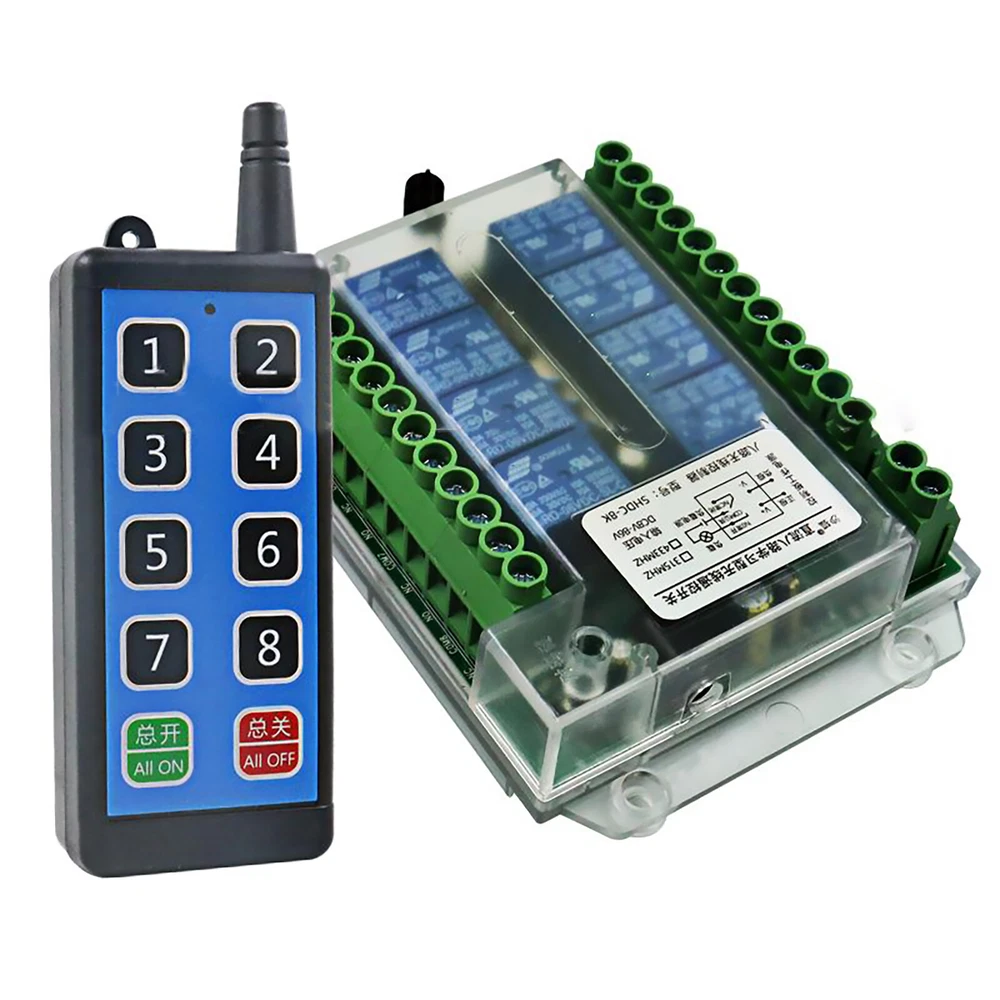

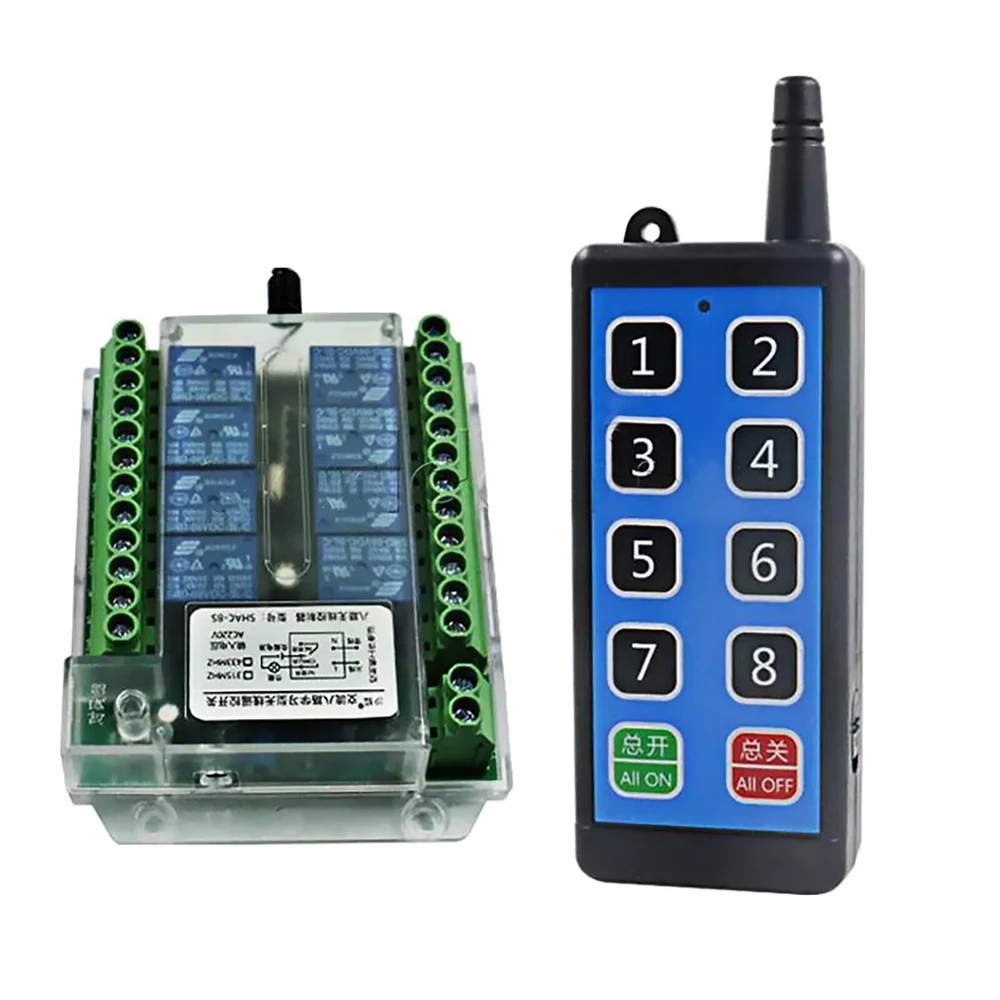

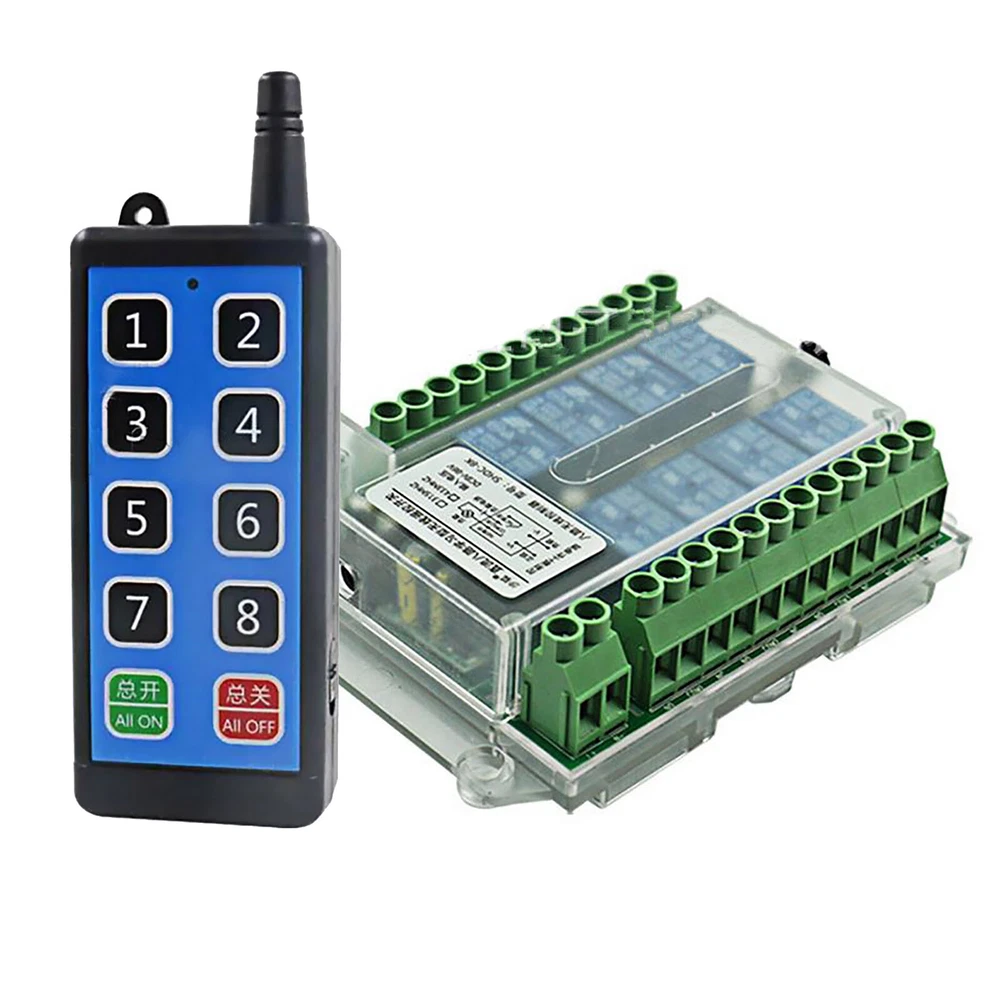

8 Channel Wireless RF433MHz Remote Control Switch Relay Module DC8-86V
$ 19.54
Description

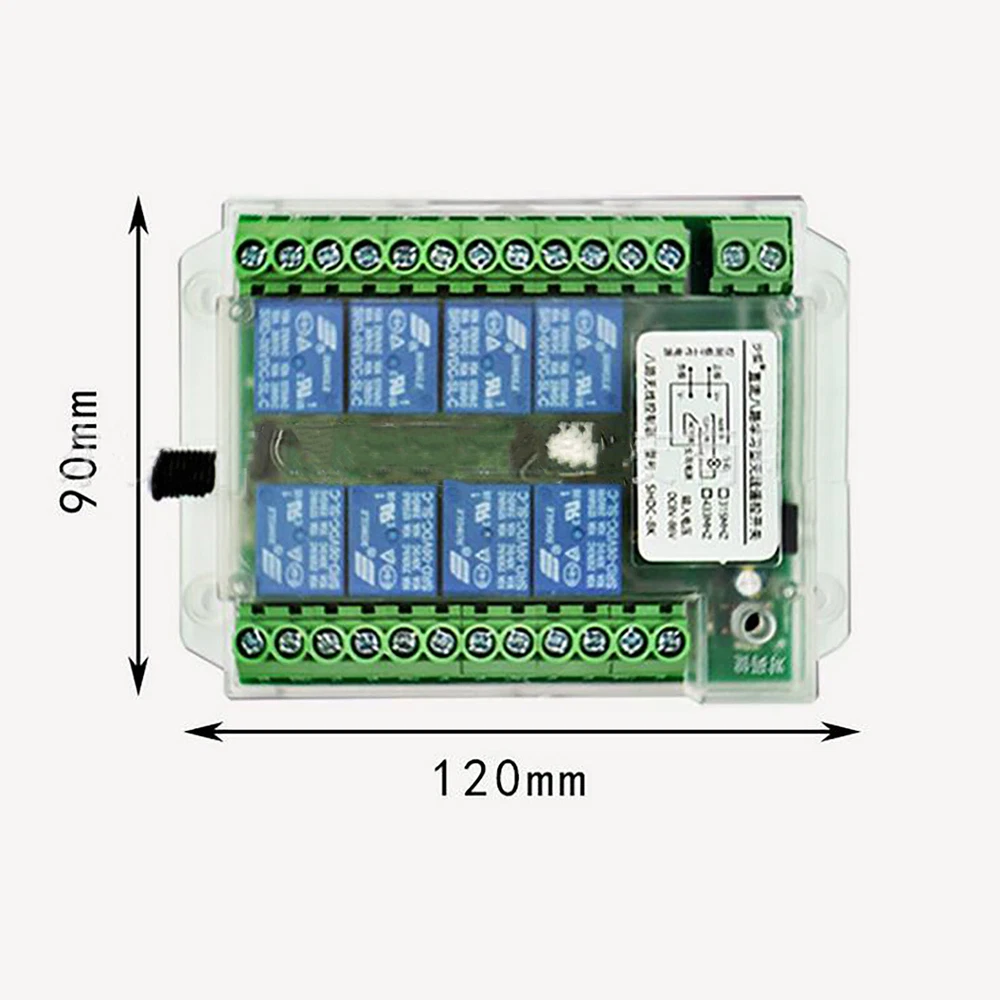

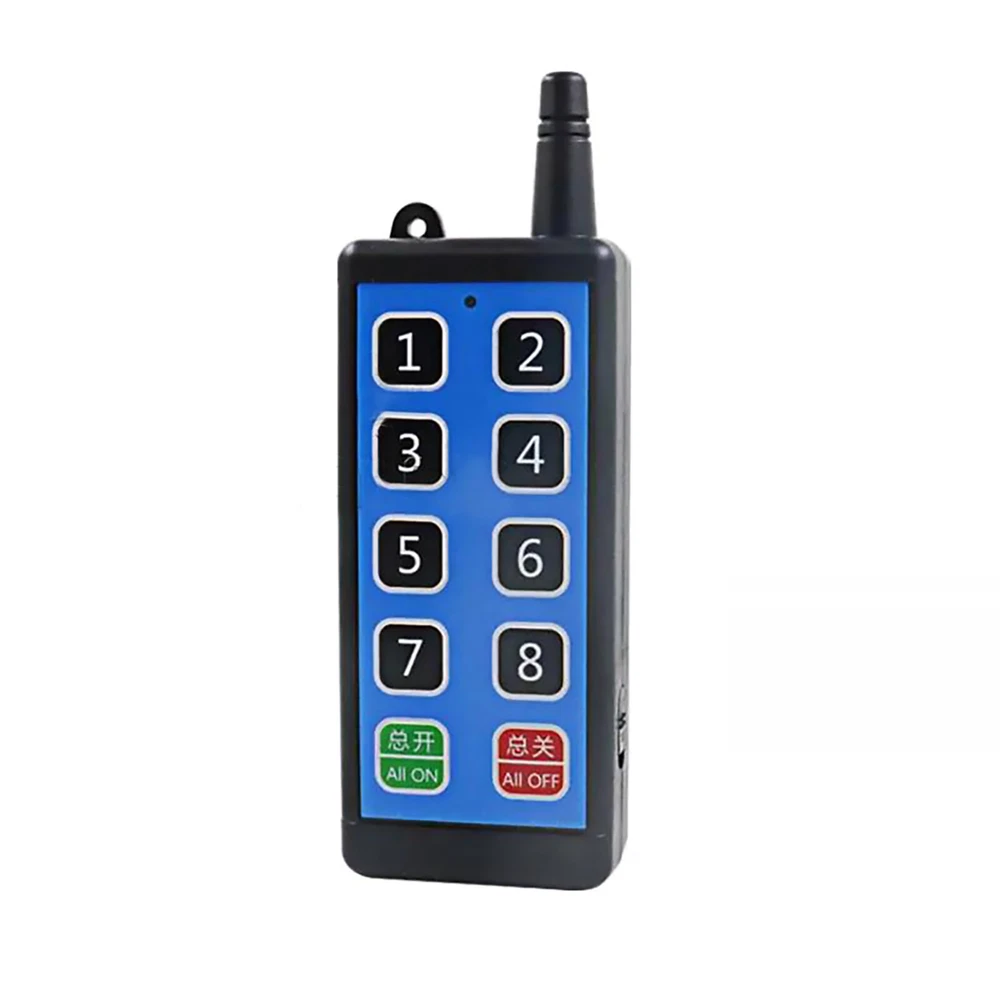

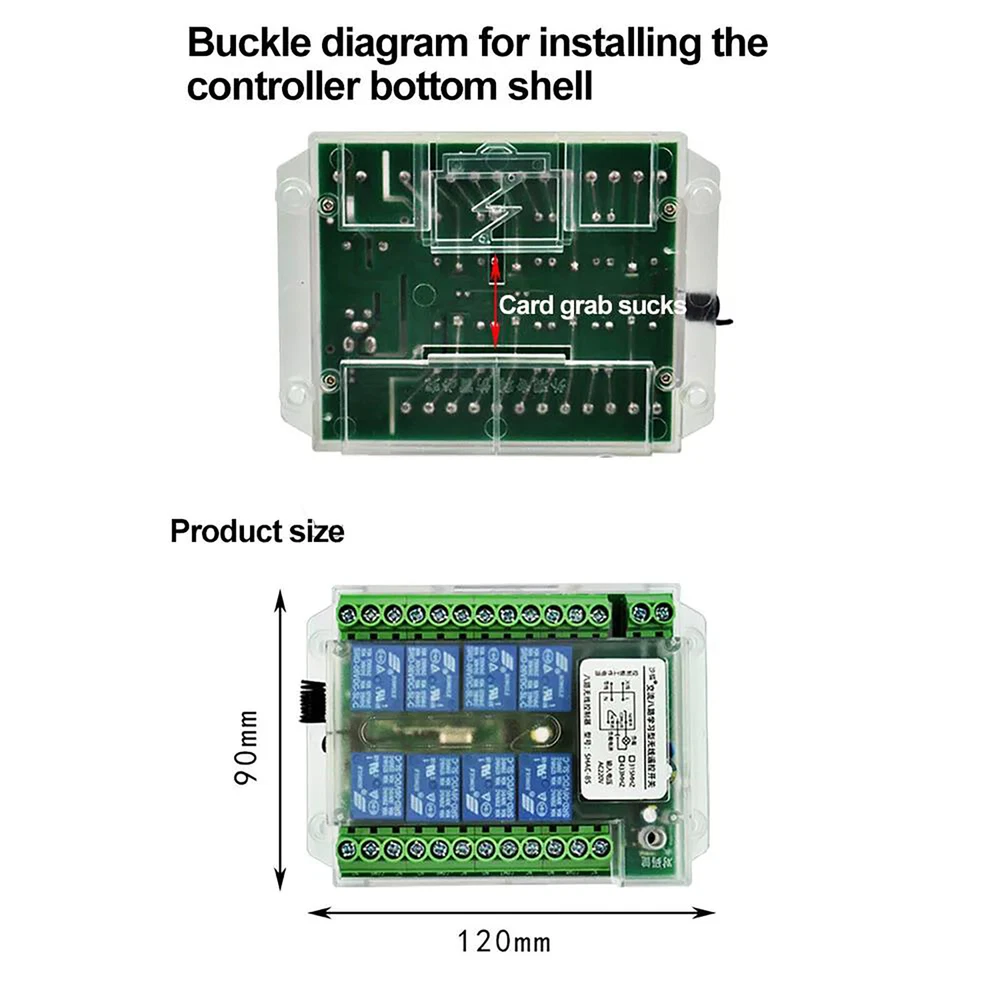

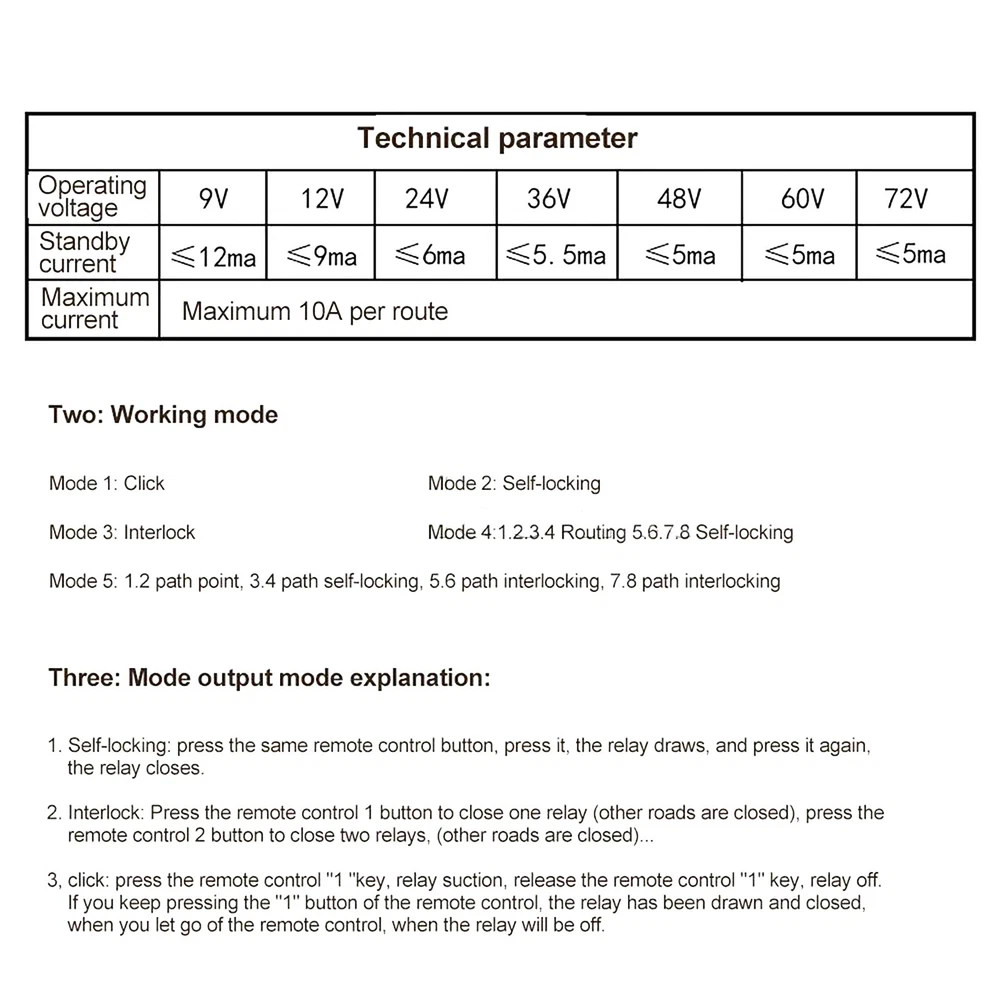

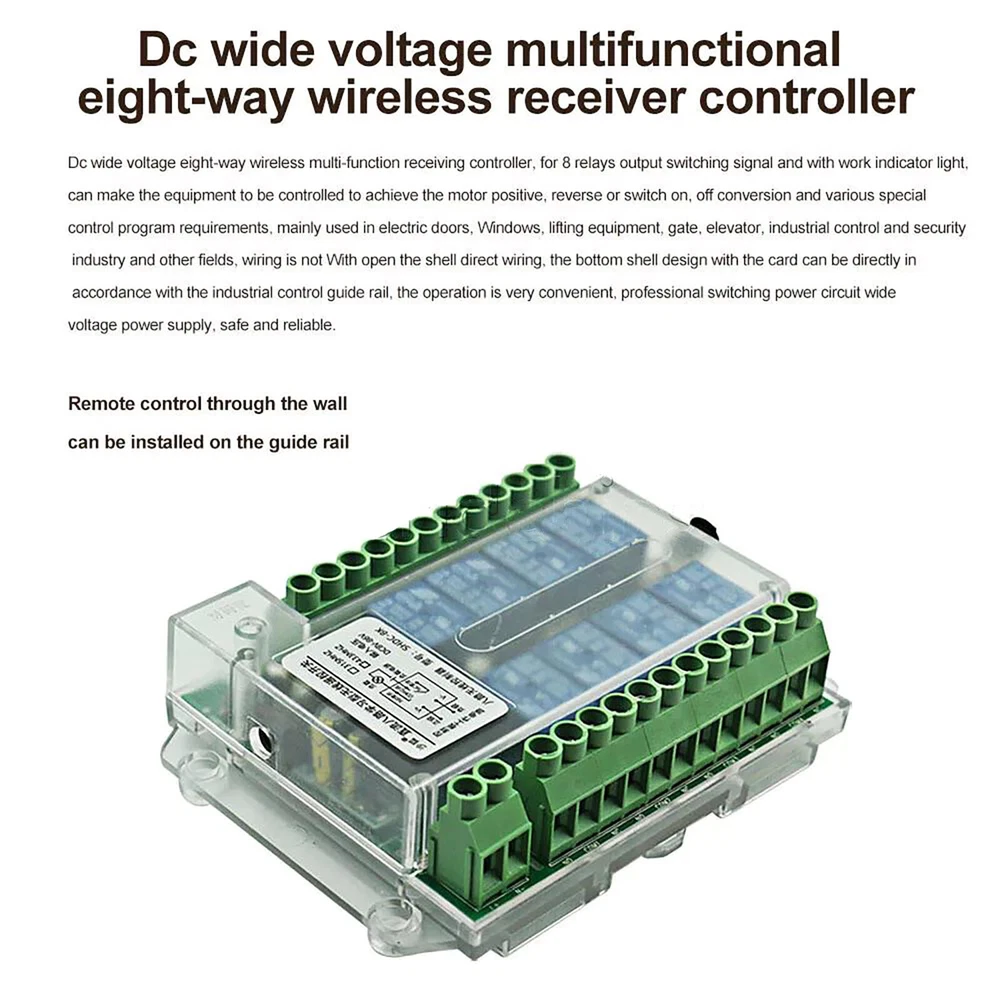

SAFE & SECURE SHOPPING 100% SATISFACTION GUARANTEED FAST SHIPPING Store Categories Store Categories You may also like 8 Channel Wireless RF433MHz Remote Control Switch Relay Module DC8-86V Product Description Features: 1. Compact Product, With Working Indicator Light 2. Simple Operation, Wiring Without Disassembling The Shell Direct Wiring 3. Wide Voltage Power Supply, Safe And Reliable, Stable Performance, Low Power Consumption 4. Loss Of Remote Control, Can Clear The Information Stored In The Acceptance Of The Controller 5. Wide Range Of Use: Applied To Electric Doors, Windows, Lifting Equipment, Gates, Elevators And Other Fields Specifications: Working Voltage: DC8-86V Operating Temperature: -10℃-+55℃ Coding Mode: Learning Type Controller Size: 120mm* 90mm* 35mm Remote Control Battery: 2* AAA Battery(Not Included) Operating Frequency: 433mhz Maximum Current: 10A Remote Control Distance: 100m-200m Working Mode: Mode 1: Tap Mode 2: Self-Locking Mode 3: Interlock Mode 4: 1. 2. 3. 4-Way Tap 5. 6. 7. 8 Self-Locking Mode 5: 1. 2-Way Tap, 3. 4-Way Self-Locking, 5. 6-Way Interlocking, 7.8-Way Interlocking Mode 6: Tap + Total Open Mode 7: Self-Locking + ALL ON ALL OFF Explanation Of Mode Output: Self-Locking: Press The Same Remote Control Button, Press It Once, The Relay Will Absorb, Press It Again, The Relay Will Turn Off. Interlocking: Press The Remote Control 1 Key, One - Way Relay Will Be Engaged (The Other Way Will Be Closed), Press The Remote Control 2 Key, Two - Way Relay Will Be Engaged (The Other Way Will Be Closed). Tap: Press The Remote Control "1" Key, The Relay Will Absorb, Release The Remote Control "1" Key, The Relay Will Turn Off. If You Keep Pressing The Remote Control "1" Key, The Relay Is Always Active, When To Let Go Of The Remote Control, When The Relay Is Off. +: Connect To The Positive Terminal Of The Power Supply -: Connect To The Negative Pole Of Power Supply Nc: Normally Closed Terminal Com: Common Terminal No: Normally Open Terminal Learning Code: 1. Mode 1 (Pointing) Learning Method: Press The Control Panel Code Button Once, Wait For The Led Indicator To Light Up And Then Press Any Key Of The Remote Control That Needs To Be Coded, And The Led Indicator Of The Control Panel Will Blink 3 Times In A Row For The Code To Be Successfully Coded. 2. Mode 2 (Self-Locking) Learning Method: Continuously Press The Control Board 2 Times To The Code Button, Wait For The Led Indicator Is Lit, Press Any Key Of The Remote Control That Needs To Be Coded, The Control Board Led Indicator Blinks 3 Times In A Row To The Code Successfully. 3. Mode 3 (Interlock) Learning Method: Continuously Press The Control Board 3 Times To The Code Button, Wait For The Led Indicator Is Lit, Press Any Key Of The Remote Control That Needs To Be Coded, The Control Board Led Indicator Blinks 3 Times In A Row To The Code Successfully. 4. Mode 4 (Point + Self-Locking) Learning Method: Continuously Press The Control Board 4 Times The Code Button, Wait For The Led Indicator Light Up And Then Press Any Key Of The Remote Control Need To Code, The Control Board Led Indicator Flashes 3 Times To Code Successfully. 5. Mode 5 (Tap + Self-Locking + Interlocking) Learning Method: Continuously Press The Control Board 5 Times The Code Button, Wait For The Led Indicator Light Up And Then Press Any Key Of The Remote Control That Needs To Be Coded, The Control Board Led Indicator Flashes 3 Times In A Row To The Code Successfully. 6. Mode 6 (Tap+Total) Learning Method: Press The Control Panel Code Button 11 Times In A Row, Wait For The Led Indicator To Light Up And Then Press Any Key Of The Remote Control That Needs To Be Coded, The Led Indicator Of The Control Panel Will Flash 3 Times In A Row And The Code Will Be Successfully Coded. 7. Mode 7 (Self-Locking + ALL ON ALL OFF) Learning Method: Continuously Press The Control Board 12 Times To Code Button, And So On The Led Indicator Light, Light, Press Any Key Of The Remote Control That Needs To Code, The Control Board Led Indicator Blinks 3 Times In A Row To Code Successfully. Clear Data Press The Learning Button On The Control Board For 11 Consecutive Times, It Will Automatically Clear All The Remote Controls That Have Learned The Code. After Clearing, The Original Remote Control Will No Longer Be Controlled. Packege Included: 1* Relay Module 1* Remote Control Shipping Returns Contact Us Payment Shipping We ship most of our orders within 24 hours, and may up to 48 hours. If you want faster shipping way, please contact us before making a payment. Sometimes due to problems with our transportation company system, your shipping information may be delayed to update. We recommend that you try again after 3-4 days. If you still haven't checked the shipping information, you can contact us via ebay message. Returns 1. 30 days warranty from the purchased date. Please contact us via email before returning the defective item. 2.Our warranty does not extended to any product that are physically damaged or that are not under normal operating conditions as result of misuse or improper installation on the buyer/user's part. 3.Return items should include the original packaging and all accessories. buyers MUST contact us for the returning address. 4.In all cases, buyers pay shipping fees at their own cost to return products for exchange or refund. We will be responsible for the postage of replacements. Refund will be made upon receipt of the returned item. Contact Us Pls contact us if you have any problems,we will try our best to solve for you Payment We accept all verified payment from eBay. Copyright © 2022 Tongtool
