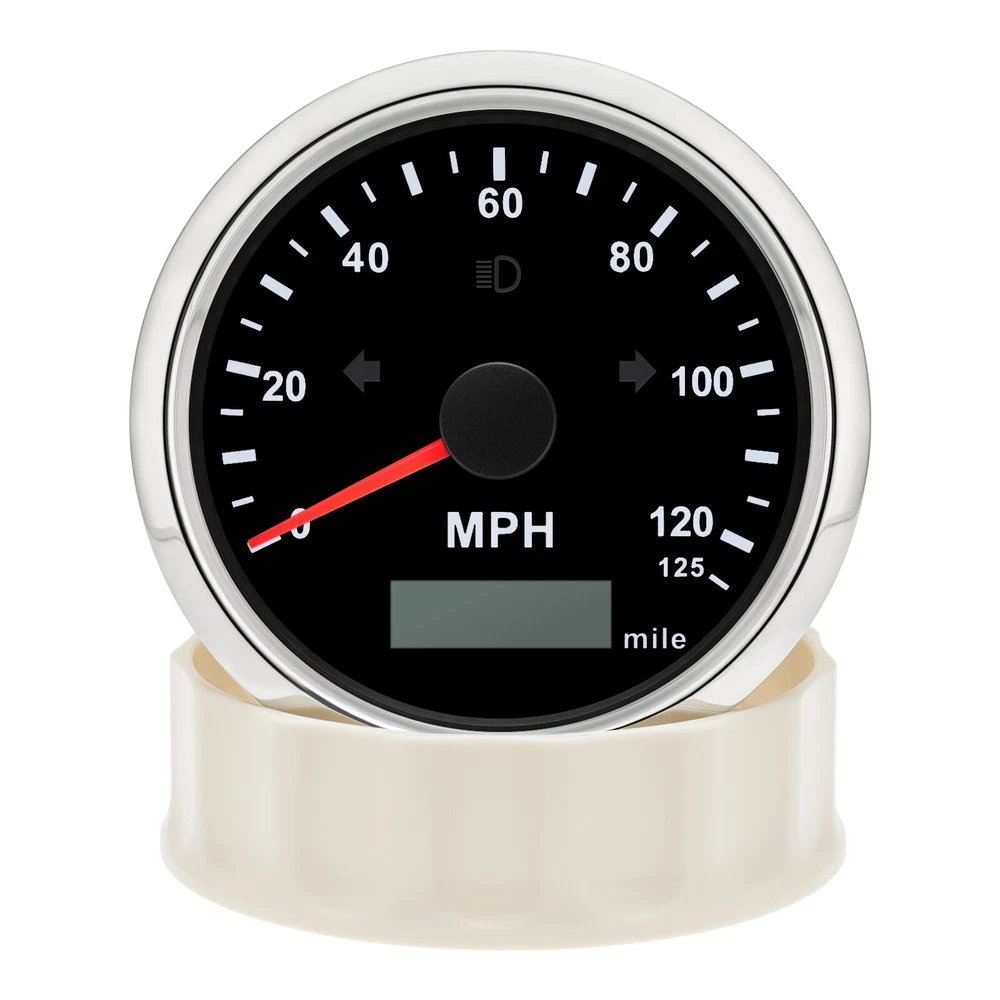

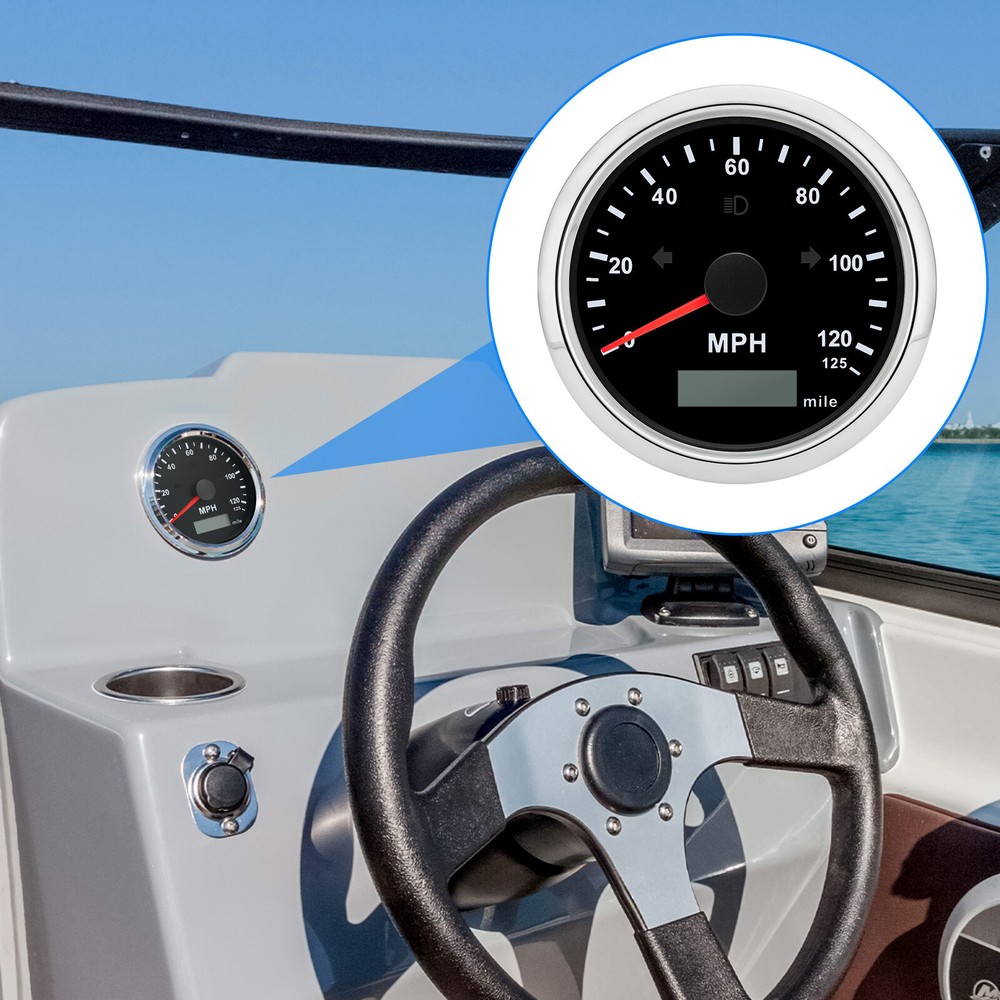

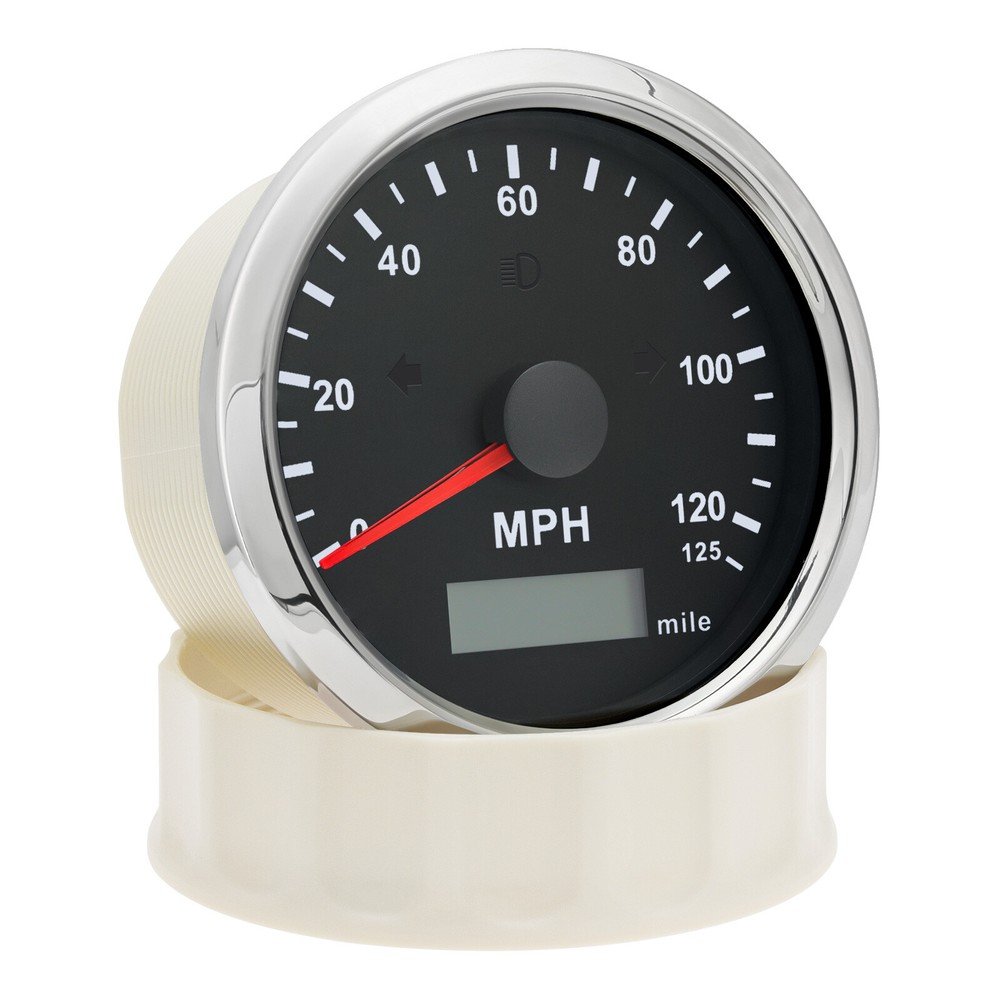

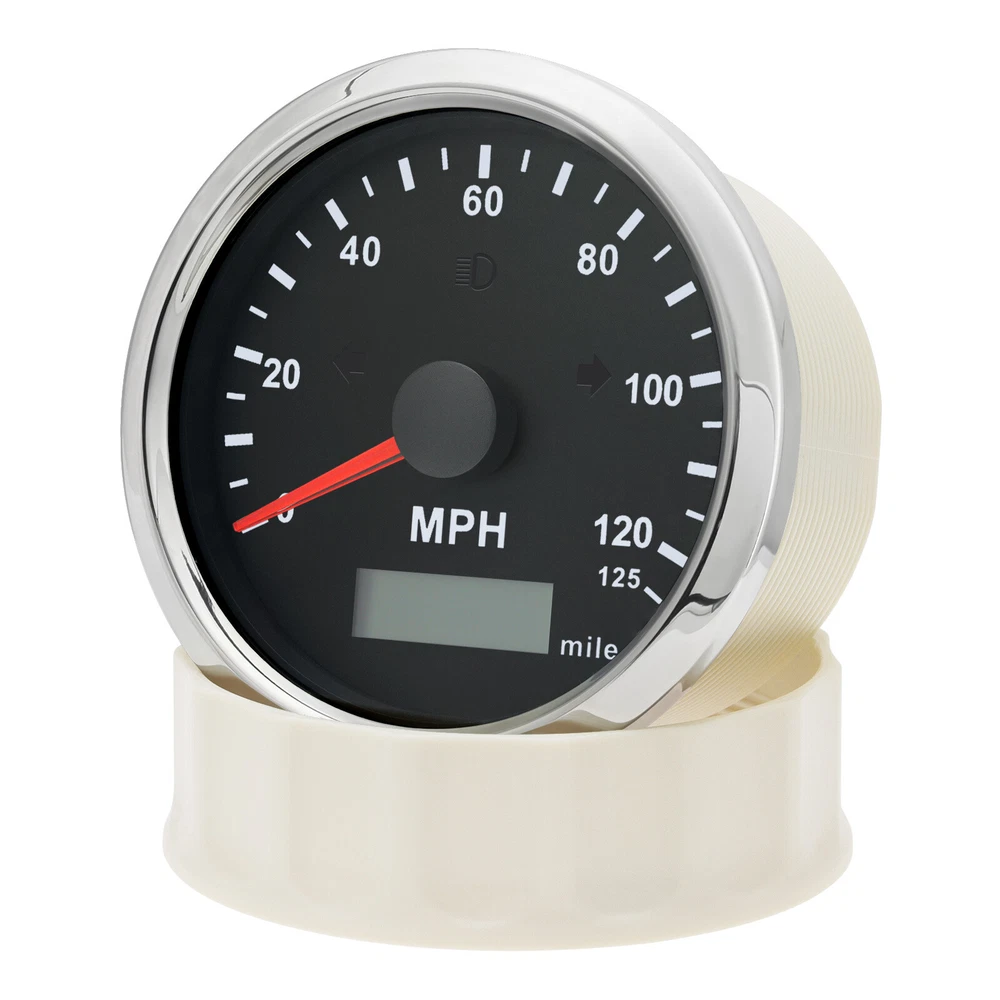

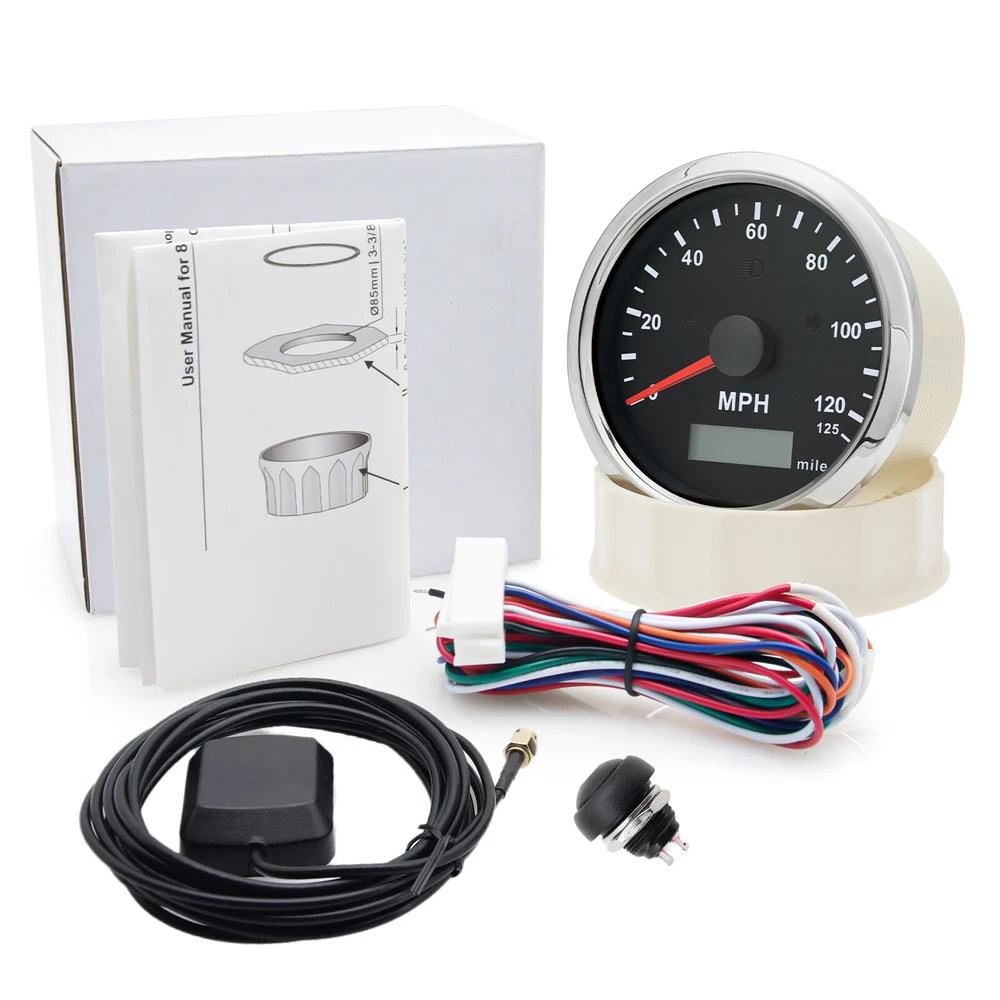

85mm GPS Speedometer 0-125MPH Gauge Turn Signal High Beam For Car Boat Truck
$ 31.32
Description

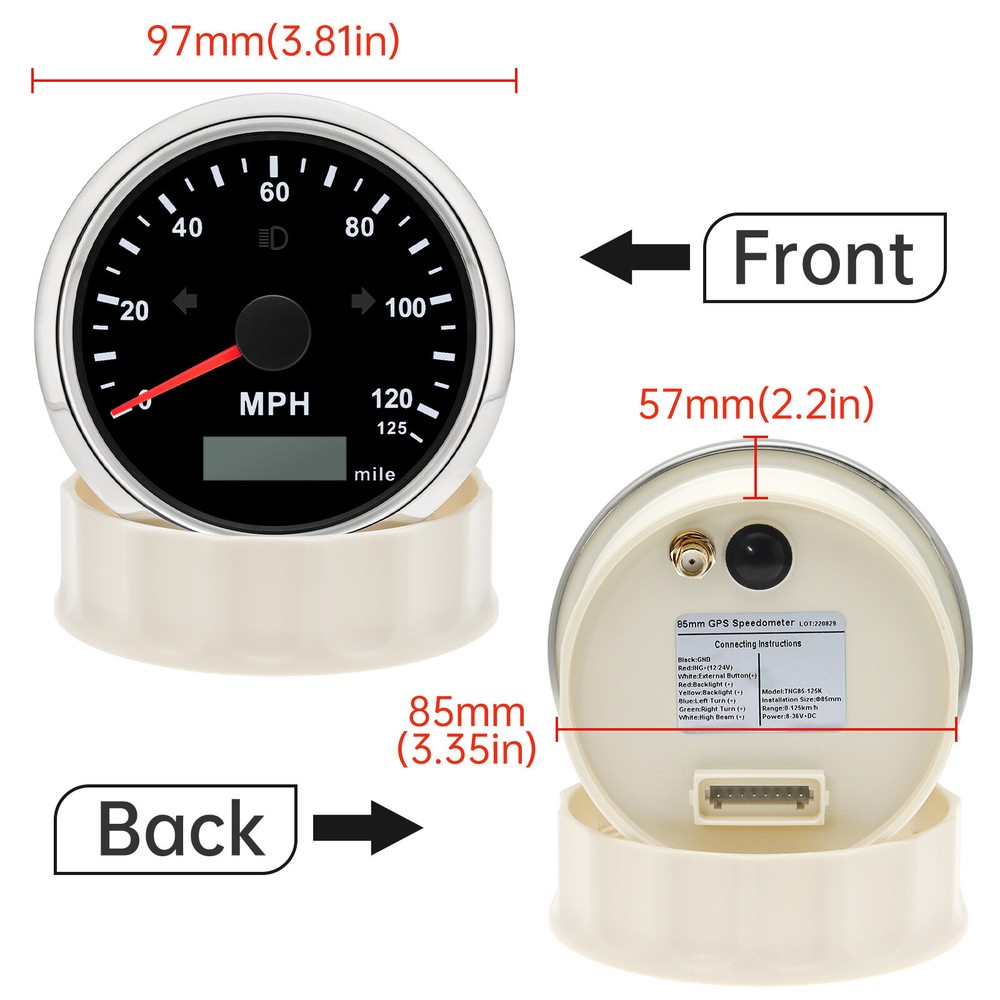

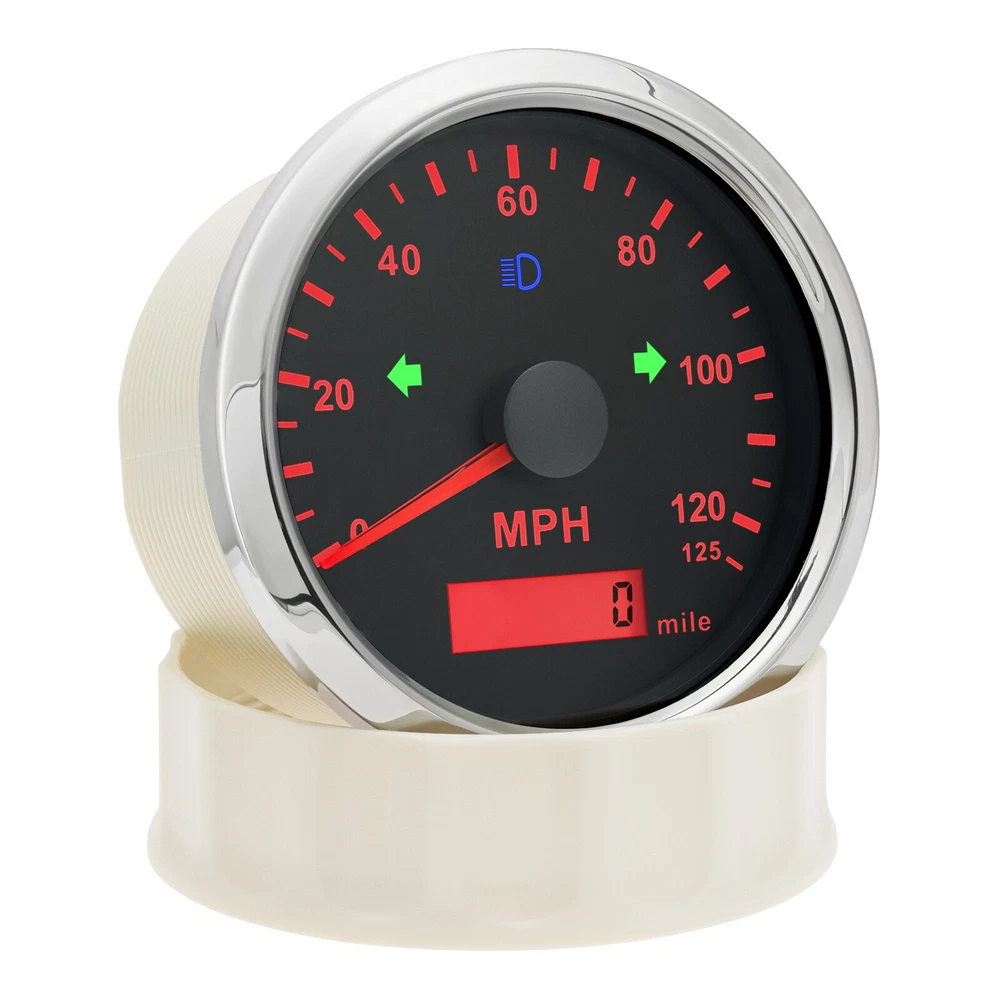

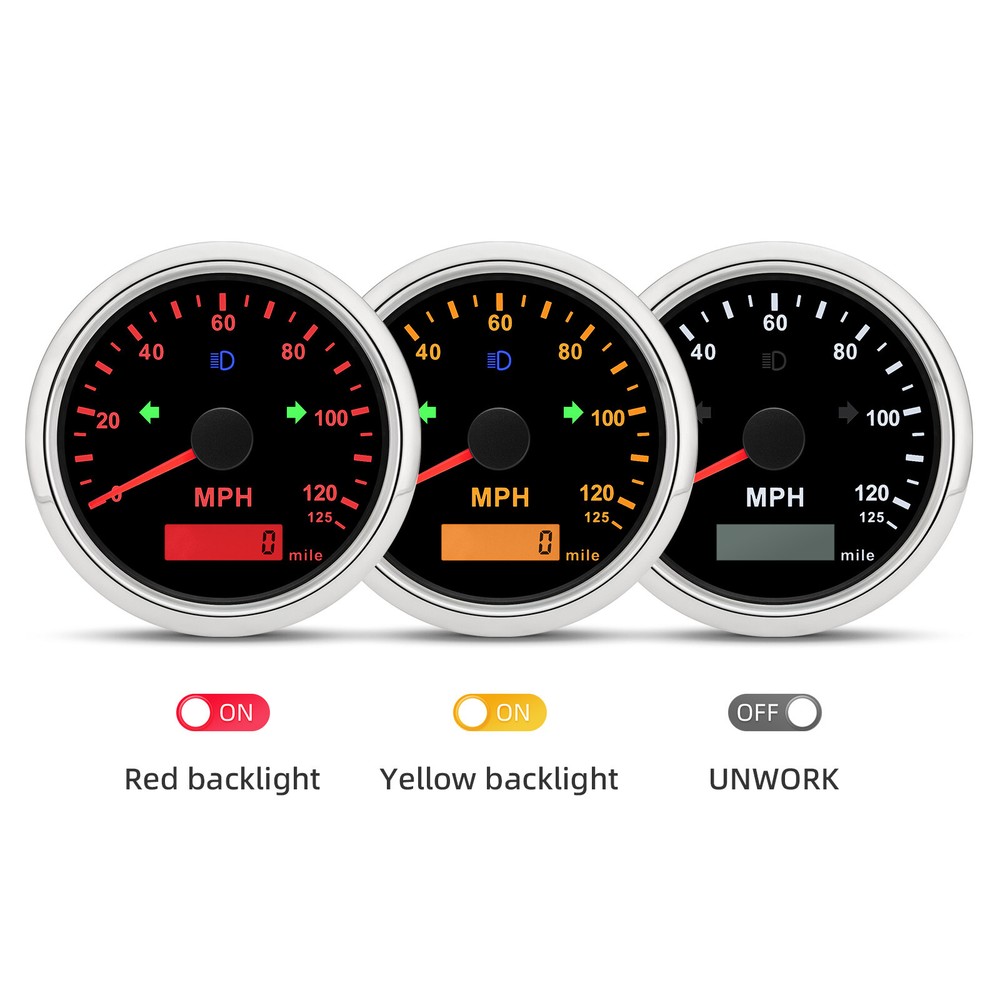

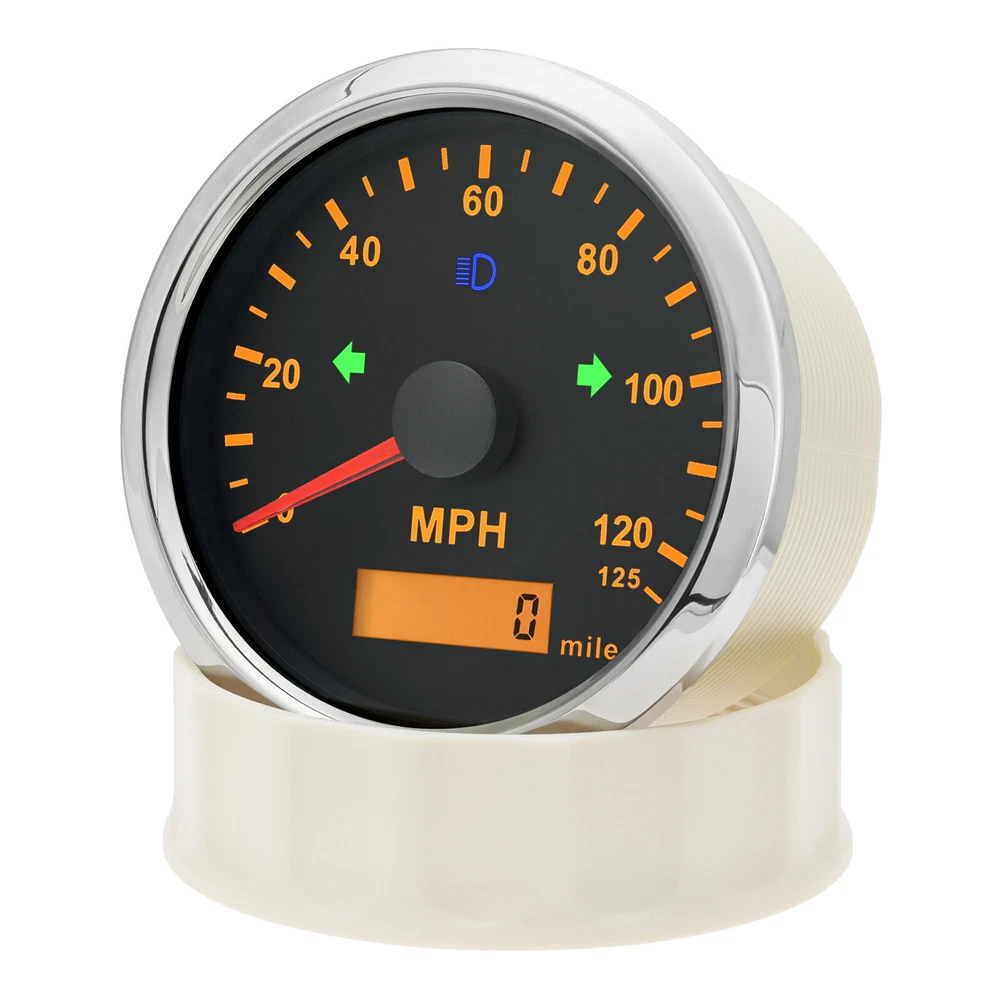

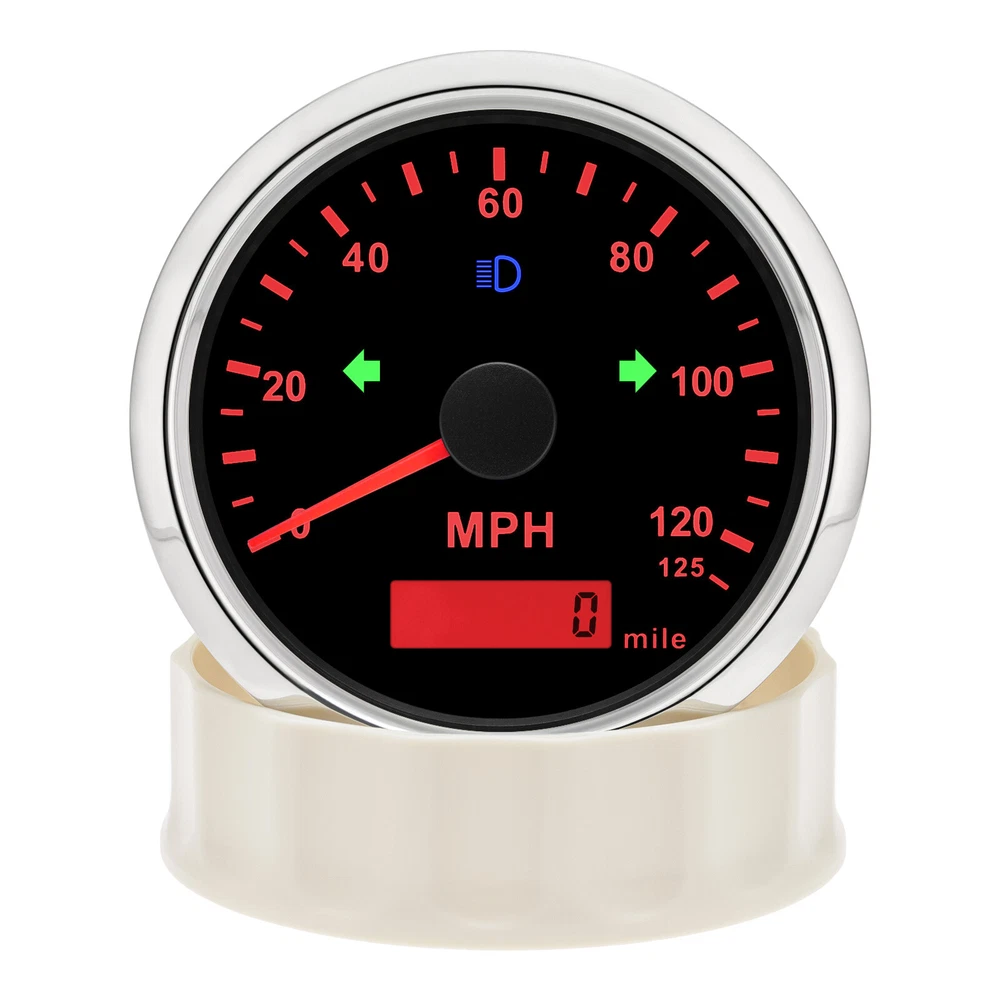

85mm GPS Speedometer 0-125MPH Gauge Turn Signal High Beam For Car Boat Truck 85mm GPS Speedometer 0-125MPH Odometer Gauge With Indicator Light For Boat Car Specifications: Fixing dimension: 85mm(3-3/8") Indicating Range: 0-125MPH Working Voltage: 12V/24V Total Mileage Range: 0-999999 miles GPS Blind Area Odometer Compensation OverSpeed Buzzer Alarm (Value Adjustable) Indication light: LEFT, HIGH BEAM, RIGHT Backlight: Red and Yellow available Working temperatures: - 40 to 85°C Operation mode: LCD display, stepper motor Features: Suitable for all vehicles and off-road vehicles The signal comes directly from the satellite signal receiver(GPS Antenna), don't need other speed sensor. The gauge has the advantages of high precision, quick location confirmation and short start up time. IP67 waterproof and dustproof grade Reverse polarity protection and anti-fogging performance No Stationery Drift Stepper motors used for full range of stepping gauges, great feature with its less power consumption, longer life, higher precision, etc. Installation: 1. Cut an 85mm (3 3/8") hole in the panel (II) and allow a clearance of 55mm (2 3/16”) behind the panel to fit the gauge. 2. Remove fastening ring (I), insert gauge through the panel from the front. Tighten gauge (III) using fastening ring (I) from the rear. 3. Connect cables according to the diagram. Choose either red or yellow wire for backlighting. 4. Securely fasten the GPS antenna, preferably outdoors (or inside front windscreen) so that it has a clear view of the sky to pick up satellite signal. Connect the antenna cable to socket in the back of the gauge. Do not cut cable. 5. After turning on the power, allow the gauge to search for satellite signal for 1 minute. Function Select: “ODO”，“BUZZ” Press and hold on the button at the back, then turn on the power supply. The LCD will show ODO, BUZZ, etc. You can select the function after releasing the button. 1.“ODO”(change total odometer) After selecting “ODO”, the LCD will show “5000” (for example 5000 km) , press the button to change the flashing digit from 0 to 999999 to set up the target odometer value. 2.“BUZZ”(change overspeed buzzer alarm threshold value) After selecting “BUZZ”, e.g. the LCD will show “B 80” (buzzer will be on when speed over 80km/h), press the button to change the flashing digit from 10 to 240 to set up target overspeed buzzer alarm threshold value. (Remarks: No.3 function is not ready in the prototype sent to BESTAS, but will be ready in mass production.) Note: After setting, you should disconnect both Power+ and GND, then reconnect the two cables , it will save the setting. If you just cut Power +, then it won’t work properly. Package Included: 1x GPS speedometer 1x GPS Antenna 1x Multi-plug socket 1x Installation Instruction Wholesale and drop shipping are both welcomed For wholesale, we will offer the discount or free express shipping which only takes 3-7 days to arrive. For drop shipping, We could send the goods to your customers directly and won't leave information about us if youd like to.
when just one guage showed up i freaked. then the picture my buddy took made it look black. (it was chrome) then the shipping company lied and said the second package came yesterday at 11;44. i was there and out side . i was there TODAY when it was delivered. shipping in miami used to be dependable. anyhow apologies to the shipper. everything is here and as showed in the pics. (and they did say it would be in two parcels in a text)
Item received as described, brand new and in the packaging with instructions included. Mounted up without much issue at all, powered up immediately, love the ability to change the coloring! Very pleased with the item I got for the price I paid! Looks amazing! Lightning fast shipping, great seller communication! Thanks for a wonderful transaction! Very pleased! AAA+
The item was purchased at a reasonable price. There was a labeling issue when the package arrived in Norway, but the seller took full responsibility and promptly resolved the problem. I'm very satisfied with the communication throughout the process. Highly recommended!
