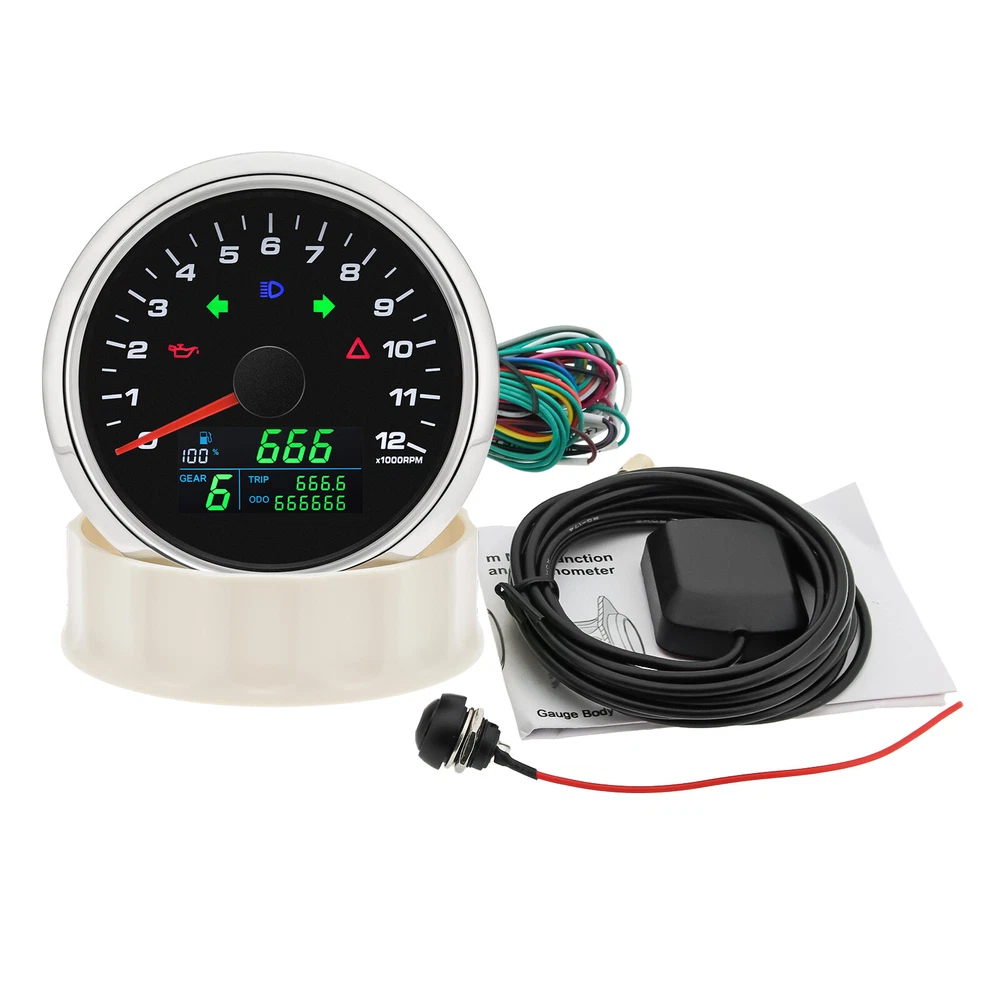

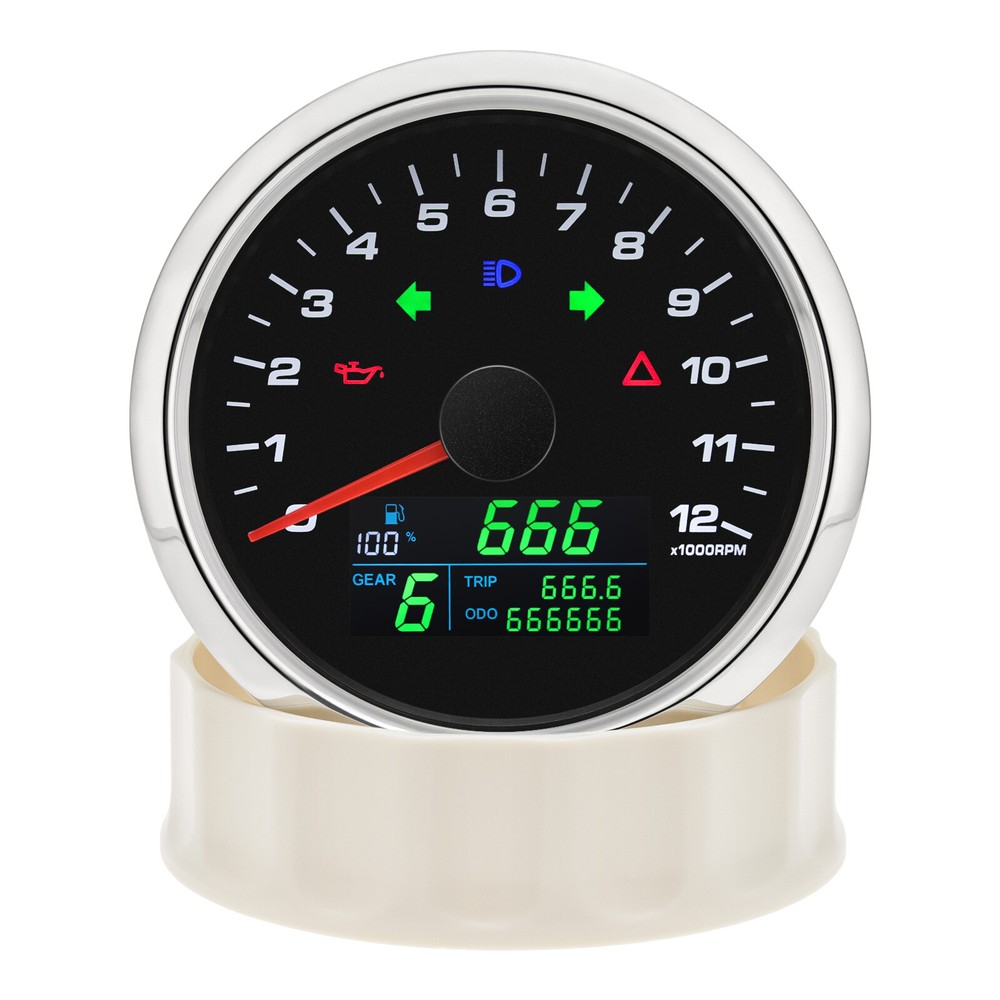

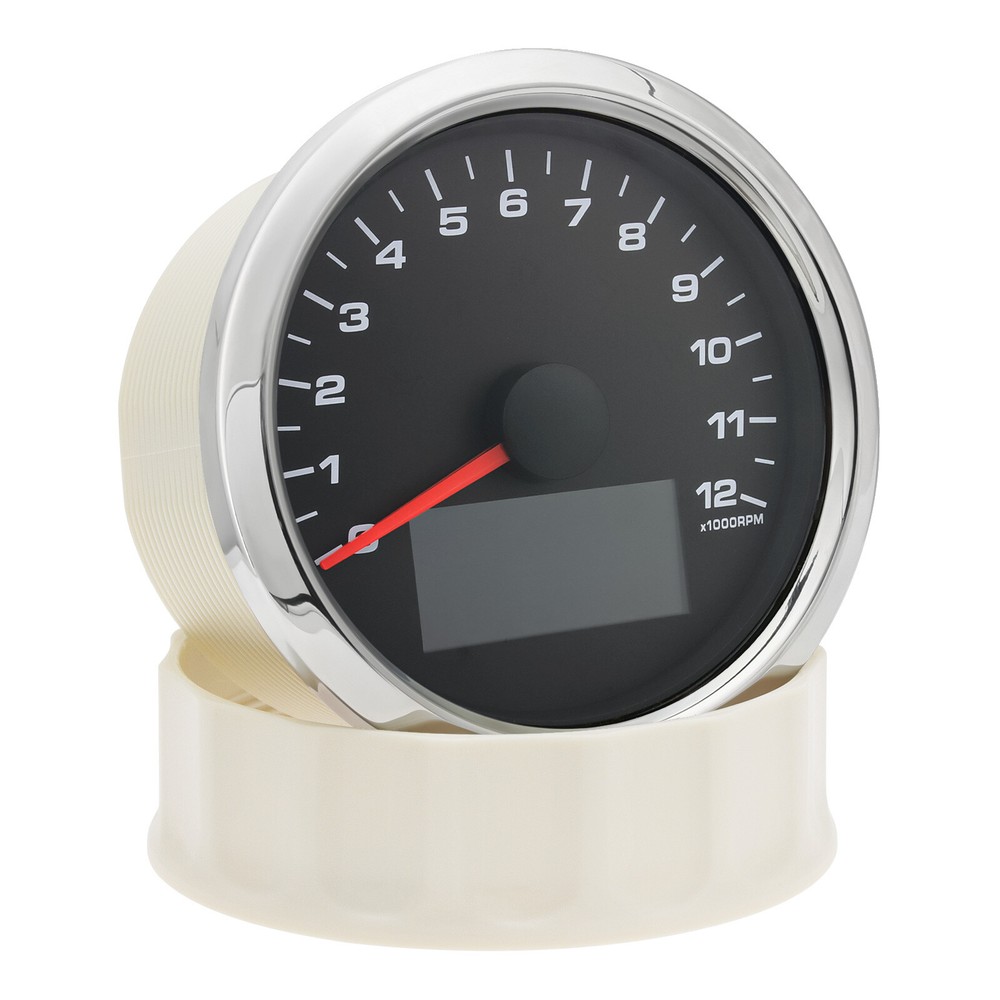

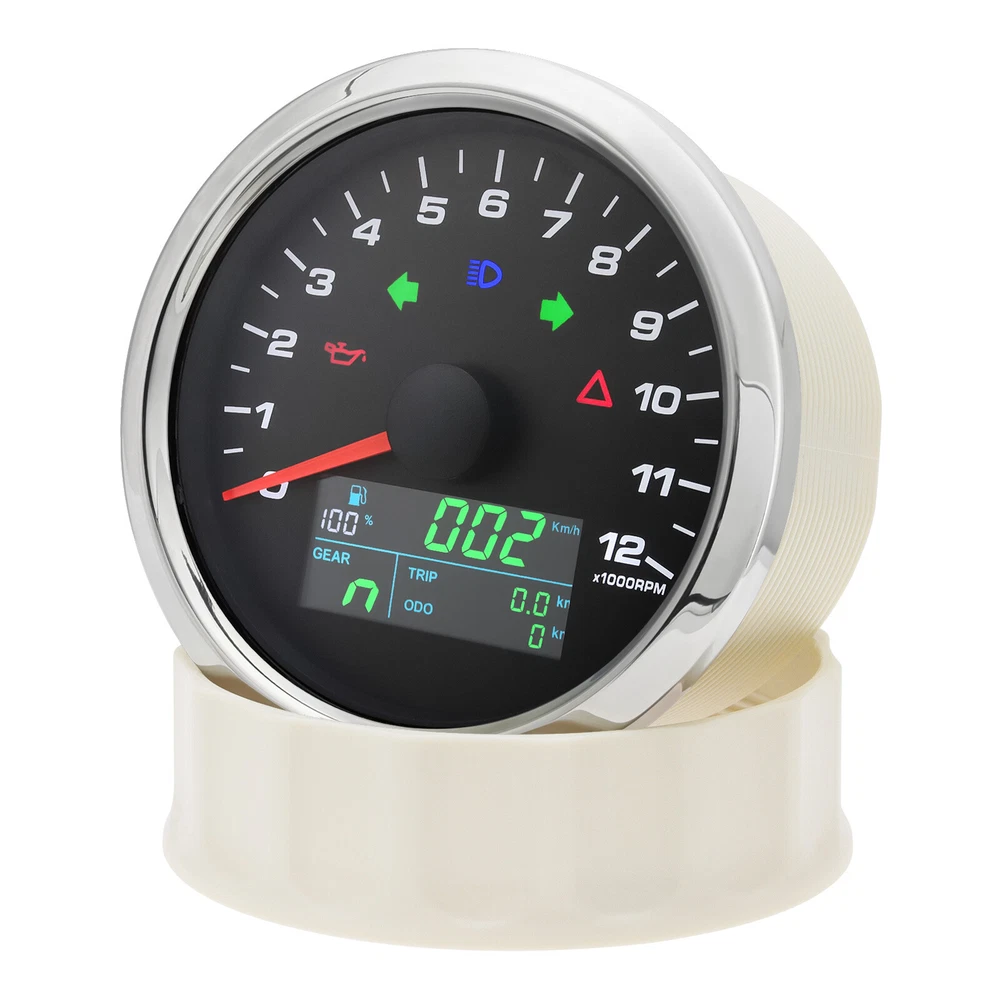

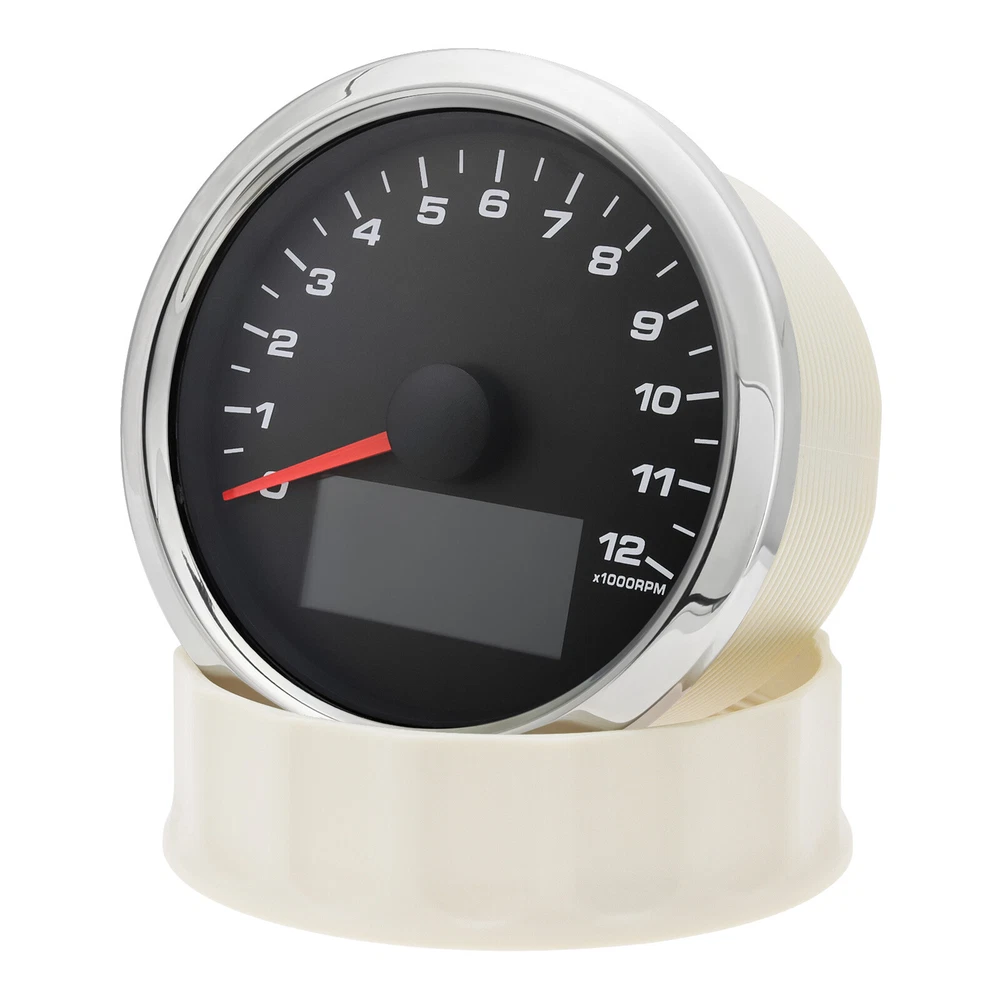

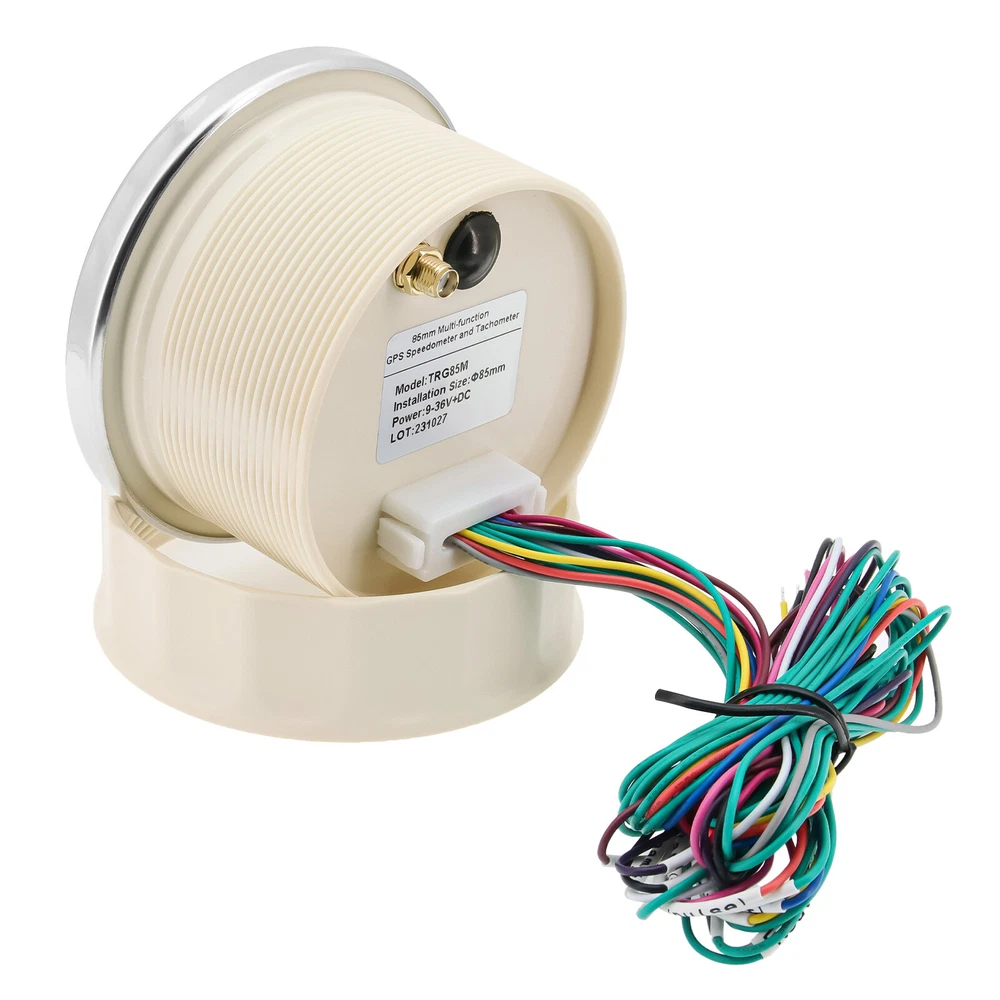

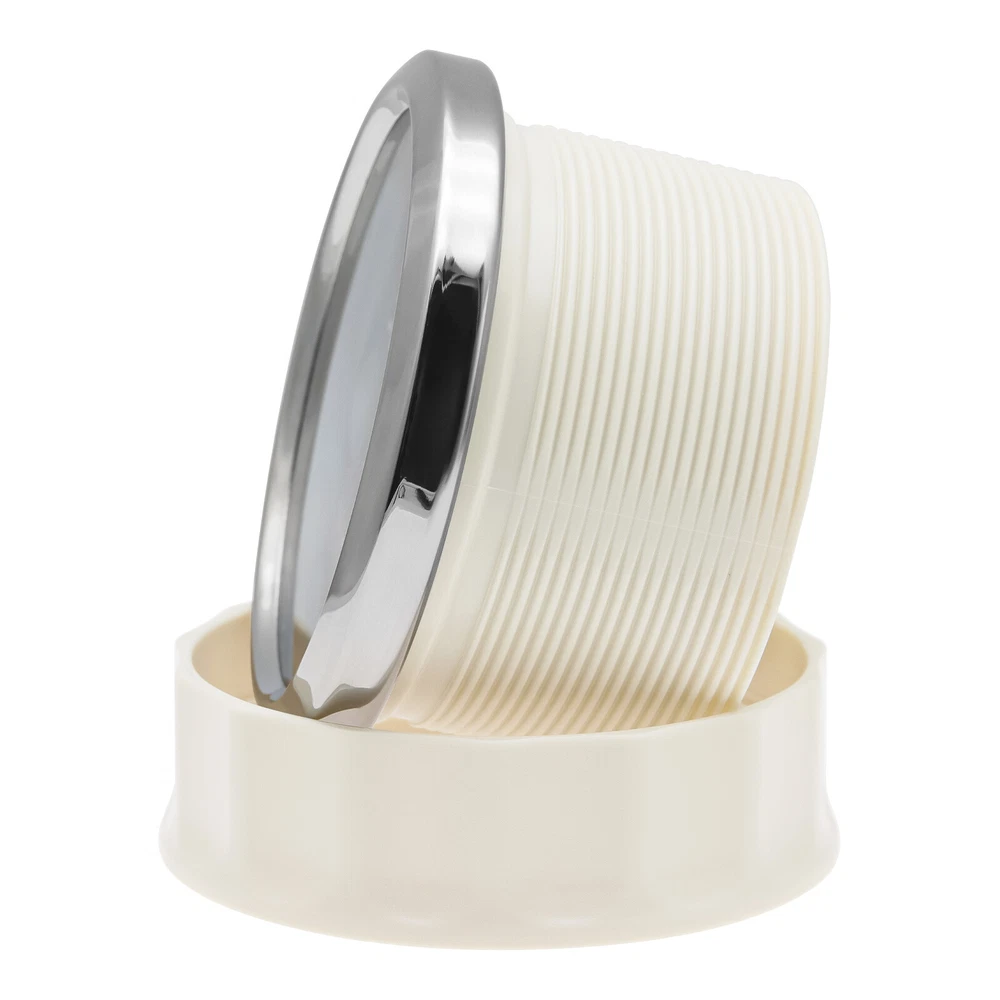

85mm Multi-Gauge with Tachometer GPS Speedometer Fuel Level Volt 12000RPM
$ 38.44
Description

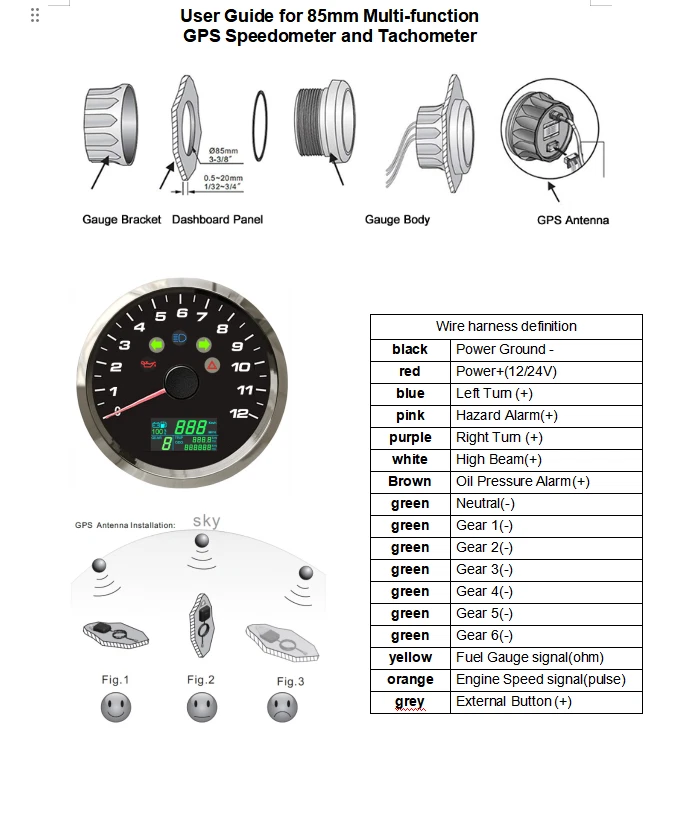

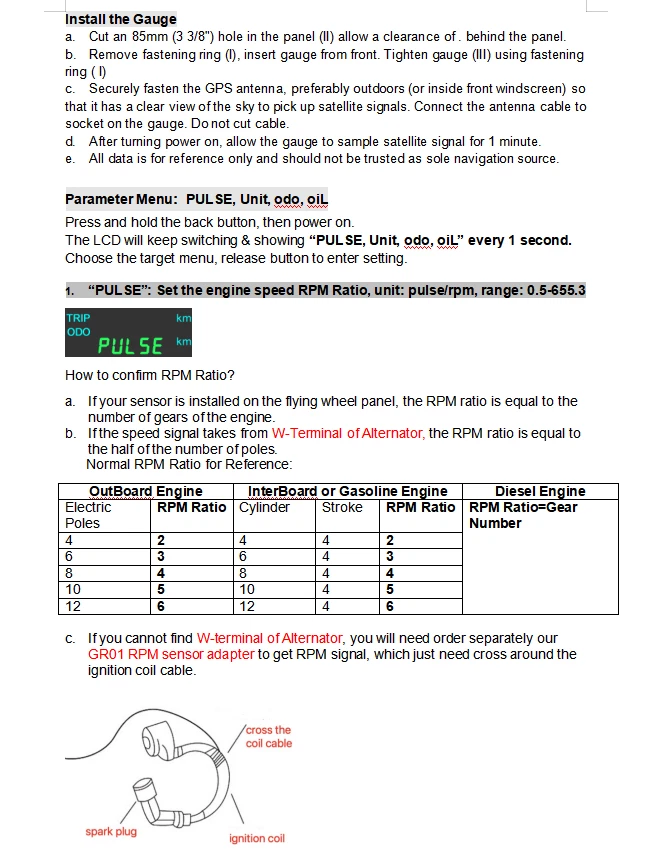

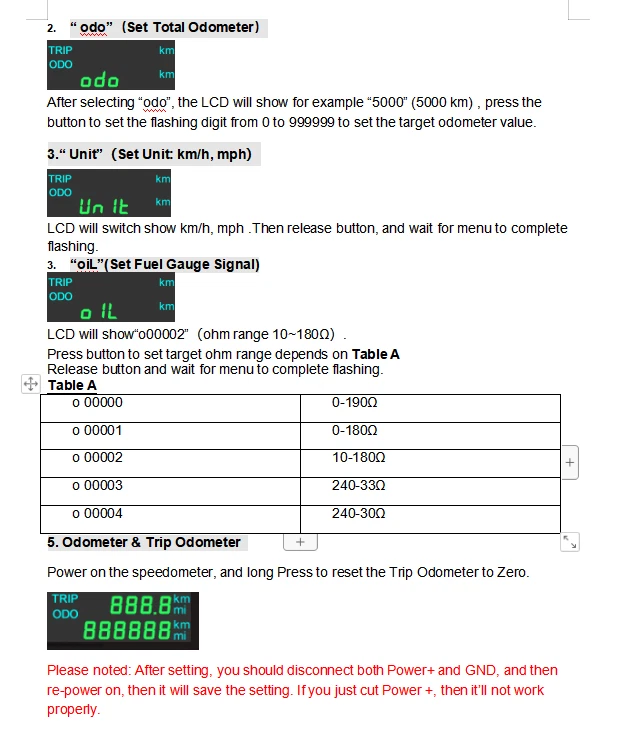

85mm Multi-functional Gauge 12000RPM Tachometer GPS Speedometer Fuel Level Volt 85mm 3in 1 Multi-functional Gauge 12000RPM Tachometer GPS Speedometer Fuel Level Volt For Car Install the Gauge a.Place the motorcycle on a level and secure area. Disconnect the battery. b.Refer to the appropriate factory service manual and remove the OEM speedometer. c.Mount the new speedometer in the desired location. d.Locate and route the orange, green and either one of the black wires exiting from the center of the rear of the gauge to the existing OEM speedometer sensor wiring. You may extend or shorten the gauge wires as needed for your application. e.Securely fasten the GPS antenna, preferably outdoors (or inside front windscreen) so that it has a clear view of the sky to pick up satellite signals. Connect the antenna cable to socket on the gauge. Do not cut cable. f.After turning power on, allow the gauge to sample satellite signal for 1 minute. g.All data is for reference only and should not be trusted as sole navigation source. Parameter Menu:PULSE, Unit, odo, oil Press and hold the back button, then power on. The LCD will keep switching & showing "PULSE, Unit, odo, oiL" every 1 second. Choose the target menu, release button to enter setting. 1."PULSE": Set the engine speed RPM Ratio, unit: pulse/rpm, range: 0.5-655.3 How to confirm RPM Ratio? a.If your sensor is installed on the flying wheel panel, the RPM ratio is equal to the number of gears of the engine. b.If the speed signal takes from W-Terminal of Alternator, the RPM ratio is equal to the half of the number of poles. Normal RPM Ratio for Reference: c.If you cannot find W-terminal of Alternator, you will need order separately our GR01 RPM sensor adapter to get RPM signal, which just need cross around the ignition coil cable. 2." odo"(Set Total Odometer) After selecting "odo", the LCD will show for example "5000" (5000 km) , press the button to set the flashing digit from 0 to 999999 to set the target odometer value. 3." Unit"(Set Unit: km/h, mph) LCD will switch show km/h, mph .Then release button, and wait for menu to complete flashing. 4."oiL"(Set Fuel Gauge Signal) LCD will show"o00002"(ohm range 10~180Ω). Press button to set target ohm range depends on Table A Release button and wait for menu to complete flashing. Table A 5. Odometer & Trip Odometer Power on the speedometer, and long Press to reset the Trip Odometer to Zero. Please noted: After setting, you should disconnect both Power+ and GND, and then re-power on, then it will save the setting. If you just cut Power +, then it'll not work properly.
Item received as described, brand new and in the packaging with instructions included. Mounted up without much issue at all, powered up immediately, love the ability to change the coloring! Very pleased with the item I got for the price I paid! Looks amazing! Lightning fast shipping, great seller communication! Thanks for a wonderful transaction! Very pleased! AAA+
The item was purchased at a reasonable price. There was a labeling issue when the package arrived in Norway, but the seller took full responsibility and promptly resolved the problem. I'm very satisfied with the communication throughout the process. Highly recommended!
Fantastic thanks. Will test before installing but can’t see a reason why it shouldn’t work. Packaging was not the best. The float was just wrapped in a plastic bag. Clock face was protected with a piece of foam in a cardboard box. Speedy delivery.
