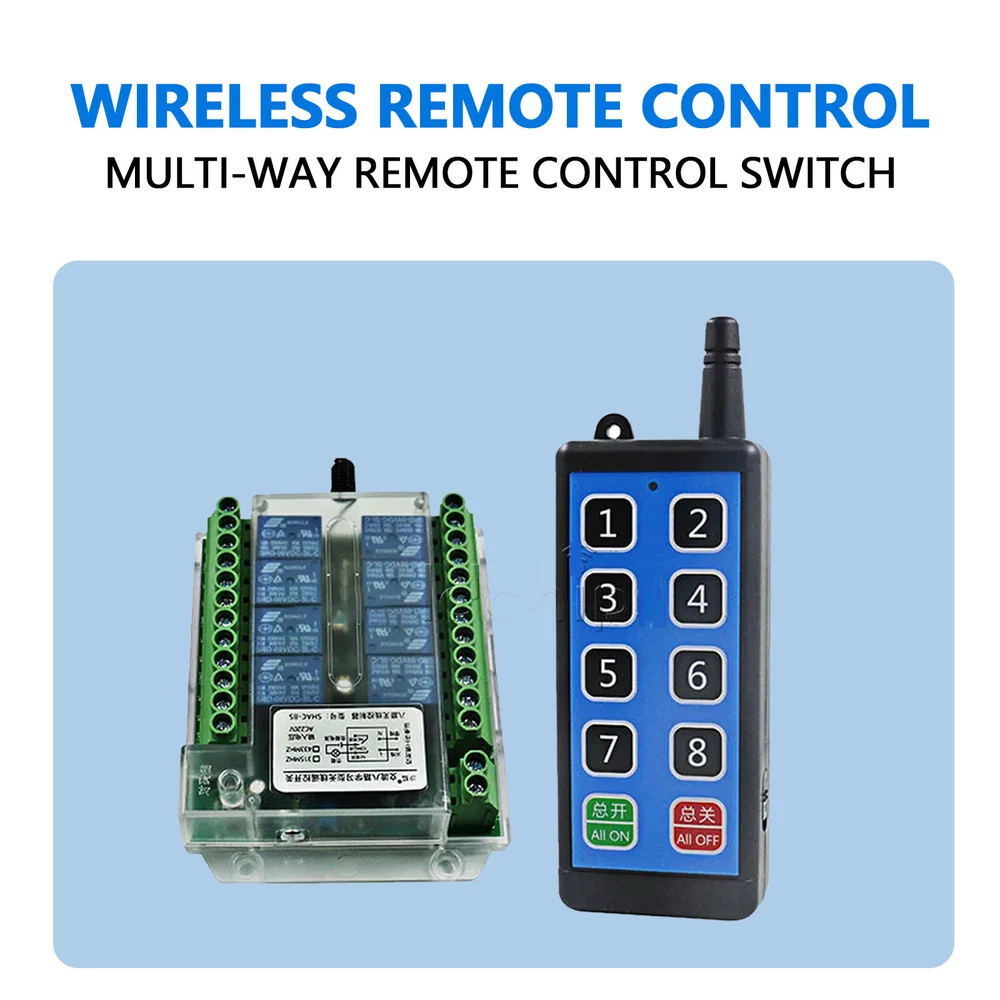

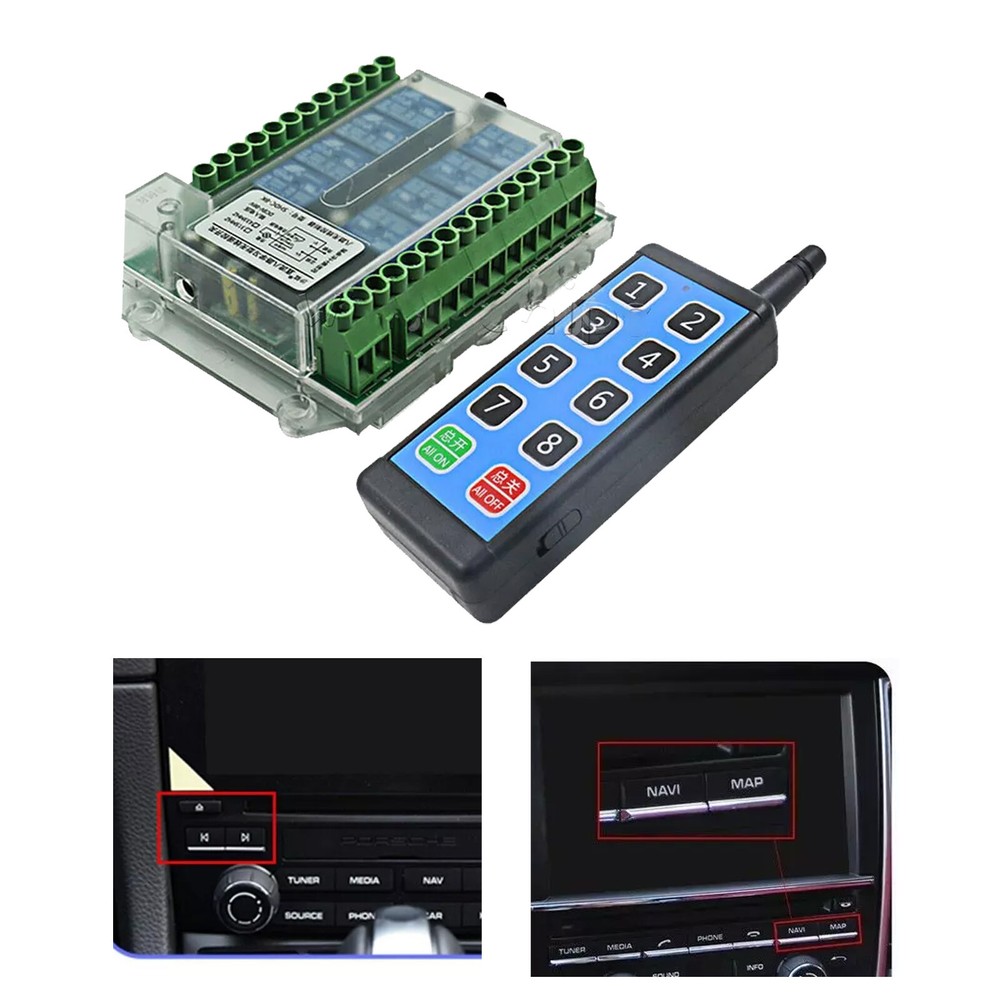

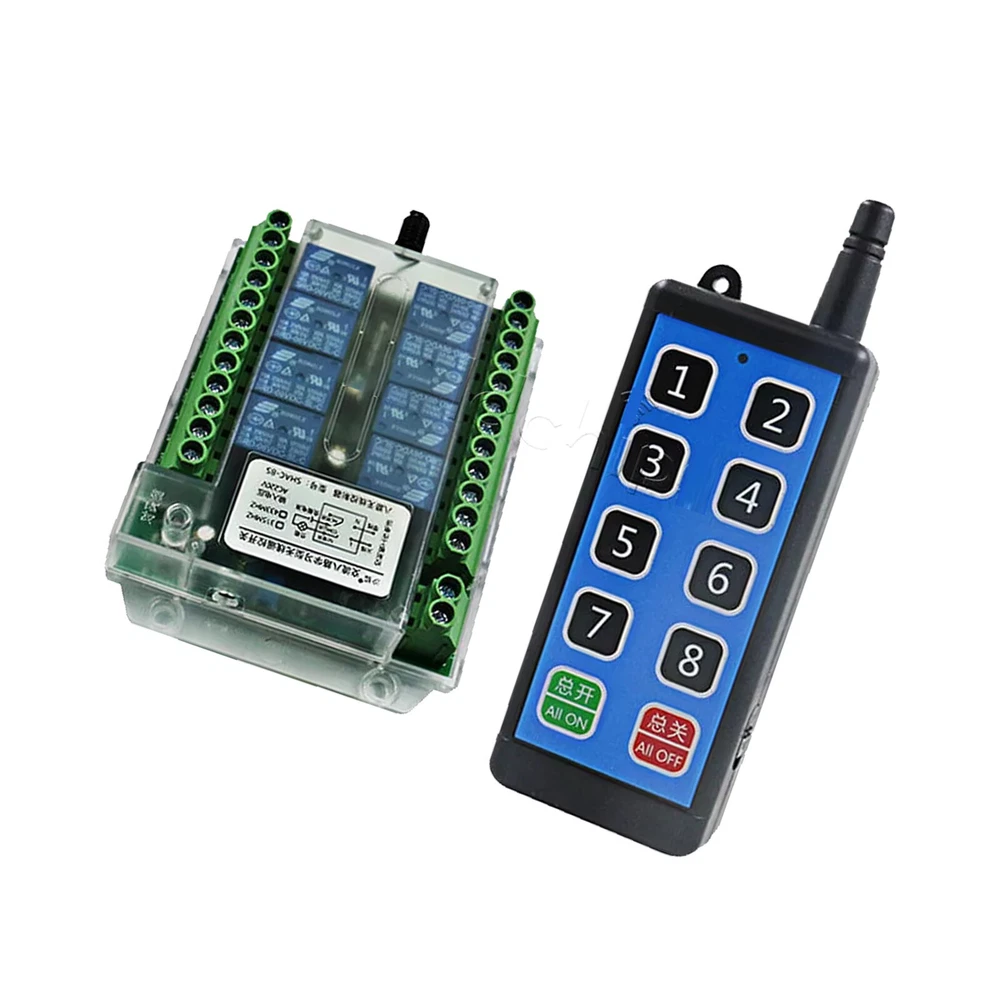

8-Channel Wireless RF Remote Control Relay Module DC8-86V AC110-275V T6

Description

Description Features: 1. Compact product, with working indicator light 2. Simple operation, wiring without disassembling the shell direct wiring 3. Wide voltage power supply, safe and reliable, stable performance, low power consumption 4. Loss of remote control, can clear the information stored in the acceptance of the controller 5. Wide range of use: applied to electric doors, windows, lifting equipment, gates, elevators and other fields Product Parameter: Working voltage: DC8-86V Load power: 1000W Operating Temperature: -10℃-+70 Static current: 8mA Coding mode: learning type Controller size: 120mm* 90mm* 35mm Mode 6: Tap + total open (with 10-key remote control) Mode 7: self-locking + total opening and closing (with 10-key remote control) Working Mode Mode 1: Tap Mode 2: Self-locking Mode 3: Interlock Mode 4: 1. 2. 3. 4-way tap 5. 6. 7. 8 self-locking Mode 5: 1. 2-way tap, 3. 4-way self-locking, 5. 6-way interlocking, 7.8-way interlocking Explanation of mode output Self-locking: Press the same remote control button, press it once, the relay will absorb, press it again, the relay will turn off. Interlocking: Press the remote control 1 key, one - way relay will be engaged (the other way will be closed), press the remote control 2 key, two - way relay will be engaged (the other way will be closed). Tap: Press the remote control "1" key, the relay will absorb, release the remote control "1" key, the relay will turn off. If you keep pressing the remote control "1" key, the relay is always active, when to let go of the remote control, when the relay is off. +: Connect to the positive terminal of the power supply -: connect to the negative pole of power supply NC: Normally closed terminal COM: common terminal NO: Normally open terminal Learning code 1. Mode 1 (pointing) learning method: press the control panel code button once, wait for the LED indicator to light up and then press any key of the remote control that needs to be coded, and the LED indicator of the control panel will blink 3 times in a row for the code to be successfully coded. 2. Mode 2 (self-locking) learning method: continuously press the control board 2 times to the code button, wait for the LED indicator is lit, press any key of the remote control that needs to be coded, the control board LED indicator blinks 3 times in a row to the code successfully. 3. Mode 3 (interlock) learning method: continuously press the control board 3 times to the code button, wait for the LED indicator is lit, press any key of the remote control that needs to be coded, the control board LED indicator blinks 3 times in a row to the code successfully. 4. Mode 4 (point + self-locking) learning method: continuously press the control board 4 times the code button, wait for the LED indicator light up and then press any key of the remote control need to code, the control board LED indicator flashes 3 times to code successfully. 5. Mode 5 (Tap + self-locking + interlocking) learning method: continuously press the control board 5 times the code button, wait for the LED indicator light up and then press any key of the remote control that needs to be coded, the control board LED indicator flashes 3 times in a row to the code successfully. 6.Mode 6 (Tap+Total) Learning method: Press the control panel code button 11 times in a row, wait for the LED indicator to light up and then press any key of the remote control that needs to be coded, the LED indicator of the control panel will flash 3 times in a row and the code will be successfully coded. 7.Mode 7 (self-locking + total open and total close) learning method: continuously press the control board 12 times to code button, and so on the LED indicator light, light, press any key of the remote control that needs to code, the control board LED indicator blinks 3 times in a row to code successfully. Clear data Press the learning button on the control board for 11 consecutive times, it will automatically clear all the remote controls that have learned the code. After clearing, the The original remote control will no longer be controlled. Delivery list: Package 1: Relay Module*1 Package 2: Remote control *1 Friendly Tips: 1.Due to the light and screen difference, the item's color maybe slightly different from the pictures. Please understand. 2.Please allow 1-2cm differences because of the manual measurement. Payment 1. We only accept payment through Payoneer. 2. Please make sure you have a valid account prior bidding. 3. Please pay for your item within 7 days after you order. Shipping 1. Buyer take responsibility in import / tax cost (not included in item price) 2. Pls contact with us to confirm extra cost if you need to upgrade the shipping option 3. If there's any concern about shipping, pls contact with us for further confirmation Return Policy 1. Refund or Replacement request is available within 30 days after parcel received and returning the item as the same condition as received. Please contact us to request a return authorization. Your name, auction number, and reason for return should be included in the message. 2. All items returned must contain all original packaging materials. Please repack the item carefully. Items returned will be tested and a new replacement will be shipping to buyer punctually. 3. In the event that a suitable replacement is not available then a refund will be issued. Shipping, handling and insurance fees are non-refundable. 4.If the item was found non-defective, the item will be sent back to buyer at buyer's expense. Items returned without authorization will be refused and returned to sender/buyer. 5. Buyer pay the shipping cost if the item damaged artificially, or buyer say "not like it", "size/color was different per they imaginary", etc. Contact us Please contact us via ebay message any time, all questions will be replied within 12 working hours. Customer Support Online : 9:00am - 22:00pm (GMT +8) Everyday
