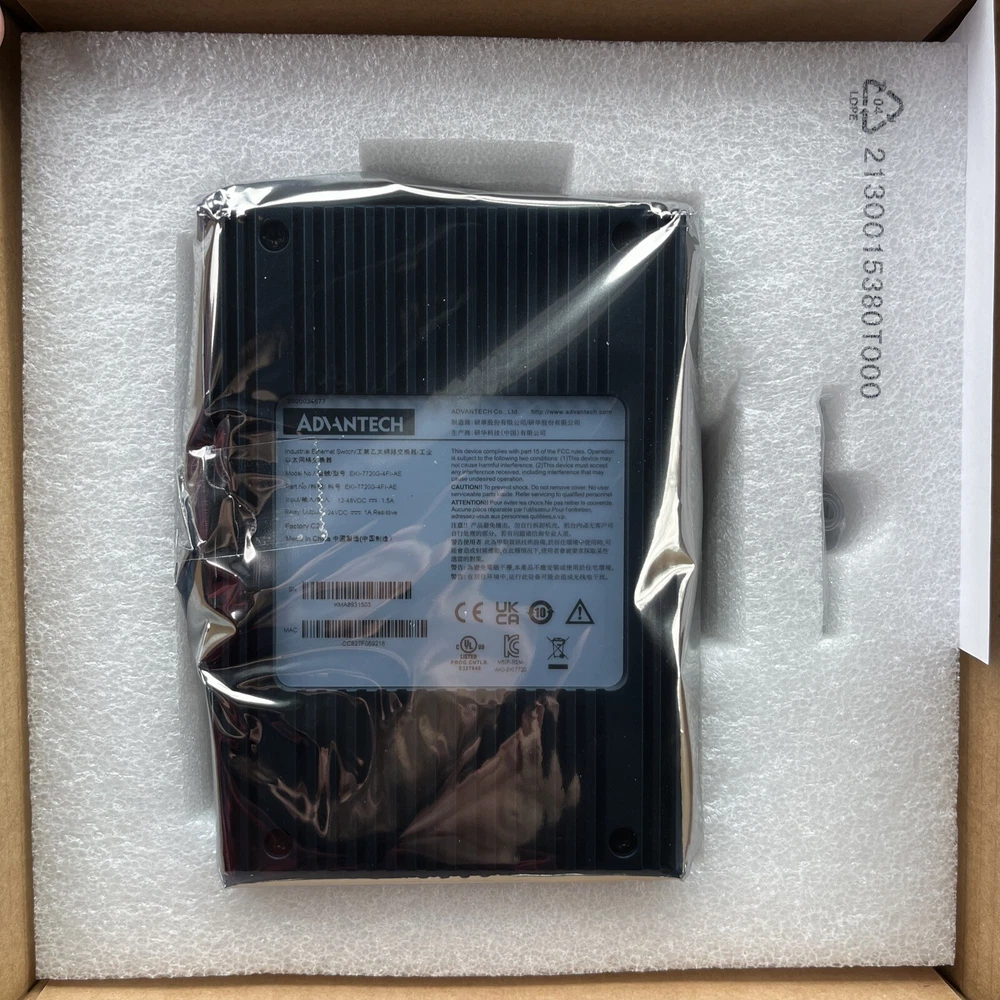

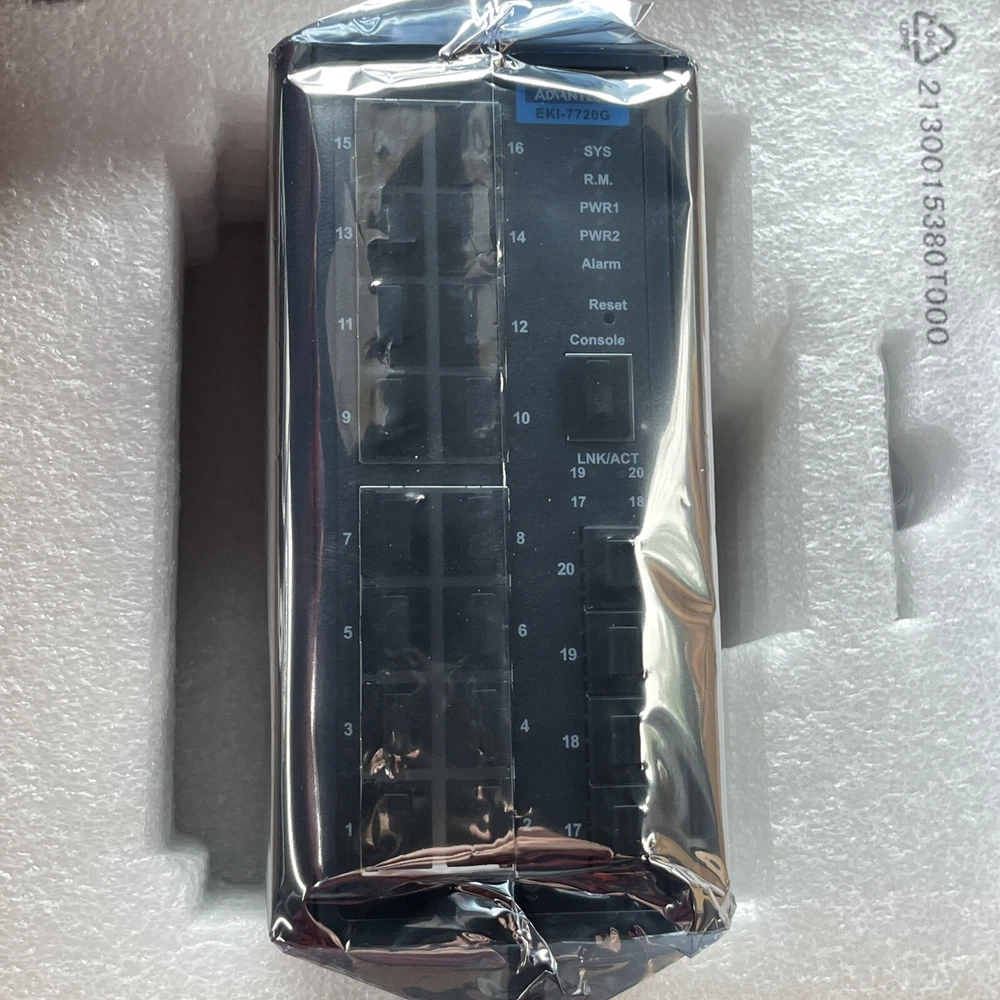

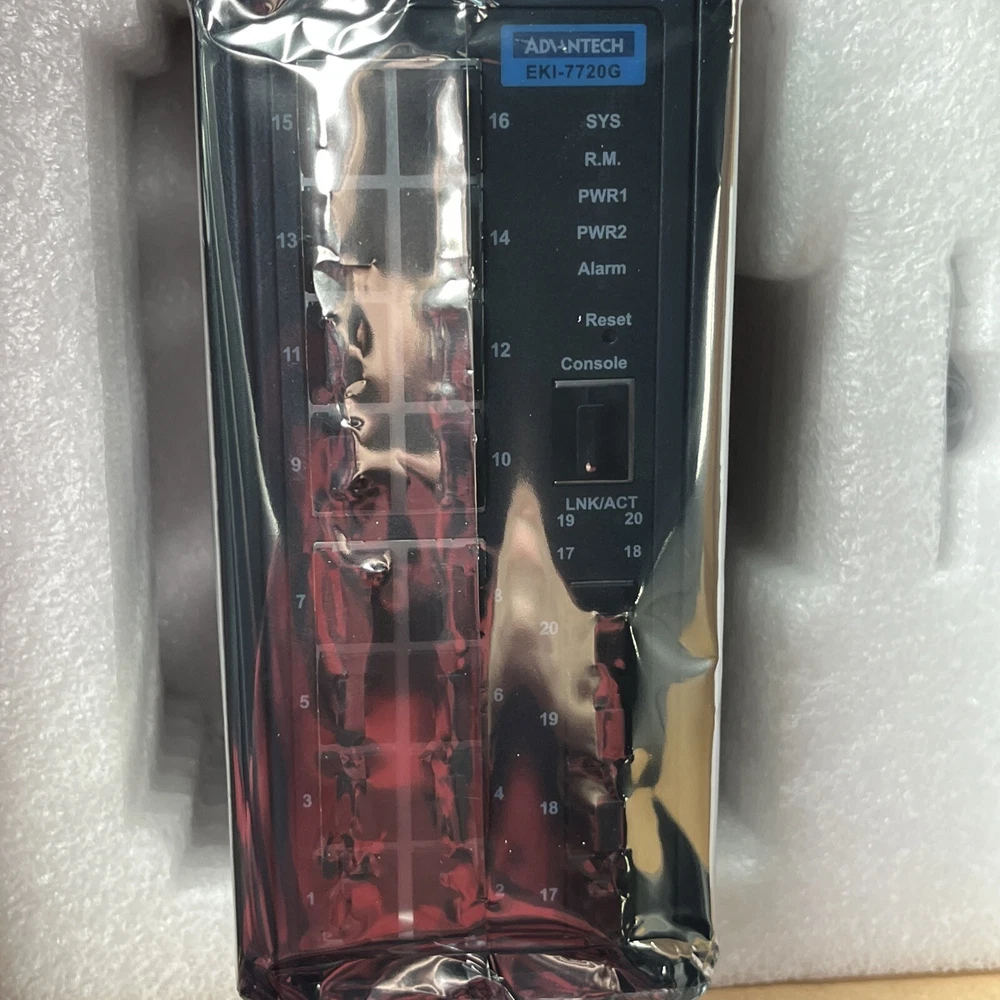

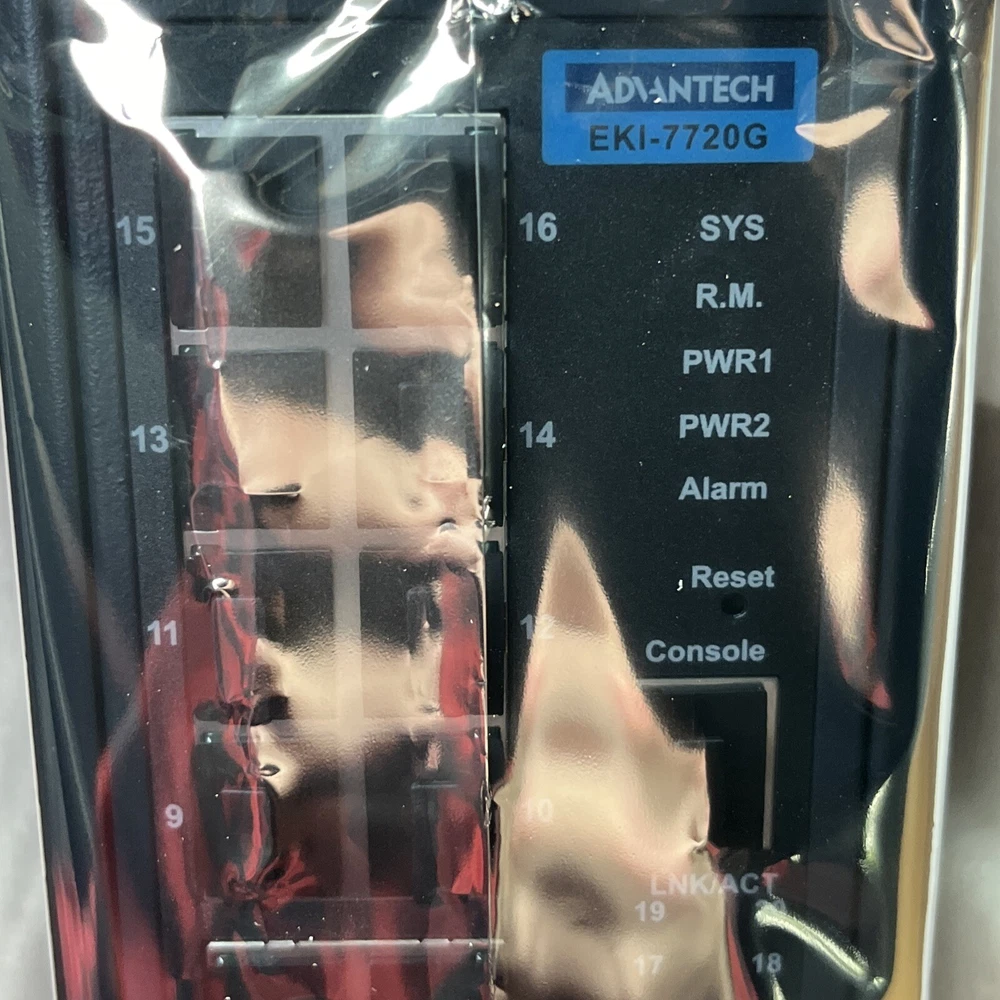

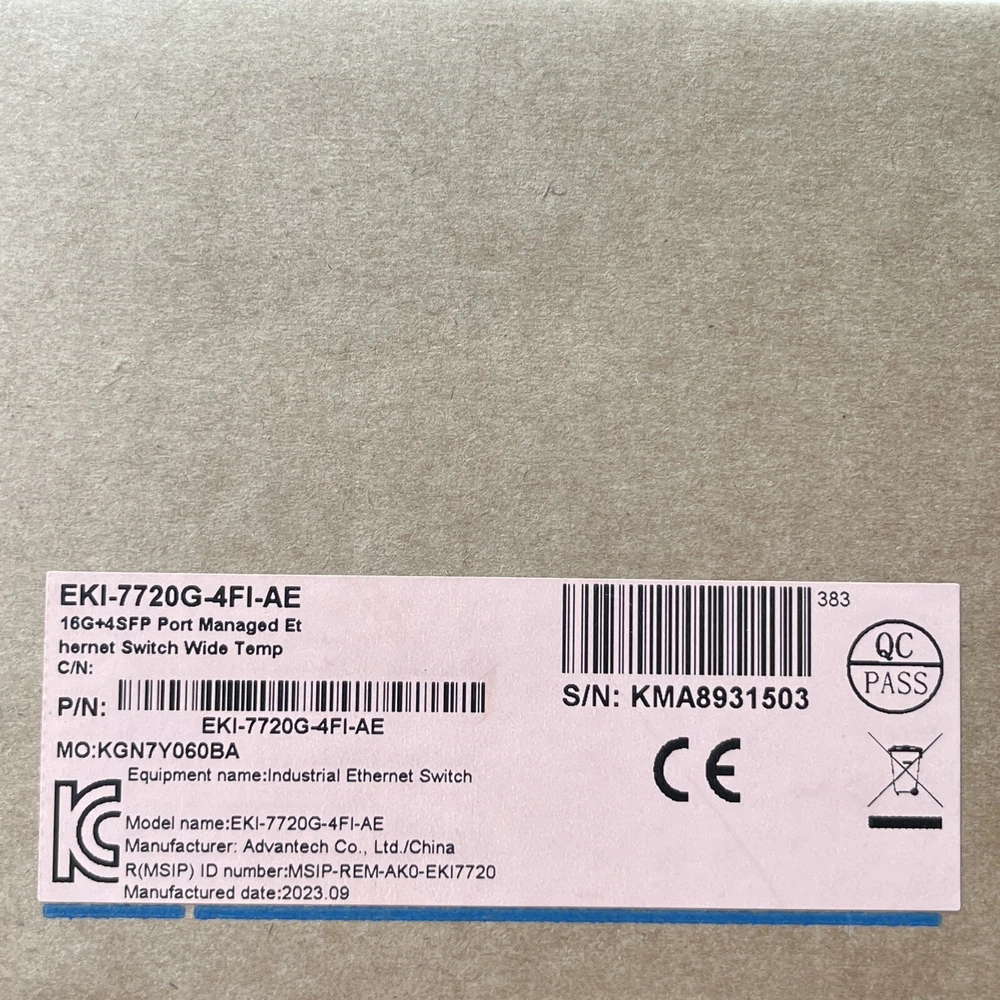

ADVANTECH EKI-7720G-4FI-AE 16G+4SFP Managed Ethernet Hernet Switch Wide Temp
$ 316.8
Description

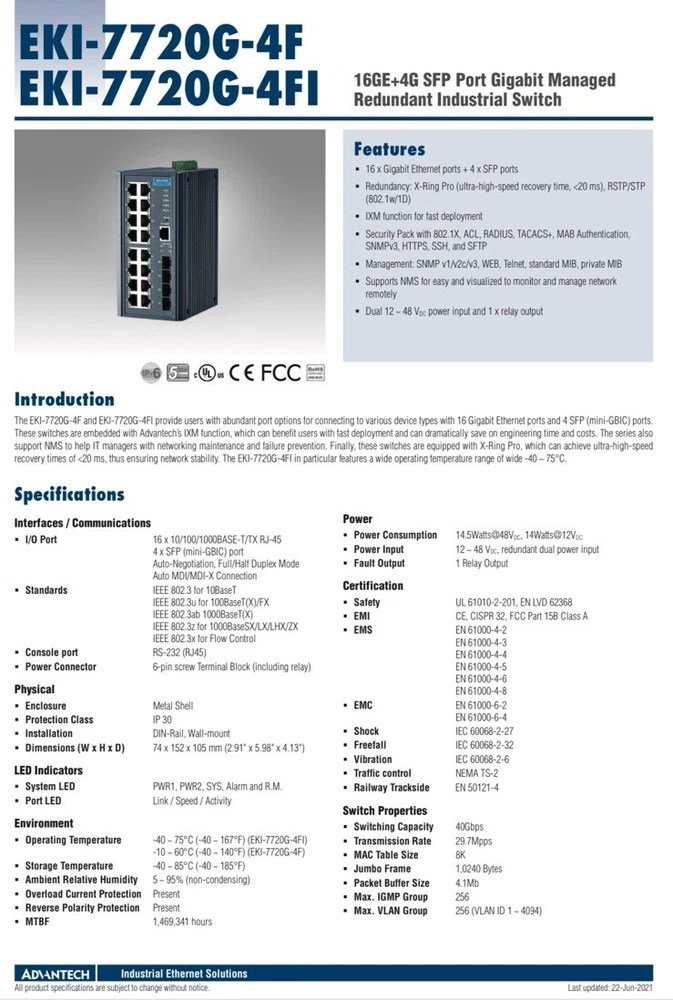

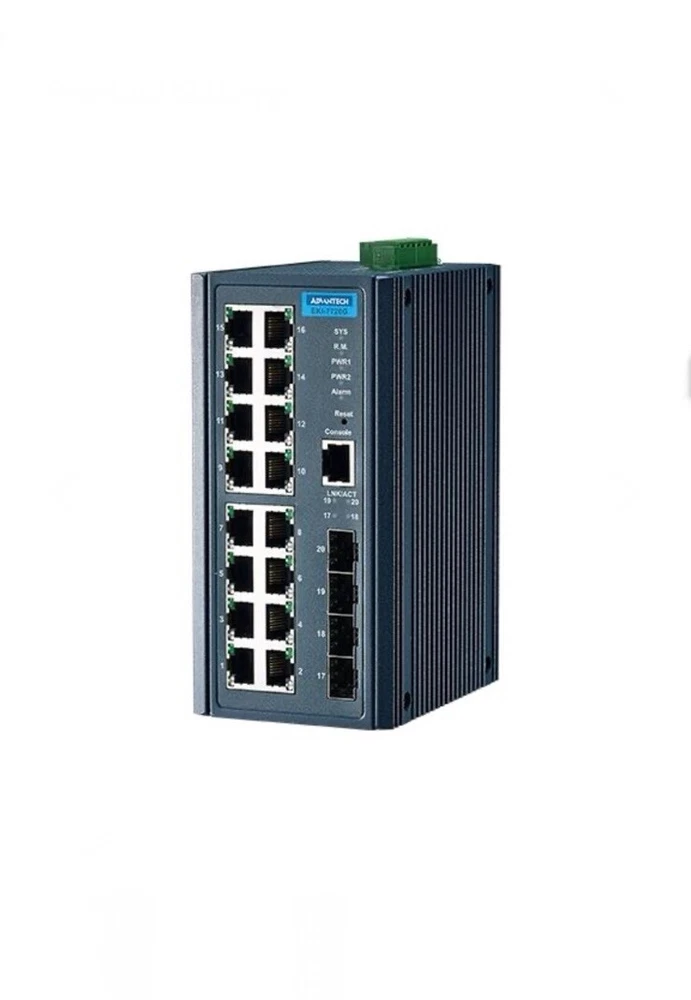

The EKI-7720G-4F and EKI-7720G-4FI provide users with abundant port options for connecting to various device types with 16 Gigabit Ethernet ports and 4 SFP (mini-GBIC) ports. These switches are embedded with Advantech’s IXM function, which can benefit users with fast deployment and can dramatically save on engineering time and costs. The series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, these switches are equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms, thus ensuring network stability. The EKI-7720G-4FI in particular features a wide operating temperature range of wide -40 ~ 75°C. Features: 16 Gigabit Ethernet ports + 4 SFP ports SFP socket for Easy and Flexible Fiber Expansion Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D) IXM function enables fast deployment Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS NEMA TS2 for Traffic Control EN50121-4 approval for Railway trackside deployment -40 ~ 75°C wide-range operating temperature (EKI-7720G-4FI) Dual 12~48 VDC power input and 1 relay output EKI-7720G-4FI 16GE+4G SFP Managed Ethernet Switch, -40~75 ℃ 16 Gigabit Ethernet ports + 4 SFP ports SFP socket for Easy and Flexible Fiber Expansion Redundancy: X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D) IXM function enables fast deployment Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS NEMA TS2 for Traffic Control EN50121-4 approval for Railway trackside deployment -40 ~ 75°C wide-range operating temperature (EKI-7720G-4FI) Dual 12~48 VDC power input and 1 relay output. Certification Ethernet Standard IEEE 802.1p, 802.3ad, 802.1x,802.1D, 802.1s, 802.1wIEEE 802.1p, 802.3ad, 802.1x,802.1D, 802.1s, 802.1w Vibration IEC 60068-2-6IEC 60068-2-6 Freefall IEC 60068-2-32IEC 60068-2-32 Shock IEC 60068-2-27IEC 60068-2-27 EMS - EMI CE, FCC Class ACE, FCC Class A EMC EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3) Safety UL 61010-2-201, EN 62368-1 (LVD)UL 61010-2-201, EN 62368-1 (LVD) Environment Temperature (Max. Operating) 75°C (167°F) Temperature (Min. Operating) -40°C (-40°F) Relative Humidity 10~95%10~95% Operating Temperature -40 ~ 75°C (-40 ~ 167°F)-40 ~ 75°C (-40 ~ 167°F) Operating Humidity - Storage Temperature -40 ~ 85°C (-40 ~ 185°F)-40 ~ 85°C (-40 ~ 185°F) Ethernet Communication RJ-45/SFP Combo Port Speed - RJ-45/SFP Combo Port Number - Fiber Port Optical Mode - Fiber Transmission Speed - Fiber Port Number 4 RJ-45 Port Number - Fiber Transmission Distance Up to 110 kmUp to 110 km Fiber Port Connector Type SFP cage Fiber Port Interface SFP RJ-45 Transmission Distance 100 m100 m Ethernet Standard - RJ-45 Port Connector Type 16 x RJ-45 + 4 x SFP ports16 x RJ-45 + 4 x SFP ports RJ-45 Transmission Speed 10/100/1000 Mbps10/100/1000 Mbps Mechanism Mounting (Panel) - Enclosure (Plastic) - Mounting (Pole Mount) - Mounting (Stack) - Mounting (Wall) Yes Mounting (Rack Mount) - Mounting (DIN-rail) Yes Weight. 1.1 kg1.1 kg IP Rating. IP30IP30 Dimensions (W x H x D). 74 x 152 x 105 mm (2.91 x 5.98 x 4.13)74 x 152 x 105 mm (2.91 x 5.98 x 4.13) MTBF Method Telcordia(Relax), GBTelcordia(Relax), GB Time -TBD PoE Information Support PoE - PoE Output - PoE Budget - PoE Port Number -- Power Redundant Dual Inputs - Power Input (Battery) - Power Input (PoE) - Power Input (AC) - Power Operating Current 0.25A @ 48VDC (system)0.25A @ 48VDC (system) Power Connector Type 6-pin removable screw terminal (power & relay)6-pin removable screw terminal (power & relay) Power Input (DC) 12 ~ 48 VDC12 ~ 48 VDC Power Consumption 12.1W (system)12.1W (system) Protection Reverse Polarity Present Overload Current - Switch Properties Jumbo Frame 9,216 bytes9,216 bytes Switch Fabric Speed 40Gbps40Gbps Packet Buffer Size 4.1M bit4.1M bit MAC Table Size 8K
