Automotive Digital Timer Relay Board DC 12V 20A 1500W Relay Module with Dual
$ 7.52
Description

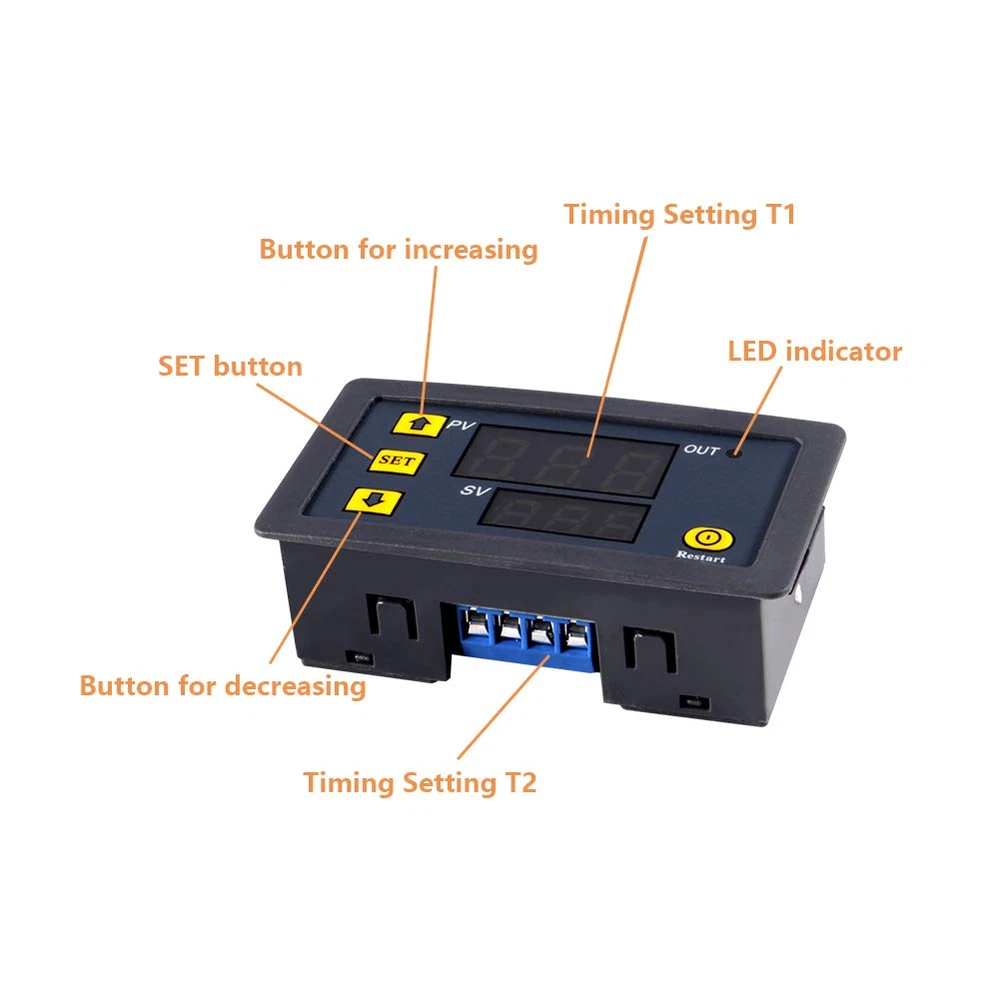

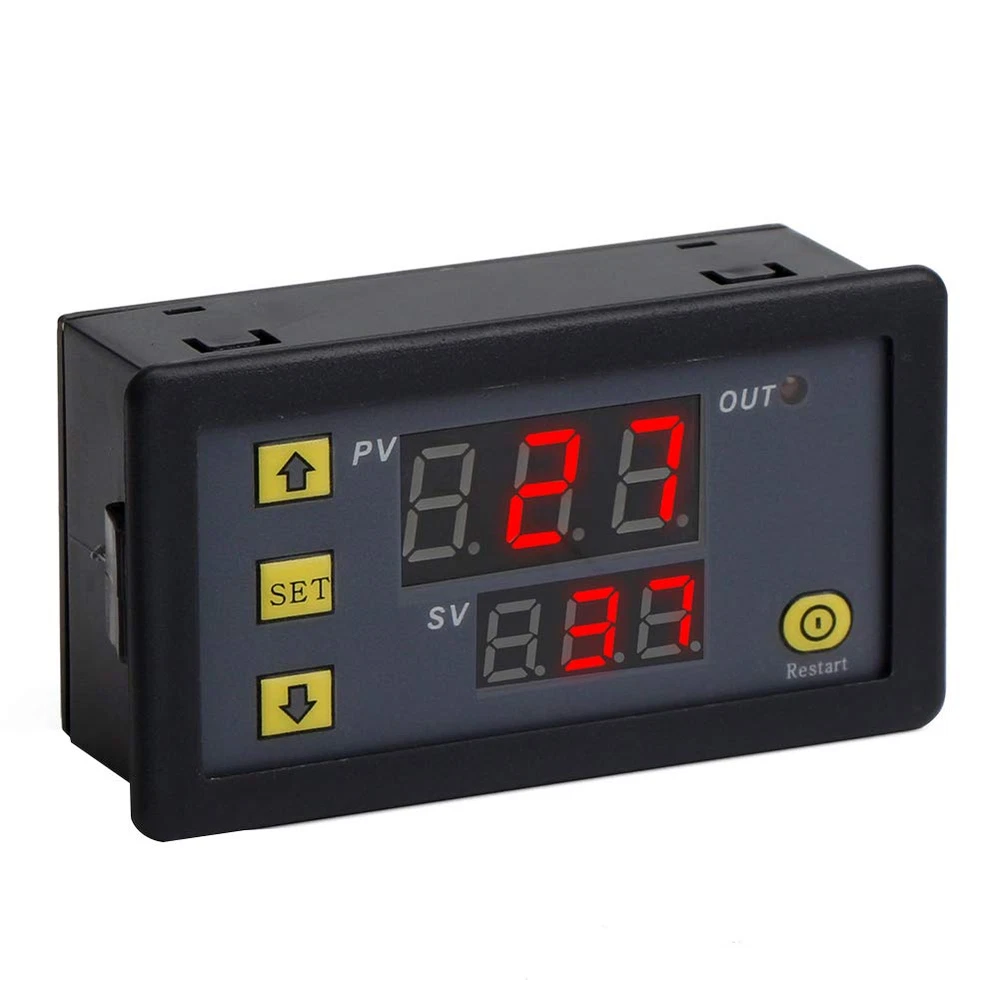

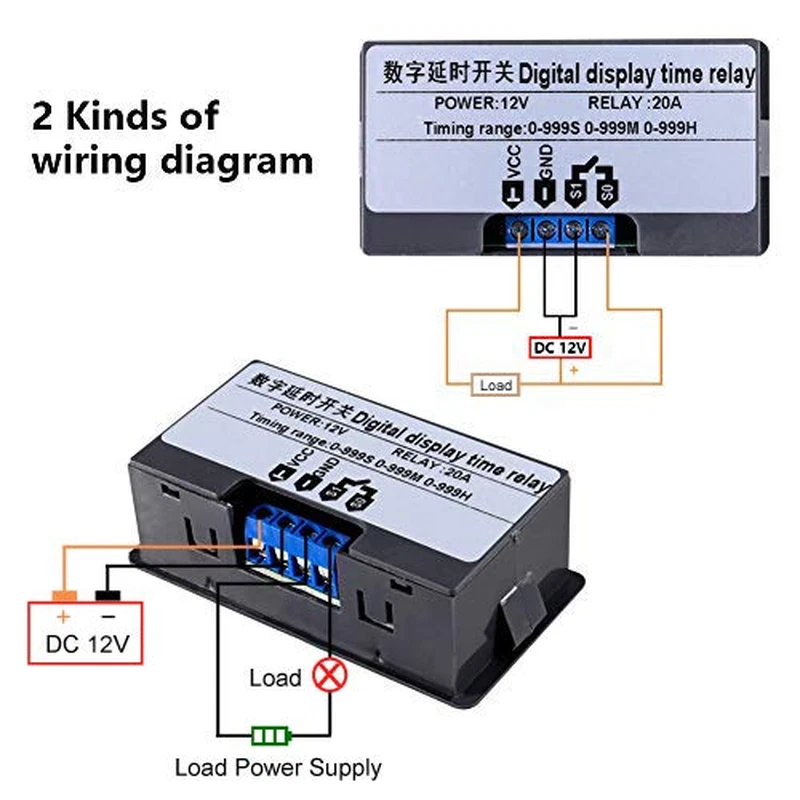

Automotive Digital Timer Relay Board DC 12V 20A 1500W Relay Module with Dual ❃❃ Digital cycle timer delay module with time ranging from 1 second to 999 hours, available for various application.▲▲ (Notice: no out put Voltage) If you need the E-Manual or meet any other questions, pls contact us and we will send it to you!!! ❃❃ The time relay delay Dual display: Red readout for practical value(PV); Blue readout for set value(SV);79mm*43mm-display panel; 71mm*40mm*24mm-cut out size. ❃❃ Can be used in timing, delaying, cycle timing, intermittent timing, raft fishing machine, slow-down machine DIY, etc. ❃❃ This relay switch is four-terminal wiring and setting by buttons, easy and simple for everyone to use it. ❃❃ This 12V time delay relay can store the setting automatically. Please wait 6 seconds after finishing setting the data. The data set will be stored automatically after 6 seconds. Parameter: Timing Range: 0-999s,0-999m,0-999h Supply Voltage: DC 12V Installed Size: Approx.72*39*23mm(L*W*H) Power dissipation: <0.6W Maximum Power: Working current-20A(Max), Power-1500W(Max). Product Functions: Timing, Delaying, Time Cycling & etc. Application: 1: Used for timing, delay, cycle timing, intermittent timing and other occasions; 2: Used for raft fishing machine, slow-down machine; 3: Used for timer switch, timer alarm control panel. Features: Double LED displays, so you can set two timing time T1 and T2.It will very convenient to customers. Three timing time for choice: 0-999s,0-999min and 0-999h. You could set the timing mode as your requirement. Six operating modes for your choice. 3.78 inches x 4.61 inches x 1.3 inches. Weight: 1.41 oz Current Rating 20 Amps Mounting Type Panel Mount Color DC 12V Country of Origin China Connector Type Through Hole Contact Type Normally Open Contact Material Copper Alloy Or Silver Alloy Package Dimensions 4.61 x 3.78 x 1.3 inches; 1.41 ounces
