B2 Audio RIOT 6.5" 2-Way 4-Ohm Component Set With 1" Tweeter & Crossover RIOT61
$ 76.02
Description

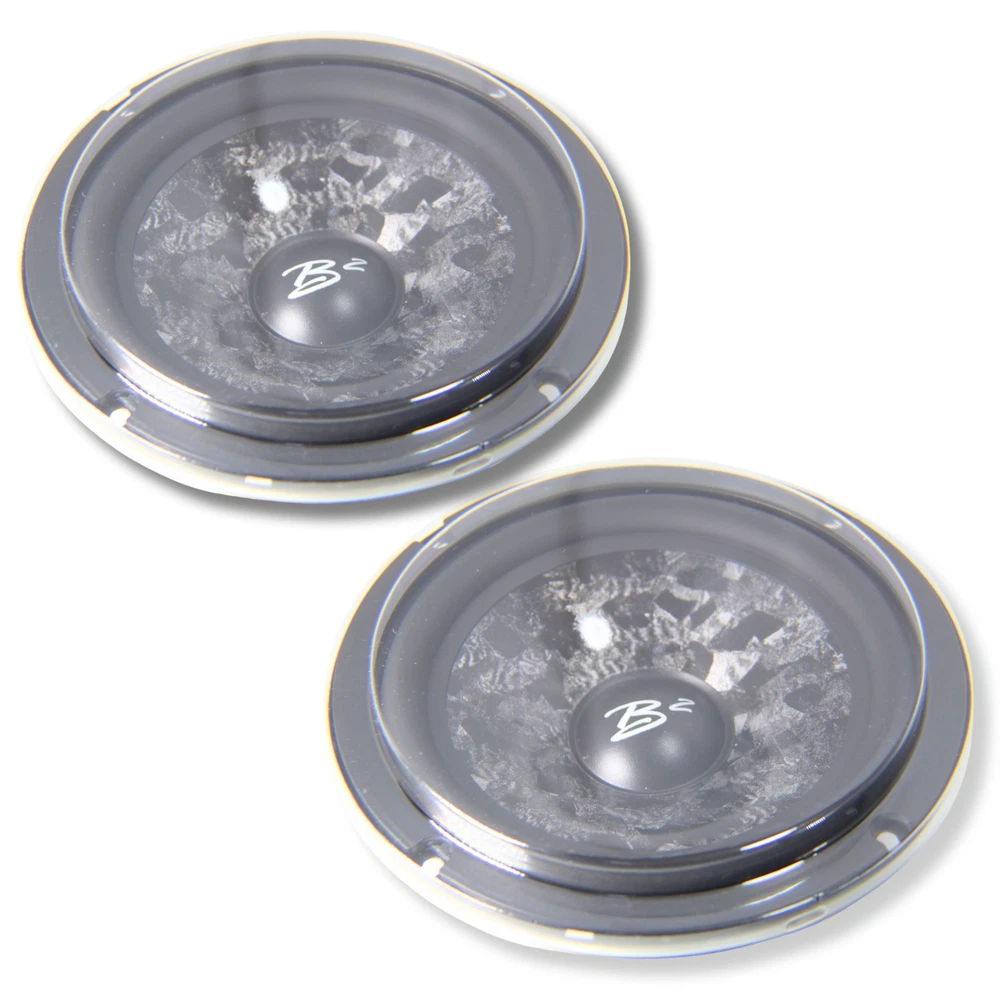

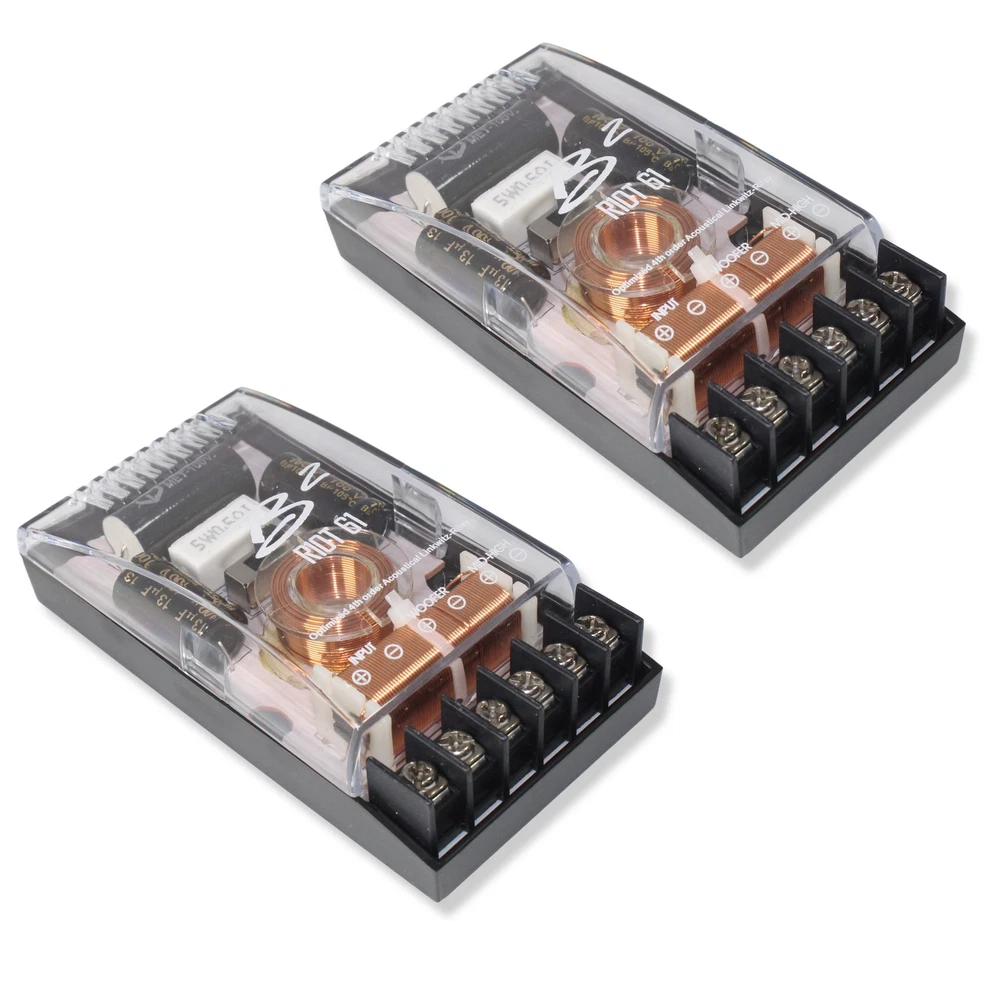

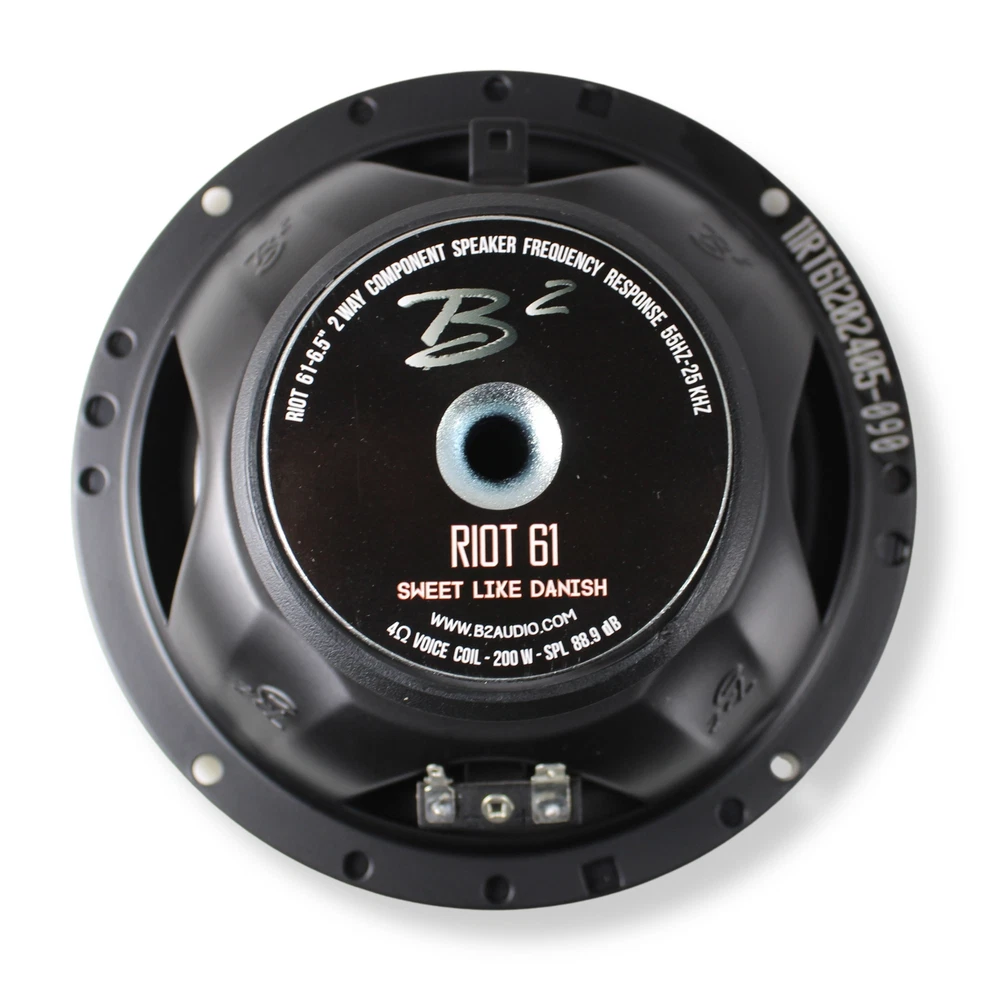

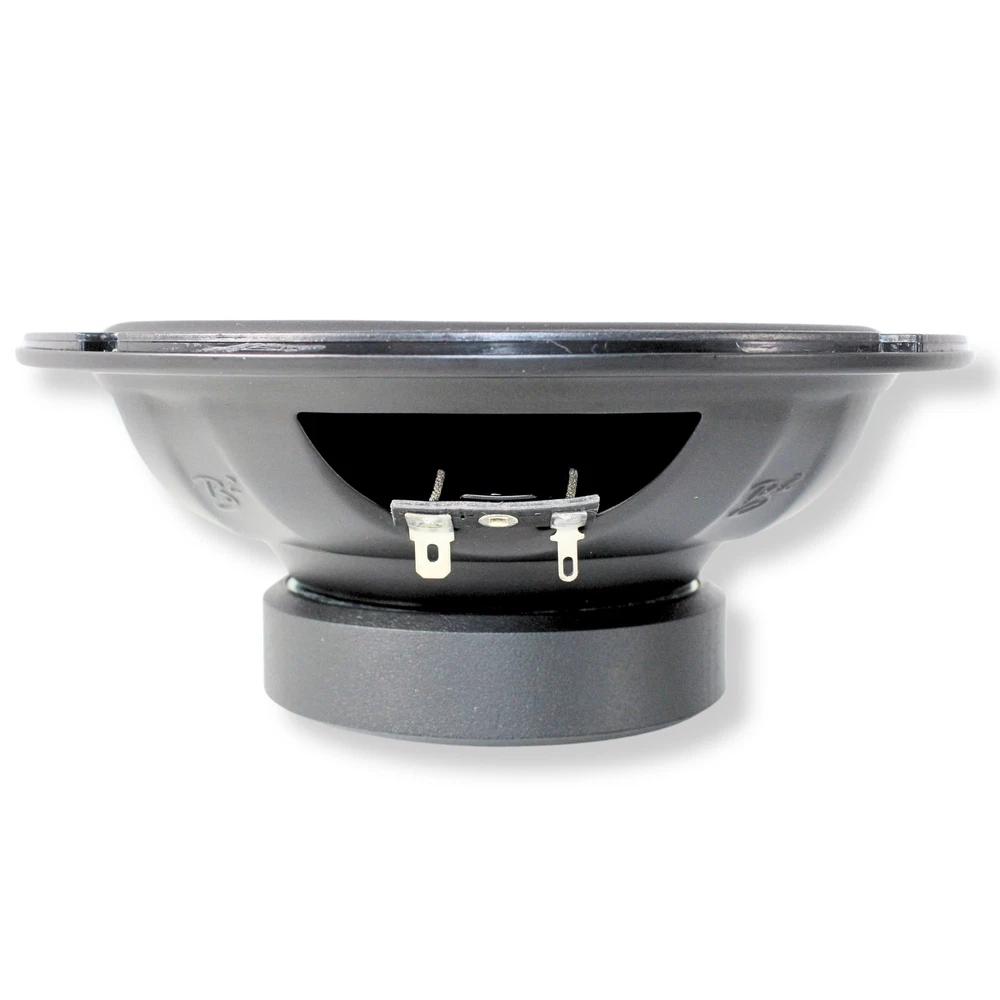

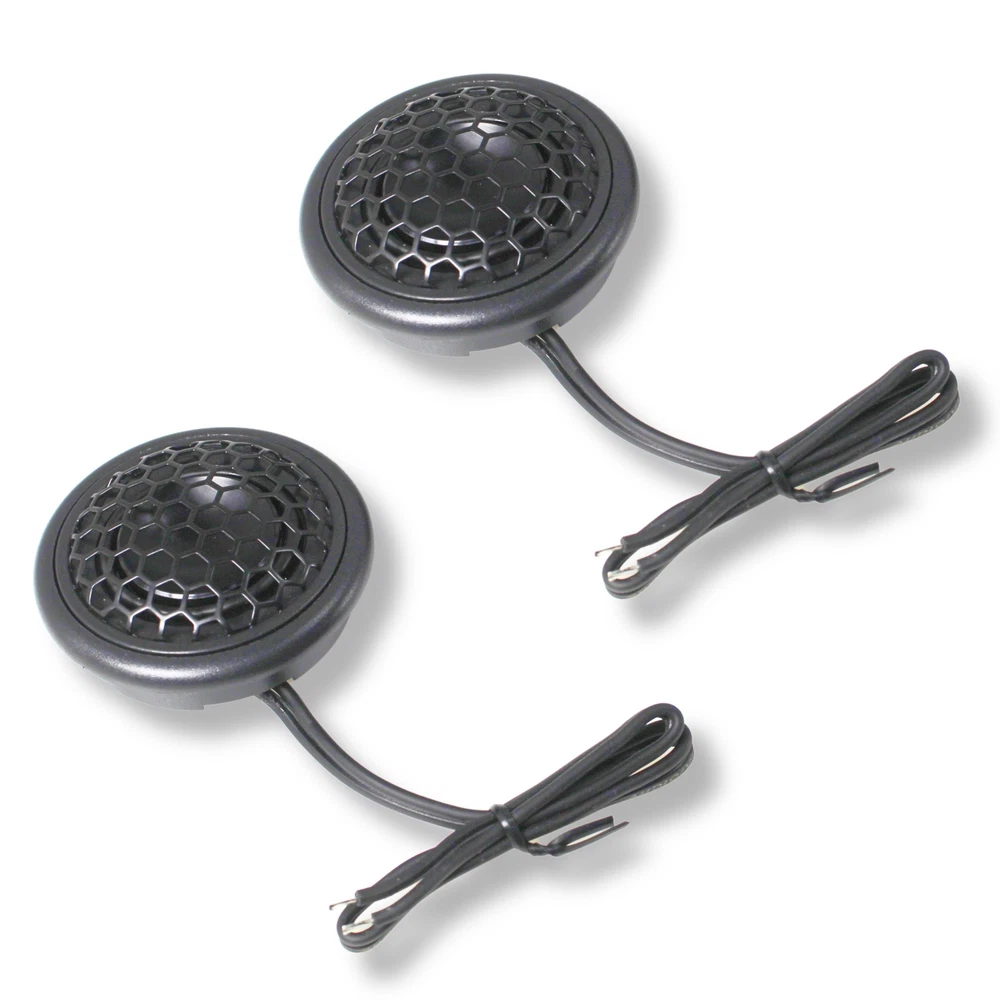

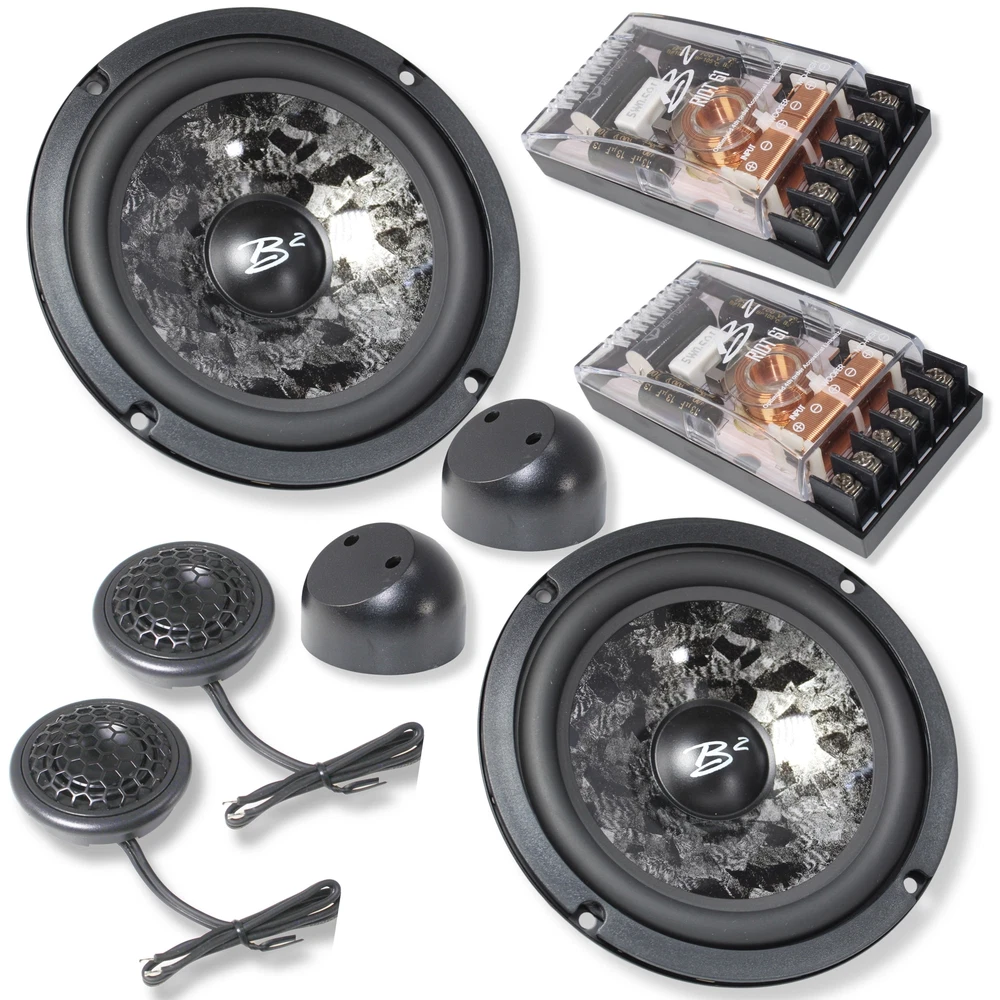

B2 Audio RIOT 6.5" 2-Way 4-Ohm Component Set With 1" Tweeter & Crossover RIOT61 B2 Audio RIOT 6.5" 2-Way 4-Ohm Component Set With 1" Tweeter & Crossover RIOT61 This Listing Includes: (2) 6.5" 100W RMS Midrange Speakers (2) Silk Dome 10W RMS Tweeters (2) Crossovers (2) Grilles for the 6.5" Speakers Rev up your car's audio with the RIOT61 6.5" Component Speaker Kit. Engineered for raw power and performance, it features aggressive 12 dB/octave crossovers with tweeter attenuation set at 3.5 KHz for precision. Silk dome tweeters deliver clear highs, while coated paper cone midwoofers provide a fuller sound. With easy installation and specs that scream dominance, including wide frequency response and high sensitivity, the RIOT61 ensures an immersive driving experience. Midrange Specifications: Nominal Chassis Diameter: 6.5" RMS Power Handling: 75W Maximum Power Handling: 200W Nominal Impedance: 4 Ohm Resonance Frequency: 52 Hz Voice Coil Diameter: 1" Winding Material: CCA / Copper Magnet Type : Neo / Ferrite Magnet Weight: 11.7 Oz Cone Material: IMWRP Frequency Response: 60 Hz ~ 23 KHz Sensitivity: 88.9 dB Surround Type: U Shaped Rubber Tweeter Specs: RMS Power Handling: 10W Max Power Handling: 25W Nominal Impedance: 4 Ohm Voice Coil Diameter: 1" Sensitivity: 94 dB Free Air Resonance (Fs): 1.8 KHz Thiele & Small Parameters: Midrange: Free Air Resonance (Fs): 55 Hz Resistance (Re): 3.3 ohm Mechanical Factor (Qms): 5.54 Electrical Factor (Qes): 0.666 Total Factor (Qts): 0.595 Equivalent Volume (Vas): 8.64 L Compliance (Cms): 560 um/N BL Factor (BL): 5.56 T/M Moving Mass (Mms): 18.89 g XMAX: 6.5 mm SD: 128.68 cm^2 Efficiency: 0.241 Percent Le (1 KHz): 0.479 mH EBP: 82.58 Measurements Midrange: Overall Diameter: 6.53" / 166mm Baffle Cutout Diameter: 5.59 in / 142 mm Net Weight (1 pc): 0.96 kgs Shipping Weight (sets): 2.51 kgs Shipping Box (set): 385 x 195 x 100 mm Mounting Diameter: 5.66" / 144mm Front Mount Baffle Cutout: 5.55 / 141mm Overall Depth: 2.59 / 65.9mm Mounting Depth: 2.40" / 61mm Sold as: (Pair) Tweeter: Overall Diameter: 1.96" / 50mm Overall Depth: 1.00" / 25.6mm Mounting Depth: 0.63" / 16mm Product Details Brand B2 Audio Color Black Size 6.5 Manufacturer B2 Audio Product Type Component Set Mpn B2-RIOT61-V2 Design: 6.5" 2-way component speaker system with a silk dome tweeter and coated paper cone midwoofers for powerful bass and clear highs. Midrange Power Handling: 75W RMS with a maximum power handling of 200W, ensuring clean and impactful sound. Tweeter Power Handling: 10W RMS with a maximum power handling of 25W, providing crisp and detailed high frequencies. Sensitivity: Midrange sensitivity of 88.9 dB and tweeter sensitivity of 94 dB for high output with minimal distortion. - Powered by
