B2853 1 HP Single Speed Pool Pump Motor For A.O. Smith Century Pentair SuperFlo

Description

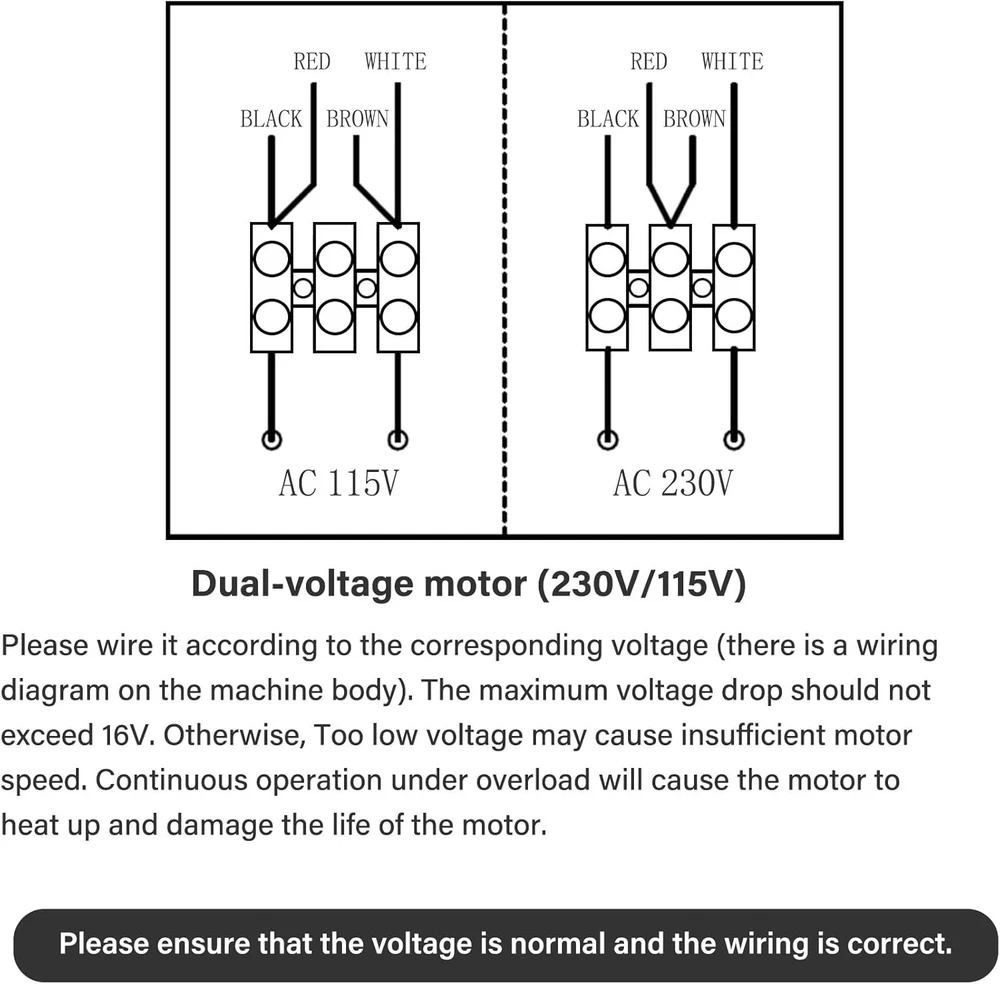

1 HP Swimming Pool Pump Motor Compatible with A.O. Smith Century ‎B2853 ‎B853, for Pentair Superflo Sta-Rite Whisperflo Challenger Pinnacle Anthony Pumps, 1HP Single Speed Square Pool Motor, 230/115V Product description 1.0 HP SWIMMING POOL PUMP MOTOR Some situations and explanations (not working, sparks, noise, etc.): Dual-voltage motor (230V/115V): please wire it according to the corresponding voltage (there is a wiring diagram on the machine body). The maximum voltage drop should not exceed 16V. Otherwise, the voltage may be too low, which may result in insufficient motor speed. Continuous operation under overload will cause the motor to heat up and damage the life of the motor. Motor built-in current and temperature dual protection: Compared with the original single current protection, this motor has a temperature protector added. Abnormal current and temperature may trigger the protector, causing the motor to stop working to ensure safety. The power of this motor is 0.75KW. Please make sure that the motor power matches the power of your pool pump . If the power does not match, there will be noise or the motor will be overloaded and stopped. Please ensure that the voltage is normal and the wiring is correct. If you encounter any problems, please consult us at any time. FOREBEN provides the most professional engineer online support. 1.0 HP SWIMMING POOL PUMP MOTOR Replace Part Number: 0-193985-04, 0-F56AA37A01-04, 0-F56AA37AO1-04, 10-177215-04, 1103655400, 13557, 168452, 177215, 17721500, 177474, 177971, 1863590J, 187332, 193267, 193985, 193985XCN, 196238, 196249, 1D189, 355020S, 355021S, 355339, 3K032, 54003, 5KC38SN6084AX, 5KC38SN6084X, 7-168452-04, 7-177215-04, 7-177215-64, 7-F56AA11A04-04, 717721504, 75233, 8-177215-04, 8-177215-84, 8-193267-01, A0104900, A100EL, A100ELL, B1245, B2853, B2853V1, B692, B853, C1245, C48K2EB104, EB853, F56AA37A01, K63CXERW-4785, P717, SP3207Z1M, SPX3207Z1M, SQ110U, SQD10UP1, USQ1102, V54003, 35-126-7002, AOSB2853V1, CRMB2853V1, MGT-60-2987 Compatible Models: Replace for Century Electric B2853 motor Directly compatible with the following pool pump models: Sta-Rite Max-E-Glas, Max-E-Glas II, Dura-Glas, Dura-Glas II, Dyna-Glas, Dyna-Max; compatible with Pentair Superflo 340038, Whisperflo, Challenger, Pinnacle and Anthony AR2 Series. The above adaptation suggestions are not all compatible models. For more models, please refer to the OE number directly. Notes Please check your model and part number carefully before ordering. If you have any questions about model or installation or other aspects, please consult us. The brand names used above are for compatibility reference only. REPLACEMENT POOL PUMP MOTOR Drop-in replacement for your original equipment, no assembly required. Upgraded - Built-in Current and Temperature Dual Protector REASSURING QUALITY This pool pump motor is manufactured by an ISO-certified manufacturer, has passed the quality inspection of UL, CE and RoHS and is worthy of your trust. OEM SPECIFICATIONS This 1.0 hp pool cleaner booster pump motor is manufactured in accordance with OE specifications. 4 threaded bolt holes on face of motor can perfectly match the original pump size PACKAGE 1* 1.0 HP Pool Pump Motor
