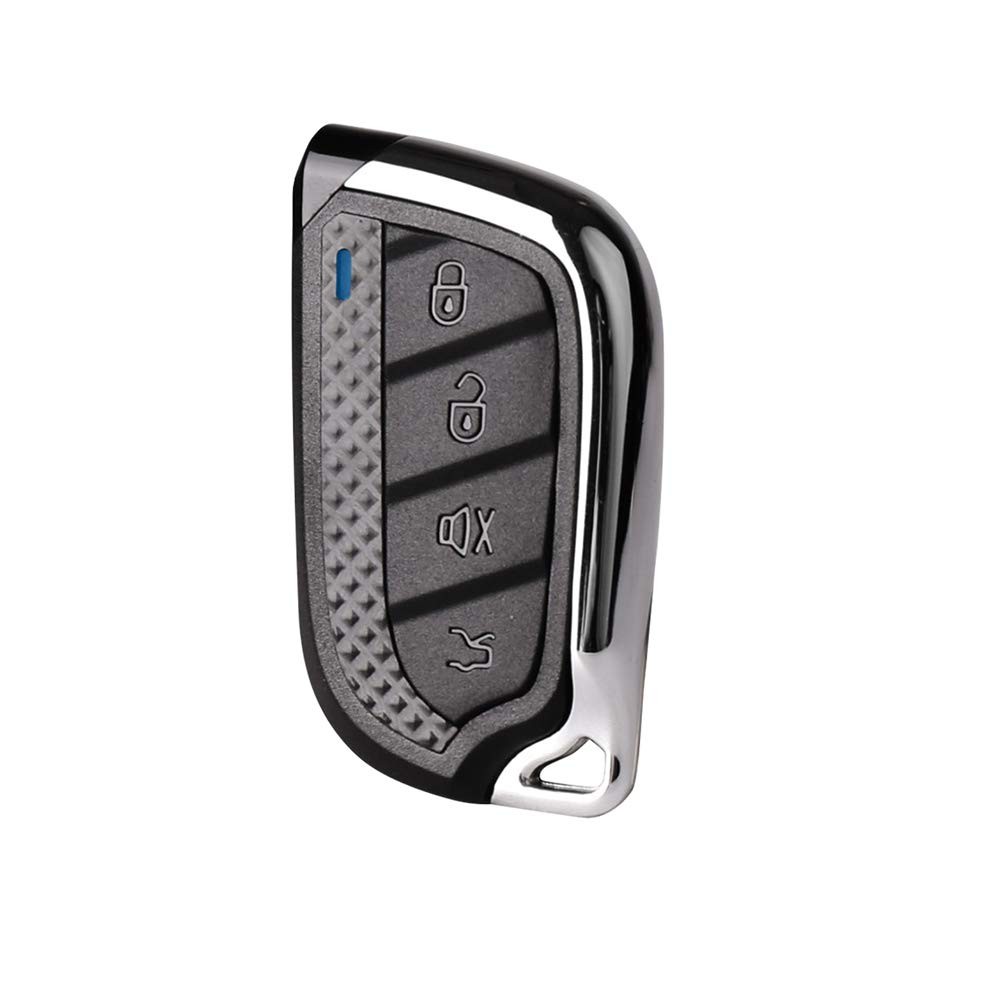

Car Keyless Entry System with 4-Button Remote Central Power Door Lock
$ 13.0
Description

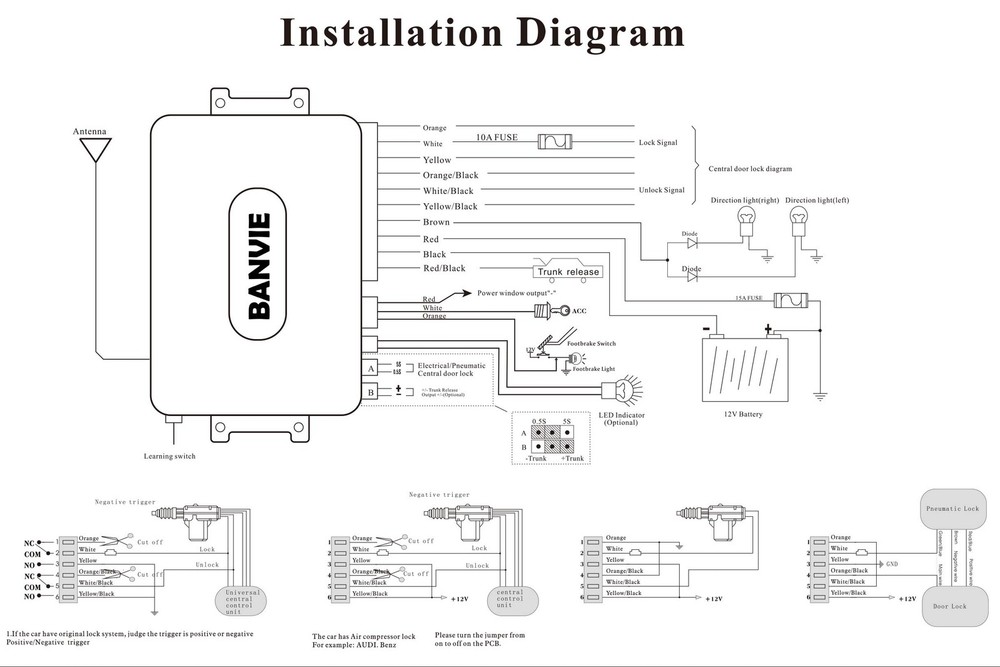

Features: 1. Unlock Press the unlock button once on the remote, the central lock will be unlocked and the parking light will gleam twice, LED stop blinking. 2. Lock Press the lock button once, the central lock will be locked with the parking light gleam one, the LED indication will blink. 3. Car finding ① In arm status, press the lock button for 2 seconds, the flash light will gleam 10 times to reminding the car owner. ② In any status, press the locating button once, the parking light will gleams 10 times. 4. Trunk Release ① Press and hold the unlock button for 2’s to release the trunk. ② Press and hold the trunk button for 2’s, the flash light will gleam 3 time then the trunk will be released. 5. The trunk output +/-option There are jumper for trunk release output “+”or “-” option, The factory setting , trunk release output is “+”, please check the diagram for option. 6. Central Door Locking System Time Option: If it is electric central lock system , please plug in the jumper for 0.5’s, if it is pneumatic one please choose time 5’s . 7. Window rolling up (if your car with window closer module) In Disarm status, press the button once, the central door lock will unlock, the parking light gleam once, the system will give 21’s negative output for window closing(a extra relay is needed for +output). 8. Central door lock automatically ① When moving and all door are closed well, press the button and on the remote, to lock or unlock the central door lock. ② When moving and all door are closed well, then press the foot-brake after 5 second, the central door lock will locked automatically, after parking and take off the key, the door will unlocked. 9. Code learning Technical Specification 1. Working voltage: 9-15V 2. Static current: ≦12mA Remote control central door lock and unlock(electrical/pneumatic central lock time optional) Remote car finding. Trunk Release (output signal +/- optional) Central door lock automatically,when Moving and all door are closed well, then press the foot-brake after 5s, the central door lock will locked automatically, after parking and take off the key, the door will unlocked. Window rolling up(if your car with window closer module), in disarm status press arm button, the central door lock will be lock, the parking light gleam once, the system will give 21s nagative output for window closing. Universal specifications for DC 12V cars, fits any make or model.
