Cross-band repeater station with built-in diplexer, complete set, GOLDRF
$ 49.58
Description

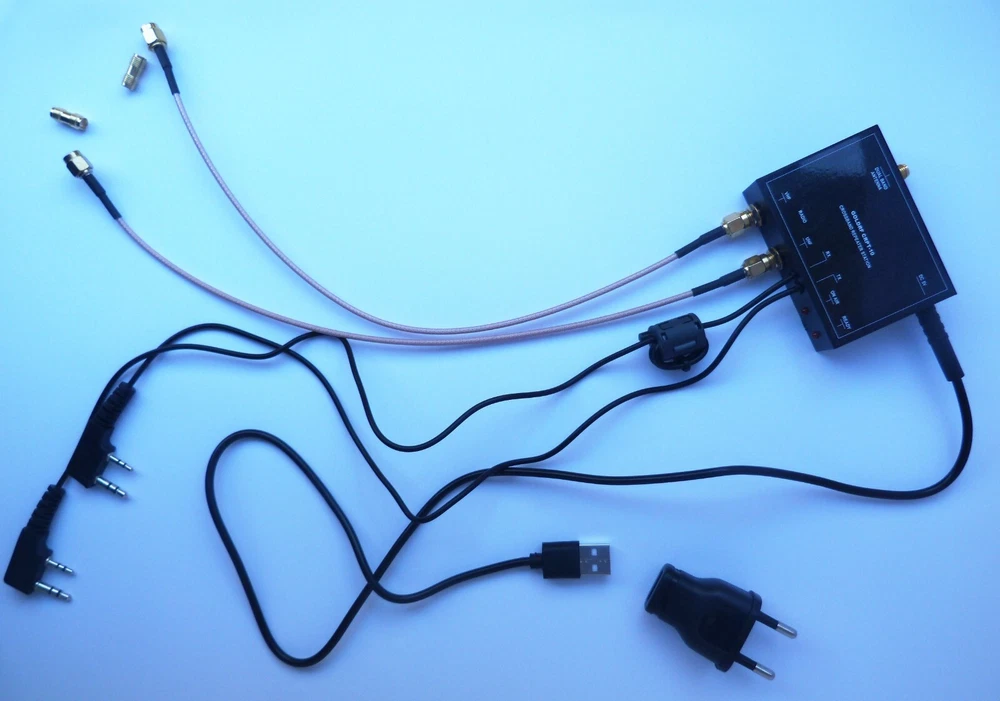

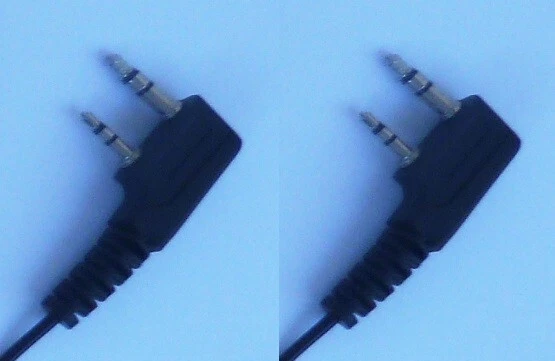

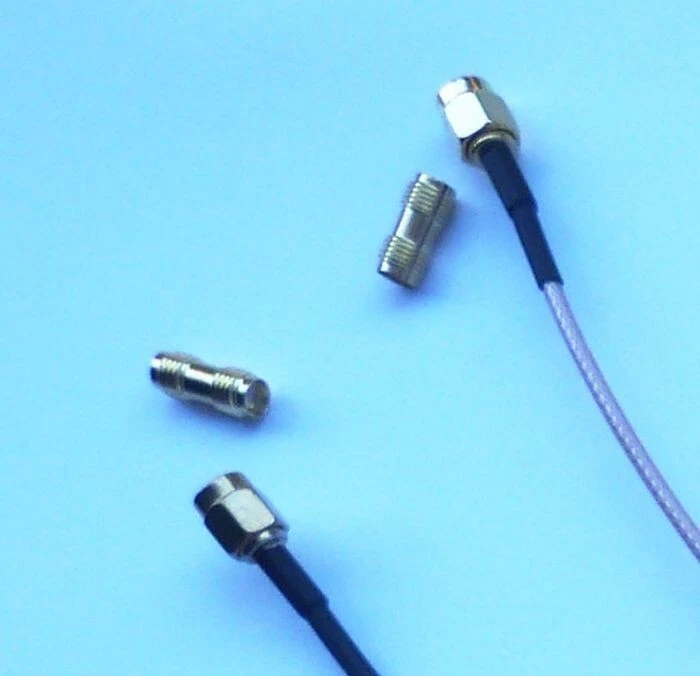

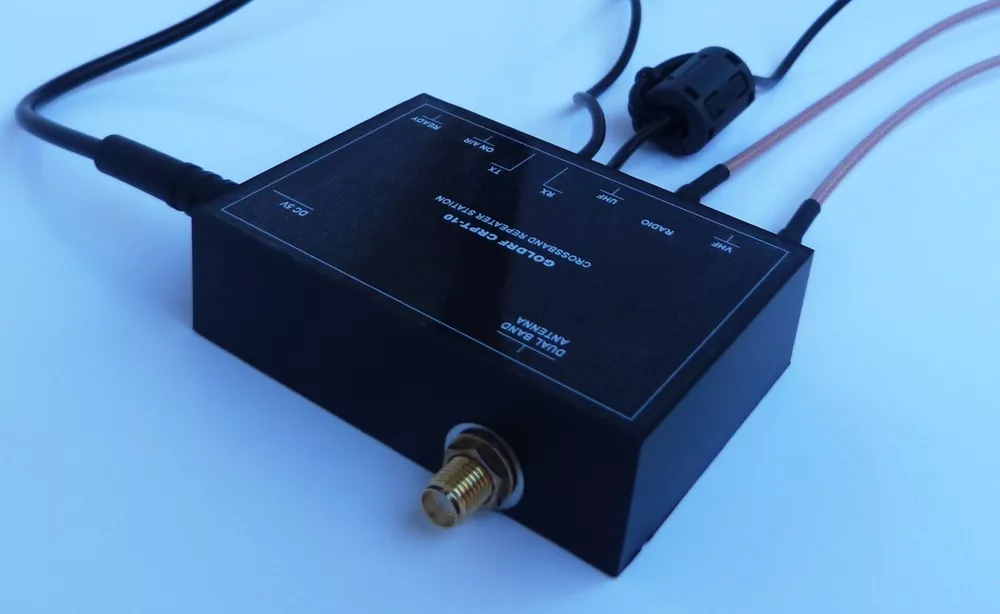

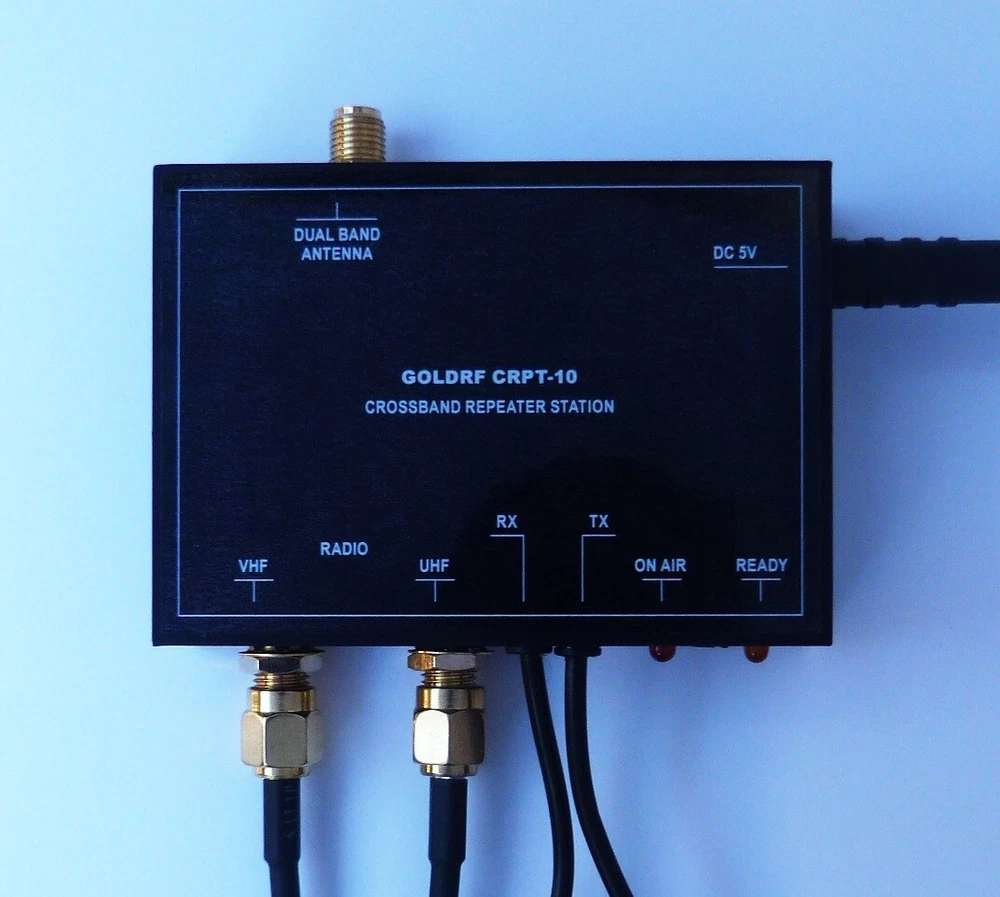

Cross-band repeater station with built-in antenna diplexer, complete set, GOLDRF CRPT-10 The GOLDRF CRPT-10 is a cross-band repeater control unit that includes the radio frequency interface and all necessary accessories. You only need to connect a UHF and a VHF band hand-held radio and a two-band antenna installed at a suitable height, and you can immediately use your own repeater station. There is no need for two antennas, there is no need for the difficult installation of two separate antennas: the built-in diplexer ensures proper separation. This device has "K" type Kenwood standard connection : it can be used with the most popular handheld radios, such as Wouxun, TYT, Baofeng, Quansheng, etc. The GOLDRF CRPT-10 processes the signal coming from the headset output of the receiving radio and activates the PTT of the transmitting radio, as well as ensures the appropriate level matching of the audio signal. No need to use VOX . The RF connection is via SMA connectors, which can be male or female, the package includes converters if necessary. GOLDRF CRT-10 supports unidirectional crossband mode (XDIRPT). Two types of usage can be installed: - UHF uplink and VHF downlink or - VHF uplink and UHF downlink. The diplexer can also be used independently, maximum power: 10W. The diplexer part can also be used in the reverse direction: a VHF and a UHF antenna can be combined for one radio. When using the diplexer independently, the DC 5V power supply is not required. Package contents: 1 GOLDRF CRPT-10 repeater + diplexer unit 1 pc 230V - 5V USB adapter, European standard (Its color and shape may differ from the picture.) 2 pcs SMA male - SMA male coaxial cable, 30 cm long 2 SMA male / SMA female converters 1 instruction manual, in English The package does not include the hand-held radios and the dual-band antenna. This device was designed and manufactured in the European Union.
