DC 3.6V~24V Mini Wireless RF Remote Control Light Switch Receiver Module Part
$ 3.52
Description

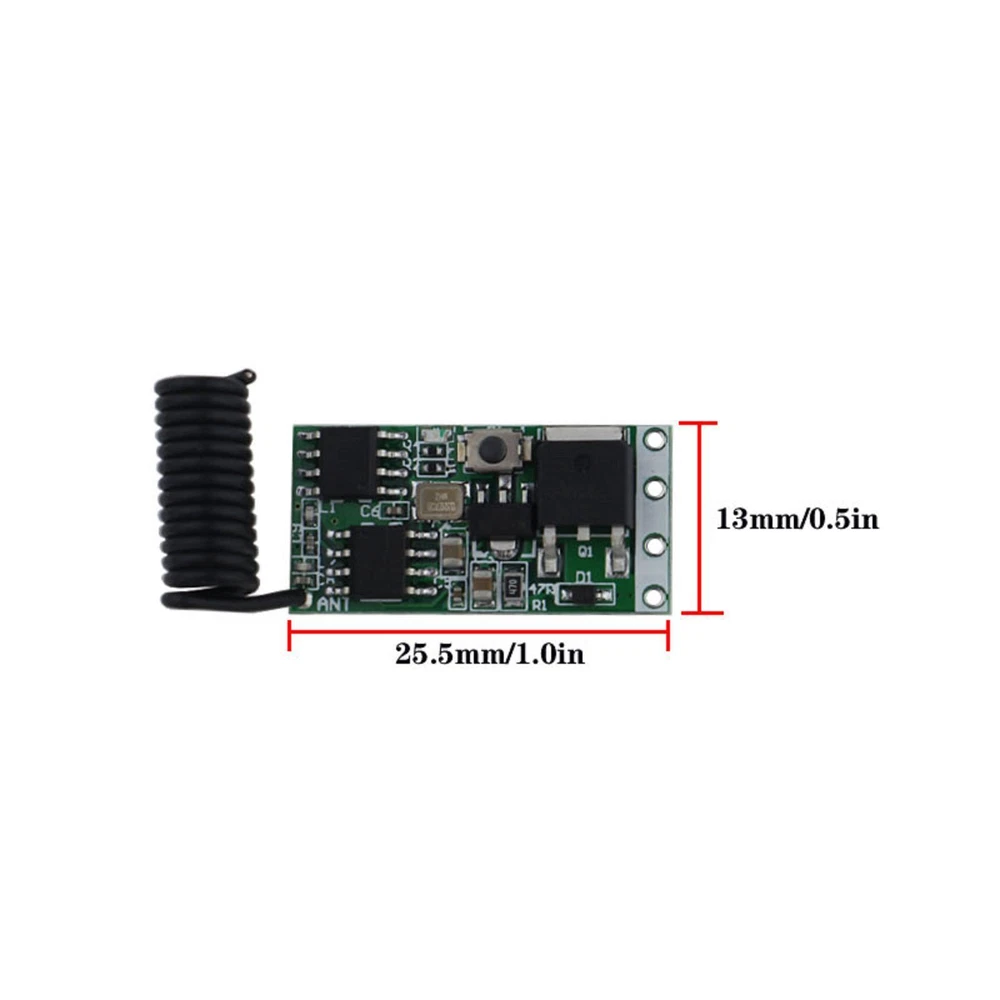

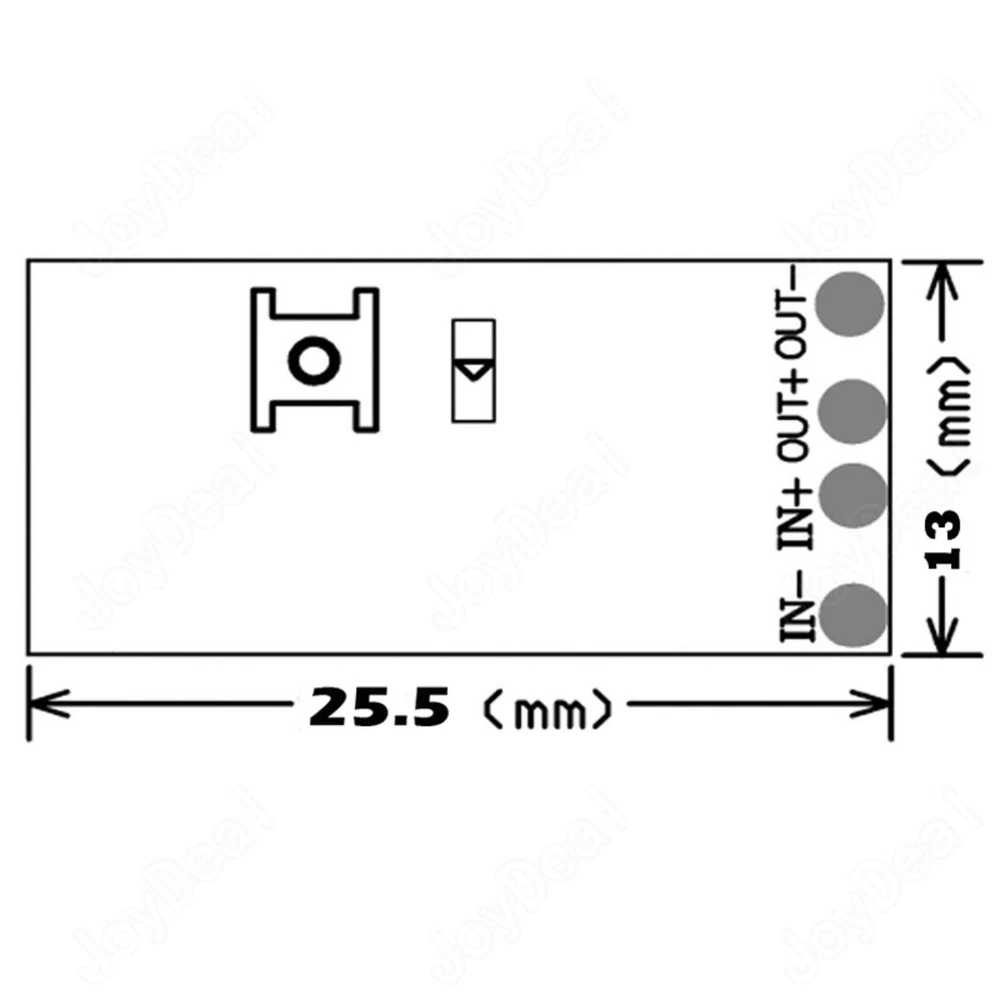

Product Description DC 3.6V~24V Mini Wireless RF Remote Control Light Switch Receiver Module Part 433mhz DC 3.6V 5V 12V 24V 1CH LED Lamp Controller Micro Receiver for Remote Control Switch Specification: Working voltage: DC 3.6V~24V Maximum load: 2A Static current: <5 mA Working frequency: 433MHz Reception sensitivity: <-108dBm Size: 25.5 mm x 13mm x 5mm (length × width × high) Mini size support coding format 1527 learning code Input: DC 3.6V ~ DC 24V Output: DC 3.6V ~ DC 24V Modulation mode:ASK (superheterodyne) Appearance size: 25.5mmx 13mm x 5mm (length × width × high) Number of stored remote controls: ≤ 10 Working mode: Momentary, Toggle, Latching Mode Learning style: Learning Button Working temperature: -20 degrees 80 degrees. Features: ·Application environment: Wireless control LED lamp string, Christmas tree light string, Light control switch. ·Long range working voltage ·Ultra low power,High sensitive response .Operating Voltage: DC 3.6V-24V .Encoding : EV1527 Learning code About Working mode: Momentary:Push the remote button , the relay connects, release the remote button , the relay dis-connects. Toggle:Push once the remote button , the relay connects , push twice the remote button , the relay dis-connects. Latching:Push the remote button A, the relay connects, push the remote button B, the relay dis-connect. Tiem delay mode :Push the remote control button , the relay connects , from when release the remote button , after 5s or 10s or 15s or 20s , the relay disconnect automatically. Automatic energize when power on mode: when power supply, the relay connects. Clearing the code : After push the receiver's learning button 9 times , the receiver Clear all the remote control data in its memory. When the LED flashes for 5 few times,it indicates that the clear function is completed. (After cleared the code in the receiver,all the remote control must study from receiver onece again to restart.） Receiver operating mode Settings 1.Learning the code :(momentary) Push the learning key on the receiver once time ,it comes into momentary setting mode. Wait for a moment ,the LED will be on, it comes into learning state .Push the remote button , LED indicator on the receiver board will flash 3 times and then come off ,learning successfully. 2.Learning the code : ( Toggle ) Push the learning key on the receiver twice time , it comes into toggle setting mode Wait for a moment ,the LED will be on , it comes into learning state .Push the remote button ,LED indicator on the receiver board will flash 3 times and then come off, learning successfully . 3.Learning the code :( Latching ) Note: When you choose for latching mode ,in order to learn more remote control ,you need to learn two different button,the first time learnt is for “ON”, the second time learnt for“OFF”. For example : button A = ON , button B = OFF ,Push the learning key on the receiver triple time , it comes into latching mode .Wait for a moment , the LED indicator on thereceiver board will be on, Push the remote button A,LED flash for 3 times .Push the remote button B .LED indicator flash for 3 times and then come off, learning successfully . 4.Learning the code :( Time delay mode ) Push the learning key on the receiver forth time , the time dealy for 5 seconds. Push the learning key on the receiver fifth time , the time delay for 10 seconds. Push the learning key on the receiver sixth time , the time delay for 15 seconds. Push the learning key on the receiver seven time , the time delay for 20 seconds. The LED indicator will be off. Push the remote button , LED flashes and off ，learning successfully. 5.Learning the code : (Automatic energize when power) Push the learning key on the receiver eight times , it comes into setting mode Wait for a moment, the LED will be on , it comes into learning state .Push the remote button,LED indicator on the receiver board will flash 3 times and then come off, learning successfully. NOTE: The system can store for 20 pcs of remotes , if the remote get more than 20 pcs , the initial remote control will be lost. Package Included: 1x Mini Wireless RF Remote Control Light Switch Receiver module (1527 Encoding ); About Us Welcome to the our store! You can chat with us about anything to do with our products. we dedicated to provide best products and services. Payment All ebay verified payments are accepted, if you have any questions about the payments, you can let us know, we will try our best to solve this for you. Shipping We usually ship all packages within 24 hours after payment and 48 hours at latest for a small part of our products. Returns Always believe we can solve your questions about our products with communication. And if it comes to a return at last, the item must be intact and the same condition when you received it, also the return is only available within 30 days after delivery. Contact Us You can contact us at any time via ebay messages, we will reply at the first time in the working times. We will always be here for you! Working time: 9am to 6pm, Monday to Friday. You may also like 1.2m USB Data Cable Charger Cord Charging Line For PSP1000 PSP2000 PSP3000 4.68 AUD Watch O-Ring Waterproof Rubber Watch Back Cover Gaskets For Watchmaker Tools 5.98 AUD Dual Band WiFi Moving Antenna For ASUS Z390 Z490 X570 Motherboard 2T2R 25.98 AUD 6.85 AUD Orange Cover Cap+Spool Line Top For Black & Decker Spare String Trimmer Strimmer 7.98 AUD USB Laser Plasma Pen Mole Removal Age Spot Remover Skin Wart Tattoo Tool 13.64 AUD 5.29 AUD 3D Printer MK8 Assembled Extruder Hotend 1.75mm to 0.4mm Nozzle Heating Block I 8.98 AUD 5.29 AUD powered by
