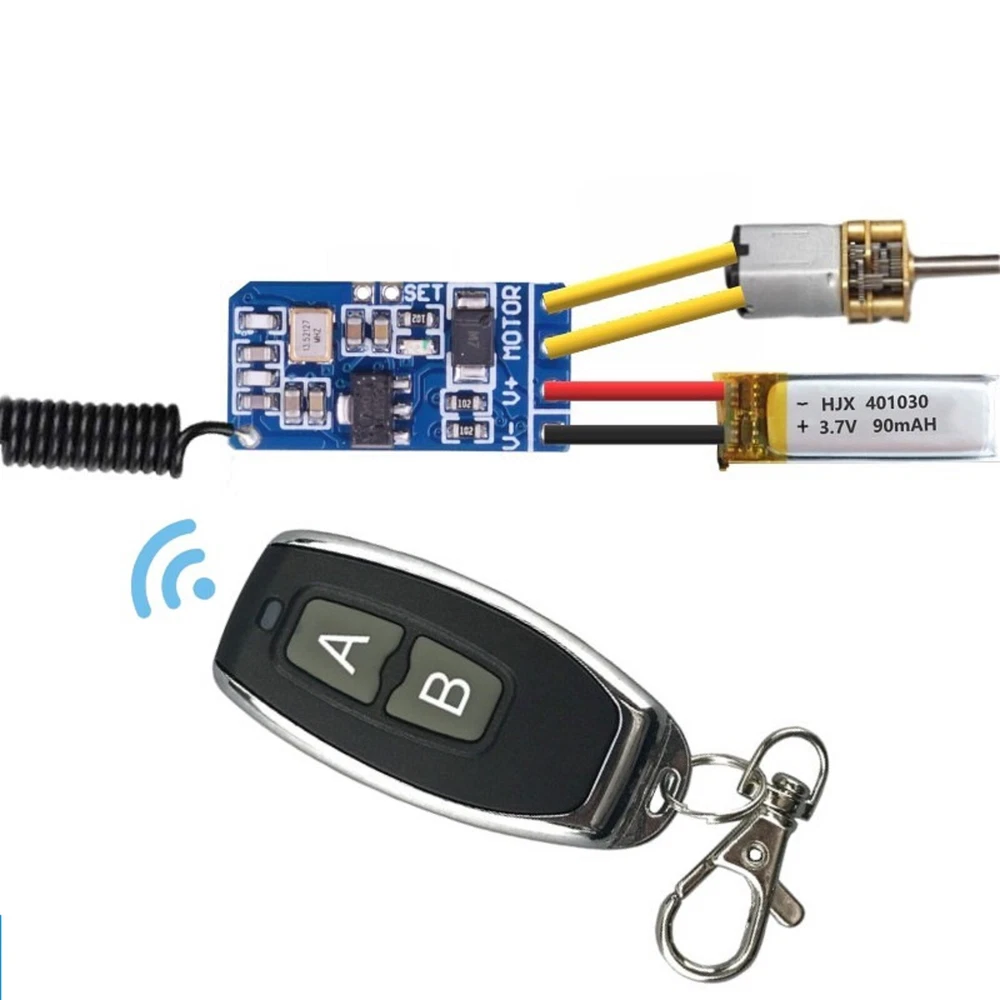

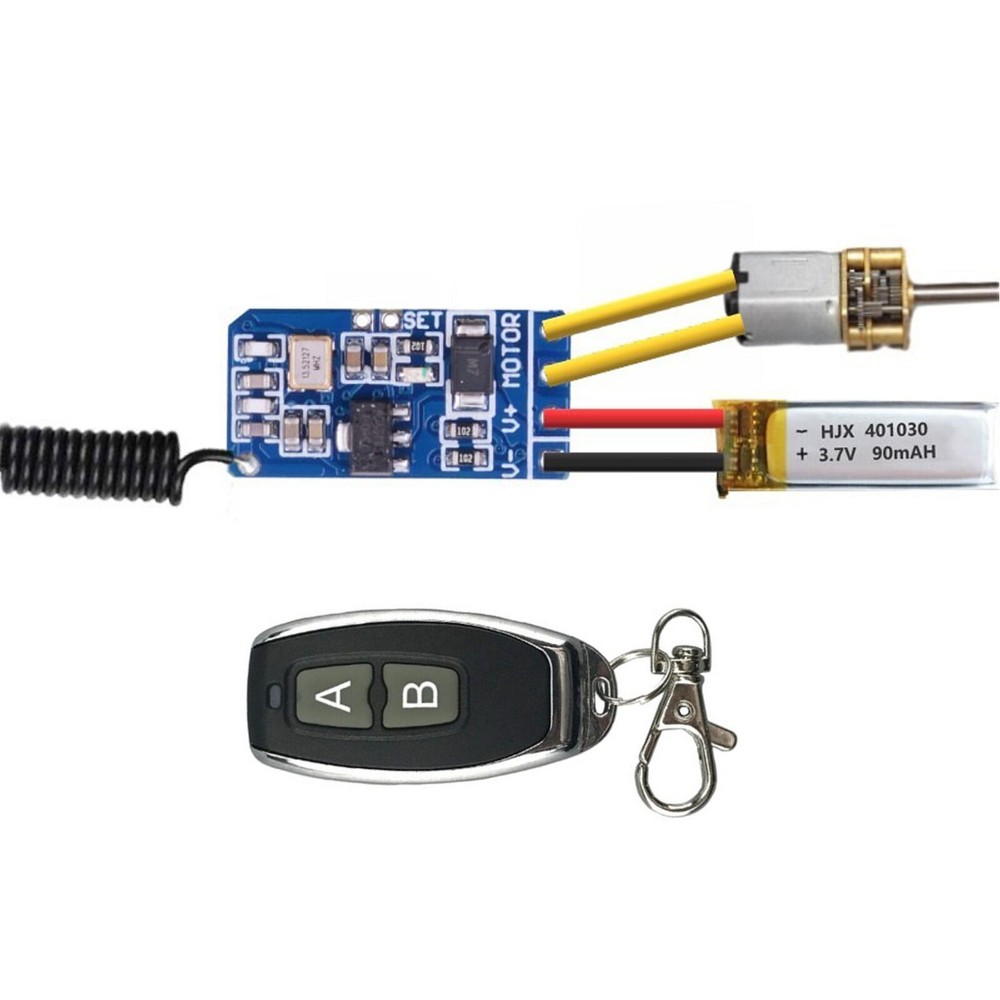

DC 3.7-12V 433MHz RF Wireless Transmitter Receiver Remote Control DIY Module C
$ 8.8
Description

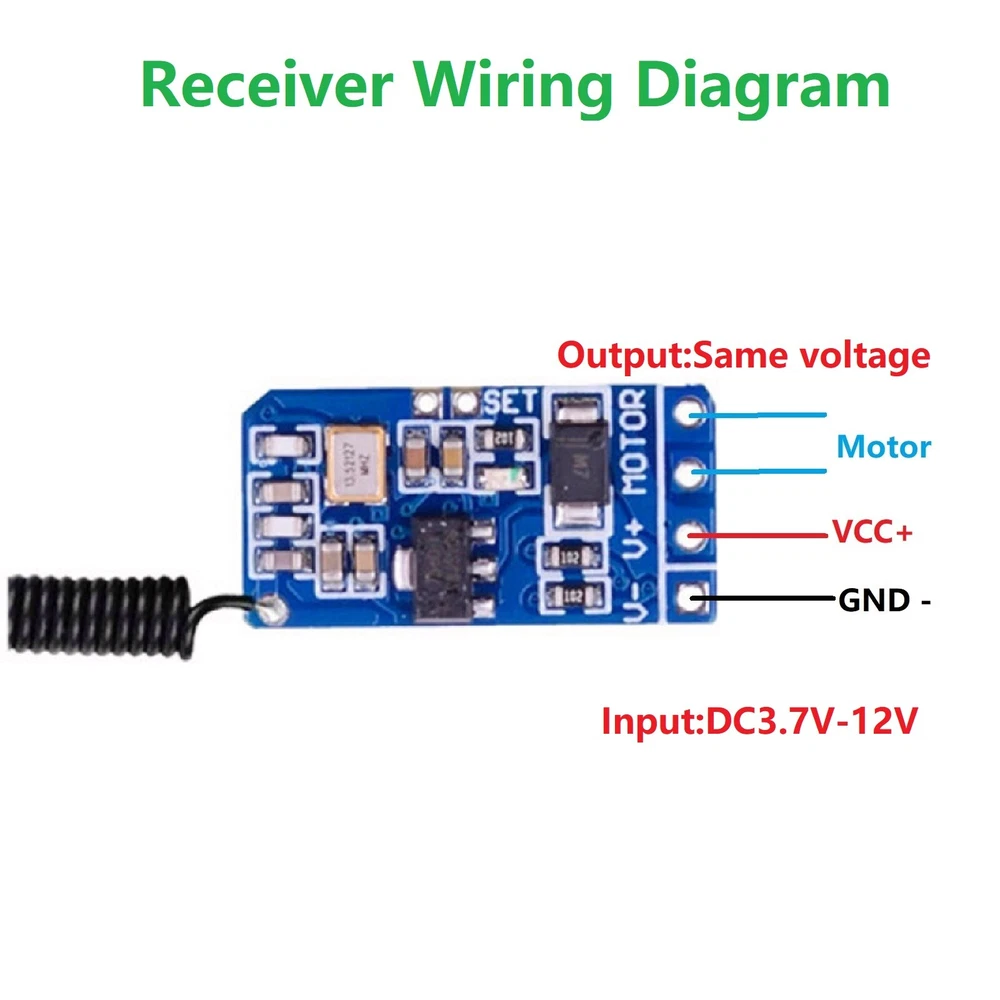

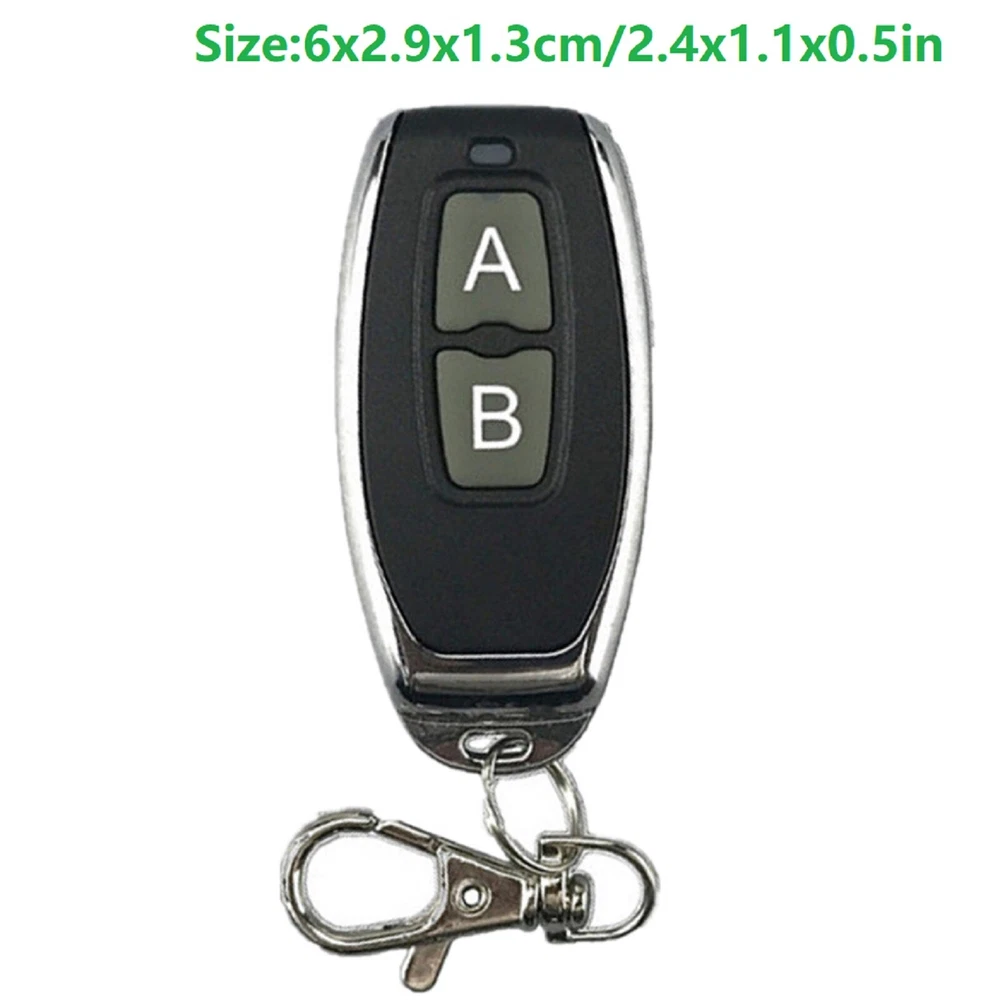

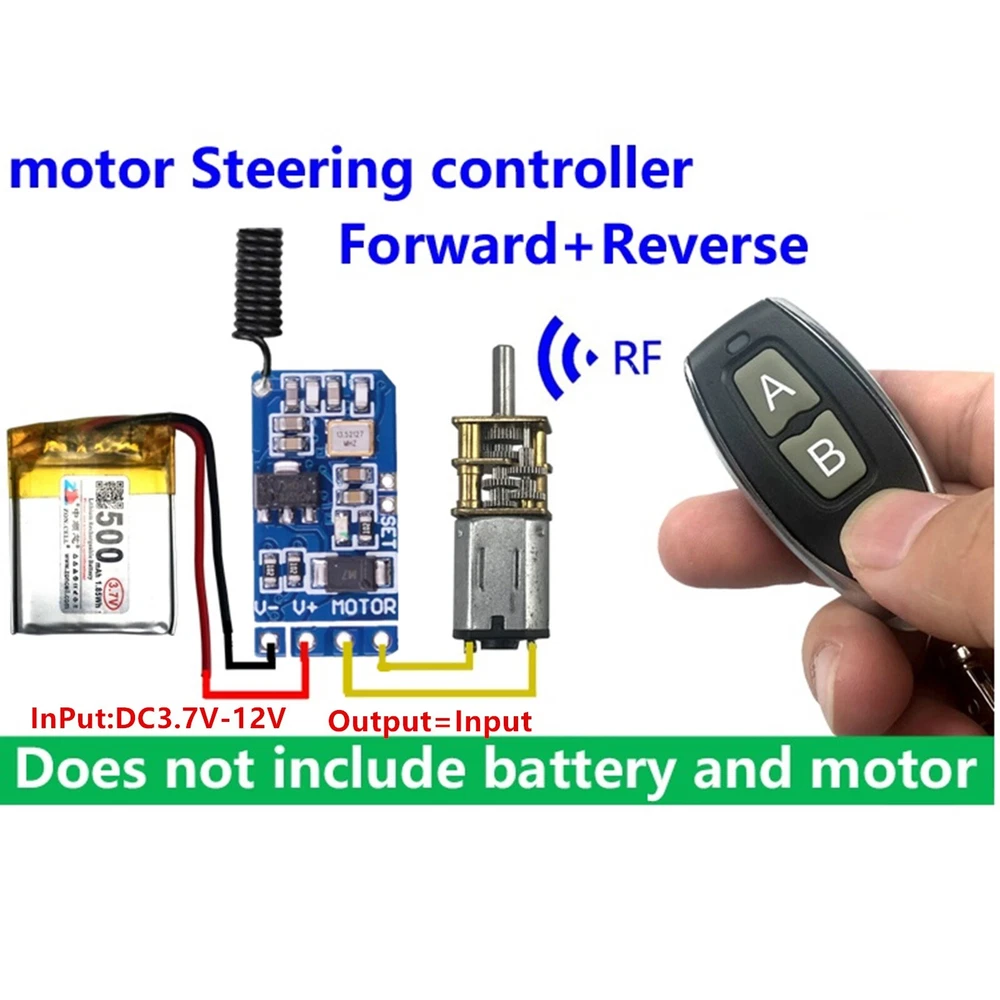

NEW-00023 DC3.7-12V 433mhz RF Wireless Receiver Remote Control Transmitter DIY Module C PRODUCT DESCRIPTION Wireless remote control switch 433mhz rf transmitter receiver 3.7v 4.5v 9v 12v motor Forward Reverse steering Controller module Specifications: Size: 21*11*5mm Input voltage: DC3.7-12V Output voltage: DC3.7-12V Frequency: 433.92MHz Standby current: 0.2MA Maximum load current: less than 0.4A (less than 4 watts of equipment),Suggested load less than 0.2A Working current: 6MA Output voltage: Consistent with the Input supply voltage Remote control battery: 2 x CR2016 Batteries(InCluded) Remote control distance: <=20m Feature: Remote distance receiving, has stable performance, good signal and sensitive response. It can be controlled remotely, making work smarter and more convenient. Ultra low standby current, it is suitable for battery-powered, when it is standby will automatically enter the low-power sleep state, please press the remote control button hold for 0.5 seconds or more) The receiver itself with overcurrent protection,when the current exceeds the rated current,will be entered into turn off power protection,such as the motor to start or block the current is doubled,beyond the rated current will be flash Controller indicator: Momentary - Press and hold the up button to rotate forward, release to stop,Press and hold the down button to reverse and release to stop Delay for 5 seconds - Press and hold the up button to rotate forward, stop 5 seconds after releasing the hand, press and hold the down button to reverse, and stop 5 seconds after releasing the hand, Instruction Manual: 1. Clearing Code: PRESS the Learning Button,until the receiver guidance indicator light does not light up,it mean Clearing Code 2. Learning Code: PRESS the Learning Button,The receiver Led indicator ON.Press remote button A 1 time,Led indicator flash for 1 times, Then Press remote button B 1 time,Led indicator flash for 1 times again,it mean learning successfully Package Includes: 1x DC3.7-12V Wireless Receiver 1x Remote control Note: *For your convenience, the remote control and receiver have been paired *it is the world's smallest motor controller, the motor's voltage and current goes through the receiver,before your purchase .please measure your motor exact working voltage and Current .thank you for your cooperation. *Don't operate control buttons rapidly and frequently , because the controller is controlled by microprocessor , each operation state will response in 1second. *If discover the LED lights darken or remote distance shorter, please replace the battery. Shipping Contact Us Our products have been sent to the US warehouse. All items will be shipped via WINIT CORPORATION. In 2-5 working days, you will receive your items. Thank you and have a nice day. If you have any question about us or items, please contact us, we will reply it as soon as possible. Shipping Our products have been sent to the US warehouse. All items will be shipped via WINIT CORPORATION. In 2-5 working days, you will receive your items. Thank you and have a nice day. Contact Us If you have any question about us or items, please contact us, we will reply it as soon as possible. PaymentShippingReturn policyAbout usContact us Copyright © - Tongtool All rights reserved | Design:Tongtool
