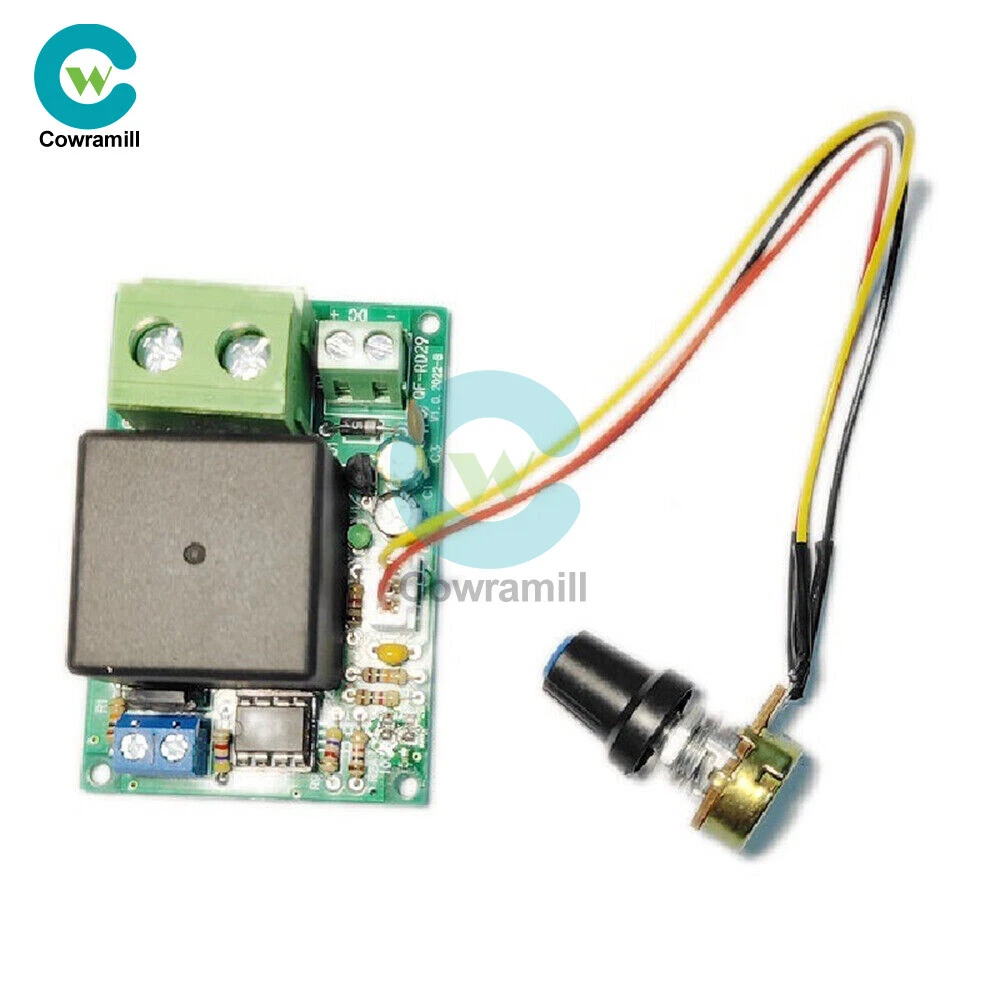

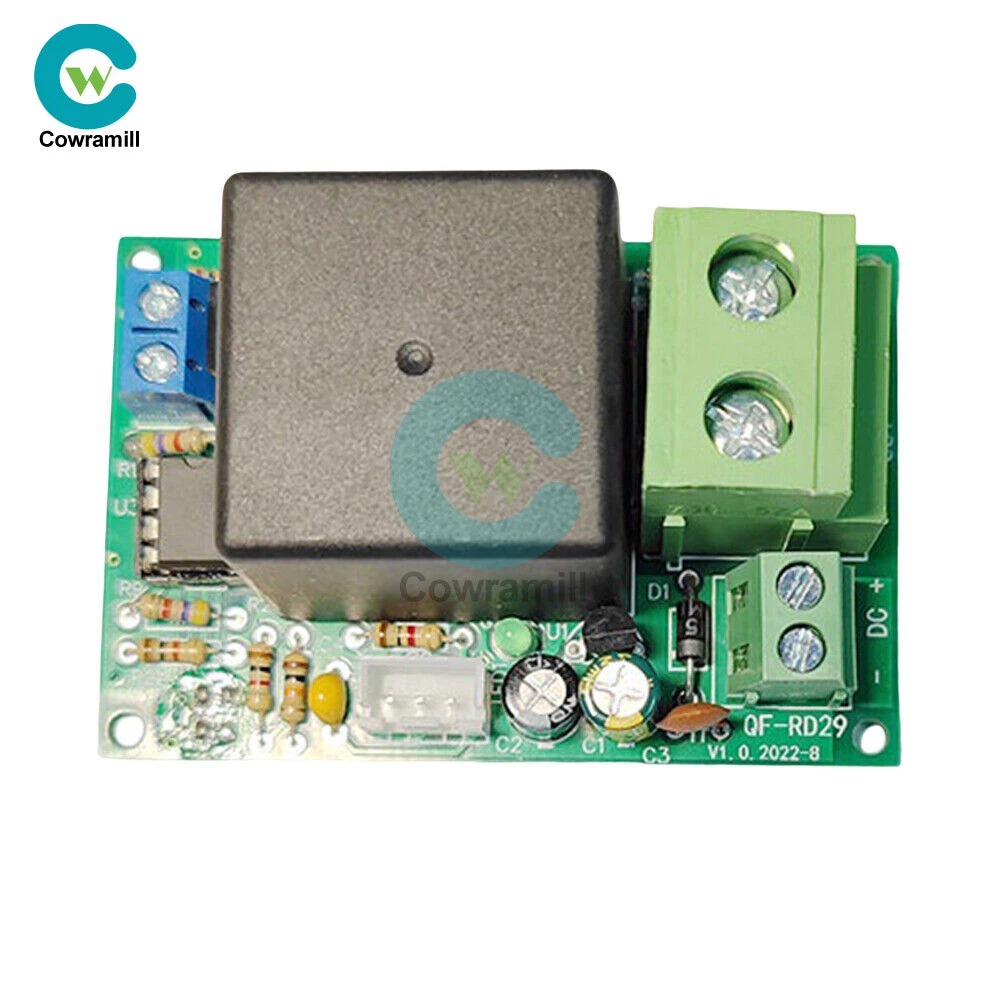

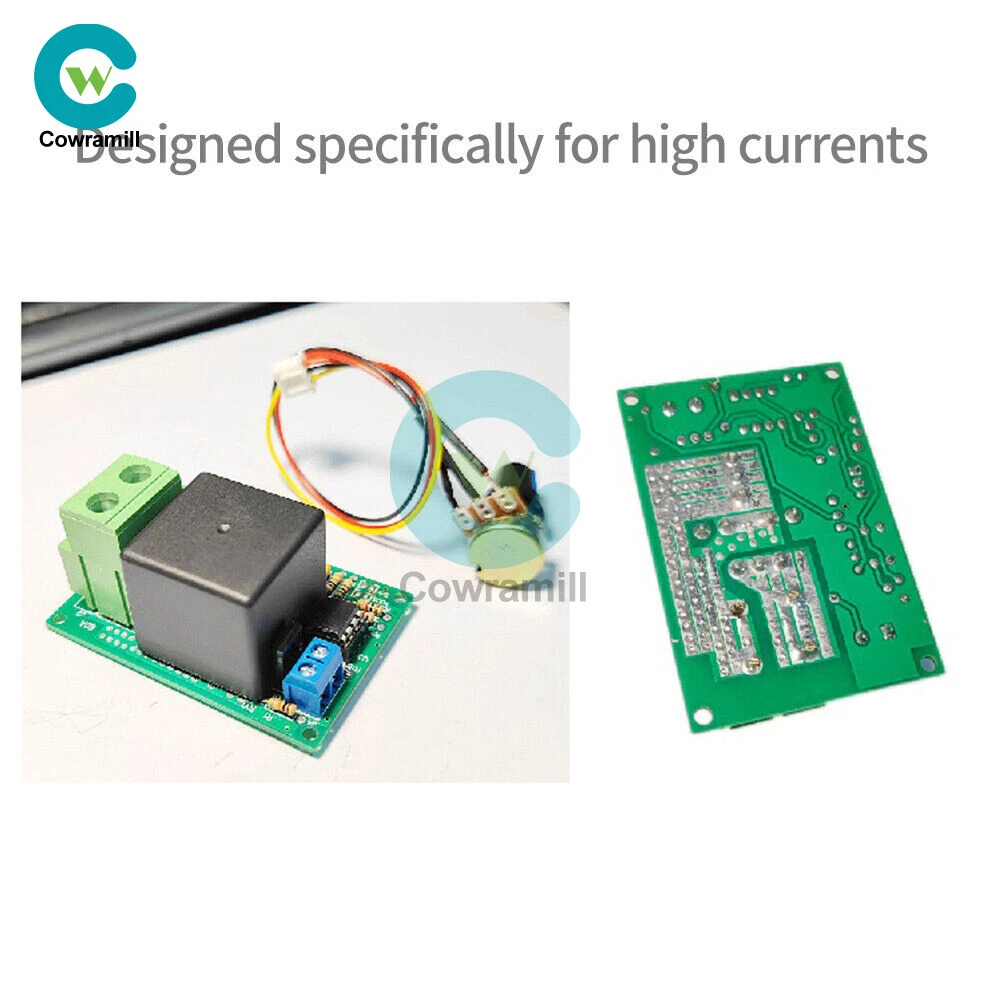

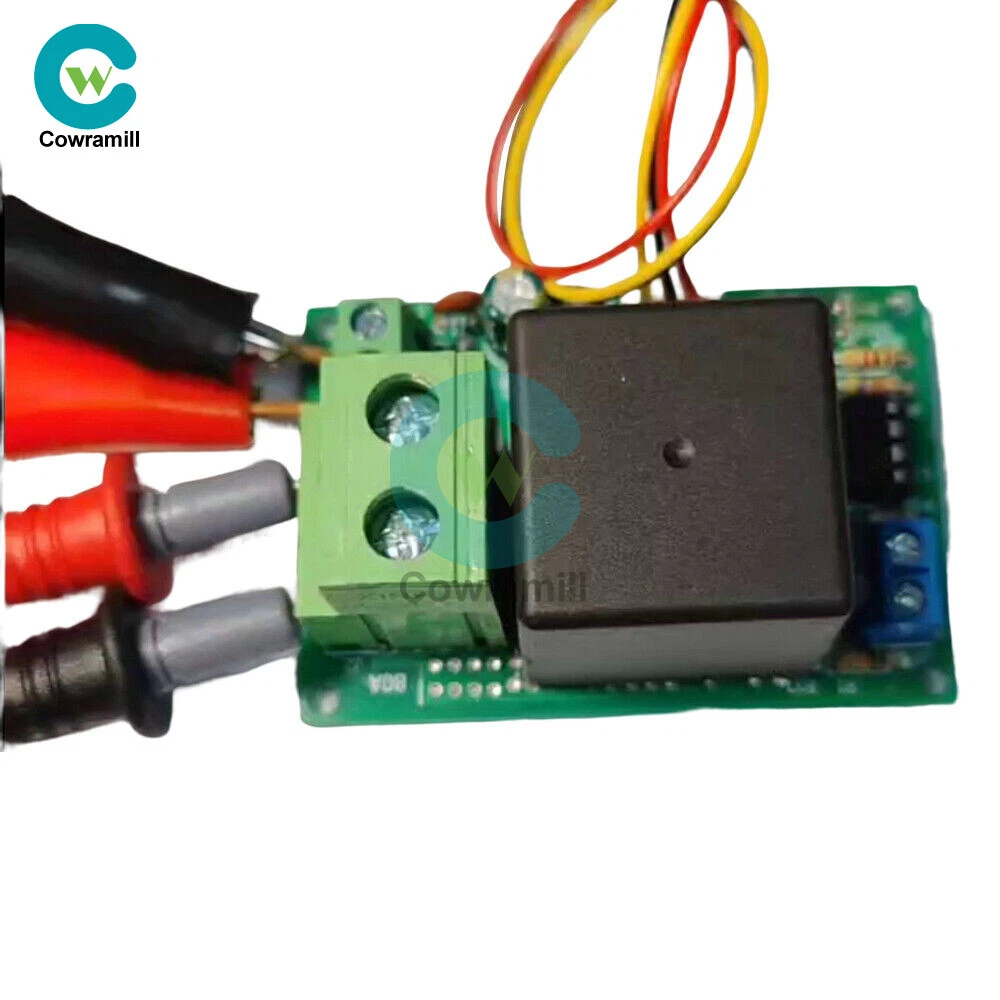

DC12/24V Time Relay Module 0-50Minutes Time Relay with Adjustable Potentiometer
$ 3.51
Description

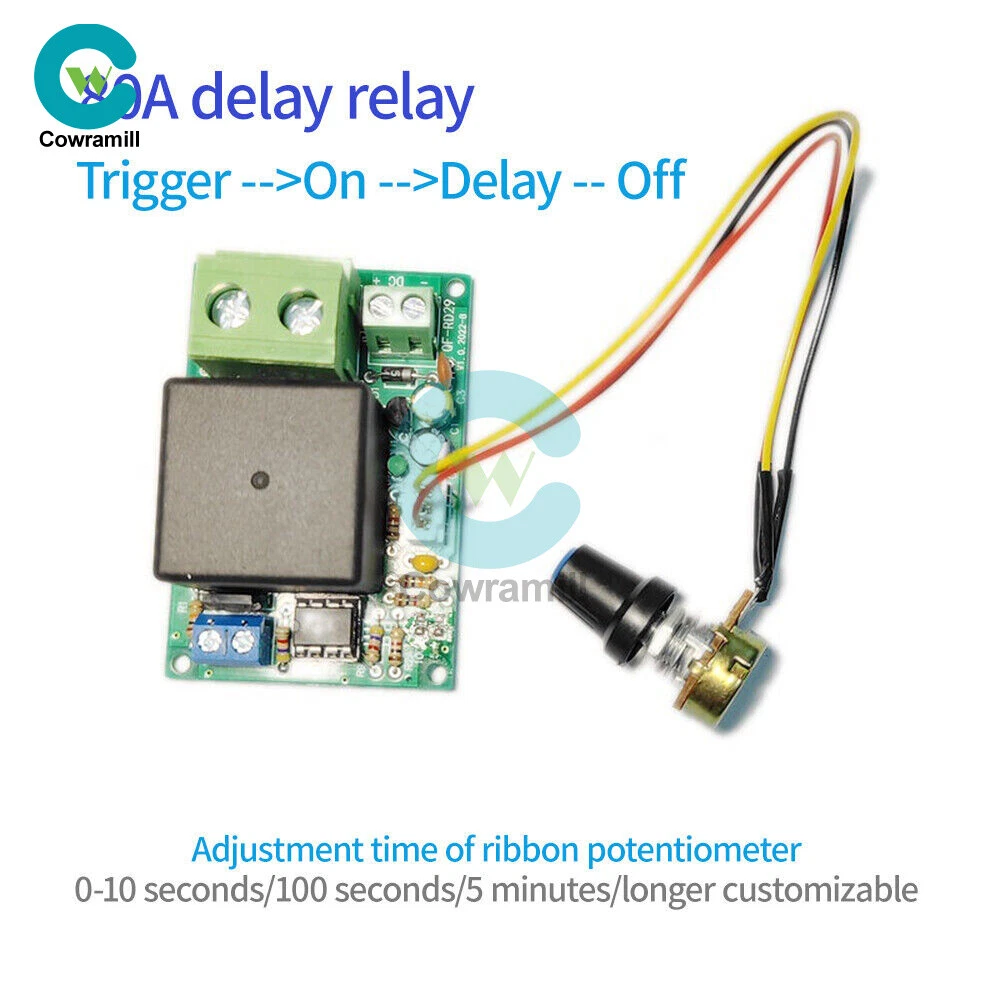

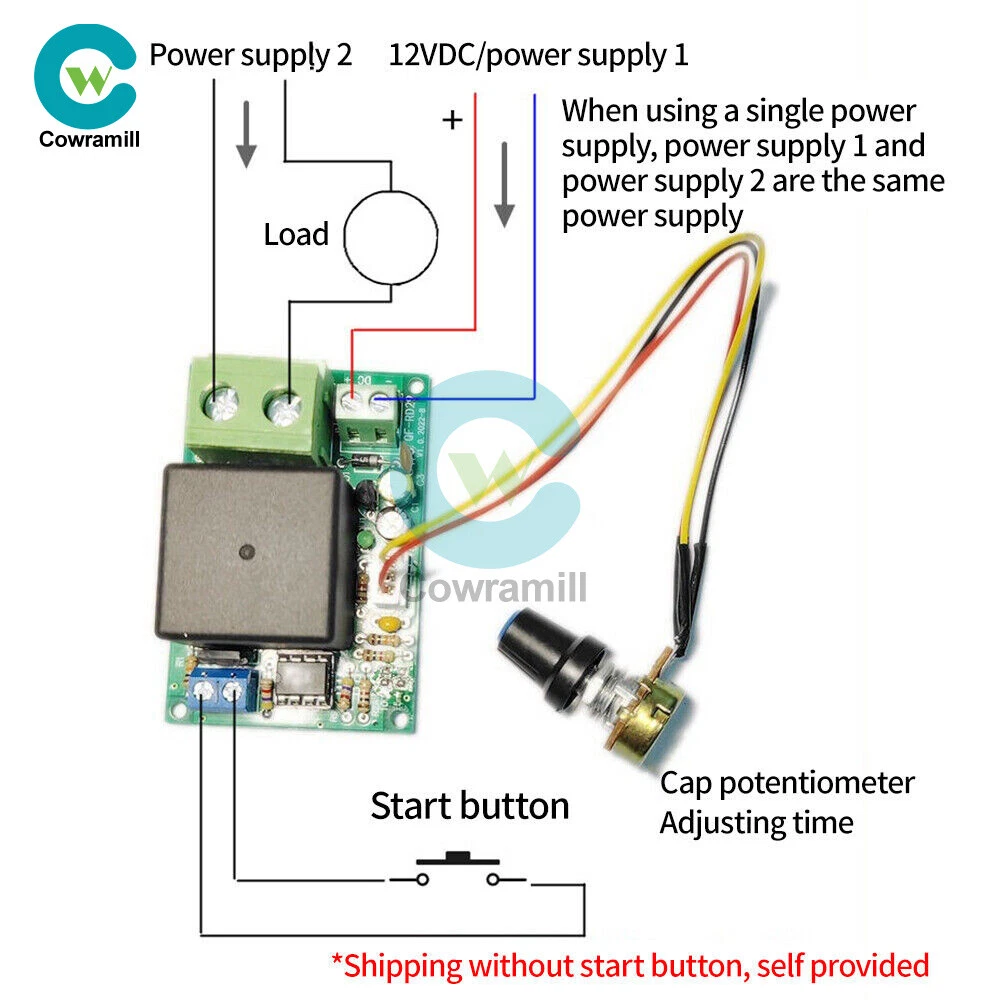

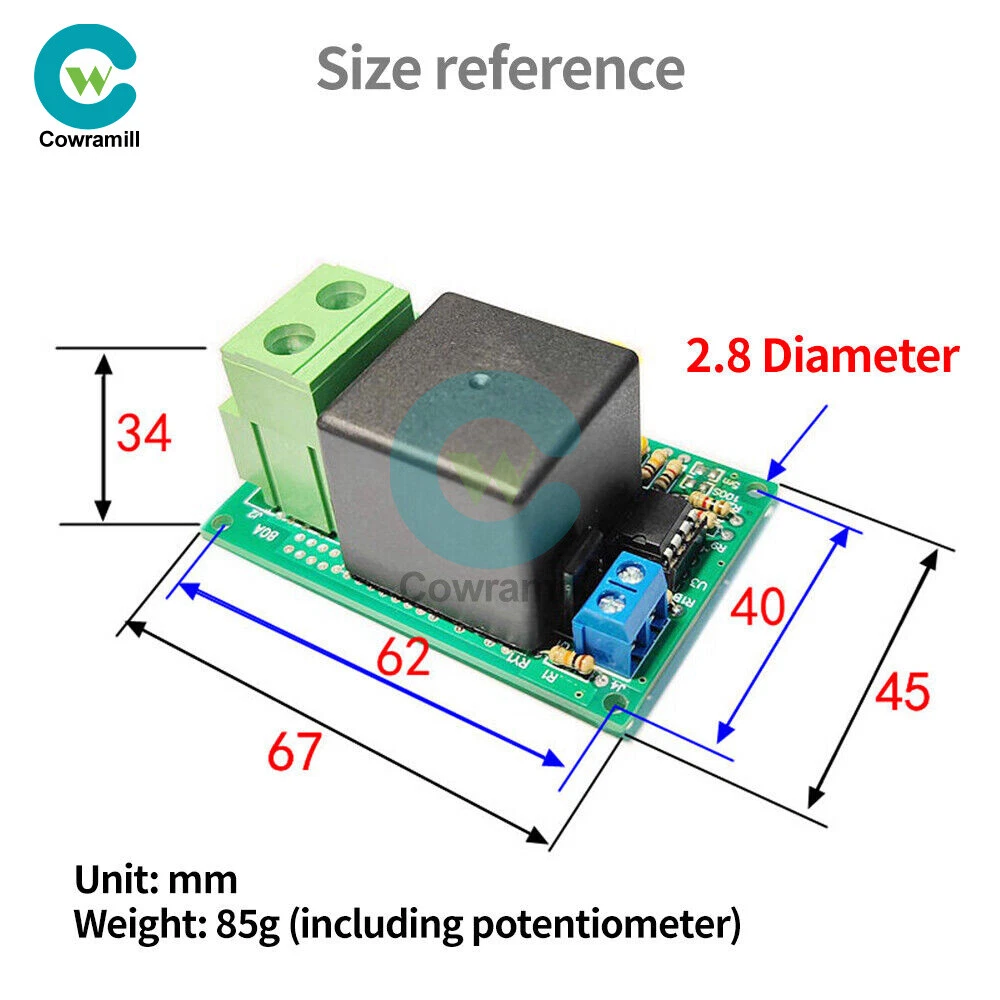

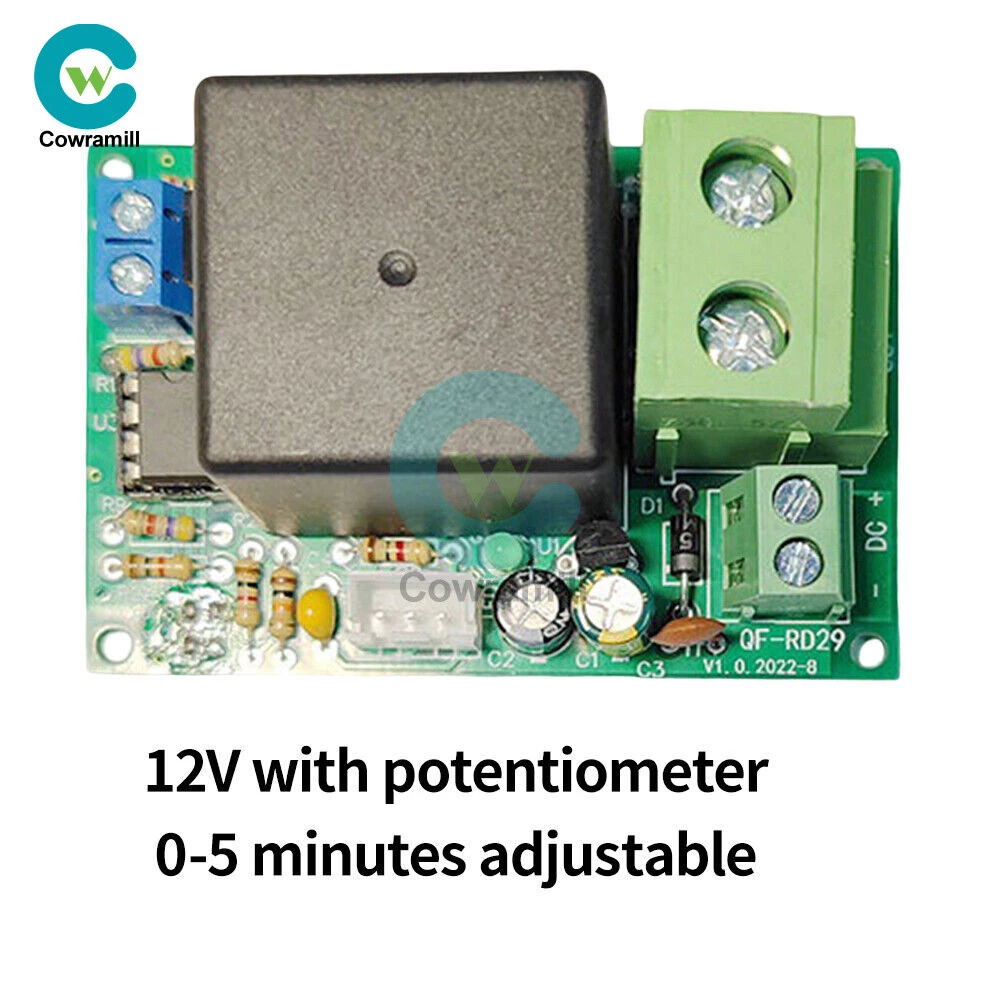

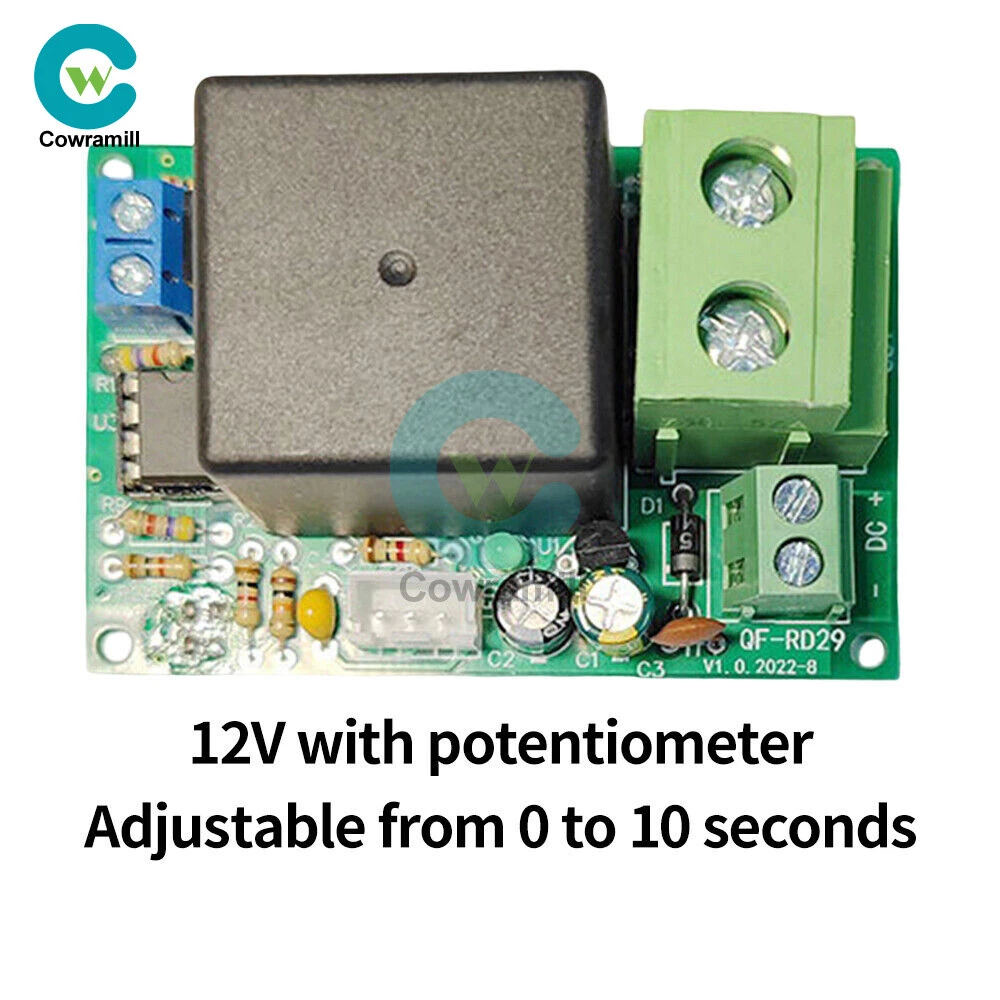

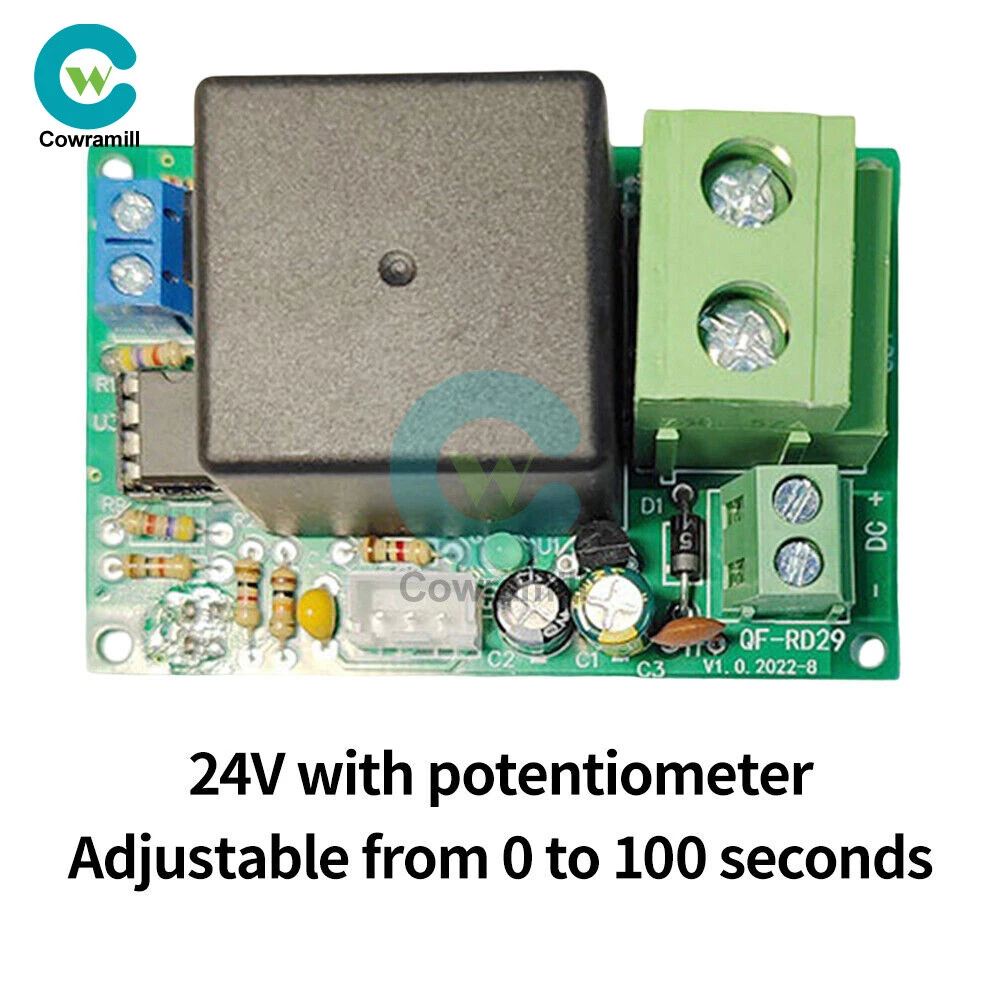

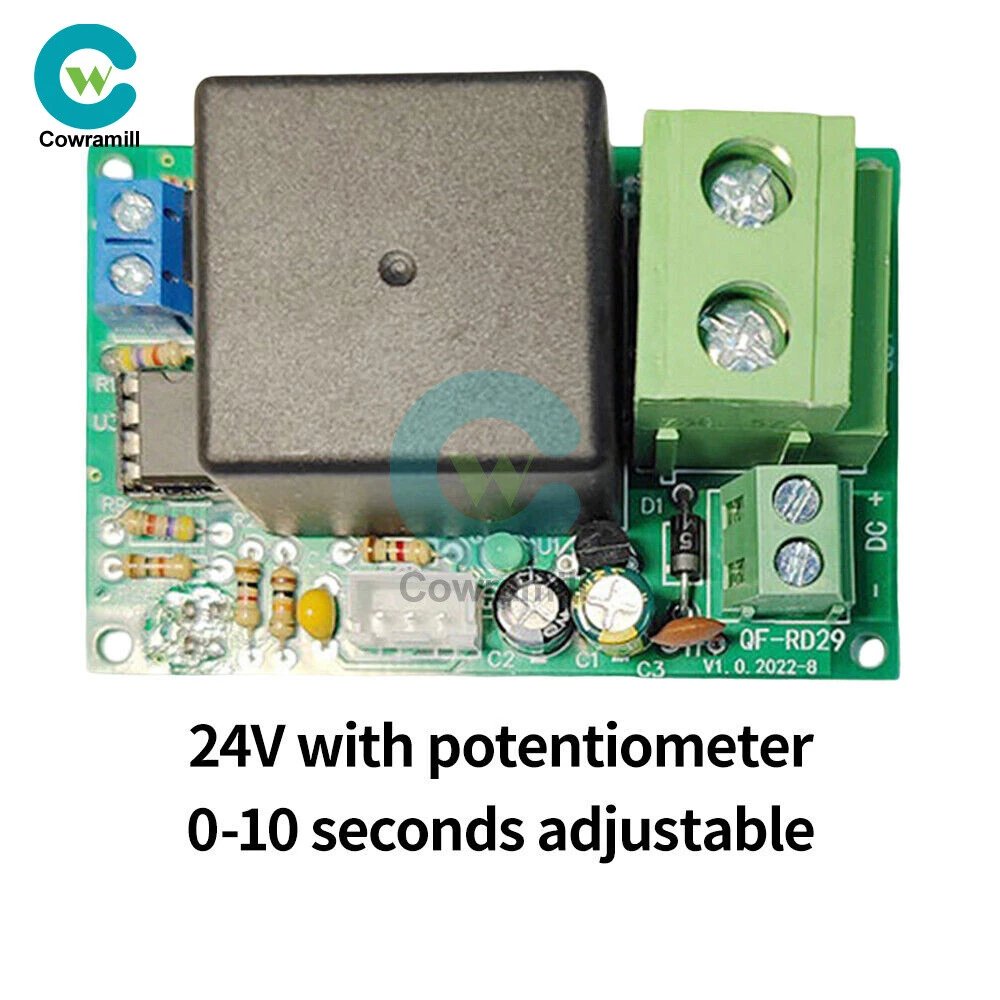

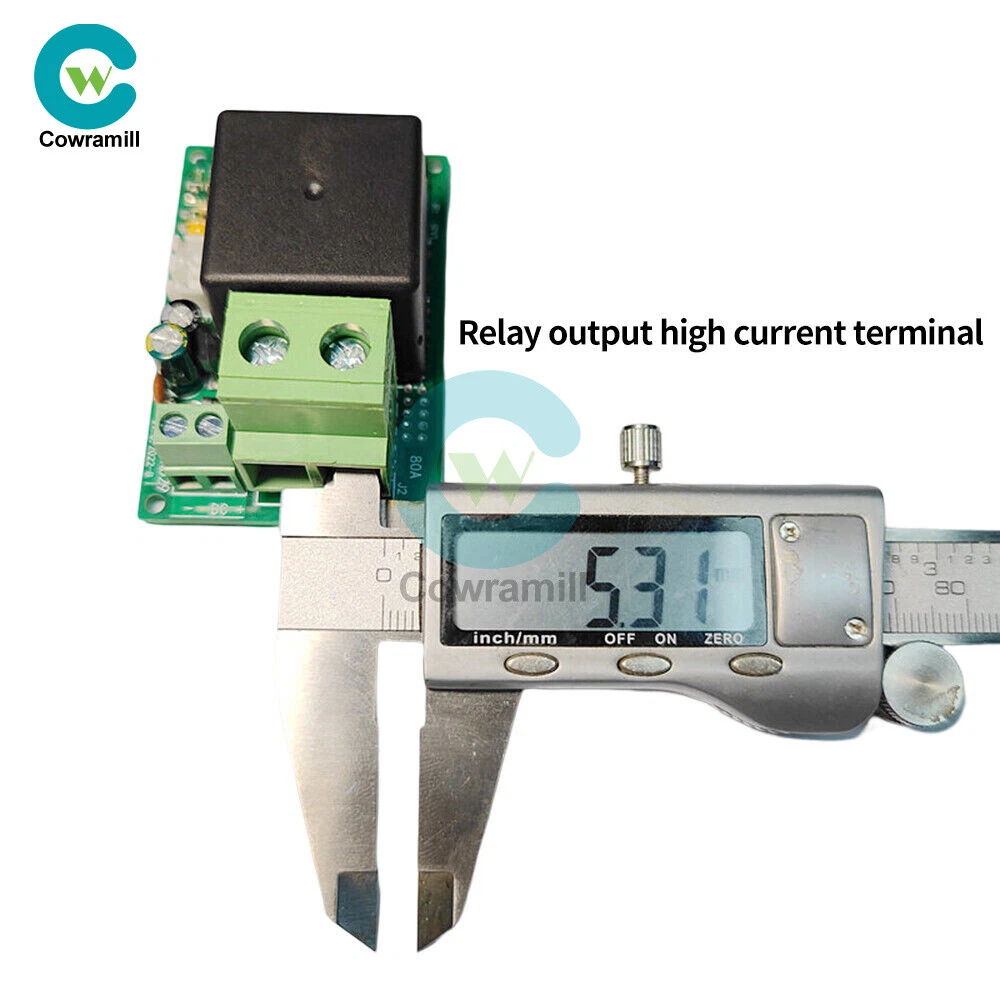

Visit store Items for sale About us Product Details Features: Relay normally open contacts, dry connection passive type, easy to use. Delay adjustment time length potentiometer continuously adjustable. Steady-state circuit, precise delay time. The use of capacitors in line with safety regulations, to ensure that the power supply is stable and reliable. It can adapt to various environments and temperatures in electrical appliances, and can work in environments from -25°C to +85°C. Specification: Voltage:DC 12V, DC24V Input mode:External button or low level (NPN type inductor) Response time:25mS Delay time: 0-10 seconds adjustable, 0-100 seconds adjustable, 0-5 minutes adjustable Working mode: Trigger type delay, relay on after triggering, relay off after time reached. Note that re-triggering during the work will not affect Output: relay normally open contacts, dry connection passive type (and the input side is isolated) Contact capacity: 80A 28VDC Adjustment time: potentiometer adjustment (with wire 20cm, with potentiometer cap and screw) Time error:+/-2% Operating environment:-25°C to +85°C (90%RH humidity without condensation) Circuit board size:67*45*34(mm) Weight about:85g(including potentiometer) List: 1x Relay Module 1x Potentiometer Payment Method Shipping Policy Feedback Payment Method Payment must be received in 5 business days of auction closing. Please leave note for your special request (e.g. Colors or Size) when you pay the order. Any special request cannot be accepted after 24 hours of payment, because most of orders will be processed instantly and same day dispatched. Shipping Policy 1. We only ship to the confirmed address provided by eBay. please make sure your ebay address is 100% matches the address you would like us to ship to. If not, please let us know before we sent you the package, or we will not be responsible for any loss. hope you could understand. 2. Orders will be processed instantly and dispatched within 1-3 business days except hoilday, so we do NOT accept any email/message note after you place orders. 3. All package need to wait 30 days,Please take care it.Less than 30 days,we can't take a refund. Feedback We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important to us. We request that you keep in touch with us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns.
