DC12V Car Time Delay Relay Module Trigger Delay On/Off Delay Switch Module US
$ 2.64
Description

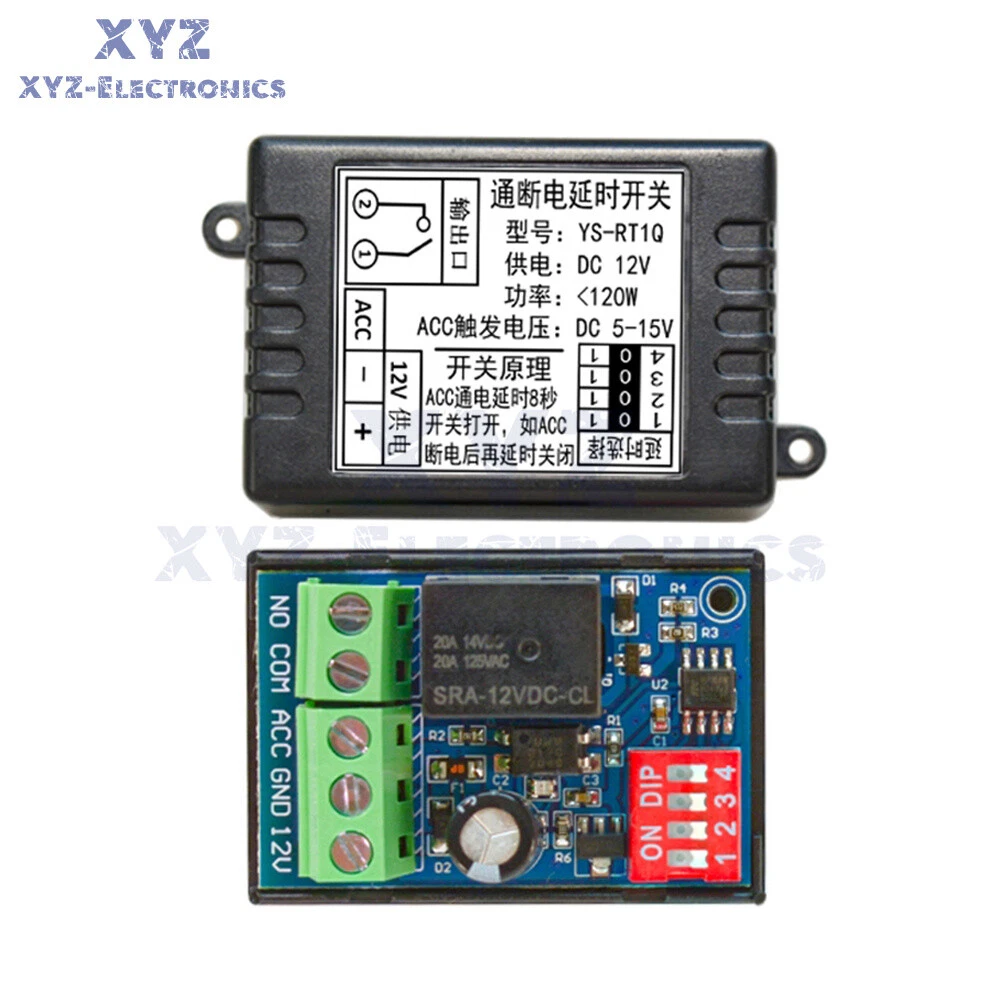

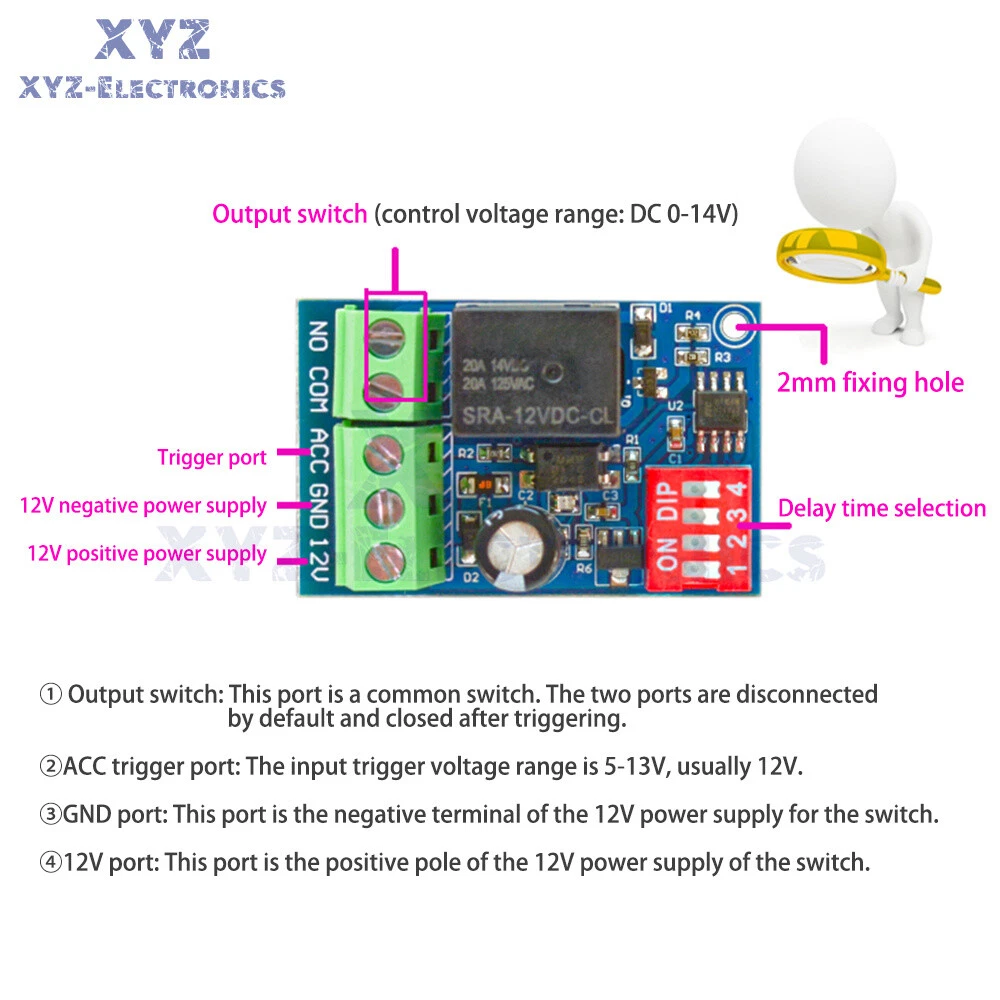

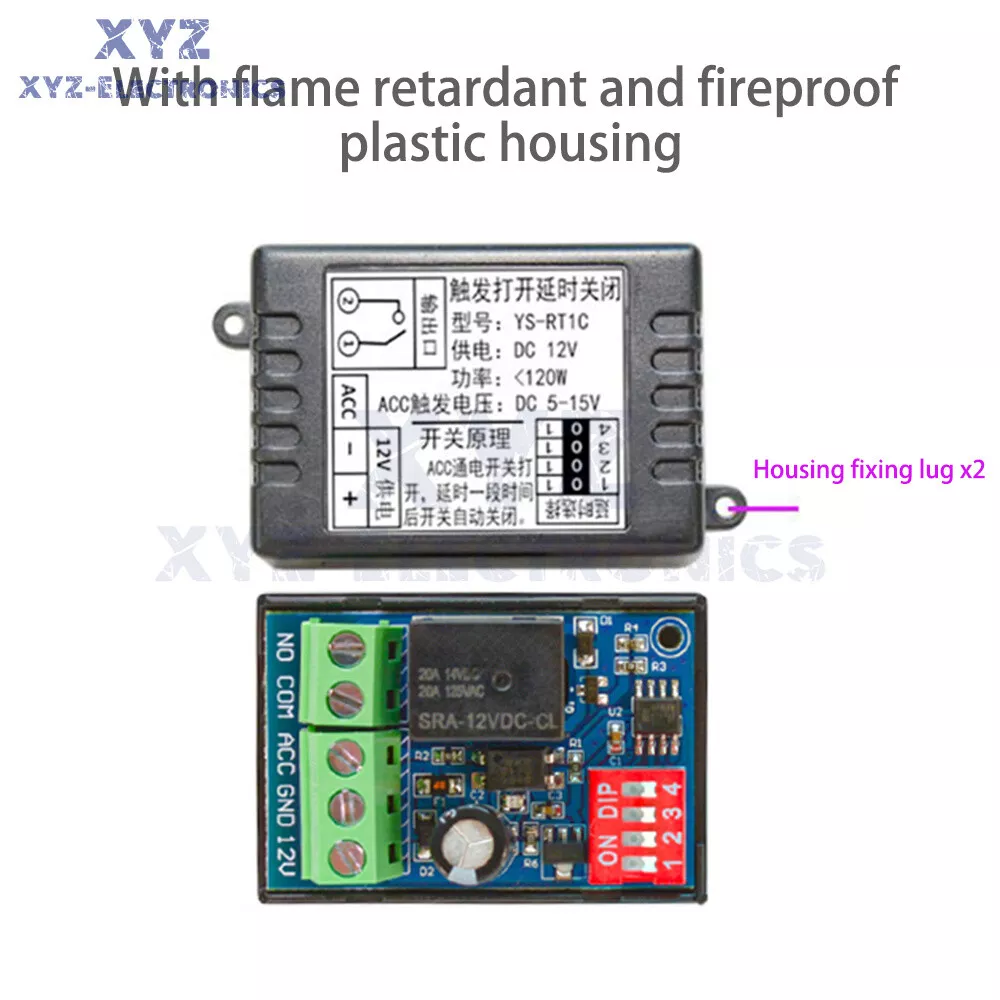

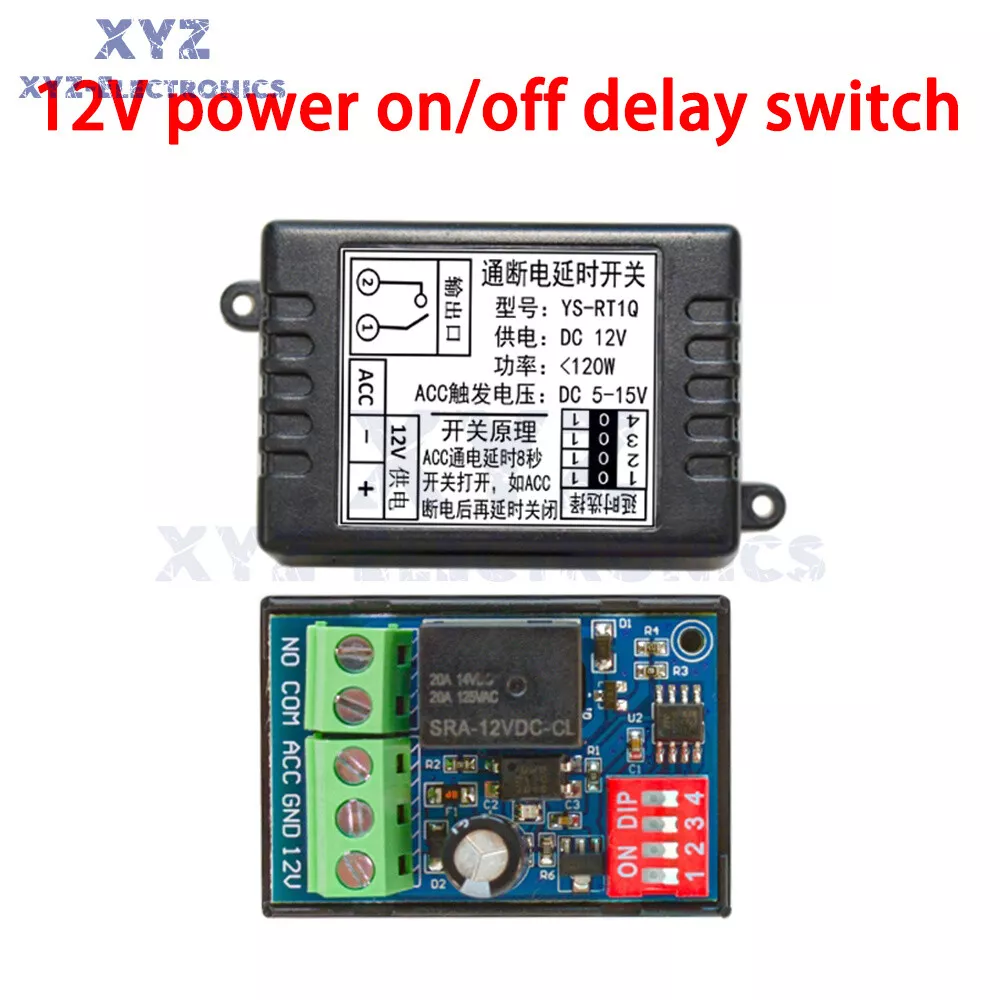

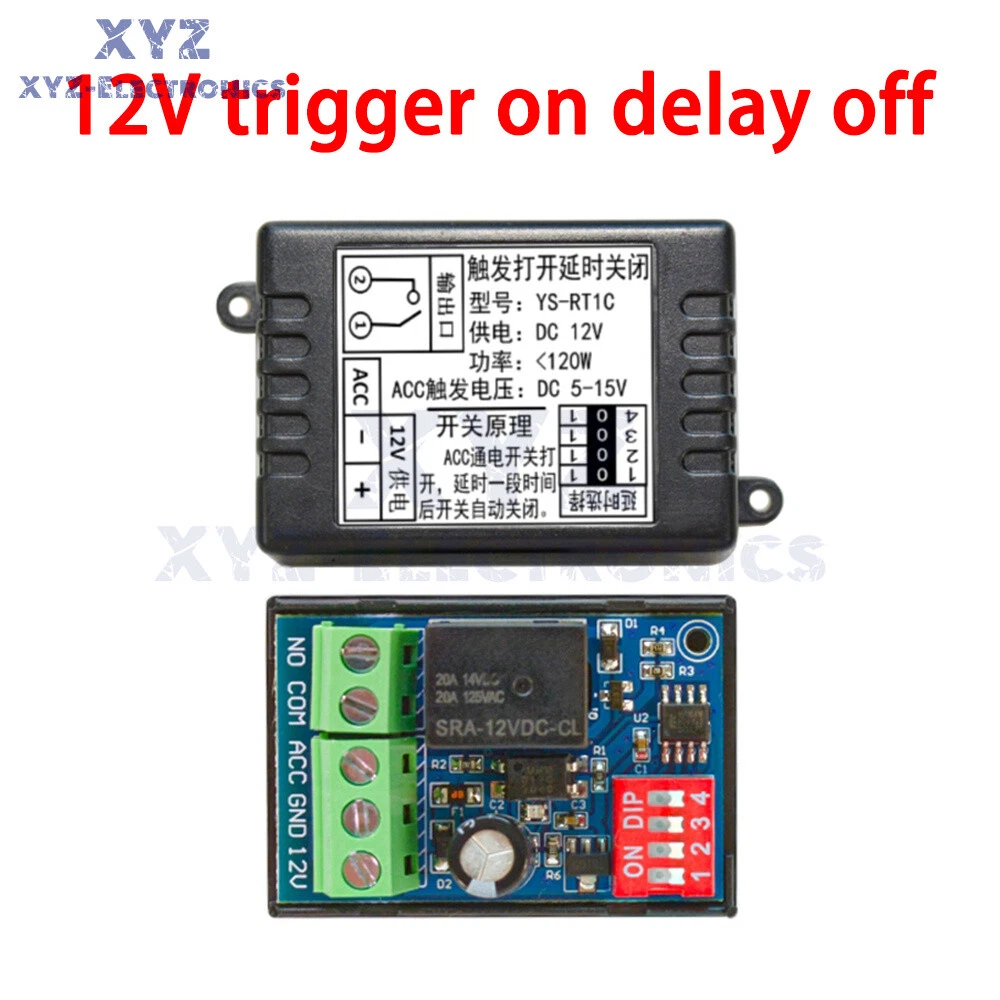

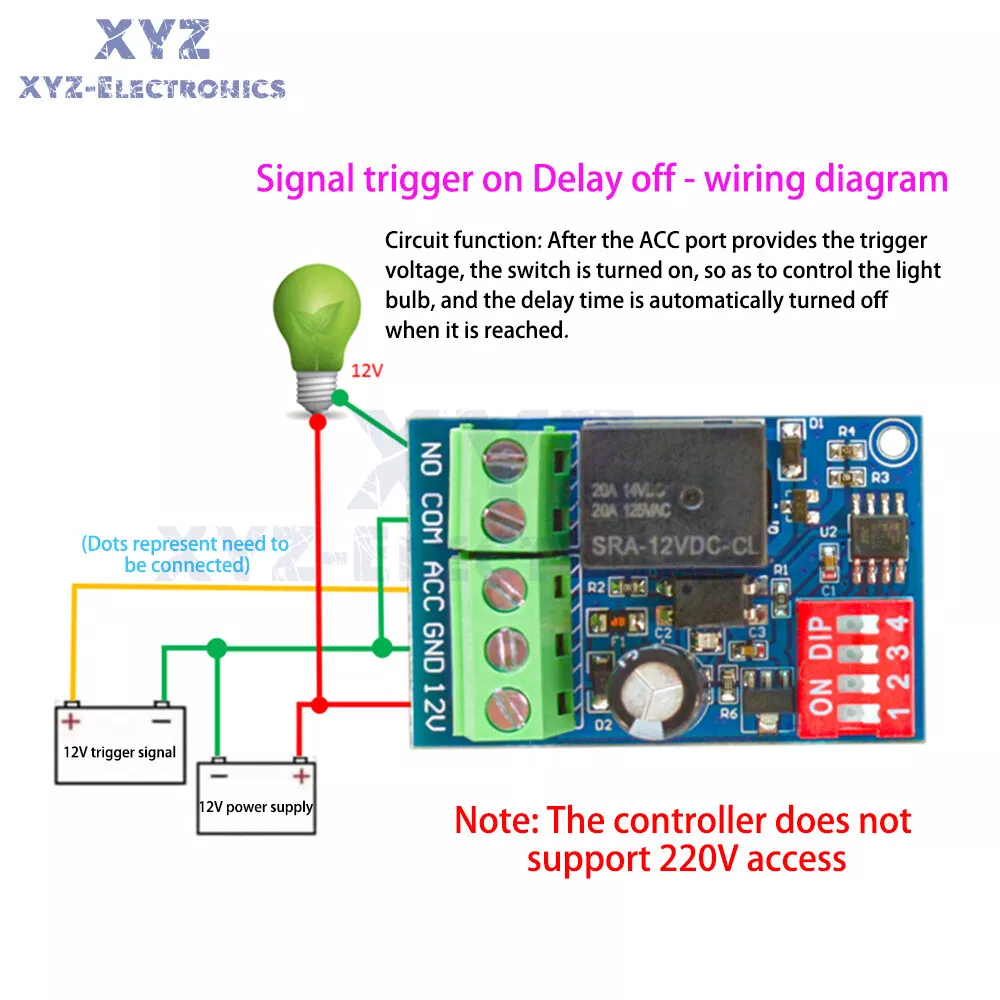

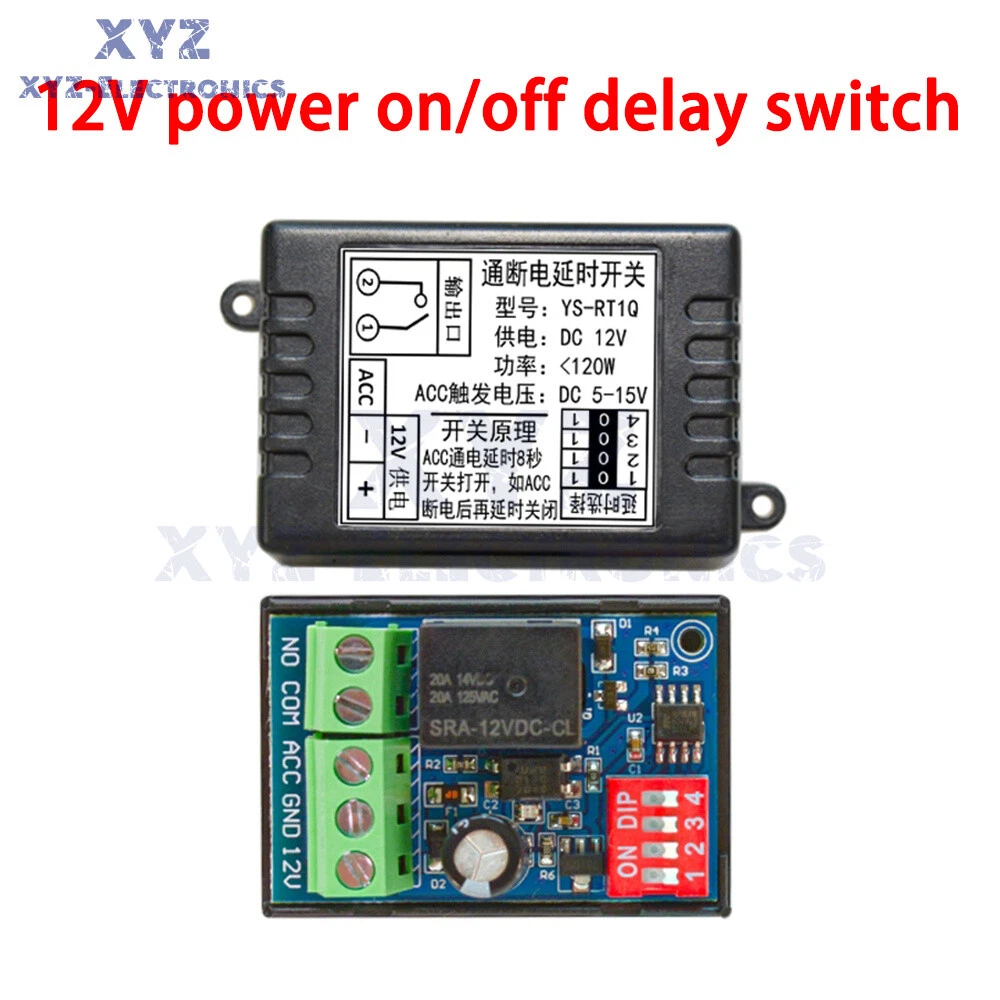

Store Categories Store Categories Other DC12V Car Time Delay Relay Module Trigger Delay On/Off Delay Switch Module Details Features 1.High quality shell, dustproof and flame retardant. 2.Car modification parts 3.Time optional, you can choose according to your needs. 4. Simple operation, can be timed to close automatically 5. Wide range of uses, such as exhaust fan, engine, cooling fan, lighting, navigation, media sound, door and window delay lifting and other automotive circuits power failure delay control Model: YS-RT1Q Specification of shell with hole: 63*35*22mm Bare board specification: 45*29*18mm Supply voltage: DC 12V Standby current: ≤10ma Working current: 68ma (current after the trigger switch is turned on) Control voltage at output: DC 0-14V , AC 0-125V Output control current: <11A Working temperature and humidity: -20℃ to 70℃, RH≤80%. Switch workflow: After energizing the switch, when ACC detects power, it starts to delay for 8 seconds and then the switch stays closed, so when ACC detects no power, it starts to delay for X, and then the switch disconnects when the time is up. (which 8 seconds for the fixed time users can not be modified, can be customized) Model: YS-RT1C Specification: 50x35x22mm Supply voltage: DC 12V Working current: 68ma (current after trigger switch on) Standby current: 10ma Control voltage at output: DC 0-14V , AC 0-125V Output control current: <11A Operating temperature: -20℃ to 70℃ Working Principle: After connecting the power to the device, the trigger port will provide voltage trigger, and the switch will be opened and closed automatically after a delay time. Model: YS-RT1K Shell with hole specifications: 63 * 35 * 22mm Bare board specification: 45*29*18mm Supply voltage: DC 12V Standby current: <3MA Operating current: 68ma (current after trigger switch on) Control voltage at output: DC 0-14V , AC 0-125V Output control current: <11A Operating temperature: -20℃ to 70℃ Working Principle: After powering on the device, the switch will turn on and after a delay time, the switch will turn off. Commonly used function: check whether the external power supply has power, as a trigger signal to control the lower level equipment. Model: YS-RT1T Specification: 50x35x22mm Supply voltage: DC 12V Working current: 68ma (current after the trigger switch is turned on) Control voltage at output: DC 0-14V , AC 0-125V Control current at output: <11A Operating temperature: -20℃ to 70℃ Working Principle: After connecting power to this device, the device will delay for a period of time and then turn on the output. Model: YS-RT1M Shell with hole specification: 63*35*22mm Bare board specification: 45*29*18mm Supply voltage: DC 12V Standby current: ≤10ma Working current: 68ma (current after the trigger switch is turned on) Control voltage at output: DC 0-14V , AC 0-125V Output control current: <11A Operating temperature: -20℃ to 70℃ List 1 x Car Power Relay Module Shipping Policy Payment Method Returns Policy Shipping Policy Payment Method This is the description of Payment Method. Do not dismiss your dream. To be without dream is to be without hope. To be without hope is to be without purpose. Do not run through your life so fast that you forget not only where you have been, but also where you are going. Life is not race, but a journey to be savored each step of the way. Returns Policy This is the description of Returns Policy. Do not dismiss your dream. To be without dream is to be without hope. To be without hope is to be without purpose. Do not run through your life so fast that you forget not only where you have been, but also where you are going. Life is not race, but a journey to be savored each step of the way. Copyright©2017 DataCaciques Home Payment Return Policy About us Contact us DC12V Car Time Delay Relay Module Trigger Delay On/Off Delay Switch Module Details Features 1.High quality shell, dustproof and flame retardant. 2.Car modification parts 3.Time optional, you can choose according to your needs. 4. Simple operation, can be timed to close automatically 5. Wide range of uses, such as exhaust fan, engine, cooling fan, lighting, navigation, media sound, door and window delay lifting and other automotive circuits power failure delay control Model: YS-RT1Q Specification of shell with hole: 63*35*22mm Bare board specification: 45*29*18mm Supply voltage: DC 12V Standby current: ≤10ma Working current: 68ma (current after the trigger switch is turned on) Control voltage at output: DC 0-14V , AC 0-125V Output control current: <11A Working temperature and humidity: -20℃ to 70℃, RH≤80%. Switch workflow: After energizing the switch, when ACC detects power, it starts to delay for 8 seconds and then the switch stays closed, so when ACC detects no power, it starts to delay for X, and then the switch disconnects when the time is up. (which 8 seconds for the fixed time users can not be modified, can be customized) Model: YS-RT1C Specification: 50x35x22mm Supply voltage: DC 12V Working current: 68ma (current after trigger switch on) Standby current: 10ma Control voltage at output: DC 0-14V , AC 0-125V Output control current: <11A Operating temperature: -20℃ to 70℃ Working Principle: After connecting the power to the device, the trigger port will provide voltage trigger, and the switch will be opened and closed automatically after a delay time. Model: YS-RT1K Shell with hole specifications: 63 * 35 * 22mm Bare board specification: 45*29*18mm Supply voltage: DC 12V Standby current: <3MA Operating current: 68ma (current after trigger switch on) Control voltage at output: DC 0-14V , AC 0-125V Output control current: <11A Operating temperature: -20℃ to 70℃ Working Principle: After powering on the device, the switch will turn on and after a delay time, the switch will turn off. Commonly used function: check whether the external power supply has power, as a trigger signal to control the lower level equipment. Model: YS-RT1T Specification: 50x35x22mm Supply voltage: DC 12V Working current: 68ma (current after the trigger switch is turned on) Control voltage at output: DC 0-14V , AC 0-125V Control current at output: <11A Operating temperature: -20℃ to 70℃ Working Principle: After connecting power to this device, the device will delay for a period of time and then turn on the output. Model: YS-RT1M Shell with hole specification: 63*35*22mm Bare board specification: 45*29*18mm Supply voltage: DC 12V Standby current: ≤10ma Working current: 68ma (current after the trigger switch is turned on) Control voltage at output: DC 0-14V , AC 0-125V Output control current: <11A Operating temperature: -20℃ to 70℃ List 1 x Car Power Relay Module Shipping Policy Payment Method Returns Policy Shipping Policy 1.We only ship to the confirmed address provided by eBay. please make sure your ebay address is 100% matches the address you would like us to ship to. If not, please let us know before we sent you the package, or we will not be responsible for any loss. hope you could understand. 2.Orders will be processed instantly and dispatched within 1-2 business days except hoilday, so we do NOT accept any email/message note after you place orders. 3.All package need to wait 30 days , Please take care it.Less than 30 days,we can't take a refund . Payment Method 1.We accept PayPal payment ONLY, and must be received within 5 days from the date of purchase. 2. It is easy and safe for you to pay by credit cards, debit cards, bank transfers and PayPal account balances. 3.Buyers are responsible for import duties,custom fees and taxes, if any, please check your country. Returns Policy 1.We believe our items are so outstanding. We are convinced you will be happy with your Purchase. 2. If you do not satisfy with our items. Please simply return to us within 30 Days in original condition. Just pay for the returned postage. Then we can issue full refund or resend the item to you after the returned item arrived at our warehouse. 3. Please include your eBay ID and item number with any email requests.
