DC12V Car Time Delay Relay Module Trigger Delay On/Off Switch Module -20℃ to 70℃
$ 5.04
Description

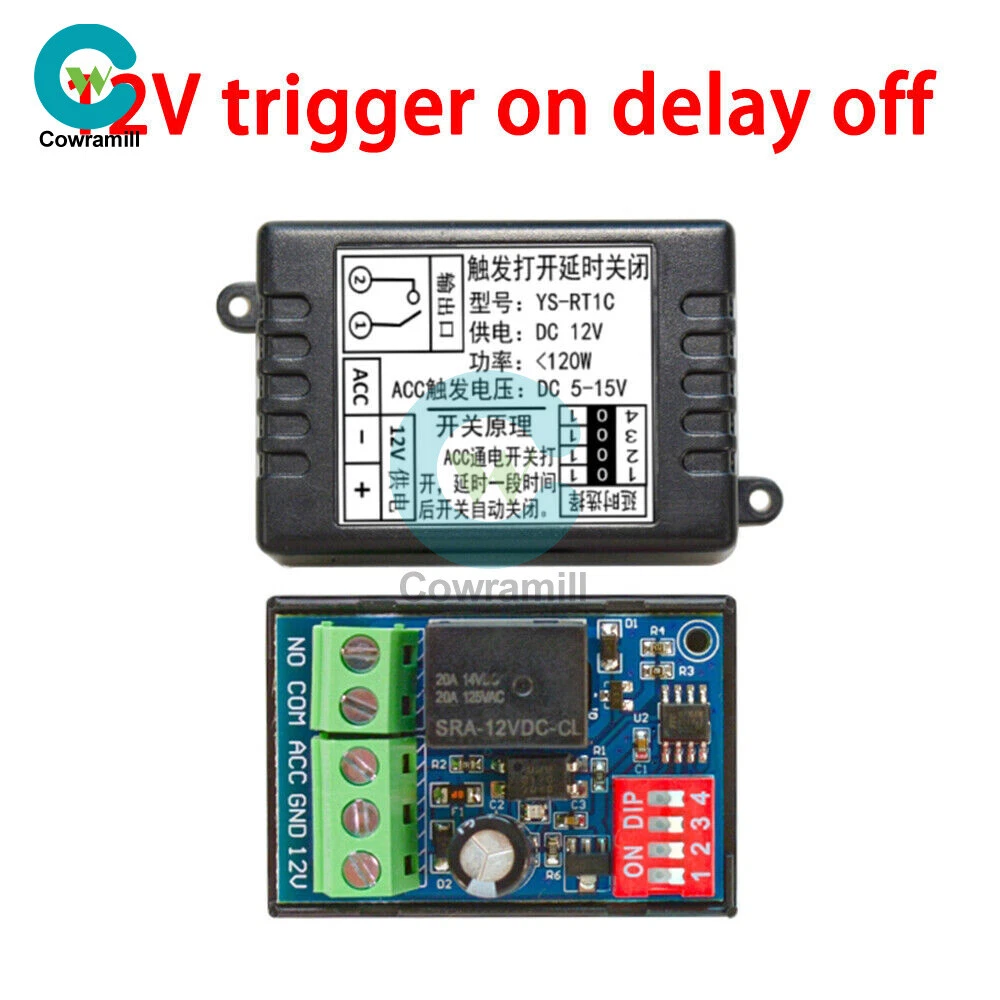

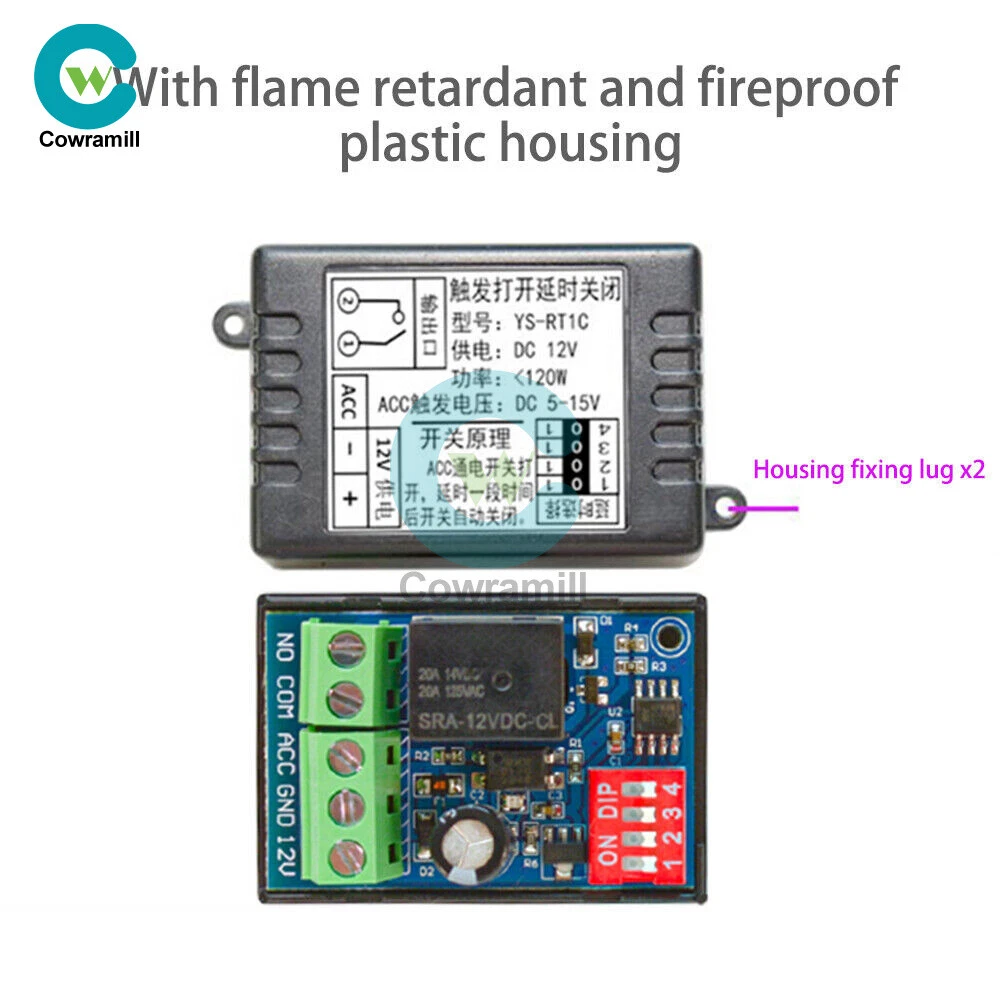

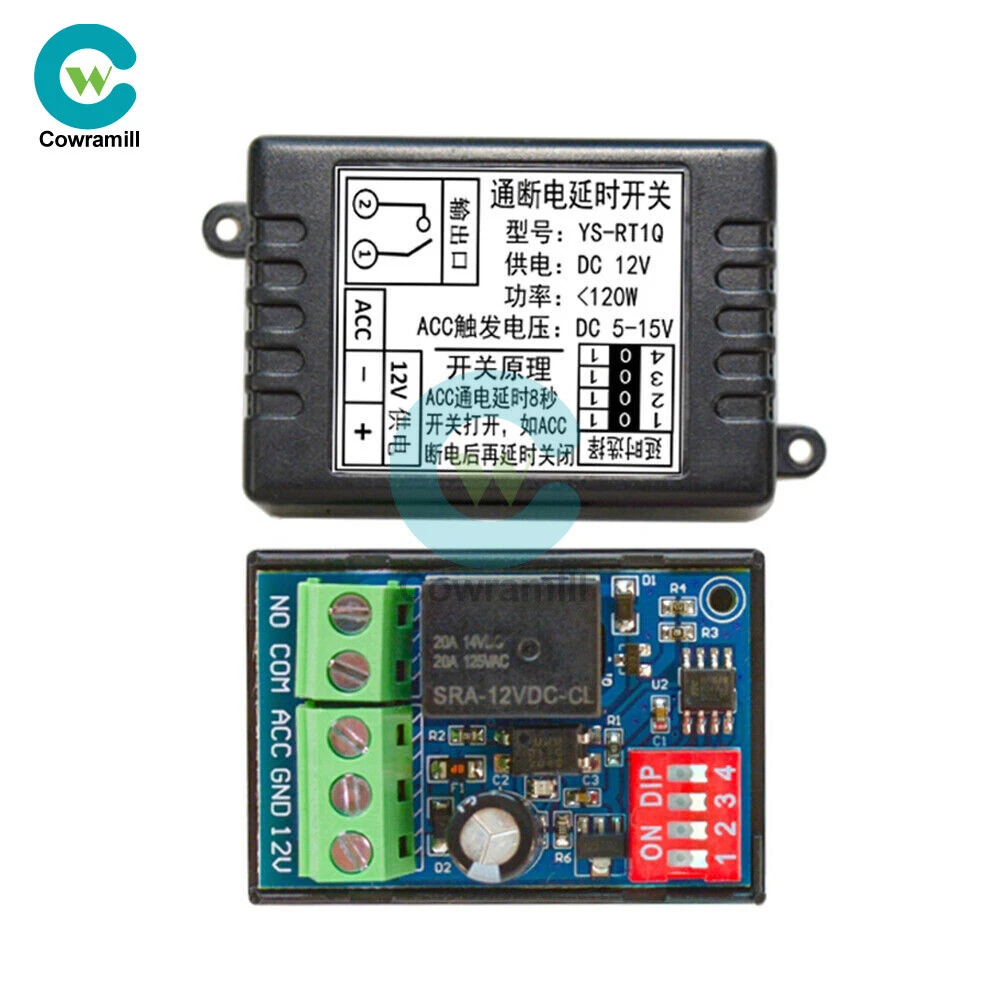

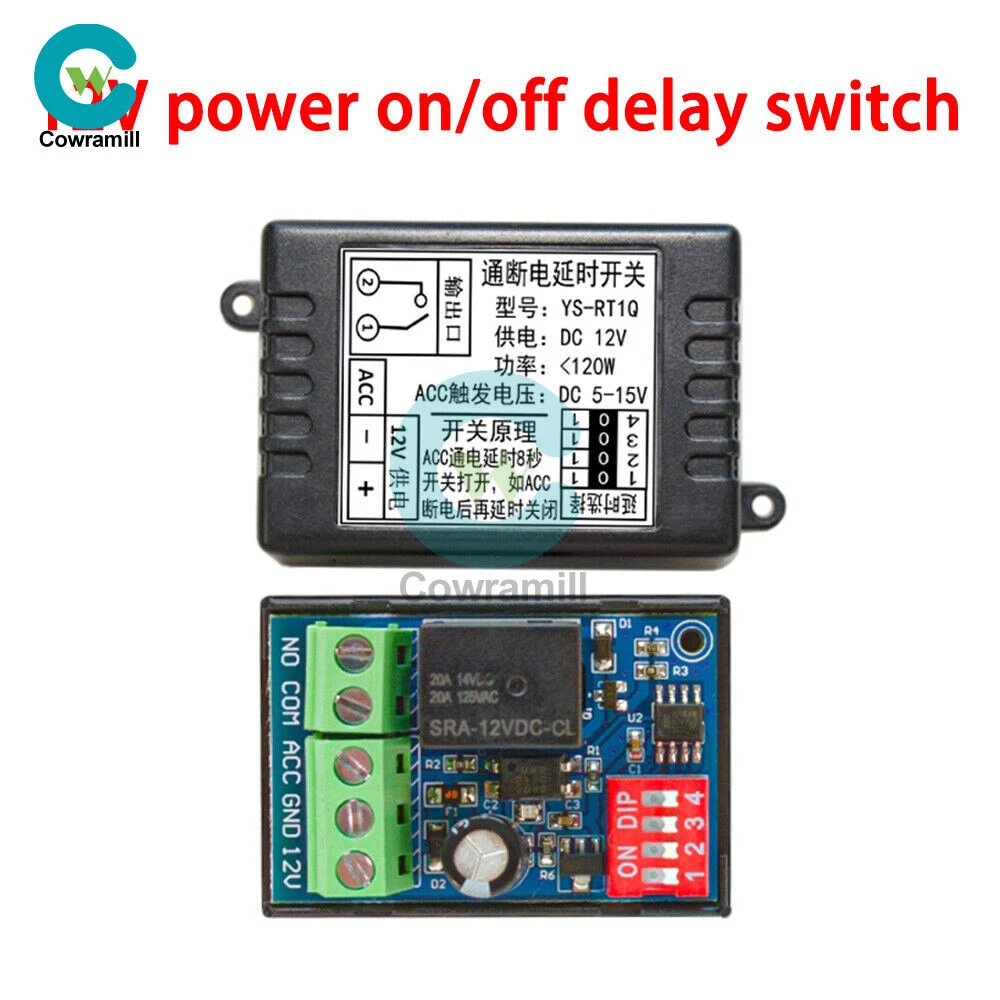

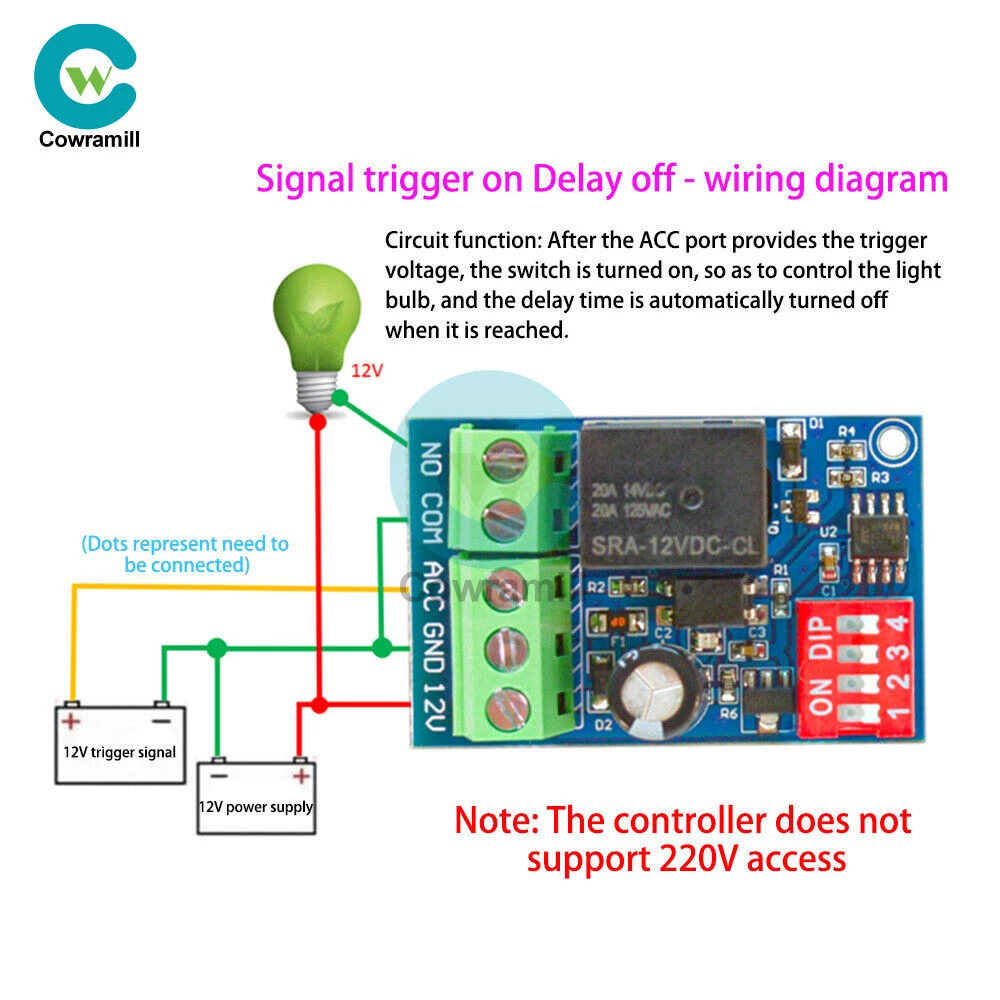

Visit store Items for sale About us Product Details Features 1.High quality shell, dustproof and flame retardant. 2.Car modification parts 3.Time optional, you can choose according to your needs. 4. Simple operation, can be timed to close automatically 5. Wide range of uses, such as exhaust fan, engine, cooling fan, lighting, navigation, media sound, door and window delay lifting and other automotive circuits power failure delay control Model: YS-RT1Q Specification of shell with hole: 63*35*22mm Bare board specification: 45*29*18mm Supply voltage: DC 12V Standby current: ≤10ma Working current: 68ma (current after the trigger switch is turned on) Control voltage at output: DC 0-14V , AC 0-125V Output control current: <11A Working temperature and humidity: -20℃ to 70℃, RH≤80%. Switch workflow: After energizing the switch, when ACC detects power, it starts to delay for 8 seconds and then the switch stays closed, so when ACC detects no power, it starts to delay for X, and then the switch disconnects when the time is up. (which 8 seconds for the fixed time users can not be modified, can be customized) Model: YS-RT1C Specification: 50x35x22mm Supply voltage: DC 12V Working current: 68ma (current after trigger switch on) Standby current: 10ma Control voltage at output: DC 0-14V , AC 0-125V Output control current: <11A Operating temperature: -20℃ to 70℃ Working Principle: After connecting the power to the device, the trigger port will provide voltage trigger, and the switch will be opened and closed automatically after a delay time. Model: YS-RT1K Shell with hole specifications: 63 * 35 * 22mm Bare board specification: 45*29*18mm Supply voltage: DC 12V Standby current: <3MA Operating current: 68ma (current after trigger switch on) Control voltage at output: DC 0-14V , AC 0-125V Output control current: <11A Operating temperature: -20℃ to 70℃ Working Principle: After powering on the device, the switch will turn on and after a delay time, the switch will turn off. Commonly used function: check whether the external power supply has power, as a trigger signal to control the lower level equipment. Model: YS-RT1T Specification: 50x35x22mm Supply voltage: DC 12V Working current: 68ma (current after the trigger switch is turned on) Control voltage at output: DC 0-14V , AC 0-125V Control current at output: <11A Operating temperature: -20℃ to 70℃ Working Principle: After connecting power to this device, the device will delay for a period of time and then turn on the output. Model: YS-RT1M Shell with hole specification: 63*35*22mm Bare board specification: 45*29*18mm Supply voltage: DC 12V Standby current: ≤10ma Working current: 68ma (current after the trigger switch is turned on) Control voltage at output: DC 0-14V , AC 0-125V Output control current: <11A Operating temperature: -20℃ to 70℃ List 1 x Car Power Relay Module Payment Method Shipping Policy Feedback Payment Method Payment must be received in 5 business days of auction closing. Please leave note for your special request (e.g. Colors or Size) when you pay the order. Any special request cannot be accepted after 24 hours of payment, because most of orders will be processed instantly and same day dispatched. Shipping Policy 1. We only ship to the confirmed address provided by eBay. please make sure your ebay address is 100% matches the address you would like us to ship to. If not, please let us know before we sent you the package, or we will not be responsible for any loss. hope you could understand. 2. Orders will be processed instantly and dispatched within 1-3 business days except hoilday, so we do NOT accept any email/message note after you place orders. 3. All package need to wait 30 days,Please take care it.Less than 30 days,we can't take a refund. Feedback We maintain high standards of excellence and strive for 100% customer satisfaction! Feedback is very important to us. We request that you keep in touch with us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns.
