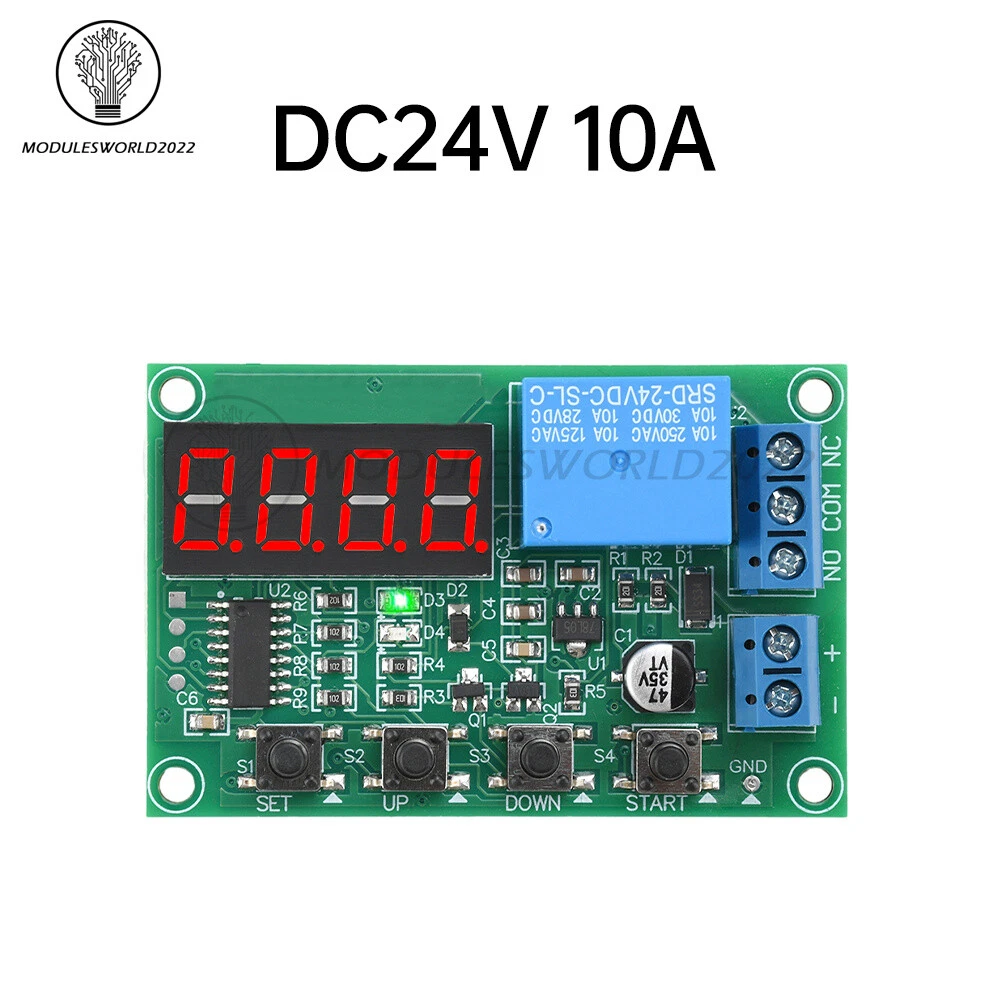

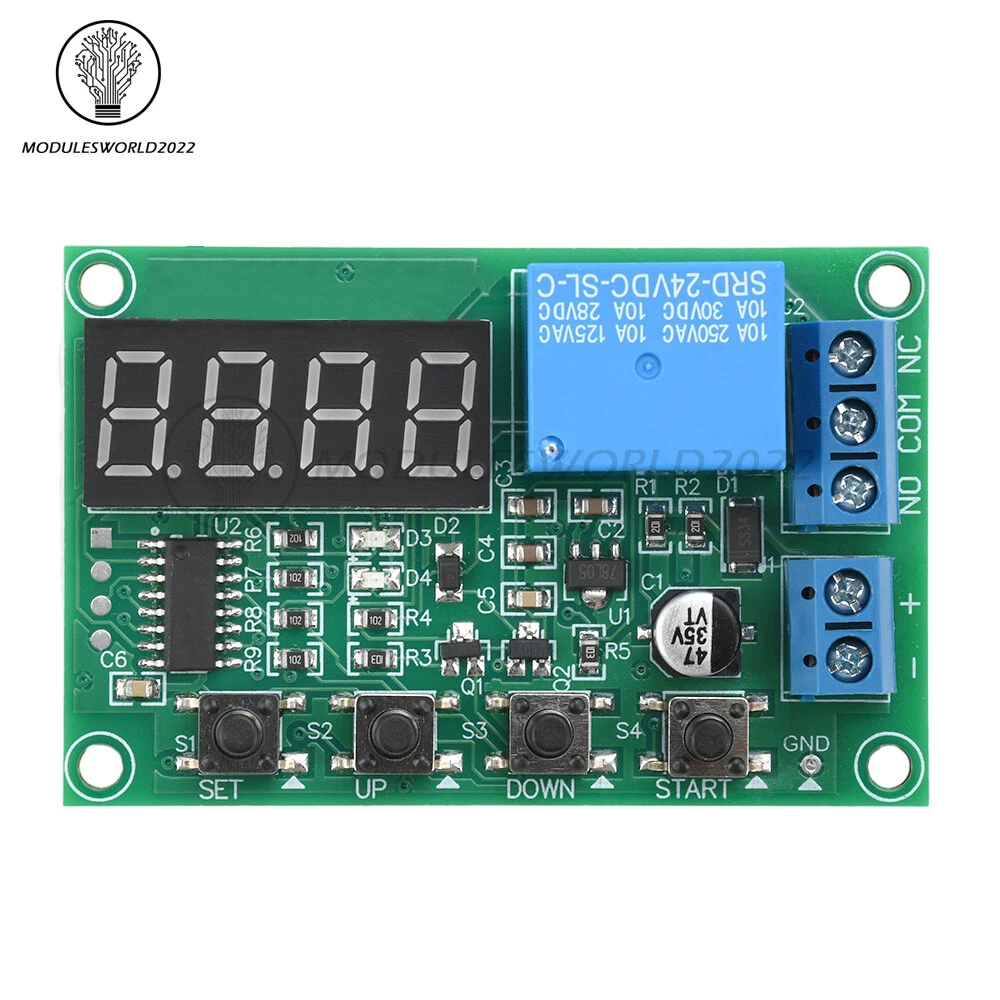

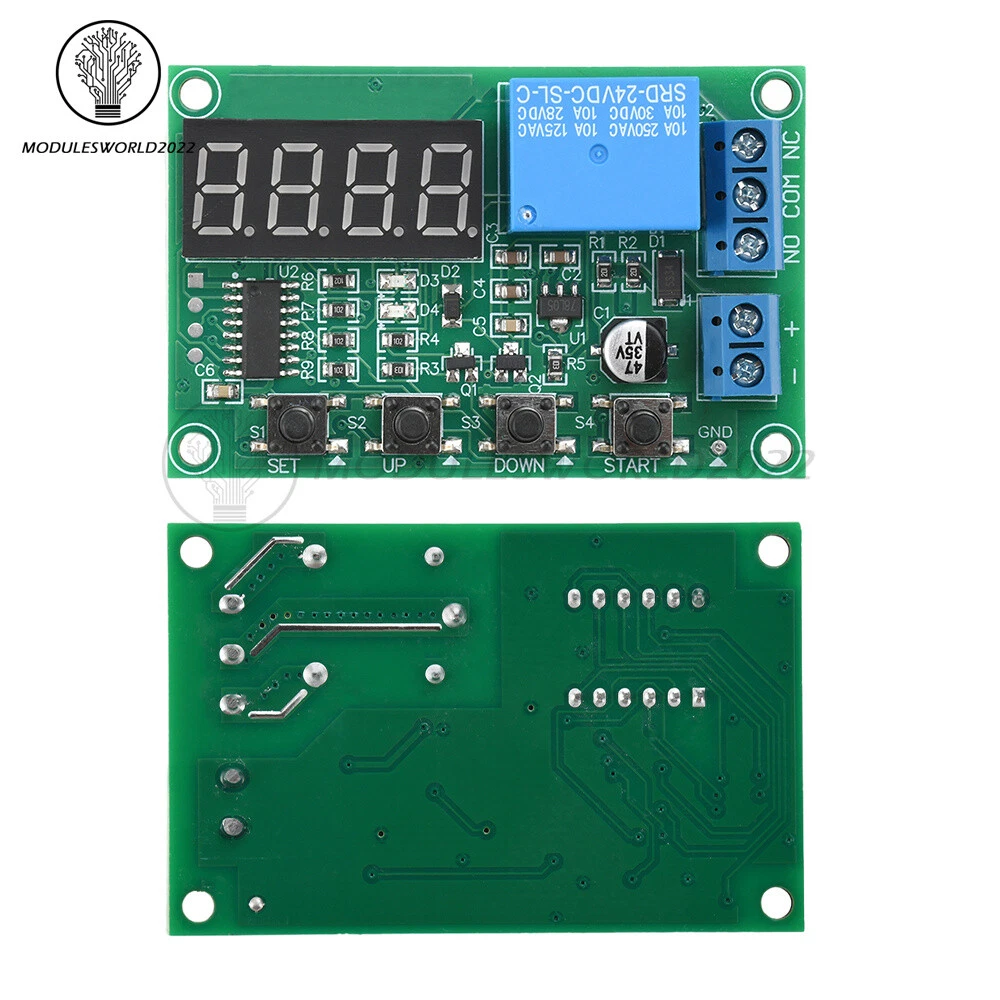

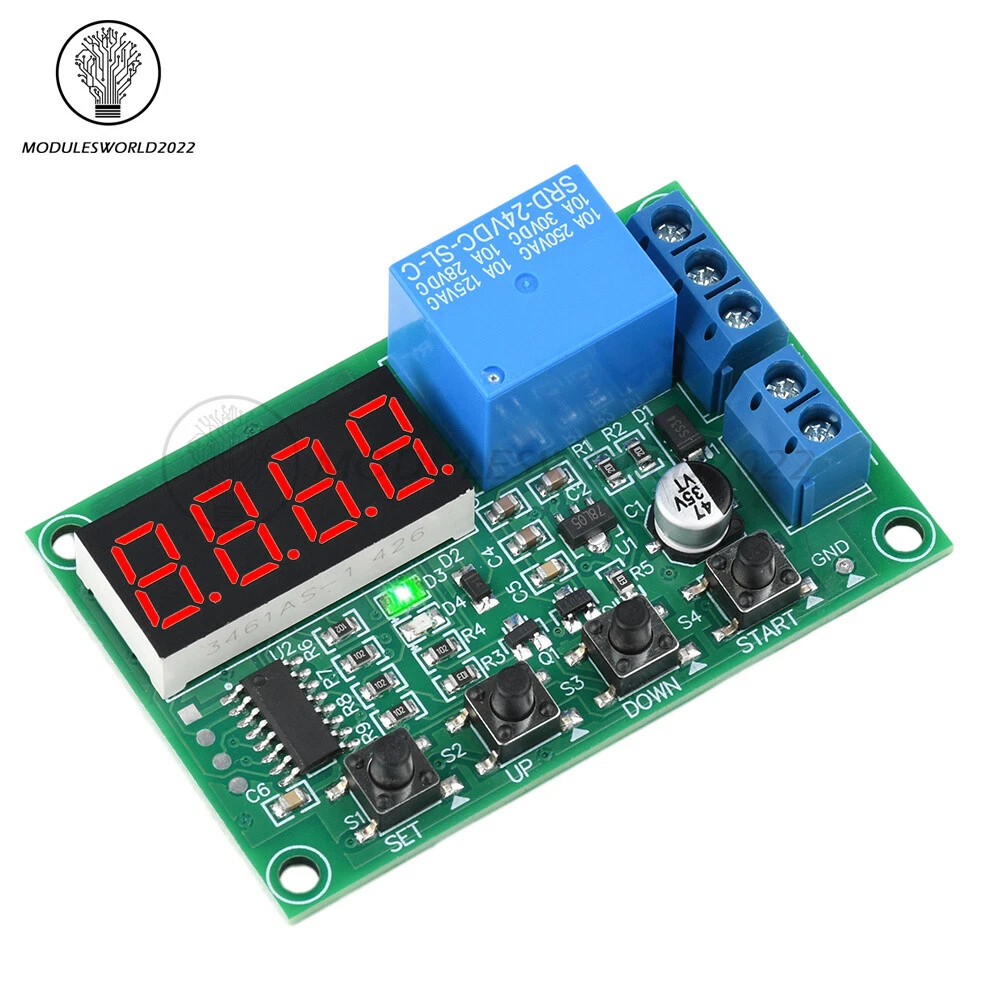

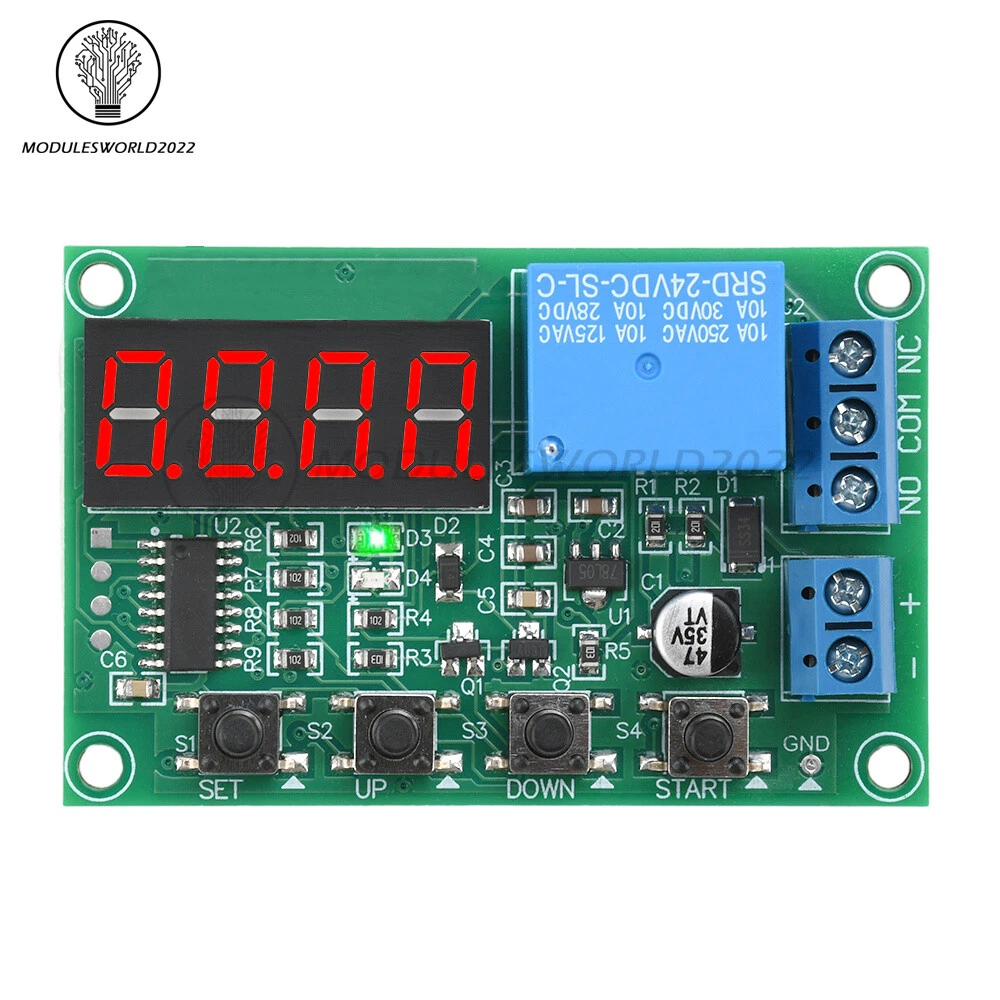

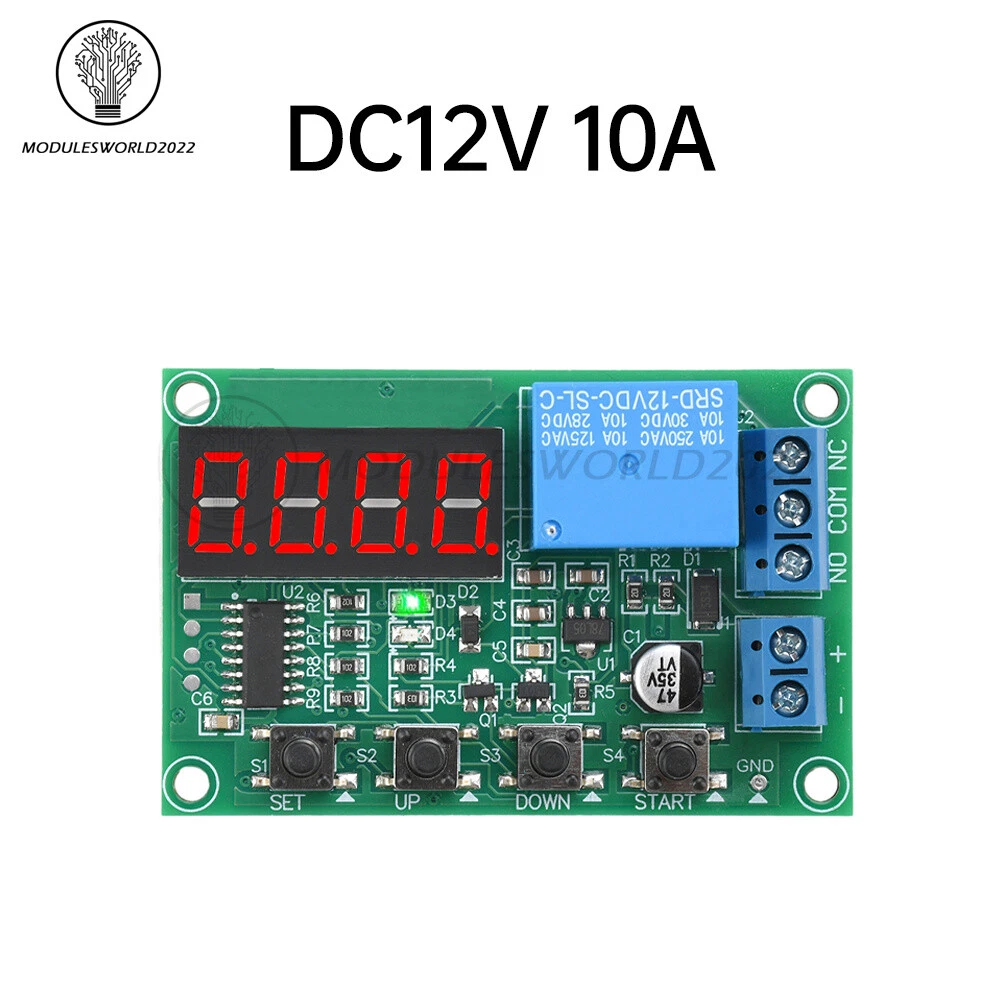

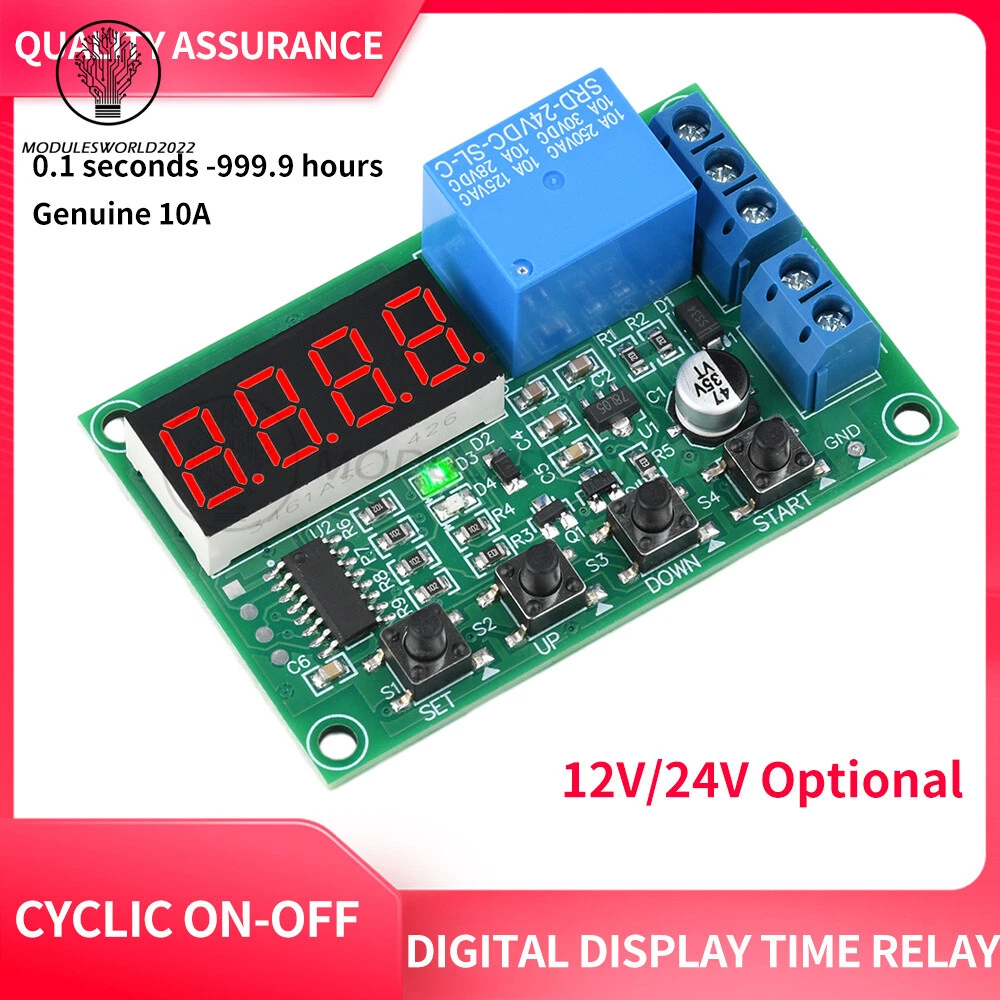

DC12V/24V 10A Cycle On/off Timer Delay Switch 4-bit Digital Time Relay Module
$ 2.11
Description

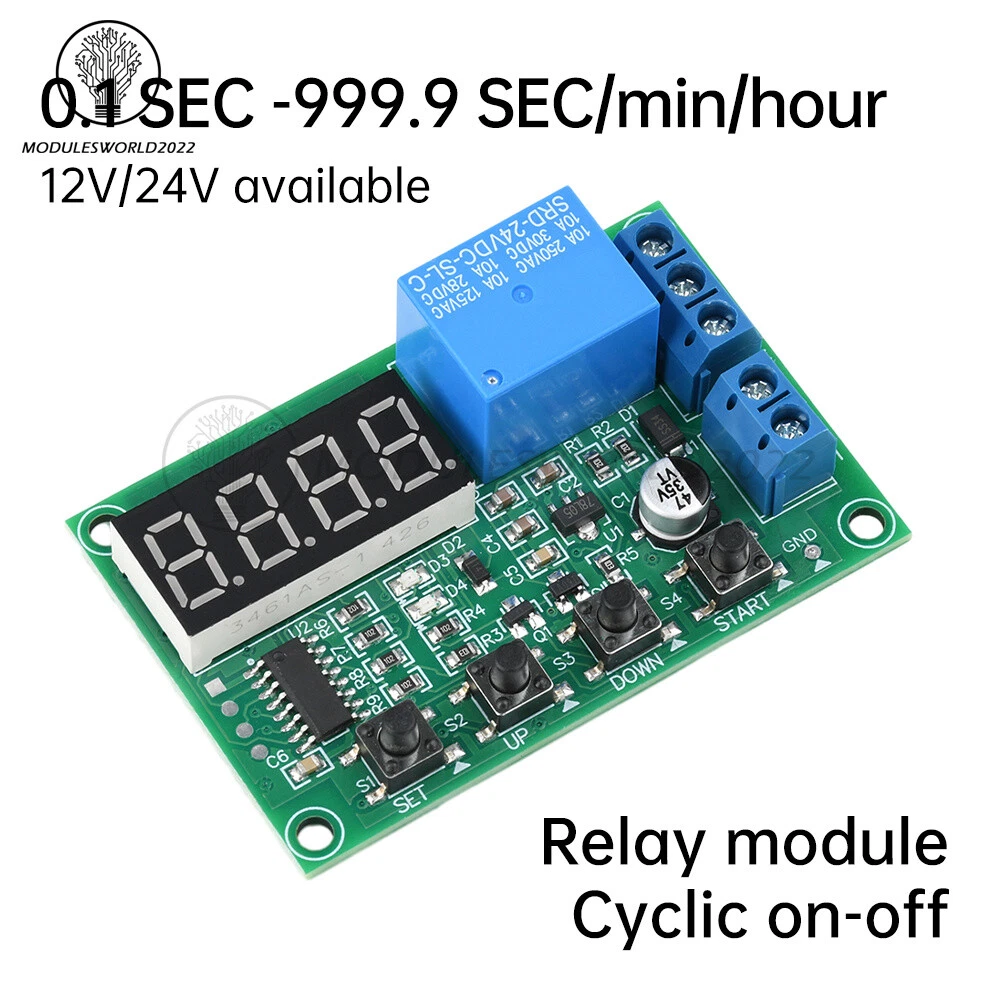

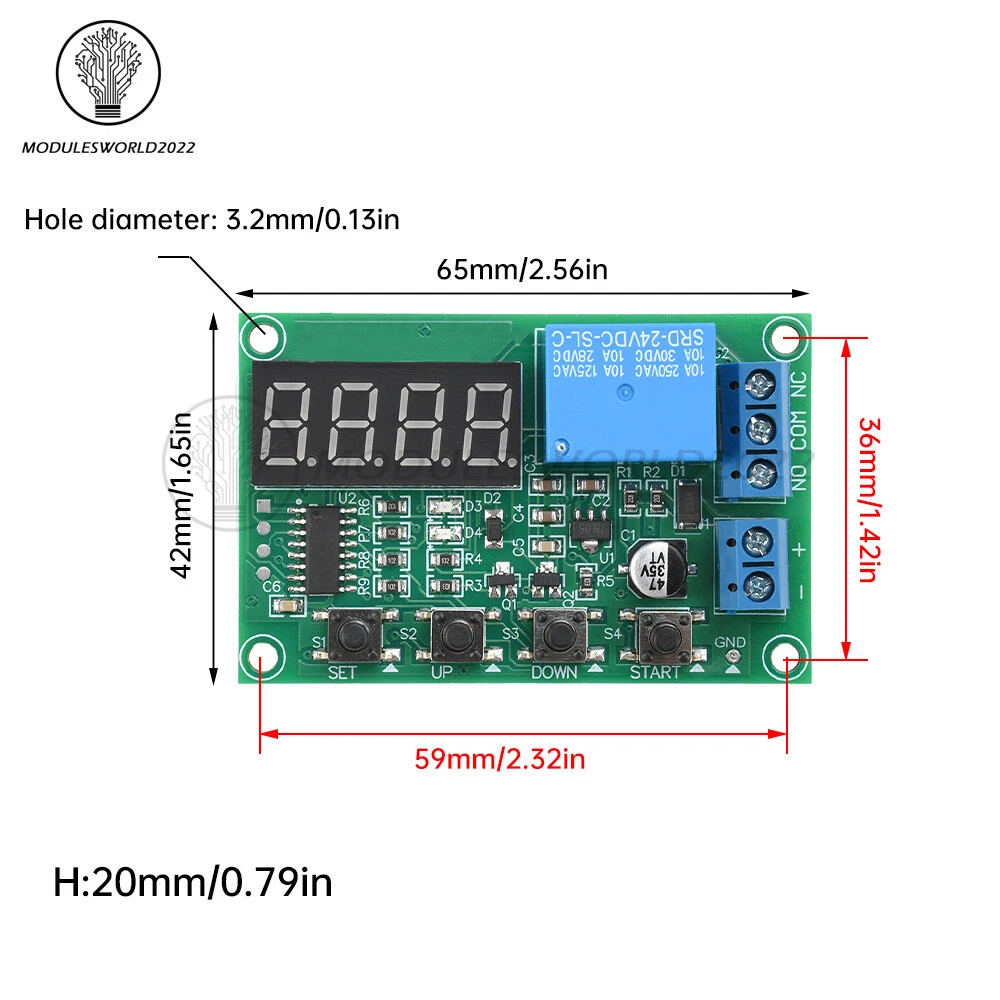

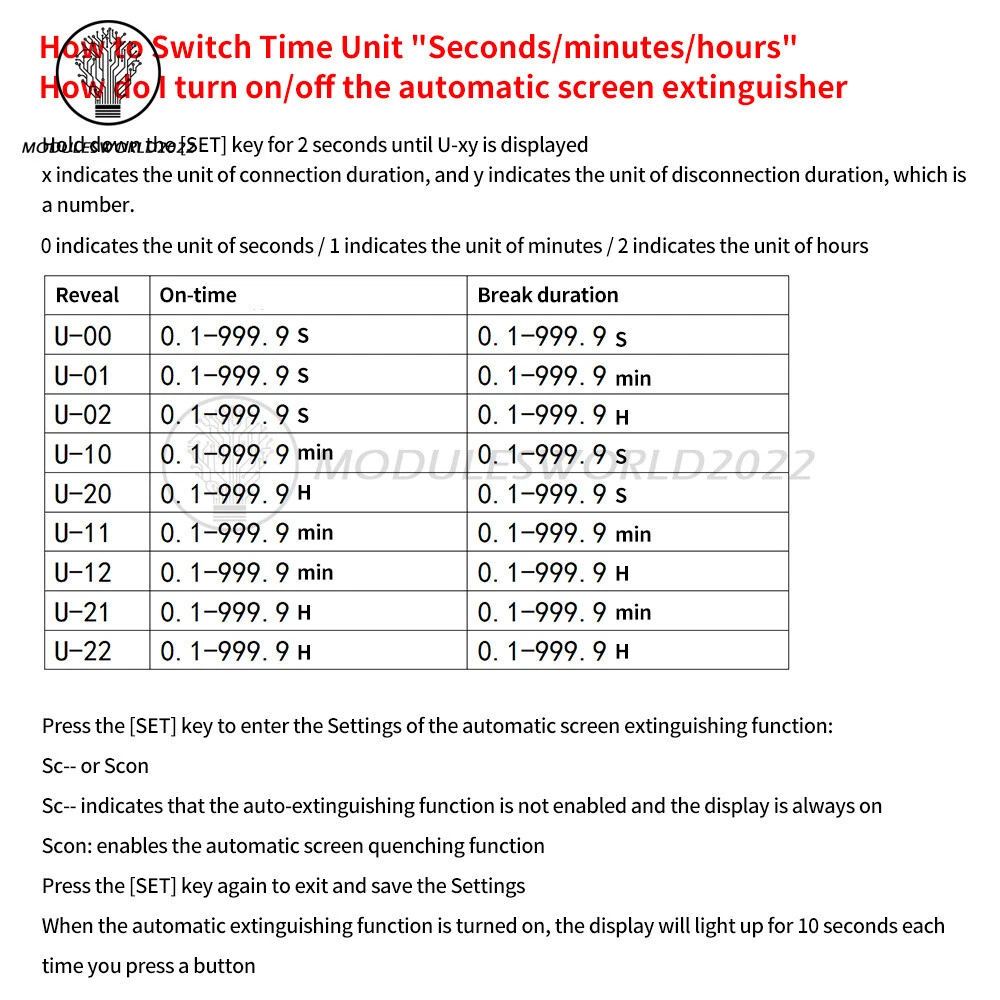

Store Categories Store Categories Other Product View Details Features 1. Cyclic on/off control: support intermittent working mode, suitable for timed start/stop application. 2. Wide voltage input: 12V/24V optional, adapting to different power supply environments. 3. High-precision time setting: 0.1sec-999.9sec, time error ±1%, precise control. 4. low power consumption design: standby current as low as 6mA (screen off), 19mA (screen on), energy saving and environmental protection. 5. Wide temperature working range: -40℃~85℃, adapting to various harsh working conditions. Specification Name: Cyclic On/Off Digital Time Relay Function: Cyclic on-off / intermittent work Application: industrial equipment control, electrical control, car modification Voltage: 12V and 24V selectable Standby current: 6mA (off screen), 19mA (on screen) Output mode: passive (switching), a group of normally open + normally closed Output capacity: 10A (within 3OVDC or 250Vac) Switching time: about 10mS Time range: 0.1sec-999.9sec, (unit can be switched minutes/hours) Time Error: ±1% Display colour: red (0.36 inch 4 digits) Relay life: more than 100,000 times (10A current) Display height: 7.2mm (from board surface) Button height: 7.0mm (from board surface) Operating Environment: -40°C~85°C Operating temperature: 95%RH without condensation Dimensions: 65x42x20 (mm) Mounting holes: 59x36 centres, 3.2(mm) diameter Terminal Description. + Positive terminal of power supply - Negative terminal of power supply NO Normally open relay contact NC Normally closed relay contact COM Relay common contact Package Includes 1 x Relay Module Shipping Policy Payment Method Returns Policy Shipping Policy Payment Method Returns Policy Home Payment Shipping About us Contact us Copyright©2018 datacaciques Home Payment Shipping About us Contact us Store Categories Store Categories Other Product View Details Features 1. Cyclic on/off control: support intermittent working mode, suitable for timed start/stop application. 2. Wide voltage input: 12V/24V optional, adapting to different power supply environments. 3. High-precision time setting: 0.1sec-999.9sec, time error ±1%, precise control. 4. low power consumption design: standby current as low as 6mA (screen off), 19mA (screen on), energy saving and environmental protection. 5. Wide temperature working range: -40℃~85℃, adapting to various harsh working conditions. Specification Name: Cyclic On/Off Digital Time Relay Function: Cyclic on-off / intermittent work Application: industrial equipment control, electrical control, car modification Voltage: 12V and 24V selectable Standby current: 6mA (off screen), 19mA (on screen) Output mode: passive (switching), a group of normally open + normally closed Output capacity: 10A (within 3OVDC or 250Vac) Switching time: about 10mS Time range: 0.1sec-999.9sec, (unit can be switched minutes/hours) Time Error: ±1% Display colour: red (0.36 inch 4 digits) Relay life: more than 100,000 times (10A current) Display height: 7.2mm (from board surface) Button height: 7.0mm (from board surface) Operating Environment: -40°C~85°C Operating temperature: 95%RH without condensation Dimensions: 65x42x20 (mm) Mounting holes: 59x36 centres, 3.2(mm) diameter Terminal Description. + Positive terminal of power supply - Negative terminal of power supply NO Normally open relay contact NC Normally closed relay contact COM Relay common contact Package Includes 1 x Relay Module Shipping Policy Payment Method Returns Policy Shipping Policy We will arrange shipping for you within 24 Hours after payment cleared except the holidays. -We ship items to Worldwide. Thank you! -we will ship out the order in 1-2 business days after payment cleared .Since it is international shipping ,delivery time is about 15--28 business days to arrive to most countries. Payment Method We accept PayPal payment ONLY, and must be received within 5 days from the date of purchase. 2. It is easy and safe for you to pay by credit cards, debit cards, bank transfers and PayPal account balances. 3.Buyers are responsible for import duties,custom fees and taxes, if any, please check your country. Returns Policy 1.We believe our items are so outstanding. We are convinced you will be happy with your Purchase. 2. If you do not satisfy with our items. Please simply return to us within 30 Days in original condition. Just pay for the returned postage. Then we can issue full refund or resend the item to you after the returned item arrived at our warehouse. 3. Please include your eBay ID and item number with any email requests.
