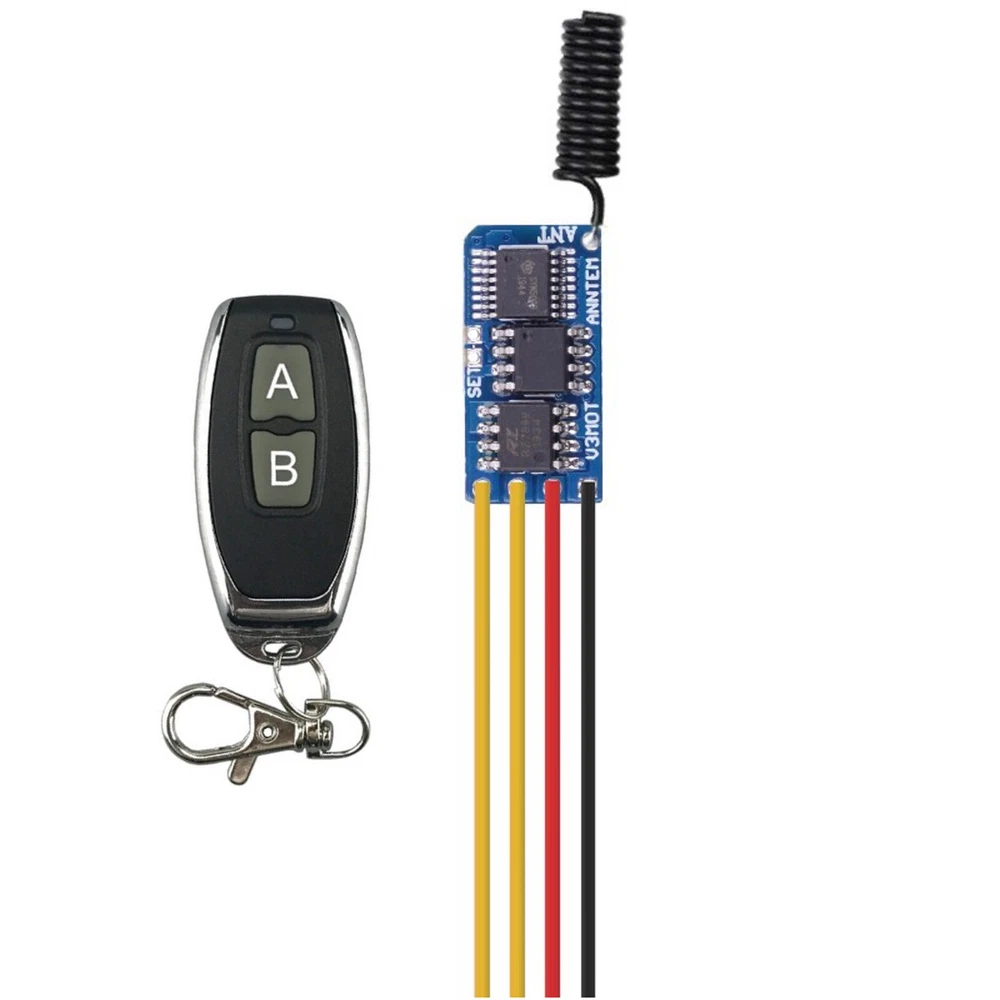

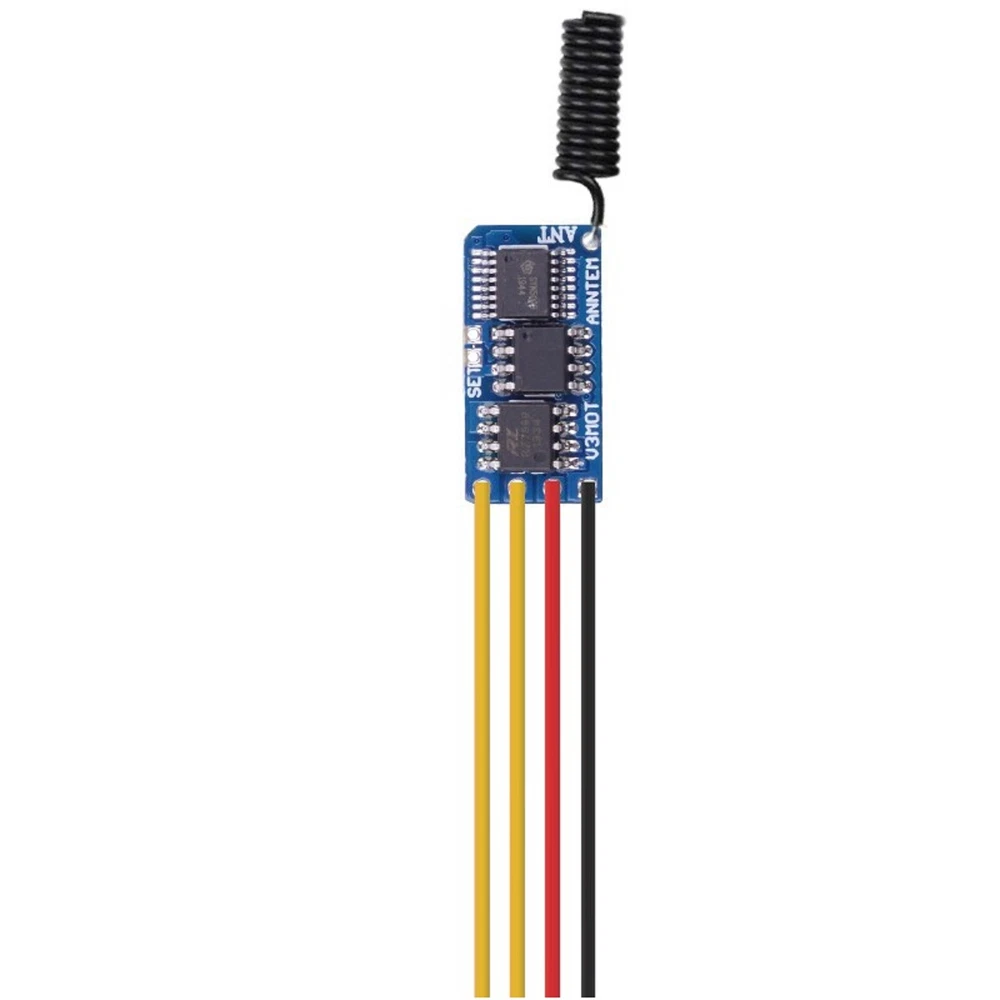

DC3.7-12V 433mhz RF Wireless Receiver Remote Control Transmitter DIY Module A
$ 8.82
Description

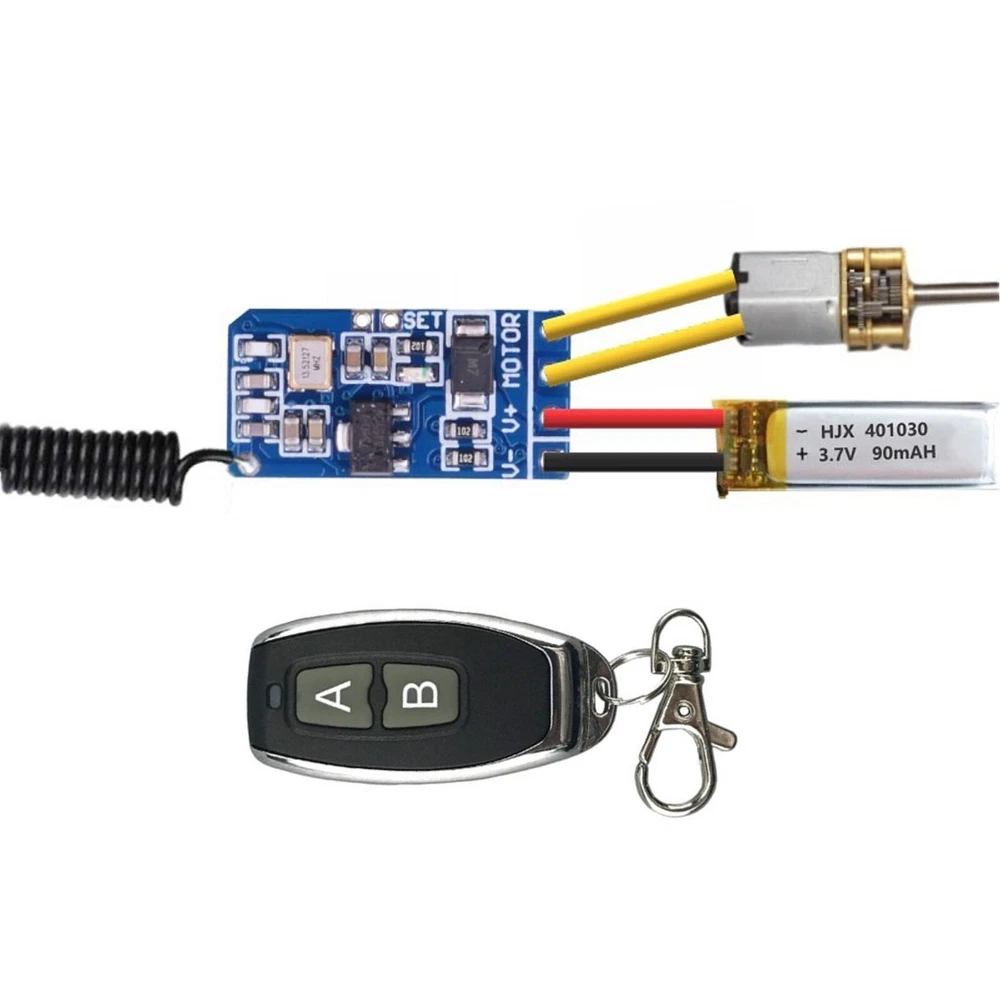

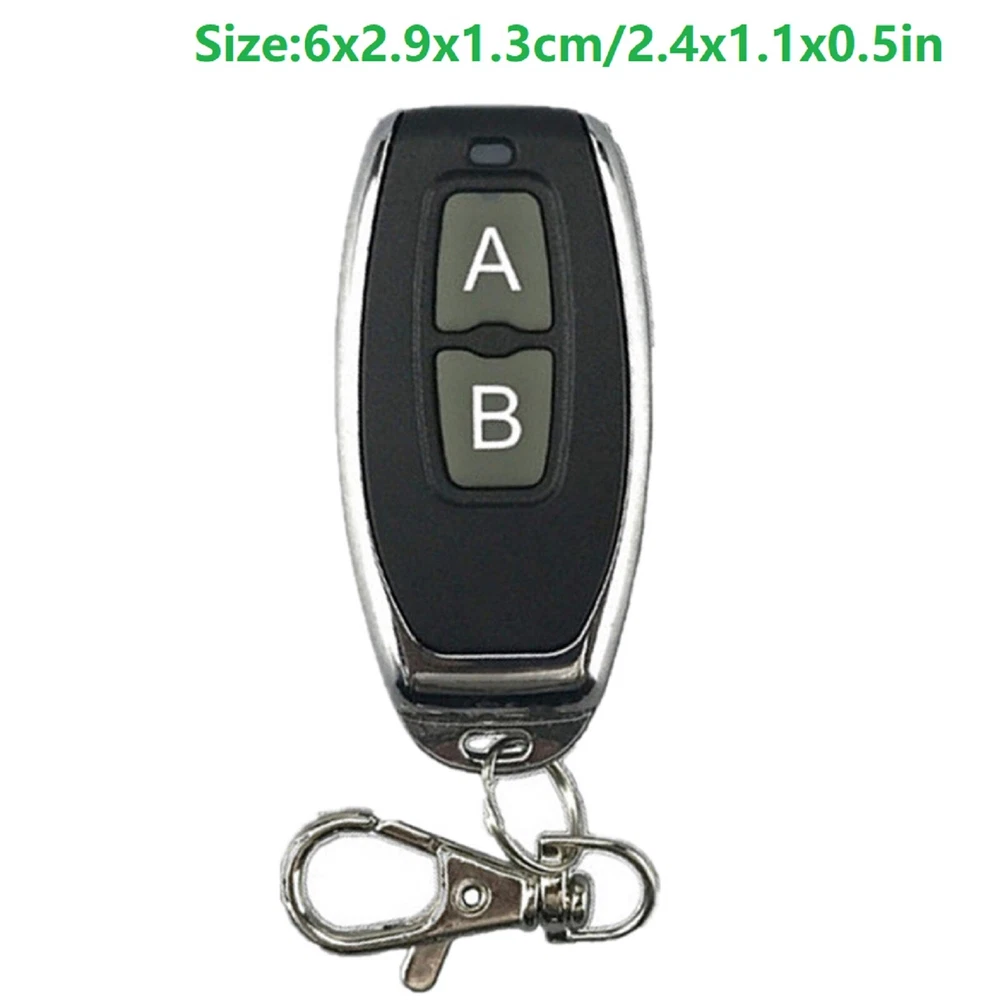

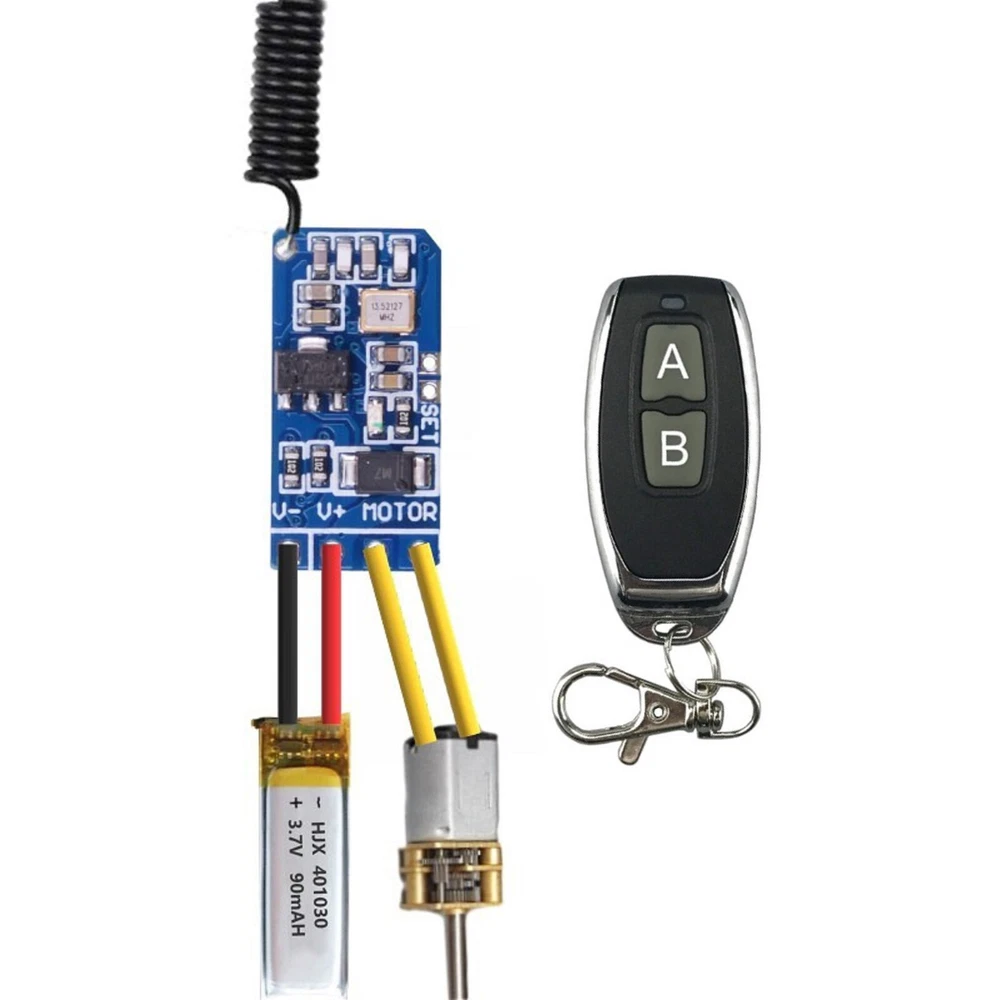

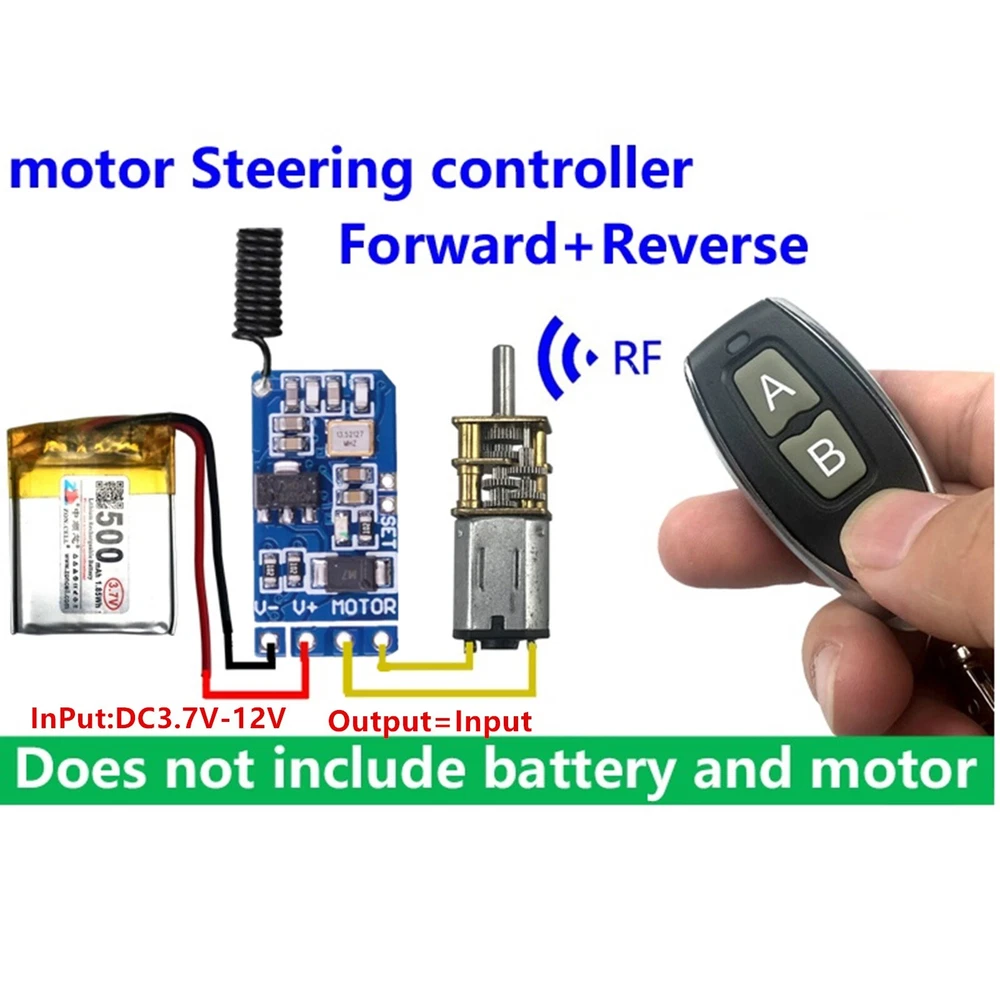

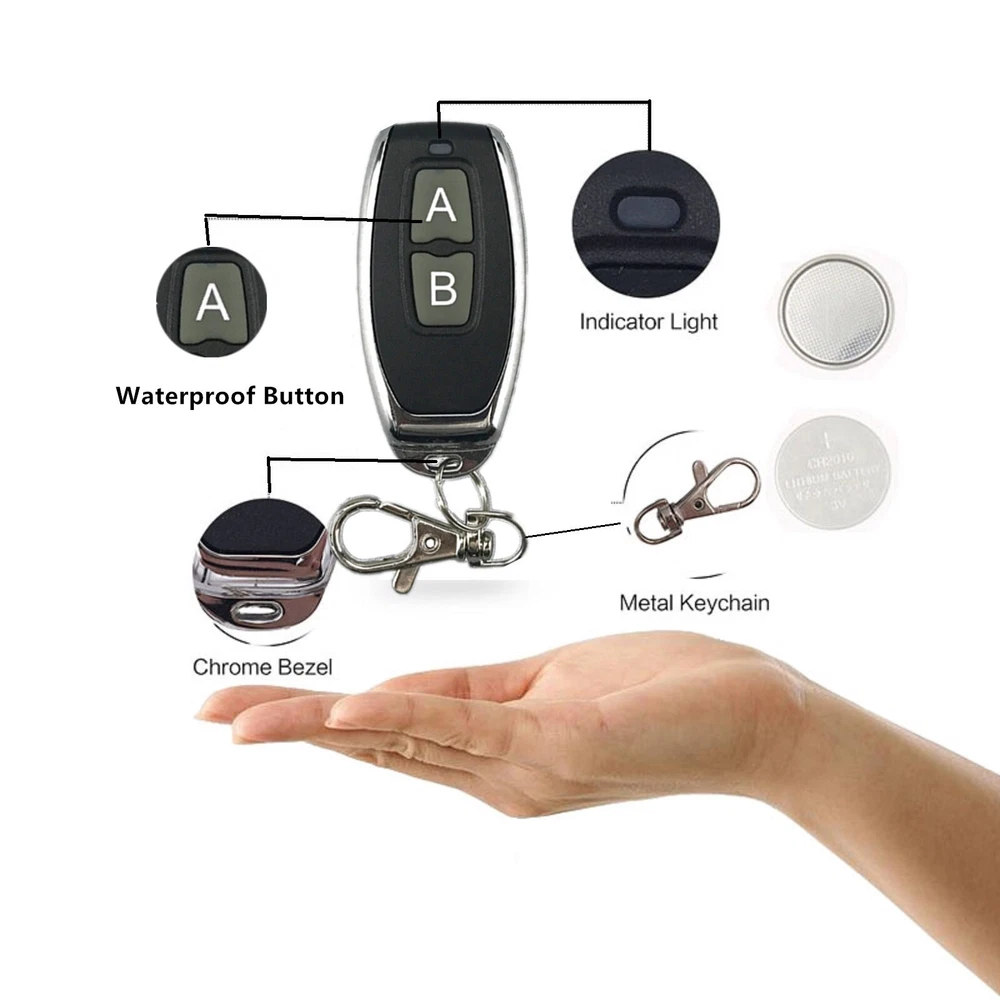

SAFE & SECURE SHOPPING 100% SATISFACTION GUARANTEED FAST SHIPPING Store Categories Store Categories You may also like DC3.7-12V 433mhz RF Wireless Receiver Remote Control Transmitter DIY Module A Product Description Wireless remote control switch 433mhz rf transmitter receiver 3.7v 4.5v 9v 12v motor Forward Reverse steering Controller module Specifications: Size: 21*11*5mm Input voltage: DC3.7-12V Output voltage: DC3.7-12V Frequency: 433.92MHz Standby current: 0.2MA Maximum load current: less than 0.4A (less than 4 watts of equipment),Suggested load less than 0.2A Working current: 6MA Output voltage: Consistent with the Input supply voltage Remote control battery: 2 x CR2016 Batteries(InCluded) Remote control distance: <=20m Feature: Remote distance receiving, has stable performance, good signal and sensitive response. It can be controlled remotely, making work smarter and more convenient. Ultra low standby current, it is suitable for battery-powered, when it is standby will automatically enter the low-power sleep state, please press the remote control button hold for 0.5 seconds or more) The receiver itself with overcurrent protection,when the current exceeds the rated current,will be entered into turn off power protection,such as the motor to start or block the current is doubled,beyond the rated current will be flash Controller indicator: Momentary - Press and hold the up button to rotate forward, release to stop,Press and hold the down button to reverse and release to stop Delay for 5 seconds - Press and hold the up button to rotate forward, stop 5 seconds after releasing the hand, press and hold the down button to reverse, and stop 5 seconds after releasing the hand, Instruction Manual: 1. Clearing Code: PRESS the Learning Button,until the receiver guidance indicator light does not light up,it mean Clearing Code 2. Learning Code: PRESS the Learning Button,The receiver Led indicator ON.Press remote button A 1 time,Led indicator flash for 1 times, Then Press remote button B 1 time,Led indicator flash for 1 times again,it mean learning successfully Package Includes: 1x DC3.7-12V Wireless Receiver 1x Remote control Note: *For your convenience, the remote control and receiver have been paired *it is the world's smallest motor controller, the motor's voltage and current goes through the receiver,before your purchase .please measure your motor exact working voltage and Current .thank you for your cooperation. *Don't operate control buttons rapidly and frequently , because the controller is controlled by microprocessor , each operation state will response in 1second. *If discover the LED lights darken or remote distance shorter, please replace the battery. Shipping Returns Contact Us Payment Shipping 1. Items sent from US warehouse. 2.Receiving time = Processing time + Shipping time 3. Processing Time: Around 1-2 business Days 4. Shipping Time: 3-5 business day it may have a little delay during some holiday (such as Christmas),any problem ,please feel free to contact Returns 1. 30 days warranty from the purchased date. Please contact us via email before returning the defective item. 2.Our warranty does not extended to any product that are physically damaged or that are not under normal operating conditions as result of misuse or improper installation on the buyer/user's part. 3.Return items should include the original packaging and all accessories. buyers MUST contact us for the returning address. 4.In all cases, buyers pay shipping fees at their own cost to return products for exchange or refund. We will be responsible for the postage of replacements. Refund will be made upon receipt of the returned item. Contact Us Pls contact us if you have any problems,we will try our best to solve for you Payment We accept all verified payment from eBay. Copyright © 2022 Tongtool
