Dahua 4CH Penta-brid 4K 5MP IoT&POS 1U 1SSD HDCVI AHD TVI CVBS XVR5104HS-4KL-I3
$ 141.51
Description

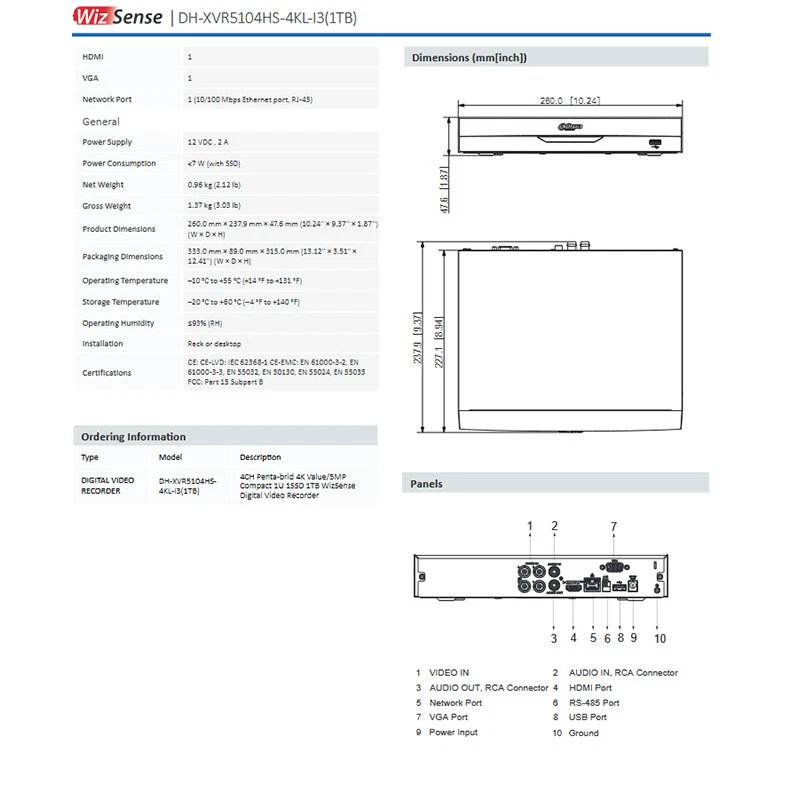

Dahua 4CH Penta-brid 4K 5MP IoT&POS 1U 1SSD HDCVI AHD TVI CVBS XVR5104HS-4KL-I3 Note: Original Dahua worldwide English version and upgradeable. Features: 4CH Penta-brid 4K Value/5MP Compact 1U 1SSD 1TB WizSense Digital Video Recorder * The information below only applies to hardware version 3.0 of the product > Comes with an internal 1TB SSD, and can record videos for about 18 days. > 4-channel SMD Plus for analog channels which allows the device to trigger accurate alarms for humans and vehicles. > 4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI. > 2-channel face recognition for analog channels which supports face comparison. > 4-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos. > Supports HDCVI, AHD, TVI, CVBS and IP video input. > Supports up to 8-channel IP camera input and each channel can be up to 8 MP. The incoming bandwidth reaches 64 Mbps. > Smart H.265+ and Smart H.265 dual-stream video compression. > IoT and POS capabilities. Specifications: System Main Processor Industrial-grade processor Operating System Embedded Linux Operating Interface Web; Local GUI Perimeter Protection Perimeter Performance AI by Recorder (Number of Channels) Advanced Model: 2 channels, 10 IVS rules for each channel General Model: 4 channels, 10 IVS rules for each channel Face Detection Face Attributes 6 attributes Face Detection Performance of AI by Recorder (Number of Channels) 2 channels (up to 8 face images/s each channel) Face Recognition Face Database Capacity Up to 10 face databases with 20,000 face images in total. Face Recognition Performance of AI by Recorder (Number of Channels) 2 channels SMD Plus SMD Plus by Recorder 4 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change Audio and Video Analog Camera Input 4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect Camera Input 1. CVI: 4K@25/30 fps; 6 MP@20 fps; 5 MP@20 fps; 5 MP@25 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps. 2. TVI: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps. 3. AHD: 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps IP Camera Input Up to 8 channels of IPC access 4 IP channels by default + 4 channels (analog channels are converted to IP channels) incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps *After IP extension is enabled, the AI Function (IVS, SMD, FACE) will be disabled. Encoding Capacity Main stream: 4K@(1 fps-7 fps); 6 MP@(1 fps-10 fps); 5 MP@(1 fps-12 fps); 4K-N, 4 MP, 3 MP@(1 fps-15 fps); 4M-N, 1080p, 720p, 960H, D1,CIF@(1 fps–25/30 fps); Sub stream: 960H@(1 fps–15 fps); D1/CIF@(1 fps–25/30 fps) Dual-stream Yes Video Bit Rate 32 kbps–6144 kbps Audio Sampling 8 kHz, 16 bit Audio Bit Rate 64 kbps Video Output 1 HDMI, 1 VGA HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 *Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable Multi-screen Display When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/8/9 Third-party Camera Access ONVIF; Panasonic; Sony; Axis; Arecont; Samsung Compression Standard Video Compression AI Coding; Smart H.265+; H.265; Smart H.264+; H.264 Audio Compression G.711a; G.711u; PCM Network Network Protocol HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) Mobile Phone Access iOS; Android Interoperability ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK Browser Chrome; Firefox; IE Network Mode Single-address mode Recording Playback Record Mode General; motion detection; intelligent; alarm; POS Recording Playback 1/4 Backup Method USB device and network Playback Mode Instant playback; general playback; event playback; tag playback; smart playback (face and motion detection) Alarm General Alarm Motion detection; alarm box; camera external alarm; network alarm; PIR alarm Anomaly Alarm Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict) ;video loss; video tampering; camera offline Intelligent Alarm Face detection; face recognition; perimeter protection Alarm Linkage Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log, preset; email Ports Audio Input 1-channel RCA 4-channel BNC (Coaxial Audio) Audio Output 1-channel RCA Two-way Talk Yes (share the same audio input with the first channel) HDD Interface 1 SSD:1TB(replaceable with 256 GB or 512 GB) Stores for 18 days under default settings. RS-485 1 port, for PTZ control USB 2 (1 front USB 2.0 port, 1 rear USB 2.0 port) HDMI 1 VGA 1 Network Port 1 (10/100 Mbps Ethernet port, RJ-45) General Power Supply 12 VDC , 2 A Power Consumption <7 W (with SSD) Net Weight 0.96 kg (2.12 lb) Gross Weight 1.37 kg (3.03 lb) Product Dimensions 260.0 mm × 237.9 mm × 47.6 mm (10.24'' × 9.37'' × 1.87'') (W × D × H) Packaging Dimensions 333.0 mm × 89.0 mm × 315.0 mm (13.12'' × 3.51'' × 12.41'') (W × D × H) Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F) Storage Temperature –20 °C to +60 °C (–4 °F to +140 °F) Operating Humidity ≤93% (RH) Installation Rack or desktop Certifications CE: CE-LVD: IEC 62368-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024, EN 55035 FCC: Part 15 Subpart B
