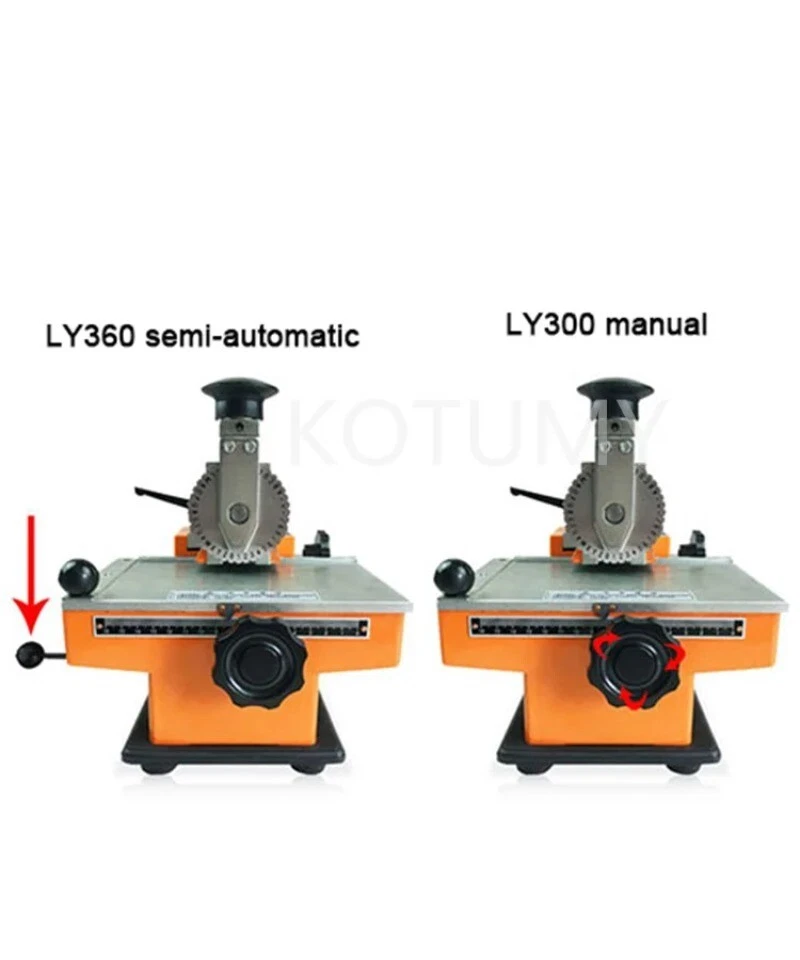

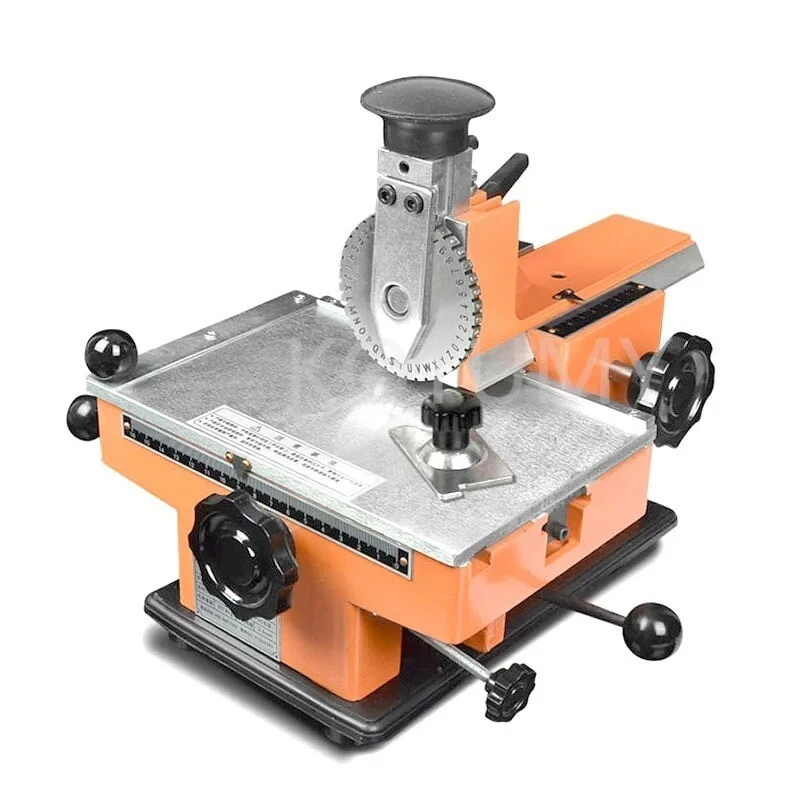

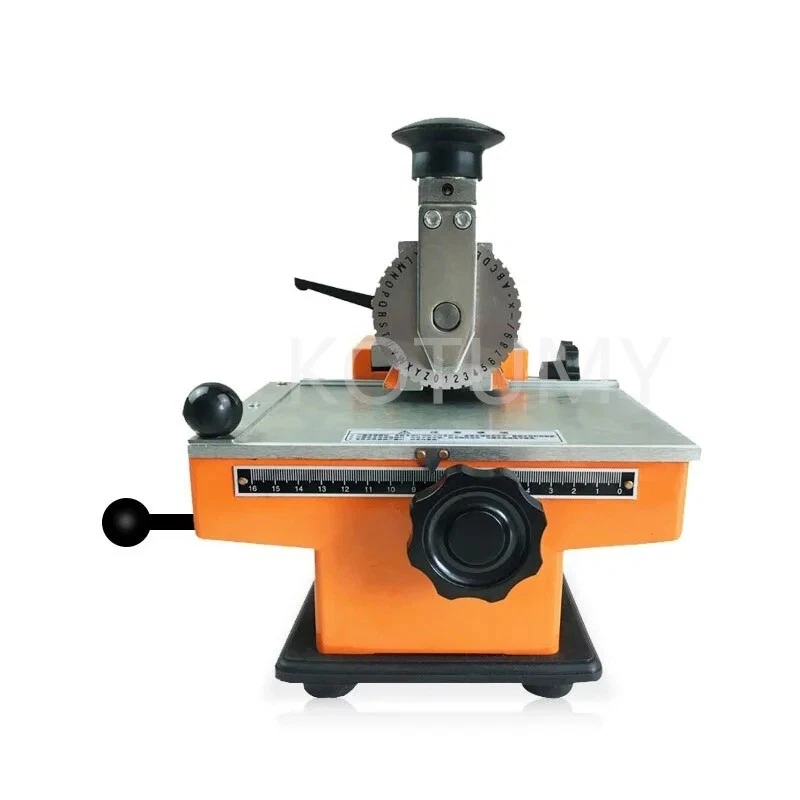

Desktop Semi-Automatic Manual Metal Nameplate Marking Marking Machine Word Press
$ 111.89
Description

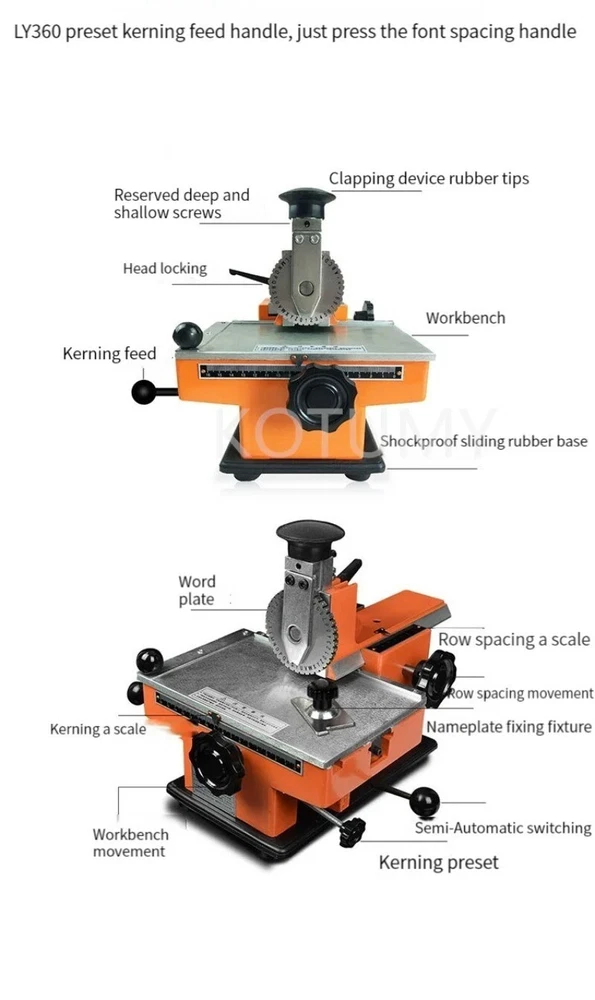

Product parameters： 【 Name 】 : Semi-automatic marking machine 【 Model 】 YL-360 【 Plate Material 】 High quality mold steel 【 Printing depth 】 0.1-0.3MM 【 Print content 】 Letters, numbers, symbols 【 Power supply or not 】 No 【 Optional font 】 2, 2.5, 3, 4, 5, and 6 sizes 【 Printing speed 】 : 2-5/10 seconds 【 Quantity 】 7.5kg 【 Marking range 】 200 * 135MM 【 Packing size 】 : 30*35*38 MM 【 Overall dimensions 】 280 * 220 * 260MM 【 Package weight 】 : 9KG Penetration range: Marking of sheet materials such as aluminum, copper, stainless steel pots, and material barriers Typical application: All kinds of aluminum, copper, stainless steel, plastic nameplates on machinery, electromechanics, water pumps, valves, automobiles and motorcycles, and electrical appliances. Working principle: The alloy steel turntable after high frequency quenching heat treatment is under the action of external force (hand pressure or rubber hammer), and letters or numbers with a certain depth (0.1~0.3mm deep) are engraved on the metal sign; The heat-treated steel dial can be rotated to the required letters or numbers, and the font can be easily replaced; the marking position and line spacing are steplessly adjusted by a special mechanical mechanism; the character spacing depends on manual adjustment; different character heights can be realized by changing the dial; Signs of various shapes smaller than 200x 135mm can be clamped and engraved. Character wheel material: chrome steel 12CrMo Character wheel hardness: >60 degrees Character wheel thickness: 6 mm, (No. 6 font 7
