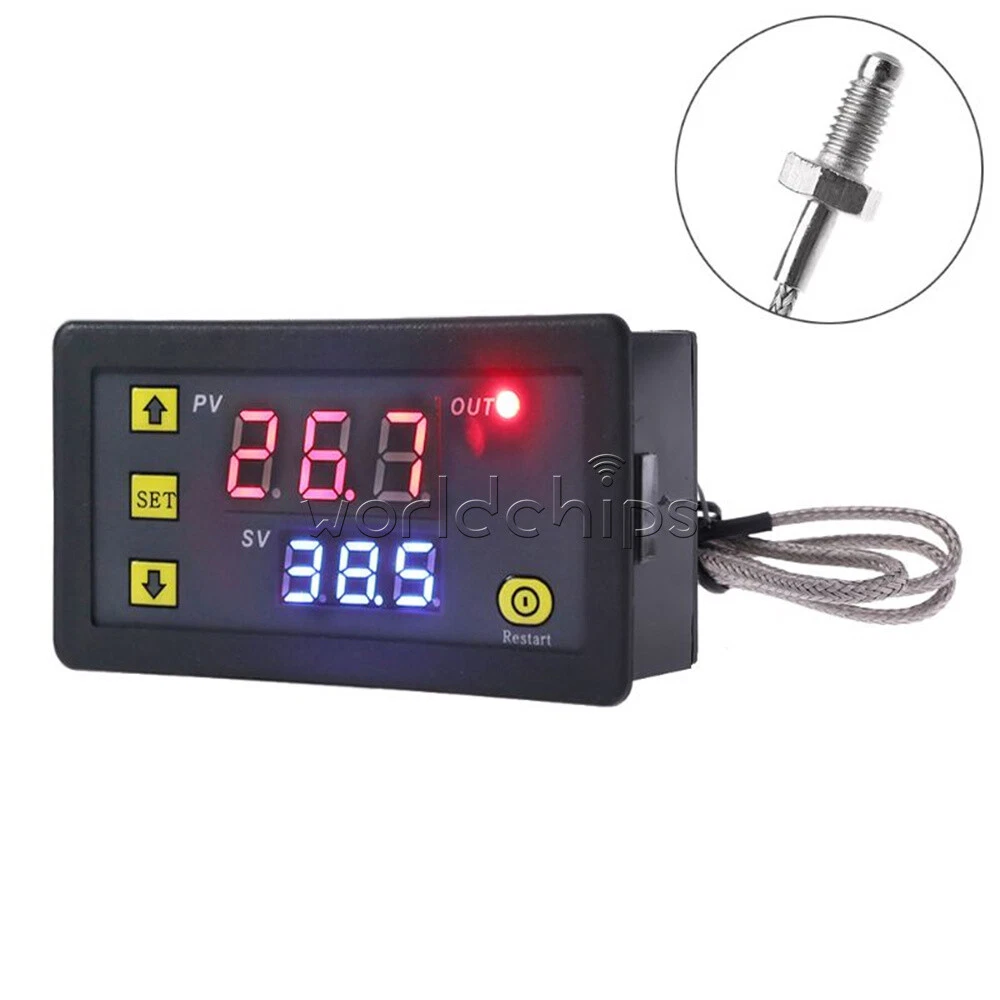

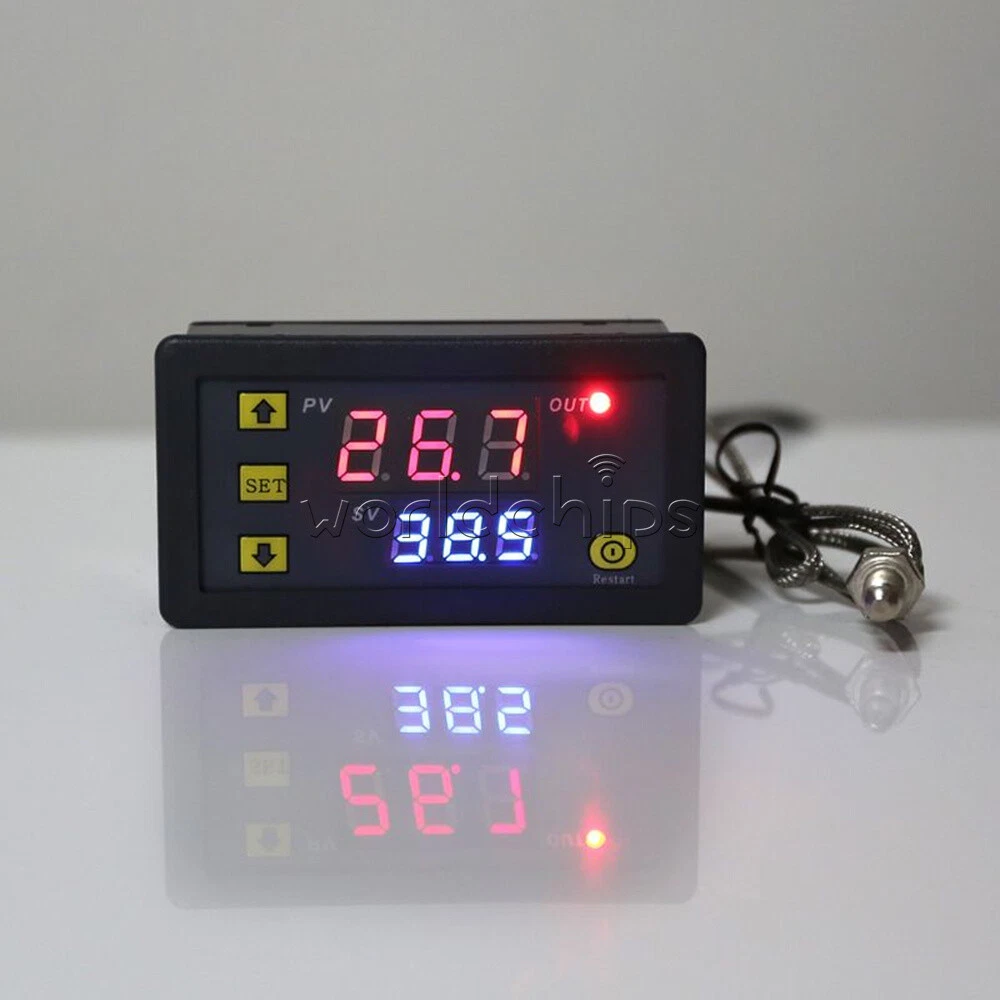

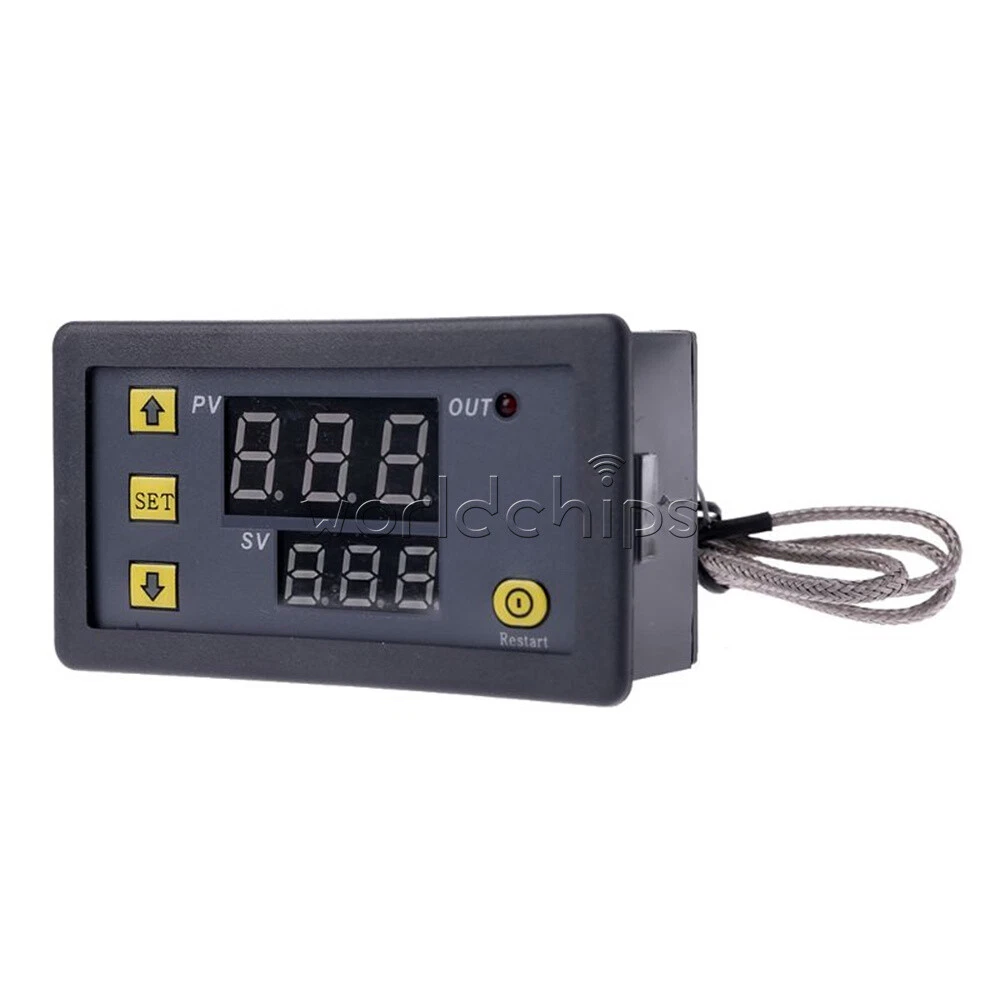

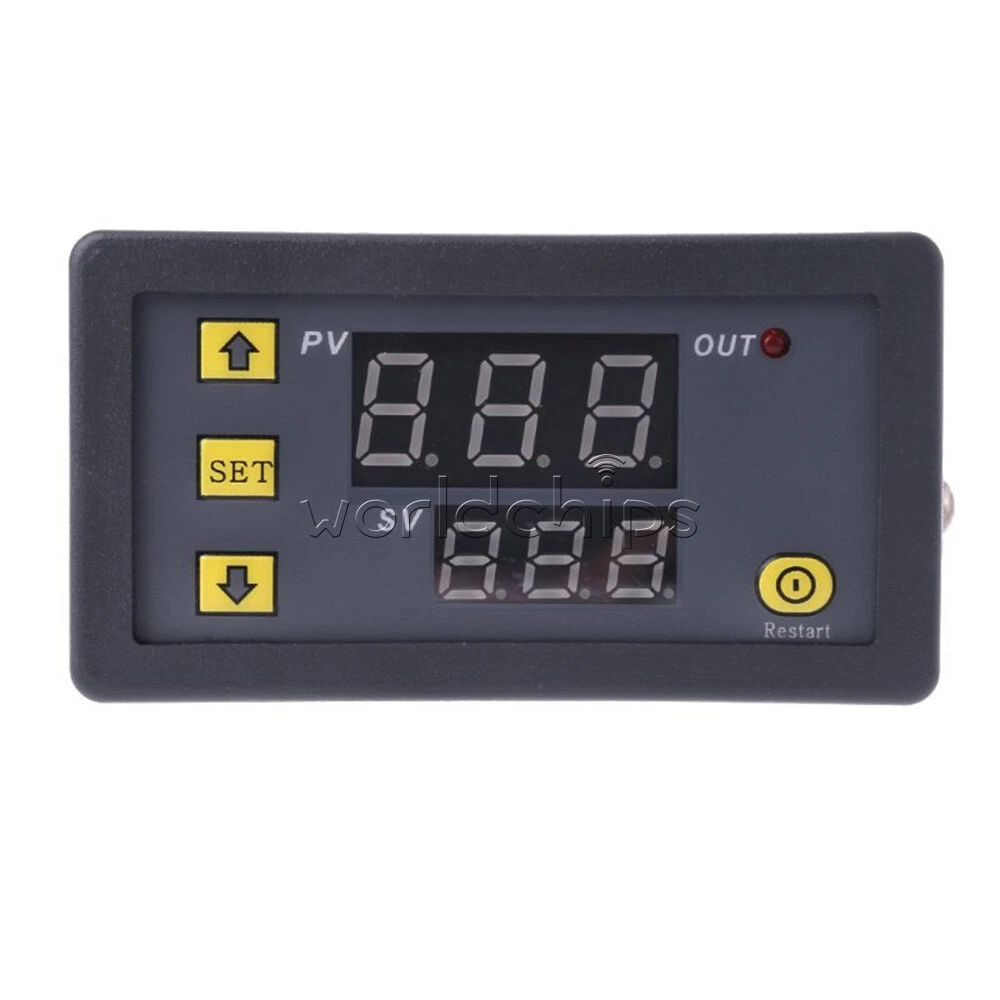

Digital K Type Thermocouple DC12V Temperature Controller Sensor Thermostat
$ 4.2
Description

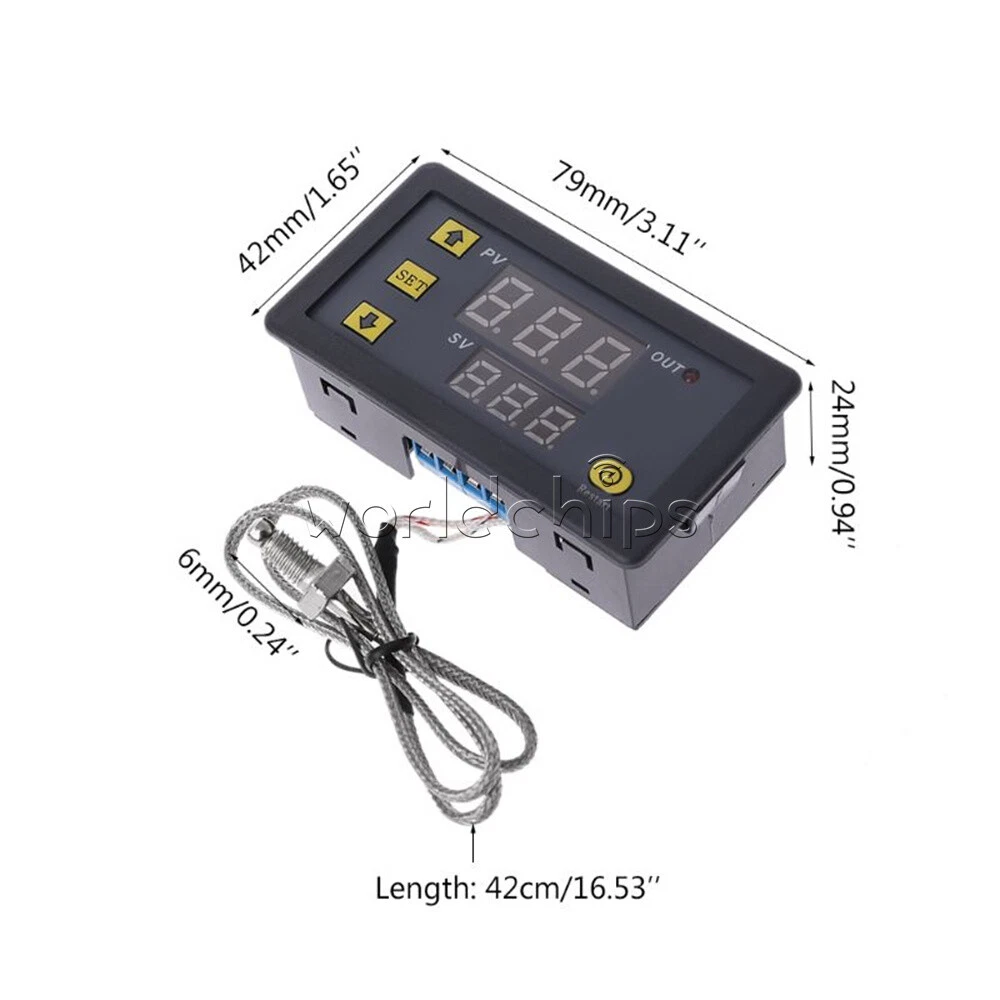

Home Arduino Module Sensor Chips About Us Description: K-type thermo thermostat function: The product has a total of four buttons, plus, minus, SET (set button), reset button. There are two sets of digital tubes to display the actual temperature and the set temperature, respectively. All parameters are automatically saved after 5s. Specifications: Product name: High temperature K type thermo thermostat Power supply: 12V DC Temperature control range: -60 ℃ ~ 500 ℃ Cable length: 50cm Temperature measurement accuracy: 1 ℃ Resolution: 0.1 ° C Refresh frequency: 0.5 S. Input: type K thermocouple Output: A 10A relay Opening size: 74mm (length) * 39mm (width) Instructions: Red digital tube: actual temperature, Blue digital tube: set temperature Press the button to increase: increase the set temperature. Press the key to decrease: decrease the set temperature. Restore factory settings: press and hold the plus and minus buttons for 5 seconds or more to restore the original setting data. Set button (SET): 1. Press SET briefly to raise the temperature by 50 ° C each time. Users can first press SET to quickly set the temperature near the preset temperature, and then set the temperature to the preset temperature by adding or subtracting keys. 2. Press and hold SET to enter the parameter setting option. There are several groups of parameters P00 ~ P05 for users to set. After entering the parameter interface, short press SET can switch P00 ~ P05. Set the appropriate data by pressing the plus or minus key under the appropriate parameters. After setting, the system will automatically remember the data and return to the display interface. P00: H heating mode / C cooling mode P01: temperature difference backlash (0 ~ 500 ° C ) P02: temperature correction (-10 ~ 10 ° C ) P03: Maximum temperature alarm value (500 ° C ) P04: minimum temperature alarm value (-60 ° C ) P05: data lock (ON / OFF) Application 1: This thermostat can be widely used in boiler water temperature control, water dispenser water temperature control and automatic cabinet water temperature control. Application 2: This thermostat can be used for printer equipment, hatch control, and intelligent control of refrigerator air conditioners. Application 3: This temperature can be widely used in the fields of intelligent agriculture control, greenhouse temperature control, and automatic irrigation. Package Included: 1 x DC 12V digital thermostat temperature controller 1 x sensor probe cable Payment Shipping Refund Payment We accept PayPal only. But we only Accept your Ebay Address ,Please Make sure it's 100% right. Payment must be received in 5 business days of auction closing. Please leave note for your special request (e.g. Colors or Size) in PayPal when you pay the order. Any special request cannot be accepted after 24 hours of payment, because most of orders will be processed instantly and same day dispatched. Shipping Fill your shipping info Refund All package need to wait 30 days (US only n eed 7-10 days) , Please take care it.Less than 30 days,we can't take a refund . If the item is defect when you receive it or you are not satisfied with it, please return it within 14 days for a replacement or money back. But the items must be back in factory condition. Please contact us and double check the return address before you return it. If is item is defective in 12 months, you can return it to us. We will send you a new replacement after receiving the defective item.
