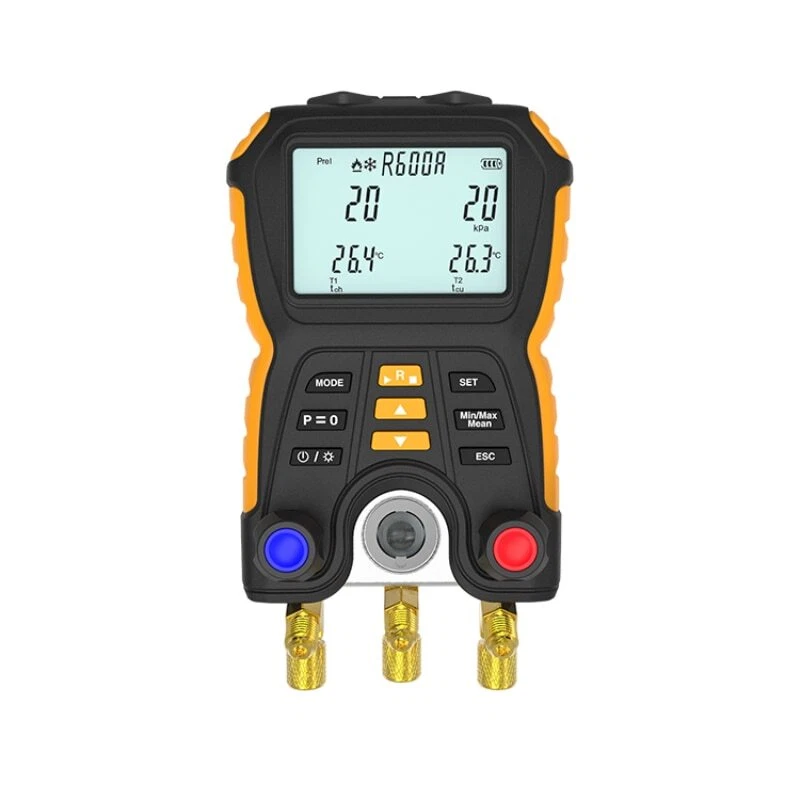

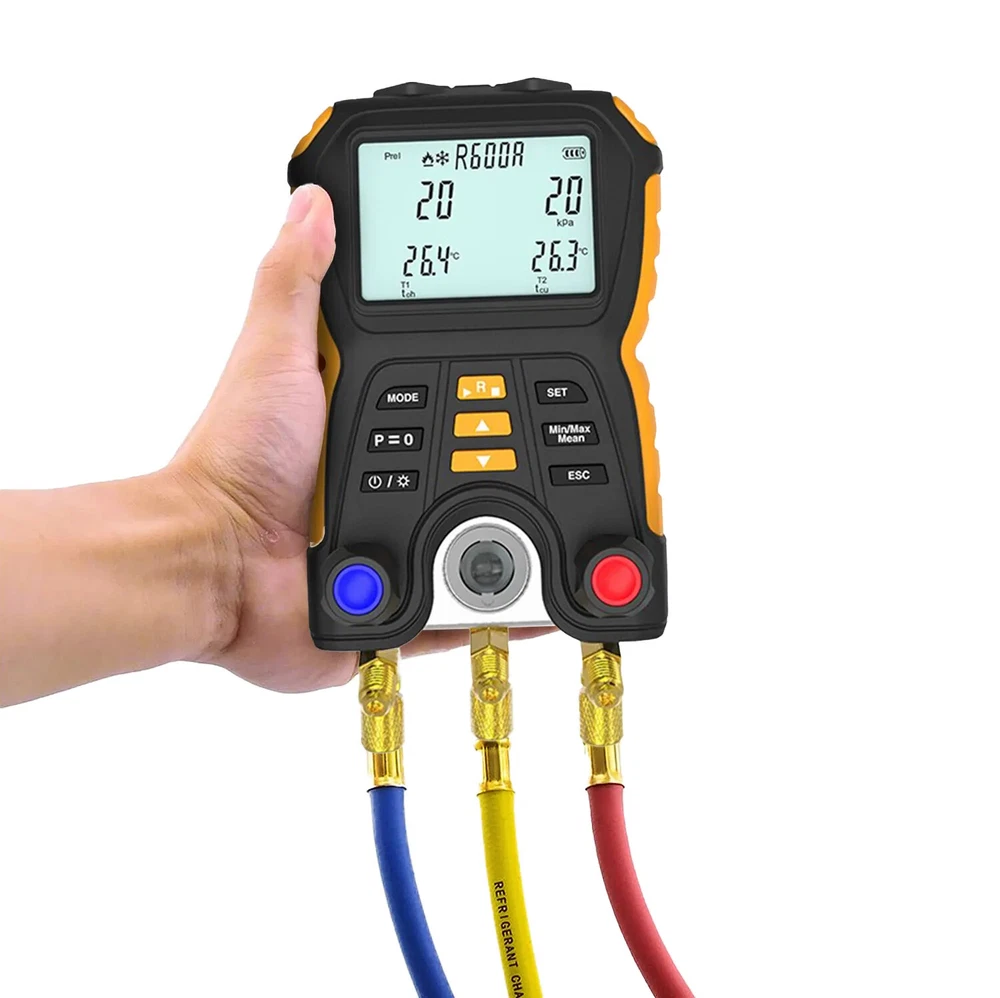

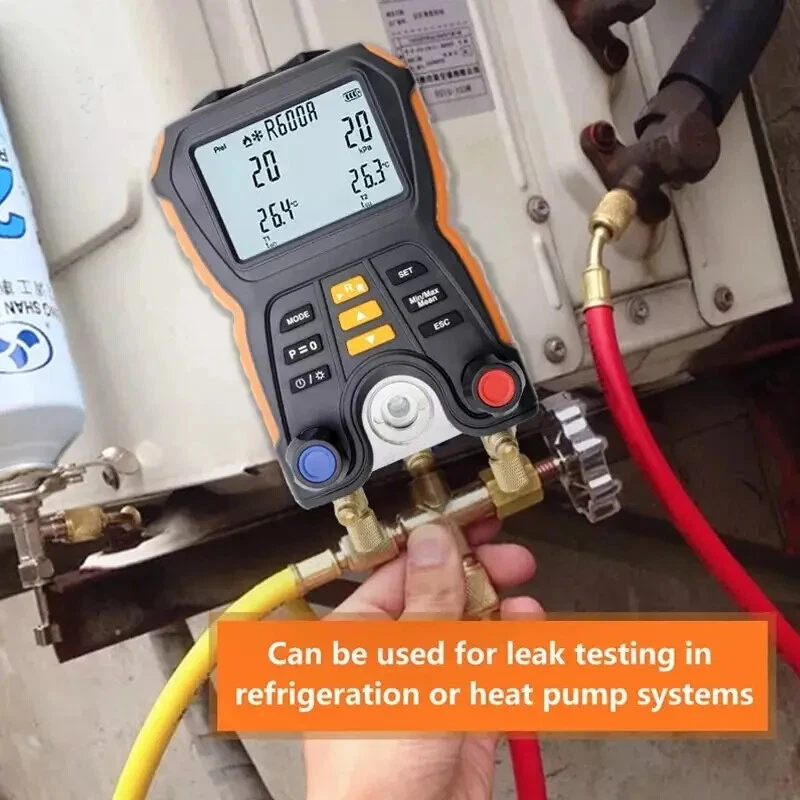

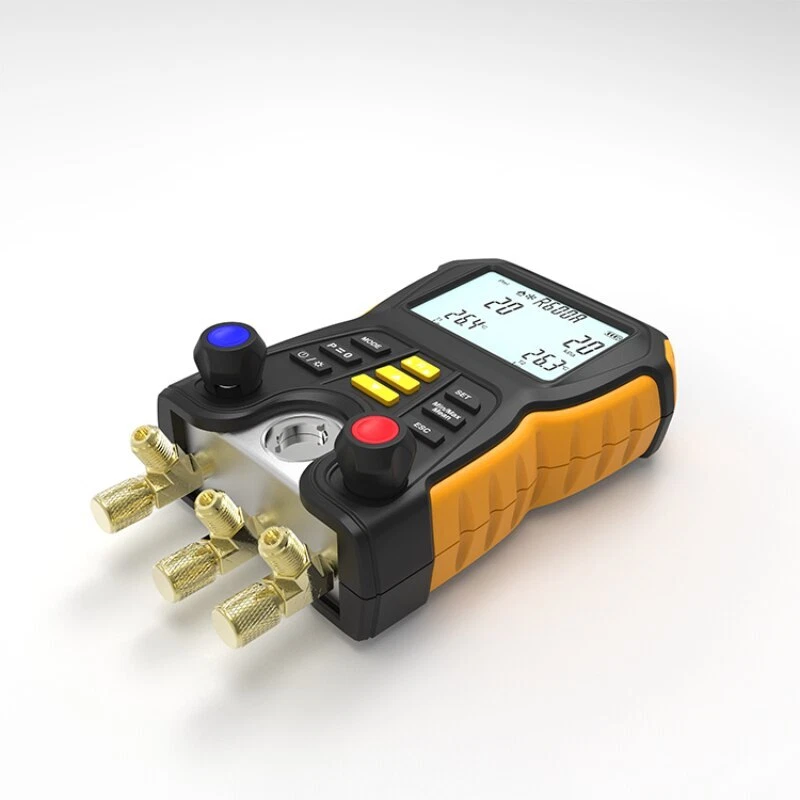

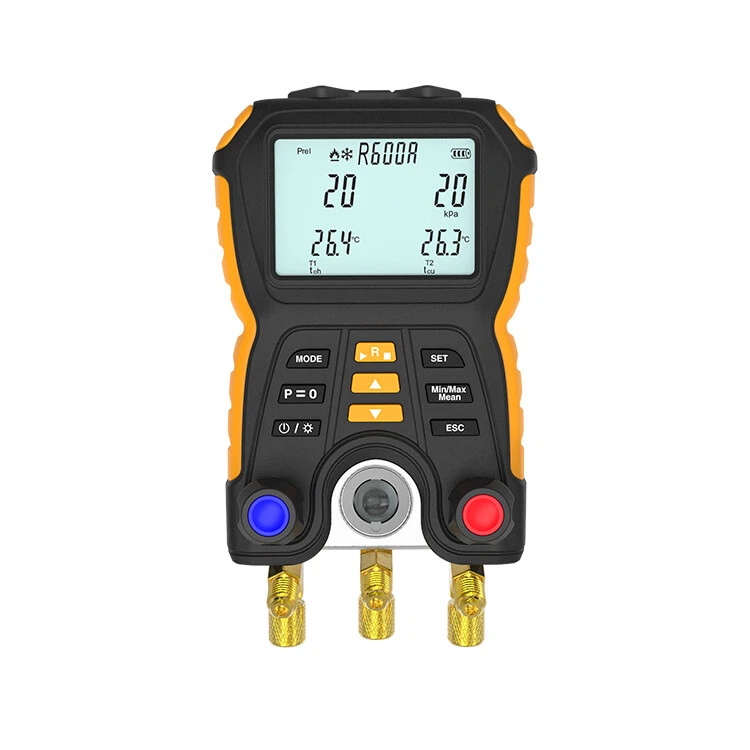

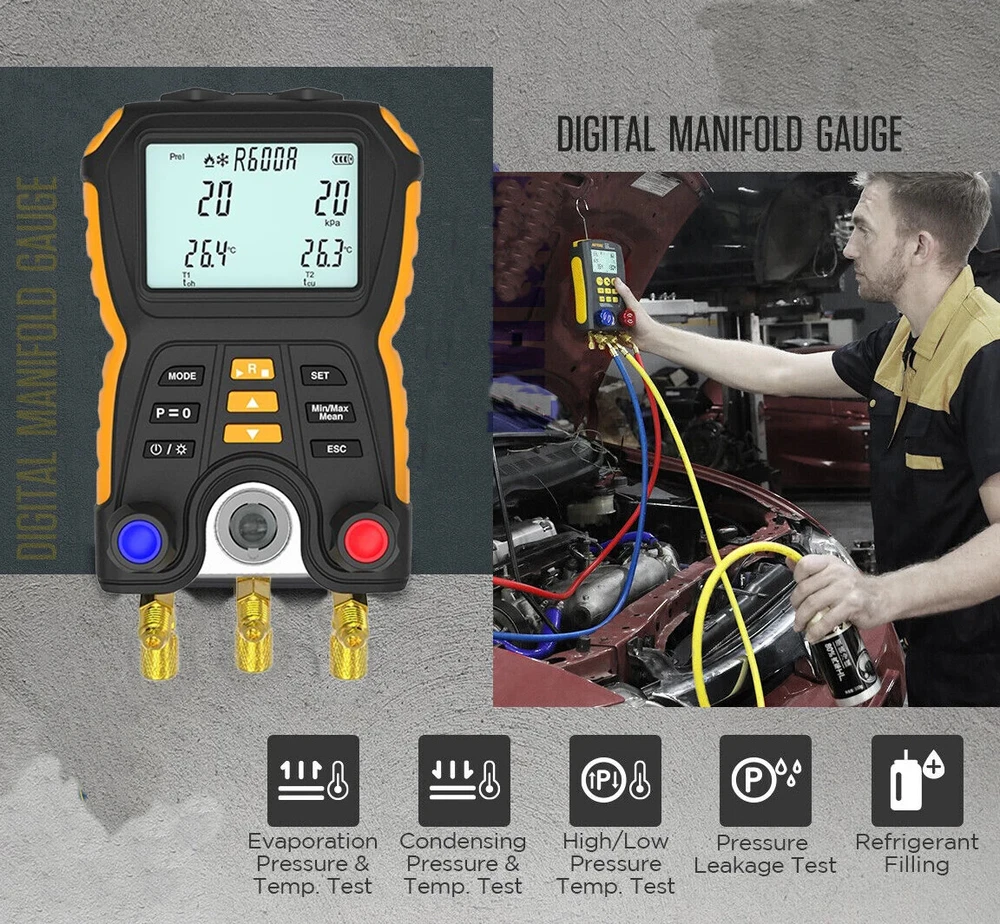

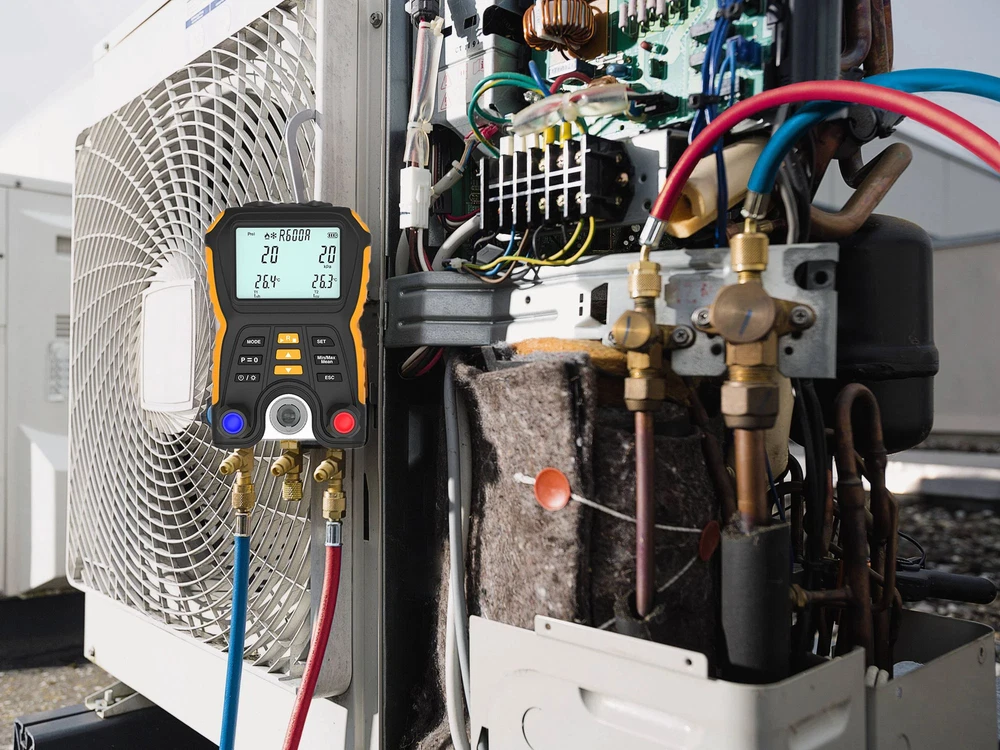

Digital Pressure Gauge Refrigeration Vacuum Manifold Tester Refrigerant Meter
$ 91.17
Description

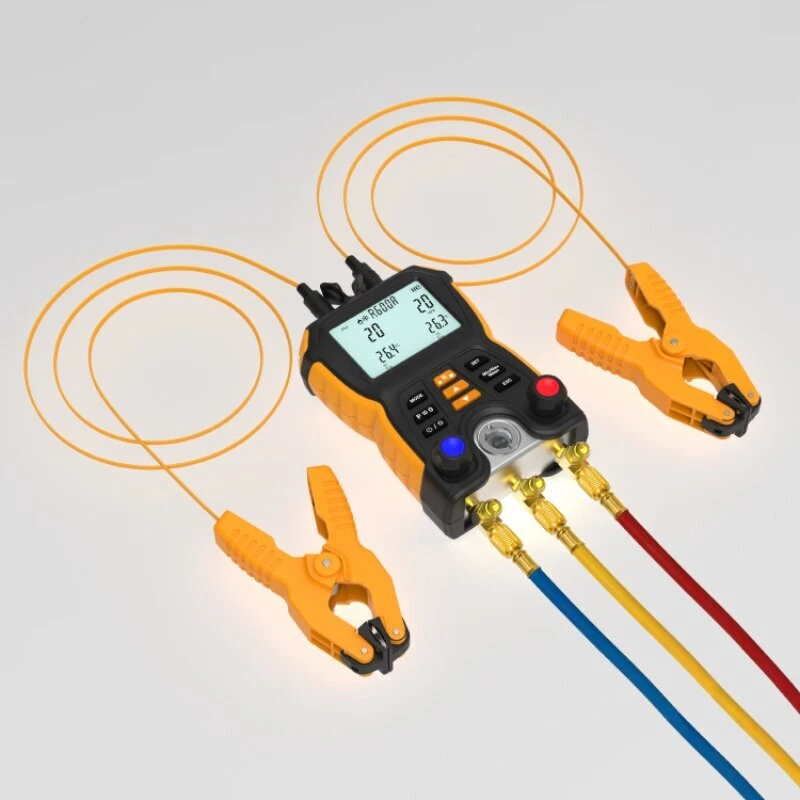

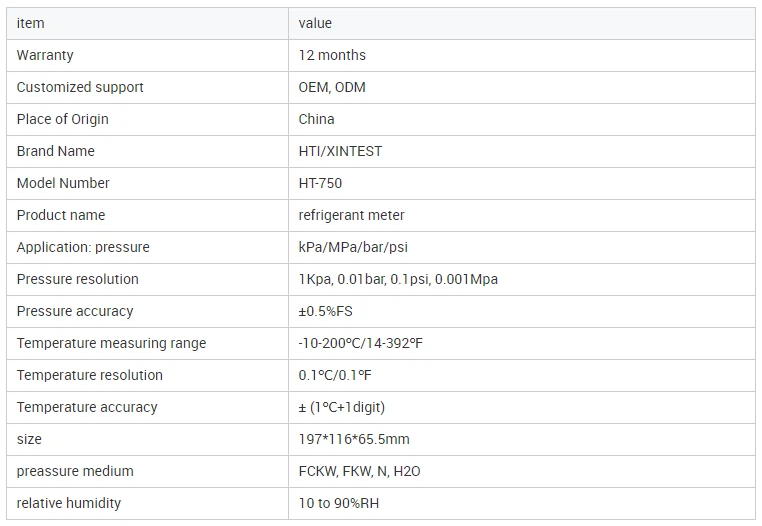

Product Description Specification ● Pressure measuring range (relative pressure: -100 to 6000Kpa/-0.1 to 6Mpa/-14.5 to 870psi / -1 to 60bar ● Overload pressure: 6500Kpa/6.5Mpa/940psi/65bar ● Pressure accuracy: ±0.5%FS ● Pressure resolution: 1Kpa, 0.01bar, 0.1psi, 0.001Mpa (0.01Mpa during negative pressure) ● Temperature measuring range: -10-200℃/14-392℉ ● Temperature accuracy: ± (1℃+1digit); ● Temperature resolution: 0.1℃/0.1℉ ● Optional refrigerants (83 kinds): R11, R12, R123, R124, R125, R1270, ● R13, R134A, R14, R141b, R142b, R143A, R152A, R170, R21, R218, ● R22, R227E, R23, R236E, R245C, R245, R290, R32, R401A, R401b, ● R401C, R402A, R402b, R403A, R403b, R404A, R405A, R406A, R407A, ● R407b, 407C, R407d, R407E, R408A, R409A, R409b, R41, R410A, ● R410b, R11A, R411b, R412A, R413A, R414A, R414b, R415A, R415b, ● R416A, R417A, R418A, R419A, R420A, R421A, R421b, R422A, R422b, ● R422C, R422d, R423A, R424A, R425A, R426A, R427A, R428A, R50, ● R500, R501, R502, R503, R504, R507A, R508A, R508b, R509A, R600, R600A, R717 ● Operating temperature: 0 to 45℃ ● Ambient humidity: 10%RH to 90%RH ● Storage temperature: -20 to 60℃ ● Power supply: 4 AA batteries ● Dimension: 204mm×116mm×65mm ● Accessories: tool box, hose (each in red, yellow and blue), ● Operation Instructions, 4 AA alkaline batteries, temperature clamps x2 Model Number HT-750 Product name refrigerant meter Application: pressure kPa/MPa/bar/psi Pressure resolution 1Kpa, 0.01bar, 0.1psi, 0.001Mpa Pressure accuracy ±0.5%FS Temperature measuring range -10-200℃/14-392℉ Temperature resolution 0.1℃/0.1℉ Temperature accuracy ± (1℃+1digit) size 197*116*65.5mm preassure medium FCKW, FKW, N, H2O relative humidity 10 to 90%RH
