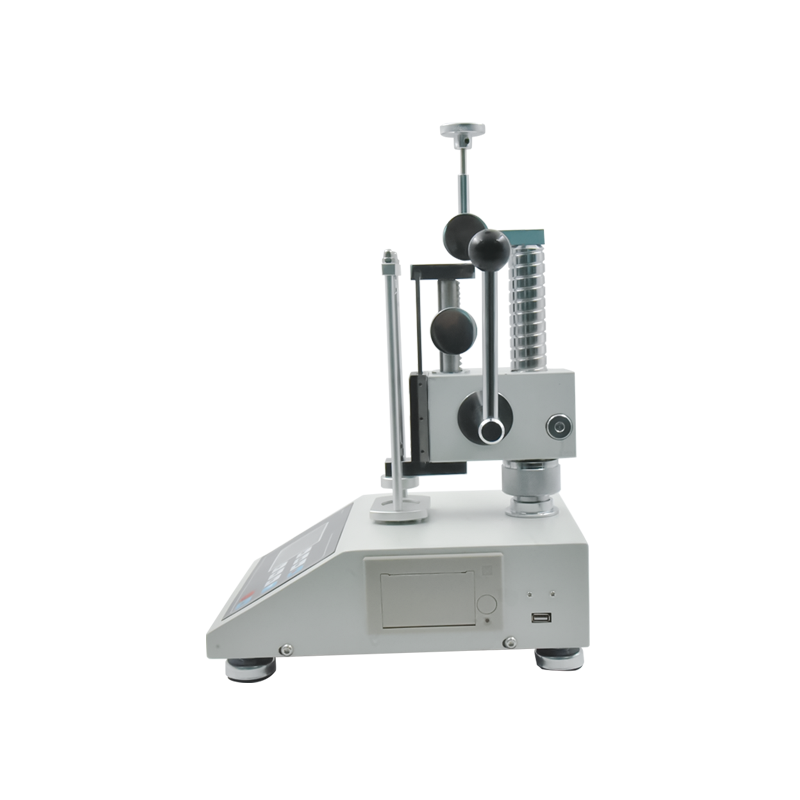

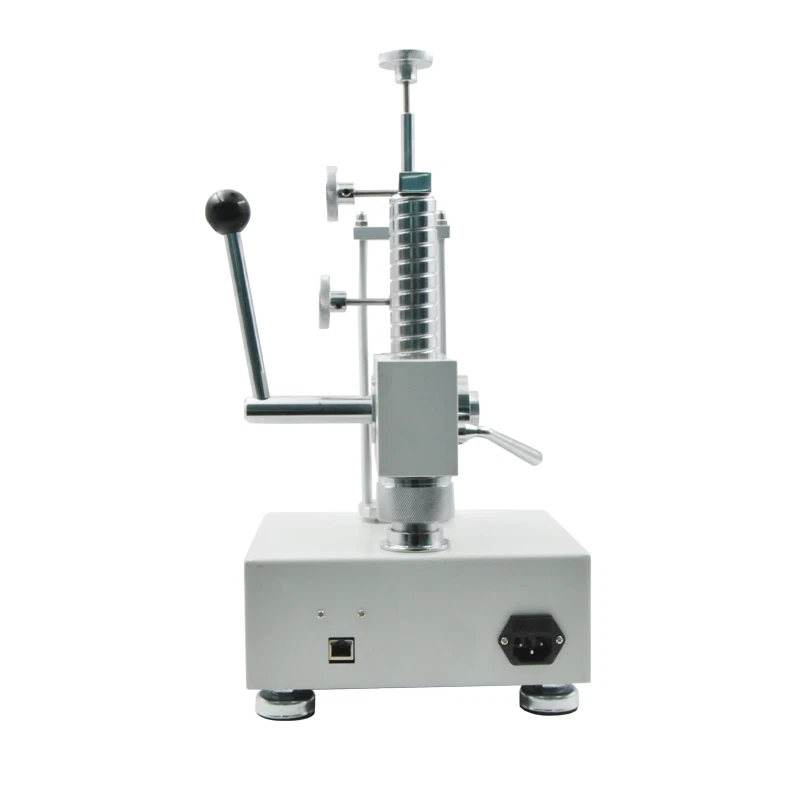

Digital Spring Tester 300N for Compression & Extension Force Measurement
$ 637.55
Description
Digital Spring Test Machine Spring Extension and Compression Tester Meter 300N Introduction: As a special-purpose instrument, this testing machine is used to test amount of deformation and characteristic of load relation of extension and compression springs. It can be applied to the testing of working load of extension and compression springs under certain working length. Advanced and highly integrated chip microprocessor is adopted by this machine, which also has liquid crystal display (English) and metal enclosure. Specifications: Maximum testing load: 300N/ 30Kg/ 65Lb Minimum resolution: 0.01N/0.001Kg/0.001Lb Diameter of the platen: 48mm Maximum free length of measurable spring: 150mm Length of travel of the displacement scale: 90mm Division value of the displacement scale: 0.01mm Indication error: ±1% Power Supply: AC 110-220V, 50HZ-60HZ Working temperature: 20±10℃; Relative temperature: 15% ～ 80%RH Temperature of storage and transportation: -27℃ ～ +70℃ Size: 490x280x300mm Features: Liquid crystal display (English); better Human Machine Interface (HMI) Three kinds of measurement units can be selected(N, Lb and Kg); inter-conversion is available The user can independently set up acceleration of gravity of the place of usage. In this way, the testing and unit conversion would be more accurate The user can freely shift among the following three patterns: Real-time and peak-value patterns and the pattern of automatic peak value It has the function of client setup and free setup of upper and lower limits (corresponding to audible and visual alarms), storage value, holding value, automatic storage time of peak value, automatic shutdown time (non-operation), etc
This spring tester is a game-changer for anyone working with extension and compression springs! The 300N capacity handles most common spring types with ease, while the clear LCD display makes readings effortless. I love how the sturdy metal housing protects the sensitive components inside. The microprocessor provides accurate, consistent results every time, saving me hours of guesswork. Perfect for quality control or R&D, it quickly verifies spring characteristics under different loads. The English interface is user-friendly, and the compact design fits nicely on my workbench. A must-have tool for professionals who need reliable spring testing!
