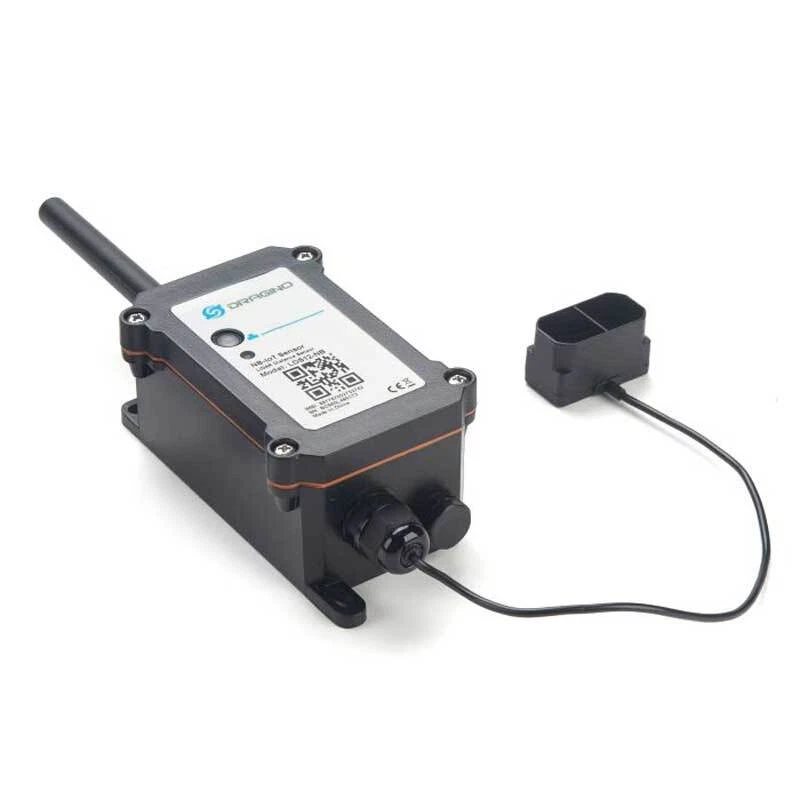

Dragino LDS12-NB NB-IoT LiDAR ToF Distance Sensor
$ 88.08
Description
LDS12-NB NB-IoT LiDAR ToF Distance Sensor The Dragino LDS12-NB is a NB-IoT LiDAR ToF (Time of Flight) Distance Sensor for Internet of Things solution. It is capable to measure the distance to an object as close as 10 centimeters (+/- 5cm up to 6m) and as far as 12 meters (+/-1% starting at 6m)!. The LiDAR probe uses laser induction technology for distance measurement. The LDS12-NB can be applied to scenarios such as horizontal distance measurement, parking management system, object proximity and presence detection, intelligent trash can management system, robot obstacle avoidance, automatic control, sewer, etc.LDS12-NB NB-IoT LiDAR ToF Distance Sensor It detects the distance between the measured object and the sensor, and uploads the value via wireless to NB-IoT IoT Server. LDS12-NB supports different uplink methods including MQTT, MQTTs, UDP & TCP for different application requirement, and support uplinks to various IoT Servers. LDS12-NB supports BLE configure and OTA update which make user easy to use. LDS12-NB is powered by 8500mAh Li-SOCI2 battery , it is designed for long-term use up to several years. LDS12-NB has optional built-in SIM card and default IoT server connection version. Which makes it works with simple configuration. NB-IoT Bands: B1/B2/B3/B4/B5/B8/B12/B13/B17 /B18/B19/B20/B25/B28/B66/B70/B85 @H-FDD Ultra-low power consumption Laser technology for distance detection Measure Distance: 0.1m~12m Accuracy : ±5cm@(0.1-5m), ±1%@(5m-12m) Multiply Sampling and one uplink Support Bluetooth v5.1 remote configure and update firmware Uplink on periodically Downlink to change configure IP65 Waterproof Enclosure 8500mAh Battery for long term use Nano SIM card slot for NB-IoT SIM Applications: Horizontal distance measurement Parking management syste Object proximity and presence detection Intelligent trash can management system Robot obstacle avoidance Automatic control Sewer Common DC Characteristics: Supply Voltage: 2.5v ~ 3.6v Operating Temperature: -40 ~ 85°C Probe Specification: Storage temperature：-20℃~75℃ Operating temperature : -20℃~60℃ Measure Distance: 0.1m ~ 12m @ 90% Reflectivity 0.1m ~ 4m @ 10% Reflectivity Accuracy : ±5cm@(0.1-5m), ±1%@(5m-12m) Distance resolution : 1cm Ambient light immunity : 70klux Enclosure rating : IP65 Light source : LED Central wavelength : 850nm FOV : 3.6° Material of enclosure : ABS+PC Wire length : 25cm NB-IoT Spec: NB-IoT Module: BC660K-GL Support Bands: B1 @H-FDD: 2100MHz B2 @H-FDD: 1900MHz B3 @H-FDD: 1800MHz B4 @H-FDD: 2100MHz B5 @H-FDD: 860MHz B8 @H-FDD: 900MHz B12 @H-FDD: 720MHz B13 @H-FDD: 740MHz B17 @H-FDD: 730MHz B18 @H-FDD: 870MHz B19 @H-FDD: 870MHz B20 @H-FDD: 790MHz B25 @H-FDD: 1900MHz B28 @H-FDD: 750MHz B66 @H-FDD: 2000MHz B70 @H-FDD: 2000MHz B85 @H-FDD: 700MHz Battery: Li/SOCI2 un-chargeable battery Capacity: 8500mAh Self-Discharge: <1% / Year @ 25°C Max continuously current: 130mA Max boost current: 2A, 1 second Power Consumption: STOP Mode: 10uA @ 3.3v Max transmit power: 350mA@3.3v Package Includes: LDS12-NB_NB-IoT LiDAR Distance Sensor x 1 External antenna x 1 Dimensions and Weight: Package Dimension: 150*120*55mm Weight : 220g Ultra-low power consumption Laser technology for distance detection Multiply Sampling and one uplink Support Bluetooth v5.1 remote configure and update firmware Uplink on periodically Downlink to change configure IP65 Waterproof Enclosure 8500mAh Battery for long term use Nano SIM card slot for NB-IoT SIM
