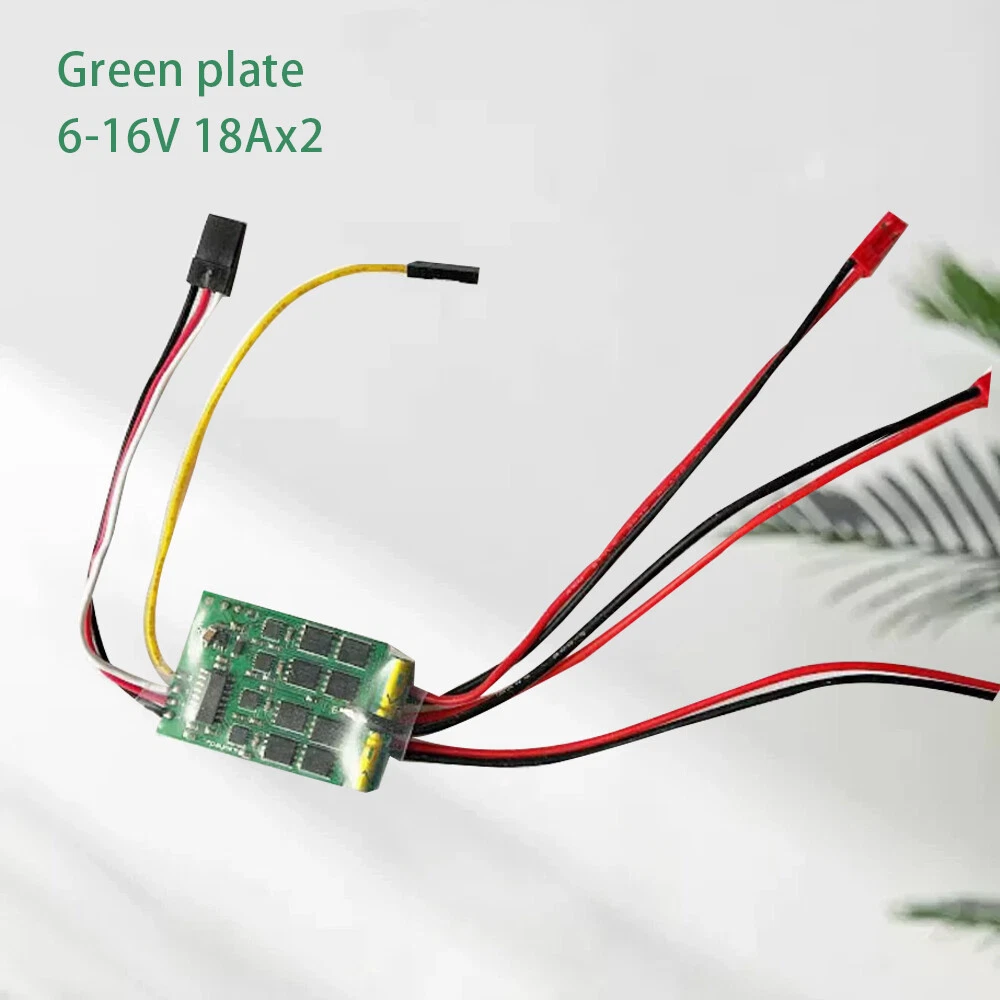

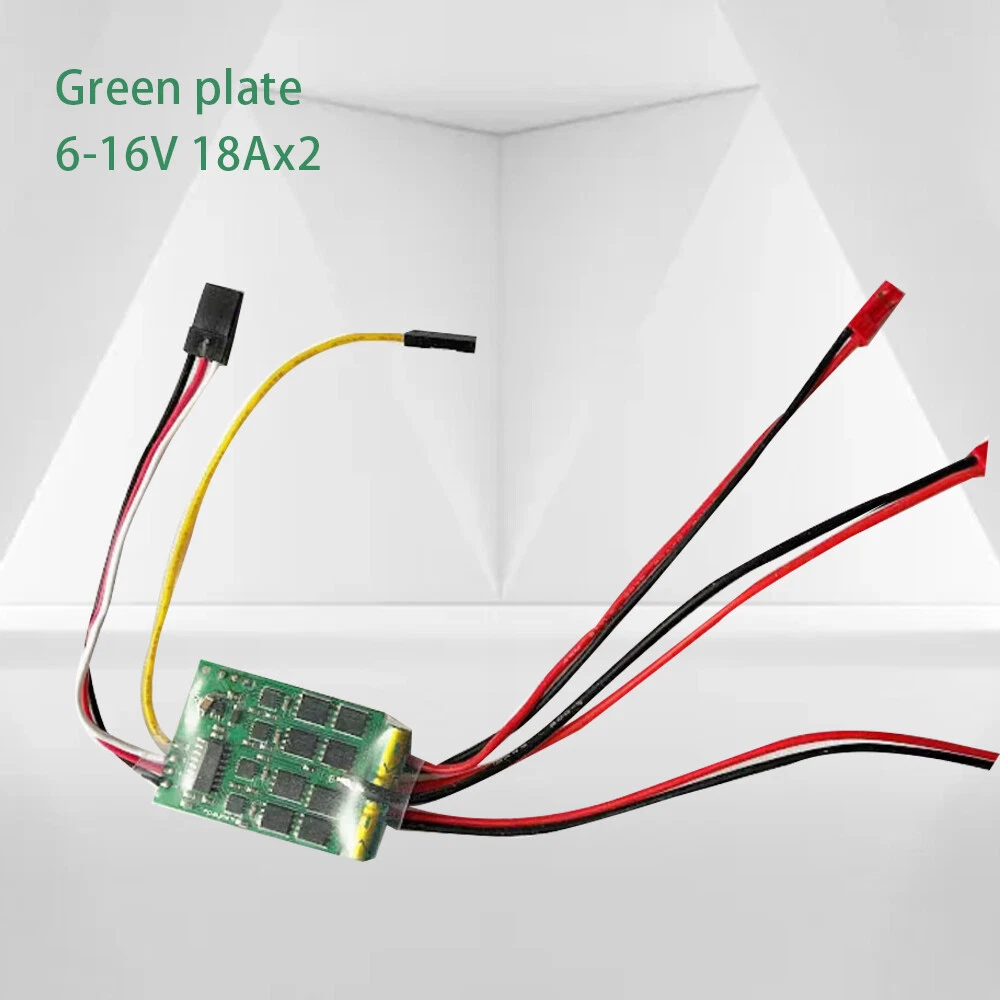

Dual Way Brushed ESC 18A x2 Mixed Control Speed Controller for RC Cars Boat Ta7q
$ 8.45
Description
Product Detail: Note：If you have any questions, please contact us before open any case, we promise will solve the problem for you. Thanks！ Description: l The midpoint of the remote controller is fixed at PWM 1500us (+50 -50), and the run is automatically adjusted from 900-1100 and 1900-2100. l Start with the midpoint, (one beep at power-on, and two beeps at midpoint 1500, ESC will start)) l With out-of-control protection (lost signal (in the accident, the signal line was disconnected)), for safety and motor protection, you need to return the throttle to the center and unlock again l With power-down protection: power supply voltage is lower than 4V, ESC restart protection (such as: high current discharge, poor performance battery voltage drop is too large, ESC protection, motor stops after protection, and battery voltage recovers after motor stops back to the midpoint, you hear the motor unlock again) l BEC output max 1.5 to meet your needs for receiving and steering gear power supply Note: The onboard MCU is also powered by 5V (connected with BEC), if you plug the 2S lithium battery (7.4V) directly into the receiver, the MCU will burn in seconds (maximum withstand voltage 6.5V) l With overheating protection (overheating 90 degrees, the ESC stops output, and recovers after cooling down) Key Points of Mixed Control Debugging: l First make sure the forward and backward motors are in the same direction. (If a motor is turning incorrectly, exchange the +-stage wires behind the motor) l Then adjust the direction, if it is not as expected, the remote control may be reversed, set it back The Dual-mix ESC Has the Following Modes: l Mixed control mode (both throttle / steering mode): 2 or 3 channels (2 channels are recommended because 2 channels automatically return to center) to control the throttle, 1 channel (or 4 channels) to control speed difference steering, throttle ratio 100%, steering ratio 100%, steering priority. Suitable for: tank (in this mode, gun control can play tanks), 4-wheel drive trolley (apm can be installed) l Two-way independent: it is equivalent to two independent ESCs (if you want to simulate a real tank, the white three wires on the input end are connected to the receiver throttle (3 channels), and the yellow single wire is connected to the receiver 2 channels) l Two-way synchronization: In mixed control mode, do not connect a single yellow wire, so that the two-way motor output is consistent Specification: l Voltage: 6-14V l Current: Single Way 18A, Dual Way 18Ax2 l Board size: Approx. 40x31mm (Include Capacitance: 46x31mm) l Weight: About 18g (Including Wire) l Applicable Motor: Suitable for 130 180 370 Motor Package: l 1x Brushed ESC Note: 1. Please allow minor deviation due to manual measurement. 2. Due to the difference between different monitors, the picture may not reflect the actual color of the item. 3. Communication is the best way to solve the problem. If you have any problems after purchasing, please contact us in time, before opening return or case. Payment: We accept PayPal ONLY currently. Payment must be made within 3 business days. Shipping: 1. Item will be shipped within 1-5 business days from CN Stock or US Stock according to the item location. 2. Sometimes the ship date will be delayed due to a shortage. We will inform you via message. 3. Please leave available address and phone # in delivery information. Seller are not responsible for wrong address. 4. Please indicate your personal requirement such as colors, packages, value of declaration etc. at PayPal's message when make payment. 5. We will NOT responsible for any delay during delivery including but not limited to customs postage checking, strike, force measure etc. Customs Declaration: Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility. Please check with your country’s customs office to determine what these additional costs will be prior to biddingying. Return & Refund: Returns are accepted within 30 days. Please read the item description and check the pictures carefully before bidding. Return or refund is available only if item DOA or there's error in item description causing the item not fitting your need. In such cases, seller pays for all related shipping cost if any. Returns are also acceptable if buyer purchased this by mistake and item still in good condition for reselling. Buyer is responsible for all related shipping cost. Feedback: As long as you are happy with your purchase, please kindly leave us for it is very important for our store performance. If there is any problem with your order, please contact us and give us a chance to resolve your problem Before leaving us a negative feedback.
