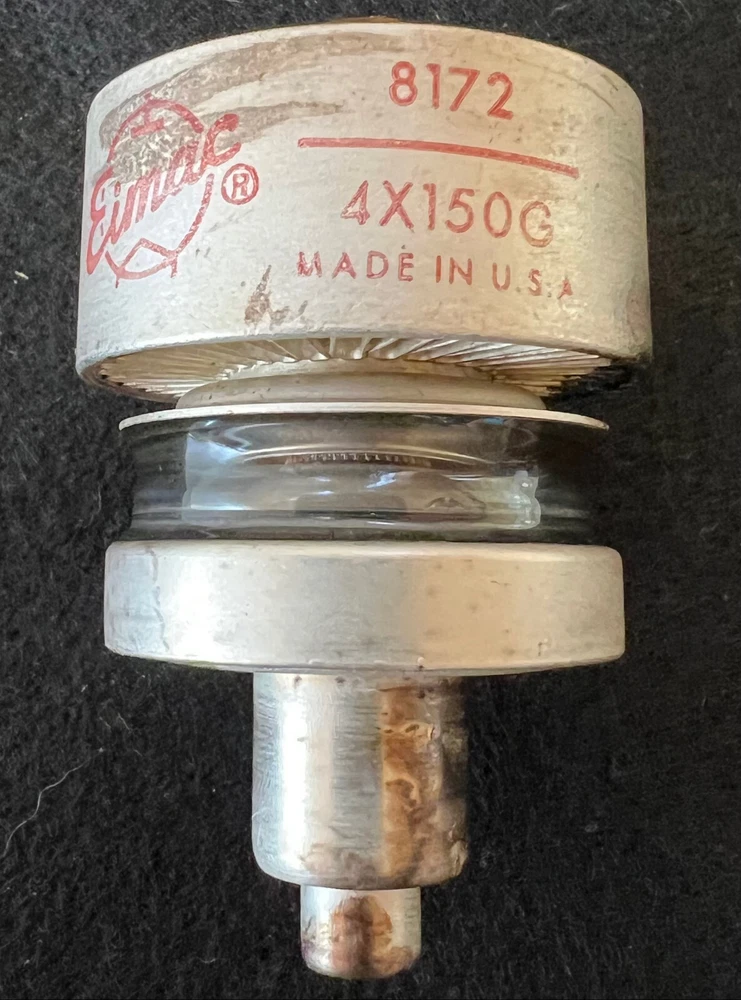

EIMAC JAN-8172 RADIAL BEAM POWER TETRODE 4X150G COAXIAL BASE RADIO FREQ AMP
$ 13.2
Description

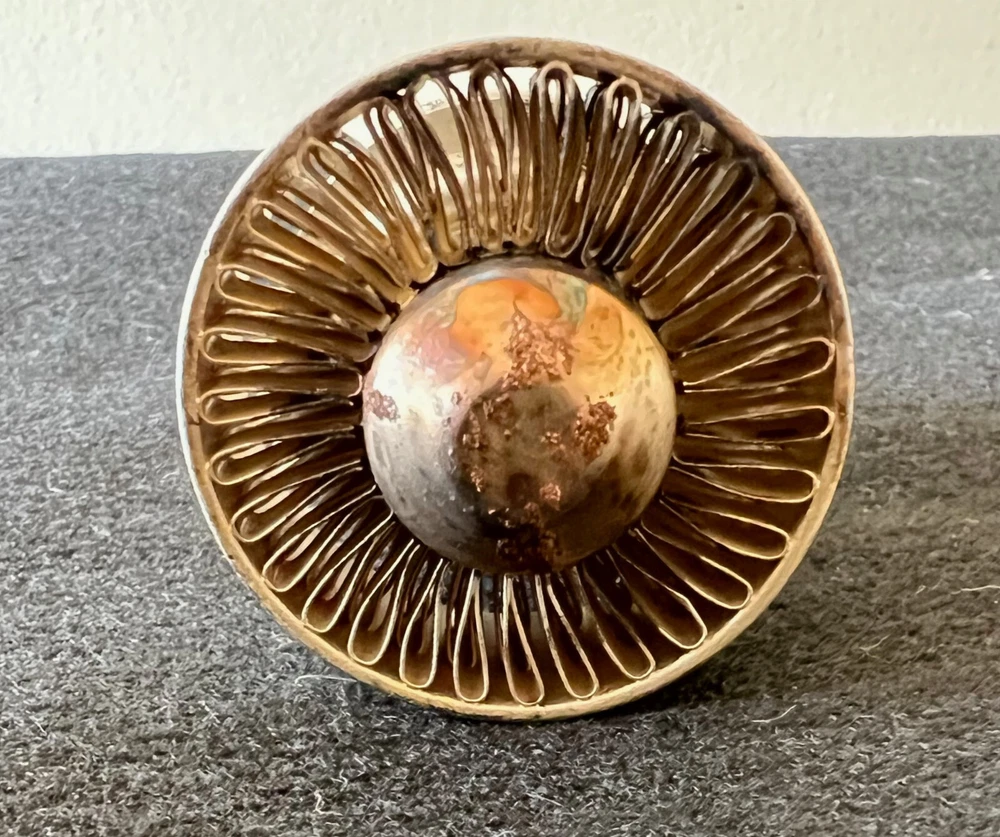

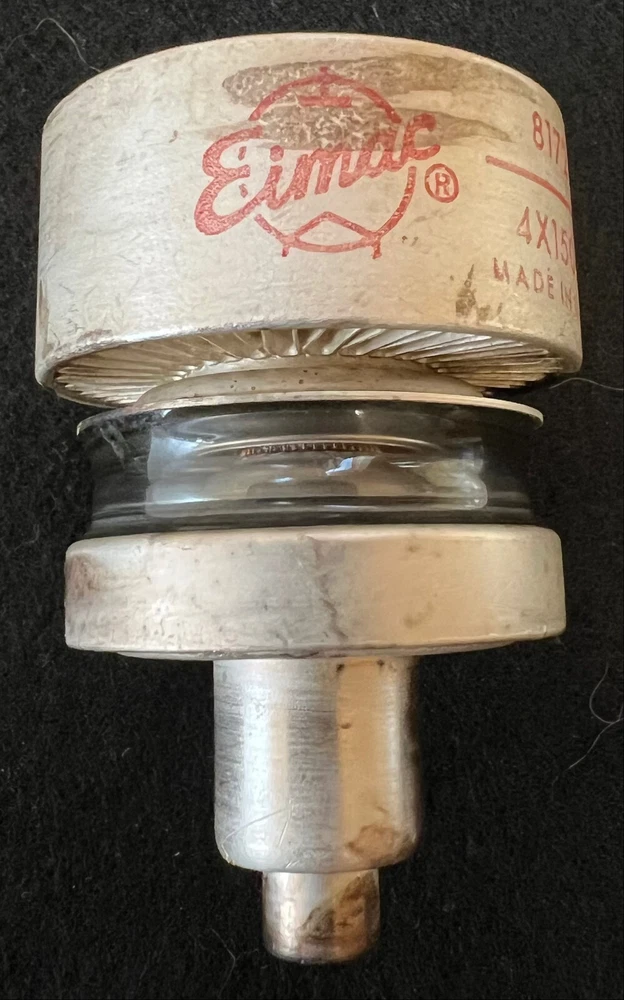

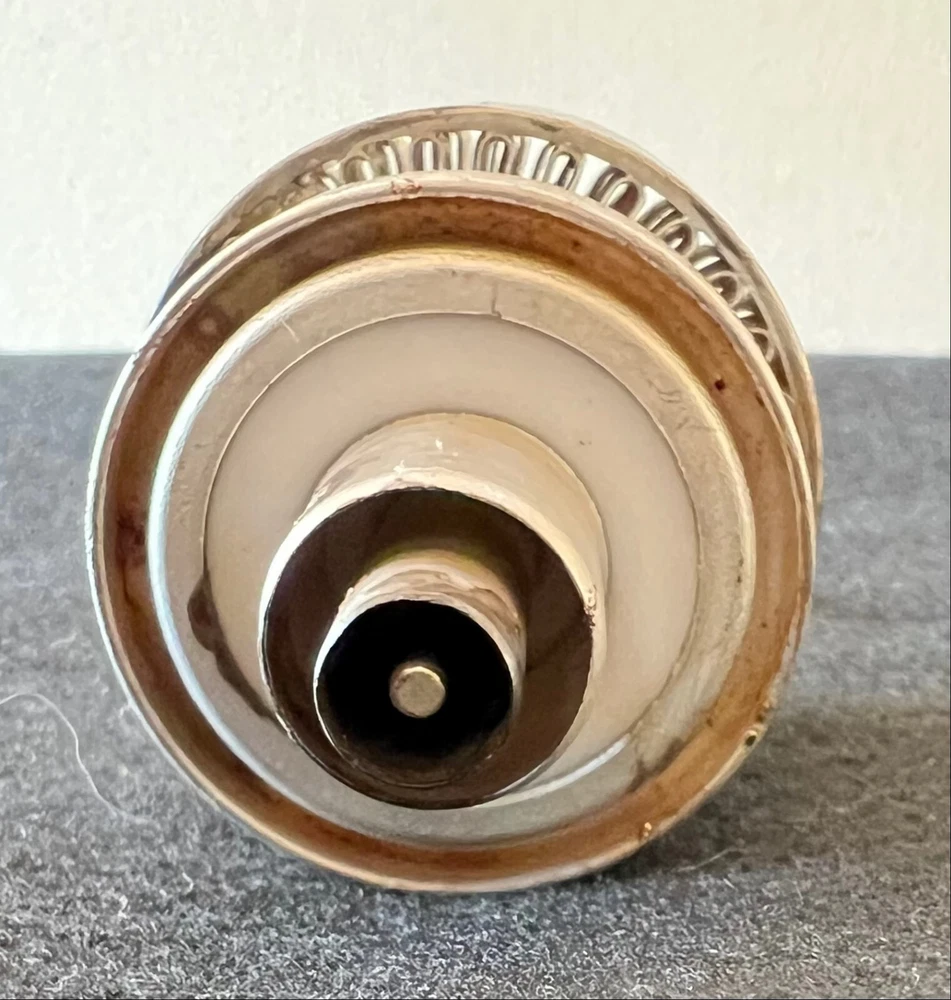

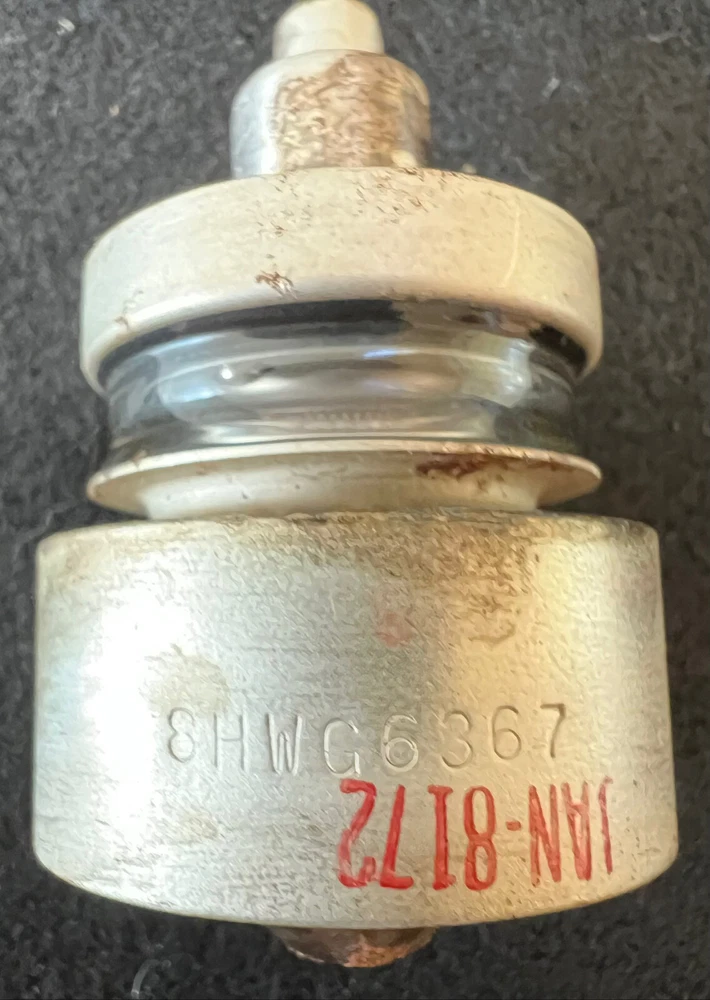

EIMAC 8172 4X150G Used but in good working condition. 8HWG6367 ** FREE SHIPPING ** Manufacturer's Data: The 8172 is an extremely compact external-anode tetrode intended for use as a radio frequency amplifier, frequency multiplier, or oscillator at frequencies well into the UHF region or as an amplifier in any service requiring a high gain tube capable of delivering high power output at low plate voltage. The combination of a high ratio trans-conductance to capacitance and a plate dissipation capability of 250 watts makes the tube an excellent wide band amplifier for video applications. Electrical: Cathode: Oxide coated, unipotential Heating time: 30 seconds min, 60 seconds nominal Cathode to heater potential: 150 volts Heater voltage: 2.5 volts Heater current: 6.2 amps min, 7.3 amps max Amplification factor (grid to screen): Direct Interelectrode capacitances, grounded cathode: Input: 25.0pF min, 29.0pF max Output: 4.0pF min, 4.9pF max Feedback: 0.05pF max Direct interelectrode capacitances, grounded grid and screen: Input: 14.5pF min, 19pF max Output: 4.0pF min, 4.9pF max Feedback: 0.01pF max Frequency for maximum ratings: CW: 500MHz Pulsed: 1500MHz Mechanical: Base: Coaxial Cooling: Forced Air Keywords: audio vacuum tubes
