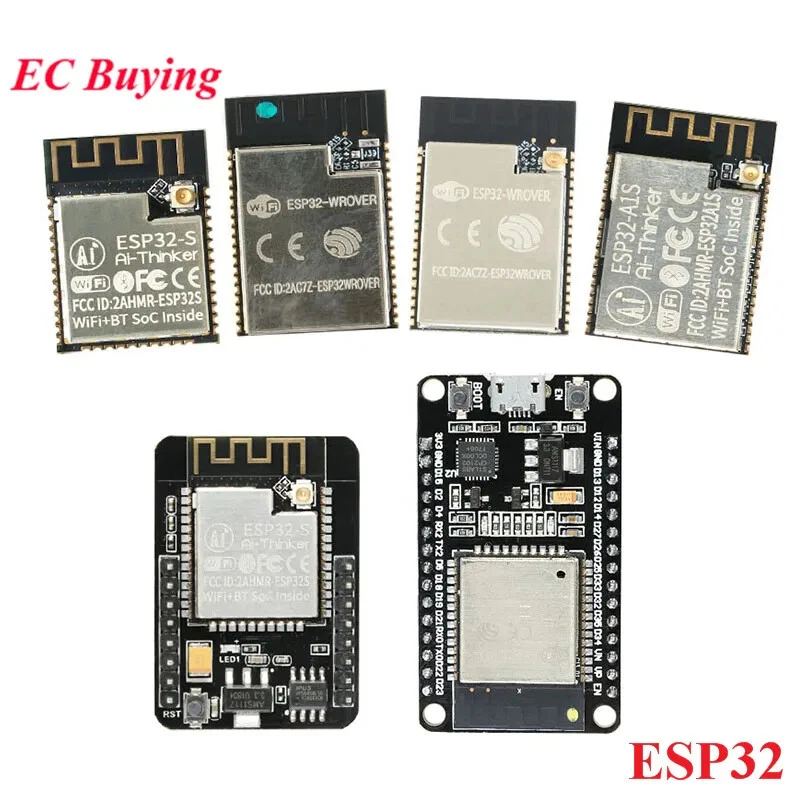

ESP32 Development Board WiFi Module with ESP32-CAM OV2640 Camera
$ 2.67
Description

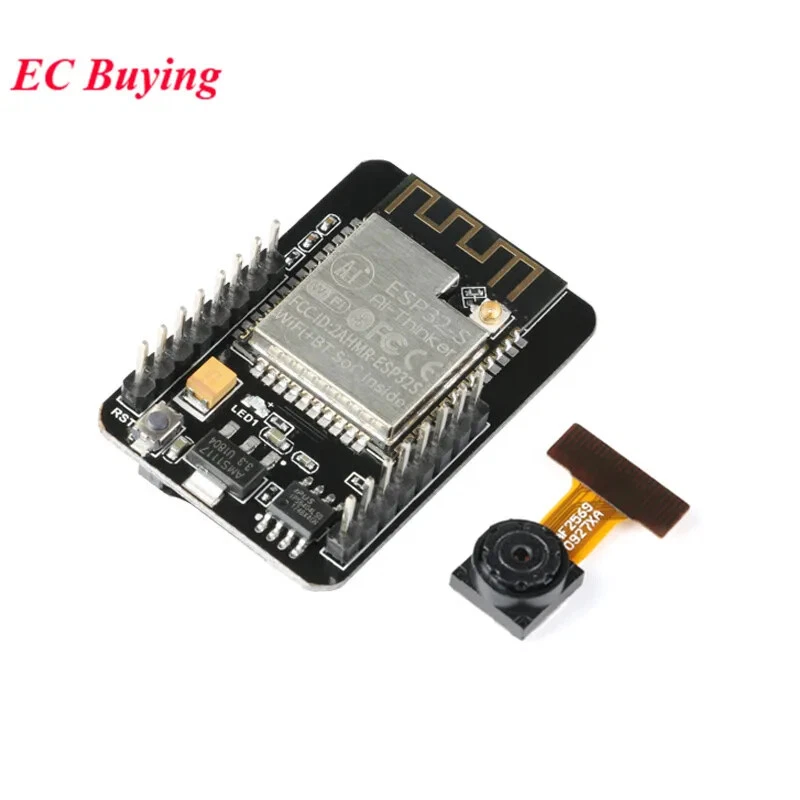

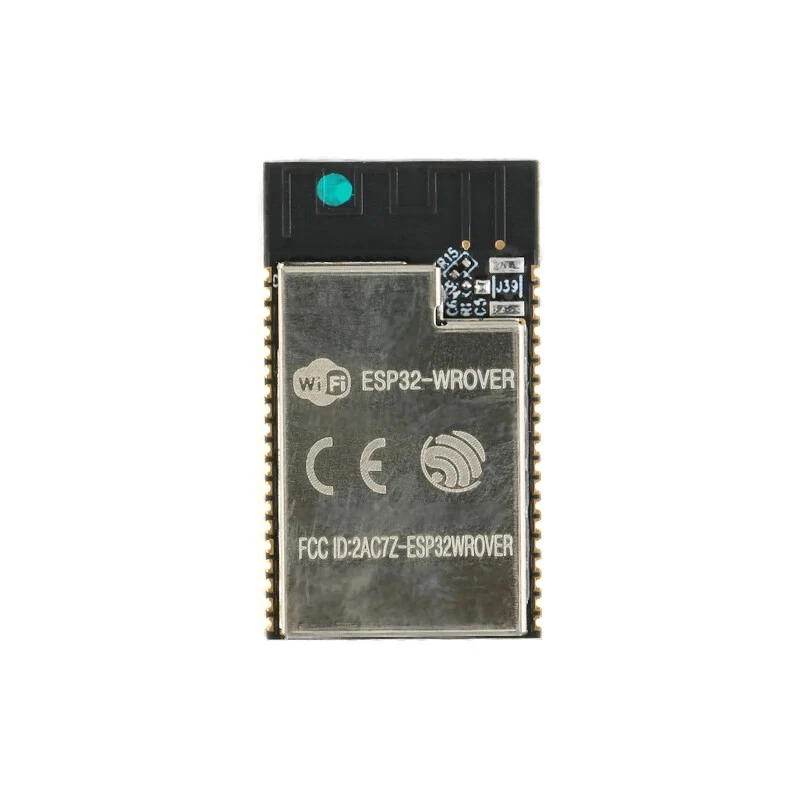

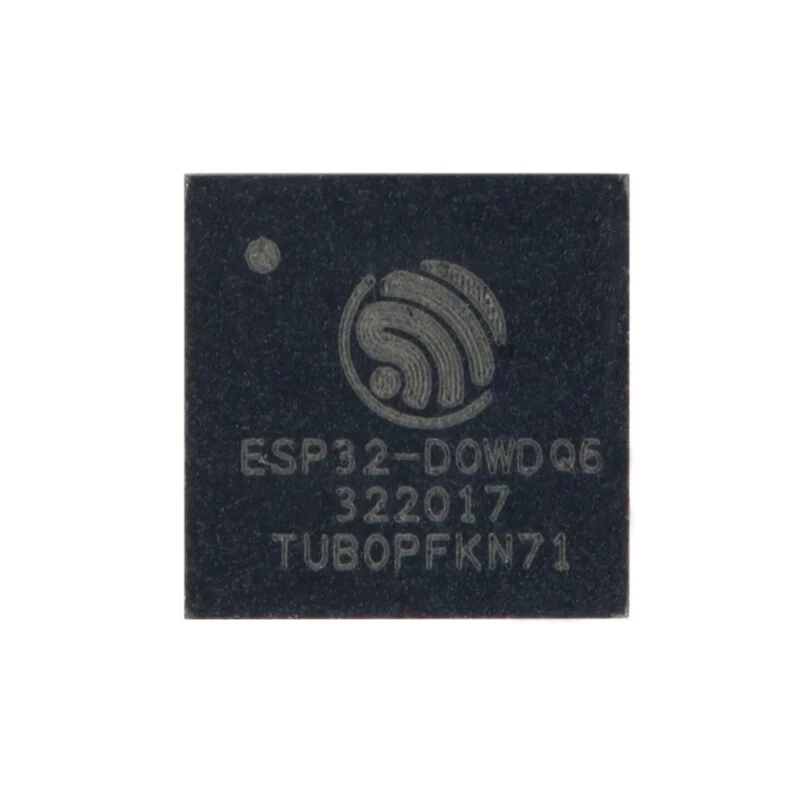

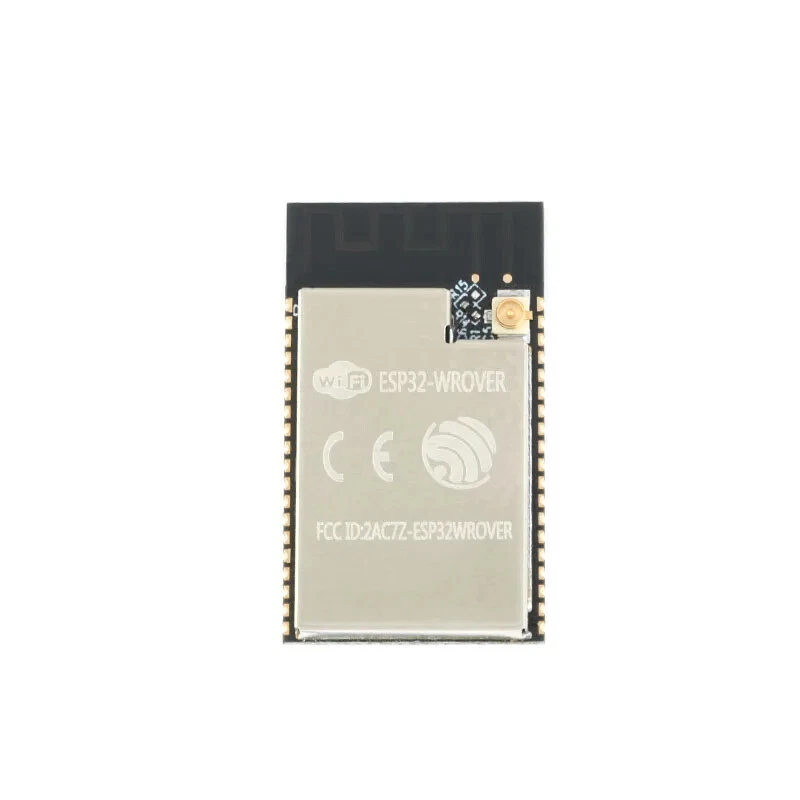

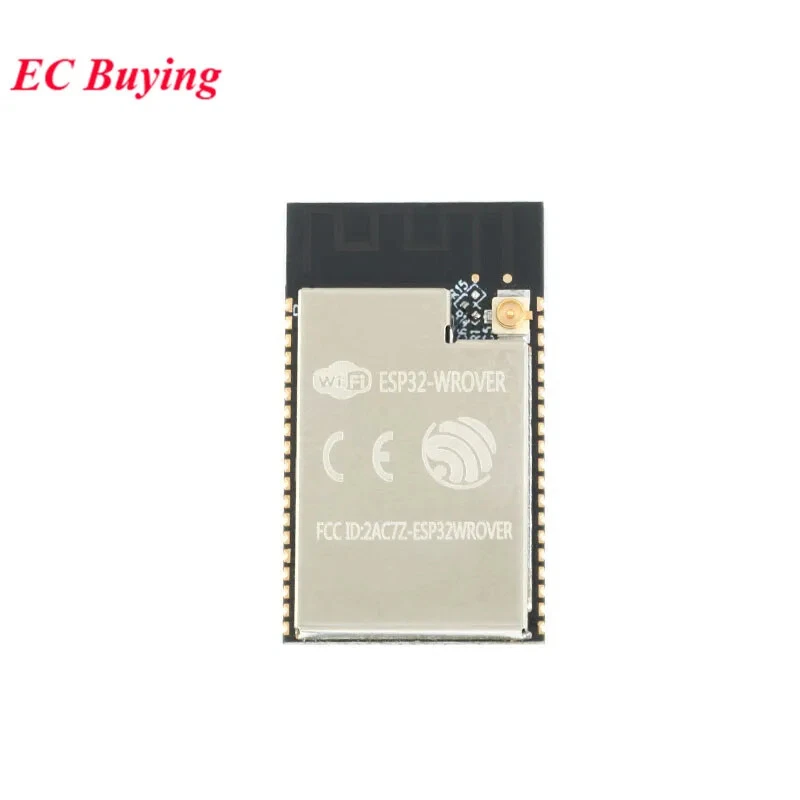

Brand: Espressif ESP32-WROVER and ESP32-WROVER-I ESP32-WROVER is a module based on the ESP32 chip, which is powerful and versatile. It can be used for low-power sensor networks and demanding tasks such as voice coding, audio streaming and MP3 decoding. The ESP32-WROVER use the esp32-D0WDQ6 chip same as the esp-wroom -32. In contrast, the ESP32-wrover module also has a 32-mbit SPI P-S-R-A-M. In this way, ESP32-wrover comes with 4 MB of SPI flash and 8 MB of P-S-R-A-M. ESP32-WROVER USES the PCB board antenna, and the other model, ESP32- WROVER - I, USES the IPEX antenna. ESP32-CAM+OV2640 Characteristics： Ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module Low-power dual-core 32-bit CPU for application processors Up to 240MHz, up to 600 DMIPS Built-in 520 KB SRAM, external 4M P-S-R-A-M Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC Support OV2640 and OV7670 cameras with built-in flash Support image WiFI upload Support TF card Support multiple sleep modes Embedded Lwip and FreeRTOS Support STA/AP/STA+AP working mode Support Smart Config/AirKiss one-click distribution network Support for serial local upgrade and remote firmware upgrade (FOTA) Introduction: ESP32 is already integrated antenna and RF balun, power amplifier, low-noise amplifiers, filters, and power management module. The entire solution takes up the least amount of printed circuit board area. This board is used with 2.4 GHz dual-mode Wi-Fi and Bluetooth chips by TSMC 40nm low power technology, power and RF properties best, which is safe, reliable, and scalable to a variety of applications. ESP-WROOM-32 Features: High performance-price ratio Small volume, easily embeded to other products Strong function with support LWIP protocol, Freertos Supporting three modes: AP, STA, and AP+STA Supporting Lua program, easily to develop ESP32-A1S Product Features： The main chip uses a low-power dual-core 32-bit CPU with a frequency of up to 240MHz and a computing power of up to 600DMIPS. Built-in CodeC audio decoder chip for local playback of music and recording Supports two MIC inputs and Linein mode inputs Support for headphones and speaker output Built-in 520KB SRAM+ 4M P-S-R-A-M, default 32Mbit SPI Flash Support SoftAP and Station mode Ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module Support UART/SPI/I2C/I2S/PWM/ADC/DAC, etc. Support for firmware upgrade (FOTA) Antenna supports on-board antenna or IPEX block output Supports a variety of mainstream compression and lossless audio formats, including M4A, AAC, FLAC, OGG, OPUS, MP3, WAV, etc. ESP32-S Product Features： The main chip uses a low-power dual-core 32-bit CPU with a frequency of up to 240MHz and a computing power of up to 600DMIPS. 32Mbit SPI Flash by default, 520KB SRAM Support SoftAP and Station mode Ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module Support UART/SPI/I2C/I2S/PWM/ADC/DAC, etc. Support for firmware upgrade (FOTA) Antenna supports on-board antenna or IPEX block output Product Specification： General IO: 22 Package: SMD-38 SPI Flash: 32Mbit by default Support interface: SD card, UART/SPI/SDIO/I2C/PWM/I2S/IR/GPIO/capacitive touch sensor/ADC/DAC Audio: CVSD and SBC Audio Serial port rate: default 115200bps Onboard clock: 40MHz crystal Antenna form: onboard PCB antenna and IPEX antenna mount Voltage: 2.7V-3.6V (recommended: 3.3V) Working current: average 80mA Supply current: minimum 500mA ESP32-D0WDQ6 QFN48 Wi-Fi main features 802.11 b/g/n 802.11 n (2.4 GHz) speeds up to 150 Mbps Wireless Multimedia (WMM) Frame aggregation (TX/RX A-MPDU, RX A-MSDU) Immediate Block Reply (Immediate Block ACK) Reconstruction Beacon automatic monitoring (hardware TSF) 4 times Virtual Wi-Fi interface Supports infrastructure type network (Infrastructure BSS) Station mode / SoftAP mode / promiscuous mode Please note that when the ESP32 scans in Station mode, the SoftAP channel will change simultaneously. Antenna diversity
