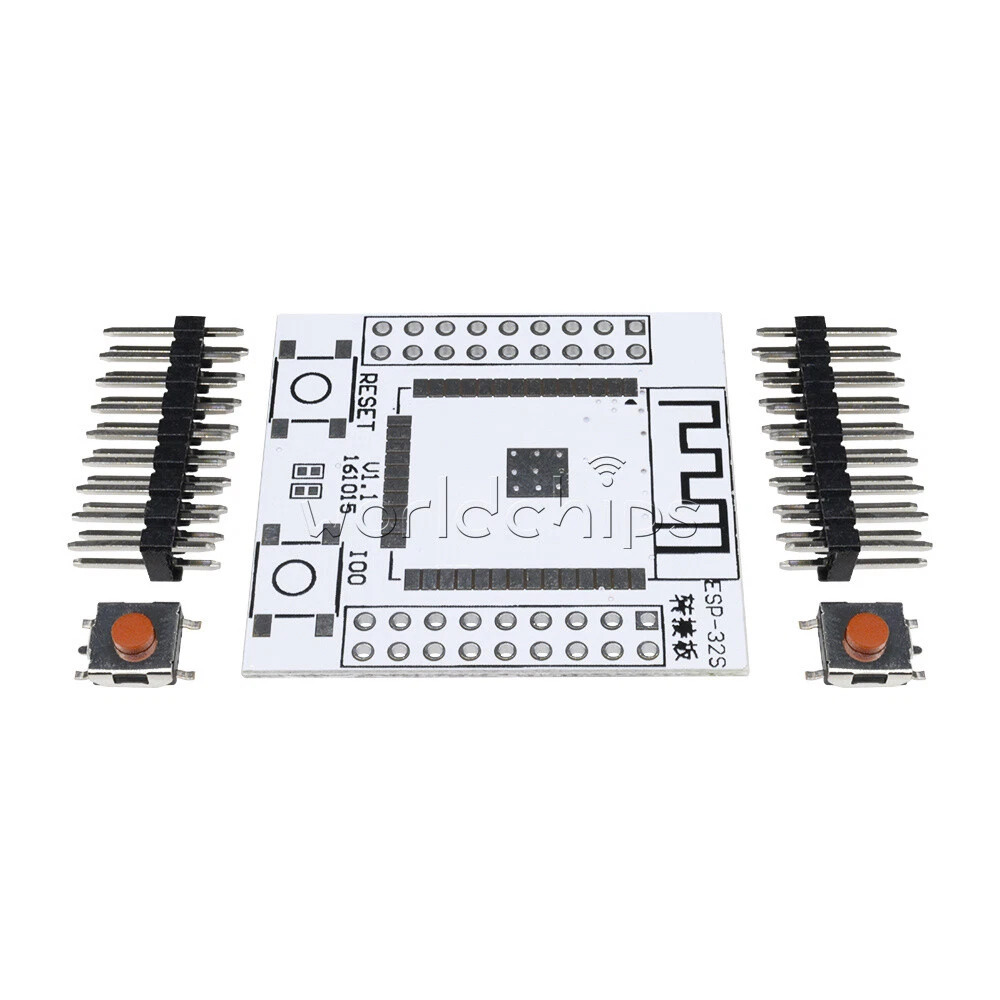

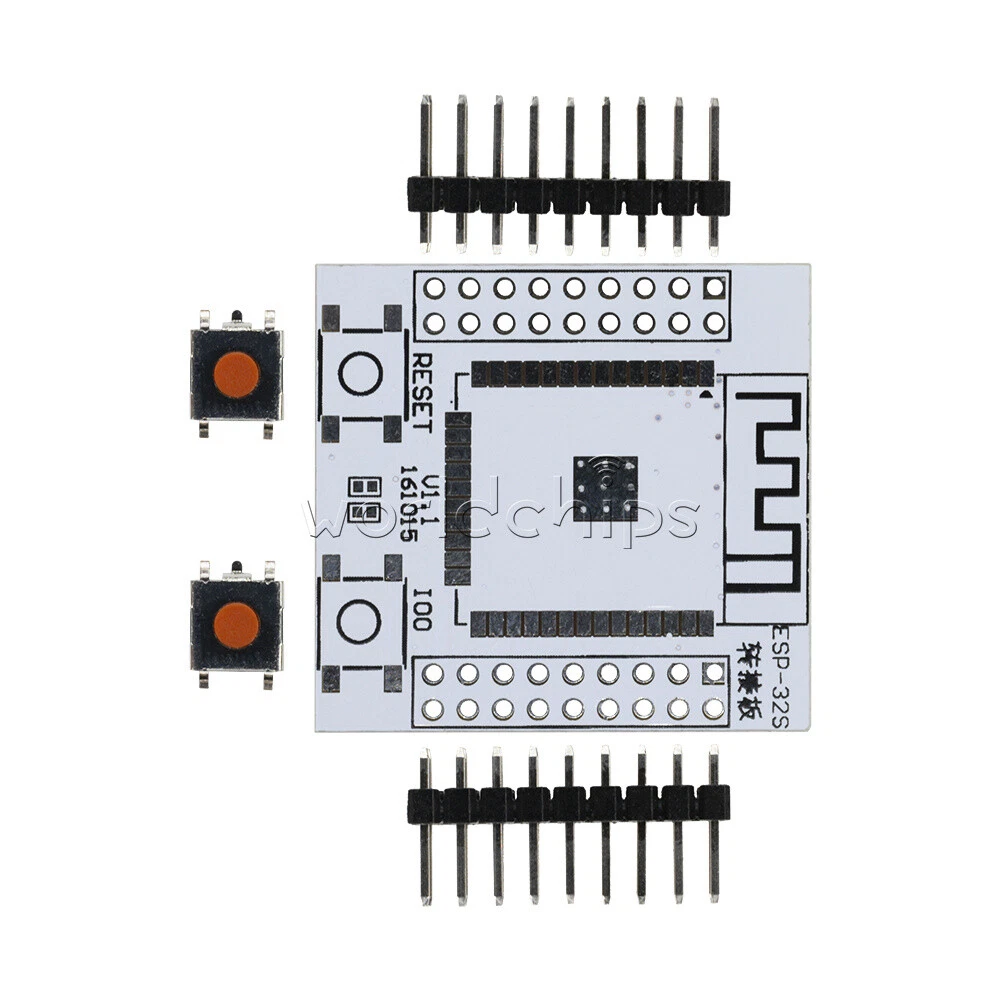

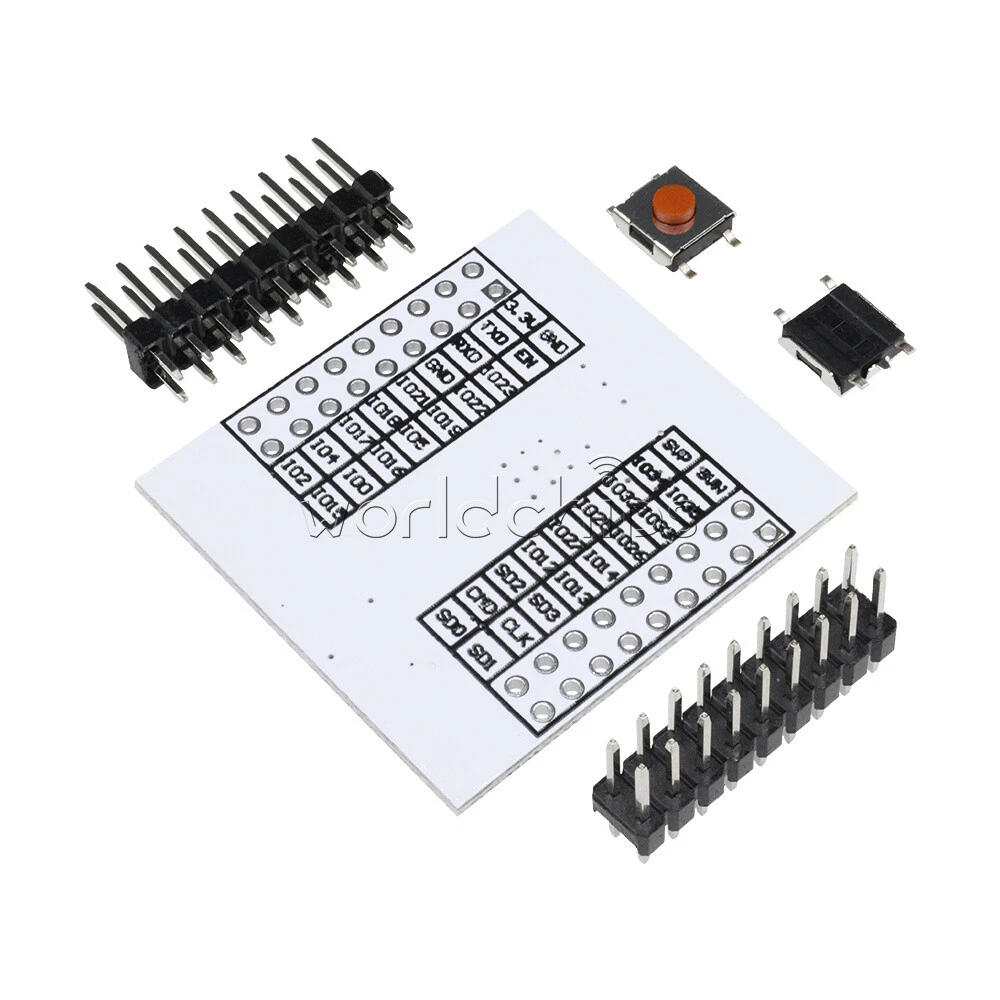

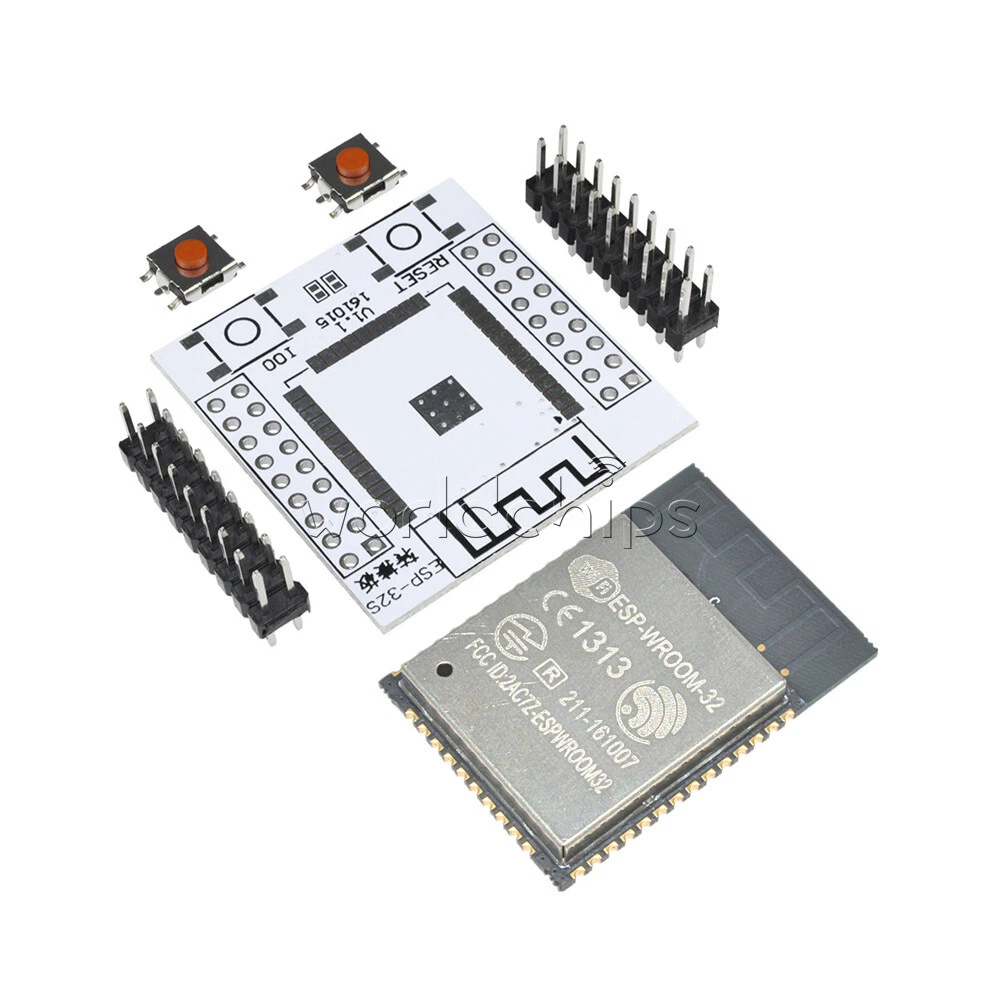

ESP--32 ESP32 ESP-32S Original IOT Wifi Wlan BLE Module+Adapter Board
$ 2.15
Description

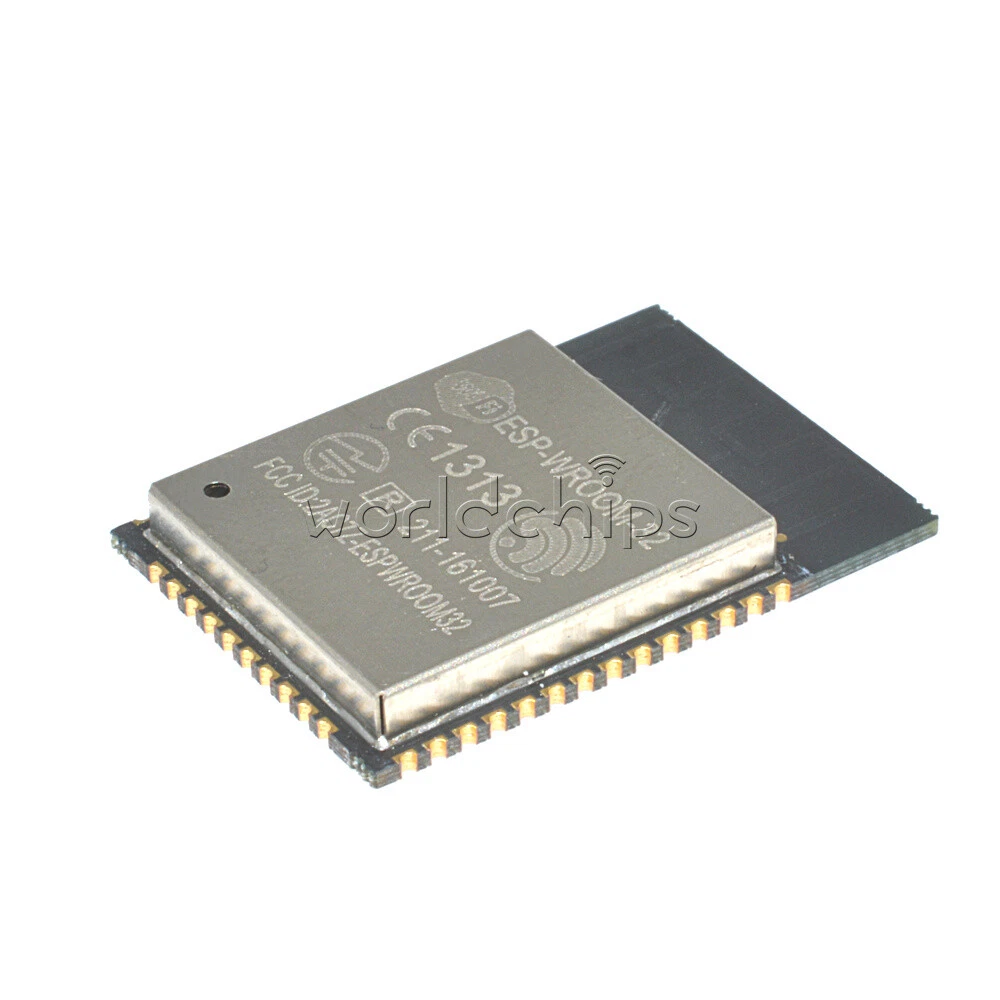

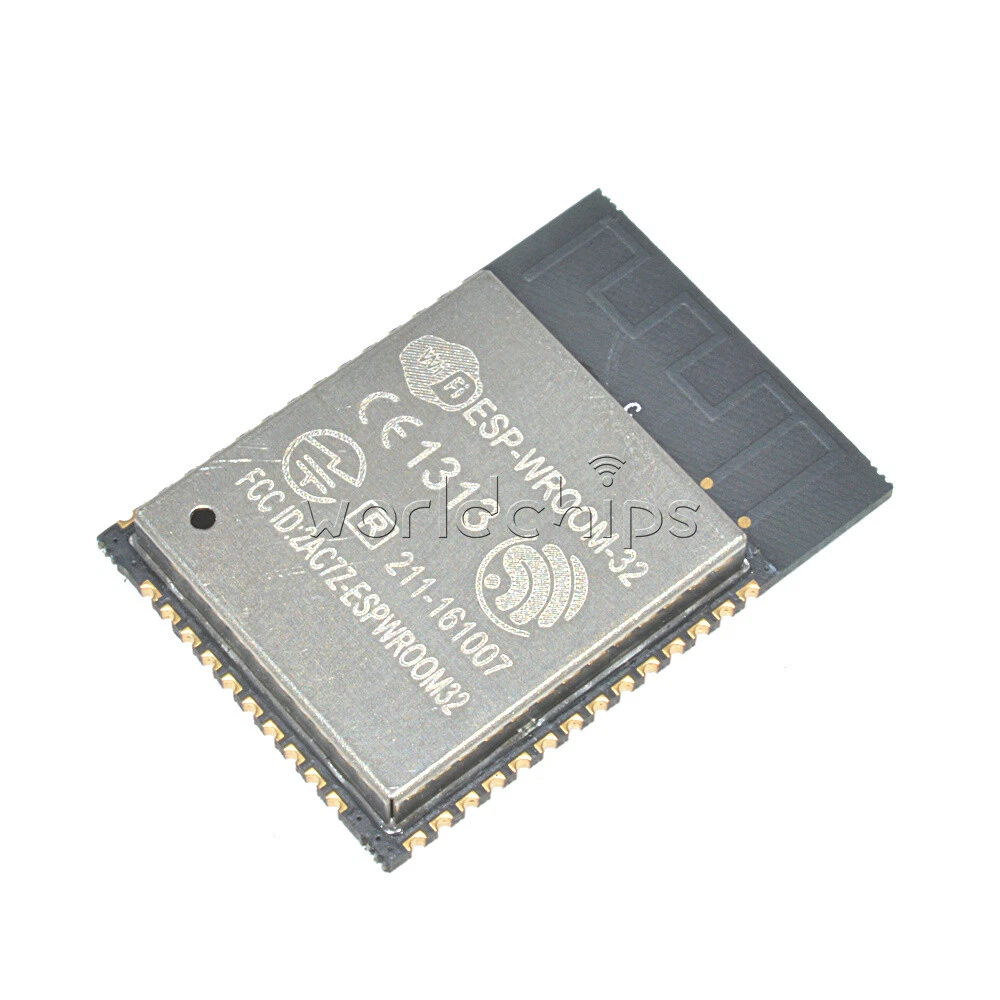

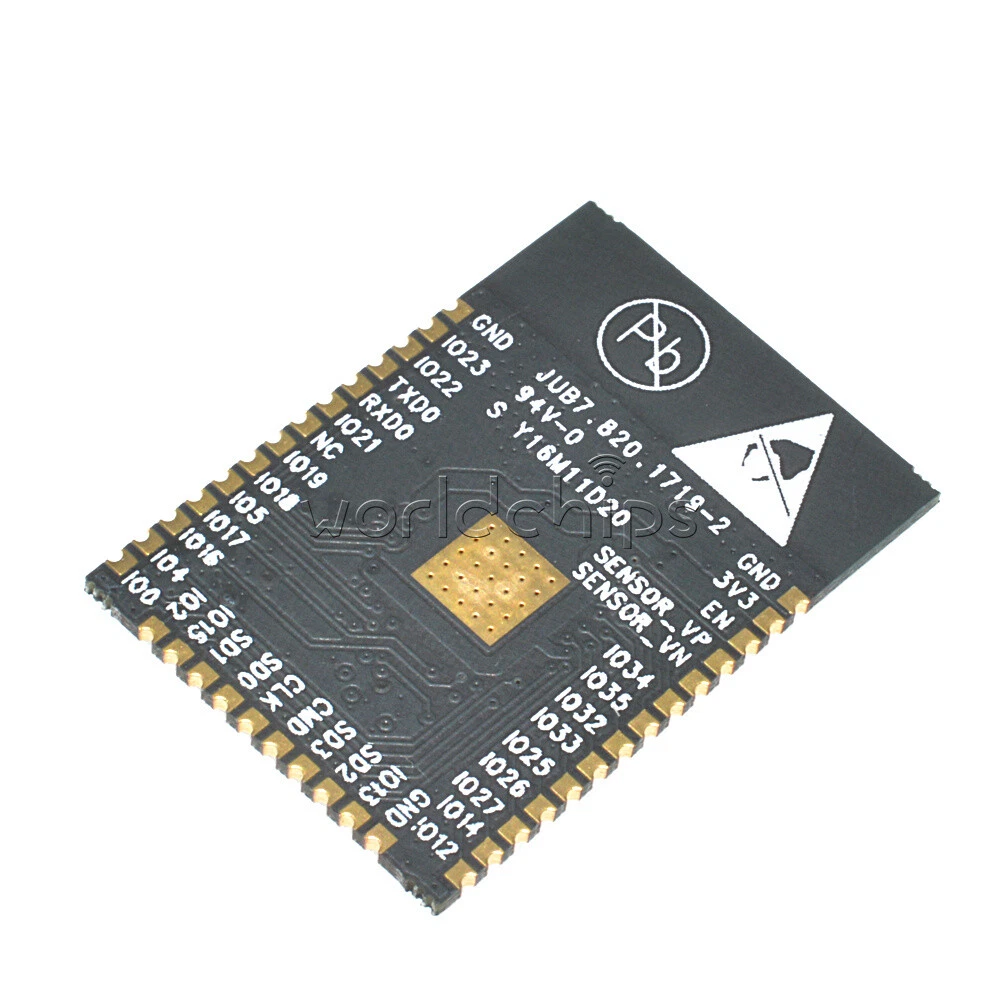

Home Arduino Module Sensor Chips About Us Description: ESP-32S ESP32 Module ESP-WROOM-32 is Powered by Espressif’s most advanced SoC, the ESP-WROOM-32 features high performance, a wide range of peripherals, Wi-Fi and Bluetooth radio, which provide a complete solution tailored to advanced IoT applications. 240 MHz dual core Tensilica LX6 microcontroller with 600 DMIPS Integrated 520 KB SRAM Integrated 802.11BGN HT40 Wi-Fi transceiver, baseband, stack and LWIP Integrated dual mode Bluetooth (classic and BLE) 16 MByte flash 2.2V to 3.6V operating voltage -40°C to +125°C operating temperature On-board PCB antenna / IPEX connector for external antenna Supports sniffer, station, softAP and Wi-Fi direct modes Max data rate of 150 Mbps@11n HT40, 72 Mbps@11n HT20, 54 Mbps@11g, and 11 Mbps@11b Maximum transmit power of 19.5 dBm@11b, 16.5 dBm@11g, 15.5 dBm@11n Minimum receiver sensitivity of -98 dBm 135 Mbps UDP sustained throughput 2.5 µA deep sleep current Wi-fi 802.11 b/g/n/e/i 802.11 n (2.4 GHz), up to 150 Mbps 802.11 e: QoS for wireless multimedia technology WMM-PS, UAPSD A-MPDU and A-MSDU aggregation Block ACK Fragmentation and defragmentation Automatic Beacon monitoring/scanning 802.11 i security features: pre-authentication and TSN Wi-Fi Protected Access (WPA)/WPA2/WPA2-Enterprise/Wi-Fi Protected Setup (WPS) Infrastructure BSS Station mode/SoftAP mode Wi-Fi Direct (P2P), P2P Discovery, P2P Group Owner mode and P2P Power Management UMA compliant and certified Antenna diversity and selection Compliant with Bluetooth v4.2 BR/EDR and BLE specification Bluetooth Class-1, class-2 and class-3 transmitter without external power amplifier Enhanced power control +10 dBm transmitting power NZIF receiver with -98 dBm sensitivity Adaptive Frequency Hopping (AFH) Standard HCI based on SDIO/SPI/UART High speed UART HCI, up to 4 Mbps BT 4.2 controller and host stack Service Discover Protocol (SDP) General Access Profile (GAP) Security Manage Protocol (SMP) Bluetooth Low Energy (BLE) ATT/GATT HID All GATT-based profile supported SPP-Like GATT-based profile BLE Beacon A2DP/AVRCP/SPP, HSP/HFP, RFCOMM CVSD and SBC for audio codec Bluetooth Piconet and Scatternet ESP32 vs ESP8266: ESP32 ESP8266 Ethernet MAC Interface Nicht vorhanden GPIOs für 10 Touch-Sensoren Nicht vorhanden Temperatur-Sensor (on-chip) Nicht vorhanden Remote-Controller-Funktionalität Nicht vorhanden Hall-Sensor Nicht vorhanden Digital-to-Analog Converter (DAC) Nicht vorhanden CAN 2.0 Nicht vorhanden Analog-to-Digital Converter (ADC): 16 Kanäle mit 12-Bit SAR-ADC mit Unterstützung für einen Low-Noise Amplifier (LNA) 10-bit ADC, kein LNA 2 I2C-Schnittstellen 1 I2C-Schnittstelle 16 Kanäle für PWM 8 Kanäle für PWM GPIOs (General-Purpose Input/Output): 36 GPIOs: 17 4 SPI-Schnittstellen mit Quad-SPI und maximal 80 MHz 3 SPI-Schnittstellen mit Quad-SPI und maximal 80 MHz ESP-32S ESP32 Adapter This is a adapter board for ESP-32S Wireless Module. It can be inserted to breadboard with Dupont cable wire. Convenient to develop and debug. RESET I/O Pins Pin Pitch: 2.54mm Package included: 1*ESP-32 ESP-32S ESP-WROOM-32 WLAN & BLE Module 1*Adapter Payment Shipping Refund Payment We accept PayPal only. But we only Accept your Ebay Address ,Please Make sure it's 100% right. Payment must be received in 5 business days of auction closing. Please leave note for your special request (e.g. Colors or Size) in PayPal when you pay the order. Any special request cannot be accepted after 24 hours of payment, because most of orders will be processed instantly and same day dispatched. Shipping Fill your shipping info Refund All package need to wait 30 days (US only n eed 7-10 days) , Please take care it.Less than 30 days,we can't take a refund . If the item is defect when you receive it or you are not satisfied with it, please return it within 14 days for a replacement or money back. But the items must be back in factory condition. Please contact us and double check the return address before you return it. If is item is defective in 12 months, you can return it to us. We will send you a new replacement after receiving the defective item.
