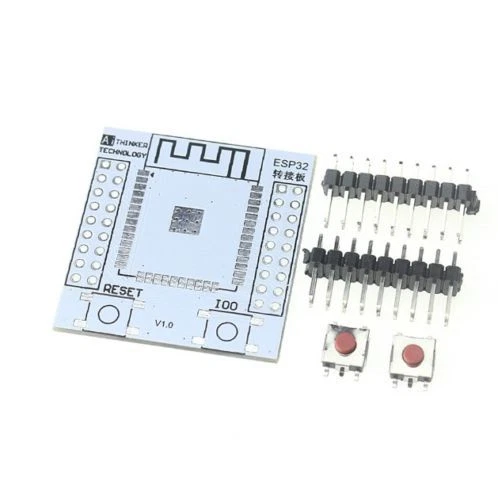

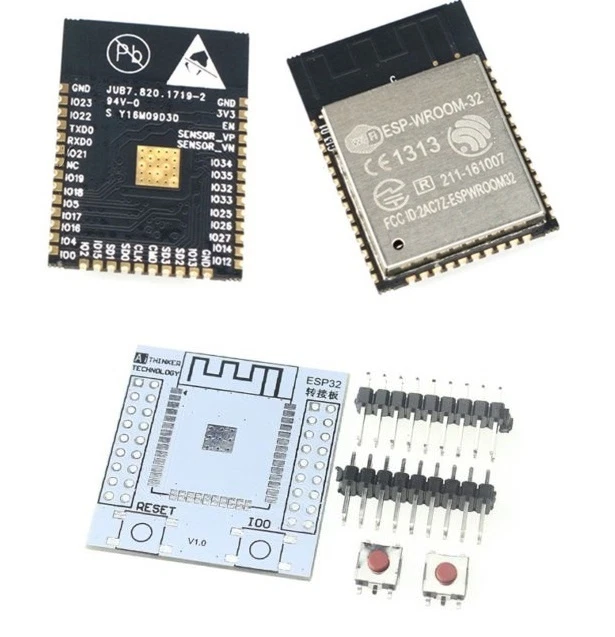

ESP32 ESP-32S ESP-WROOM-32 Original IoT Wifi Wlan BLE Module+Adapter Board
$ 2.45
Description
ESP-WROOM-32 is Powered by Espressif’s most advanced SoC, the ESP-WROOM-32 features high performance, a wide range of peripherals, Wi-Fi and Bluetooth radio, which provide a complete solution tailored to advanced IoT applications. 240 MHz dual core Tensilica LX6 microcontroller with 600 DMIPS Integrated 520 KB SRAM Integrated 802.11BGN HT40 Wi-Fi transceiver, baseband, stack and LWIP Integrated dual mode Bluetooth (classic and BLE) 16 MByte flash 2.2V to 3.6V operating voltage -40°C to +125°C operating temperature On-board PCB antenna / IPEX connector for external antenna Supports sniffer, station, softAP and Wi-Fi direct modes Max data rate of 150 Mbps@11n HT40, 72 Mbps@11n HT20, 54 Mbps@11g, and 11 Mbps@11b Maximum transmit power of 19.5 dBm@11b, 16.5 dBm@11g, 15.5 dBm@11n Minimum receiver sensitivity of -98 dBm 135 Mbps UDP sustained throughput 2.5 µA deep sleep current Wi-fi802.11 b/g/n/e/i 802.11 n (2.4 GHz), up to 150 Mbps 802.11 e: QoS for wireless multimedia technology WMM-PS, UAPSD A-MPDU and A-MSDU aggregation Block ACK Fragmentation and defragmentation Automatic Beacon monitoring/scanning 802.11 i security features: pre-authentication and TSN Wi-Fi Protected Access (WPA)/WPA2/WPA2-Enterprise/Wi-Fi Protected Setup (WPS) Infrastructure BSS Station mode/SoftAP mode Wi-Fi Direct (P2P), P2P Discovery, P2P Group Owner mode and P2P Power Management UMA compliant and certified Antenna diversity and selection Compliant with Bluetooth v4.2 BR/EDR and BLE specification BluetoothClass-1, class-2 and class-3 transmitter without external power amplifier Enhanced power control +10 dBm transmitting power NZIF receiver with -98 dBm sensitivity Adaptive Frequency Hopping (AFH) Standard HCI based on SDIO/SPI/UART High speed UART HCI, up to 4 Mbps BT 4.2 controller and host stack Service Discover Protocol (SDP) General Access Profile (GAP) Security Manage Protocol (SMP) Bluetooth Low Energy (BLE) ATT/GATT HID All GATT-based profile supported SPP-Like GATT-based profile BLE Beacon A2DP/AVRCP/SPP, HSP/HFP, RFCOMM CVSD and SBC for audio codec Bluetooth Piconet and Scatternet ESP32 vs ESP8266: ESP32ESP8266 Ethernet MAC InterfaceNicht vorhanden GPIOs für 10 Touch-SensorenNicht vorhanden Temperatur-Sensor (on-chip)Nicht vorhanden Remote-Controller-FunktionalitätNicht vorhanden Hall-SensorNicht vorhanden Digital-to-Analog Converter (DAC)Nicht vorhanden CAN 2.0Nicht vorhanden Analog-to-Digital Converter (ADC): 16 Kanäle mit 12-Bit SAR-ADC mit Unterstützung für einen Low-Noise Amplifier (LNA)10-bit ADC, kein LNA 2 I2C-Schnittstellen1 I2C-Schnittstelle 16 Kanäle für PWM8 Kanäle für PWM GPIOs (General-Purpose Input/Output): 36GPIOs: 17 4 SPI-Schnittstellen mit Quad-SPI und maximal 80 MHz3 SPI-Schnittstellen mit Quad-SPI und maximal 80 MHz ESP-32S ESP32 Adapter This is a adapter board for ESP-32S Wireless Module. It can be inserted to breadboard with Dupont cable wire. Convenient to develop and debug. RESET I/O Pins Pin Pitch: 2.54mm Package included 1PCS ESP32 ESP-32S ESP-WROOM-32 Original IoT Wifi Wlan BLE Module+Adapter Board Payment Payment Payable To Note PayPal Paypal All payments are due within 7 days of the close of auction. Failing to do so, non-paying bidders will be reported to eBay. Shipping Policy Delivery Time We ship to worldwide, it usually takes 10-30 Business Days to delivery. Shipping address We ship to your PayPal address. Please, make sure to provide us with correct, precise, and detailed shipping Address. Send Time Items will be shipped within 1 to 3 business days upon payment received or cleared. Note If you don't receive items over 30 business days, please notify us via eBay message. Return Policy We appreciate your business and offer an instant 7 days return policy.(7 days after receive the item). The returned item has to be in its original condition. We are able to refund your money without shipping cost. Contact us For anything about product, price, shipping or order status, please contact us via eBay message. We love positive feedback and 5 scores DSR. We will leave it for everyone that leaves it for us.
