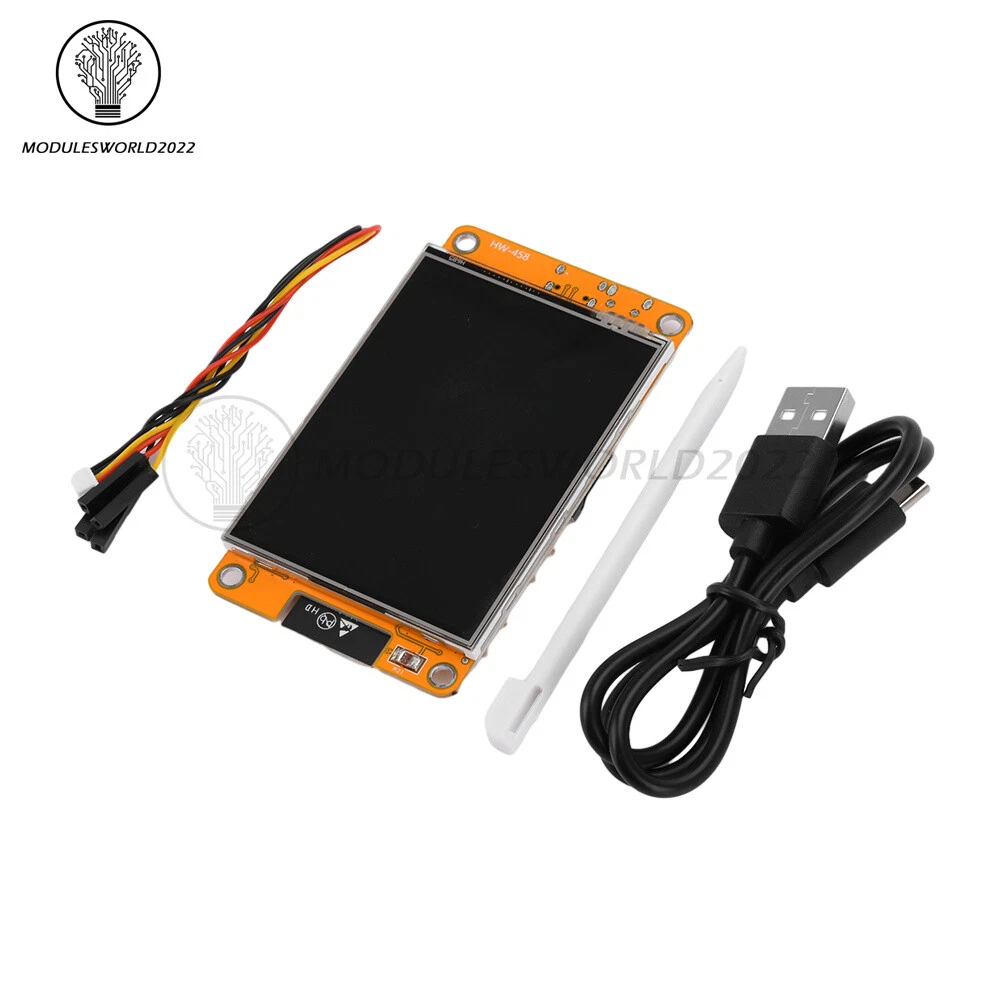

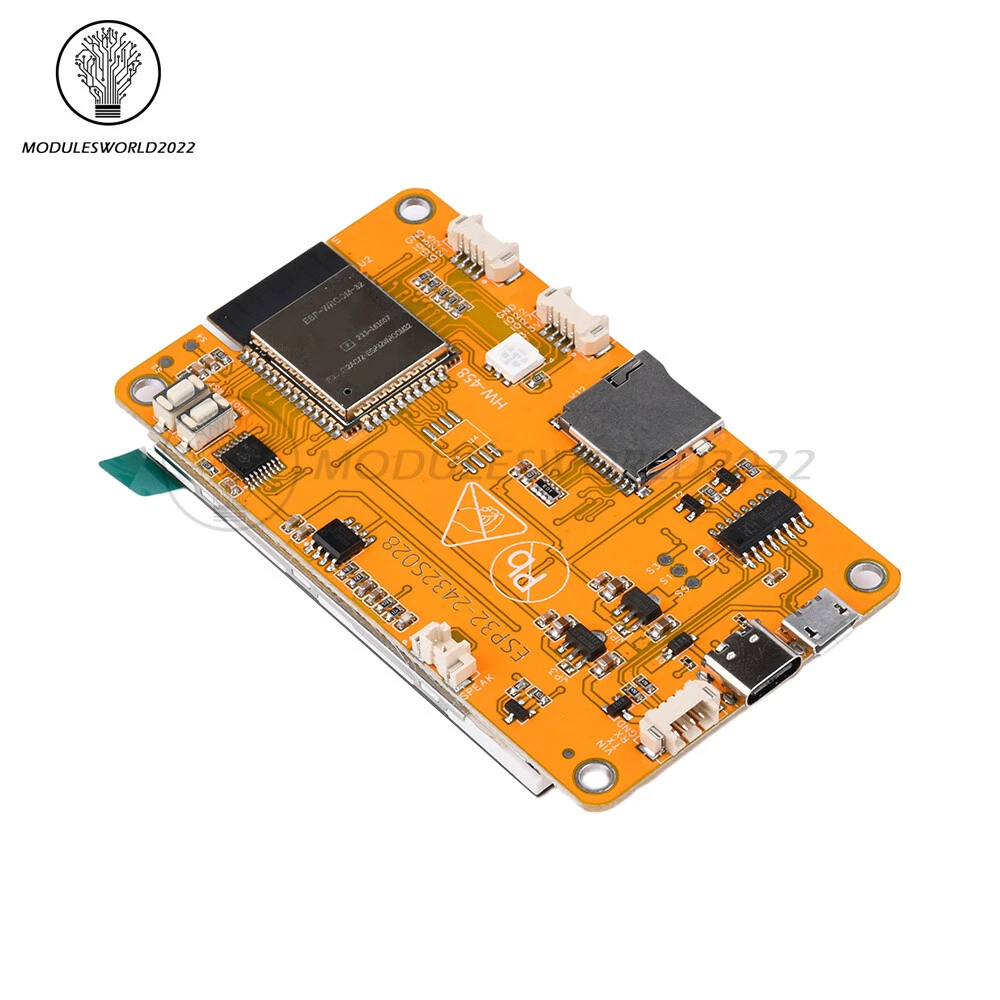

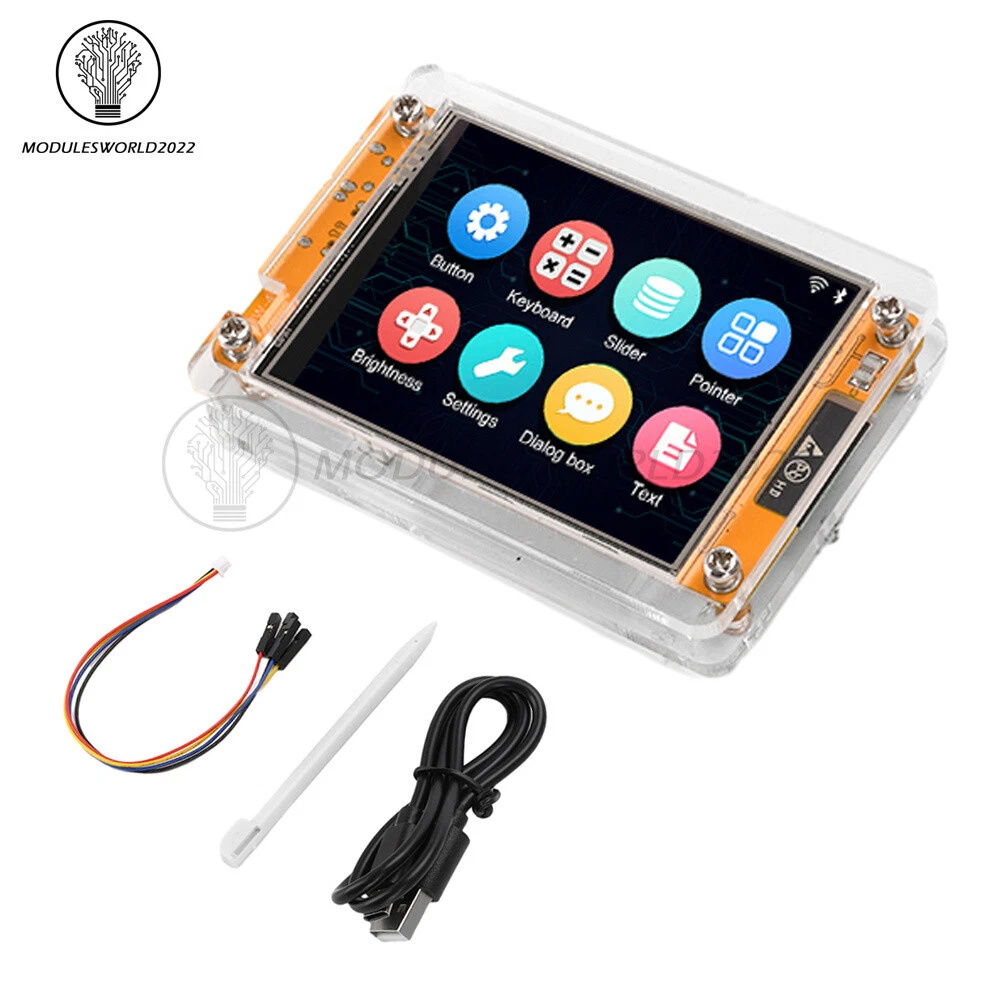

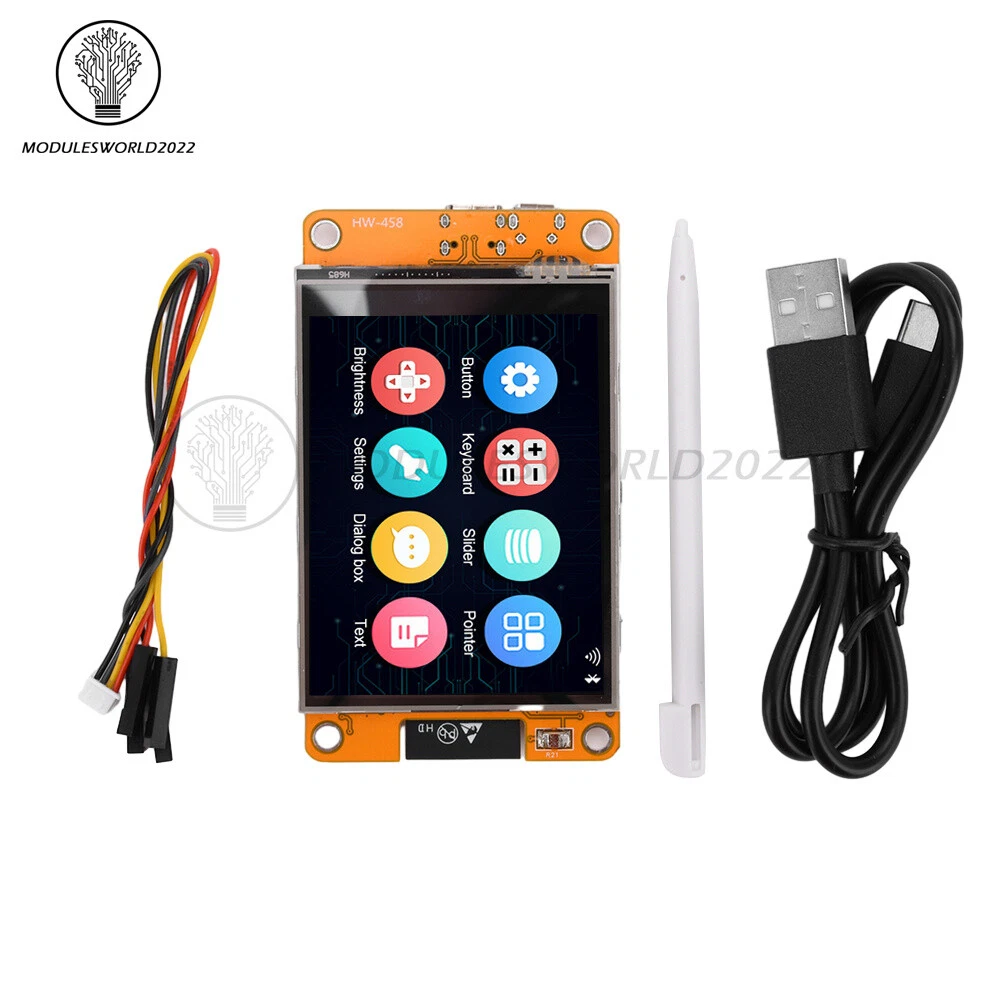

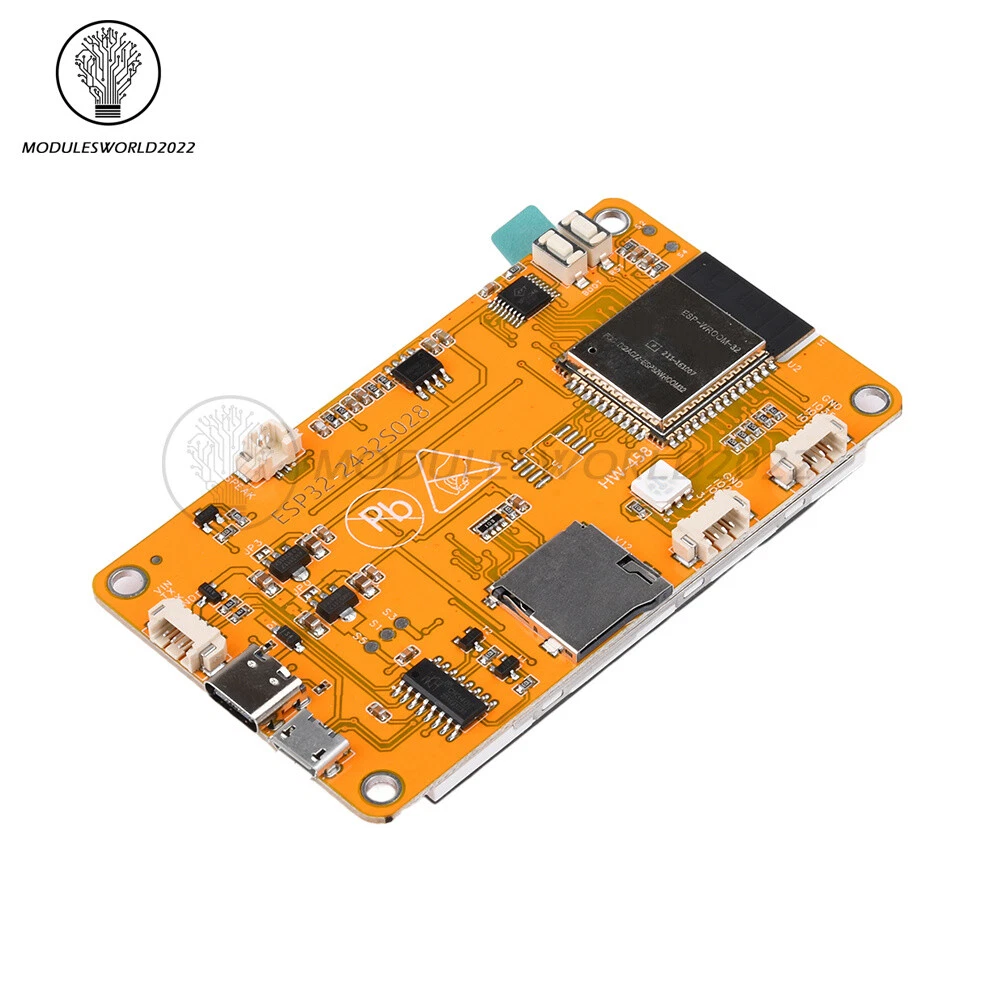

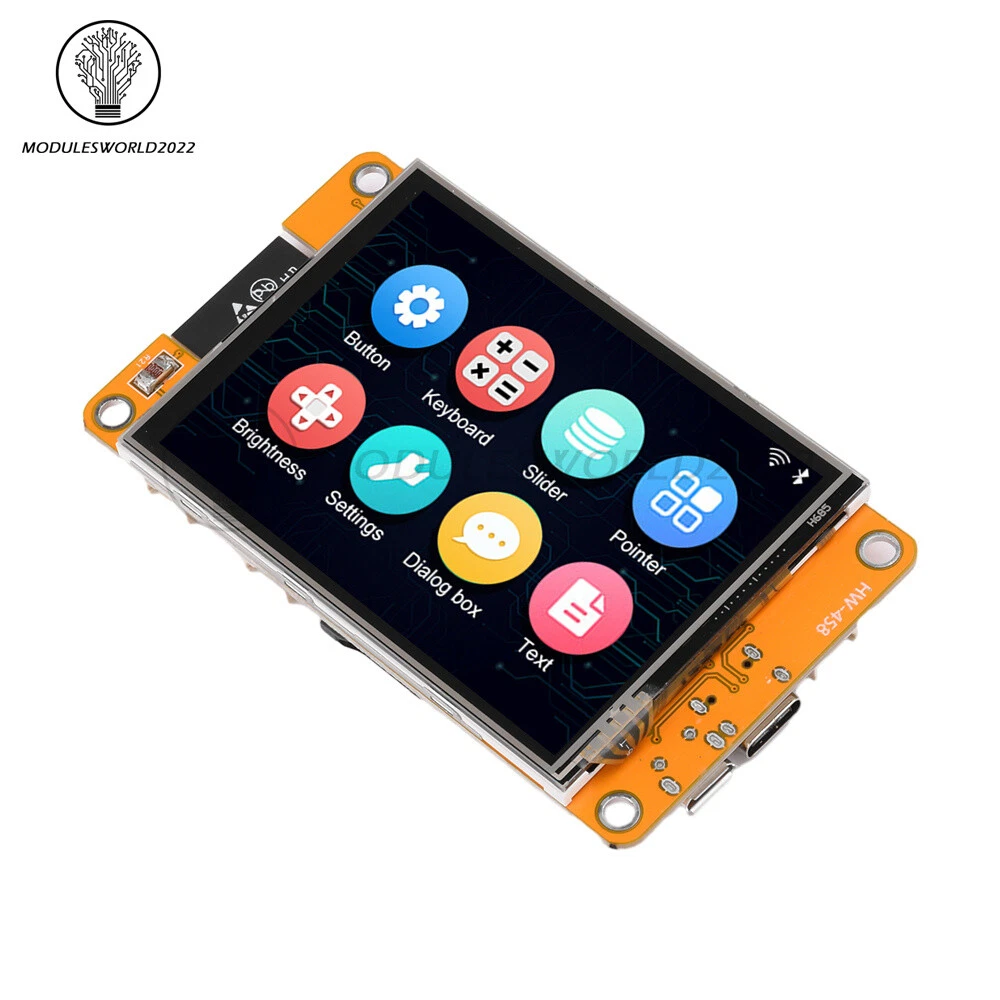

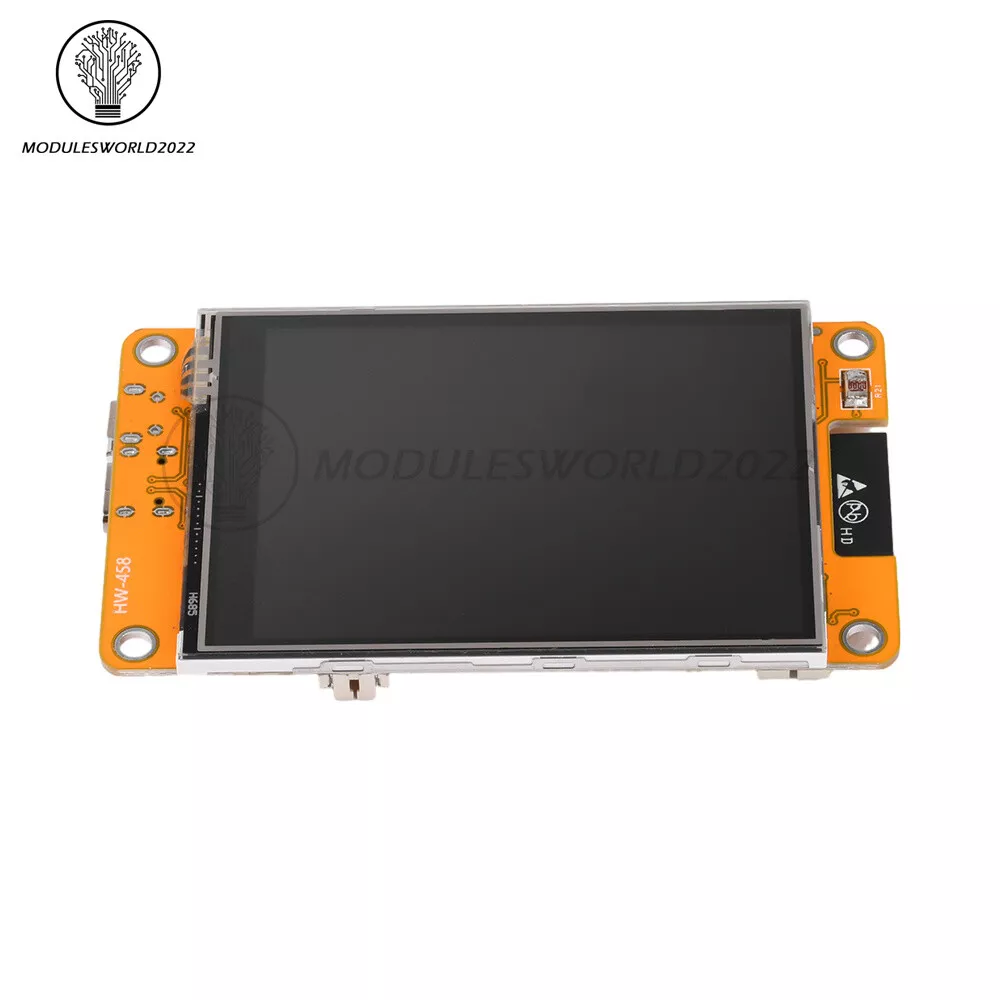

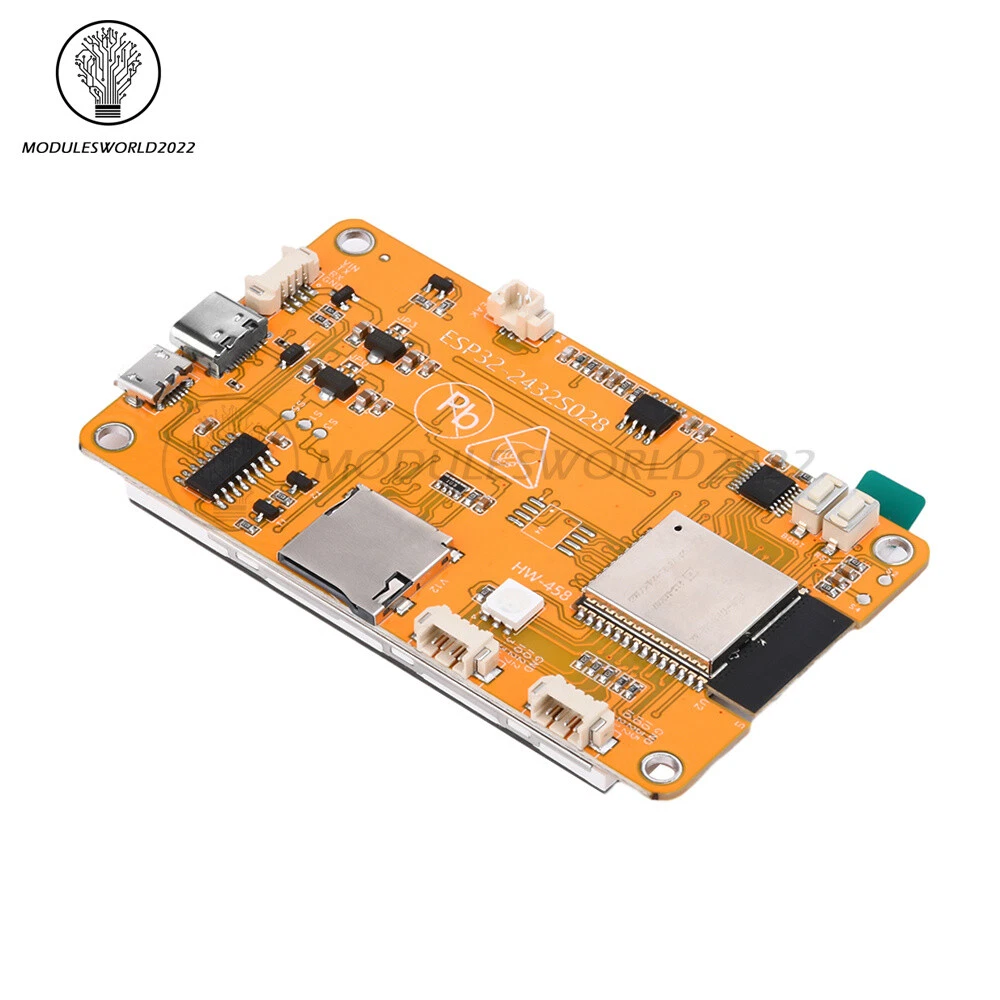

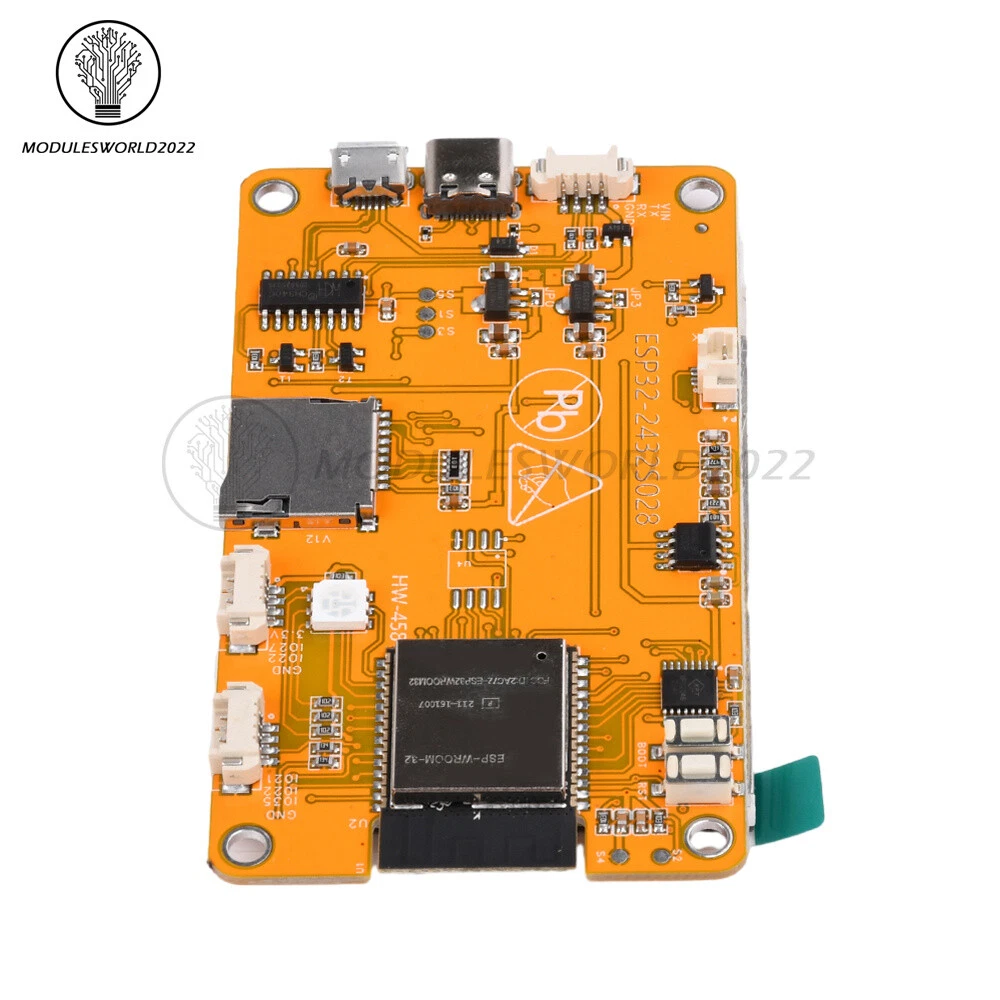

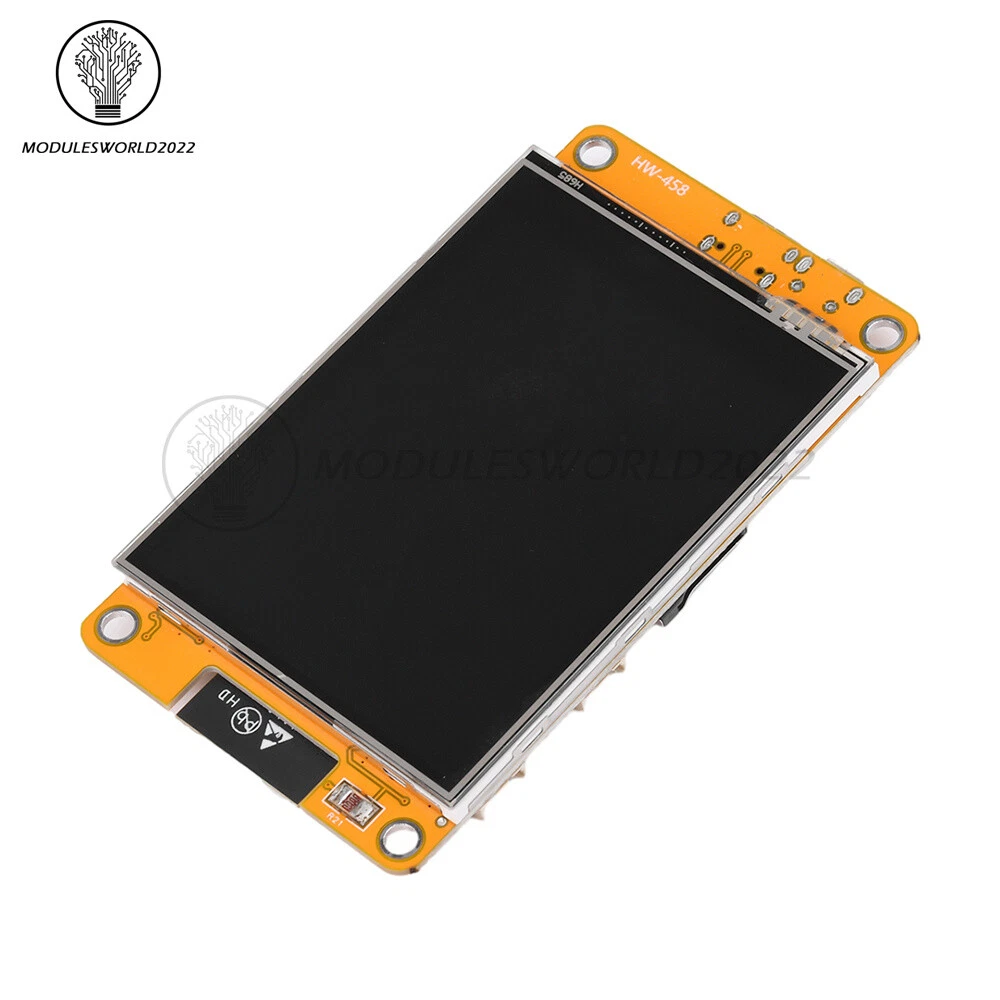

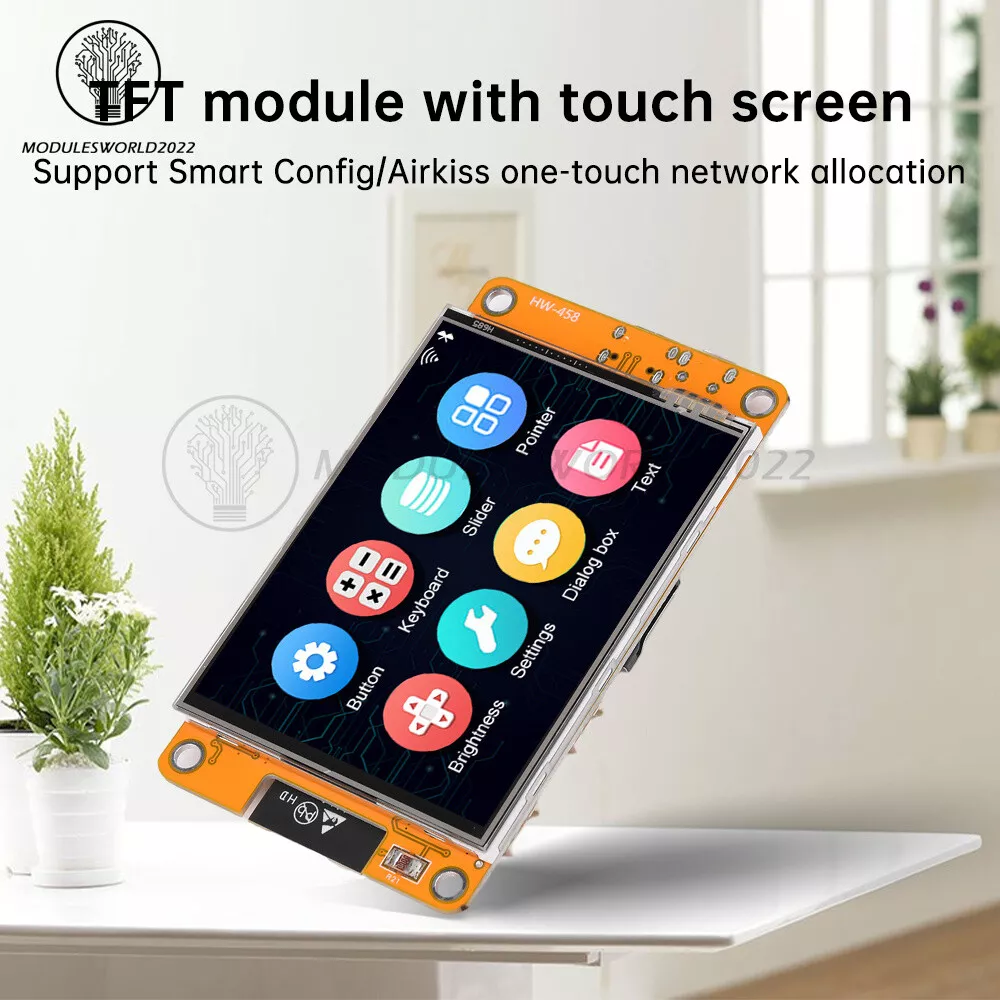

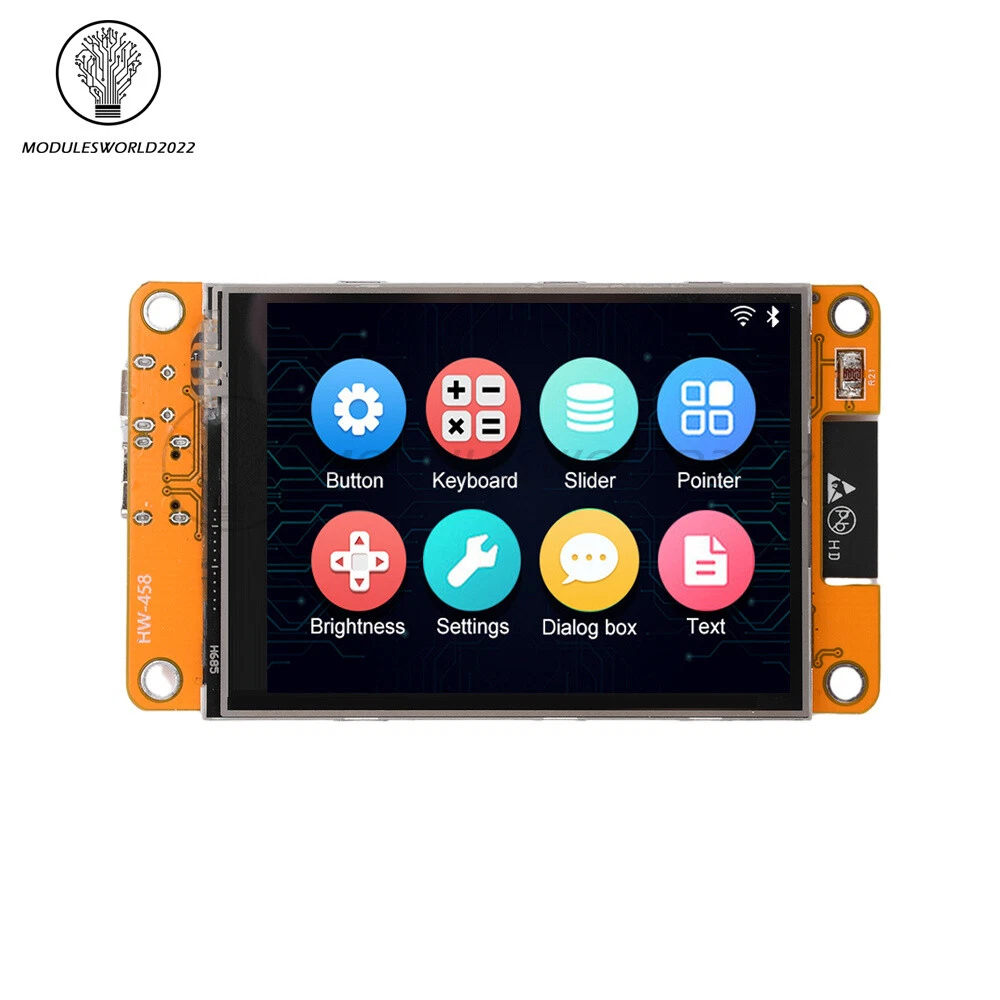

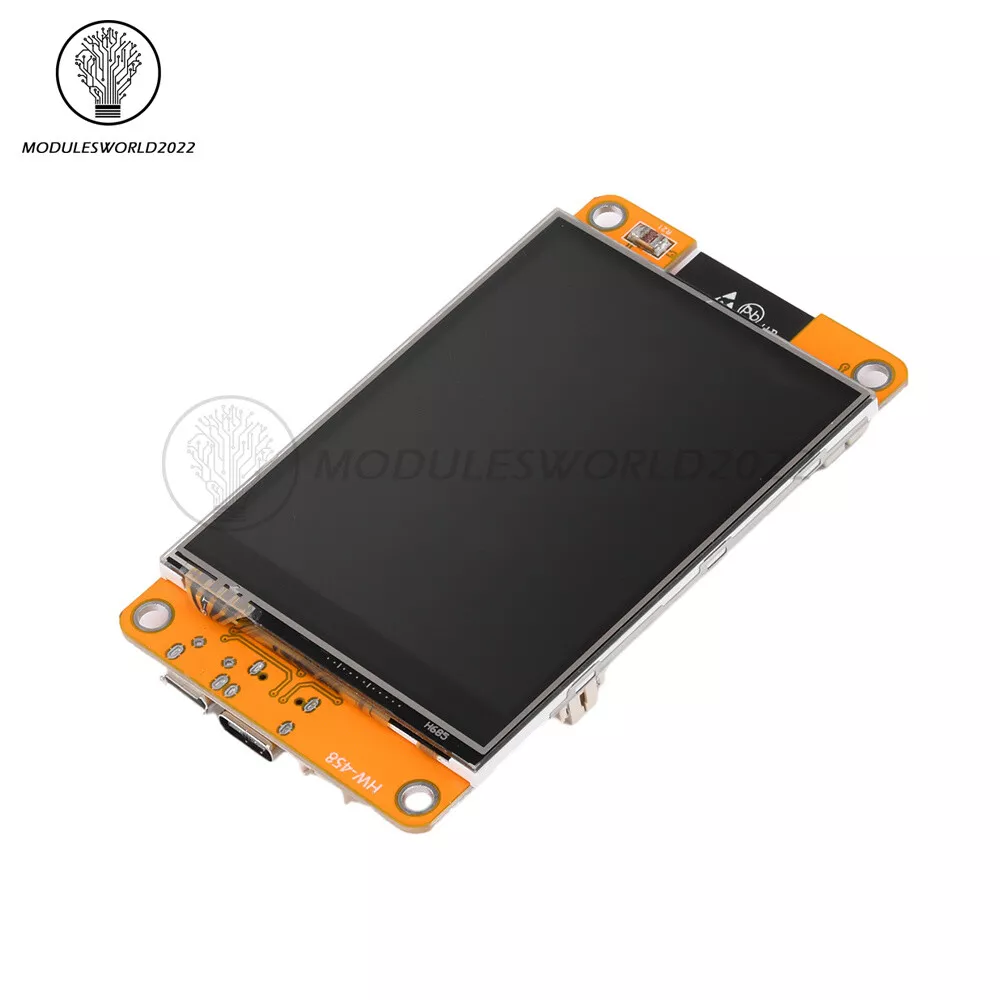

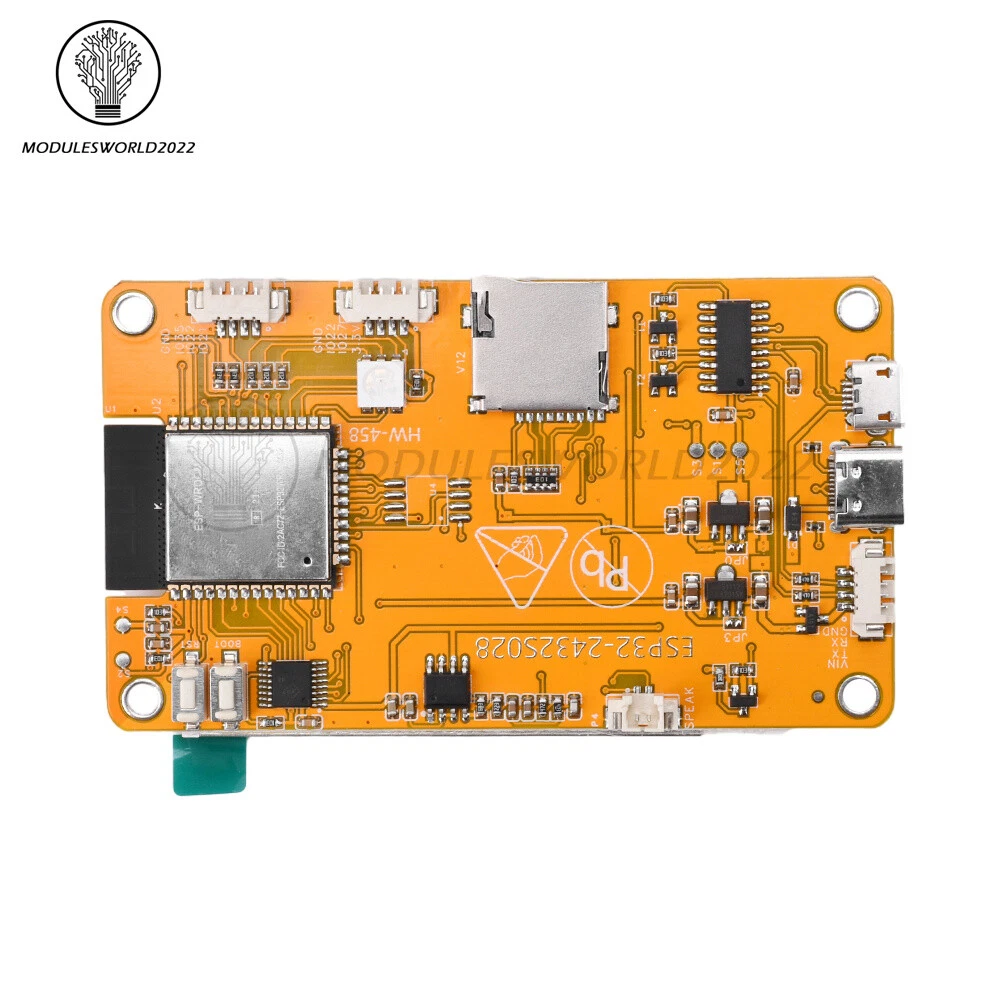

ESP32 WIFI Bluetooth Development Board 2.8" LCD TFT Touch Screen Module +Case US
$ 8.31
Description

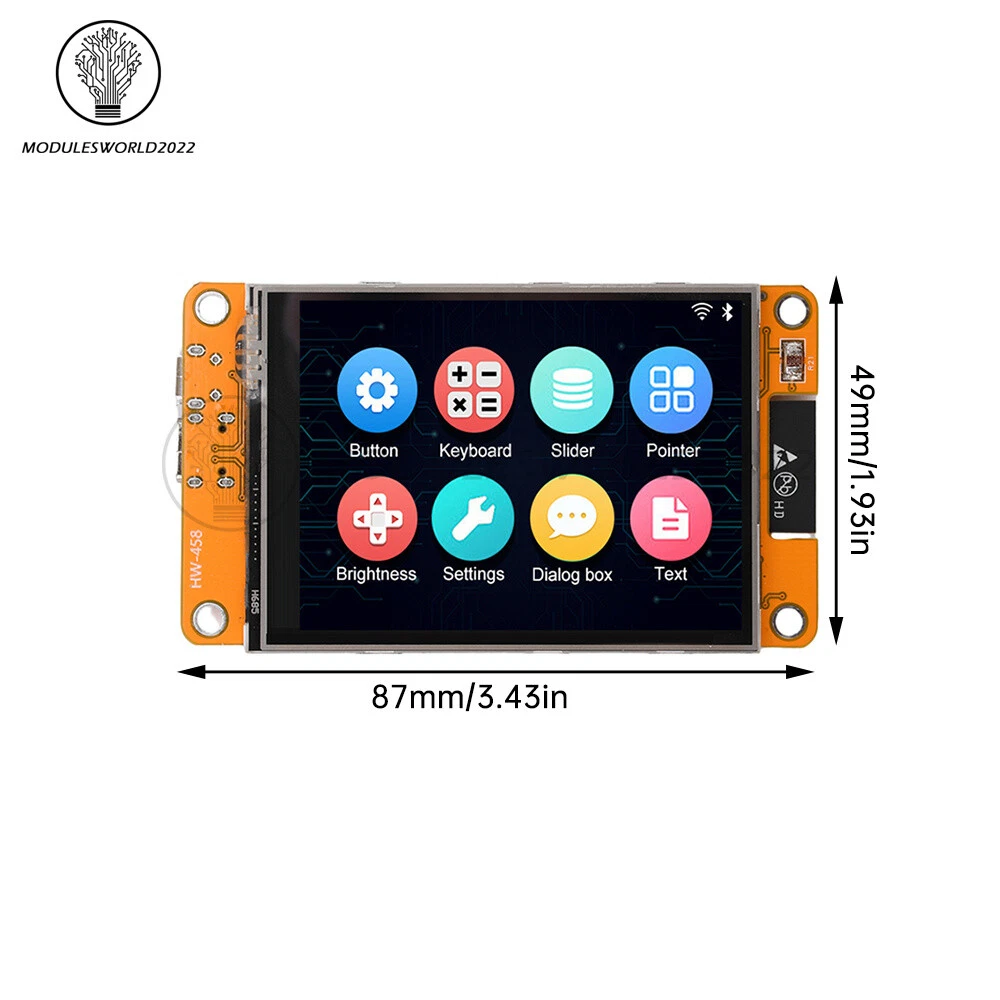

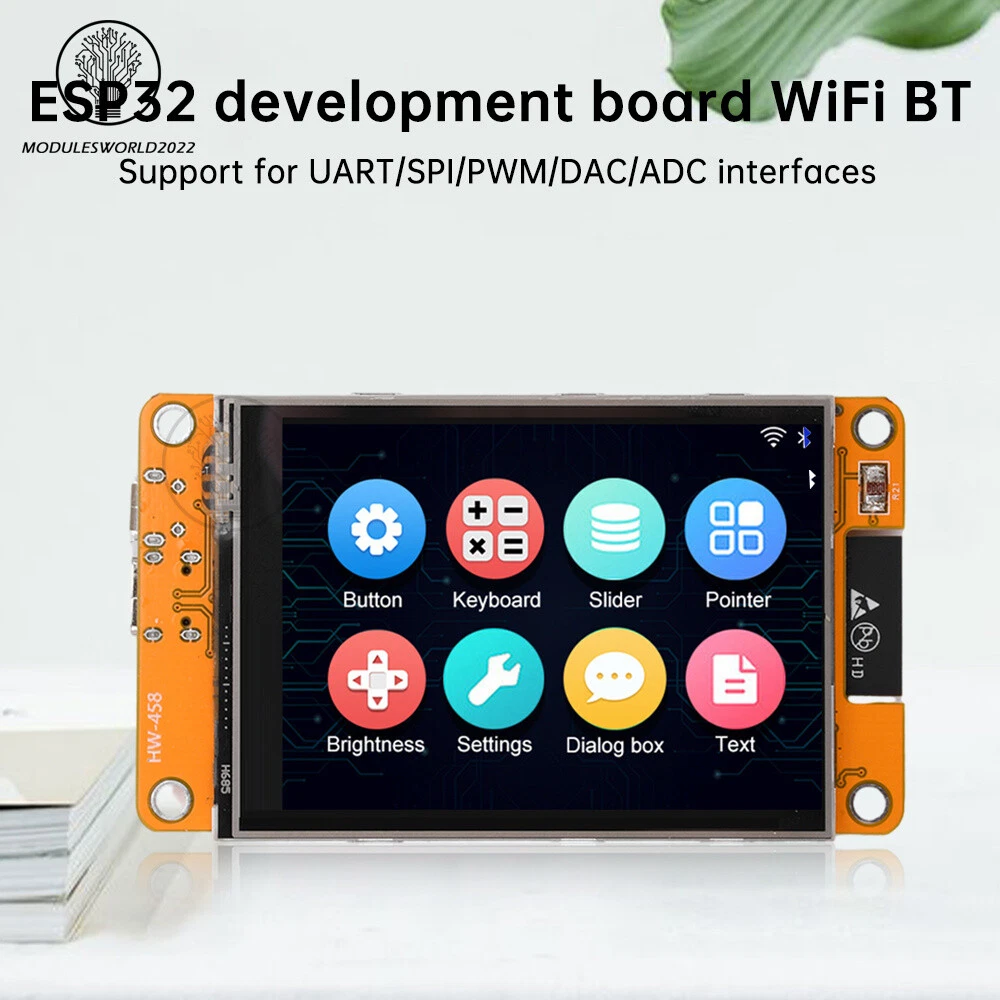

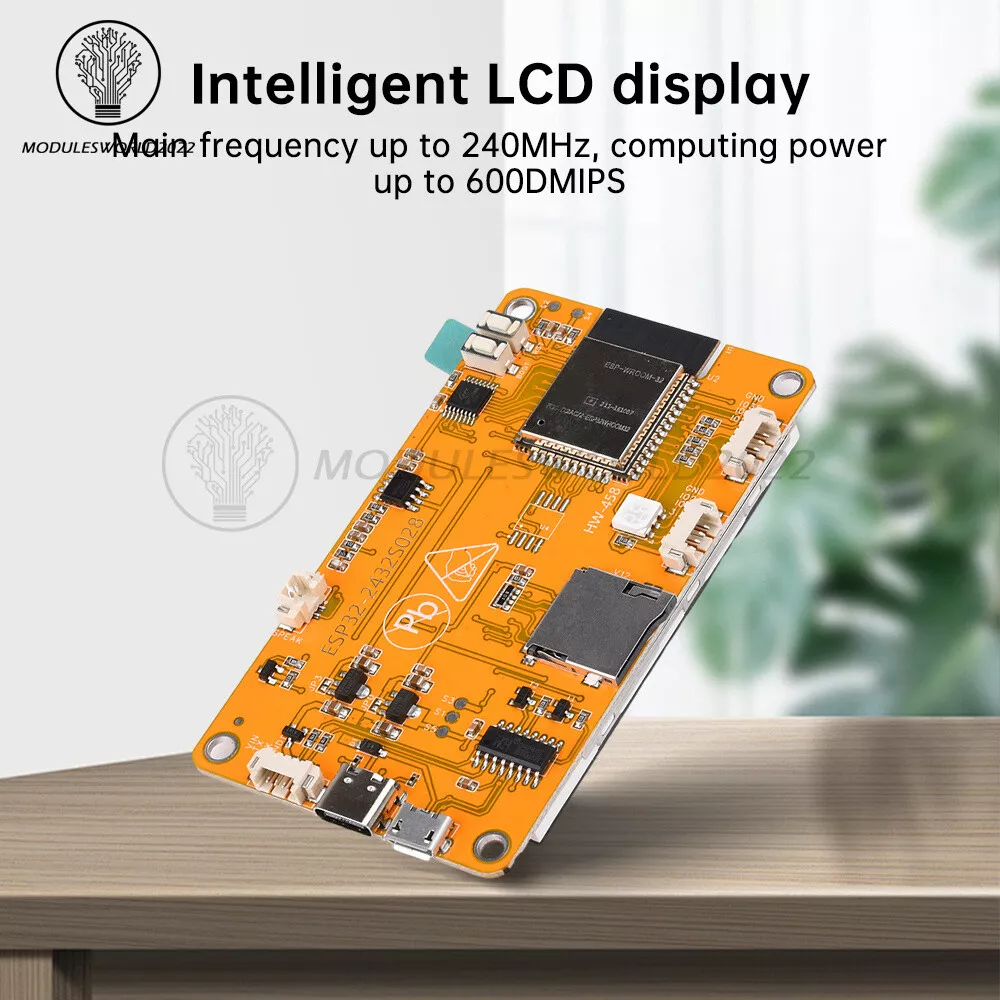

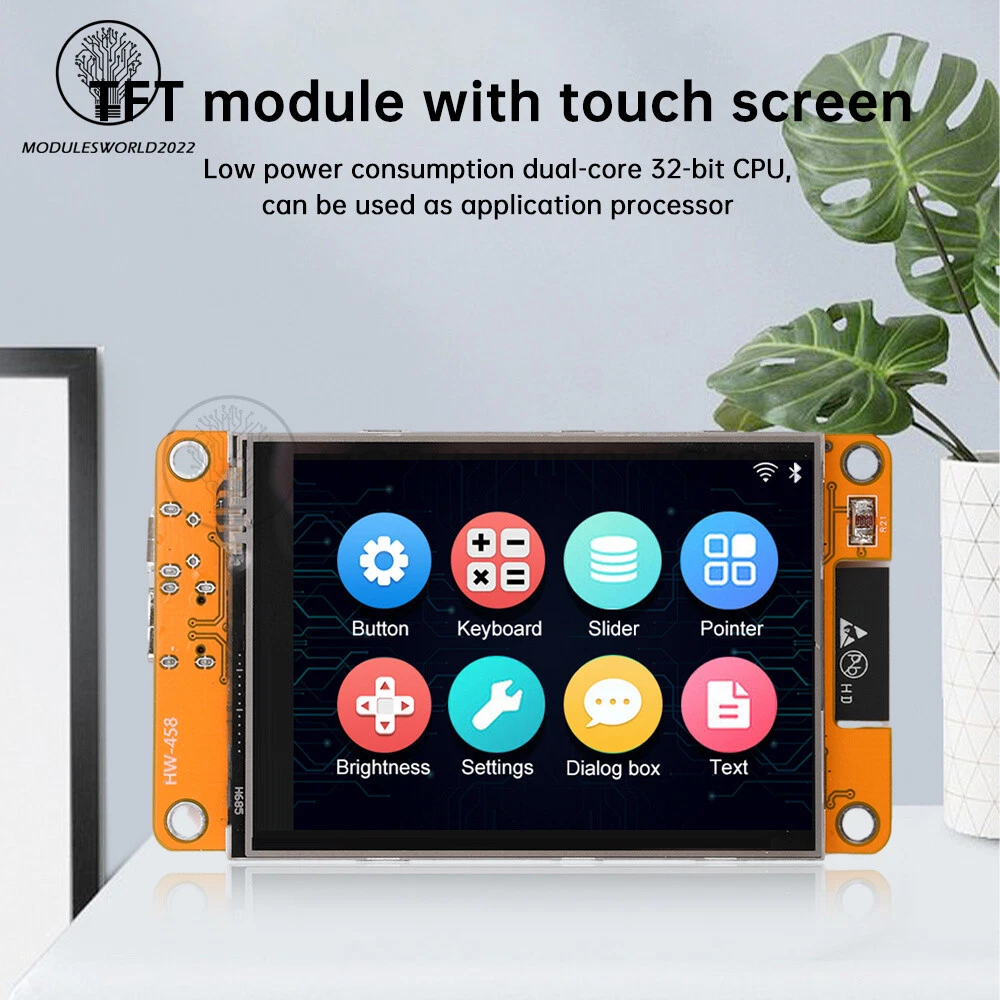

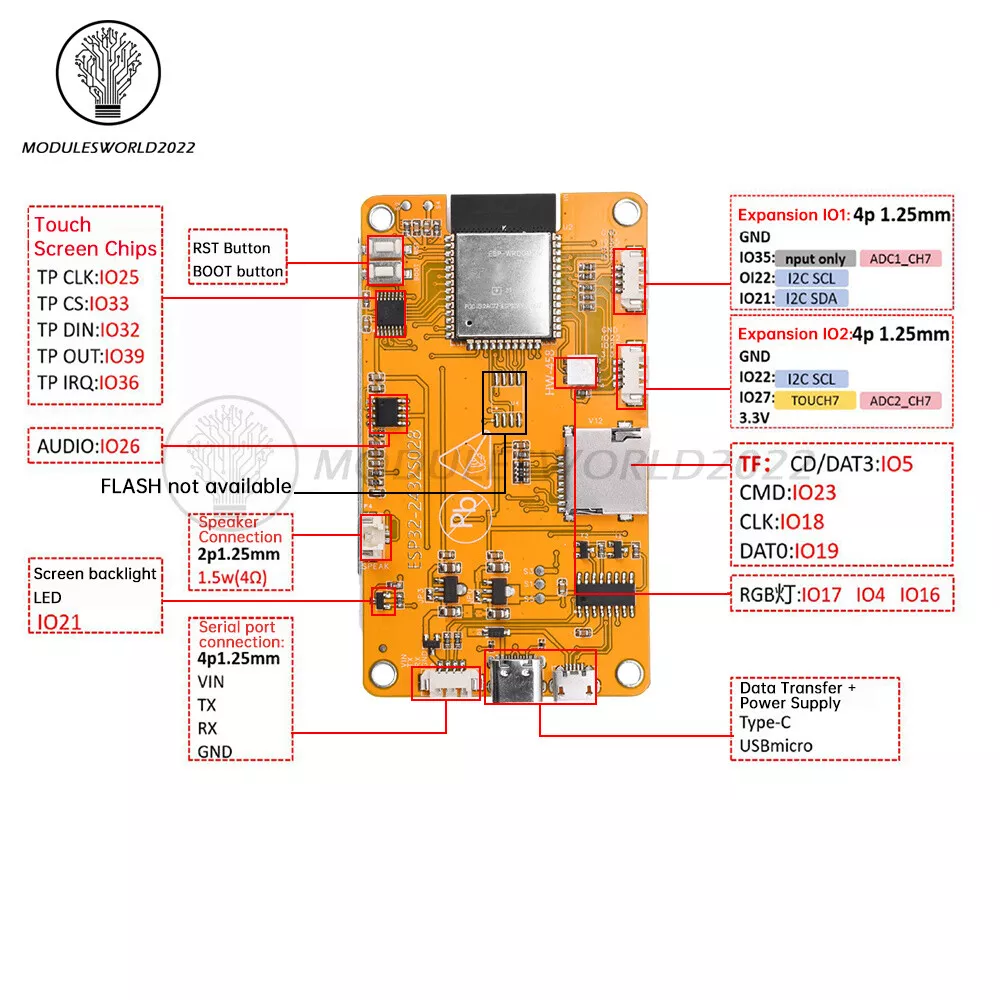

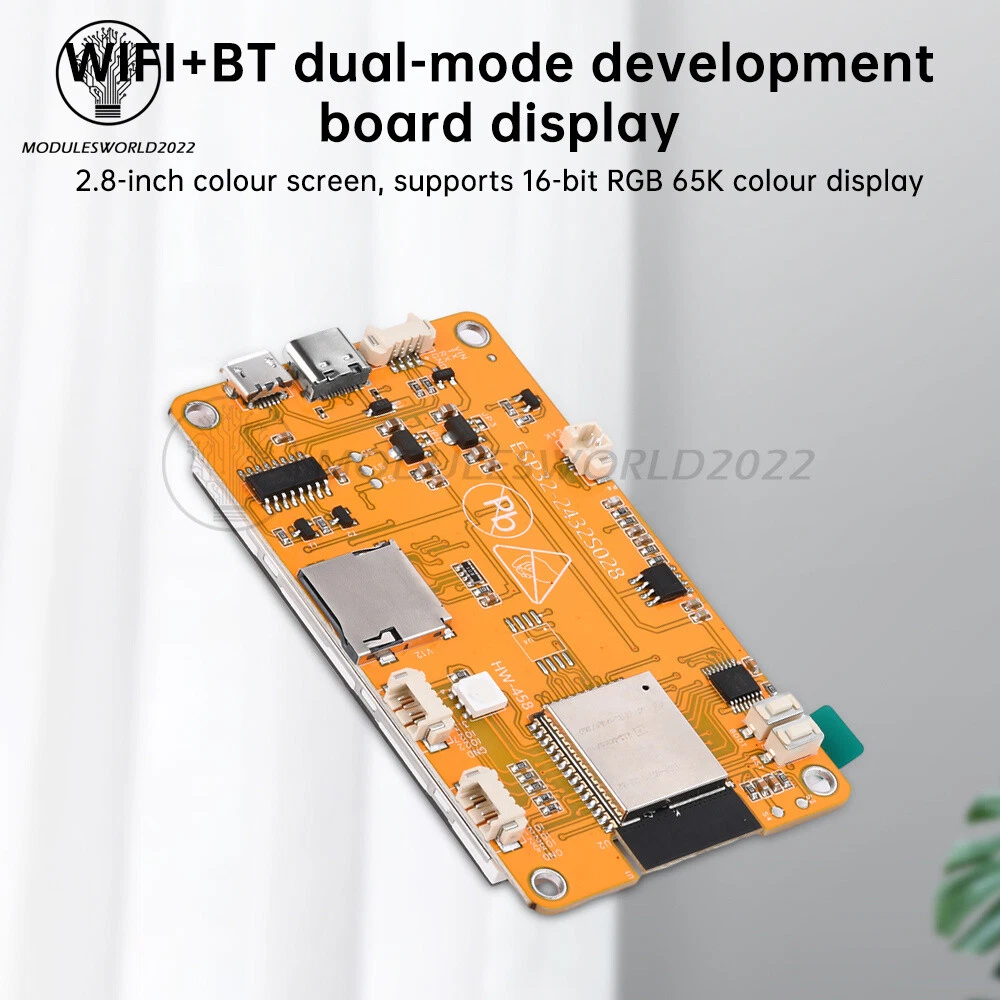

Store Categories Store Categories Other Product View Details Product Features 1.Low power consumption dual-core 32-bit CPU, can be used as application processor. 2. Main frequency up to 240MHz, computing power up to 600DMIPS 3. Built-in 520KB SRAM 4. Support UART/SPI/PWM/DAC/ADC interfaces. 5. With TF card slot, easy to expand storage 6.2.8-inch colour screen, support for 16-bit RGB 65K colour display 7.Support Smart Config/Airkiss one-key networking Product Parameter Product name: ESP32 WIFI + BT dual-mode development board display Display colour: RGB 65K colour Size: 2.8 inch Type: TFT Driver chip：ILI9341 Resolution: 320*240 Viewing area: 43.2*57.6mm Viewing Angle：＞60° Operating Temperature: -20~70°C Operating voltage: 5V Power consumption: 115mA Bluetooth: Bluetooth 4.2BR/EDR and BLE standard WIFI: 802.11b/g/n/ Support interface: UART, SPI, SDIO, I2C, IR, ADC, DAC, PWM IO port: 22 Serial port rate: default 115200bps Spectrum range: 2412~2484MHZ Antenna Format: On-board PCB antenna, gain 2dBi Security: WPA/WPA2/WPA2-Enterprise/WPS Transmit Power: 802.11b:17±2dBm(@11Mbps) /802.11b:14±2dBm(@54Mbps) /802.11b:13±2dBm(@MC57) Interface Sensitivity: CCK,1Mbps:-90dBm CCK,11Mbps:-85dBm 6Mbps(1/2BPSK):-88dBm 54Mbps(3/464-QAM):-70dBm MCS7(65Mbps,72.2Mbps)-67dBm List 1 x Display(With or without a case depending on your choice) 1 x Touch pen 1 x TYPE-C cable 1 x 4P terminal to Dupont cable Shipping Policy Payment Method Returns Policy Shipping Policy Payment Method Returns Policy Home Payment Shipping About us Contact us Copyright©2018 datacaciques Home Payment Shipping About us Contact us Store Categories Store Categories Other Product View Details Product Features 1.Low power consumption dual-core 32-bit CPU, can be used as application processor. 2. Main frequency up to 240MHz, computing power up to 600DMIPS 3. Built-in 520KB SRAM 4. Support UART/SPI/PWM/DAC/ADC interfaces. 5. With TF card slot, easy to expand storage 6.2.8-inch colour screen, support for 16-bit RGB 65K colour display 7.Support Smart Config/Airkiss one-key networking Product Parameter Product name: ESP32 WIFI + BT dual-mode development board display Display colour: RGB 65K colour Size: 2.8 inch Type: TFT Driver chip：ILI9341 Resolution: 320*240 Viewing area: 43.2*57.6mm Viewing Angle：＞60° Operating Temperature: -20~70°C Operating voltage: 5V Power consumption: 115mA Bluetooth: Bluetooth 4.2BR/EDR and BLE standard WIFI: 802.11b/g/n/ Support interface: UART, SPI, SDIO, I2C, IR, ADC, DAC, PWM IO port: 22 Serial port rate: default 115200bps Spectrum range: 2412~2484MHZ Antenna Format: On-board PCB antenna, gain 2dBi Security: WPA/WPA2/WPA2-Enterprise/WPS Transmit Power: 802.11b:17±2dBm(@11Mbps) /802.11b:14±2dBm(@54Mbps) /802.11b:13±2dBm(@MC57) Interface Sensitivity: CCK,1Mbps:-90dBm CCK,11Mbps:-85dBm 6Mbps(1/2BPSK):-88dBm 54Mbps(3/464-QAM):-70dBm MCS7(65Mbps,72.2Mbps)-67dBm List 1 x Display(With or without a case depending on your choice) 1 x Touch pen 1 x TYPE-C cable 1 x 4P terminal to Dupont cable Shipping Policy Payment Method Returns Policy Shipping Policy We will arrange shipping for you within 24 Hours after payment cleared except the holidays. -We ship items to Worldwide. Thank you! -we will ship out the order in 1-2 business days after payment cleared .Since it is international shipping ,delivery time is about 15--28 business days to arrive to most countries. Payment Method We accept PayPal payment ONLY, and must be received within 5 days from the date of purchase. 2. It is easy and safe for you to pay by credit cards, debit cards, bank transfers and PayPal account balances. 3.Buyers are responsible for import duties,custom fees and taxes, if any, please check your country. Returns Policy 1.We believe our items are so outstanding. We are convinced you will be happy with your Purchase. 2. If you do not satisfy with our items. Please simply return to us within 30 Days in original condition. Just pay for the returned postage. Then we can issue full refund or resend the item to you after the returned item arrived at our warehouse. 3. Please include your eBay ID and item number with any email requests.
