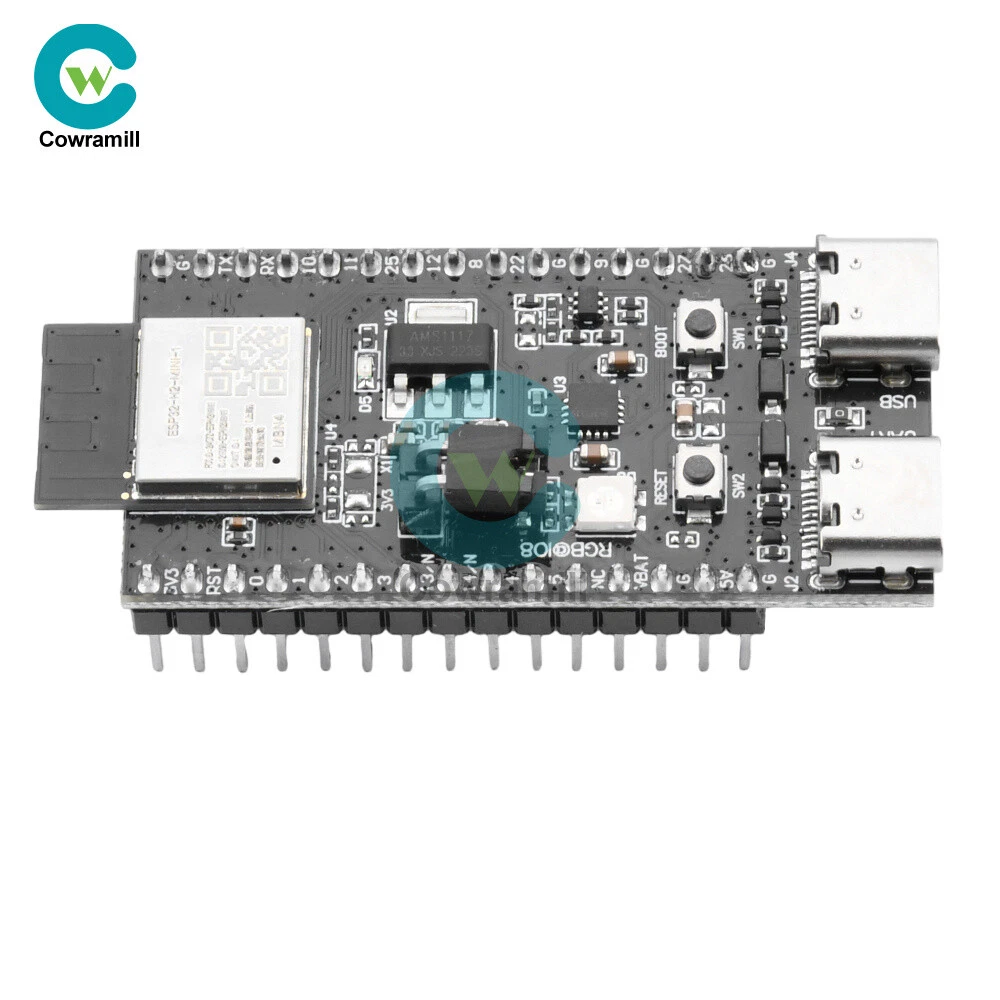

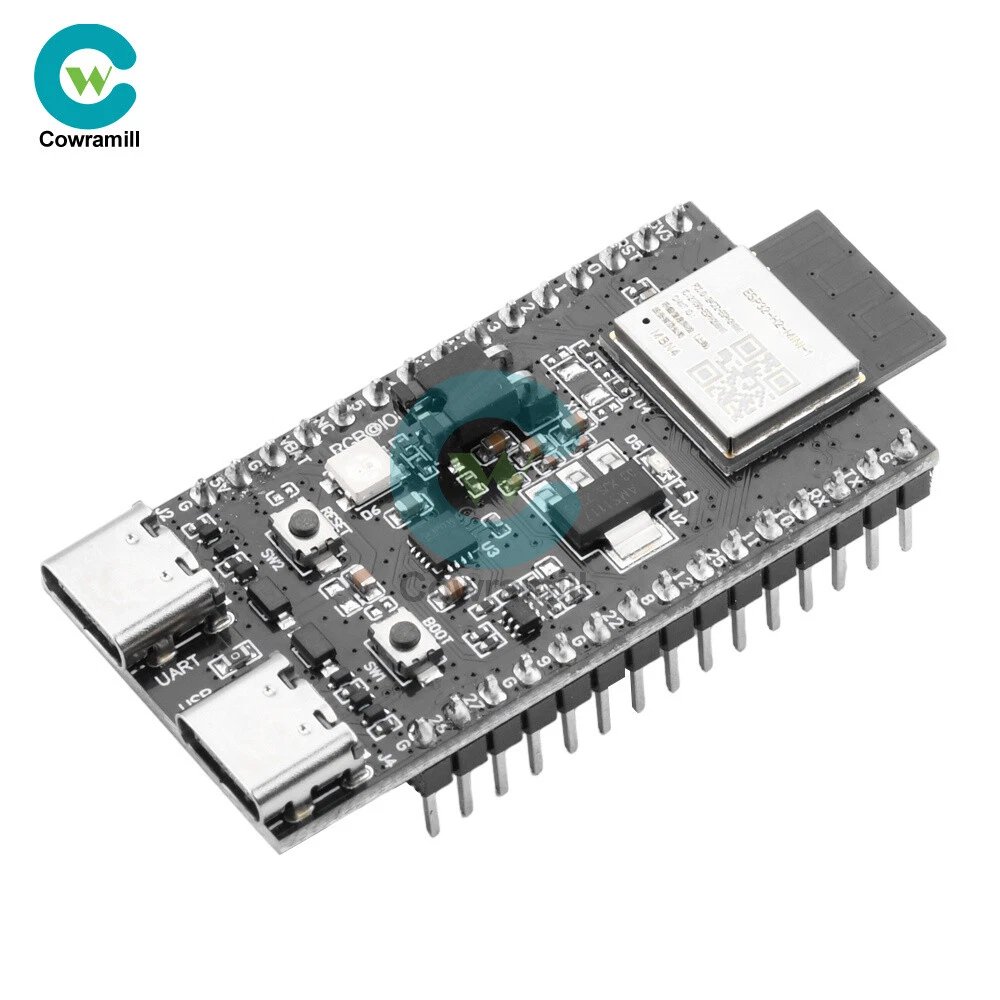

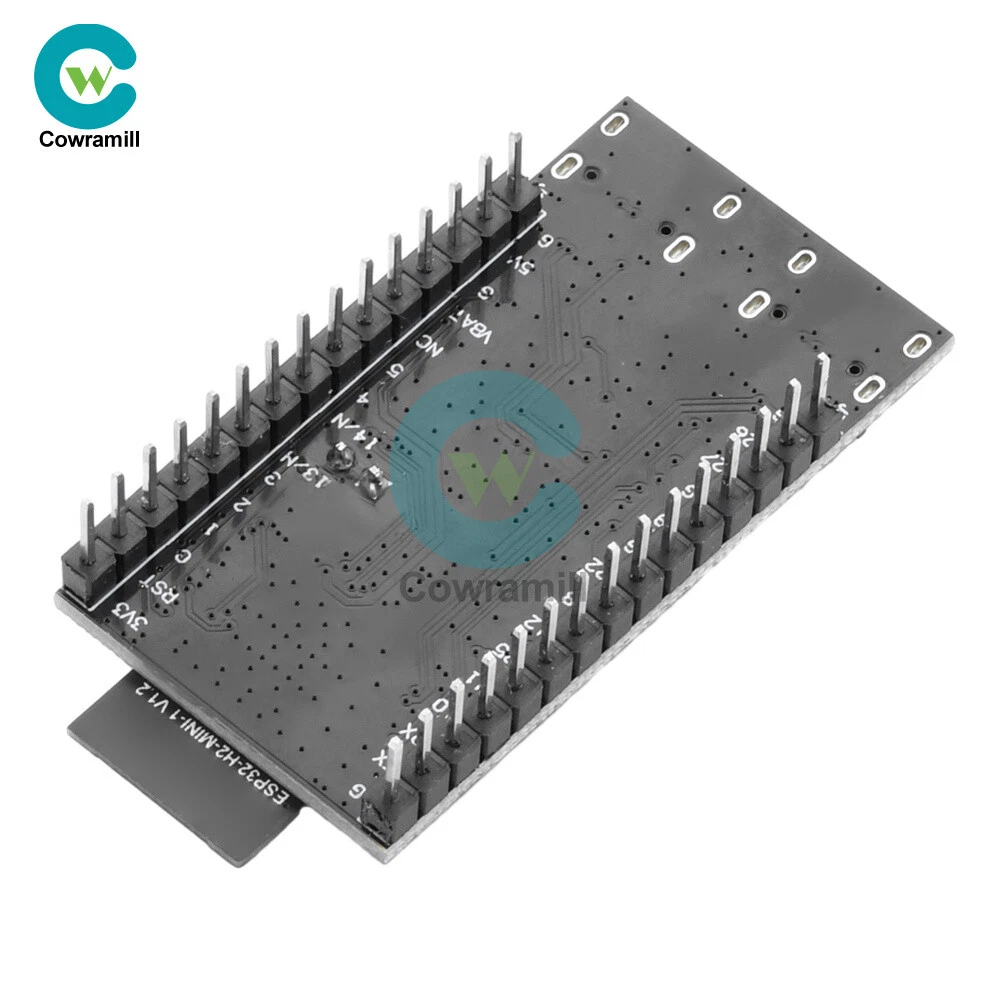

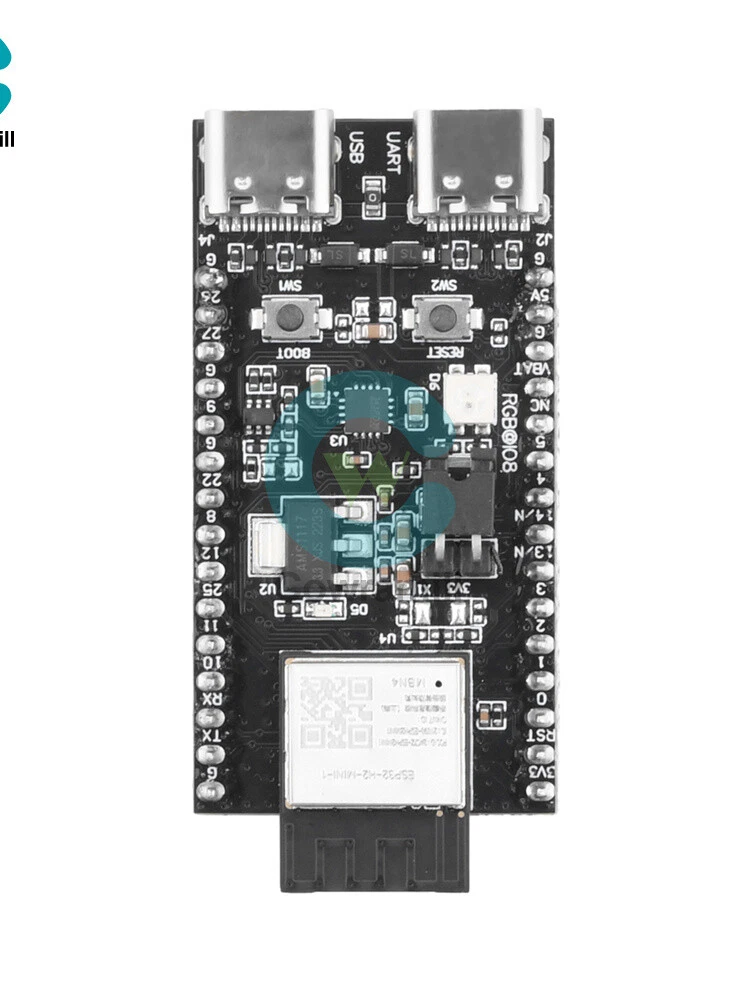

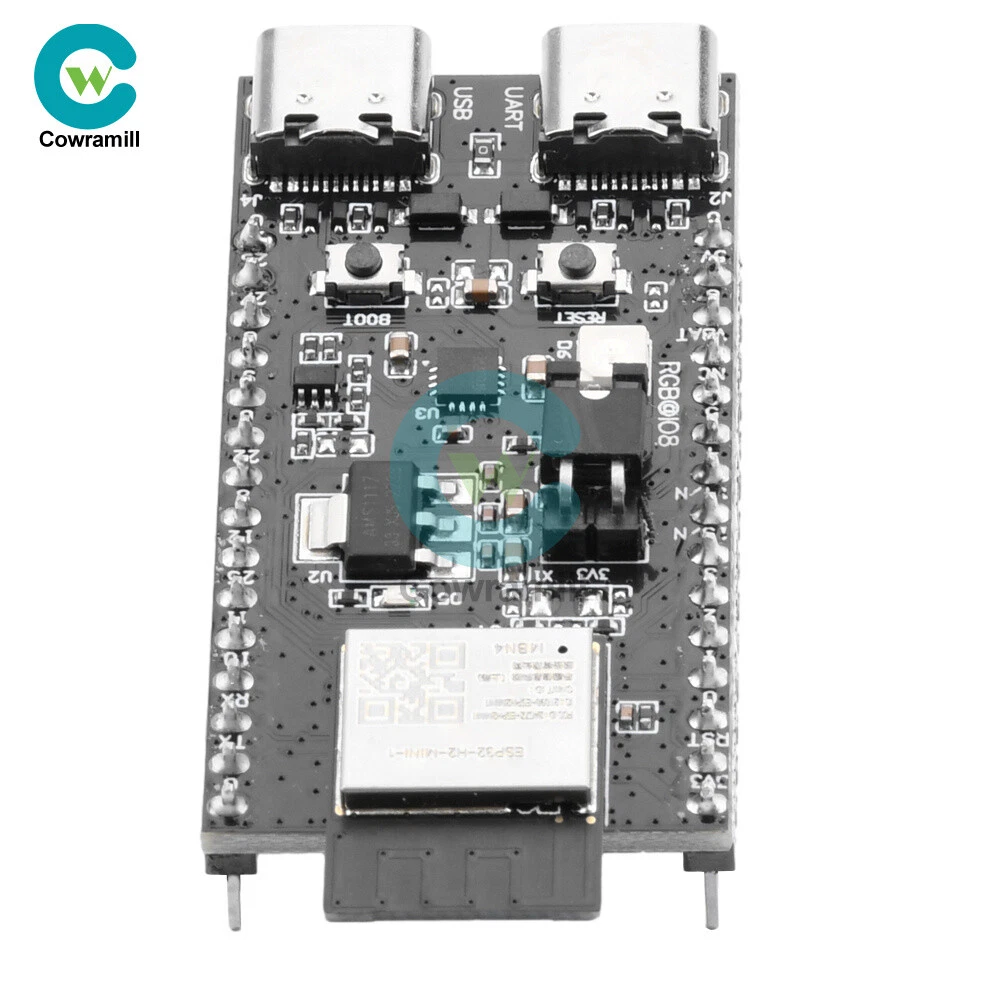

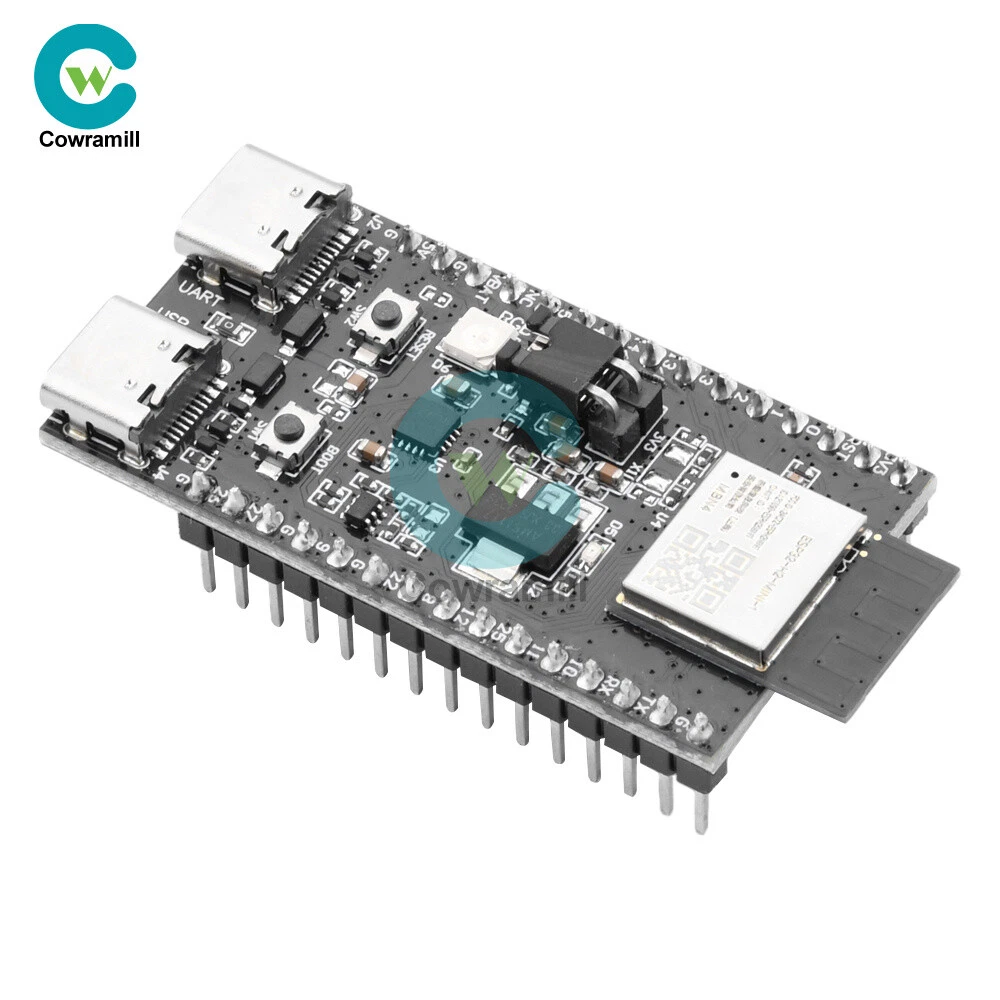

ESP32-H2-DevKitM-1 WIFI Bluetooth IoT развития доска модуль для резьбы/Zigbee
$ 4.85
Description

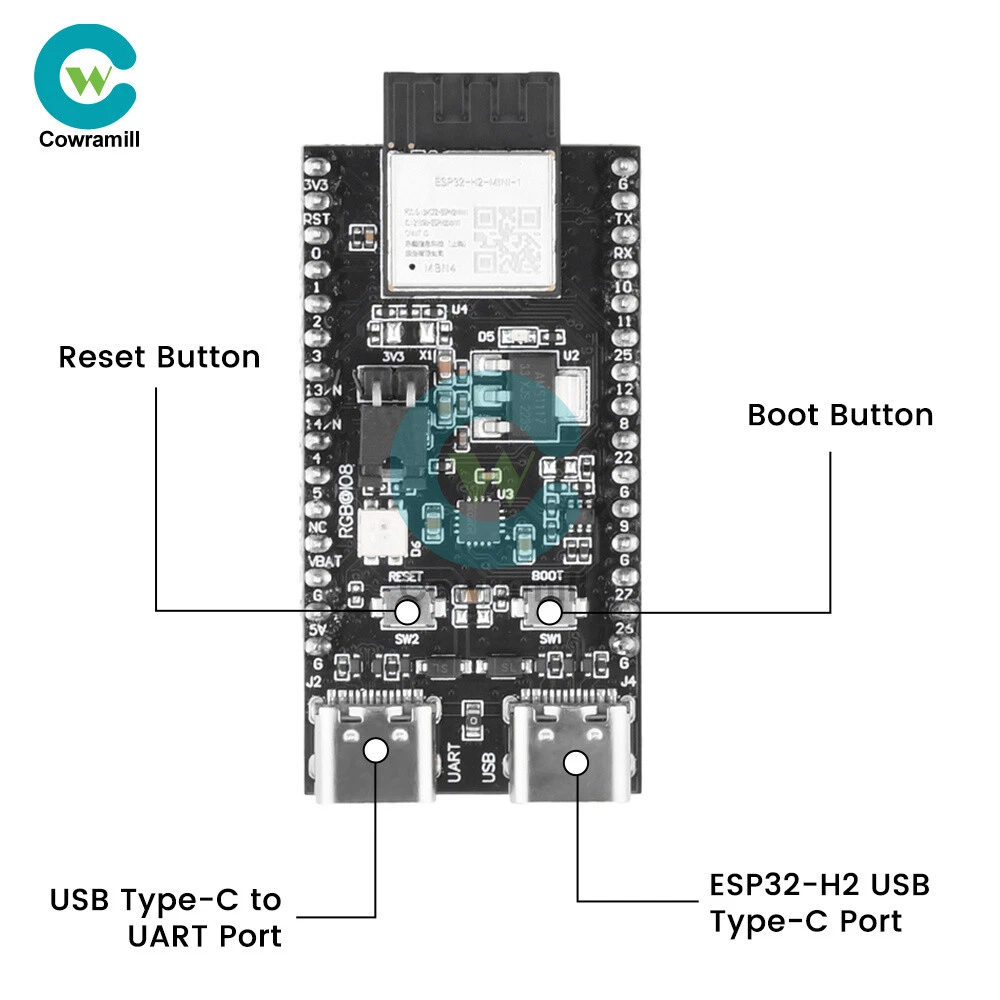

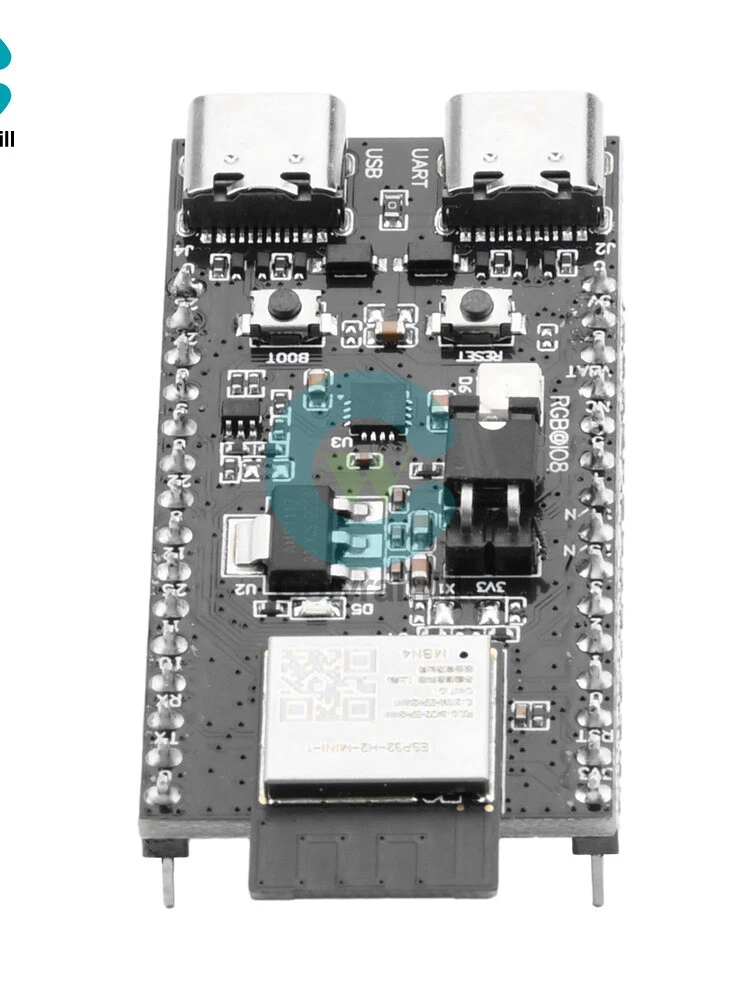

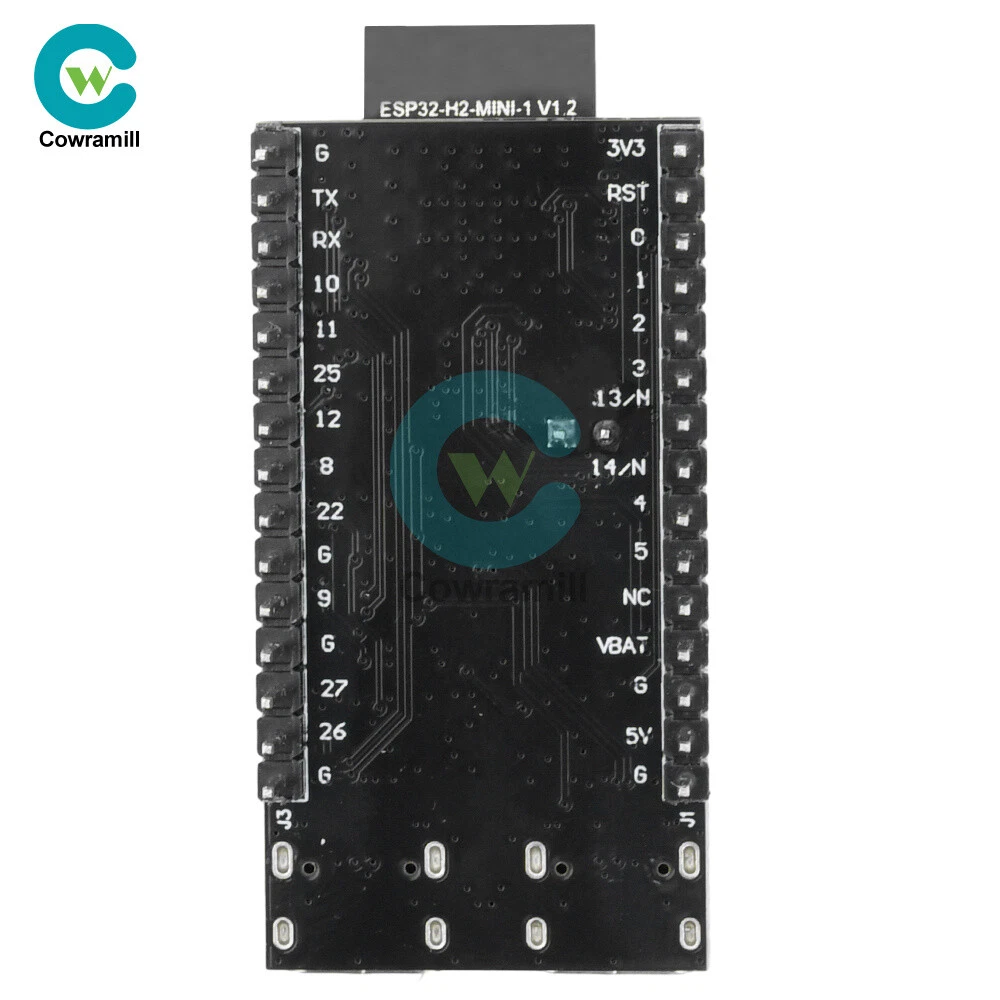

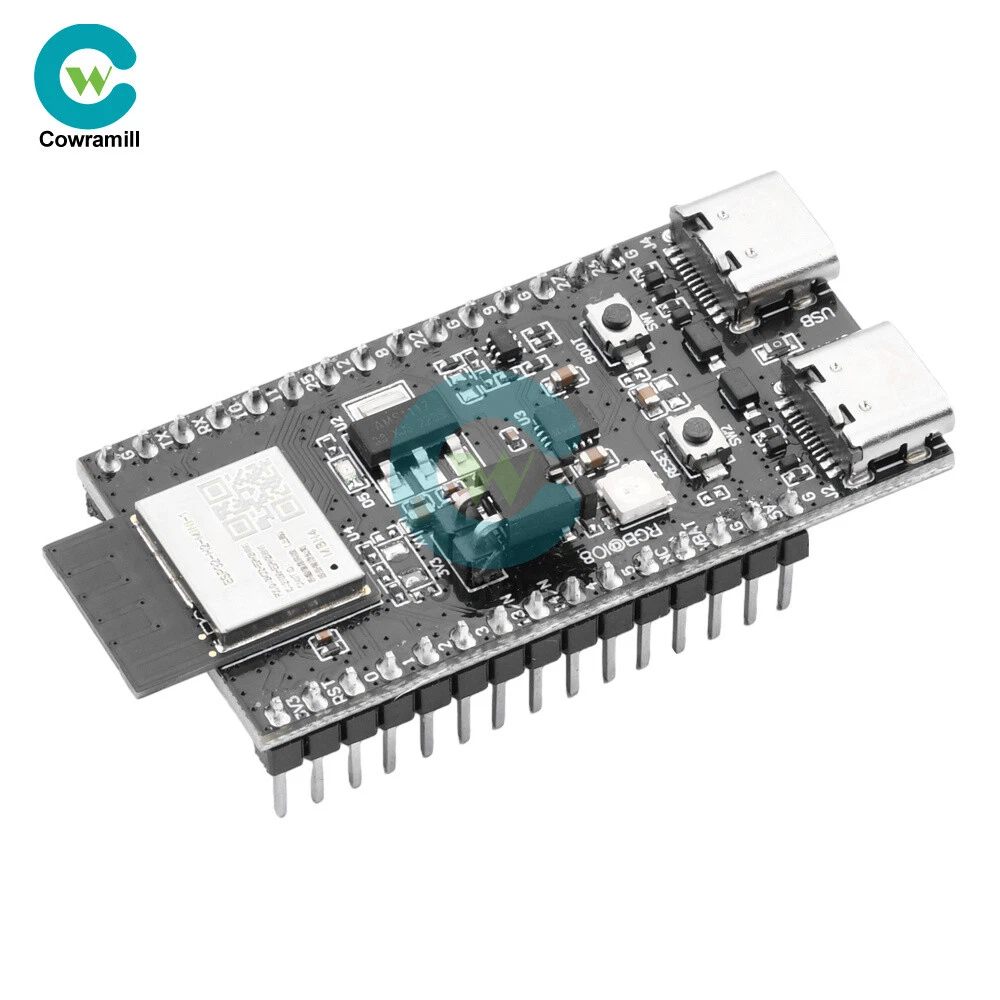

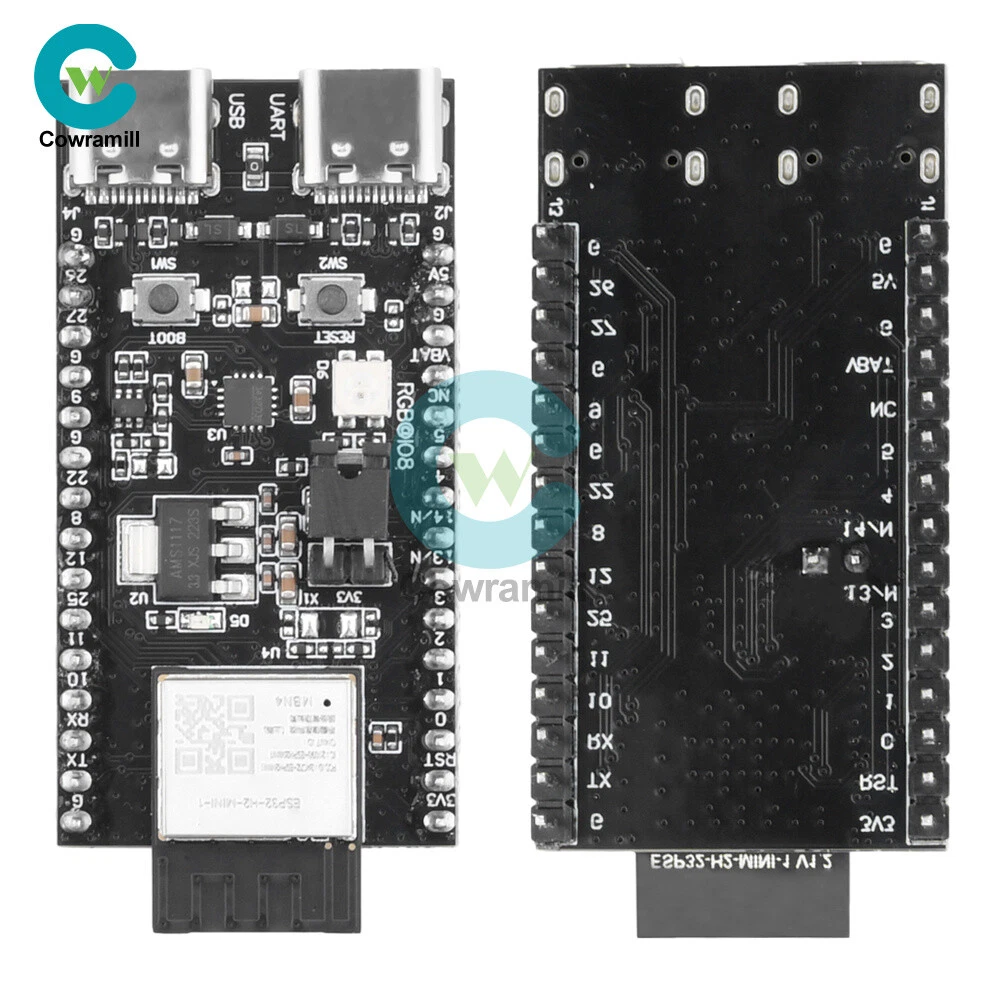

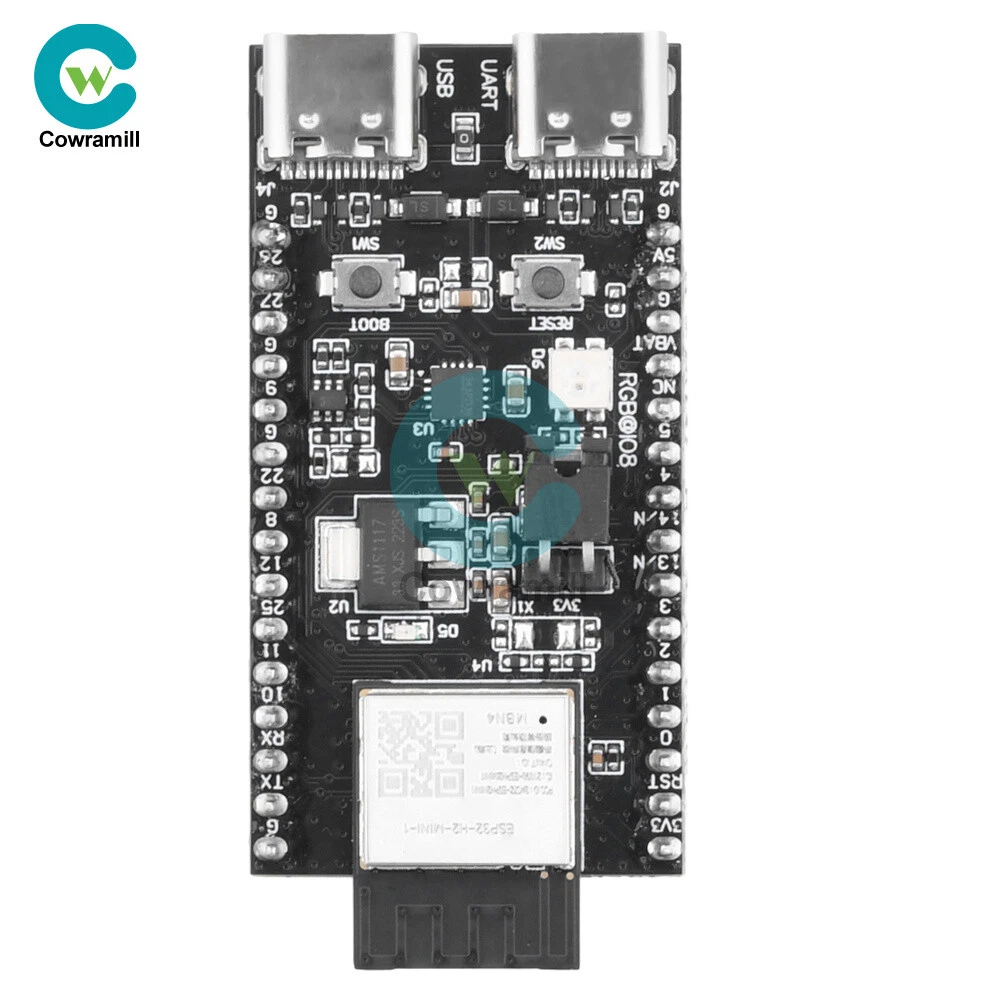

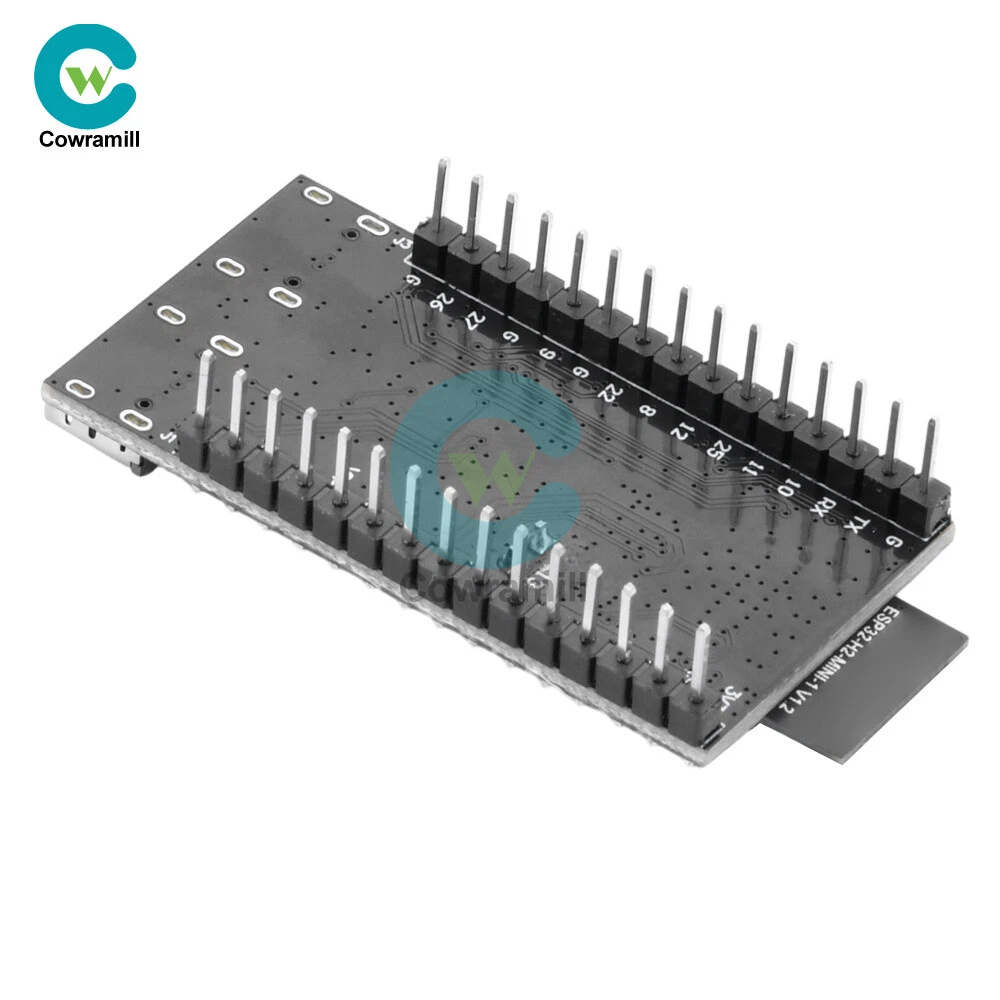

Details Features 1.ESP32-H2-DevKitM-1 is an entry-level development board, equipped with low-power Bluetooth R and IEEE 802.15.4 dual-mode module ESP32-H2-MINI-1. 2. Most of the pins of the module on the board have been pinned out to the two sides of the development board, developers can easily connect a variety of peripheral devices through the jumper according to the actual needs of the developer, and can also be used to plug the board into the breadboard. 3.ESP32-H2-MIN1-1 equipped with ESP32-H2 chip, supports a variety of protocols, suitable for a variety of low-power IoT application scenarios. 4. With power indicator, when the board is connected to the USB power supply, the indicator will light up. 5. Support three power supply modes, more convenient to use. Specification ESP32-H2-MINI-1: ESP32-H2-MIN1-1 equipped with ESP32-H2 chip, integrated 2.4 GHz receiver compatible with low-power Bluetooth and IEEE 802.15.4 technology, support Bluetooth 5 (LE), Bluetooth mesh, Zigbee, Thread and Matter and other The protocols are suitable for a wide range of low-power IoT applications. Pinout: All available GPIO pins (except SPI bus of fash) have been pinned out to the pinout of the development board. 3.3V Power Indicator: This indicator lights up when the development board is connected to USB power. 5V to 3.3V LDO: Power converter with 5V input and 3.3V output. USB to UART Bridge: Single chip USB to UART bridge that provides up to 3Mbps transfer rate. ESP32-H2 USB Type-C Interface: USB Type-C interface for the ESP32-H2 chip, supports USB 2.0 full-speed mode with a data transfer rate of up to 12Mbps (note that this interface does not support 480 Mbps high-speed transfer mode). Boot key: Download key, press the Reset key while holding down the Boot key to enter the "Firmware Download" mode and download the firmware through the serial port. Reset key: Reset key. USB Type-C to UART Interface: Can be used as the power supply interface of the development board, and also can be used as the communication interface to communicate with the ESP32-H2 chip through the on-board USB to UART bridge. RGB LED: Addressable RGB light-emitting diode, driven by GPIO8. J5: Used to measure current, see chapter, Measuring Current, for details. You can choose any one of the following three power supply methods to power the development board. 1. USB Type-C to UART interface power supply (default) 2.5V and G (GND) pin power supply 3.3V3 and G (GND) pin power supply List 1 x Development Board Shipping Payment Return Policy Shipping 1.We only ship to the confirmed address provided by eBay. please make sure your ebay address is 100% matches the address you would like us to ship to. If not, please let us know before we sent you the package, or we will not be responsible for any loss. hope you could understand. 2.Orders will be processed instantly and dispatched within 1-2 business days except hoilday, so we do NOT accept any email/message note after you place orders. 3.All package need to wait 30 days, Please take care it.Less than 30 days,we can't take a refund . Payment 1.We accept PayPal payment ONLY, and must be received within 5 days from the date of purchase. 2. It is easy and safe for you to pay by credit cards, debit cards, bank transfers and PayPal account balances. 3.Buyers are responsible for import duties,custom fees and taxes, if any, please check your country. Return Policy 1.We believe our items are so outstanding. We are convinced you will be happy with your Purchase. 2. If you do not satisfy with our items. Please simply return to us within 30 Days in original condition. Just pay for the returned postage. Then we can issue full refund or resend the item to you after the returned item arrived at our warehouse. 3. Please include your eBay ID and item number with any email requests. Store Categories Store Categories Industrial Electronics Computers/Tablets & Networking Home & Garden Phones & Accessories Other
