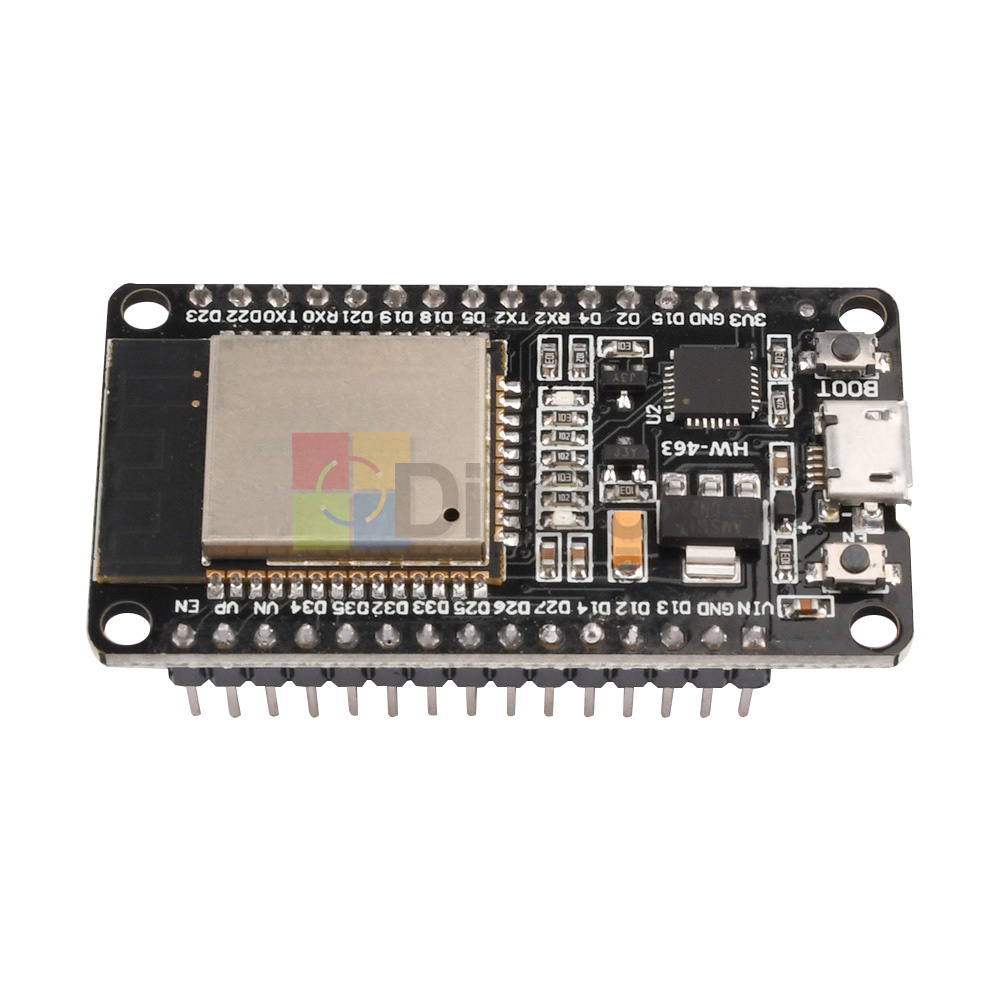

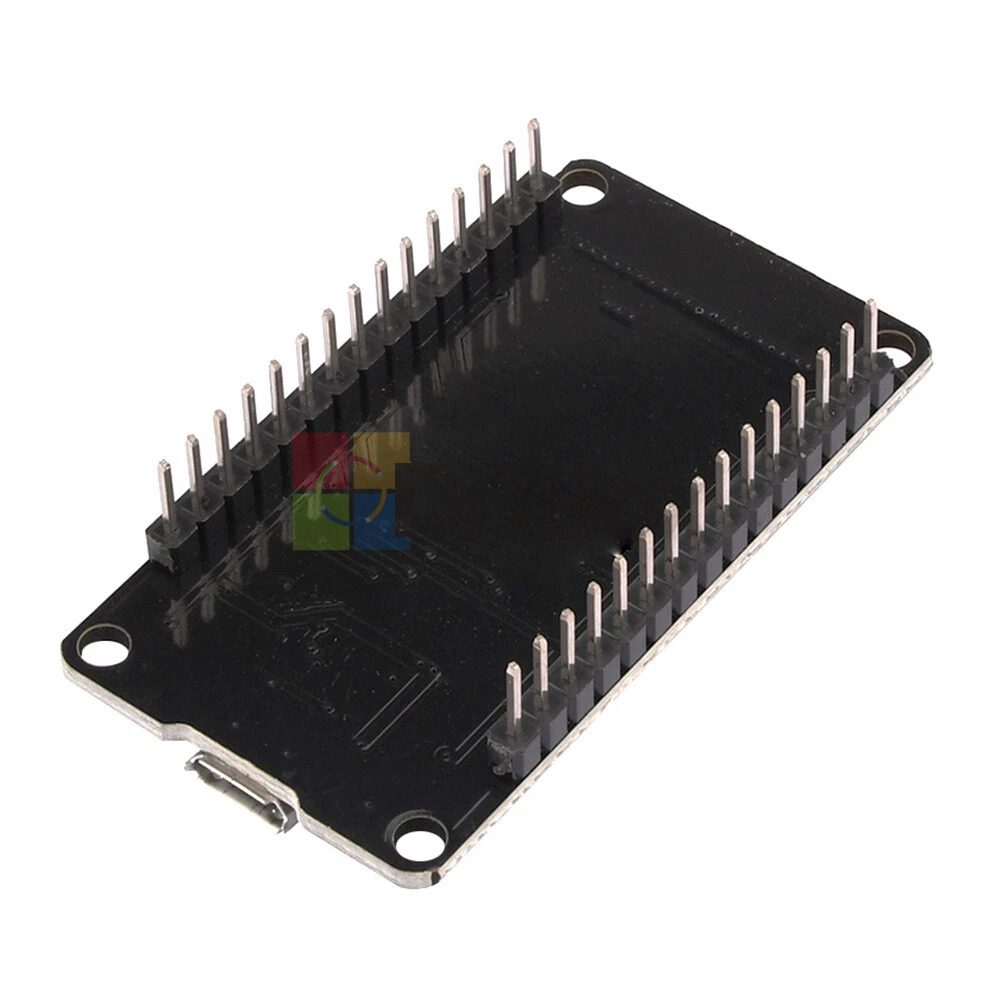

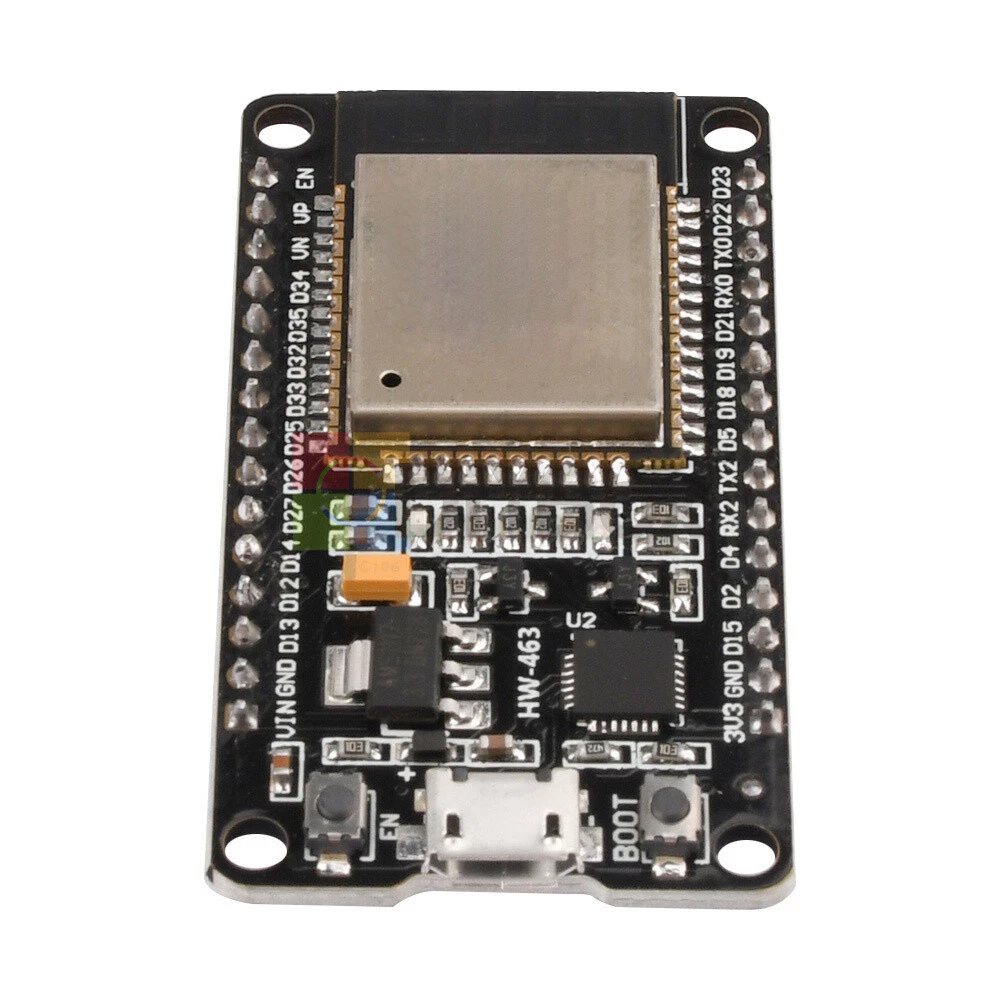

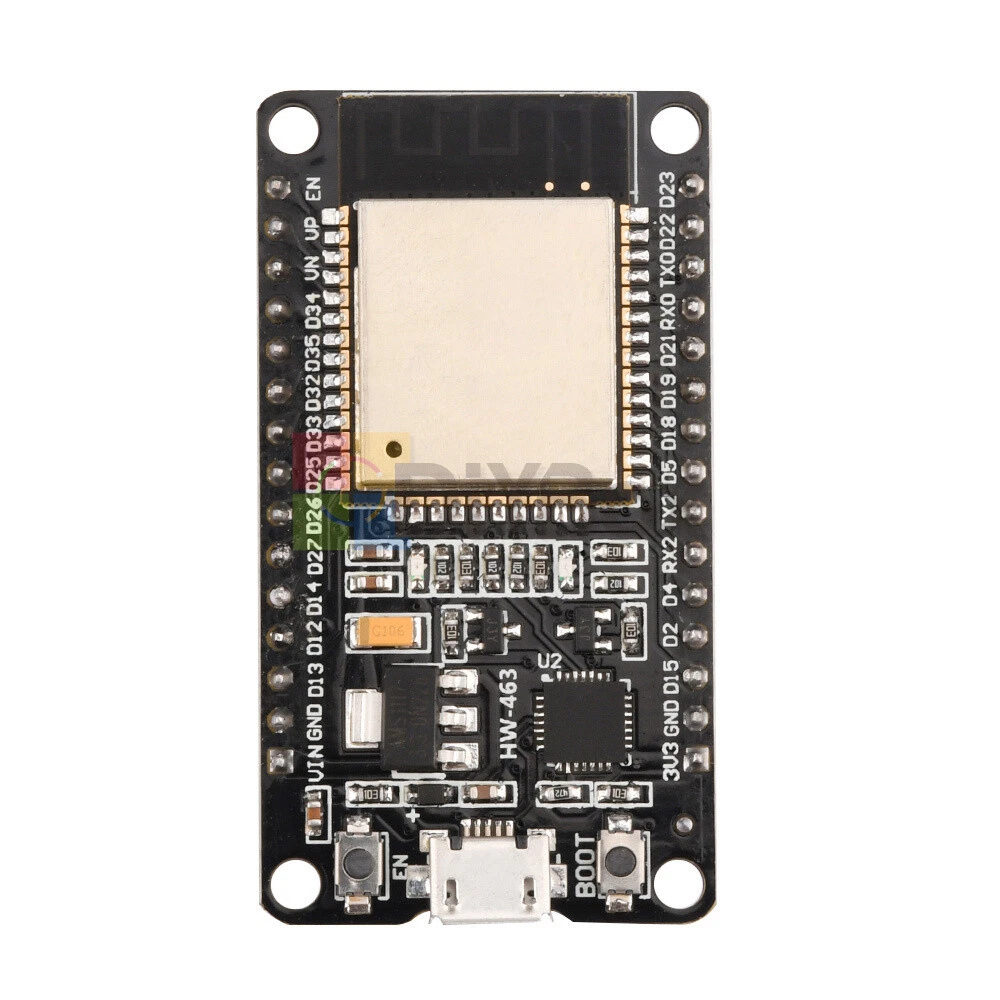

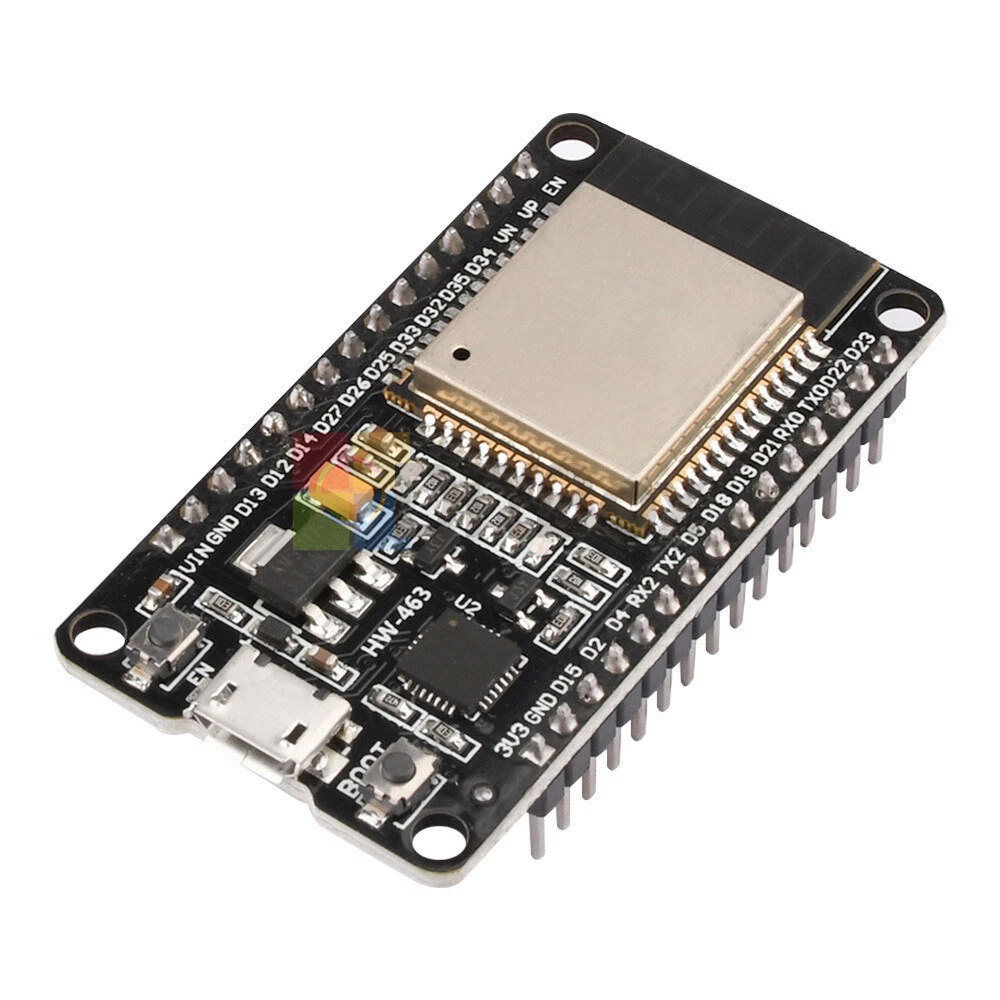

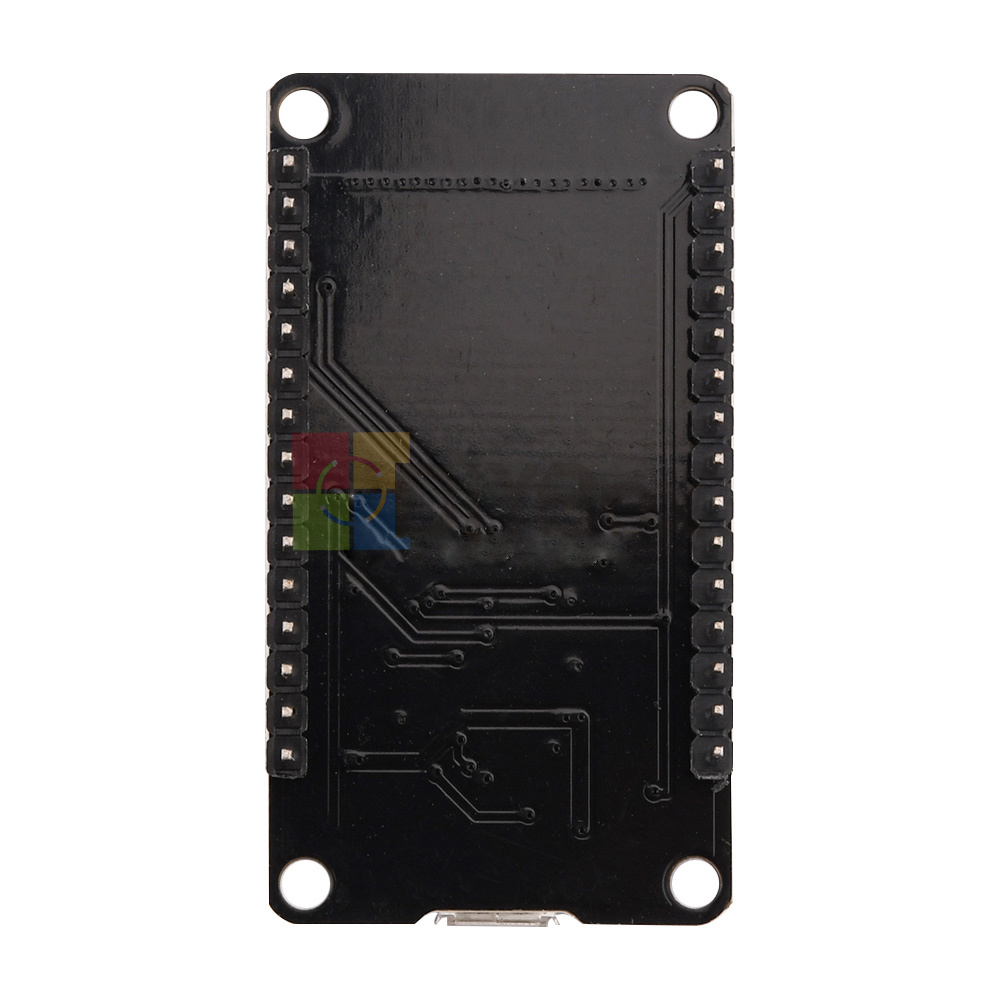

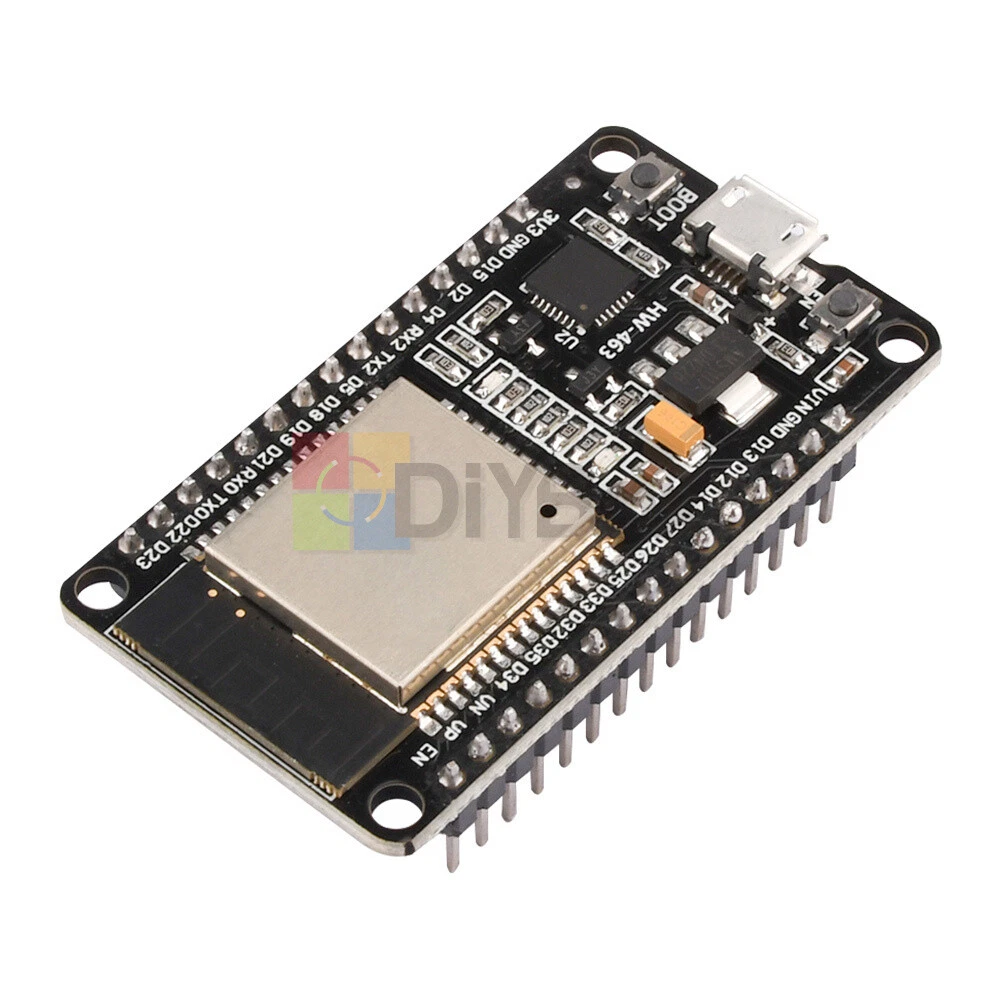

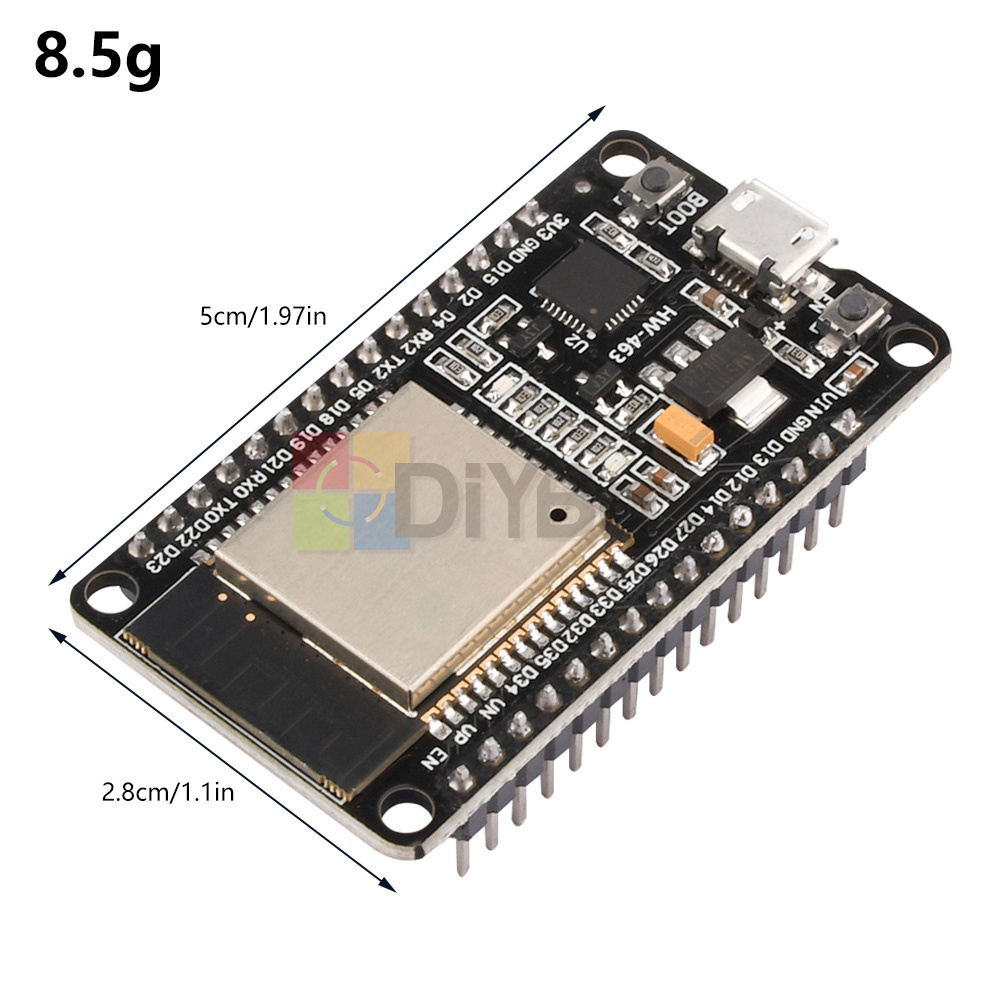

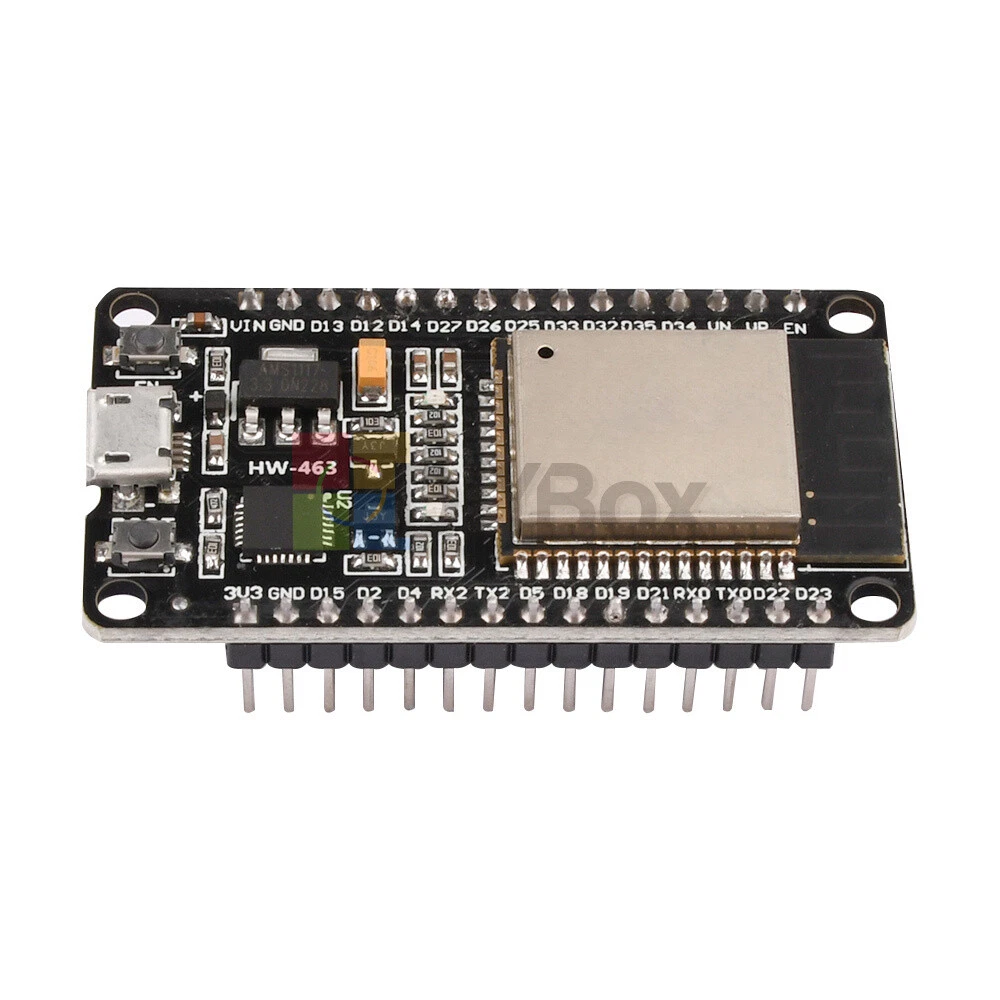

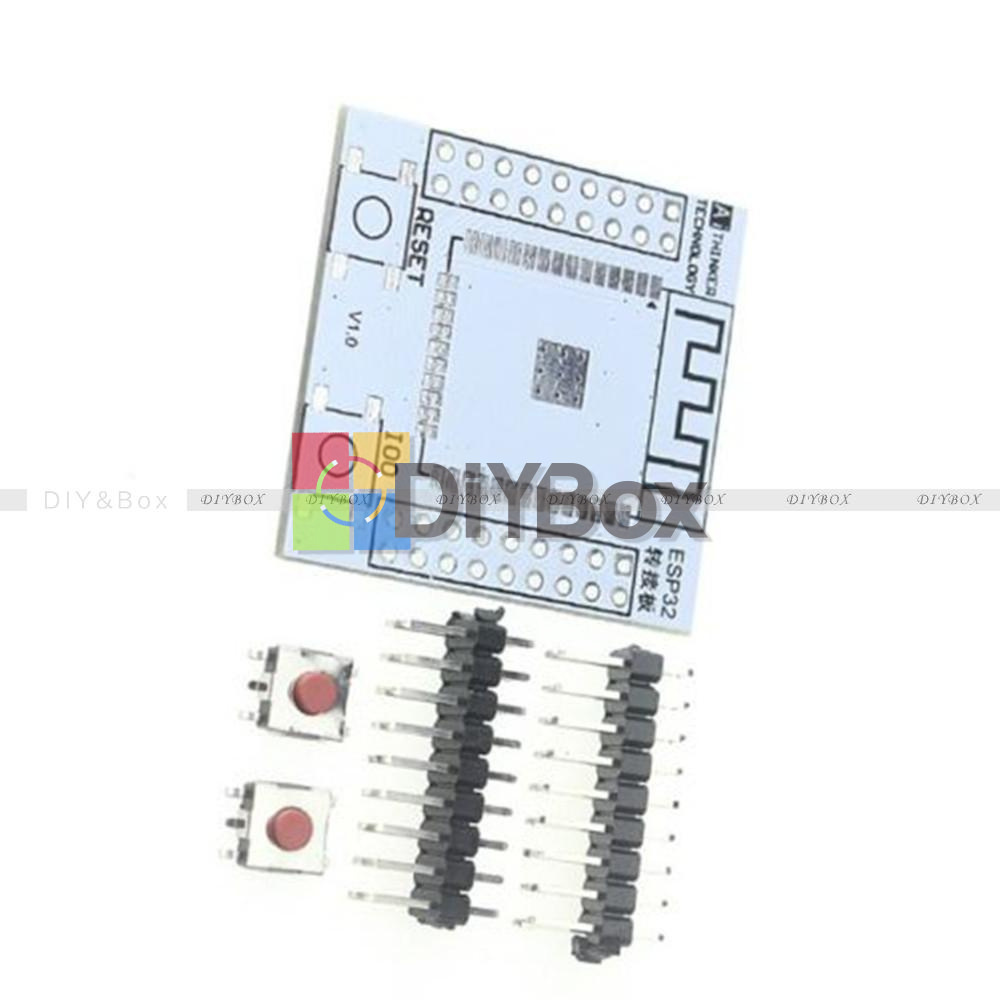

ESP-32S ESP32 ESP32S CP2102 IoT Wifi Wlan BLE Module + Adapter Board

Description

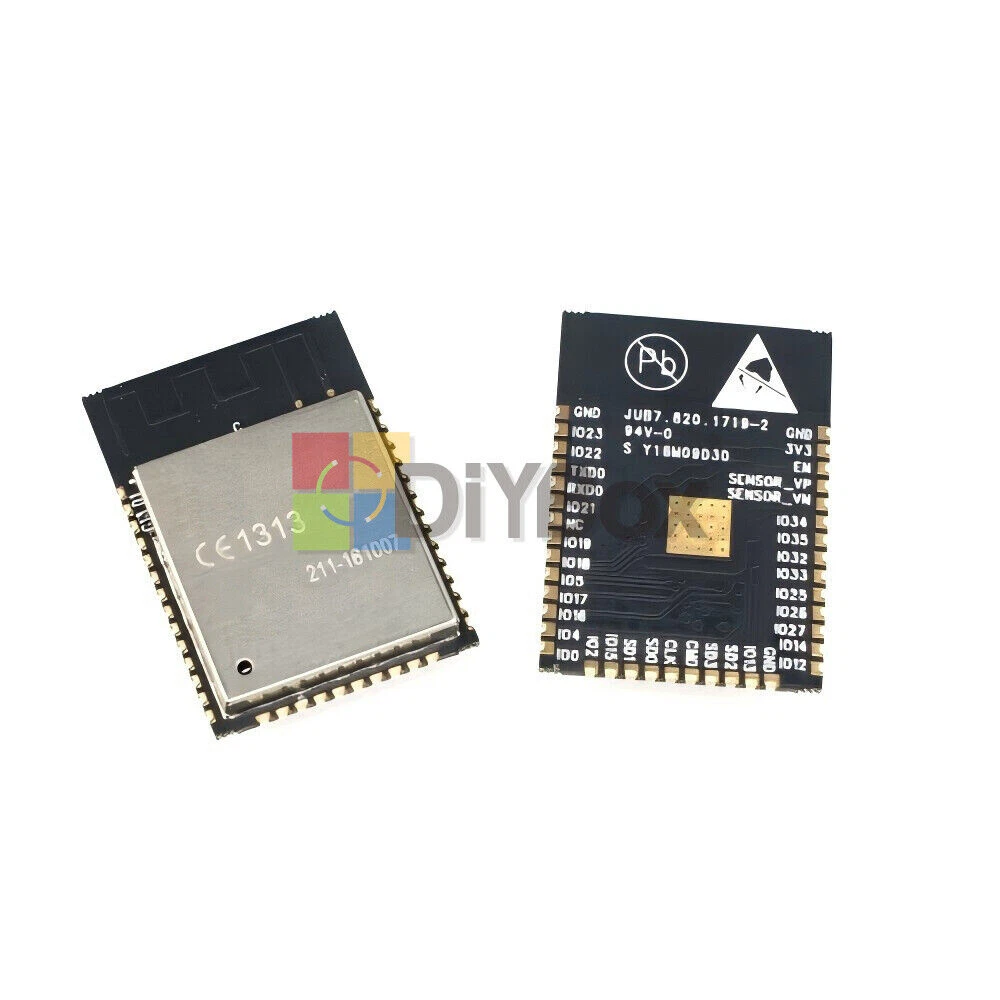

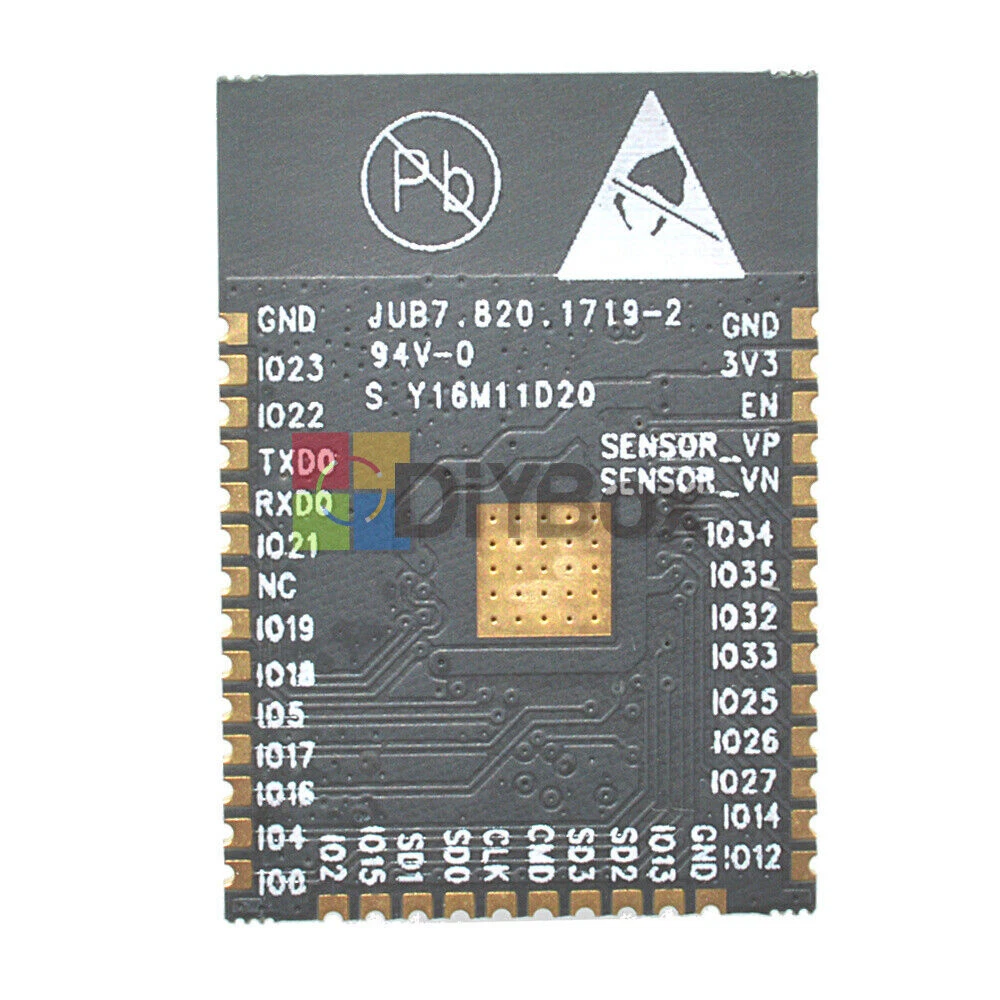

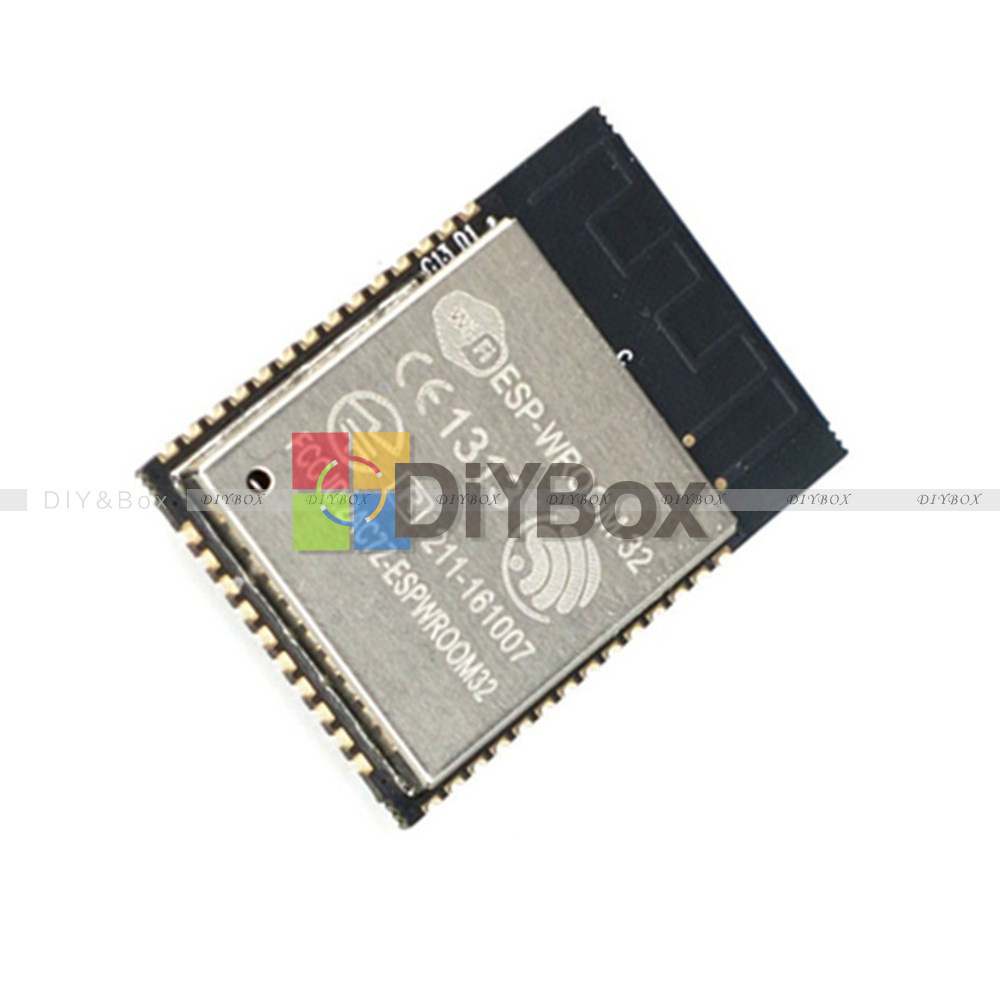

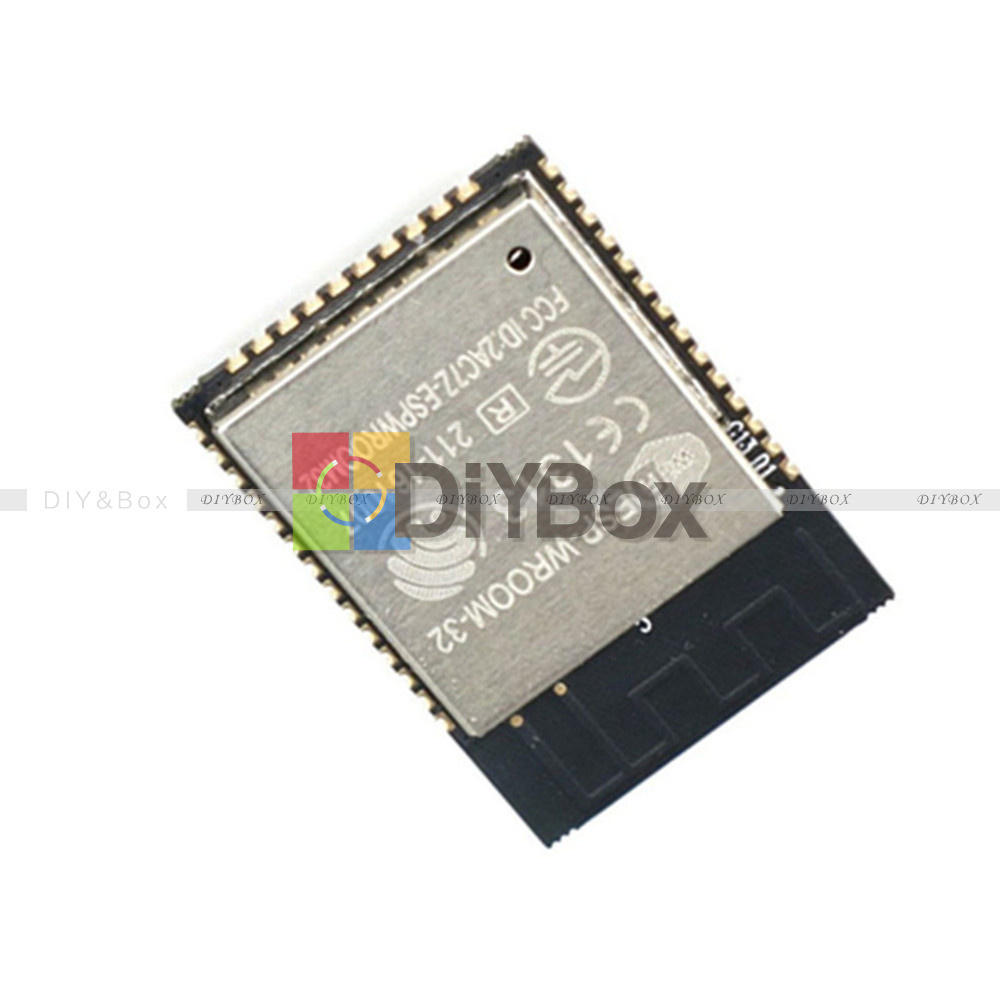

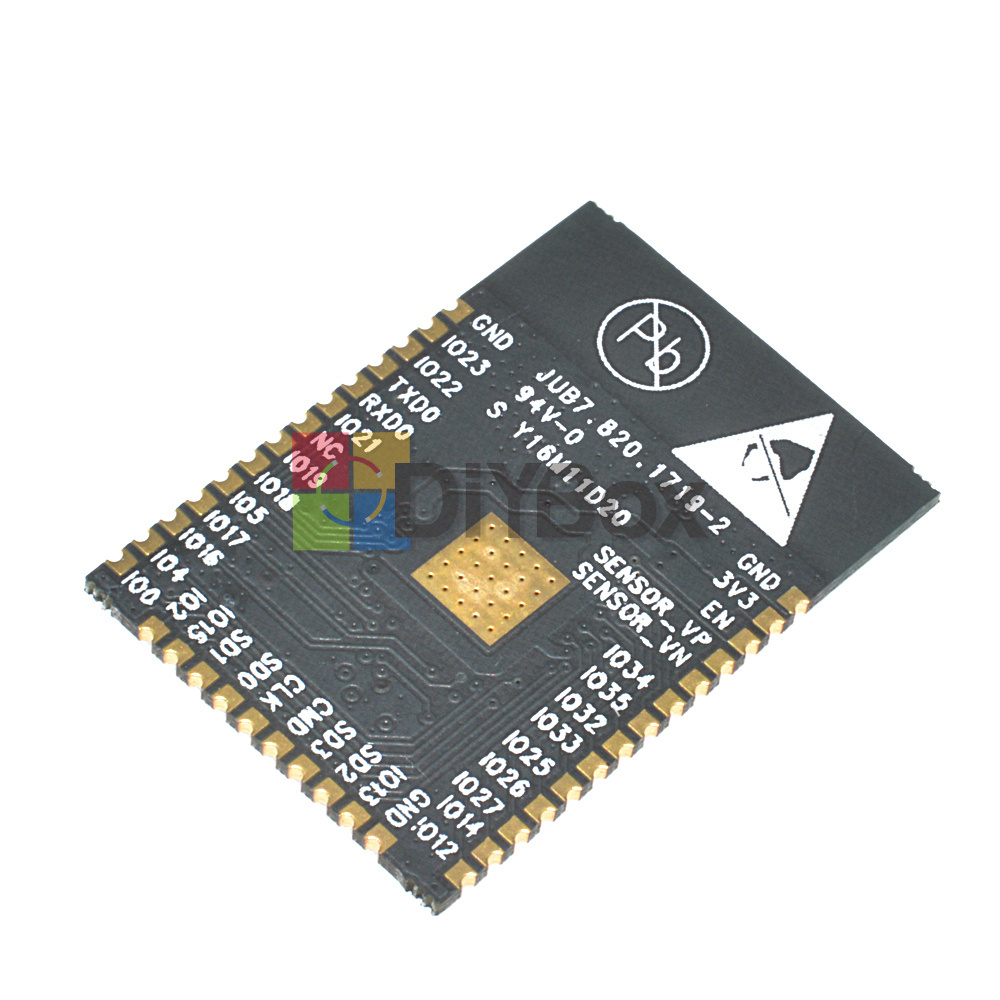

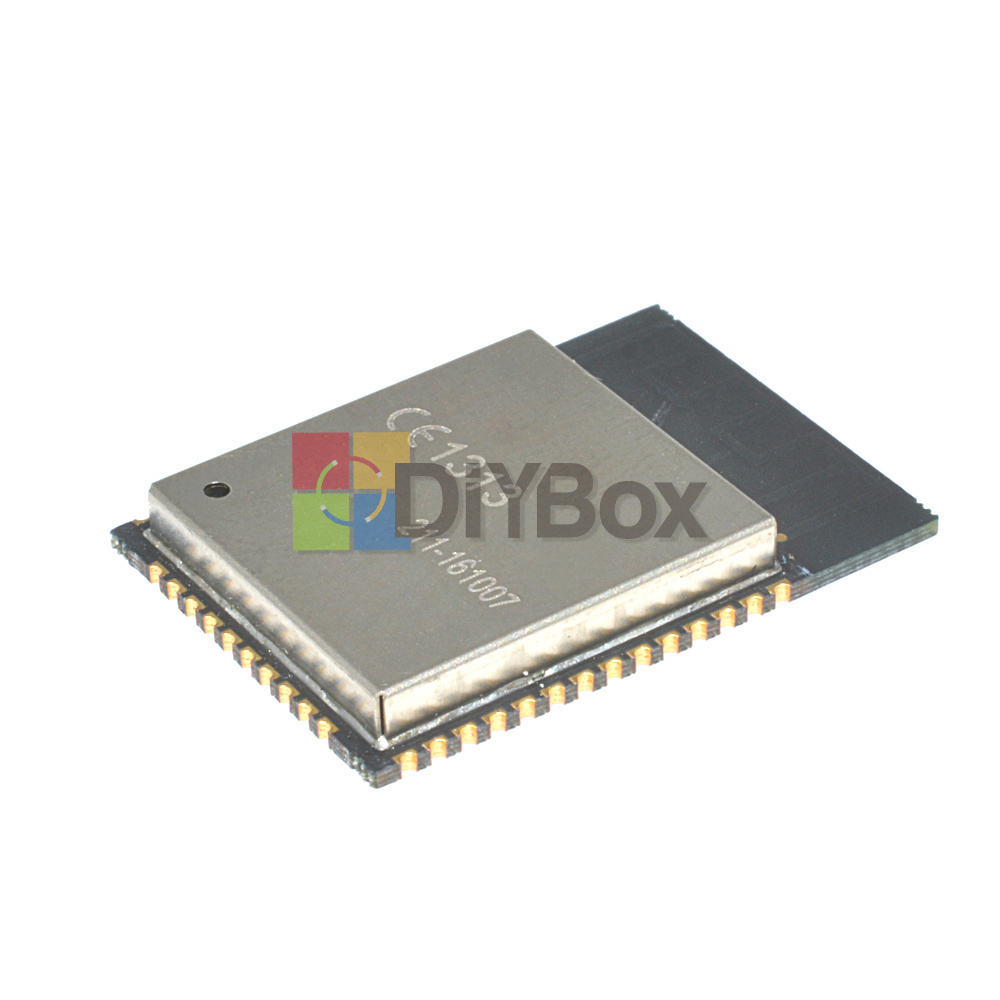

ESP-WROOM-32 ESP32 ESP32S IoT Wifi Wlan BLE Module+Adapter Board Description: ESP-32S ESP32 Module ESP-WROOM-32 is Powered by Espressif’s most advanced SoC, the ESP-WROOM-32 features high performance, a wide range of peripherals, Wi-Fi and Bluetooth radio, which provide a complete solution tailored to advanced IoT applications. 240 MHz dual core Tensilica LX6 microcontroller with 600 DMIPS Integrated 520 KB SRAM Integrated 802.11BGN HT40 Wi-Fi transceiver, baseband, stack and LWIP Integrated dual mode Bluetooth (classic and BLE) 8 MByte flash 2.2V to 3.6V operating voltage -40°C to +125°C operating temperature On-board PCB antenna / IPEX connector for external antenna Supports sniffer, station, softAP and Wi-Fi direct modes Max data rate of 150 Mbps@11n HT40, 72 Mbps@11n HT20, 54 Mbps@11g, and 11 Mbps@11b Maximum transmit power of 19.5 dBm@11b, 16.5 dBm@11g, 15.5 dBm@11n Minimum receiver sensitivity of -98 dBm 135 Mbps UDP sustained throughput 2.5 µA deep sleep current Wi-fi 802.11 b/g/n/e/i 802.11 n (2.4 GHz), up to 150 Mbps 802.11 e: QoS for wireless multimedia technology WMM-PS, UAPSD A-MPDU and A-MSDU aggregation Block ACK Fragmentation and defragmentation Automatic Beacon monitoring/scanning 802.11 i security features: pre-authentication and TSN Wi-Fi Protected Access (WPA)/WPA2/WPA2-Enterprise/Wi-Fi Protected Setup (WPS) Infrastructure BSS Station mode/SoftAP mode Wi-Fi Direct (P2P), P2P Discovery, P2P Group Owner mode and P2P Power Management UMA compliant and certified Antenna diversity and selection Compliant with Bluetooth v4.2 BR/EDR and BLE specification Bluetooth Class-1, class-2 and class-3 transmitter without external power amplifier Enhanced power control +10 dBm transmitting power NZIF receiver with -98 dBm sensitivity Adaptive Frequency Hopping (AFH) Standard HCI based on SDIO/SPI/UART High speed UART HCI, up to 4 Mbps BT 4.2 controller and host stack Service Discover Protocol (SDP) General Access Profile (GAP) Security Manage Protocol (SMP) Bluetooth Low Energy (BLE) ATT/GATT HID All GATT-based profile supported SPP-Like GATT-based profile BLE Beacon A2DP/AVRCP/SPP, HSP/HFP, RFCOMM CVSD and SBC for audio codec Bluetooth Piconet and Scatternet ESP32 vs ESP8266: ESP32 ESP8266 Ethernet MAC Interface Nicht vorhanden GPIOs für 10 Touch-Sensoren Nicht vorhanden Temperatur-Sensor (on-chip) Nicht vorhanden Remote-Controller-Funktionalität Nicht vorhanden Hall-Sensor Nicht vorhanden Digital-to-Analog Converter (DAC) Nicht vorhanden CAN 2.0 Nicht vorhanden Analog-to-Digital Converter (ADC): 16 Kanäle mit 12-Bit SAR-ADC mit Unterstützung für einen Low-Noise Amplifier (LNA) 10-bit ADC, kein LNA 2 I2C-Schnittstellen 1 I2C-Schnittstelle 16 Kanäle für PWM 8 Kanäle für PWM GPIOs (General-Purpose Input/Output): 36 GPIOs: 17 4 SPI-Schnittstellen mit Quad-SPI und maximal 80 MHz 3 SPI-Schnittstellen mit Quad-SPI und maximal 80 MHz Pinbelegung: Package included: 1*ESP-32 ESP-32S ESP-WROOM-32 WLAN & BLE Module ESP-32S ESP32 Adapter This is a adapter board for ESP-32S Wireless Module. It can be inserted to breadboard with Dupont cable wire. Convenient to develop and debug. RESET I/O Pins Pin Pitch: 2.54mm Package included: 1*Adapter ESP-32/ESP-32S Wifi Module+Adapter Package included: 1*ESP-32 ESP-32S ESP-WROOM-32 WLAN & BLE Module 1*Adapter ESP-32/ESP-32S Devolopment Board(CP2102) ESP32 is already integrated antenna and RF balun, power amplifier, low-noise amplifiers, filters, and power management module. The entire solution takes up the least amount of printed circuit board area. This board is used with 2.4 GHz dual-mode Wi-Fi and Bluetooth chips by TSMC 40nm low power technology, power and RF properties best, which is safe, reliable, and scalable to a variety of applications. Features: High performance-price ratio Small volume, easily embeded to other products Strong function with support LWIP protocol, Freertos Supporting three modes: AP, STA, and AP+STA Supporting Lua program, easily to develop Package included: 1 x ESP32 Development Board Shipping Feedback Contact us Return Policy Shipping Domestic We believe you need to get your purchases as quick as possible. As a general rule your item will be shipped within 24 hours of you purchasing it. We pack and post from Tuesday to Sunday (Mondays we are closed) but definitely get all our mail off to the post office first thing Monday morning for you. Mail gets picked up at 12pm so chances are if you buy before lunchtime your item will leave the same day. International Same as above but understand that depending on what part of the world you are from it does take a little longer to send, delivery can be from 7-15 working days. Also other factors to take into consideration are quarantine and customs regulations in your country. It is also a consideration that customs duties and GST/VAT may be payable at the buyers expense. Combined Postage (for items with shipping charges): We are more than happy to combine postage, just use the Buy it Now function in eBay (but DO NOT PAY after purchasing each item) to buy all the products you need, when you have finished request a combined invoice, we will base the shipping cost on the size, weight and your location. Feedback * When you satisfied with our product and services please leave us positive feedback. * If you have got the package, please confirm " Delivery on time " For us. * If a problem occurs, contact us immediately with any email request. * Just contact us using the " Ask the seller a question " link on eBay. Your Satisfaction is our Priority. Our goal is to make all our customers as happy as possible while shopping with us. Contact us For anything problem about product, price, shipping or order status, pleasecontact us via eBay message.Just contact us using the " Ask the seller a question " link on eBay. We expect positive feedback and 5 scores DSR from you. Return Policy We believe our items are so outstanding. We are convinced you will be happy with your Purchase. If you do not satisfy with our items. Please simply return to us within 30 Days in original condition. Just pay for the returned postage. Then we can issue full refund to you after the returned item arrived at our warehouse. Please include your eBay ID and item number with any email requests.
