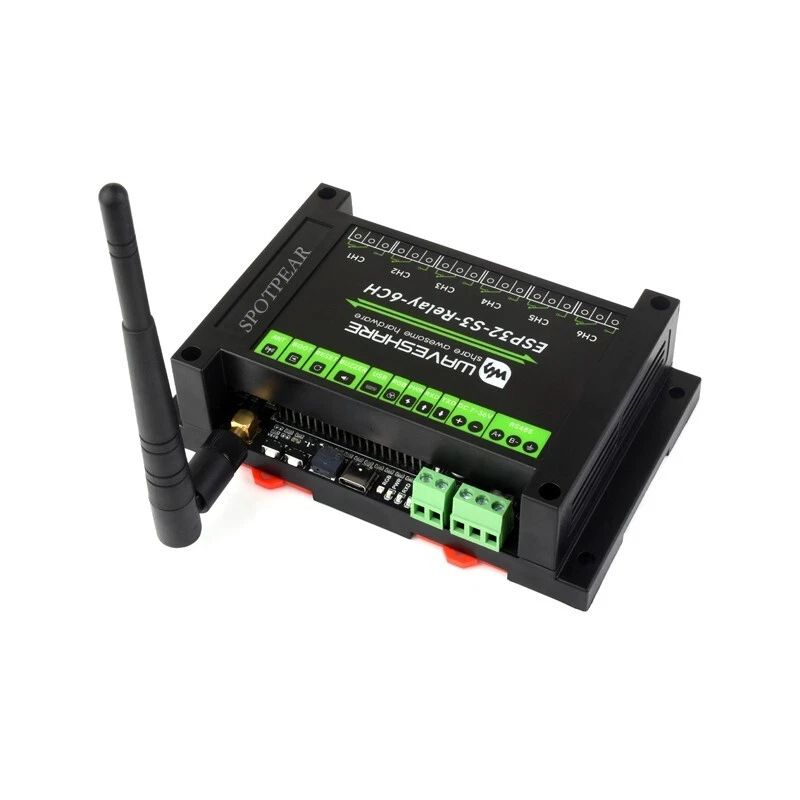

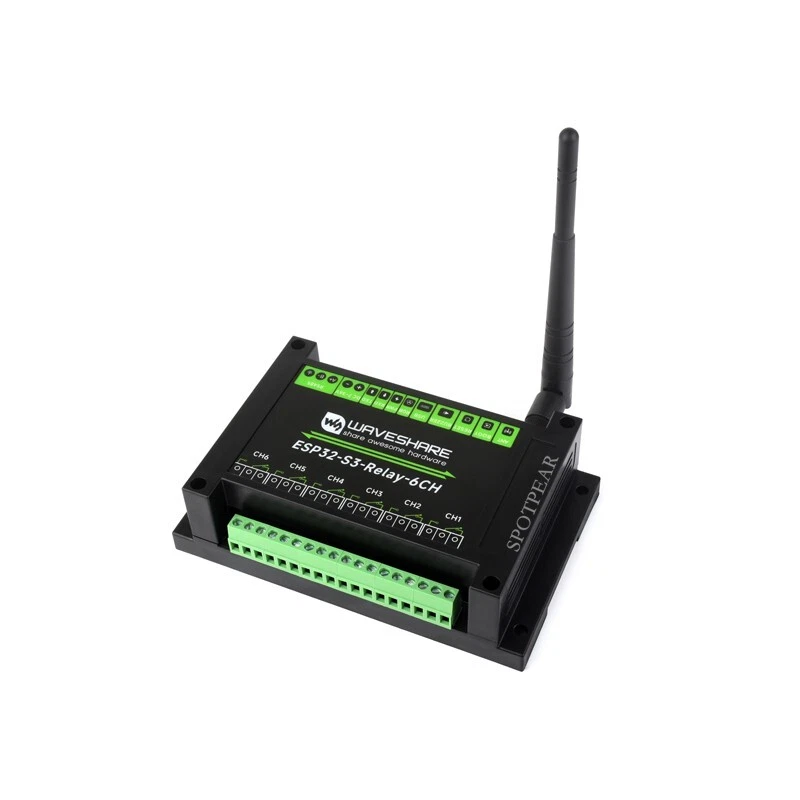

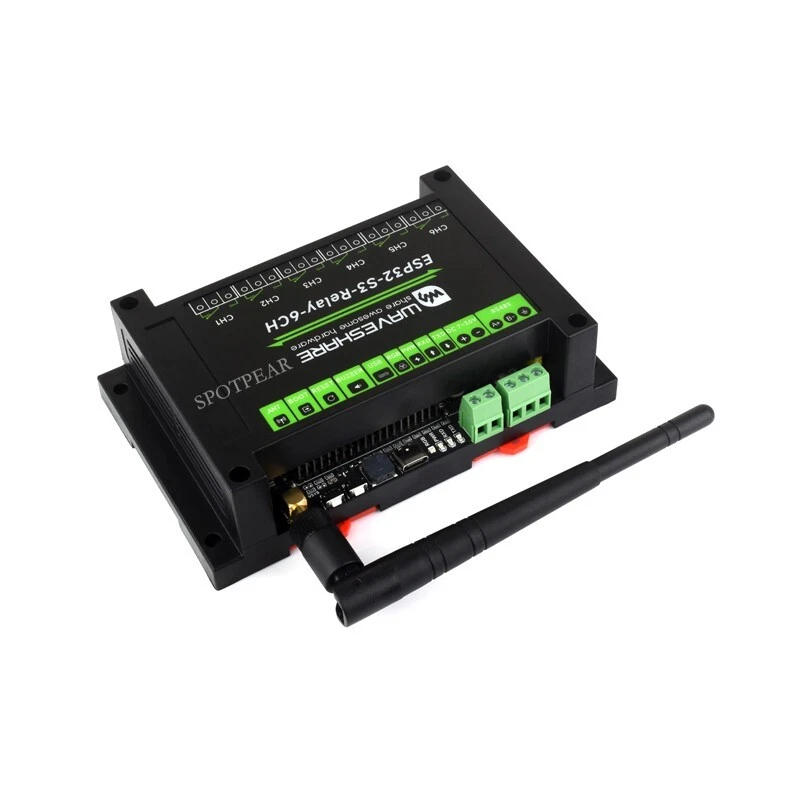

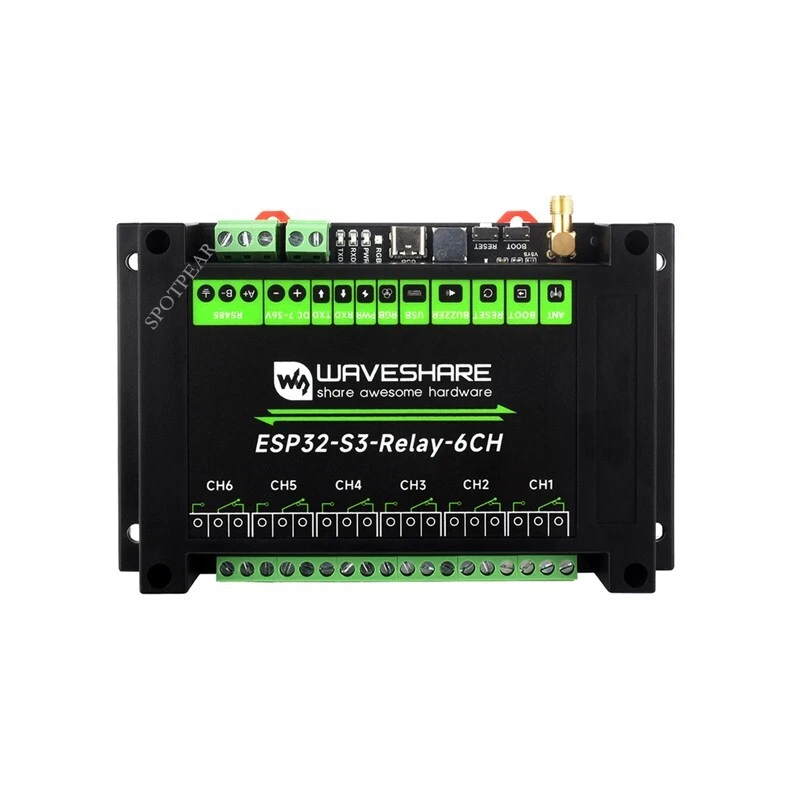

ESP32-S3 Relay Industrial 6-Channel IOT WiFi Bluetooth RS485 Onboard Pico HAT
$ 15.79
Description
】Product Describion Industrial 6-Ch ESP32-S3 WiFi Relay Module Based on ESP32-S3, Supports WiFi / Bluetooth, Onboard RS485 / Pico HAT interfaces Built-In Protection Circuits Such As Power Isolation And Optocoupler Isolation, Safe & Stable & Reliable 】Features At A Glance [] Based on ESP32-S3 microcontroller with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz [] Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with superior RF performance [] High quality relay, contact rating: ≤10A 250VAC/30VDC [] Onboard isolated RS485 interface, for connecting to various RS485 Modbus industrial modules or sensors [] Onboard 40PIN header compatible with some Raspberry Pi Pico HAT, for expanding more functions such as RTC / CAN / RS232 / LoRa / sensor, etc. [] Onboard USB Type-C port for power supply, firmware downloading and debugging [] Onboard power supply screw terminal, supports 7~36V wide voltage input, suitable for industrial applications [] Onboard optocoupler isolation to prevent interference from external high-voltage circuit connected to the relay [] Onboard digital isolation to prevent interference from external signal [] Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal [] Built in buzzer, RGB colorful LED, power supply and RS485 TX/RX indicators for monitoring the operating status of the module [] Rail-mounted ABS case, easy to install, safe to use 】Specifications Based On ESP32-S3, Designed For AIoT Market Equipped With Xtensa 32-Bit LX7 Dual-Core Processor, Capable Of Running At 240 MHz, With Powerful AI Computing Performance And Security Encryption Mechanism; Integrated 2.4GHz Wi-Fi And Bluetooth LE Dual-Mode Wireless Communication Onboard Multiple Isolation Protection Circuit Multiple Protections, More Safe And Reliable High Quality 6-Ch Relays, Supports RS485 And Bluetooth / WIFi Remote Control Contact Rating Of The Onboard Relay Up To 10A 250VAC/30VDC Directly Controlling 220VAC Home Appliances, Or Devices Below 30VDC Onboard Pico HAT Compatible Interface And RS485 Interface For Easy Expansion Onboard Isolated RS485 Interface, For Connecting To Various RS485 Modbus Industrial Modules Or Sensors. Onboard 40PIN Header Compatible With Some Raspberry Pi Pico HAT, For Expanding More Functions Such As RTC / CAN / RS232 / LoRa / Sensor, Etc. Supports Arduino, Micropython Development Comprehensive SDK, Dev Resources, And Tutorials To Help You Easily Get Started 】Application Examples Provides Multiple Networking Demos With Waveshare.Cloud, Using The Lightweight MQTT Protocol To Achieve Data Visualization Service 】What's On Board 1.ESP32-S3 up to 240MHz operating frequency, with 2.4GHz WiFi and BLE 2.6-channel quality relays contact rating per channel: ≤10A 250V AC or ≤10A 30V DC 3.Optocoupler isolation prevents interference from external high-voltage circuit connected to the relay 4.Digital isolation prevents interference from external signal 5.Power supply isolation provides stable isolated voltage, needs no extra power supply for the isolated terminal 6.TVS diode effectively suppresses surge voltage and transient spike voltage in the circuit 7.Ceramic gas discharge tube 8.Relay screw terminals for connecting with user devices 9.40PIN Raspberry Pi Pico HAT header 10.RS485 bus interface for connecting to external RS485 devices 11.Power supply screw terminal Supports DC 7~36V wide voltage input 12.LED indicators PWR: power indicator RXD: RS485 RX indicator TXD: RS485 TX indicator 13.WS2812 RGB LED controllable via GPIO38 14.USB Type-C connector for module power supply, firmware downloading and USB communication 15.Passive buzzer sound frequency is controllable via GPIO21 16.ESP32 RESET button 17.ESP32 BOOT button 18.External antenna connector SMA female connector, for WiFi and Bluetooth wireless communication 19.RS485 matching resistor jumper Onboard reserved 120R matching resistor, enabled via jumper 20.Relays default control pin setting 】Enclosure Design ABS Protection Enclosure With Rail-Mount Support, Easy To Install, Safe To Use 】Outline Dimensions Support Batch Customization Support Software And Hardware Customization Including Hardware Interface, LOGO, Label, Case And Web Page, Etc. Package Contains 1. ESP32-S3-Relay-6CH x1 2. 2.4G 4DB SMA antenna x1 3. Screwdriver x1
