ESP32-S3 WIFI Bluetooth Development Board IPS LCD Module ESP32-S3-WROOM-1 Type-C

$ 7.39

Marke: Markenlos Produktart: ESP32 S3 Development Board Brand: Unbranded gtin13: Does not apply EAN: Does not apply Type: ESP32 S3 Development Board UPC: Does not apply MPN: Does not apply

Description

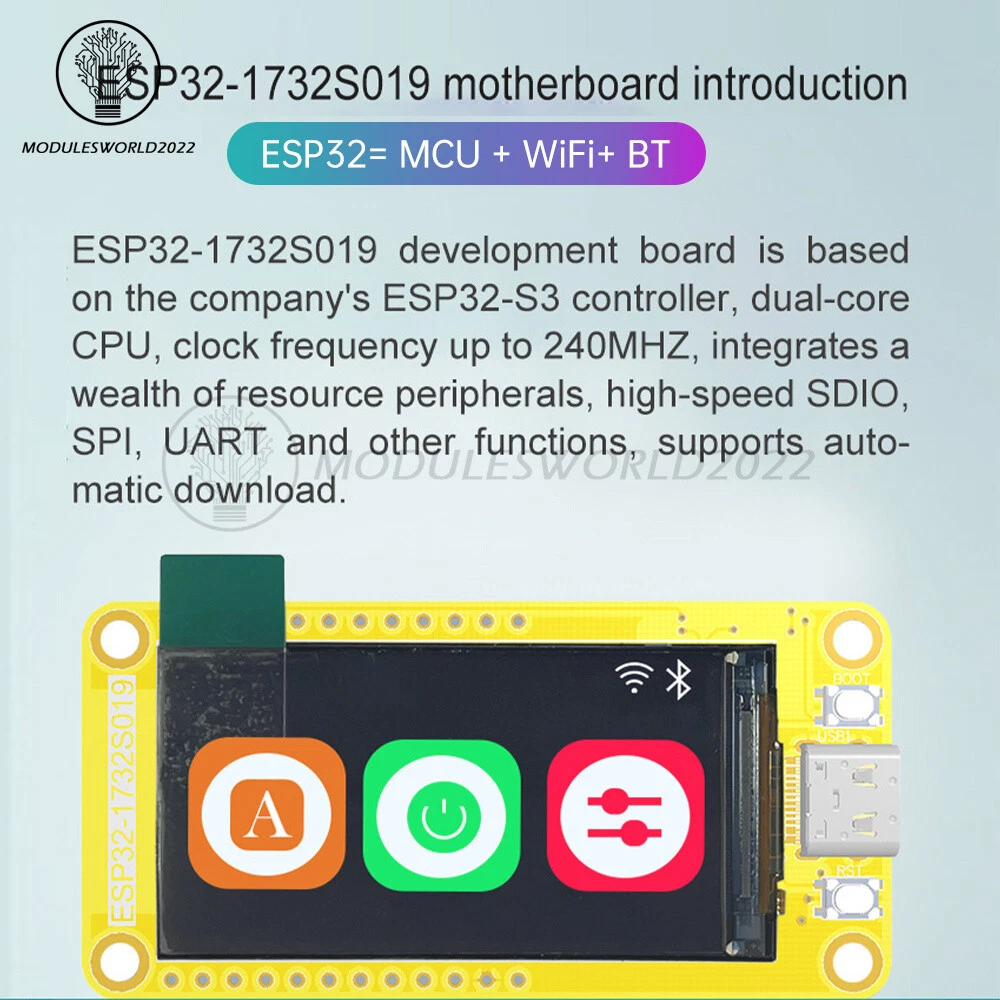

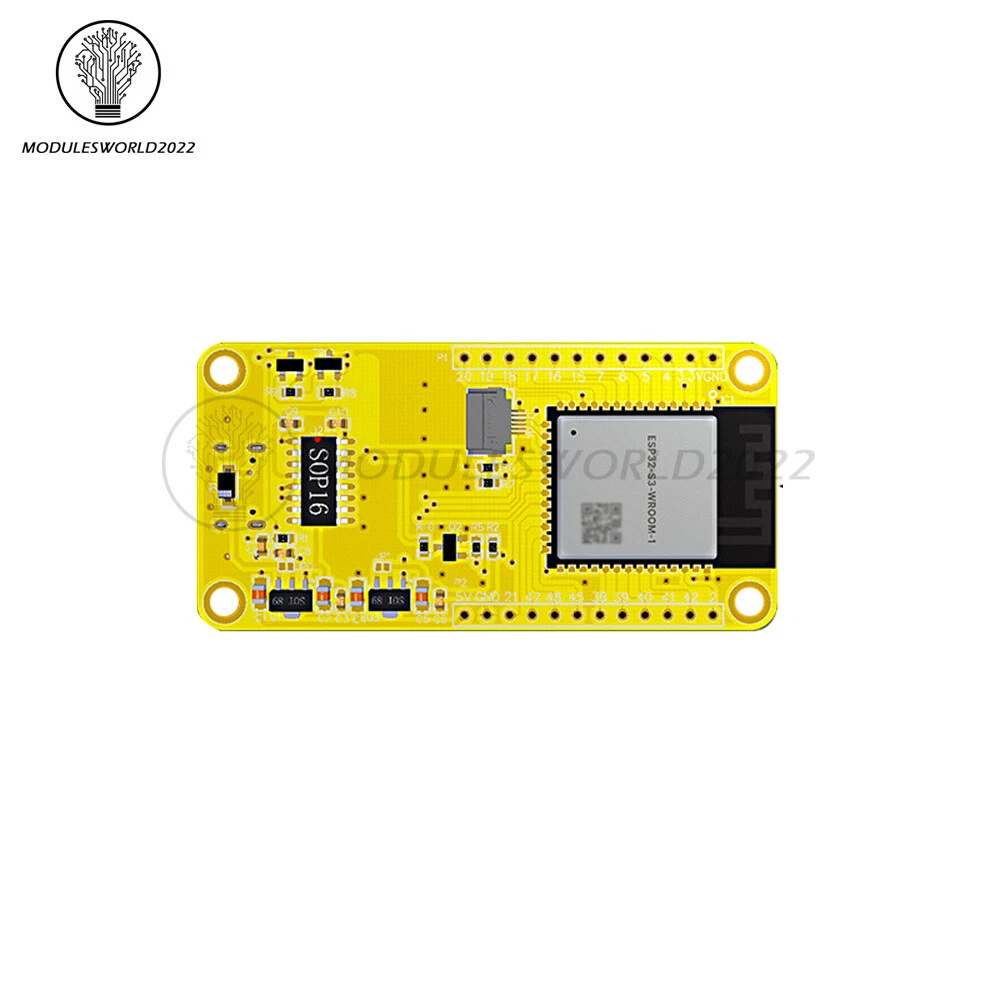

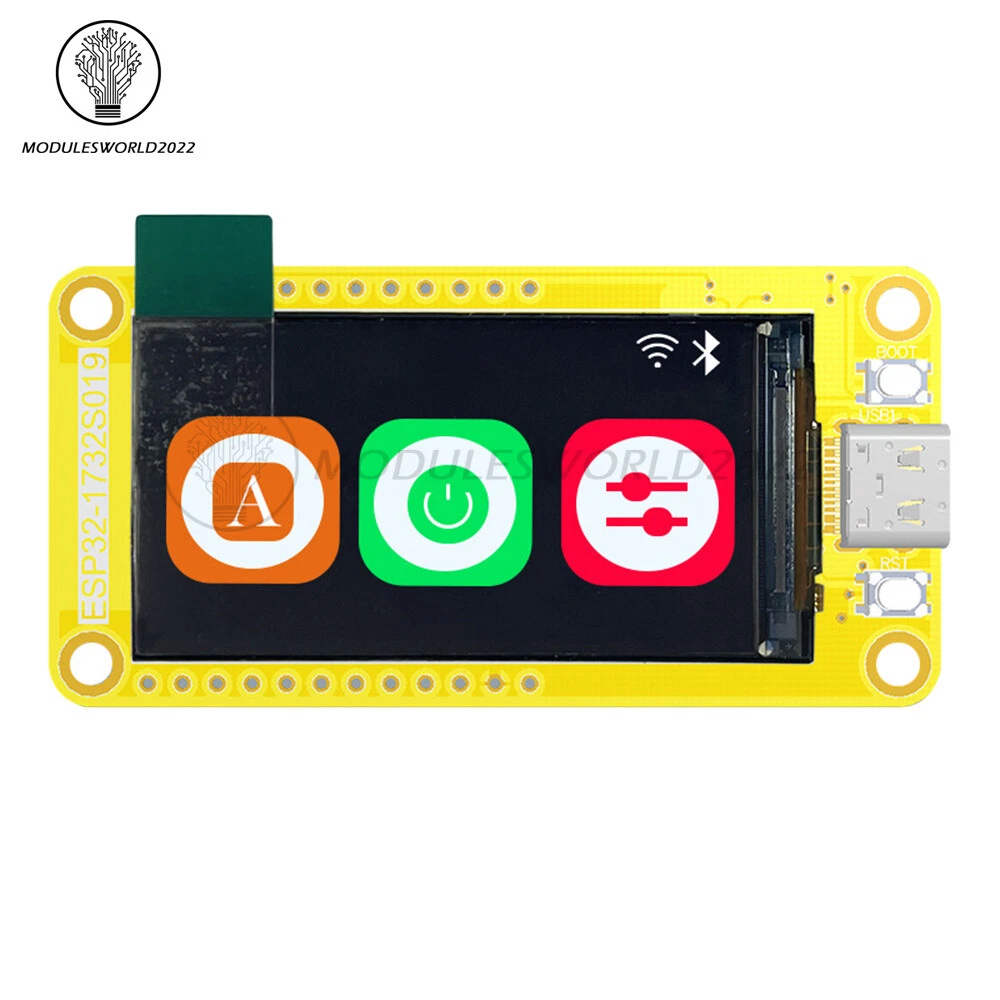

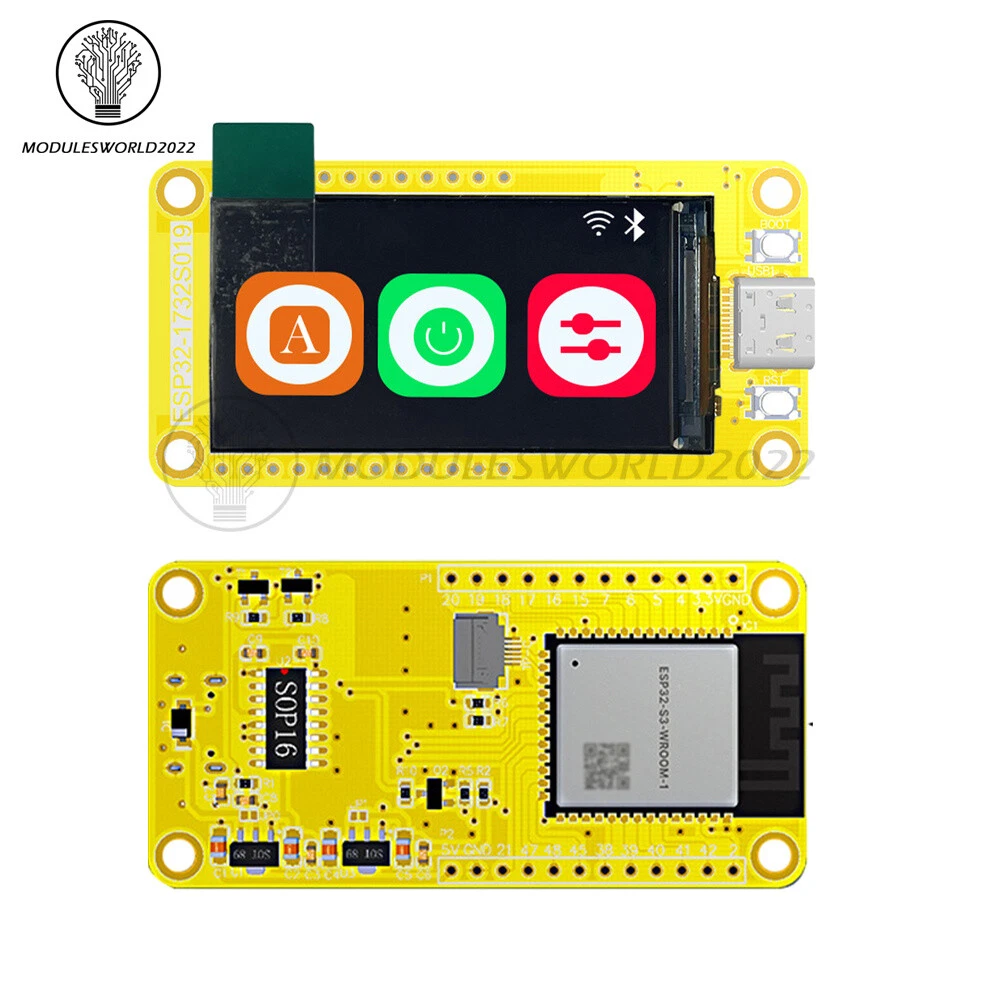

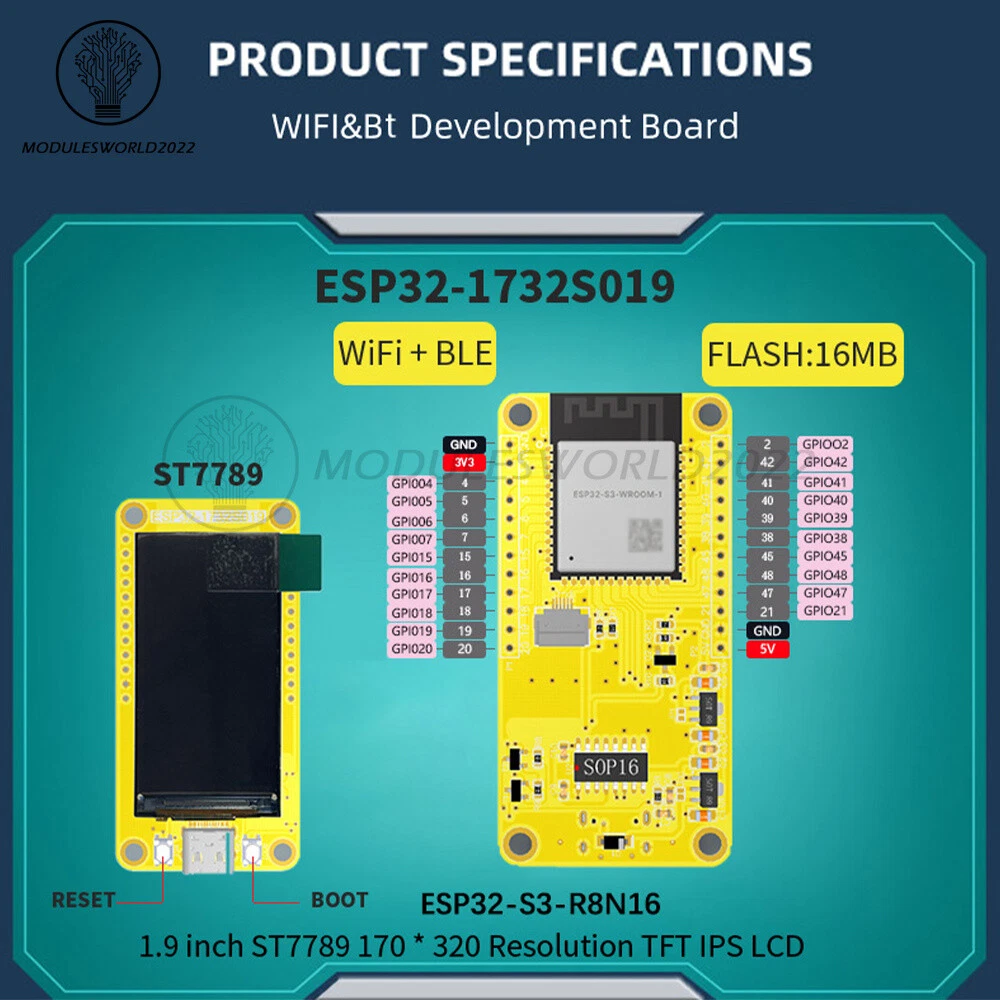

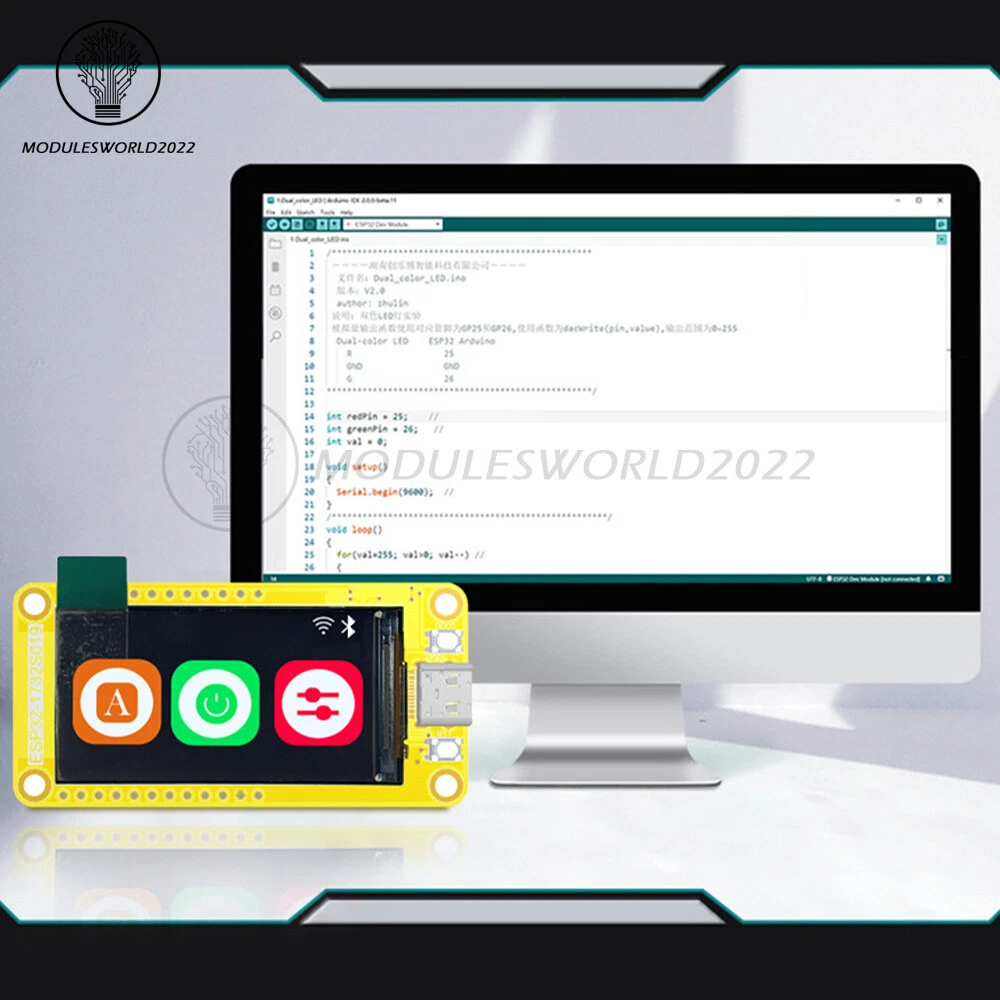

Store Categories Store Categories Other Product View Details Overview Development board module adopts ESP32-S3-WROOM-1 module as the main control, the main control is a dual-core MCU, integrated WI-FI and Bluetooth functions, the main frequency up to 240MHz, 512KB SRAM, 384KB ROM, 8M PSRAM, Flash capacity of 16MB, display resolution of 170*320 IPS display without touch. 512KB SRAM, 384KB ROM, 8M PSRAM, Flash capacity of 16MB, display resolution of 170*320 IPS display, no touch. The module includes LCD display, backlight control circuit, IO port interface and supports development in arduino IDE, ESP IDE, Micropython and Mixly. Features 1.1.9 inch color screen, support 16 BIT color display, display colorful 2. Factory programmed, can be inserted into the sample program 3. With TF card slot, easy to expand storage space 4. Provide library functions and sample programs, easy to quickly carry out secondary development 5. Support one-key download program, long-term stable work Specification Product name: ESP32-S3 development board Driver chip: ST7789 Display size: 1.9 inch Resolution: 170 * 320 pixels Main control chip: ESP32-S3 FLASH: 16MB Communication: WiFI+BLE Clock frequency: 240MHz Supply current: 120mA Supply Voltage: 5V Interface: Type-C interface Operating Temperature: -20℃~70 Storage Temperature: -30℃~80℃ Note: Screen without touch function! Package includes 1 x Development Board 2 x Pin Shipping Policy Payment Method Returns Policy Shipping Policy Payment Method Returns Policy Home Payment Shipping About us Contact us Copyright©2018 datacaciques Home Payment Shipping About us Contact us Store Categories Store Categories Other Product View Details Overview Development board module adopts ESP32-S3-WROOM-1 module as the main control, the main control is a dual-core MCU, integrated WI-FI and Bluetooth functions, the main frequency up to 240MHz, 512KB SRAM, 384KB ROM, 8M PSRAM, Flash capacity of 16MB, display resolution of 170*320 IPS display without touch. 512KB SRAM, 384KB ROM, 8M PSRAM, Flash capacity of 16MB, display resolution of 170*320 IPS display, no touch. The module includes LCD display, backlight control circuit, IO port interface and supports development in arduino IDE, ESP IDE, Micropython and Mixly. Features 1.1.9 inch color screen, support 16 BIT color display, display colorful 2. Factory programmed, can be inserted into the sample program 3. With TF card slot, easy to expand storage space 4. Provide library functions and sample programs, easy to quickly carry out secondary development 5. Support one-key download program, long-term stable work Specification Product name: ESP32-S3 development board Driver chip: ST7789 Display size: 1.9 inch Resolution: 170 * 320 pixels Main control chip: ESP32-S3 FLASH: 16MB Communication: WiFI+BLE Clock frequency: 240MHz Supply current: 120mA Supply Voltage: 5V Interface: Type-C interface Operating Temperature: -20℃~70 Storage Temperature: -30℃~80℃ Note: Screen without touch function! Package includes 1 x Development Board 2 x Pin Shipping Policy Payment Method Returns Policy Shipping Policy We will arrange shipping for you within 24 Hours after payment cleared except the holidays. -We ship items to Worldwide. Thank you! -we will ship out the order in 1-2 business days after payment cleared .Since it is international shipping ,delivery time is about 15--28 business days to arrive to most countries. Payment Method We accept PayPal payment ONLY, and must be received within 5 days from the date of purchase. 2. It is easy and safe for you to pay by credit cards, debit cards, bank transfers and PayPal account balances. 3.Buyers are responsible for import duties,custom fees and taxes, if any, please check your country. Returns Policy 1.We believe our items are so outstanding. We are convinced you will be happy with your Purchase. 2. If you do not satisfy with our items. Please simply return to us within 30 Days in original condition. Just pay for the returned postage. Then we can issue full refund or resend the item to you after the returned item arrived at our warehouse. 3. Please include your eBay ID and item number with any email requests.
