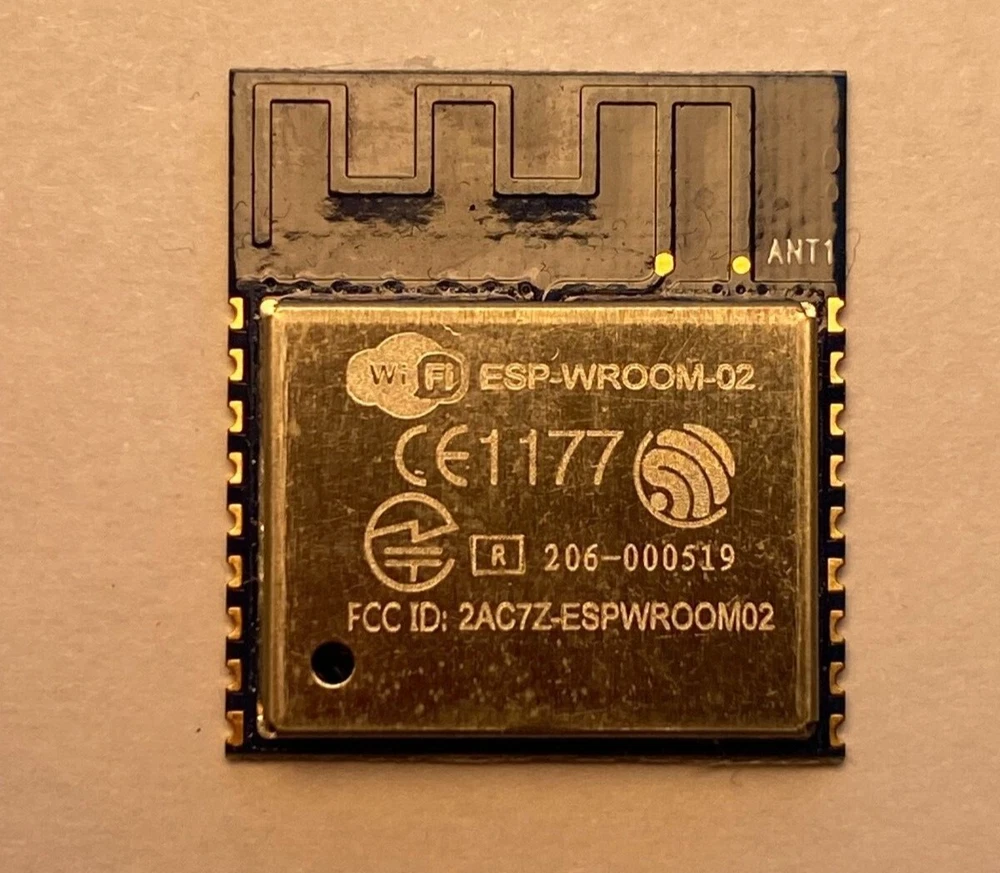

ESP8266 / ESP-WROOM-02 IoT WiFi module
$ 1.14
Description
ESP8266 / ESP8266-WROOM-02 IoT WiFi module Anarduino and HopeRF Products Product Overview: The ESP8266 is a powerful WiFi module, useful for IOT and networking applications. It supports station and access point modes of operation, and can be used a variety of applications. Features: 802.11 b/g/n Integrated low power 32-bit MCU Integrated 10-bit ADC Integrated TCP/IP protocol stack Integrated TR switch, balun, LNA, power amplifier and matching network Integrated PLL, regulators, and power management units Supports antenna diversity Wi-Fi 2.4 GHz, support WPA/WPA2 Support STA/AP/STA+AP operation modes Support Smart Link Function for both Android and iOS devices SDIO 2.0, (H) SPI, UART, I2C, I2S, IRDA, PWM, GPIO STBC, 1x1 MIMO, 2x1 MIMO A-MPDU & A-MSDU aggregation and 0.4s guard interval Deep sleep power <10uA, Power down leakage current < 5uA Wake up and transmit packets in < 2ms Standby power consumption of < 1.0mW (DTIM3) +20dBm output power in 802.11b mode Operating temperature range -40C ~ 125C FCC, CE, and TELEC certified Documents, Links, and Software: IOT (Internet of Things) Community Forum github Thank you for your interest, and have a great day!
