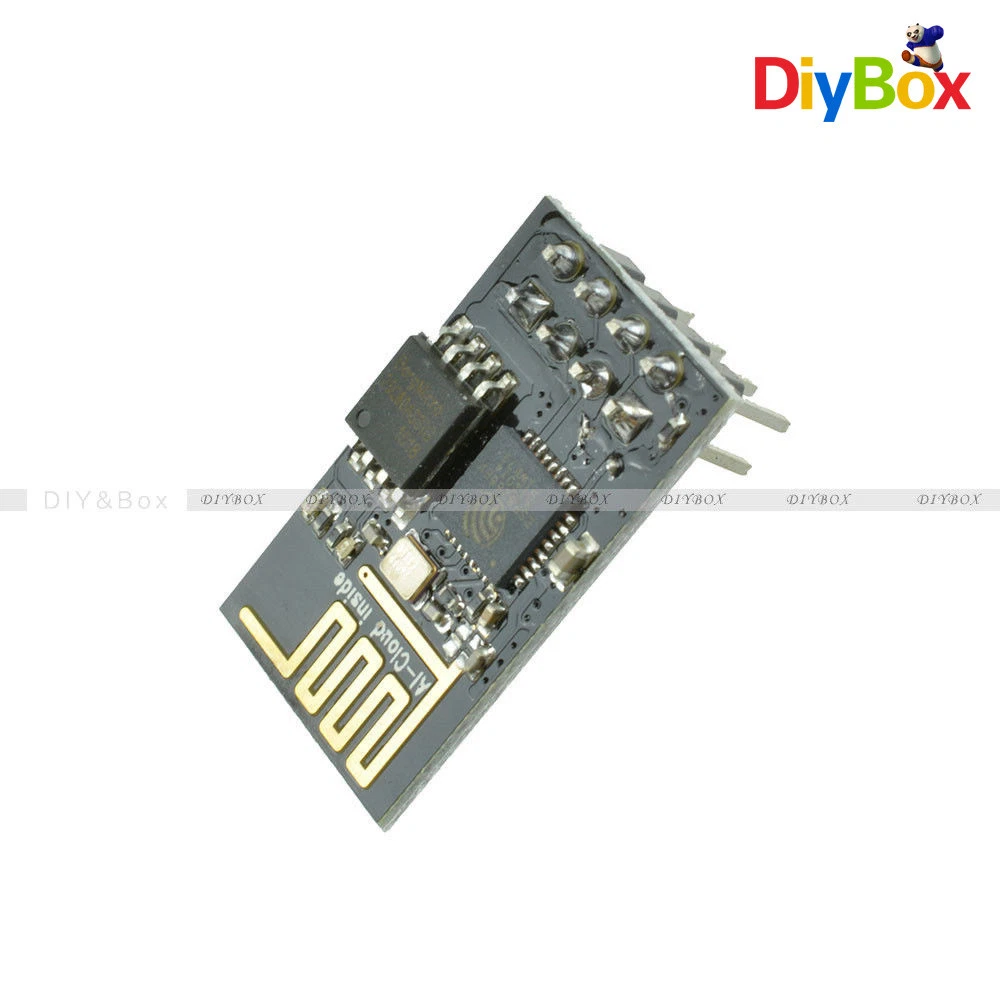

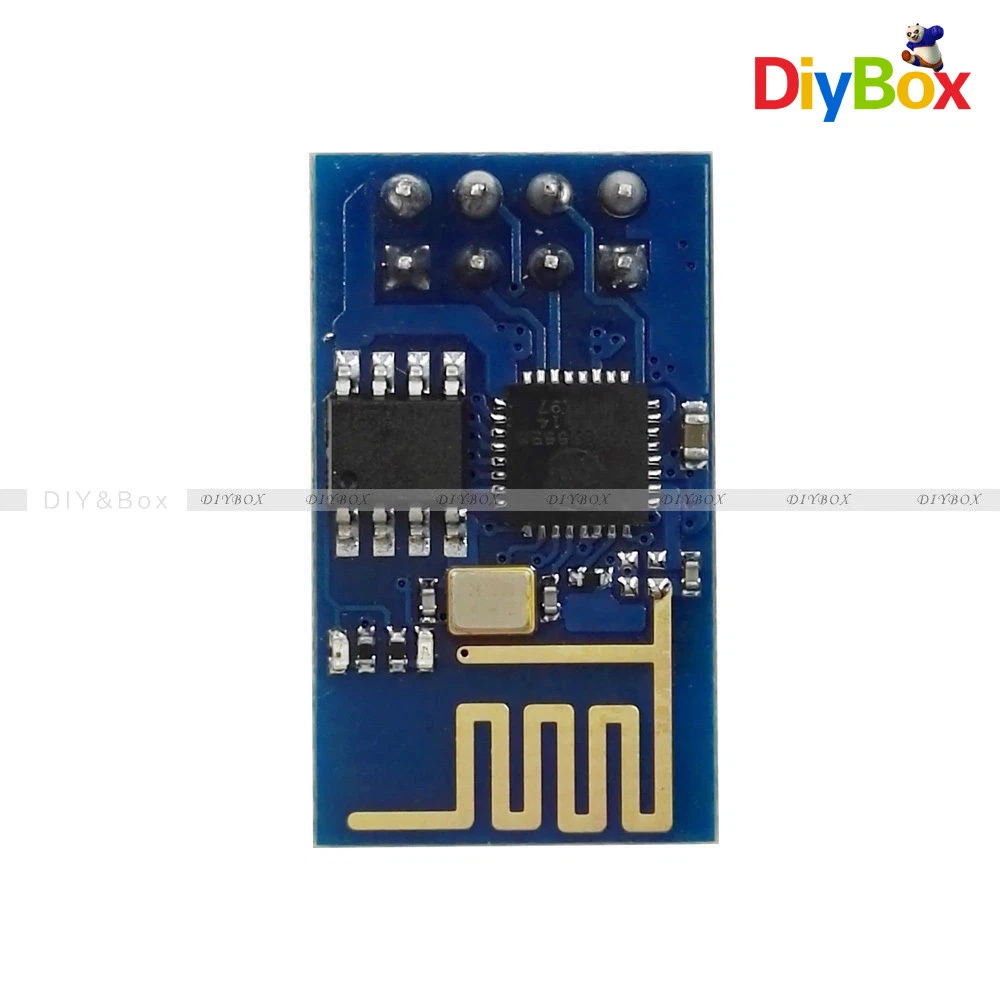

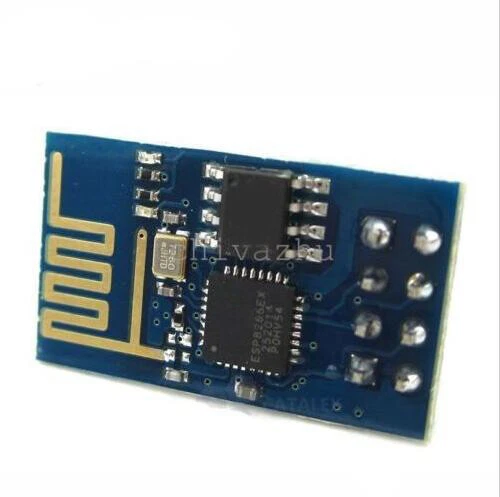

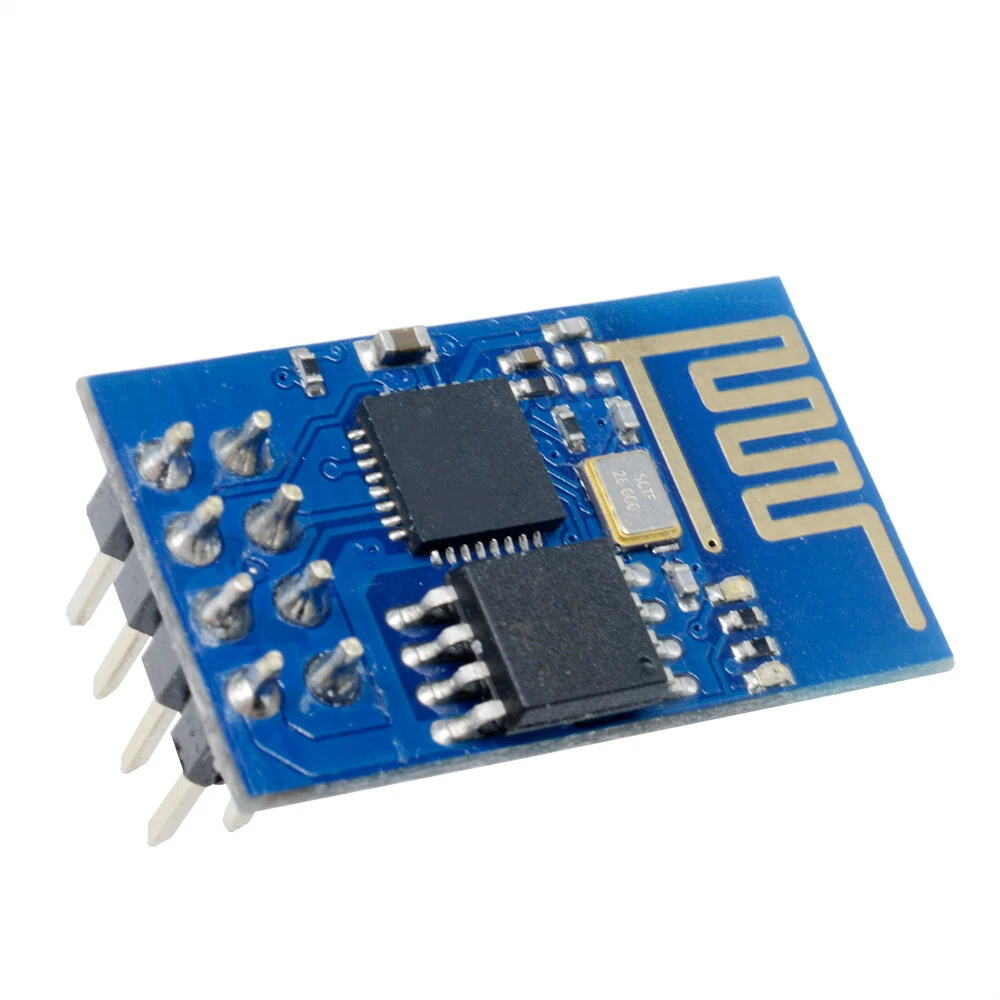

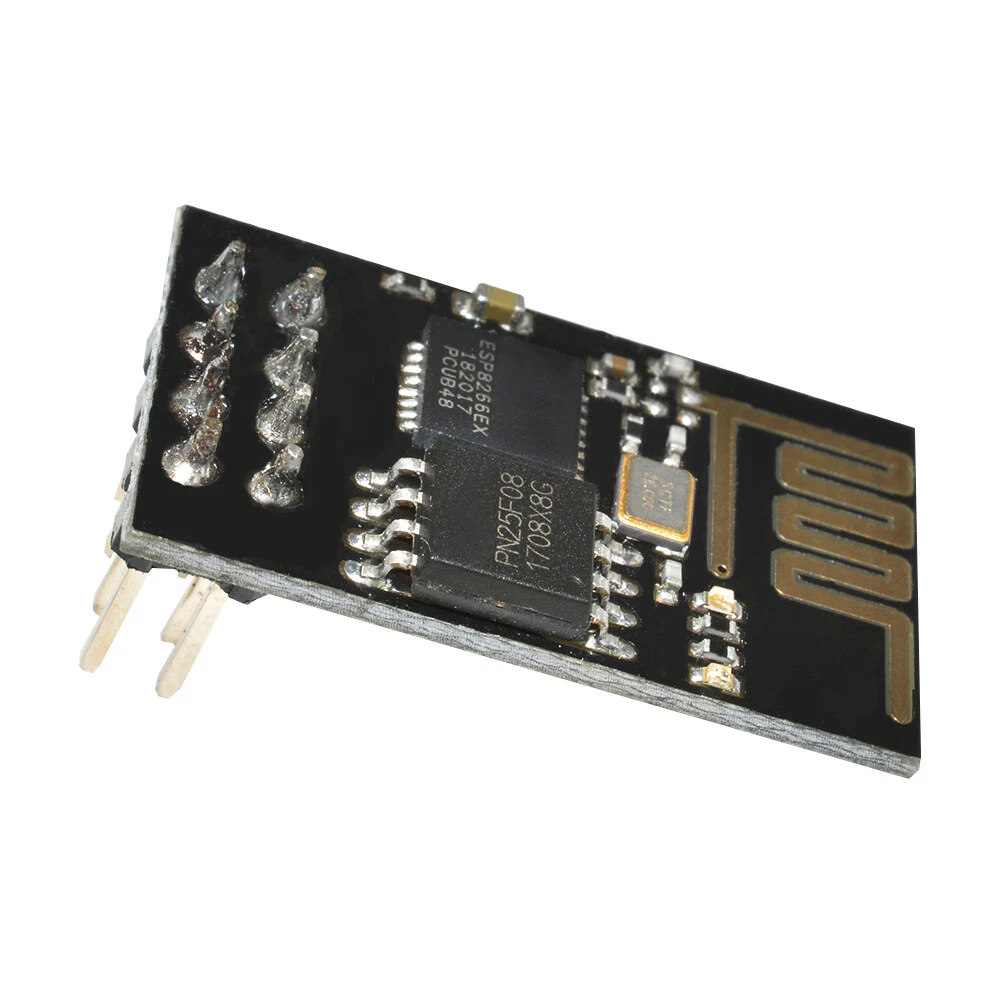

ESP8285 ESP-01M Wifi Module IOT Wireless Transceiver Receiver ESP8266 ESP-01

Description

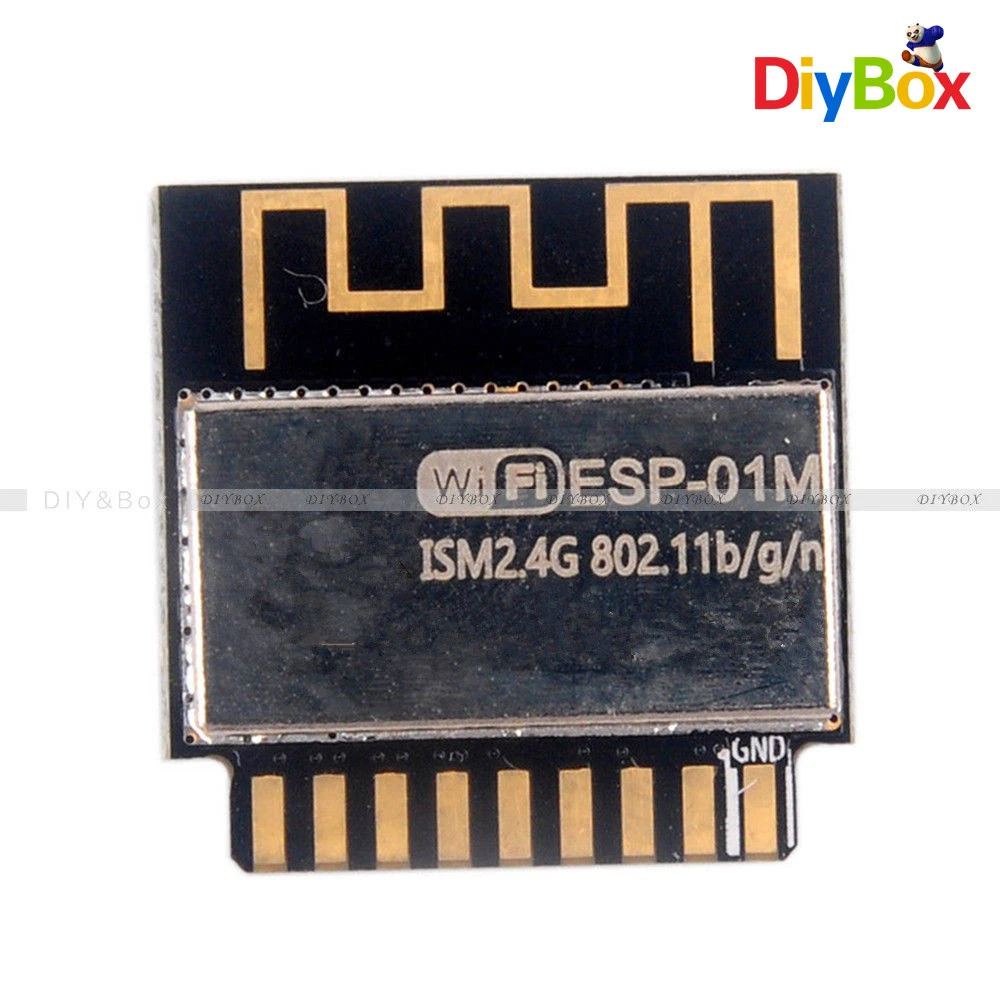

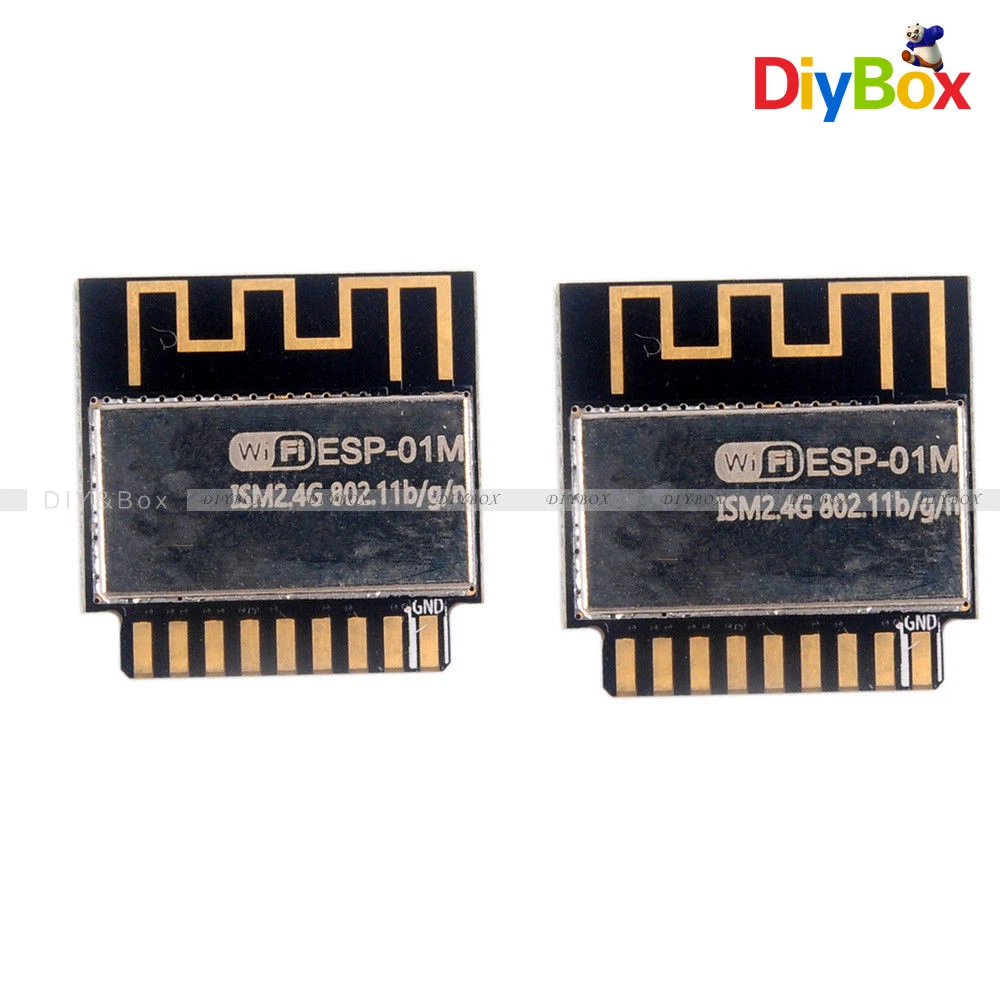

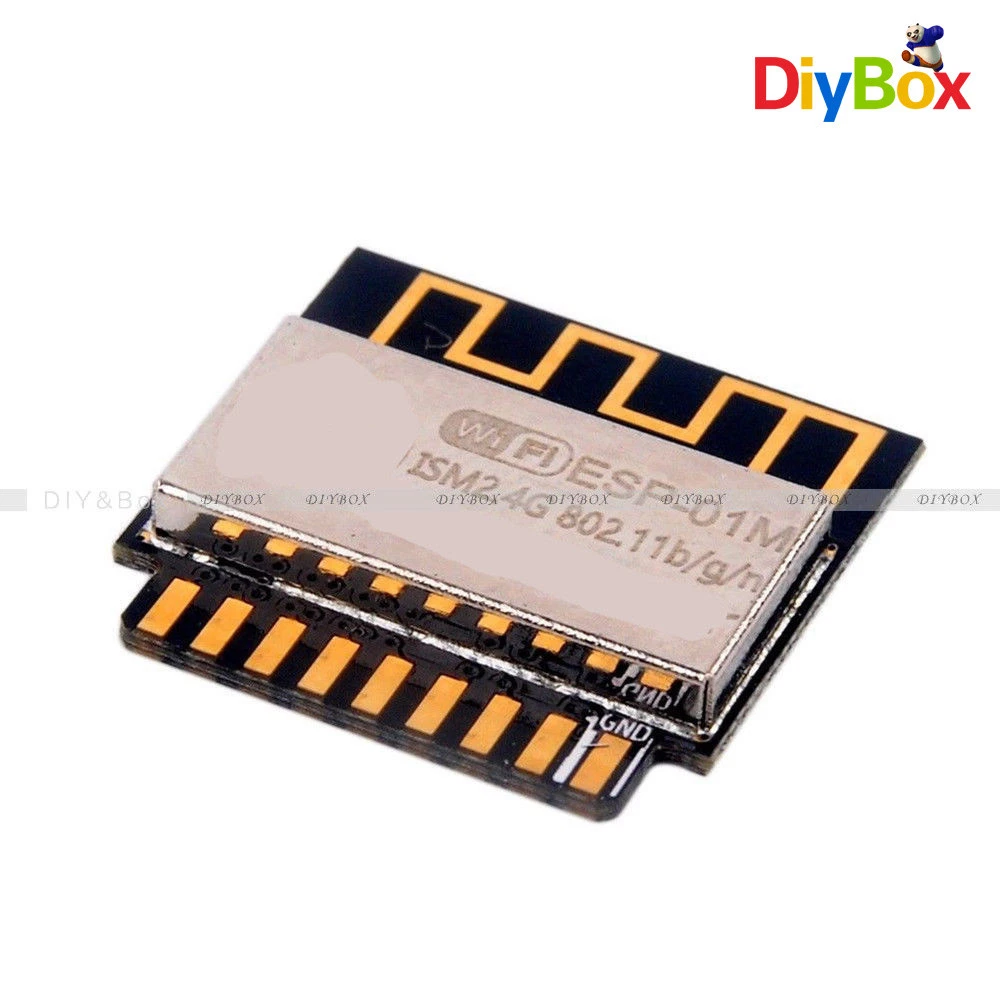

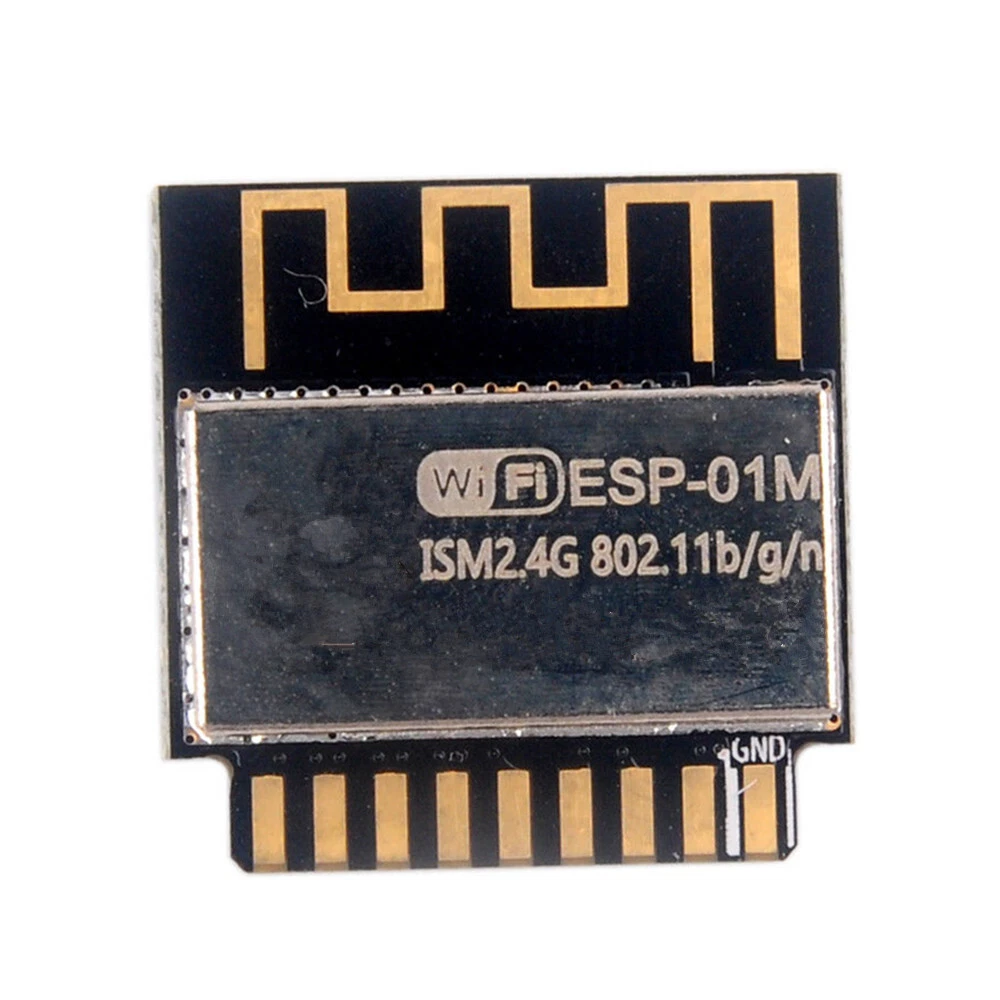

ESP8285 ESP-01M Wifi Module IOT Wireless Transceiver Receiver ESP8266 ESP-01 Description: ESP8285 ESP-01M Wifi Built-in Flash, with vertical design, small size WiFi module - ESP-01M ESP-01M pin with DIP-18 design, and 18 * 18mm very small volume is also easy to embed all kinds of high demand for intelligent equipment. Built-in 1MByte Flash, in a simple control class and the volume requirements of small products is the best choice. ESP-01M core chip using ESP8285, his predecessor ESP8266 has mature large-scale commercial. ESP8285 after the previous generation ESP8266 upgrade innovation, in the hardware and software is mature enough, is characterized by built-in 1MByte Flash, in addition to higher integration, eliminating the need for high-priced external Flash also make the whole program more cost-effective. In the software part and ESP8266 fully compatible with ESP8266 development experience, the software part of the seamless transplant to the ESP8285, eliminating the need for repeated development, accelerate product floor. ESP-01M is based on the ESP8285 program and is capable of becoming your next WiFi module for those who are still using the ESP8266 and need to find small size, low cost, custom WiFi module manufacturers. 1.ESP-01M has the industry's most competitive package size and ultra-low energy consumption technology, the size is only 18 * 18 * 2.8mm, support secondary development; 2.ESP-01M can be widely used in a variety of networking, for home automation, industrial wireless control, baby monitors, wearable electronic products, wireless location sensing equipment, wireless positioning system signals and other Internet of things applications Ideal solution for networking applications; ESP-01M uses a unique cheater package, in-line approach to more convenient product disassembly, installation, so that products become more flexible, especially for automation, large-scale, low-cost modern production methods, easy to apply to various Networking hardware terminal occasion Package Included: 1PC*ESP8285 ESP-01M Wifi Module IOT Wireless Transceiver Receiver Replace ESP8266 ESP8266 ESP-01 Blue ESP8266 is a highly integrated chip designed for the needs of a new connected world. It offers a complete and self-contained Wi-Fi networking solution, allowing it to either host the application or to offload all Wi-Fi networking functions from another application processor. ESP8266 has powerful on-board processing and storage capabilities that allow it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including front-end module, is designed to occupy minimal PCB area. We have full range of ESP8266 Modules on Sale, which include ESP-01, ESP-02, ESP-03, ESP-04, ESP-05, ESP-05, ESP-06, ESP-07, ESP-08, ESP-09, ESP-10, ESP-11, ESP-12, ESP-201 etc. Each one has their own characteristics: 1. ESP-01: PCB antenna, the distance can be up to 400 meters at Open Place after matching, easy to use. 2. ESP-02: SMD packing, suitable for submission restrictions, the antenna can get out of the shell by IPX header leads. 3. ESP-03: SMD packing, built-in ceramic antenna, all are IO leads. 4. ESP-04: SMD packing, the user can customize the antenna types, flexible designing, all are IO leads. 5. ESP-05: SMD packing, serial port and the RST PIN will be released, super mini Size, the antenna can be external. 6. ESP-06: Bottom paste Technology, all IO leads, with metal shell, easily to get through FCC CE certification. 7. ESP-07: Half-hole paste technology, all IO leads, with metal shell, easily to get through FCC CE certification. Can external connect with an IPX antenna, or built-in a ceramic antenna. 8. ESP-08: Almost same as ESP-07, the big difference is that the user can define in the form of the antenna by themselves. 9. ESP-09: Ultra small Size, only 10*10 mm, four layers plating technology. 10. ESP-10: SMD interfaces, narrow body design, 10 mm width and suitable for the controller of led lights. 11. ESP-11: SMD interfaces, ceramic antennas, and small size. Note: The board color is Blue. Package Included: 1PC*ESP8266 Serial WIFI Wireless Transceiver Module WIFI ESP-01 ESP8266 ESP-01 Black SDIO 2.0, SPI, UART 32-pin QFN package Integrated RF switch, balun, 24dBm PA, DCXO, and PMU Integrated RISC processor, on-chip memory and external memory interfaces Integrated MAC/baseband processors Quality of Service management I2S interface for high fidelity audio applications On-chip low-dropout linear regulators for all internal supplies Proprietary spurious-free clock generation architecture Integrated WEP, TKIP, AES, and WAPI engines Solutions Supports APSD for optimal VoIP applications Patented spurious noise cancellation algorithm for integration in SOC applications Supports Bluetooth co-existence interface Self-calibrated RF to ensure optimal performance under all operating conditions Zero factory tuning No external RF components Specifications 802.11 b/g/n Wi-Fi Direct (P2P), soft-AP Integrated TCP/IP protocol stack Integrated TR switch, balun, LNA, power amplifier and matching network Integrated PLLs, regulators, DCXO and power management units +19.5dBm output power in 802.11b mode Power down leakage current of <10uA Integrated low power 32-bit CPU could be used as application processor SDIO 1.1/2.0, SPI, UART STBC, 1×1 MIMO, 2×1 MIMO A-MPDU & A-MSDU aggregation & 0.4ms guard interval Wake up and transmit packets in < 2ms Standby power consumption of < 1.0mW (DTIM3) Help your development more easy. ESP8266 Serial WIFI Module Communite Forum>> Detail about ESP8266 1. High quality & low price 2. LWIP agreement 3. Support 3 modes: AP, STA, AP+STA 4. Perfect and simple AT commands Package Included: 1PC*ESP8266 Serial WIFI Wireless Transceiver Module ESP-01 Send Receive LWIP AP+STA Shipping Feedback Contact us Return Policy Shipping Domestic We believe you need to get your purchases as quick as possible. As a general rule your item will be shipped within 24 hours of you purchasing it. We pack and post from Tuesday to Sunday (Mondays we are closed) but definitely get all our mail off to the post office first thing Monday morning for you. Mail gets picked up at 12pm so chances are if you buy before lunchtime your item will leave the same day. International Same as above but understand that depending on what part of the world you are from it does take a little longer to send, delivery can be from 7-15 working days. Also other factors to take into consideration are quarantine and customs regulations in your country. It is also a consideration that customs duties and GST/VAT may be payable at the buyers expense. Combined Postage (for items with shipping charges): We are more than happy to combine postage, just use the Buy it Now function in eBay (but DO NOT PAY after purchasing each item) to buy all the products you need, when you have finished request a combined invoice, we will base the shipping cost on the size, weight and your location. Feedback * When you satisfied with our product and services please leave us positive feedback. * If you have got the package, please confirm " Delivery on time " For us. * If a problem occurs, contact us immediately with any email request. * Just contact us using the " Ask the seller a question " link on eBay. Your Satisfaction is our Priority. Our goal is to make all our customers as happy as possible while shopping with us. Contact us For anything problem about product, price, shipping or order status, pleasecontact us via eBay message.Just contact us using the " Ask the seller a question " link on eBay. We expect positive feedback and 5 scores DSR from you. Return Policy We believe our items are so outstanding. We are convinced you will be happy with your Purchase. If you do not satisfy with our items. Please simply return to us within 30 Days in original condition. Just pay for the returned postage. Then we can issue full refund to you after the returned item arrived at our warehouse. Please include your eBay ID and item number with any email requests.
