Electro Voice EV PL77B Condenser Cardioid Microphone
$ 25.88
Description

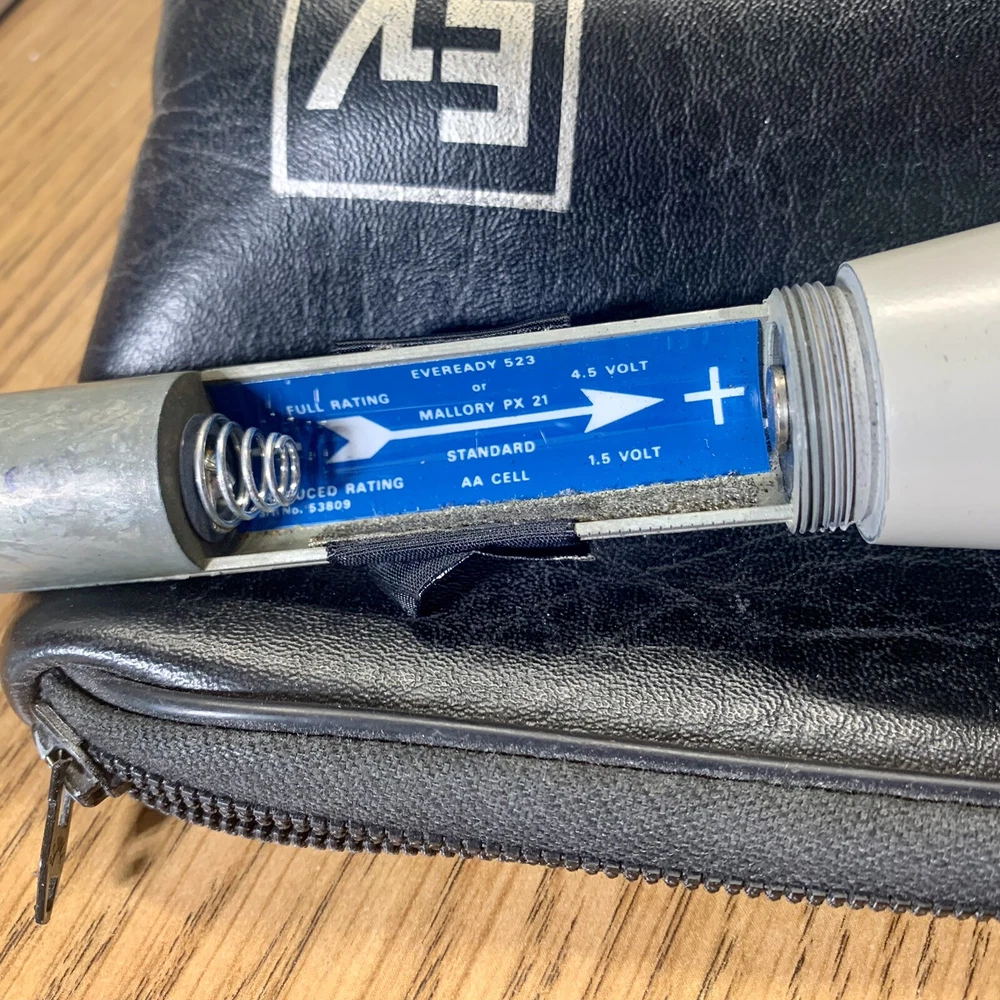

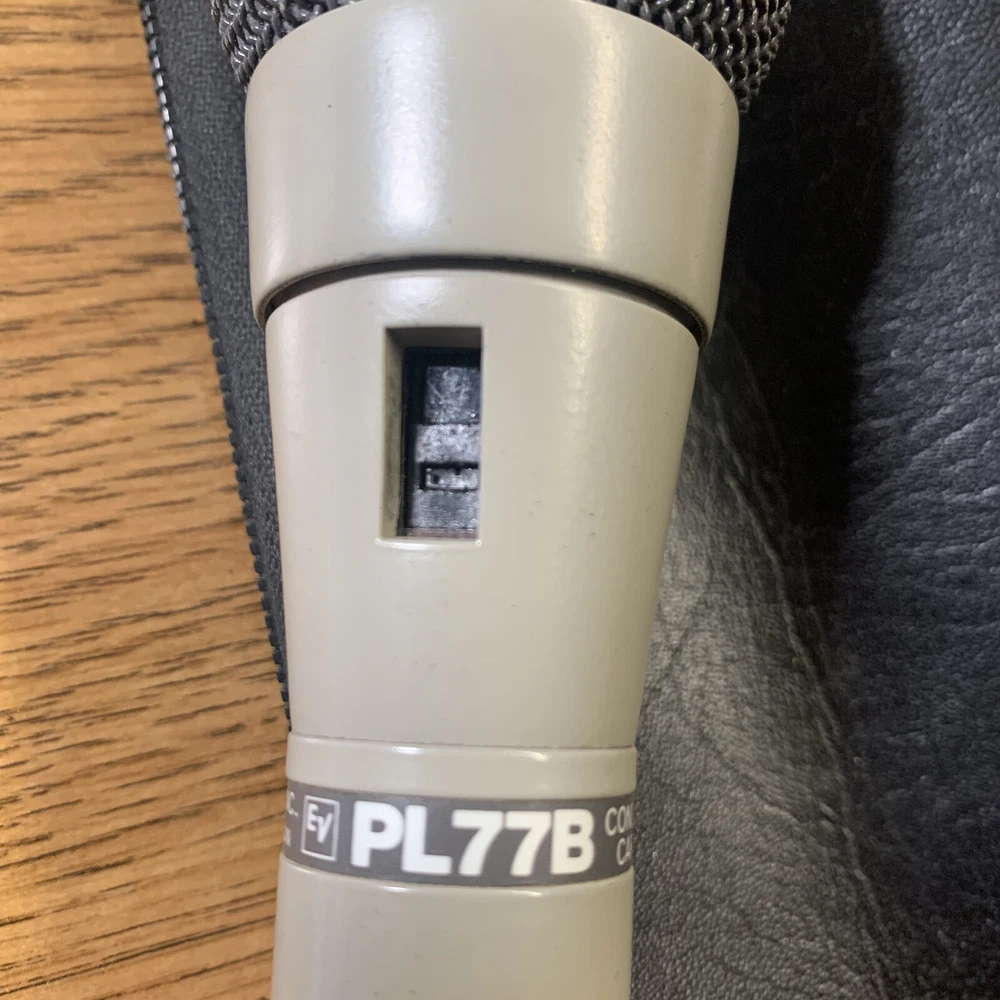

DESCRIPTION AND APPLICATIONS The Electro—Voice Model PL77 exhibits the same high performance characteristics as the successful PL76. however, in addition to exceptional performance the PL77 also offers the option of internal battery or external phantom powering. Any external D.C. power source within the range of 24 volts to 48 volts will successfully power the PL77. Also, the on/off switch (for battery operation only) Is recessed-so it cannot be accidentally turned off at a crucial moment during a performance. SPECIFICATIONS Generating Element: Electret condenser Frequency Response: 50-18,000 Hz Polar Pattern: Cardioid Impedance: Lo-Z, 150 ohms balanced Output Level: -54 dB (0dB = 1 mW/10 dynes/cm^) Pop Filter: Built-in Acoustifoam" Grille Screen Material: Memraflex [tempered spring steel) Equivalent Noise Level: Less than 26 dB (0 dB = .0002 dynes/cm^) A weighted Switch: On/Off (battery only) Power Supply: 4.5 Volt Battery (Not included) or 24 to 48 Volt phantom supply Current Drain: 3.5 mA Case Material: Diecast zinc & aluminum Finish: Non-reflecting gray Dimensions: 190.5 mm (7.50") long 50 mm (1.97") maximum diameter Weight: 343 grams (12 oz) Accessories Included: 301 stand clamp Zippered vinyl carrying case
