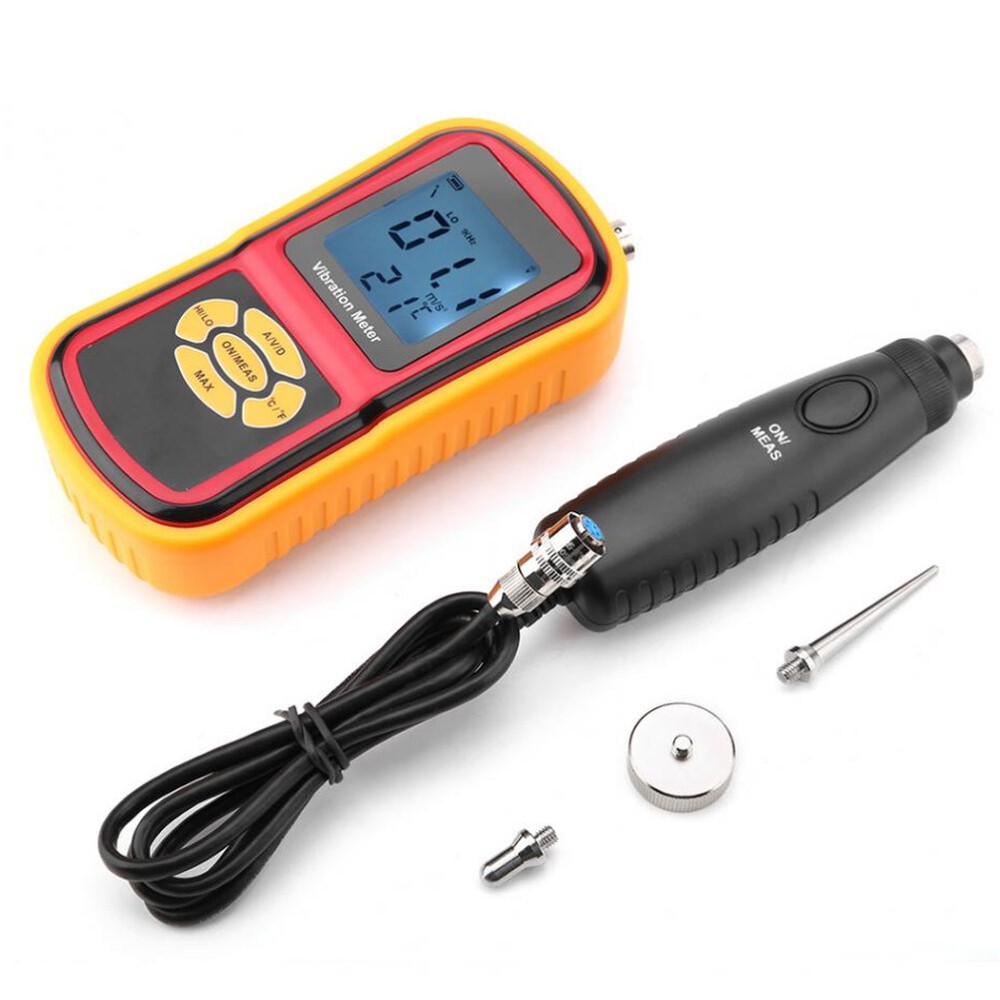

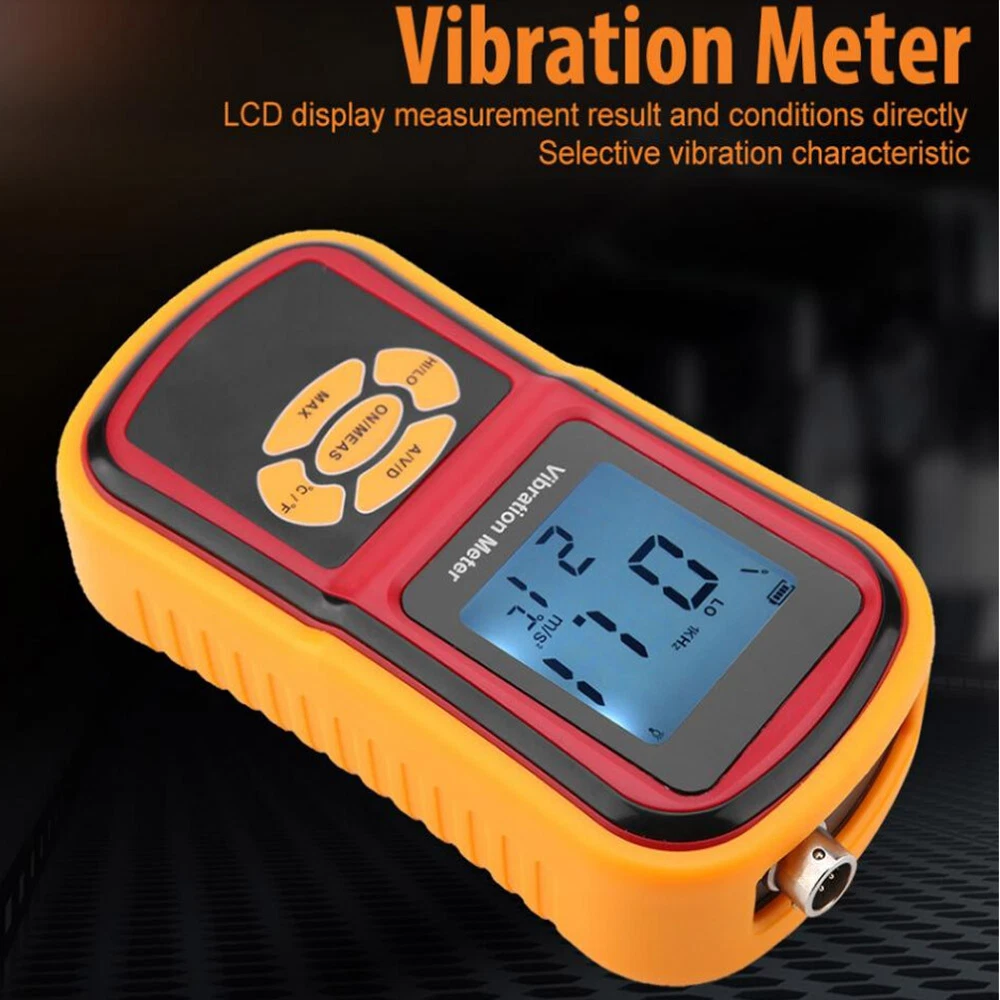

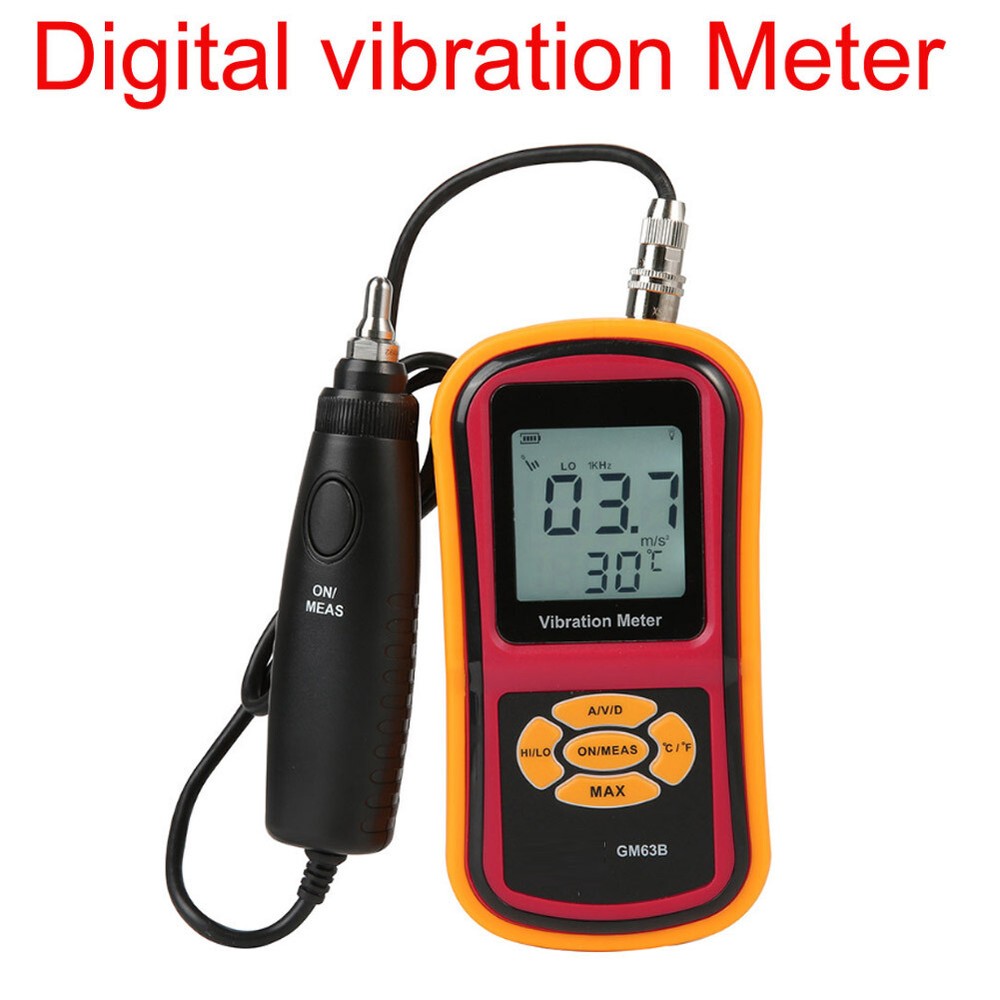

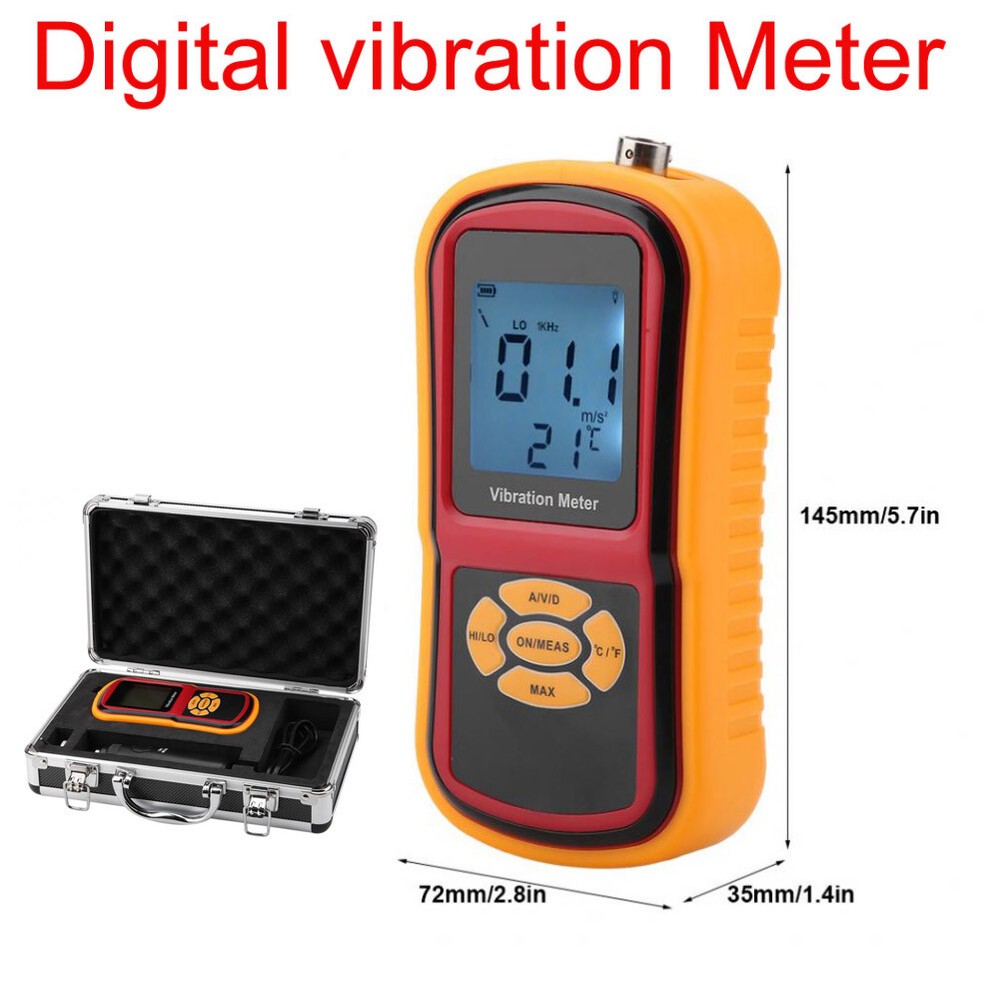

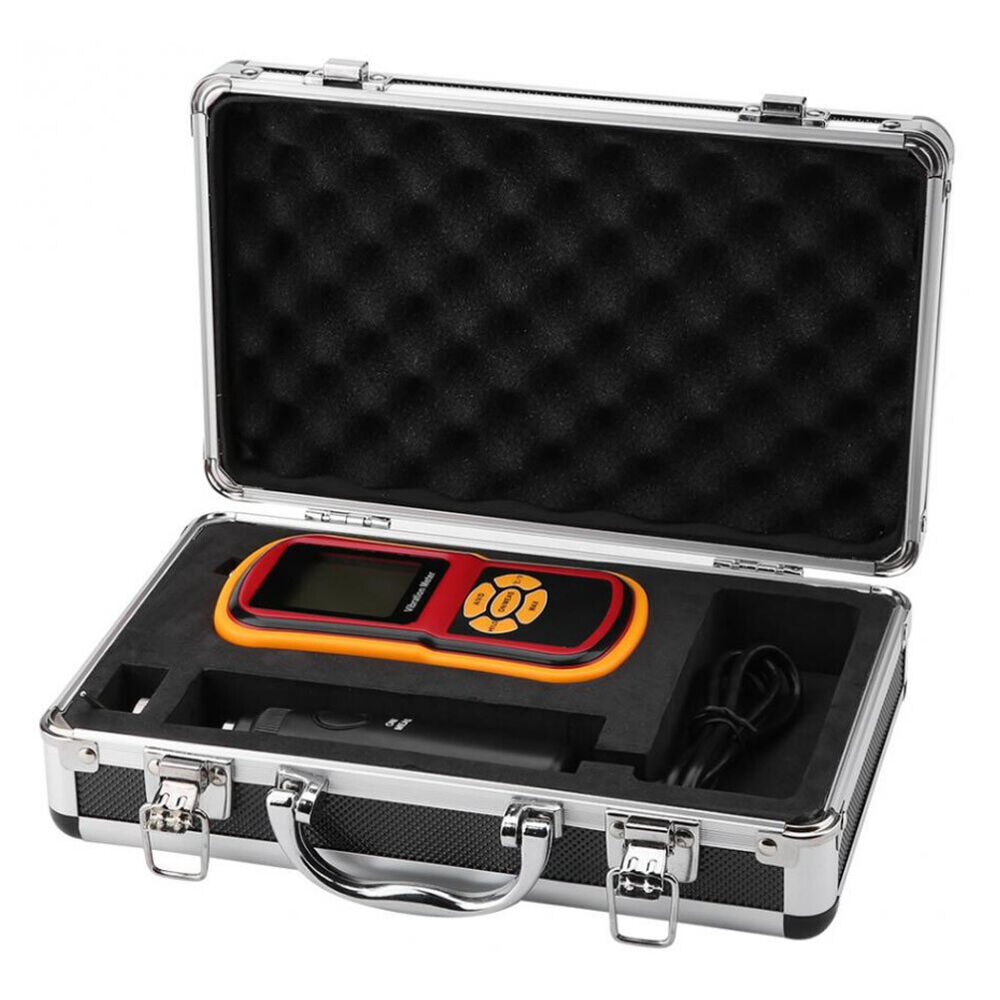

GM63B Compact Durable Digital Vibration Meter with LCD Display
$ 98.77
Description
eBay Features: 1. LCD display measurement result and conditions directly 2. Selective vibration characteristic 3. Using vibration sensor make it more accurate to measure 4. Equipped two probes (S and L) to adapt the different measurement requirement 5. Low battery indication, auto turn off function, LCD back light function, maximum value hold function, temperature unit C°/F°selection. 6. Suitable for mechanical watches, motors, fans and bearings Specification: Condition: 100% Brand New Model: GM63B Technical parameter Technical specification Vibration pickup Piezoelectric ceramic accelerometer (shear-type) Measurement range of acceleration 0.1-199.9m/s Measurement range of velocity 0.1-199.9mm/s rms Measurement range of displacement 0.001~1.999mm p-p Velocity and displacement range is limited by acceleration199.9m/s2 Measurement accuracy ±5%±2digits Measurement frequency range of acceleration 10Hz-1KHz (LO) 1KHz-15KHz (HI) Measurement frequency range of velocity 10Hz-1KHz (LO) Measurement frequency range of displacement 10Hz-1KHz (LO) Displays update cycle 1 seconds LCD display 3 1/2 digits display Single output AC output 2V peak (display full scale) Load impedance 10KΩ or more earphones can be connected Power supply 9V battery(not included) Stand-by current ≤15uA Operating current ≤25mA Battery life 20H continuous use Auto power-off function Turns off automatically after 60 seconds LCD backlight function 7 seconds Operating temperature range 0-40℃ Operating humidity range 30-90%RH Low battery indication 6.4V±0.2V Temperature range -10℃-80℃ Temperature accuracy ±2℃ Weight: Approx. 1104g / 38.9oz Size: Approx. 72*35*145mm / 2.8*1.4*5.7in Package included 1 x Vibration Meter (no including battery) 1 x English User Manual 1 x Long probe (Short probe has been equipped on the product)
We had a few initial concerns with the product but the seller stepped up to the plate and provided excellent customer service, issues resolved.
Excellent Shipping, I received the Items in the most fastest manner. Excellent Supplier. 7 Stars.......
Excellent seller. Five stars. Works well. Only took 33 days to US from China.
